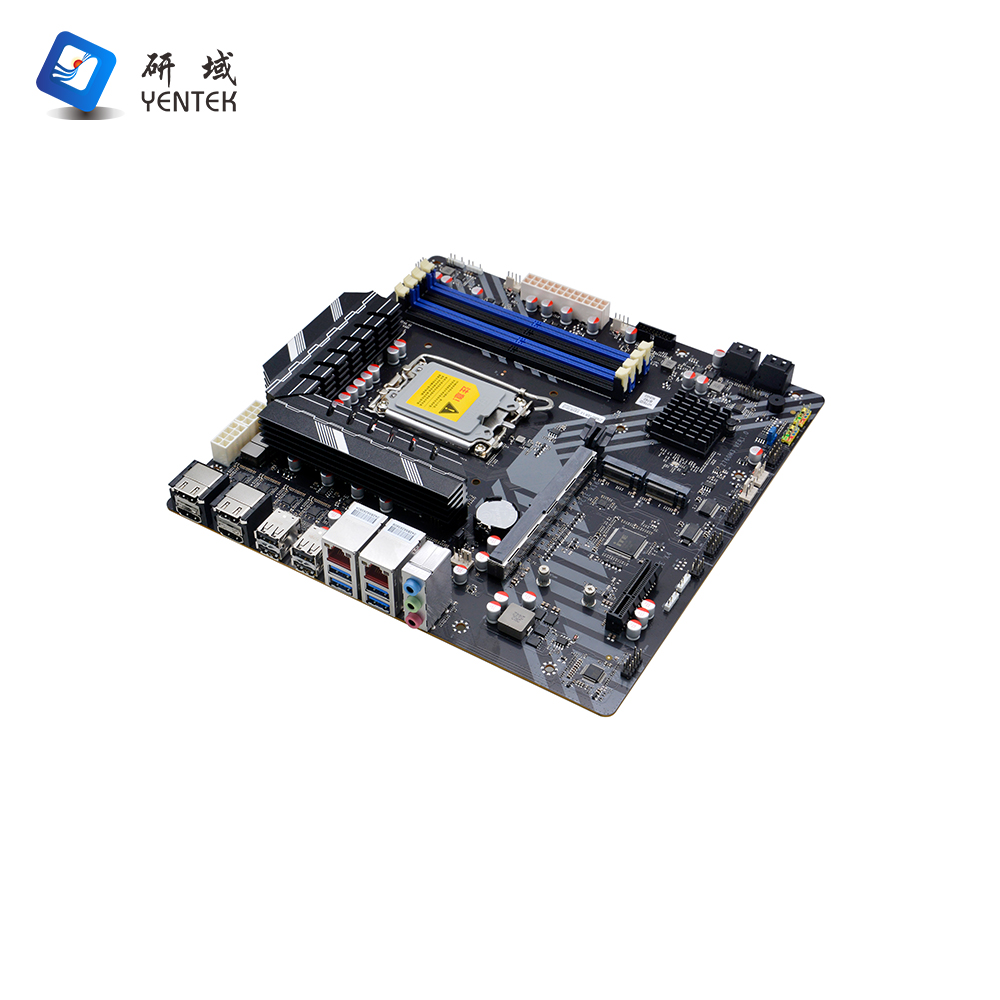

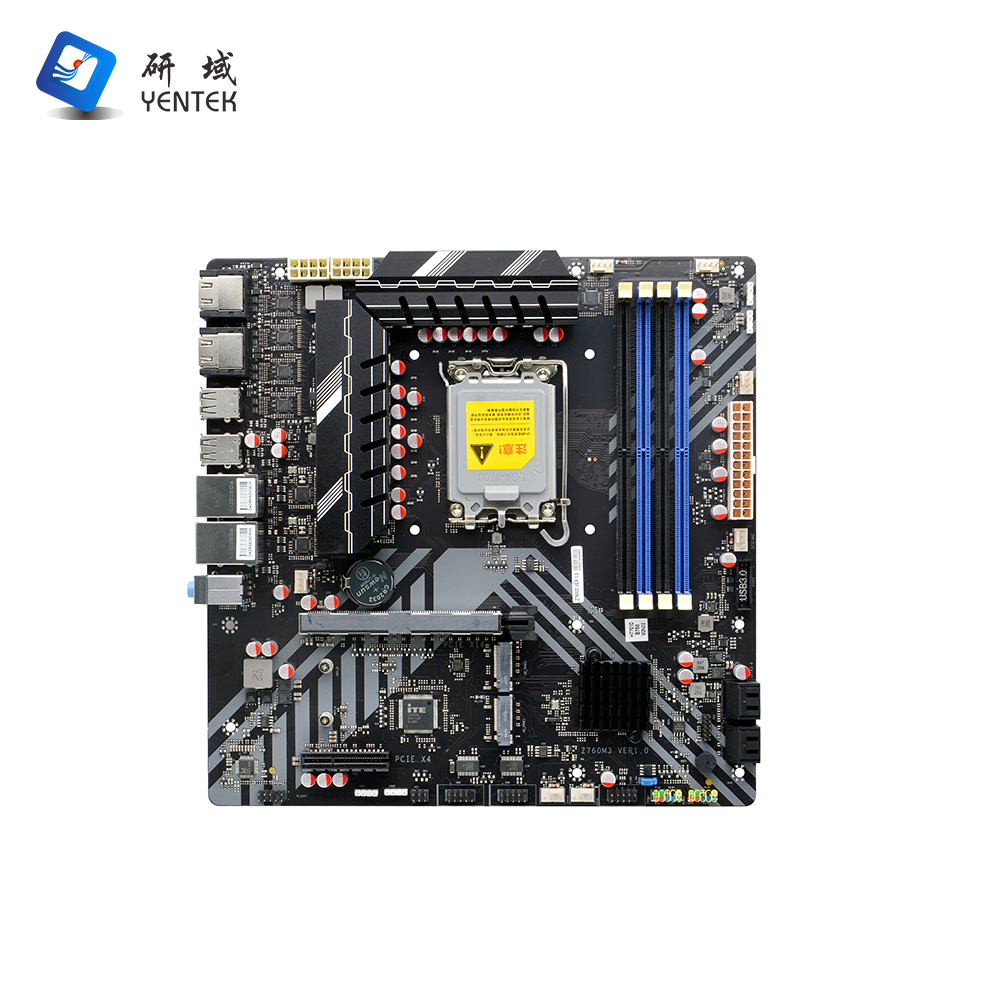

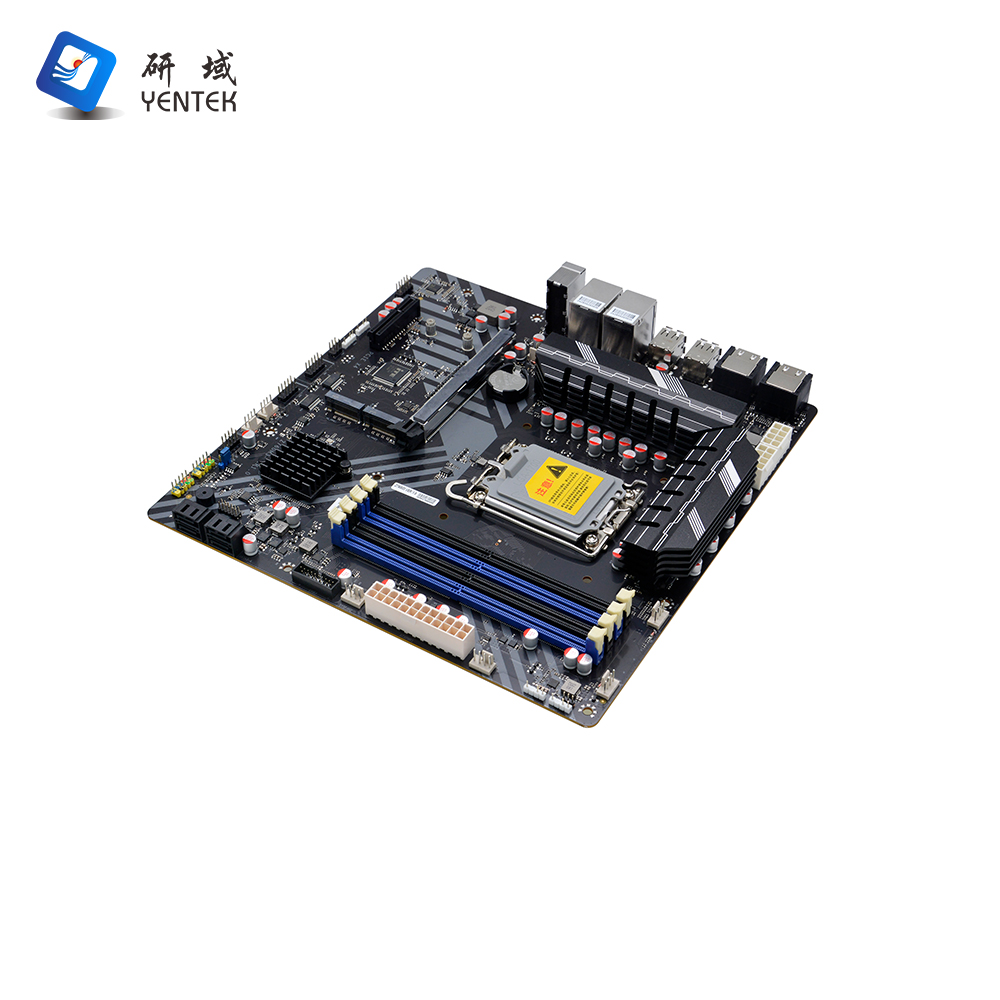

Z760M3

Processor

Supports LGA1700 12th/13th/14th   Gen Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Chipset

Features the Intel® H770 chipset

Memory

4× DDR5 DIMM memory slots, supporting dual-channel memory up to 5600MHz,   with a maximum capacity of 192GB

Display

Integrated Intel® HD Graphics with support for DirectX 12, OpenGL 4.5 and   4K display

4 x HDMI 2.0 ports, supporting a maximum resolution of 4096 x 2160 @ 60Hz

Network

2 x RTL8125B 2.5GbE network controller chips, supporting Wake-on-LAN and   PXE

Storage

4 x SATA 3.0 hard drive ports, transfer speeds up to 6Gbps, supporting   RAID 0, 1, 5, 10

1 x M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x4 SSDs (M2_NVME1)

1 x M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 SSDs (M2_NVME2)

Audio

On-board ALC897 7.1+2-channel high-fidelity audio controller, supporting   MIC/Line-out/Line-in

Expansion Slots

1 x PCIe 5.0 x16 slot

1 x PCIe 4.0 x4 slot

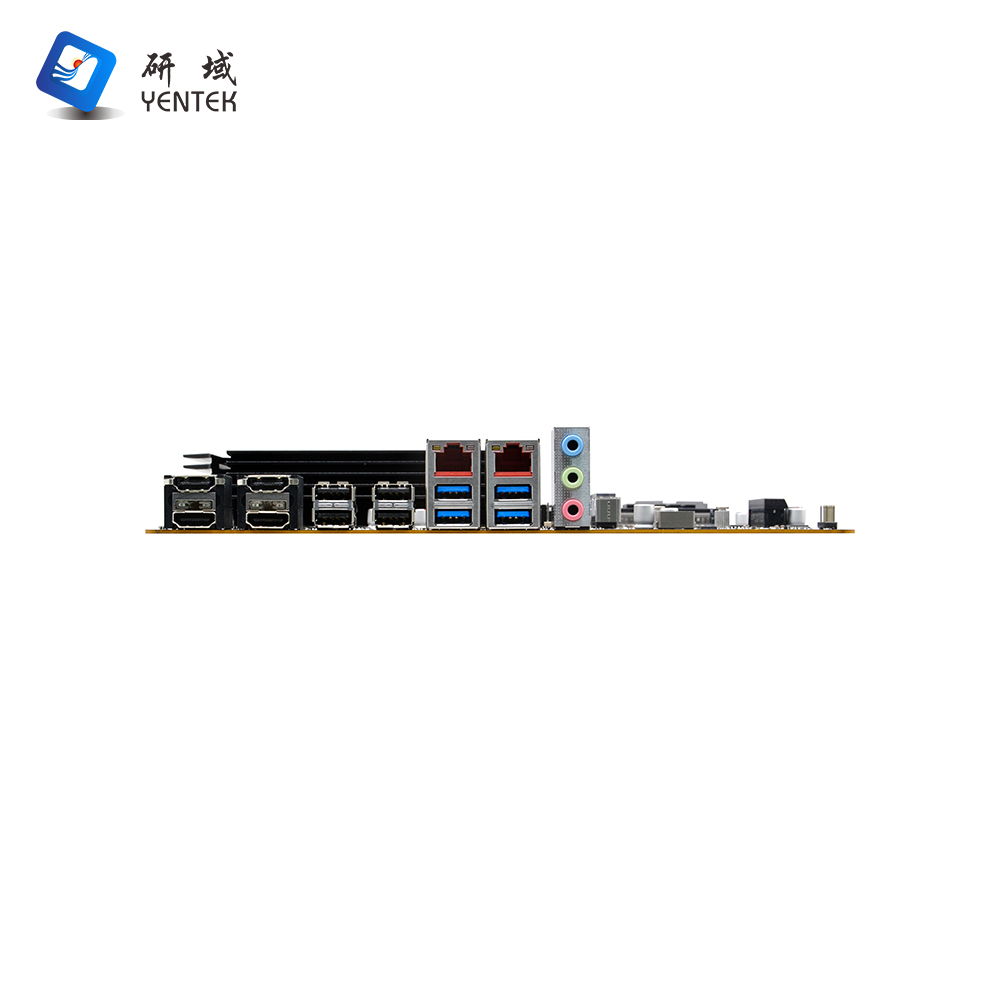

Rear Panel I/O Ports

4 x HDMI 2.0 ports

4 x USB 3.0 Type-A ports (5 Gbps)

4 x Type-A USB 2.0 ports

2 x RJ45 2.5G Ethernet ports

1 x 3-pin audio connector, supporting Line-out, MIC and Line-in

Onboard I/O Ports

2 x USB 2.0 connectors (2 x 5-pin, pitch = 2.54mm)

2 x USB 3.0 connectors (2 x 10-pin, pitch = 2.0mm)

1 x Front panel audio connector (2 x 5-pin, pitch = 2.54 mm)

2 x Front panel function button and indicator connector (2 x 5-pin, pitch   = 2.54 mm)

1 x 24-pin ATX power connector, 2 x 8-pin ATX power connectors

2 x RS232 serial ports (2 x 5-pin, pitch = 2.54 mm)

4 x ARGB header pins: 1 x 4-pin NC/3, pitch 2.54mm, supports 5V

1 x TPM interface: 2 x 6-pin, pitch 2.0mm

Fan Connectors

1 x 4-pin CPU fan connector, 5 x 4-pin system fan connectors

BIOS

128MB Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Powered via ATX 24-pin and 8-pin connectors

Operating Temperature

0°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

245mm x 245mm
