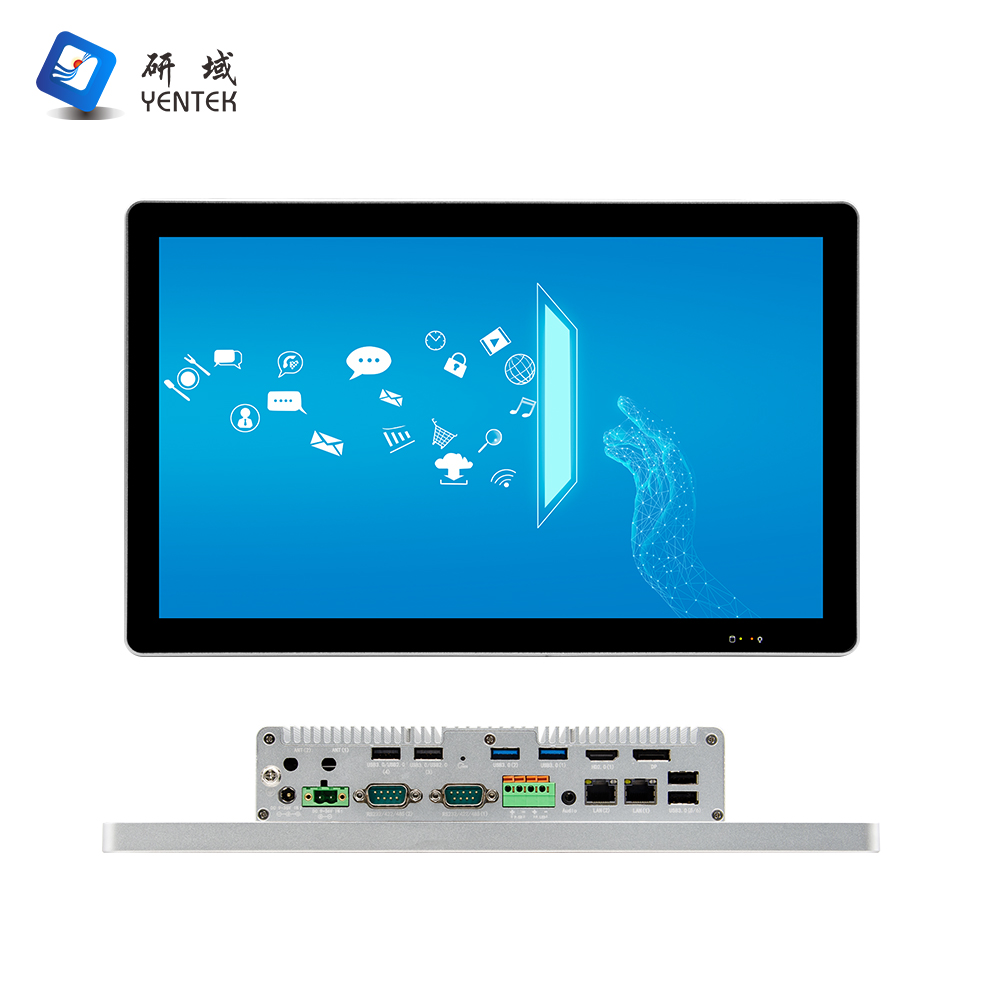

P1382Y-C2

Chassis

Material/Construction

Aluminium alloy construction,   fanless cooling design

Colour

Silver

Dimensions (LWH)

L326.7 × W201.7 × H58 mm

Weight accessories)

2.3 kg

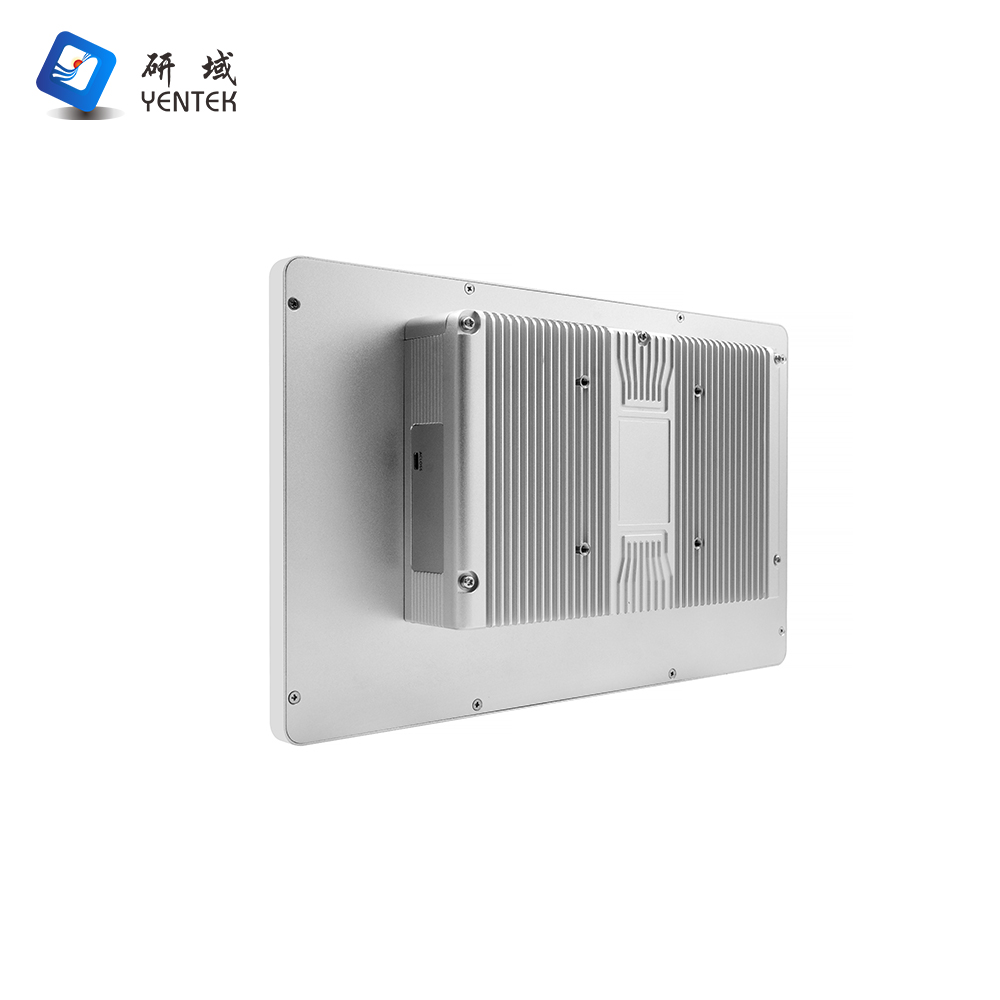

Installation

VESA-compatible (75 × 75)

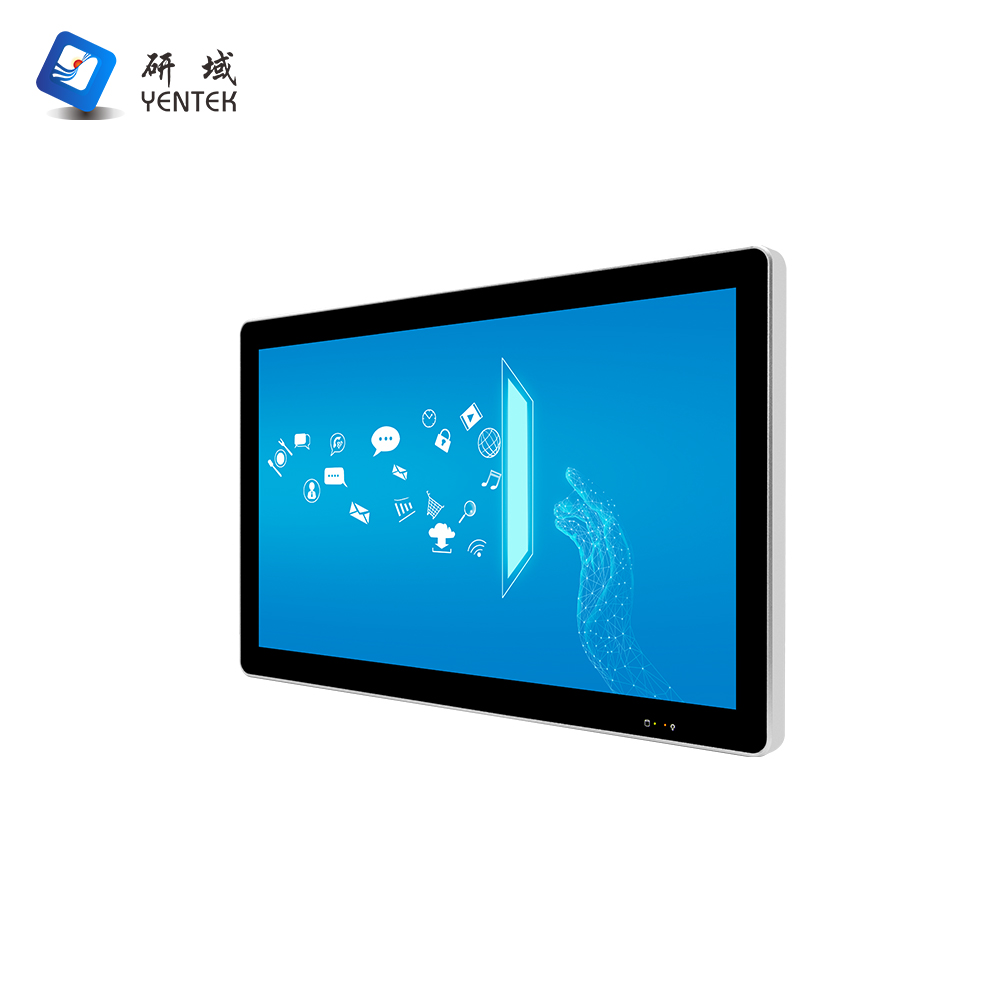

LCD screen

Type

13.3-inch LCD, widescreen, 16:9

Resolution

1920 × 1080

Brightness

300 cd/m²

Touchscreen

Type

Capacitive touchscreen, 10-point   touch

Transmittance

Over 86%

Motherboard

CPU

Integrated Intel® Celeron   J6412/2.00GHz/Turbo 2.60GHz quad-core, quad-thread processor, TDP 10W

Graphics

Integrated Intel® UHD Graphics

Memory

2 x SODDR4 3200MHz, supports up   to 16GB

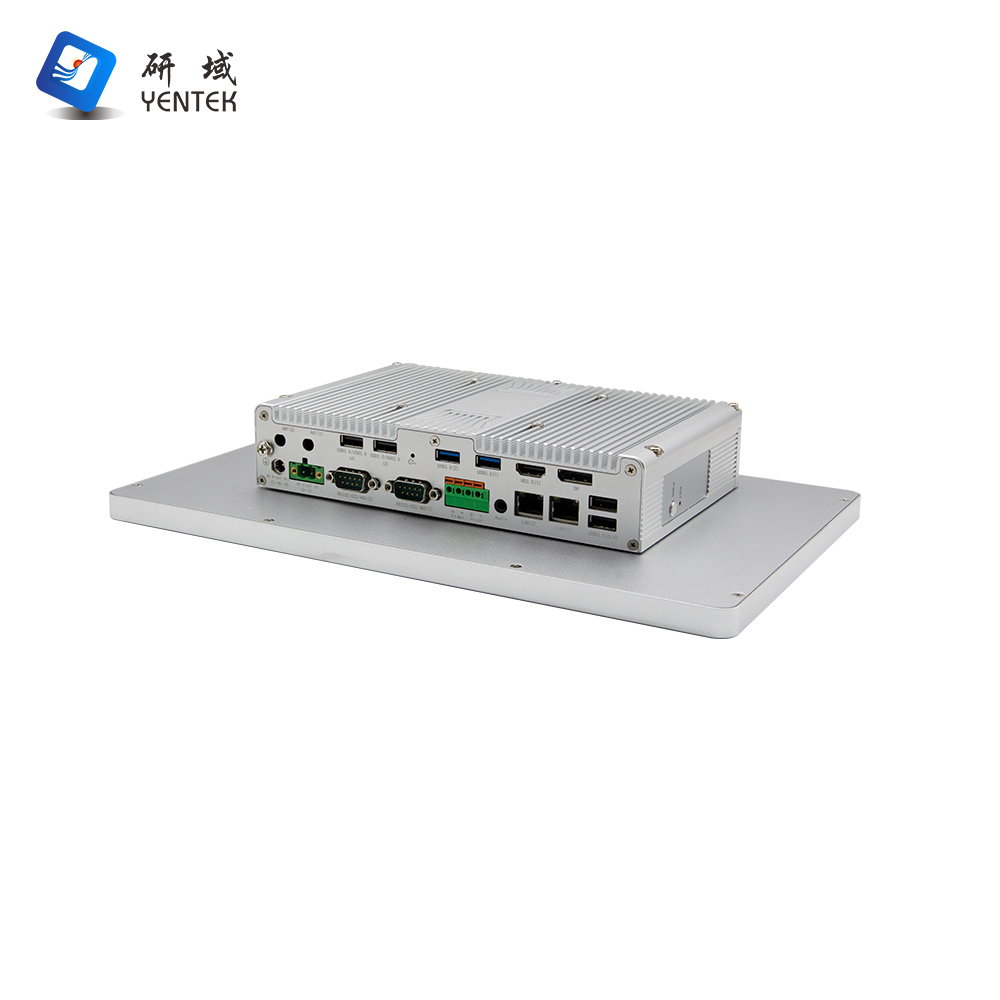

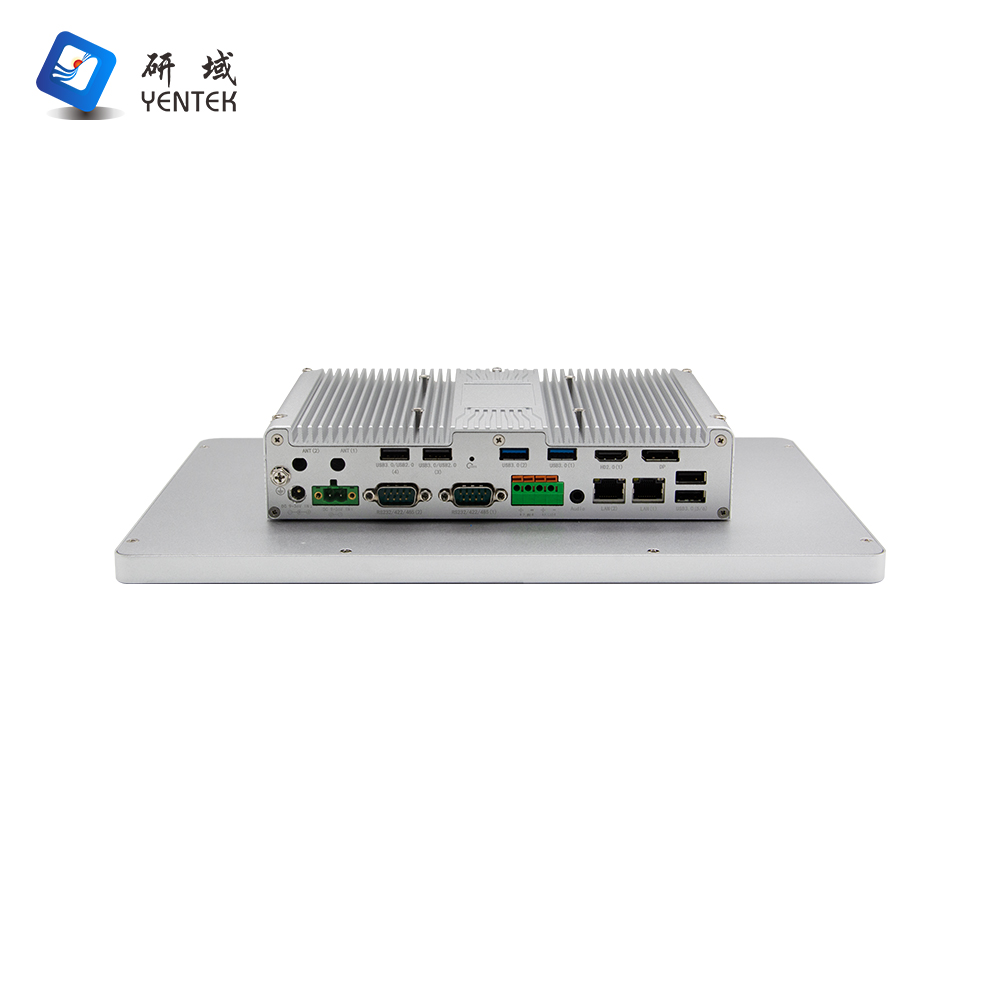

I/O ports

Power

1 x Power button, 1 x One-touch   restore, 1 x ACLOSS (power-on jumper switch), 1 x CMOS reset switch

LED

1 x Power indicator, 1 x Hard   drive indicator

Display Interface

1 x HDMI (4096 × 2160 @ 60Hz), 1   x DP (4096 × 2160 @ 60Hz)

LAN

2× RTL8111H Gigabit Ethernet   ports, supporting Wake-on-LAN and PXE

USB

2× USB 3.0, 2× USB 2.0

COM

2× RS232/422/485/CAN DB9 serial   ports (supports CAN, requires CAN module)

Remote Switch

1× Power indicator signal, 1×   Power switch signal (located on 1× 4-pin Phoenix connector)

Audio

1 x Audio, combined line-out and   microphone

Power Supply

1 x DC (5.5 x 2.5 mm) connector   or 1 x 2-pin (P = 5.08 mm) Phoenix connector, supporting 9V–36V wide-voltage   input

Storage

mSATA

1 x mSATA

SSD

1 x M.2, supporting Key-M, 2280,   SATA SSD (I/O board side)

1 x M.2, supports Key-M, 2280,   NVMe PCIe x2 SSD (Motherboard side)

Expansion

Wi-Fi

1 x M.2, supports Key-E, 2230,   Wi-Fi module

4G

1 x Mini PCIe, supports 4G

System compatibility

Windows

Windows 10

Linux

Ubuntu

Watchdog

Supports hardware reset function   (256 levels, 0–255 seconds)

Power requirements

Power Supply Type

DC 9–36V wide voltage range

Power Output

AC to DC 60W (depending on   specific device)

Environmental requirements

Operating Temperature

–10°C to 50°C

Storage Temperature

–20°C to 70°C

Relative Humidity

5%–95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random

1

P1382Y-C2 V2.0(J6412)

J6412/2.0G

2*SODDR4

Q642HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx2)

2*8111H

2

1

2

2

9~36V

2

P1382Y-C2 V2.0(7300U)

I5-7300U/2.6G

2*SODDR4

Q68HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

2

9~36V

3

P1382Y-C2 V2.0(8260U)

I5-8260U/1.6G

2*SODDR4

Q82HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

2

9~36V

4

P1382Y-C2 V2.0(10210U)

I5-10210U/1.6G

2*SODDR4

Q102HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

2

9~36V

5

P1382Y-C2 V2.0(11135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V

6

P1382Y-C2 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

Q305HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V

7

P1382Y-C2 V2.0(N305)

I3-305/Turbo 3.8G

1*SODDR4

Q305HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

4

2

9~36V

8

P1382Y-C2 V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q112HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

4

9~36V
