P1382X-C2

Chassis

Material/structure

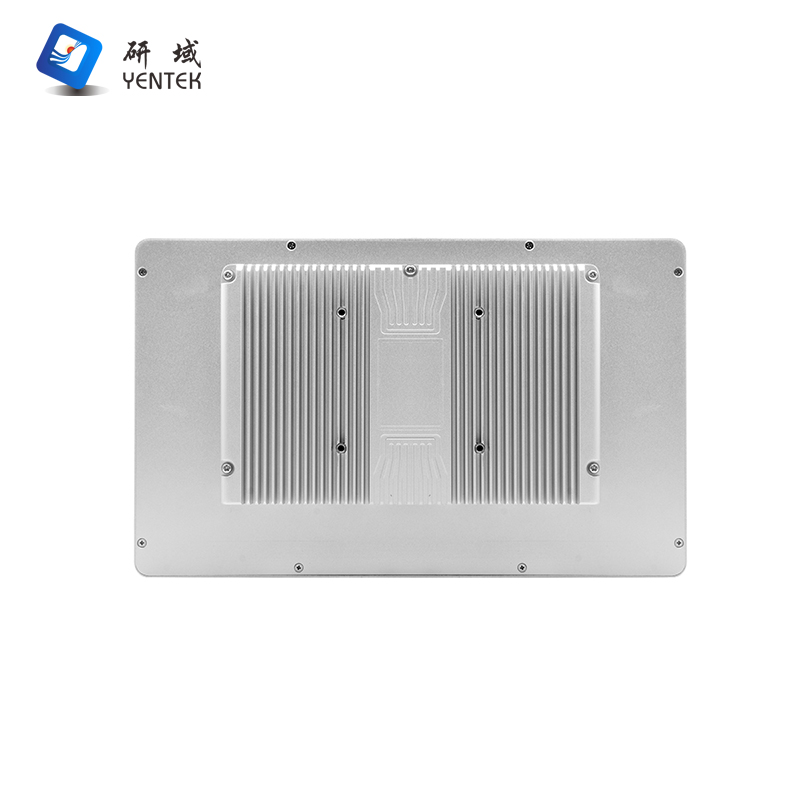

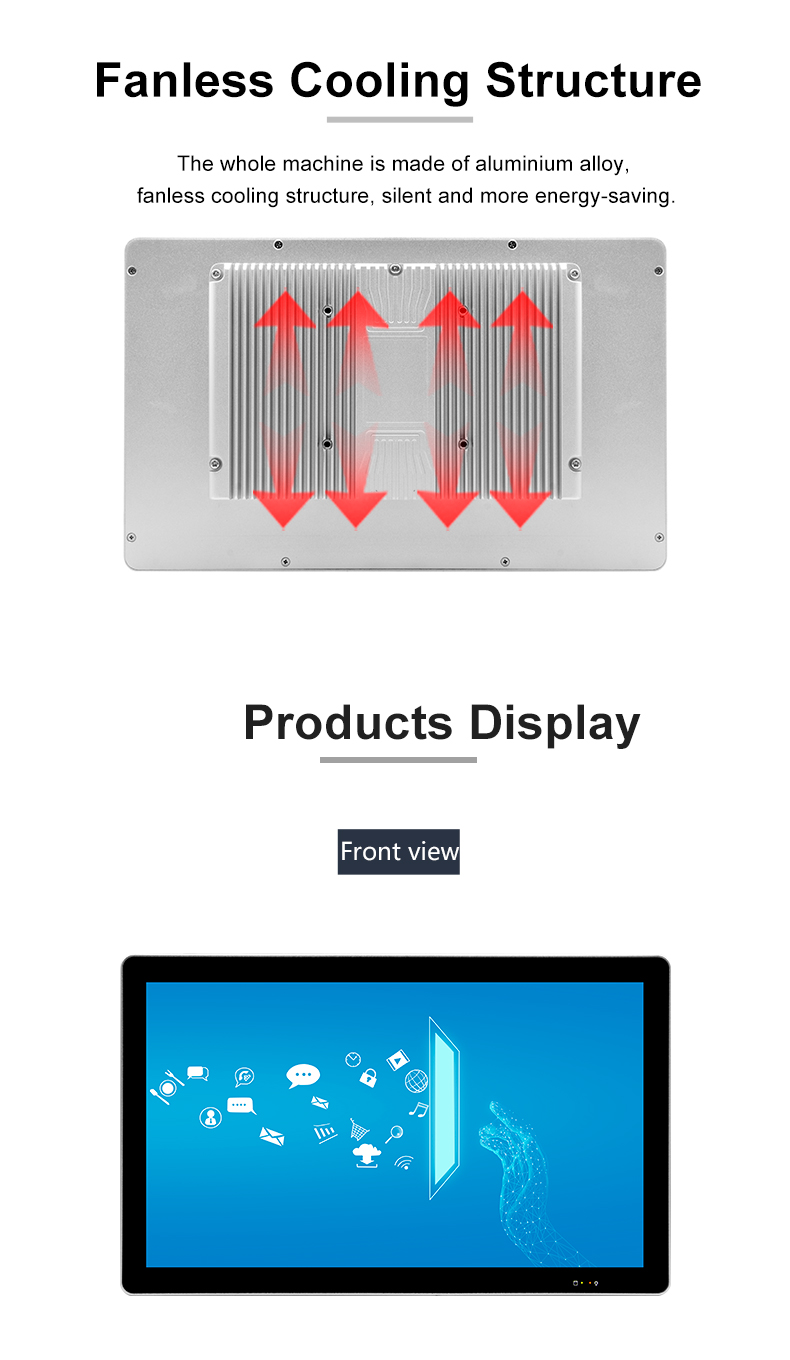

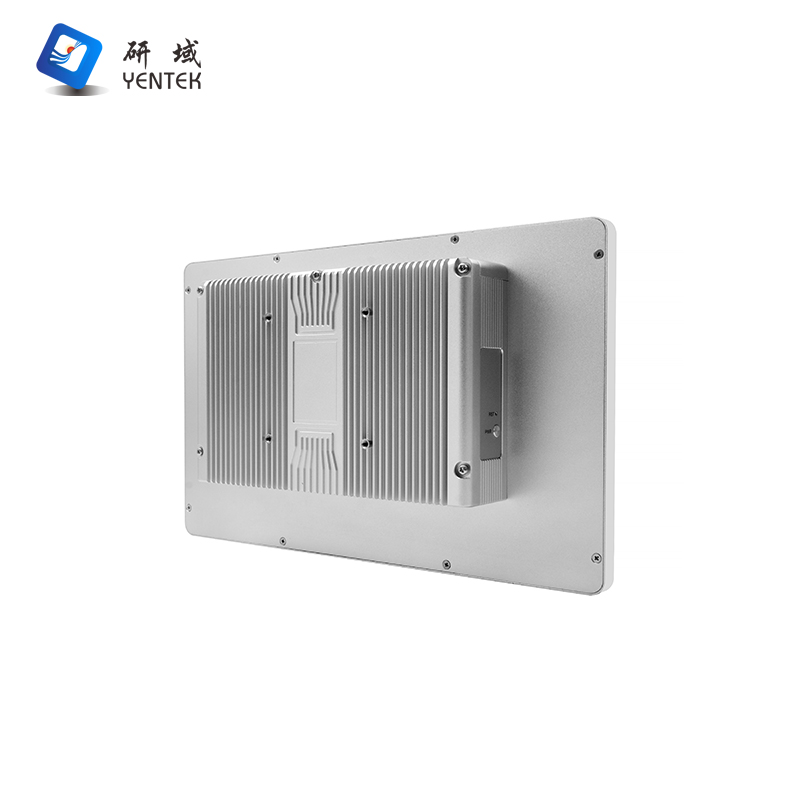

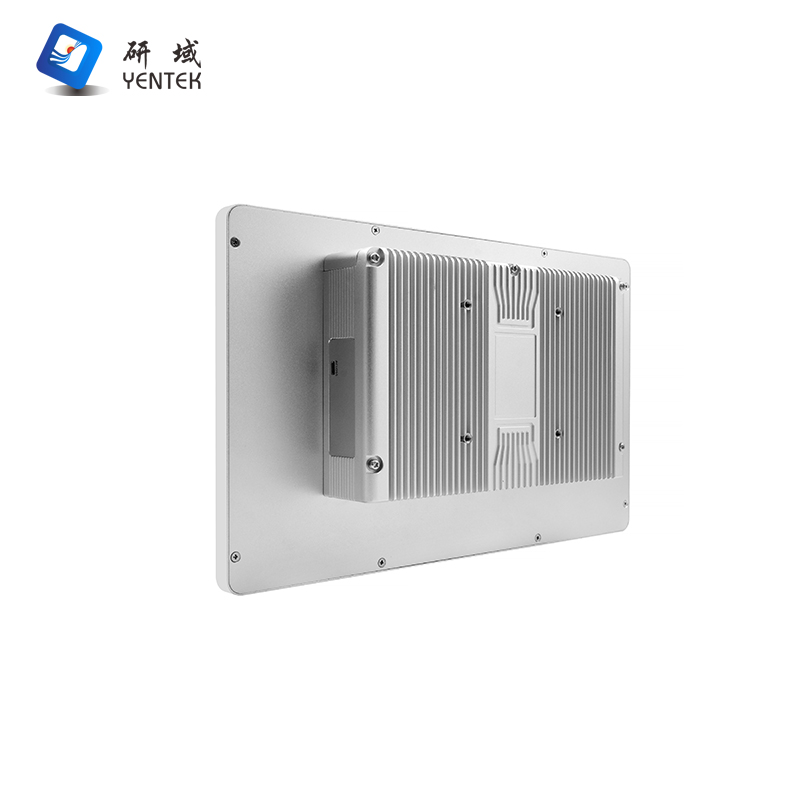

Aluminum alloy material, no fan   heat dissipation structure

Color

silvery

Size

L326*W201*H56mm

Weight

2.3KG

Install

Supports VESA/Embedded   installation

LCD  screen

Type

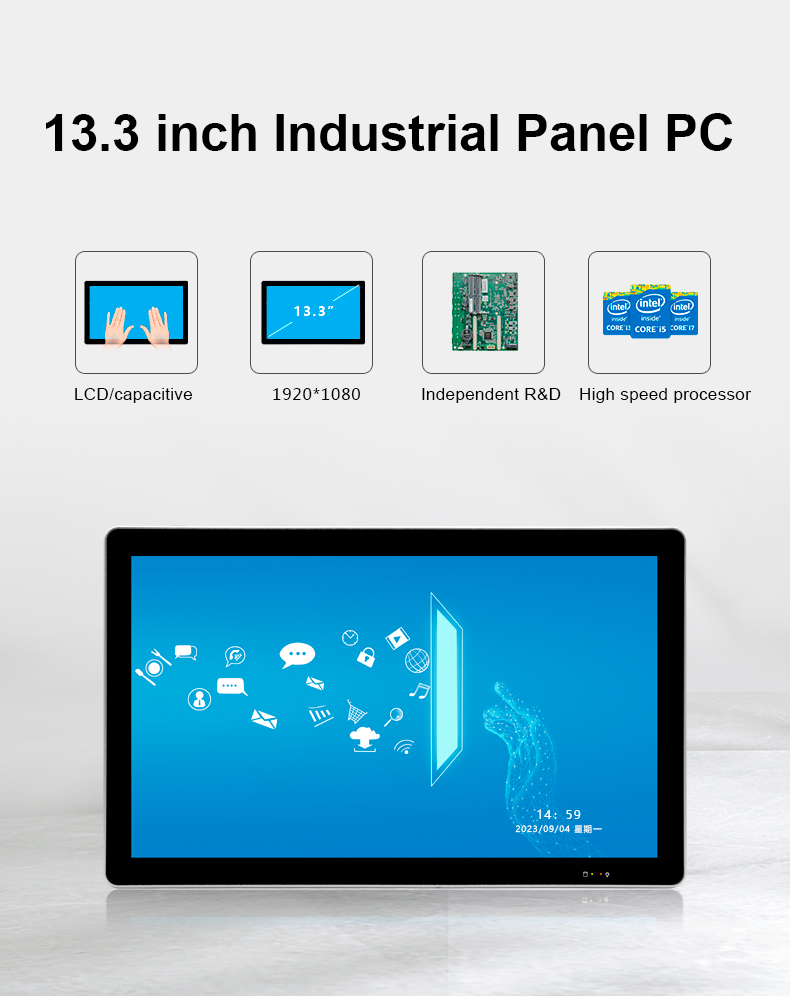

13.3-inch LCD, widescreen, 16:9

Resolution ratio

1920 * 1080

Luminance

300 cd/m2

 Touch   screen

Type

Capacitive screen, 10 point   touch

Light transmittance

More than 86%

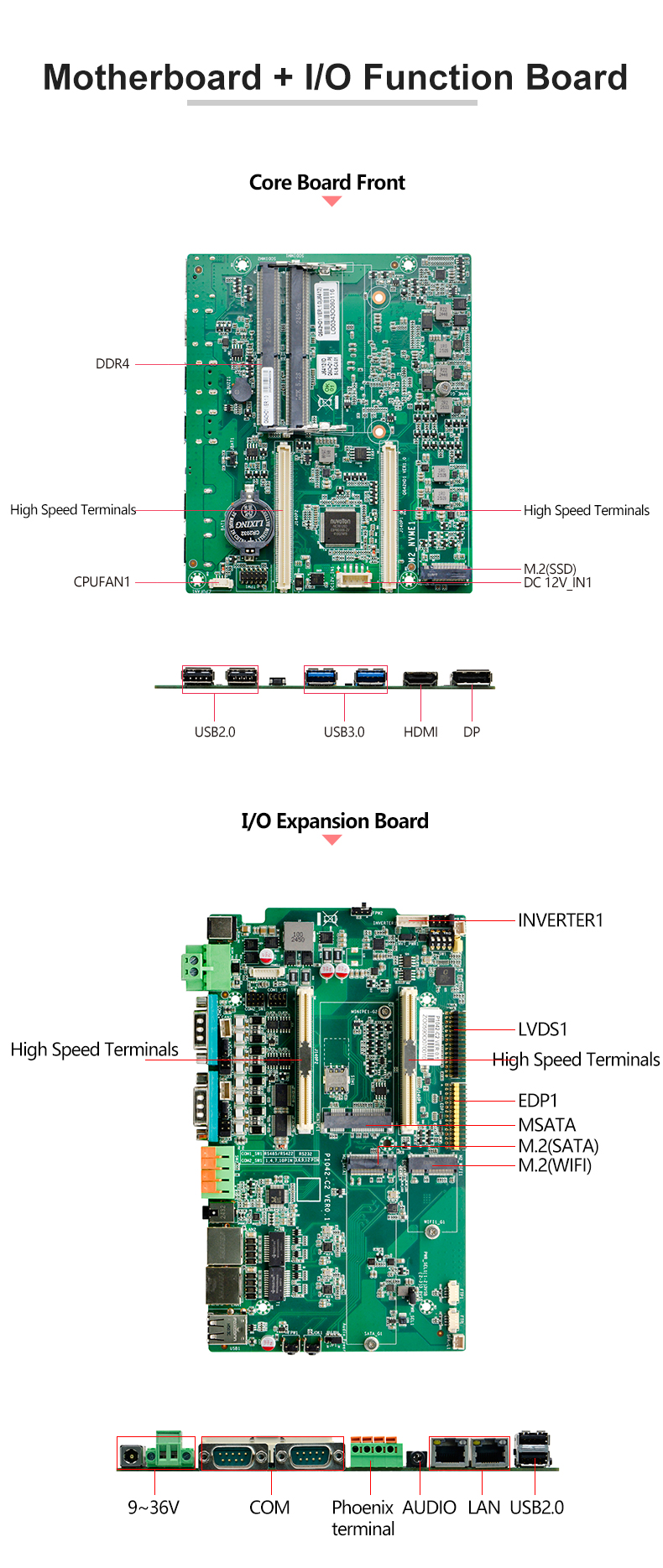

 Motherboard

CPU

Integrated Intel® Alder Lake-N   N97 3.6GHz quad-core processor with TDP 12W

Show

Integrated with Intel® Iris Xe   Graphics available

Internal storage

1*SODDR4 3200MHz, up to 32GB

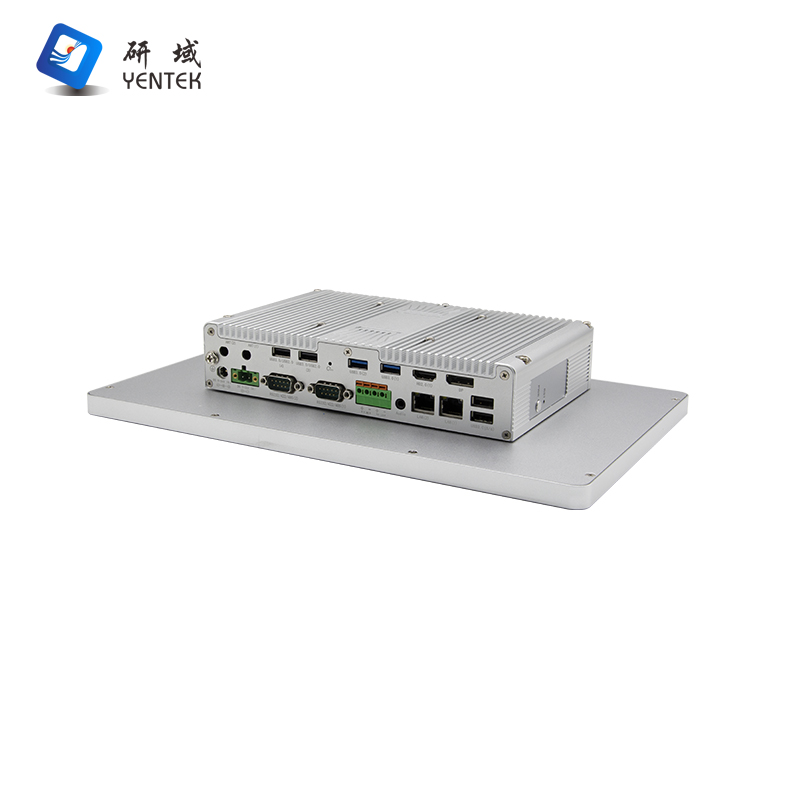

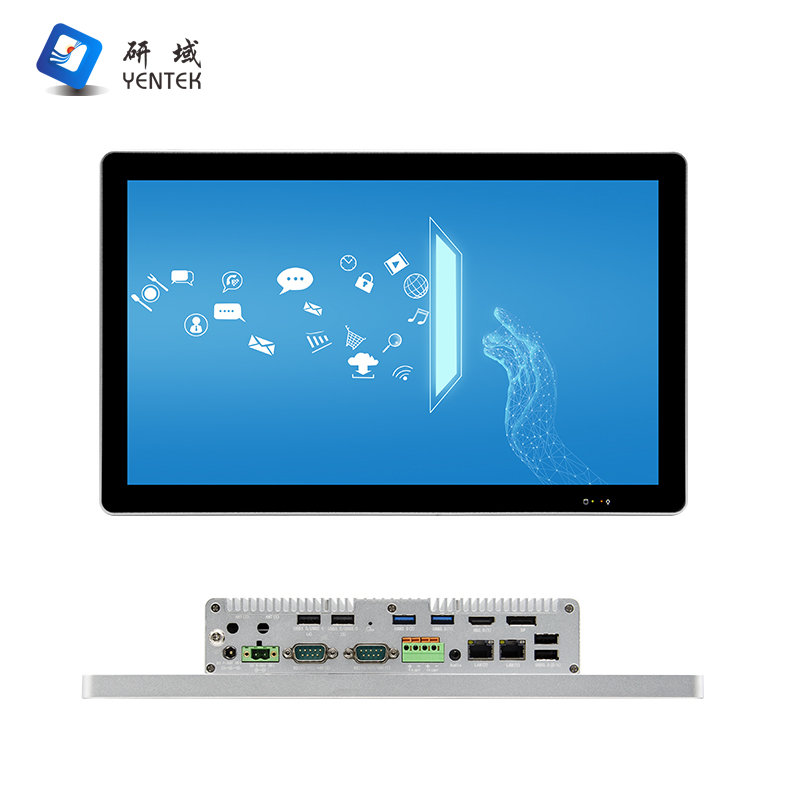

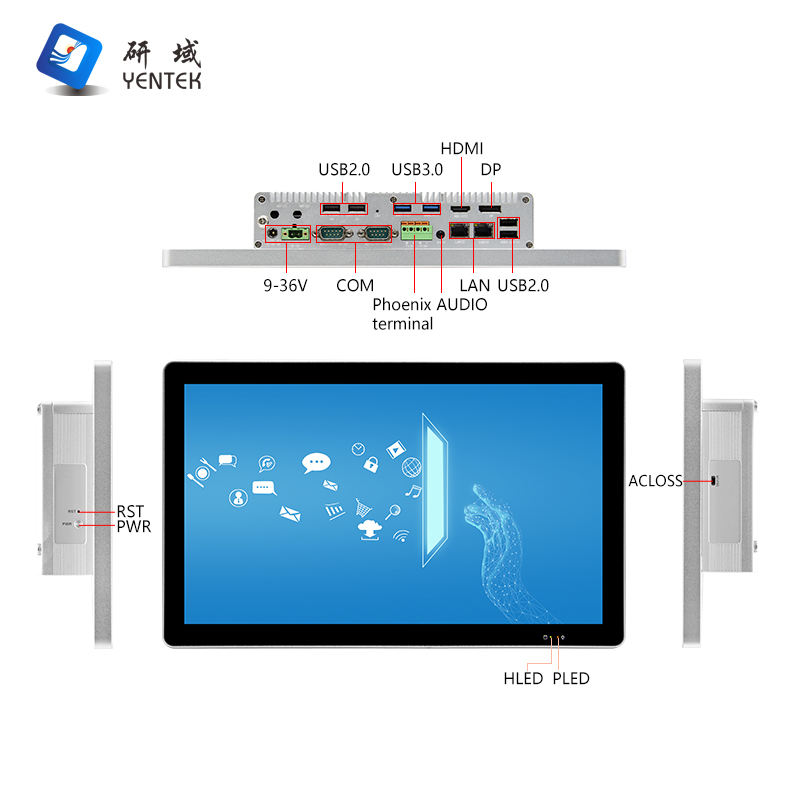

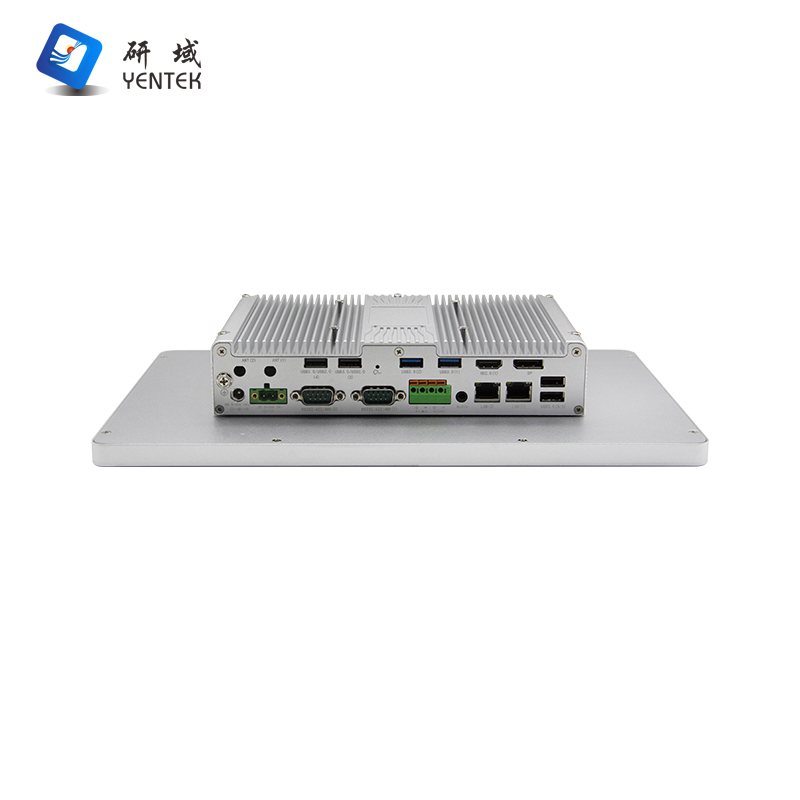

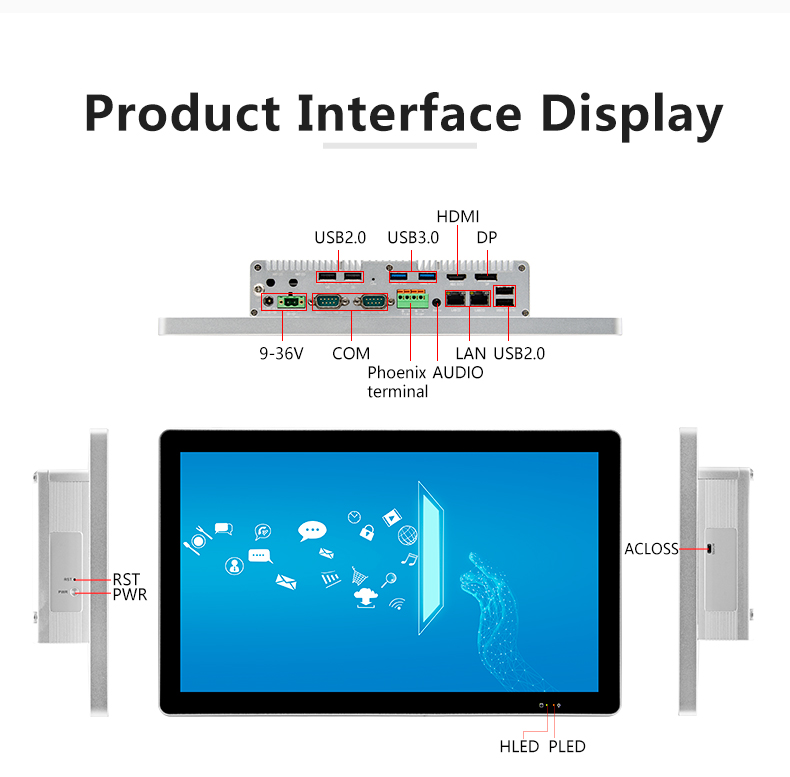

IO Interface

POWER

1* Power on button, 1* Restore   button, 1* ACLOSS (power on and switch the code switch), 1* CMOS reset switch

LED

1* Power indicator light, 1*   Hard disk indicator light

Display interface

1*HDMI1.4(4096*2304@60Hz)，1*DP(4096*2304@60Hz)

LAN

2*RTL8111H Gigabit network card,   supports network wake up and PXE function

USB

2*USB3.0，2*USB2.0

COM

2* RS232/422/485/CAN DB9 serial   port (CAN is supported, CAN module needs to be loaded)

Remote   switch

1* Power   indicator signal, 1* power switch signal (1*4P Fenghuang terminal)

Audio frequency

1* Audio, Line out and MIC are   combined

Source

1*DC (5.5*2.5) interface or 1*2P   phoenix terminal, supporting 9V~36V wide voltage input

 Memory

SSD

1.M.2, supports Key-M, 2280,   SATA SSD

1.M.2, supports Key-M, 2280,   NVME PCIEX2 SSD

 Expand

WiFi

1.M.2, support Key-E, 2230, WIFI   module

4G

1* MINNIPCIE, support 4G

System support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power requirements

Type of   power supply

DC 9-36V   wide voltage

Power output

AC to DC 60W (depending on   specific equipment)

 Environment

Working temperature

-10℃～50℃

Storage temperature

-20℃～70℃

Relative humidity

5%-95% relative humidity, no   condensation

 Shake

0.5g rms/5-500HZ/random

1

P1382X-C2 V2.0(J6412)

J6412/2.0G

2*SODDR4

Q642HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx2)

2*8111H

2

1

2

2

9~36V

2

P1382X-C2 V2.0(7300U)

I5-7300U/2.6G

2*SODDR4

Q68HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

2

9~36V

3

P1382X-C2 V2.0(8260U)

I5-8260U/1.6G

2*SODDR4

Q82HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

/

4

9~36V

4

P1382X-C2 V2.0(10210U)

I5-10210U/1.6G

2*SODDR4

Q102HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

/

4

9~36V

5

P1382X-C2 V2.0(11135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

/

4

9~36V

6

P1382X-C2 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

Q305HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

2

9~36V

7

P1382X-C2 V2.0(N305)

I3-305/Turbo 3.8G

1*SODDR4

Q305HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

2

2

9~36V

8

P1382X-C2 V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q112HD1

P1042-C2/P1082-LED

M.2(SATA)+M.2(NVMEx4)

2*8111H

2

1

/

4

9~36V
