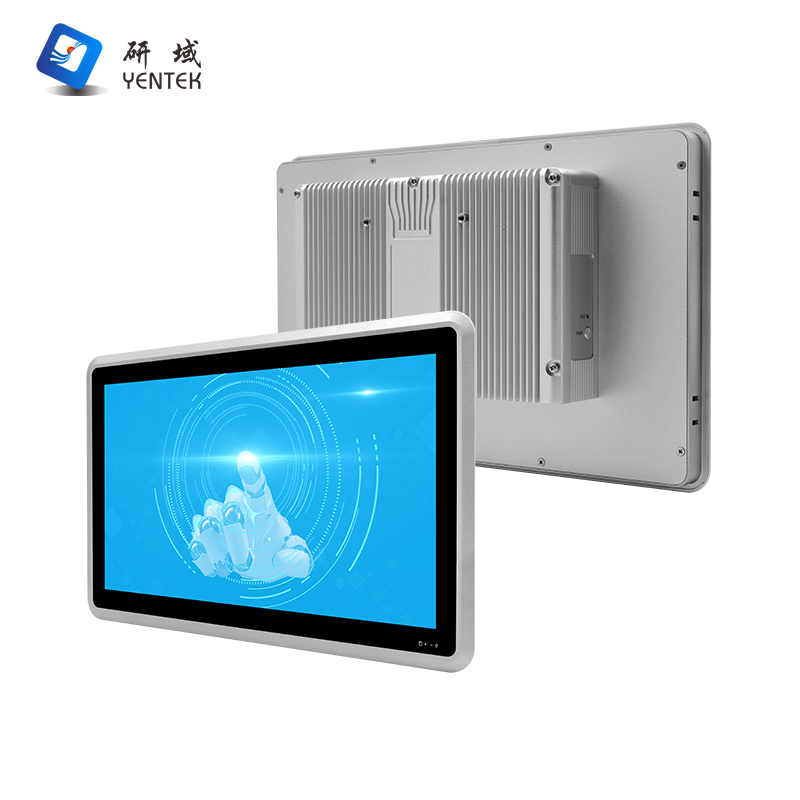

Model | P1381Y-C2 V2.0(J6412) |

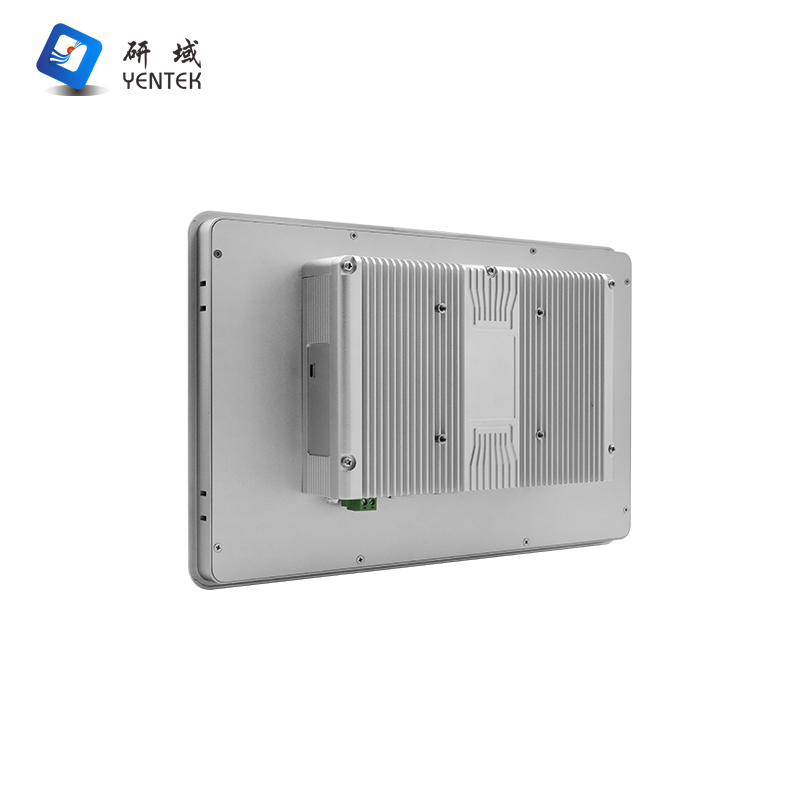

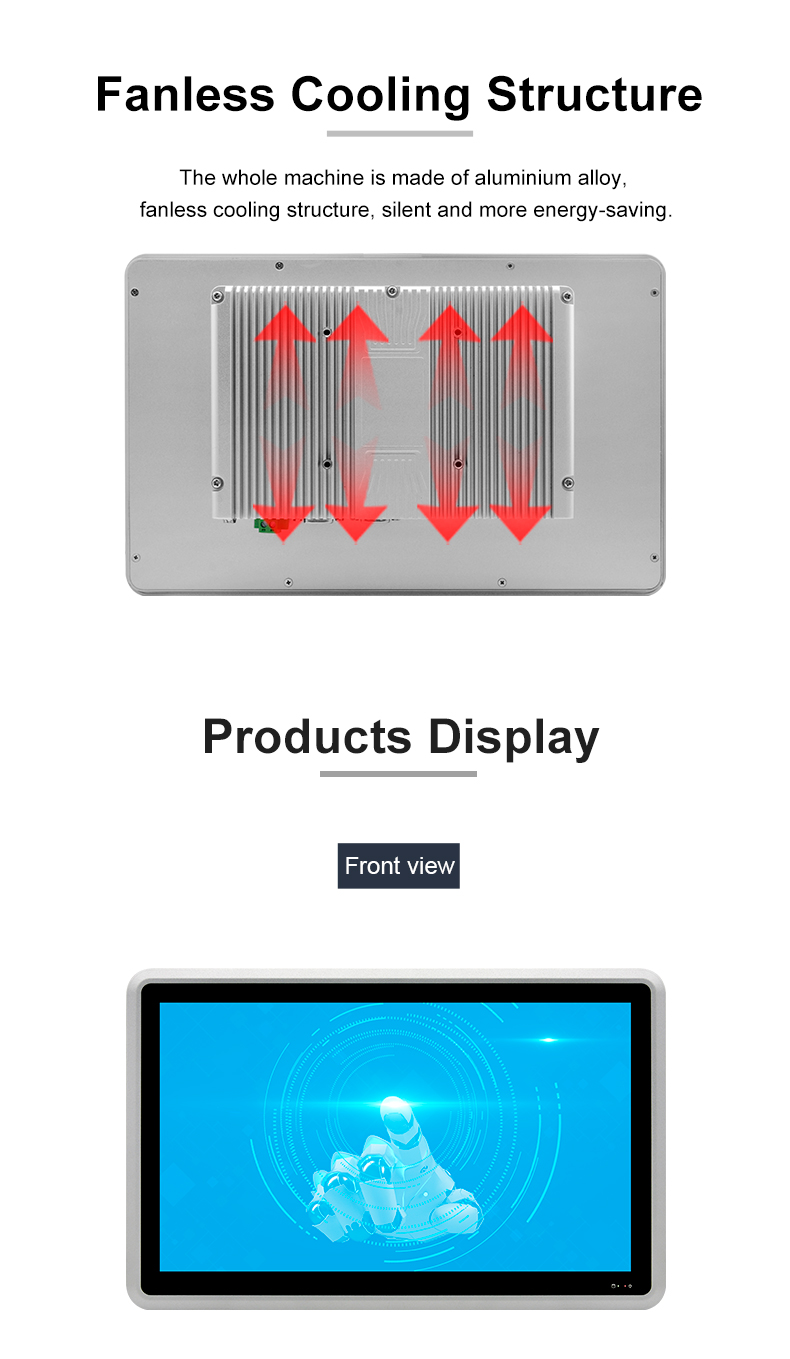

Chassis | Material/Construction | Aluminium alloy construction, fanless cooling design |
Colour | Silver |

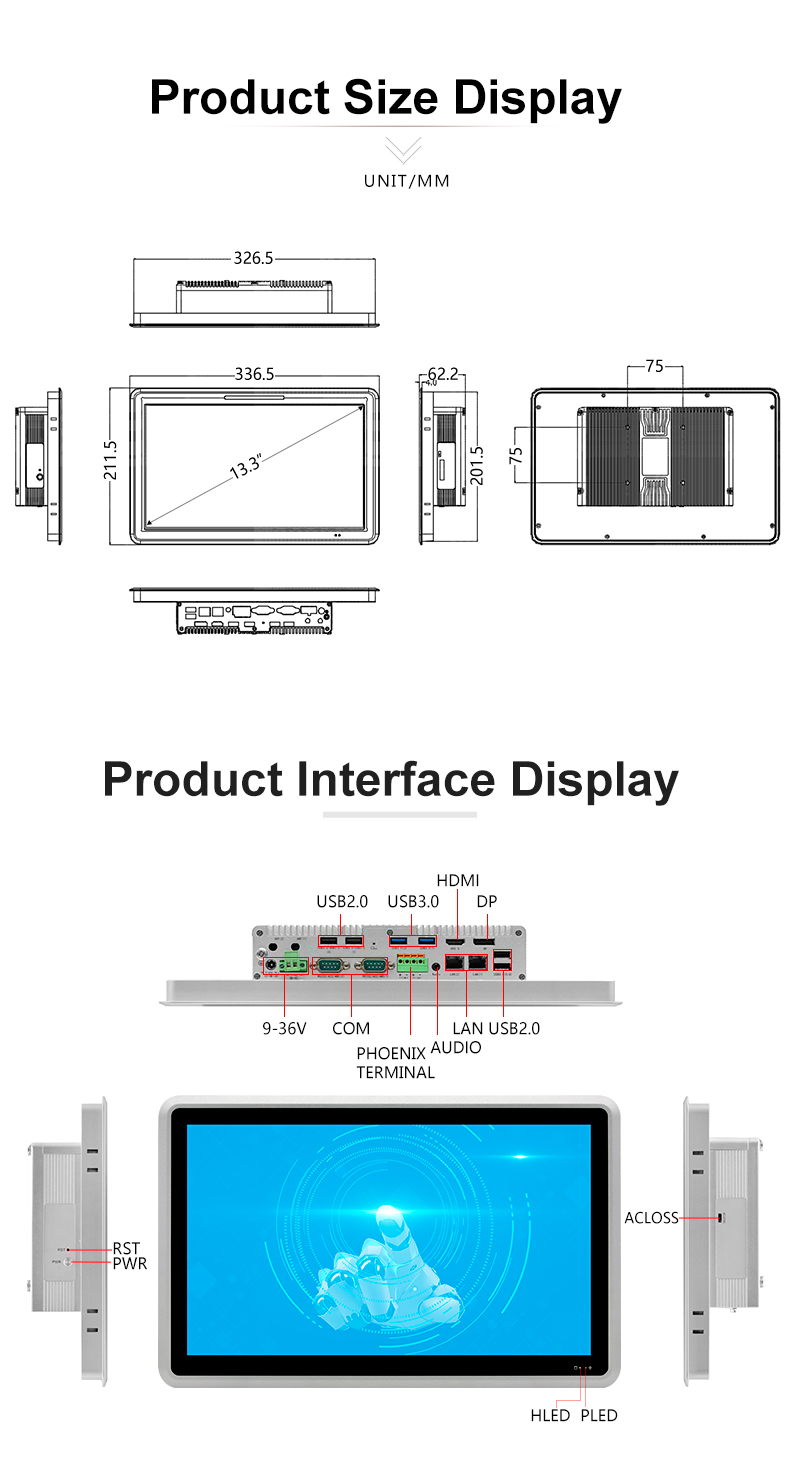

Dimensions | L336.5 × W211.5 × H62.2 mm |
Weight accessories) | 2.3 kg |

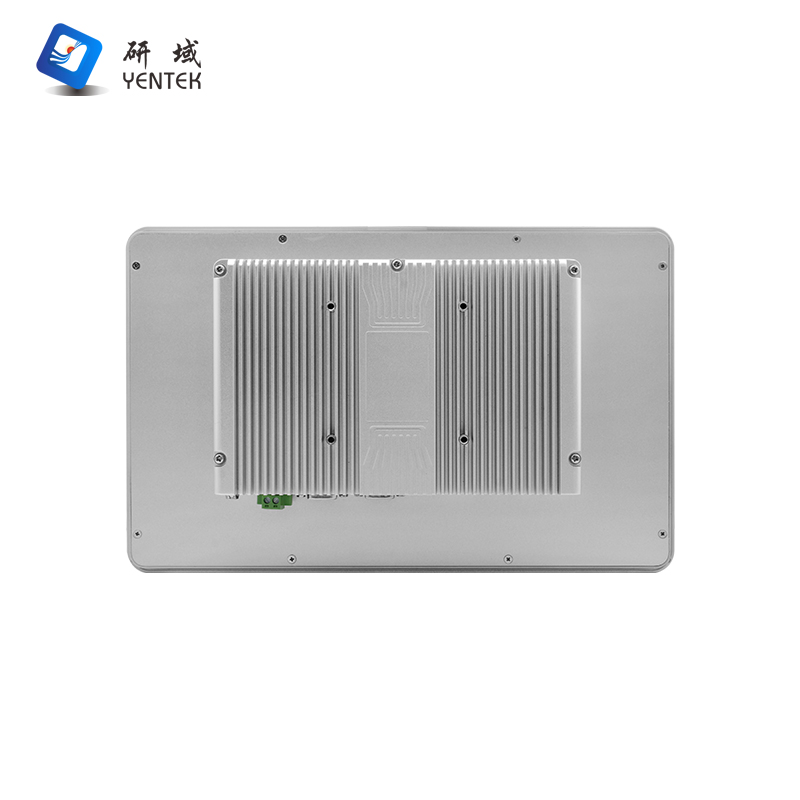

Mounting | Supports VESA (75 × 75) / flush-mount installation |

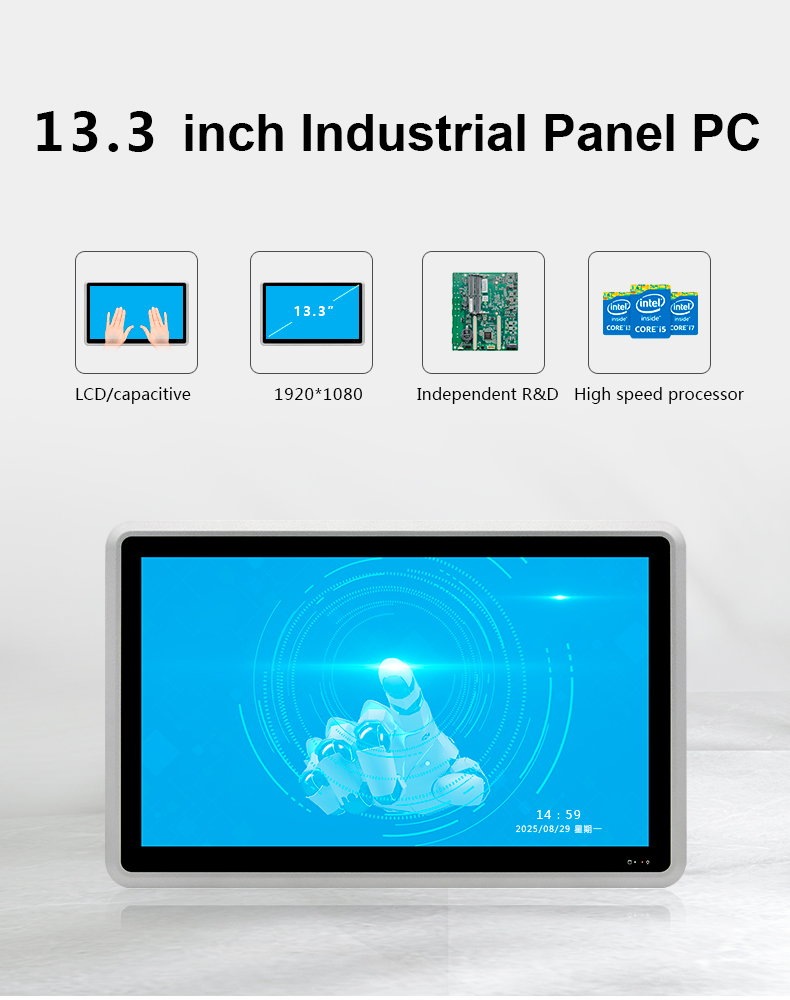

LCD Display | Type | 13.3-inch LCD, widescreen, 16:9 |
Resolution | 1920 × 1080 |
Brightness | 250 cd/m² |
Touchscreen | Type | Capacitive touchscreen, 10-point touch |
Transmittance | Over 86% |

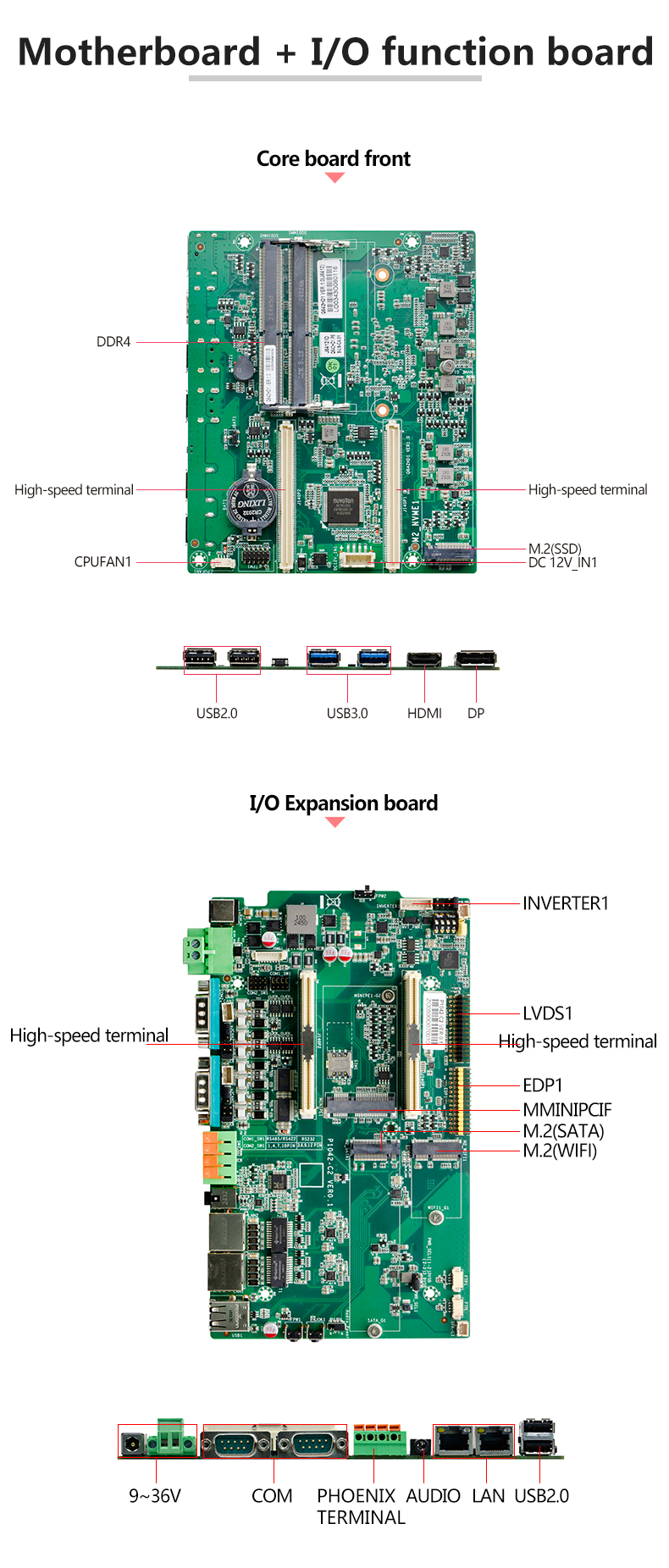

Motherboard | CPU | Integrated Intel® Celeron J6412/2.00GHz quad-core quad-thread processor, TDP 10W |
Display | Integrated Intel® UHD Graphics |
Memory | 2x SODDR4 3200MHz, supports up to 16GB |

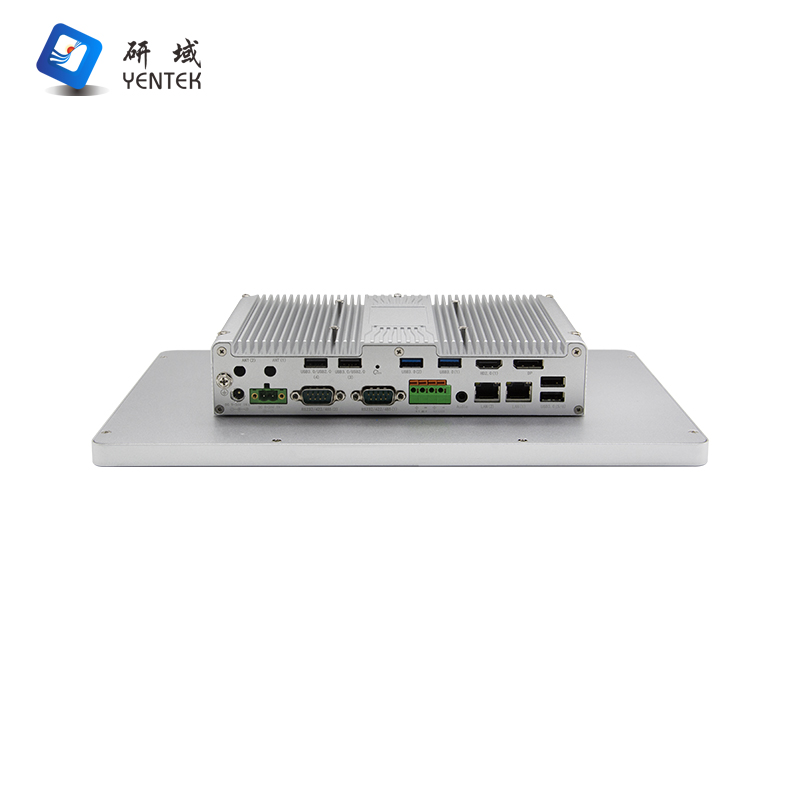

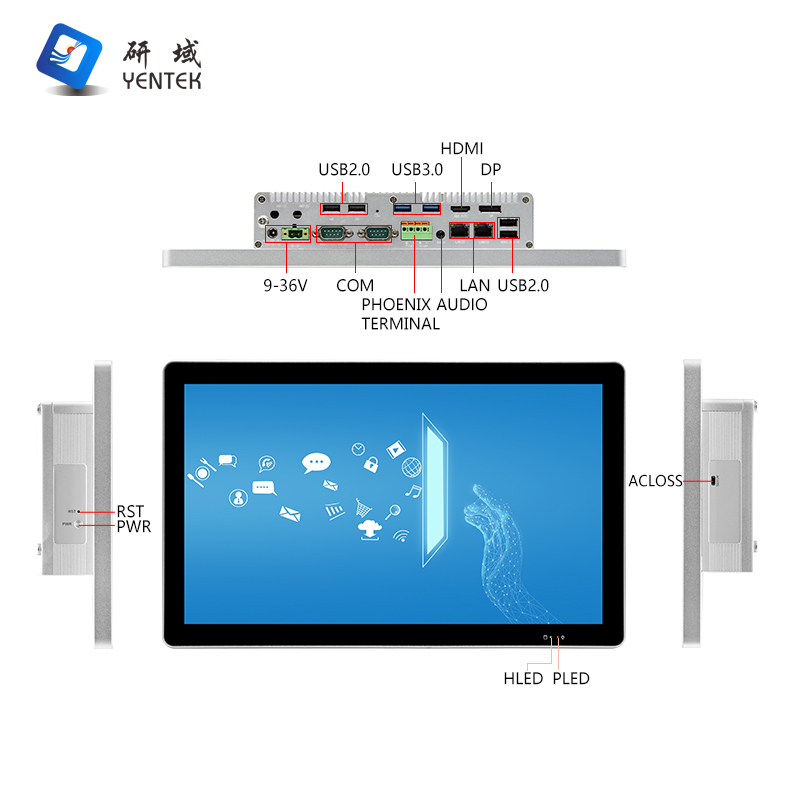

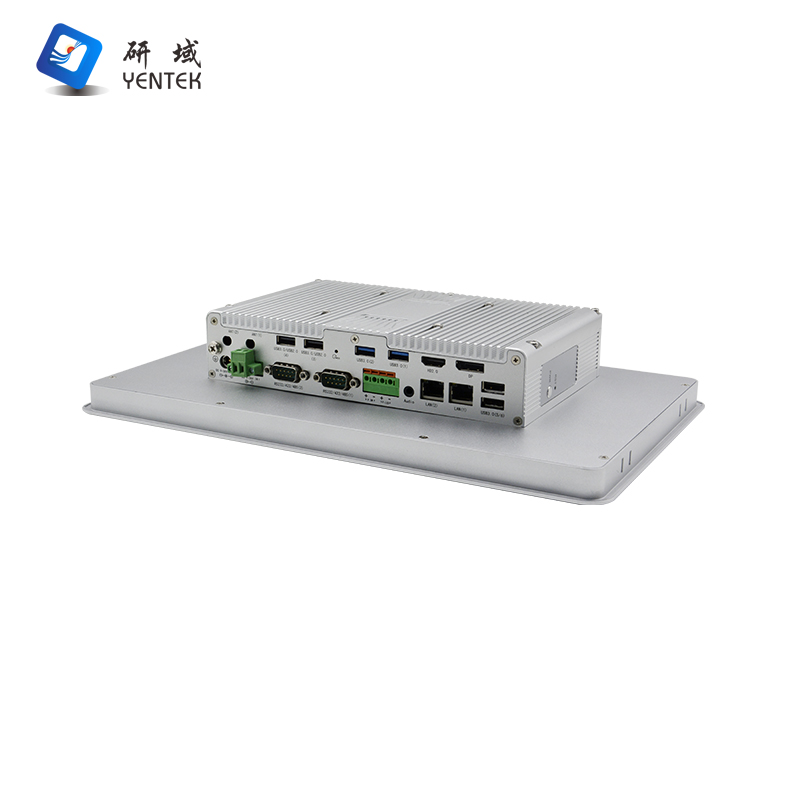

I/O Ports | POWER | 1x Power button, 1x One-touch reset, 1x ACLOSS (power-on DIP switch), 1x CMOS reset switch |
LED | 1x Power indicator, 1x Hard drive indicator |
Display Interface | 1x HDMI (4096×2160@60Hz), 1x DisplayPort (4096×2160@60Hz) |
LAN | 2x RTL8111H Gigabit Ethernet, supporting Wake-on-LAN and PXE functionality |
USB | 2x USB 3.0, 4x USB 2.0 (USB 2.0/3.0 count dependent on CPU) |
COM | 2x RS232/485/CAN DB9 serial ports (CAN support requires CAN module installation) |
Remote Switch | 1x Power indicator signal, 1x Power switch signal (1x 4-pin Phoenix connector) |
Audio | 1x Audio, combined Line out and MIC |
Power Supply | 1x DC (5.5*2.5mm) connector or 1x 2-pin Phoenix connector, supporting 9V~36V wide voltage input |

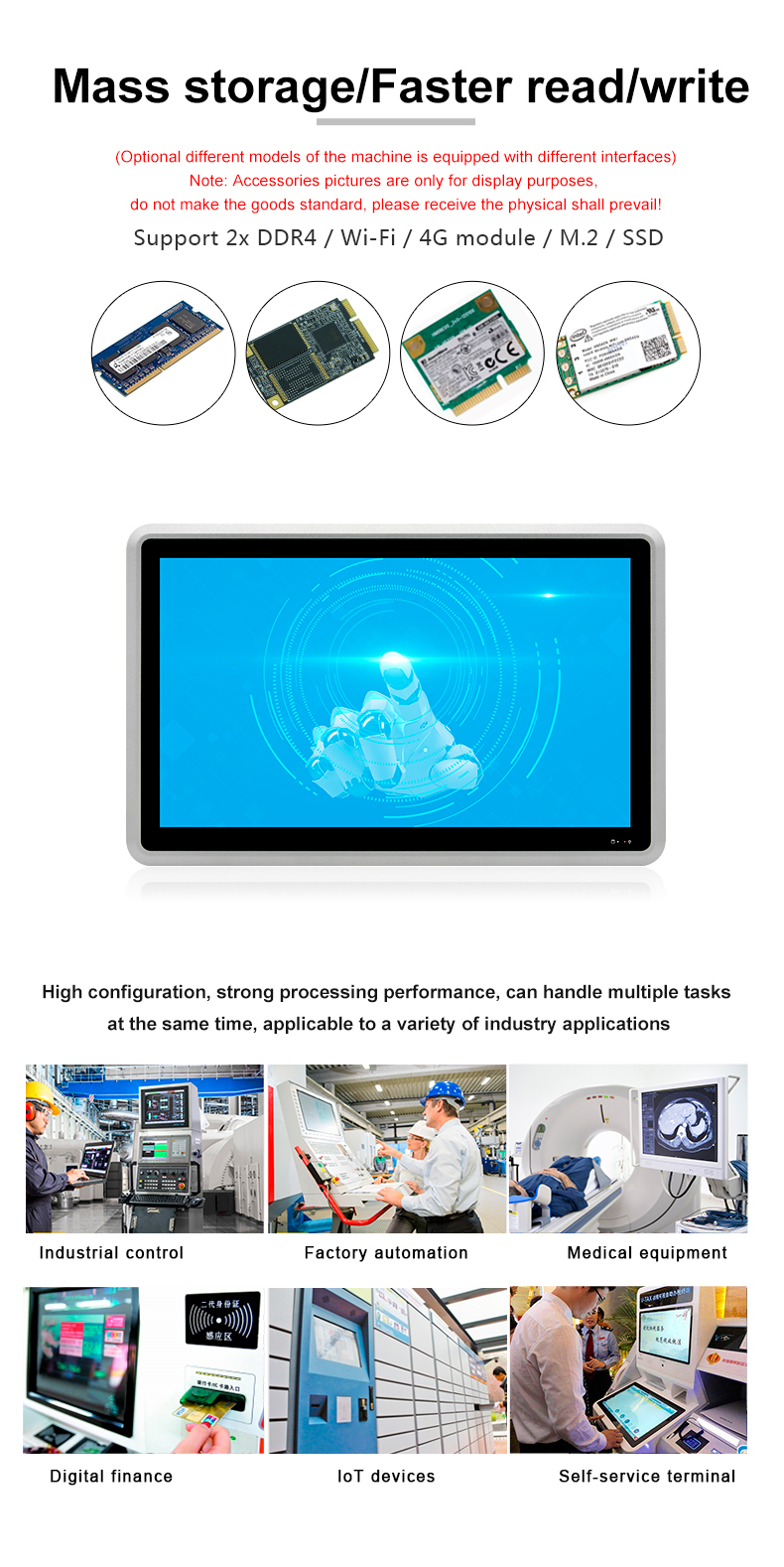

Storage | MSATA | 1x MSATA |
SSD | 1x M.2, supporting Key-M, 2280, SATA SSD |
1x M.2, supporting Key-M, 2280, NVMe PCIe x2 SSD |
Expansion | WiFi | 1x M.2, supporting Key-E, 2230, Wi-Fi module |
4G | 1x Mini-PCIe, supporting 4G |
System Support | Windows | Windows 10 |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power Requirements | Power Supply Type | DC 9–36V wide voltage |
Power Output | AC to DC 60W (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
