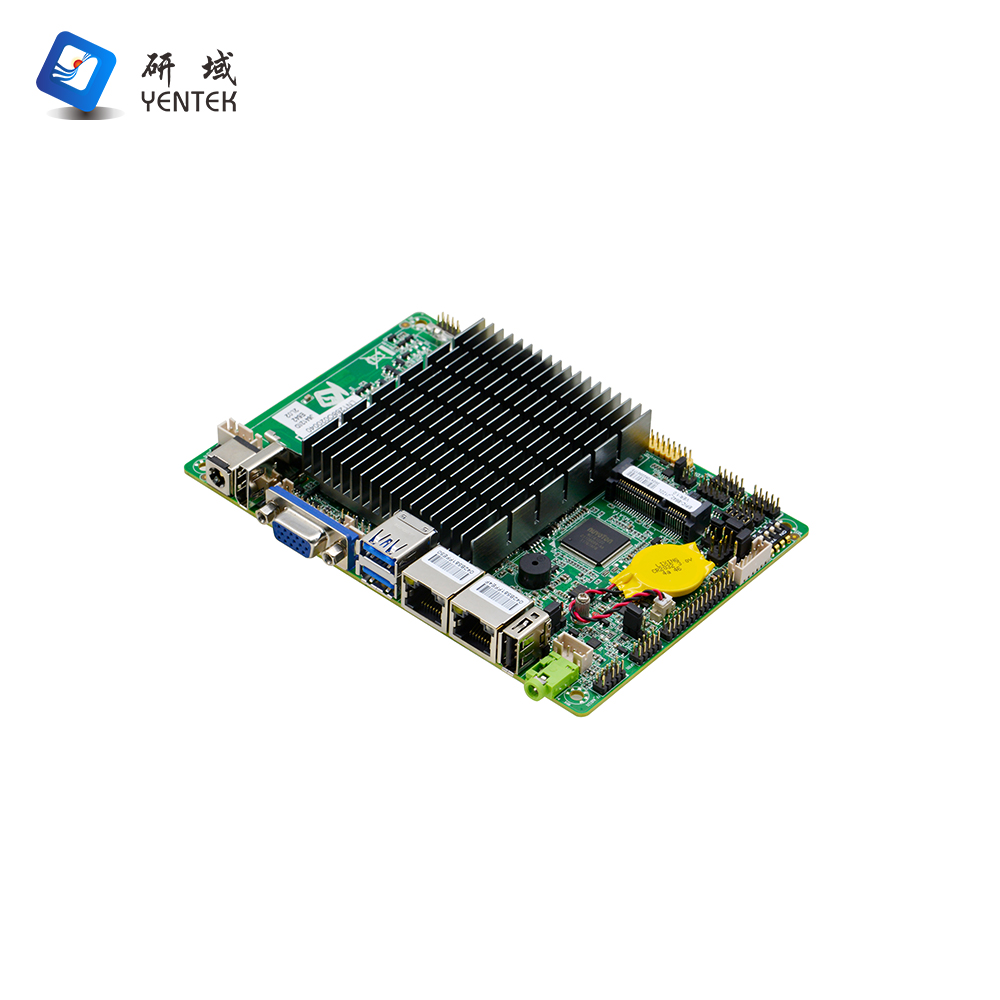

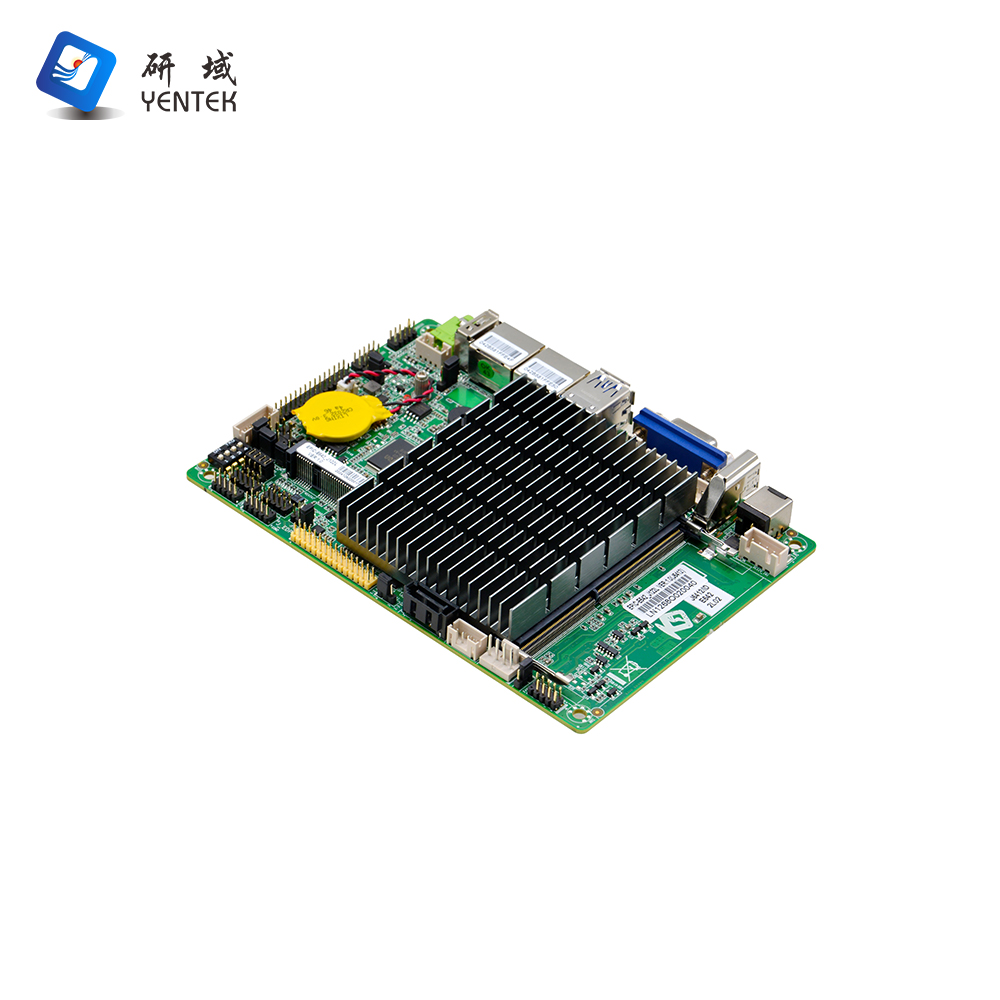

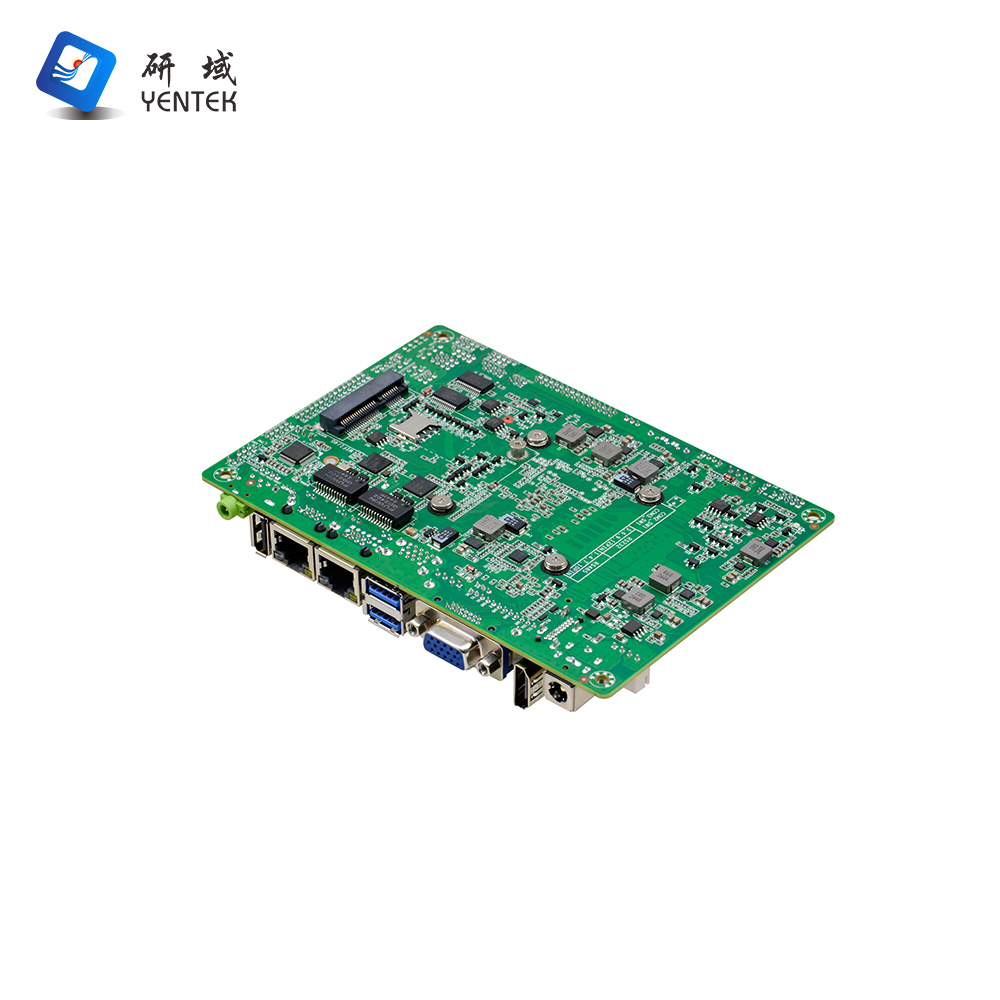

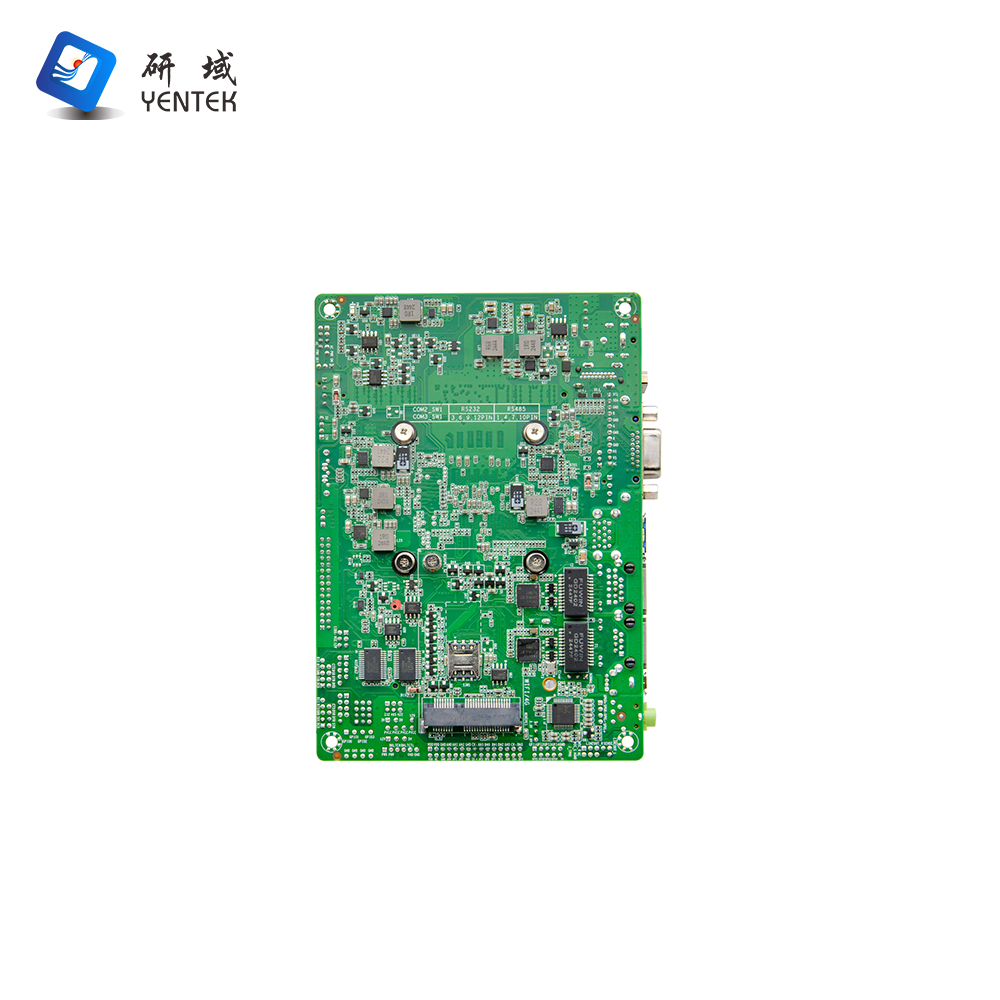

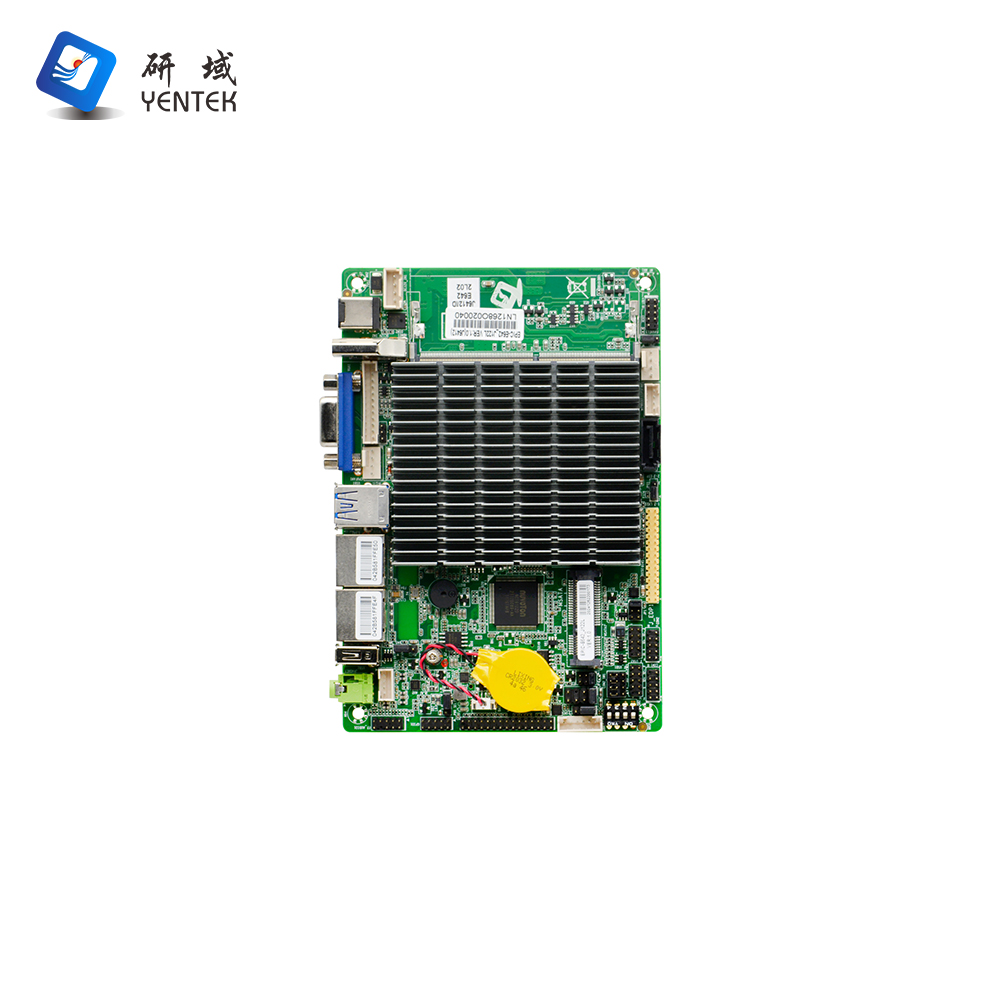

EPIC-E642_J122L

CPU

Compatible with Intel ®  Elkhart Lake offers a full range of CPUs for customers to flexibly choose from.

Chipset

SOC

Memory

1 * SODIMM slot, supports single channel 3200MHz DDR4 memory, maximum support 16GB

Display

Integrated with Intel ®  UHD Graphics Core Graphics Card

1 * VGA, 1 * HDMI interface, 1 * LVDS interface and EDP are two options

Network

2 * Intel I225V Gigabit Ethernet card, supporting Wake on LAN and PCIe functionality

Storage

1 * 7pin SATA 3.0 hard drive interface, with a transfer rate of up to 6Gbps

1 * MSATA slot, supports Intel protocol SSD solid state drive, with a transfer rate of up to 6Gbps

Audio

Onboard ALC897 7.1+2-channel high fidelity audio controller, supporting MIC/Line out amplifiers

It is recommended to use a 4 Ω 3W speaker for the amplifier

Expansion slot

1 * Mini PCIe slot, supporting WiFi/4G modules

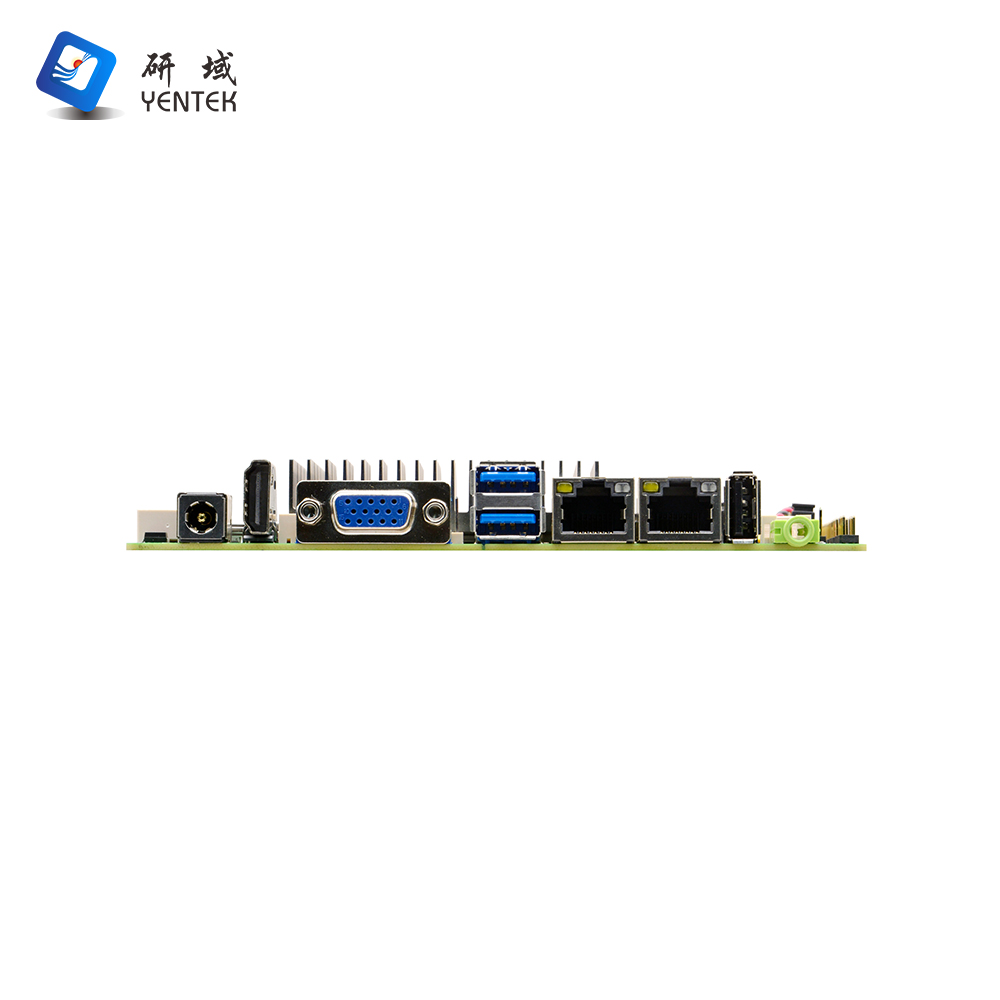

Rear IO ports

1 * DC 12V power input interface

1 * VGA display interface

1 * HDMI display interface

2 * USB 3.0 interface, 1 * USB 2.0 interface

2 * RJ45 Gigabit Network Interface

1 * Line out (green)

Built-in IO ports

1 * DC power interface, 1 * 4pin supports 12V power input and output

1 * JVGA interface 1 * 12pin, same signal as DB15

1 * LVDS interface, 2 * 15pin, supports dual channel 24BIT,

1 * EDP interface (yellow), 2 * 15pin, with LVDS as a binary choice, selected by hopping

1 * Screen backlight power supply interface 1 * 6-pin

4 * USB 2.0 interface, 2 * 5pin

2 * RS232 serial interface, COM2 supports RS485/422 function,

1 * Hard drive power interface 1 * 4pin

1 front audio interface 2 * 5pin

1 * Power amplifier interface 1 * 4pin

1 * SIM card slot

1 * Front panel function buttons and indicator light interface 2 * 5pin

Fan interface

No fan cooling, reserved 1 * 4pin CPU intelligent fan interface, 1 * 4pin system fan interface

GPIO

Support 4-channel input/output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0-255 seconds)

OS

Windows 10/Linux

Power supply

Powered by a DC 12V power supply

Operating temp

-10℃～60℃

Storage temp

-20℃～70℃

Working humidity

5% -95% relative humidity, no condensation

Dimensions

148mm x 102mm

1

EPIC-E642_J122L VER:1.0

J6412

2.0G

1* SODDR4

1

1

2ch*24BIT

/

2*I225V

7

2

COM2

DC12V
