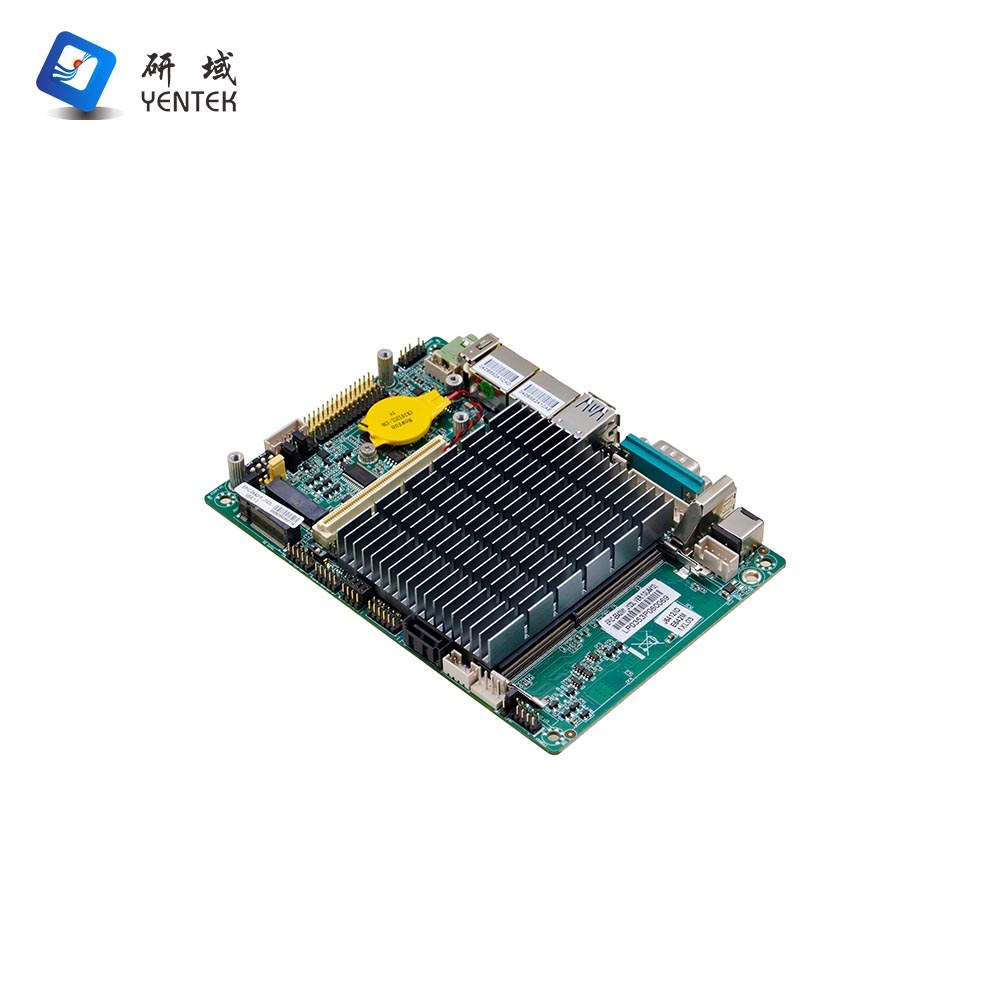

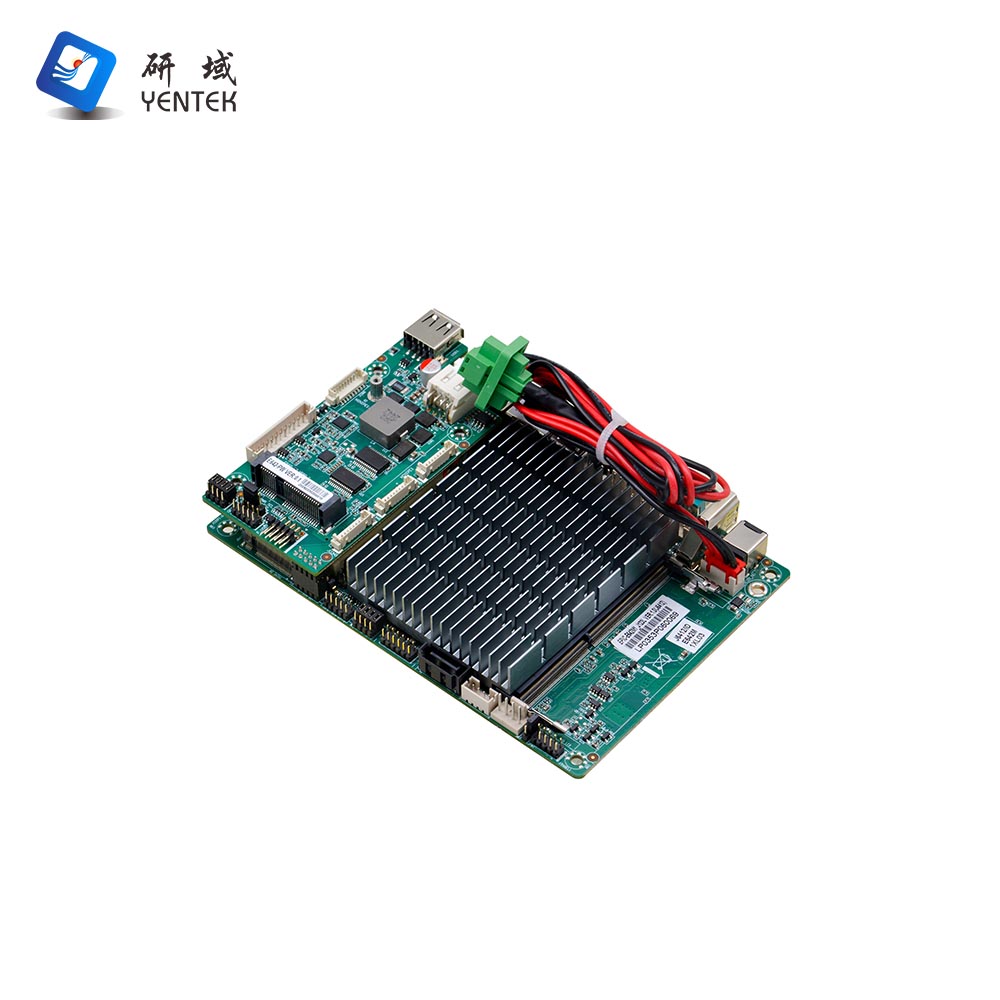

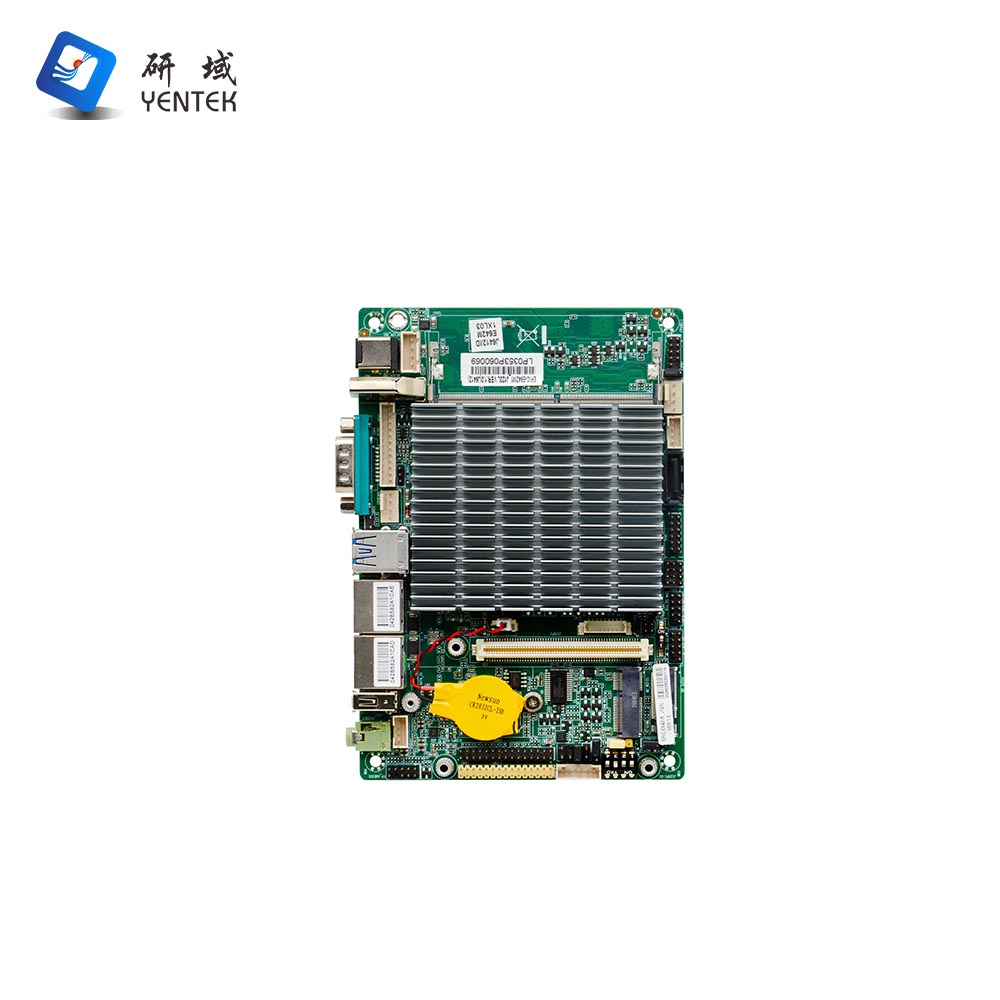

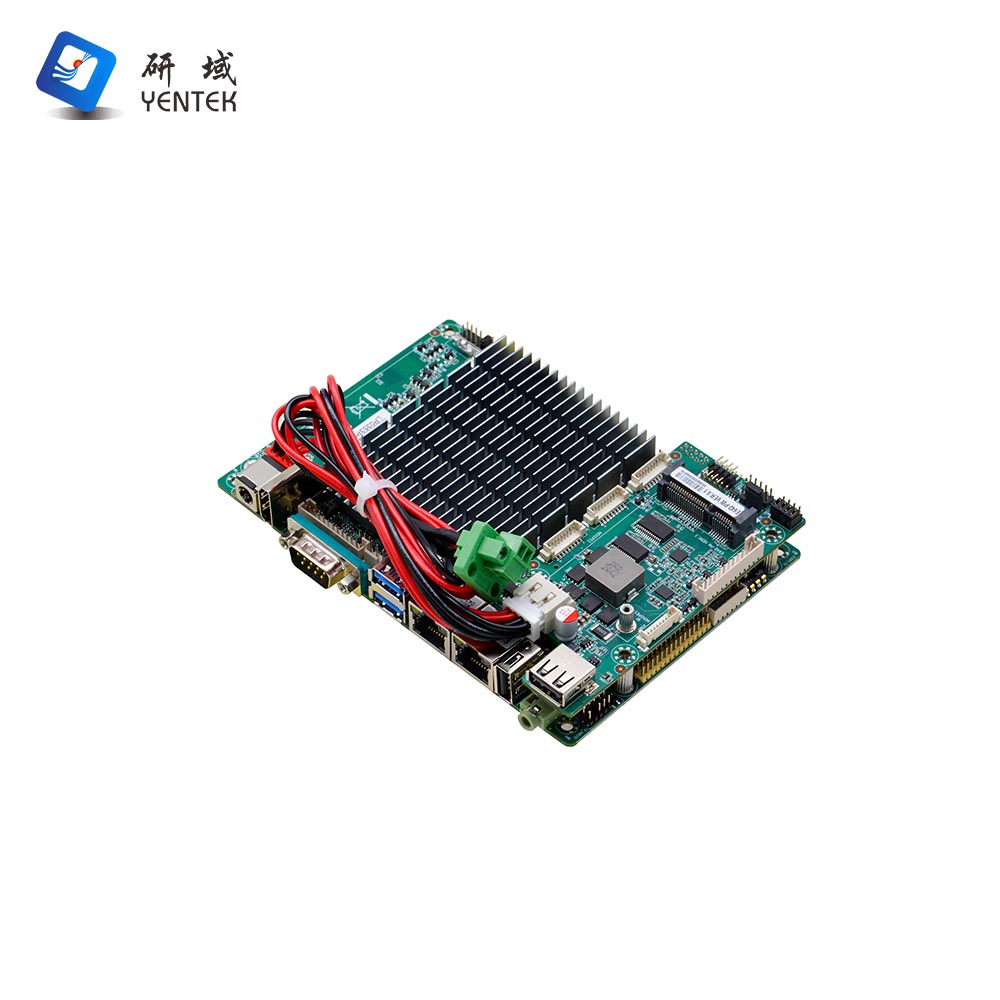

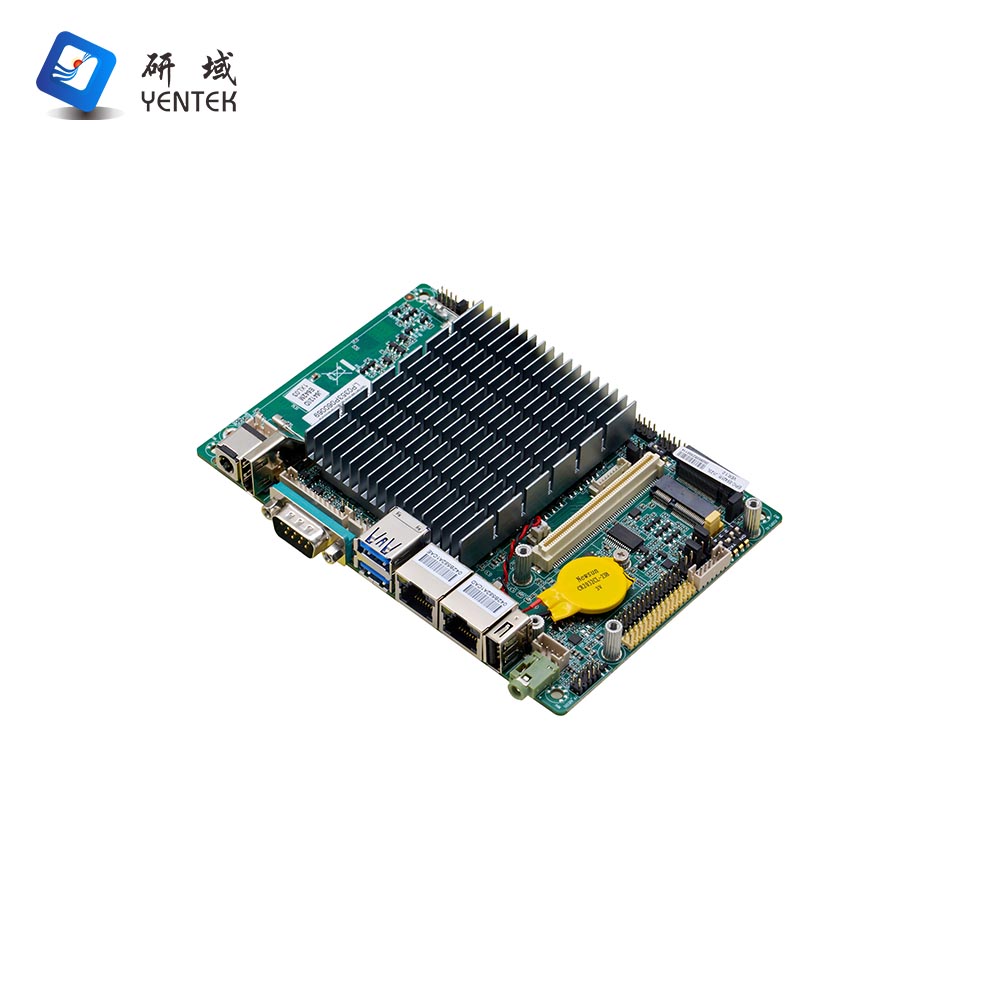

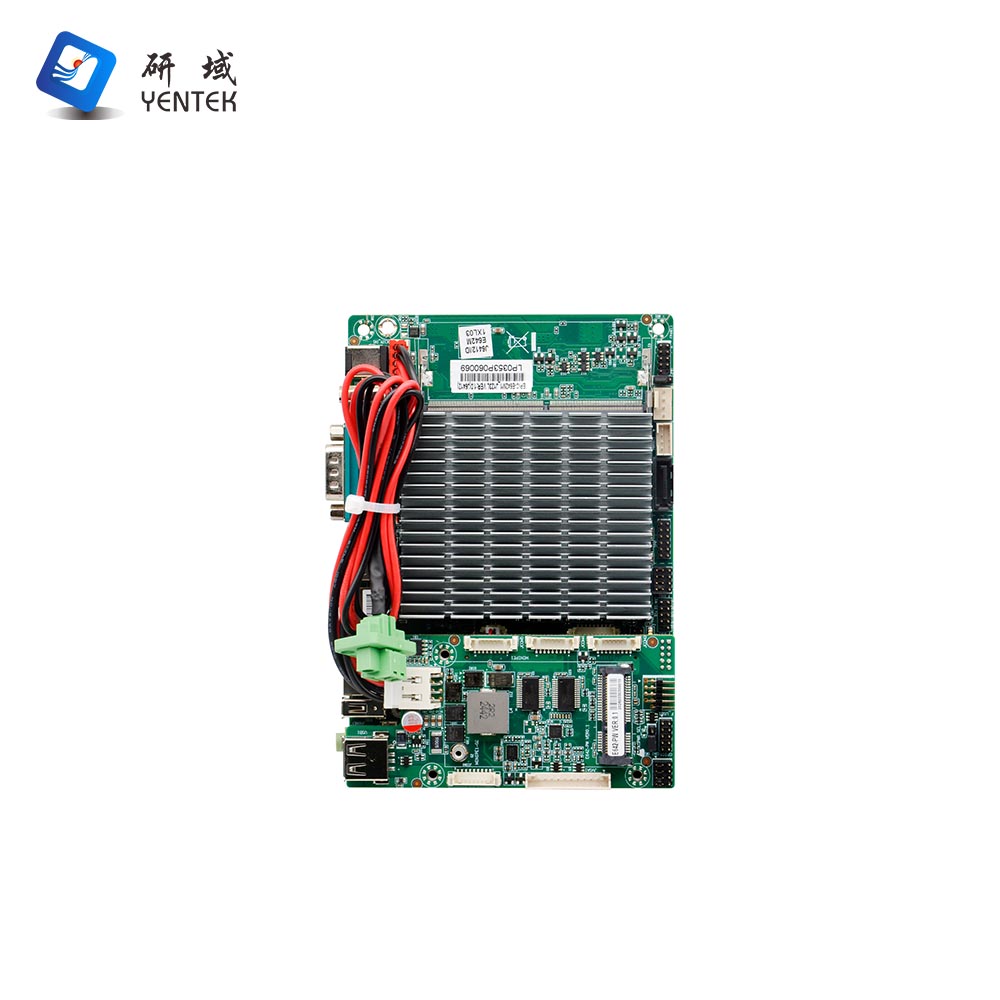

EPIC-E642M1_J123L

Processor

Integrated Intel® Celeron J6412 2.0GHz quad-core, quad-thread processor, TDP 10W

Compatible with the full range of Intel® Elkhart Lake CPUs, offering customers flexible options

Chipset

SoC

Memory

1 x DDR4 SODIMM slot, supporting single-channel 3200MHz memory, with a maximum capacity of 32GB

Display

Integrated Intel® UHD Graphics

1 x VGA port, supporting a maximum resolution of 1920x1080@60Hz

1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160@24Hz

1 x LVDS port, supporting dual-channel 24-bit

1 x EDP port; either LVDS or EDP can be selected via a jumper

Supports three independent displays via VGA/HDMI/LVDS or EDP

Network

2 x Intel I210AT 1GbE network cards, supporting Wake-on-LAN and PXE functionality

Storage

1 x 7-pin SATA 3.0 hard drive port, with a transfer rate of up to 6Gbps

1 x M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x1 SSD

Note: The M.2 SSD slot supports SATA SSDs; BIOS configuration is required

Audio

On-board ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC/Line-out and amplifier

Recommended use of 4Ω 3W speakers

Expansion Slots

1 x M.2 slot, supporting M.2 2230 Wi-Fi/Bluetooth modules

1 x 120-pin high-speed header, including 4 TTL, 2 x PCIe, 1 x DisplayPort, 8 GPIO pins and other signals (for use with E642 series daughterboards)

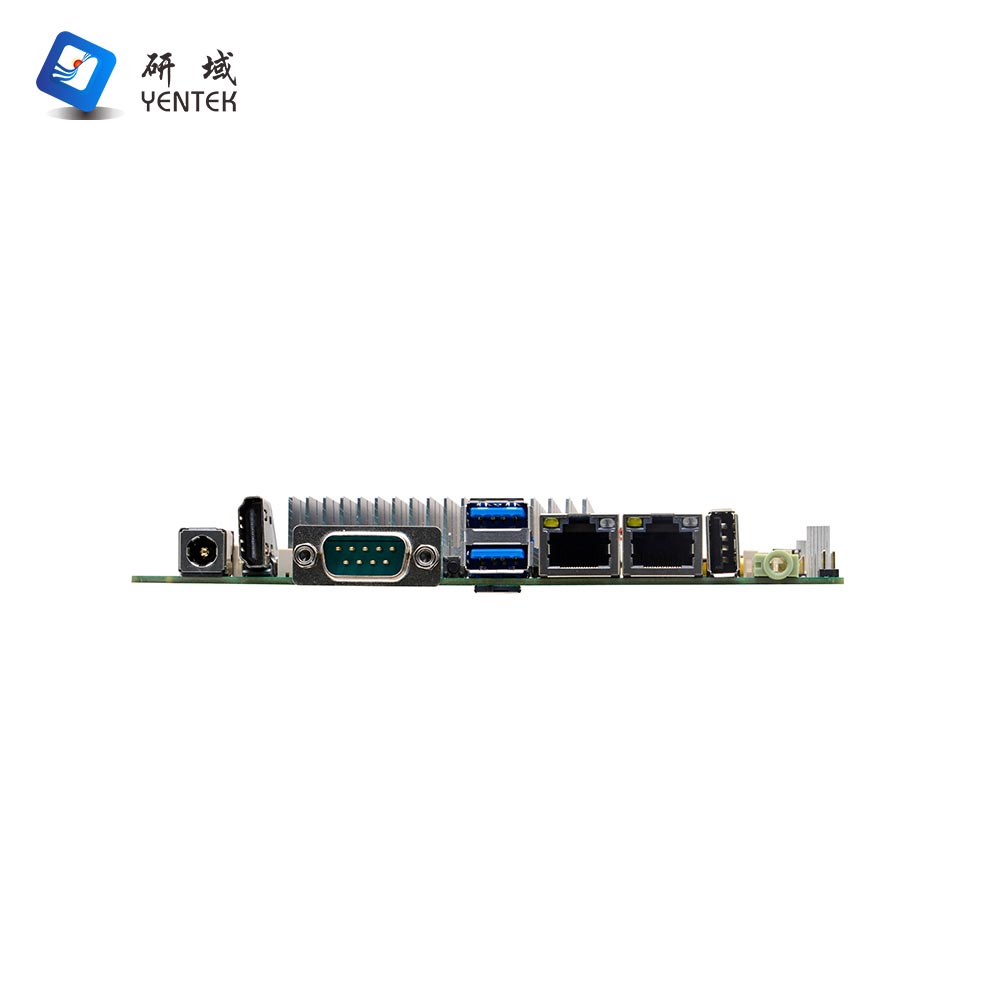

Rear Panel I/O Ports

1 x DC 12V power input connector

1 x DB9 RS232 serial port (mutually exclusive with the built-in JCOM1)

1 x HDMI 1.4 display interface

2 x Type-A USB 3.0 ports (5Gbps), 1 x Type-A USB 2.0 port

2 x RJ45 Gigabit Ethernet ports

1 x Line-out (green)

On-Board I/O Ports

1 x DC power connector, 1 x 4-pin, pitch 2.5mm, supporting 12V power input and output

1 x JVGA connector, 1 x 12-pin, pitch 2.0mm; either this or the DP signal from the high-speed socket is selected via a DIP switch

1 x LVDS port, 2 x 15-pin, pitch 2.0mm, supports dual-channel 24-bit

1 x EDP port (yellow), 2 x 15-pin, pitch 2.0mm, mutually exclusive with LVDS; selected via jumper

1 x display backlight power supply port, 1 x 6-pin, pitch 2.0mm

4 x USB 2.0 interfaces, 2 x 5-pin, pitch = 2.0 mm

1 x RS232 serial interface, 1 x 9-pin, pitch = 1.25 mm, supports RS485/422 functionality

1 x hard drive power supply interface, 1 x 4-pin, pitch = 2.0 mm

1 x front audio interface, 2 x 5-pin, pitch = 2.0 mm

1 x Amplifier interface, 1 x 4-pin, PH=2.0mm

1 x Front panel function button and indicator interface, 2 x 5-pin, PH=2.0mm

1 x TPM interface (ESPI specification), 2 x 6-pin, PH=2.0mm

Fan Connectors

Fanless cooling, with provision for 1 x 4-pin CPU smart fan interface and 1 x 4-pin system fan interface

GPIO

N/A

BIOS

128Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Operating System

Windows 10/11/Linux

Power Supply Type

Powered by 12V DC; supports 12–24V DC wide voltage range via the E642-PW expansion board

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

148mm x 102mm
