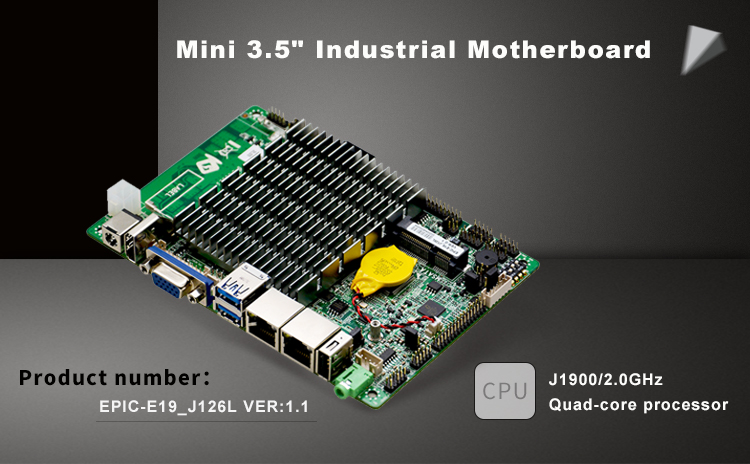

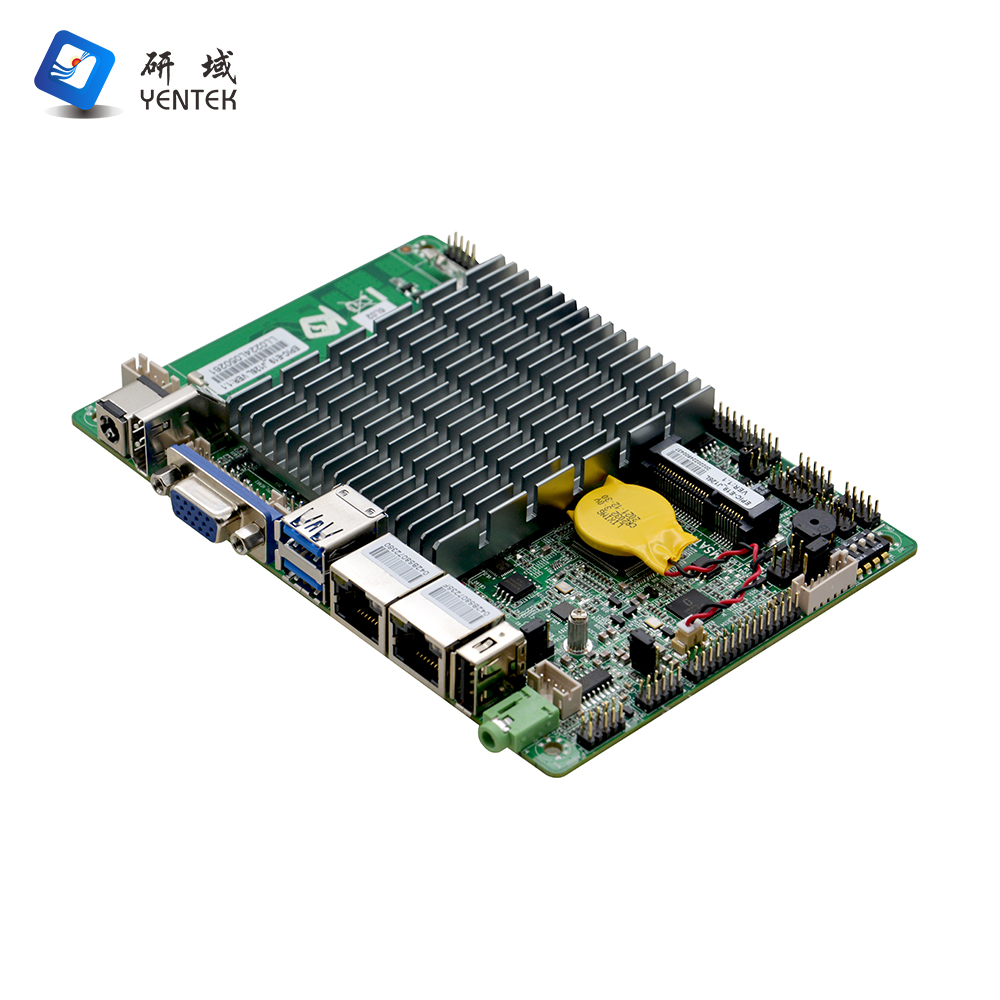

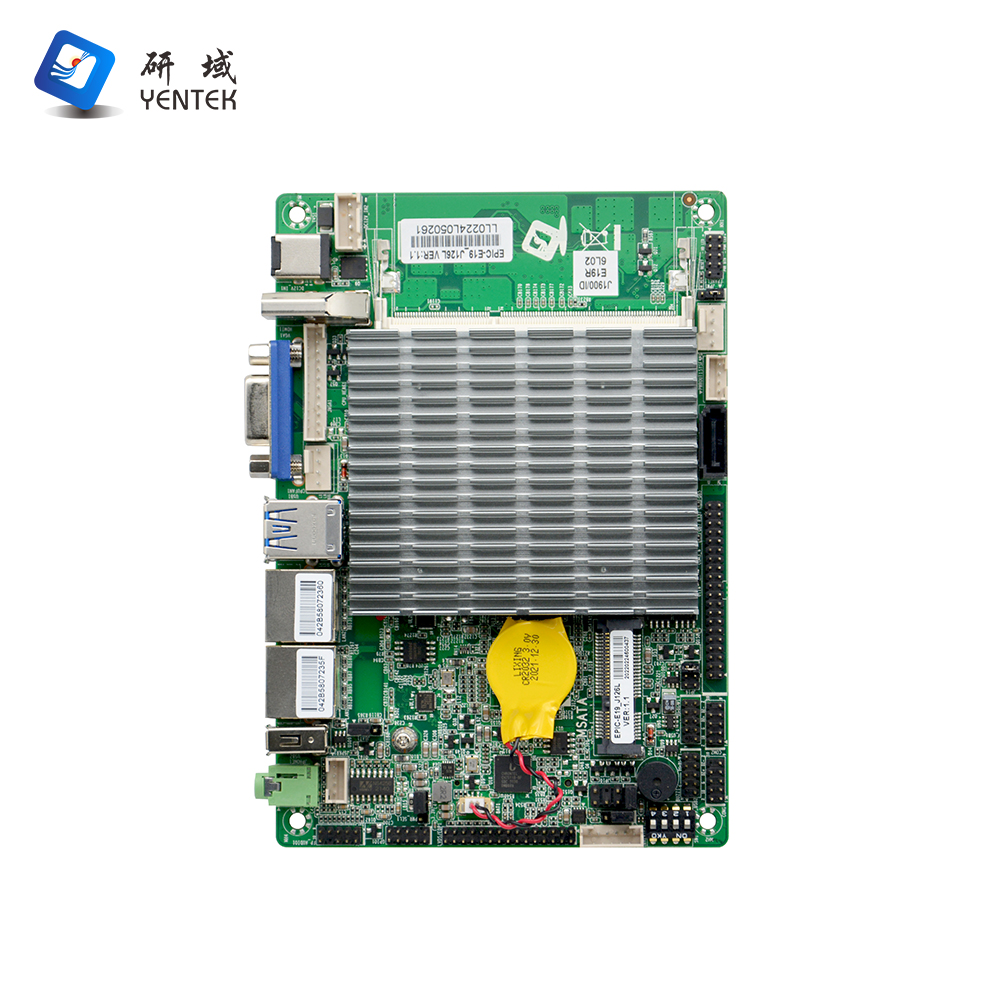

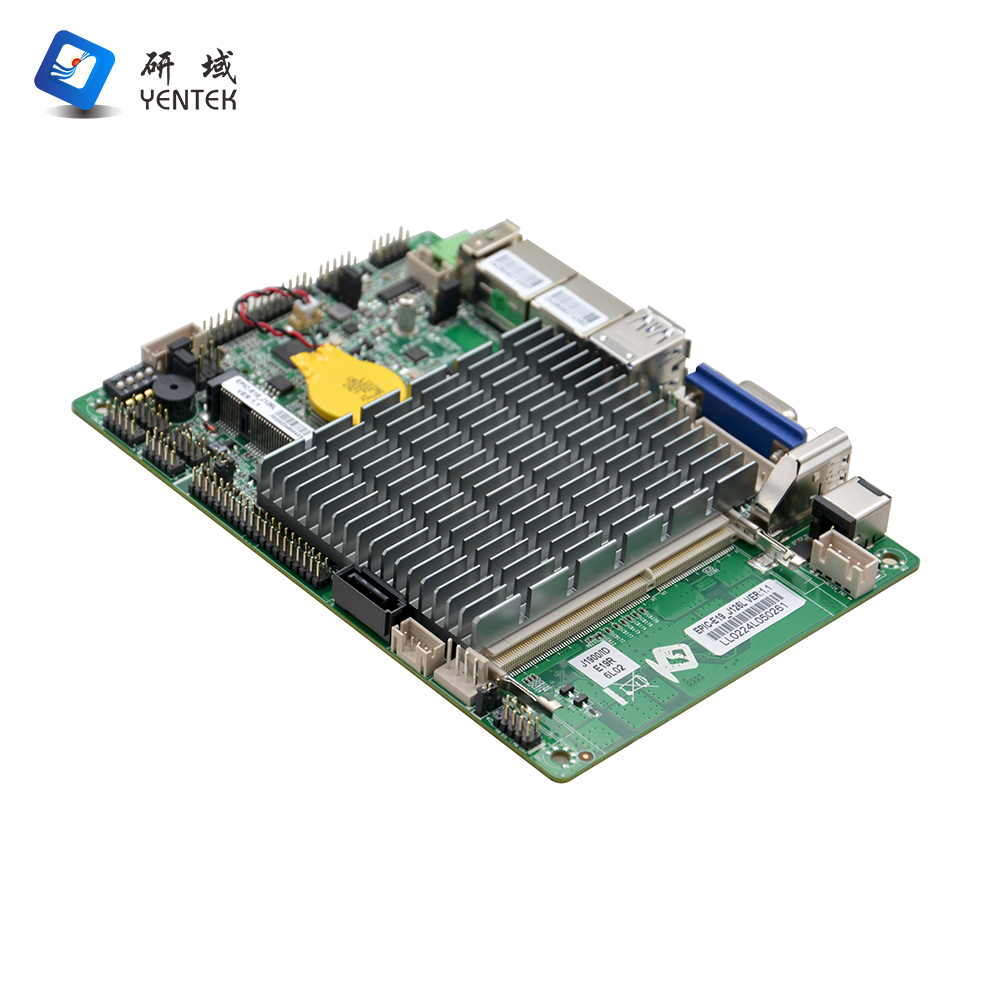

| Product model | EPIC-E19_J126L VER:1.1 |

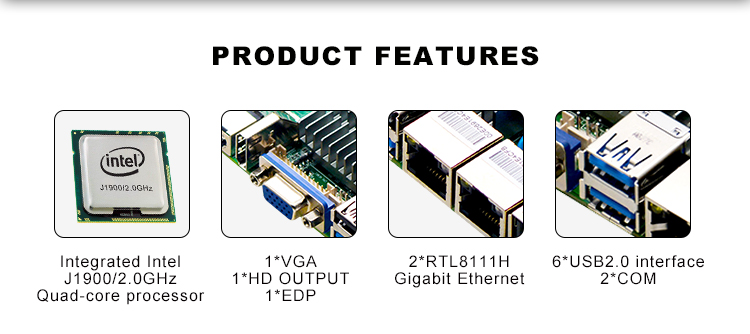

| Processor | Integrated Intel®J1900/2.0GHz quad-core processor,TDP power consumption of 10W |
| Chipset | Based on the Intel® BayTrail platform |
| Internal memory | 1 x SODIMM slot, supporting a single channel of 1600 MHZ or 1333 MHZ DDR3L/1.35V memory, supporting a maximum of 8GB |
| Display | Integrated Intel®HD Graphics core graphics card |
| 1* VGA, 1*HDMI interface, 1* LVDS interface | |
| Internet | 2* RTL8111H Gigabit network card, support Wake on LAN, PXE function |
| Store | 1* 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps |
| 1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission rate up to 3Gbps | |
| Audio | Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out. |
| The power amplifier is recommended to use 2Ω5W speakers | |
| Expansion | 1* Mini-PCIE slot, support WIF/4G module |

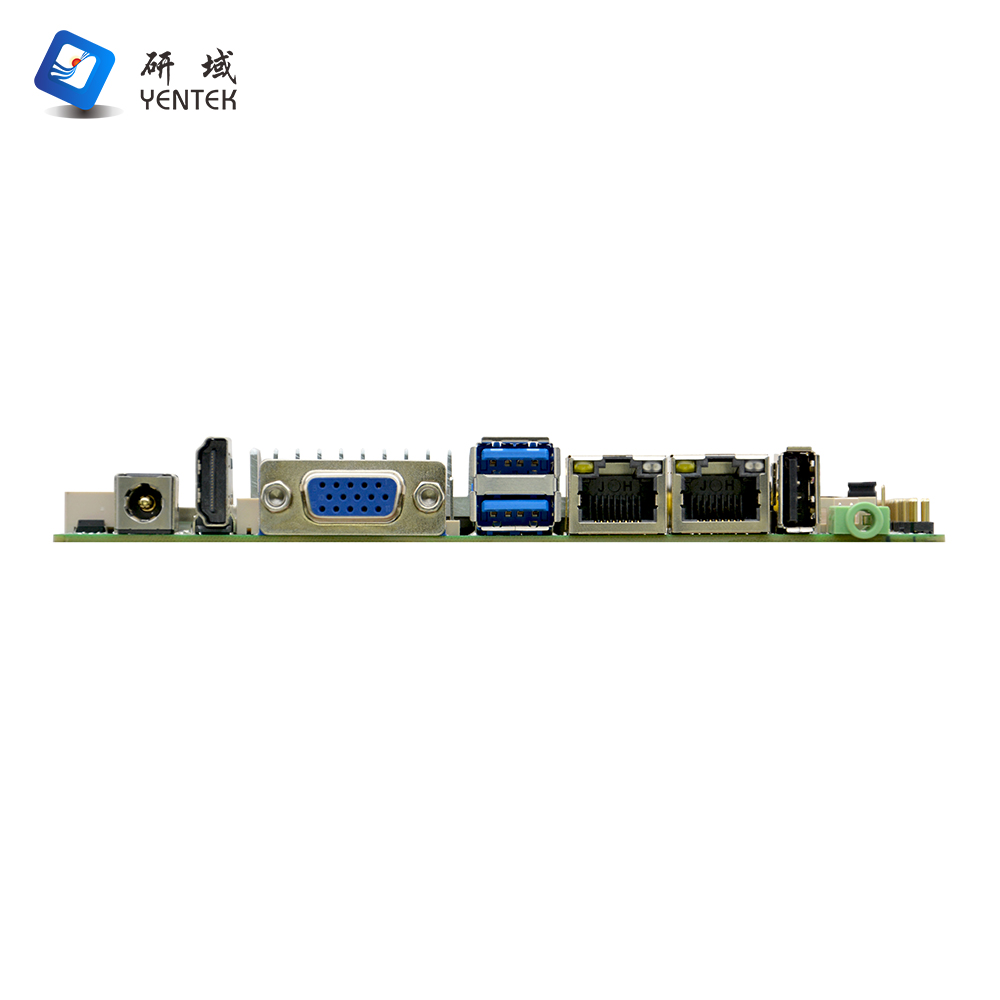

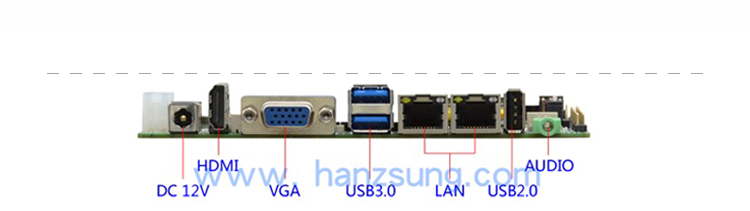

| Backplane I/O interface | 1* DC 12V power input interface |
| 1* VGA display interface | |
| 1* HDMI display interface | |
| 2* USB3.0 interface, 1* USB2.0 interface | |
| 2* RJ45 Gigabit network interface | |
| 1* Line-out (green) | |

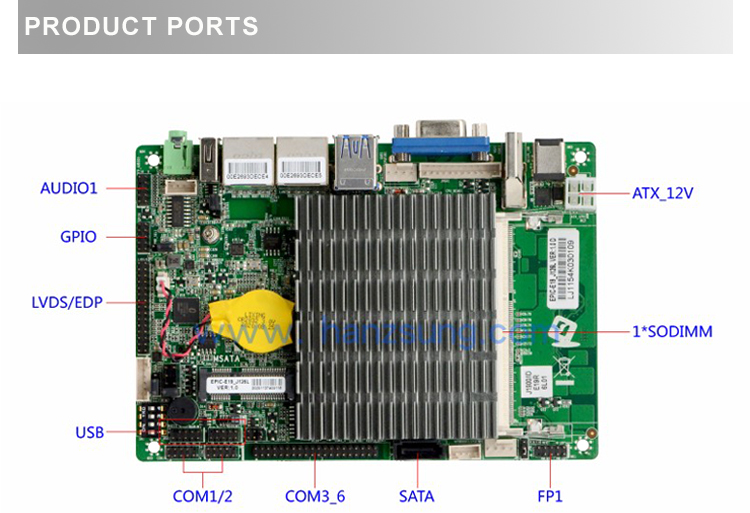

| Built-in I/O interface | 1* 4pin ATX power connector, support 12V power input and output |
| 1* JVGA interface 1*12pin, the same signal as DB15 | |
| 1* LVDS interface, 2*15pin, support dual channel 24BIT | |
| 1* Screen backlight power supply interface 1*6pin | |
4* USB2.0 interface, 2*5pin | |
6* RS232 serial interface, COM1 supports the 9th pin charged function, COM2/COM3 supports RS485 function, | |
1*HDD power supply interface 1*4pin | |
| 1 Front audio interface 2*5pin | |
| 1* power amplifier interface 1*4pin | |
| 1* SIM card slot | |
| 1* Front panel function button and indicator port 2*5pin | |
| Fan interface | Fanless cooling, reserved 1*4pin CPU intelligent fan interface, 1*4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |

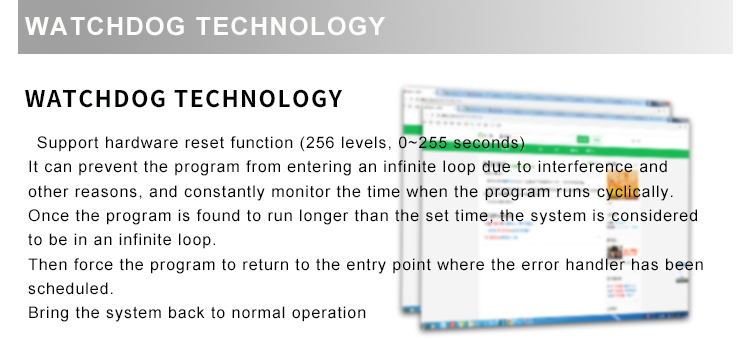

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

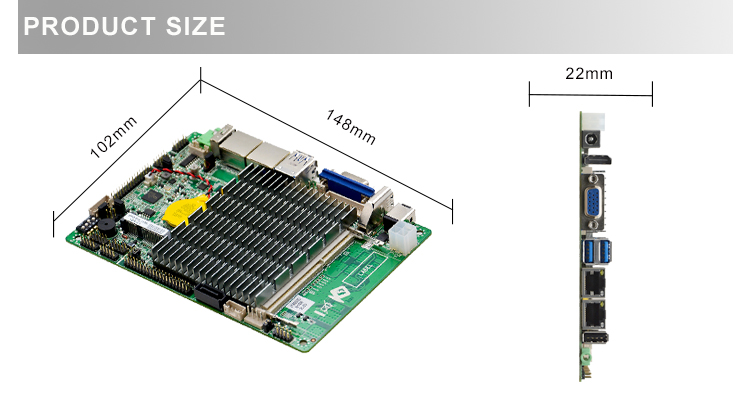

| Dimension | 148mm x 102mm |
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | EPIC-E19_J126L VER:1.1 | J1900 | 2.0G | 1*SODDR3L | 1 | 1 | 2ch*24BIT | / | 2*8111H | 7 | 6 | COM2 | DC 12V |
