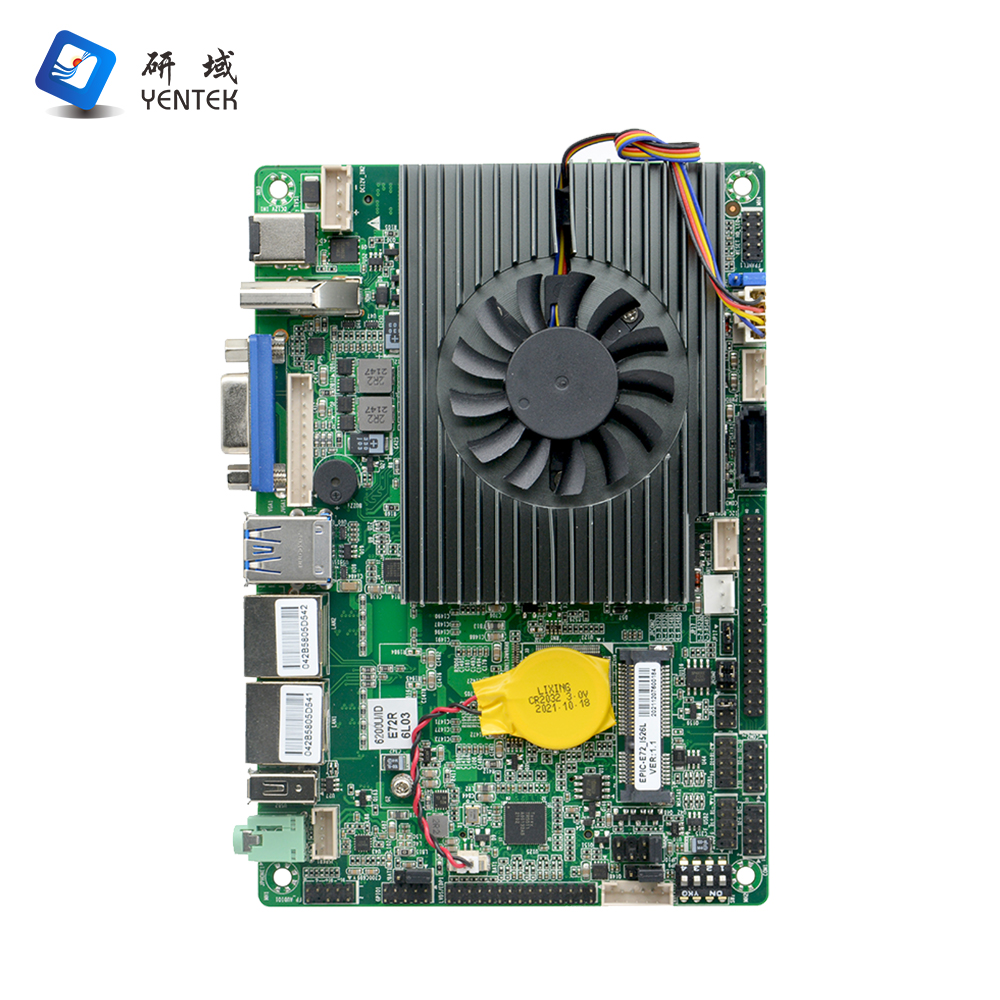

EPIC-E41_J126L
Options: 2 sizes
$
98.00
Add to cart
+8617779798609
+852 9458 7694
Product description
| Product model | EPIC-E73_I526L VER:1.1(6200U) |
| Processor | Integrated Intel® I5-6200U 2.3GHz dual-core quad-thread processor, TDP15W |
| Compatible with Intel® Skylake-U Celeron/PentiumI3/I5/I7 28W low power processors | |
| Chipset | SOC |
| Internal memory | 1* SODIMM slot for supporting DDR4 2133MHz memory and a maximum of 32GB |
| Display | Integrated Intel® HD Graphics 520 supports DirectX 12 OpenGL 4.5 and 4K |
| 1* VGA,1*HD OUTPUT interface,1*LVDS interface, support dual channel 24Bit | |
| Network | 2* Intel WGI211AT Gigabit network adapter, supporting network wake up and PXE functions |
| Deposit | 1* 7pin SATA3.0 slot, transmission rate up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps | |
| Tone frequency | Onboard USB Audio HS-100B sound card, support 6-channel hi-fi audio, support Line-out. Power amplifier |
| Power amplifier support 3D stereo /3W dual channel | |
| Expansion | 1* Mini-PCIE slot, supporting WIFI/4G module |
| I/O ports on the backplane | 1* DC 12V power input port |
| 1* HD OUTPUT port | |
| 1* VGA port | |
| 2* USB3.0 port | |
| 1* USB2.0 interface | |
| 2* RJ45 Gigabit network interface | |
| 1* Line-out (green) | |
| Built-in I/O interface | 1* 4pin DC power interface, support 12V power input and output |
| 1* JVGA port 1*12pin, same signal as DB15 | |
| 1* LVDS interface, supporting dual-channel 24BIT, sharing pin with EDP, optional EDP interface | |
| 1* screen backlight power supply interface 1*6pin | |
6* RS232 serial interface, which COM1 support 9pin live function,COM2 can support RS485 function | |
| 4* USB2.0 interface 2*5pin | |
1* front audio interface 2*5pin | |
| 1* power amplifier interface 1*4pin | |
| 1* hard drive power port 1*4pin | |
| 1* Front panel function button and indicator port 2*5pin | |
| Fan interface | 1* 4pin CPU intelligent fan interface,1*3pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 148mm x 102mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | LVDS | EDP | LAN | USB | COM | RS485 | Power |
| 1 | EPIC-E73_I526L VER:1.1(6200U) | I5-6200U | 2.3G | 1*SODDR4 | 1 | 1 | 2ch*24bit | / | 2*211AT | 7 | 6 | 1 | DC 12V |
| 2 | EPIC-E73_I726L VER:1.1(6500U) | I5-6500U | 2.5G | 1*SODDR4 | 1 | 1 | 2ch*24bit | / | 2*211AT | 7 | 6 | 1 | DC 12V |
