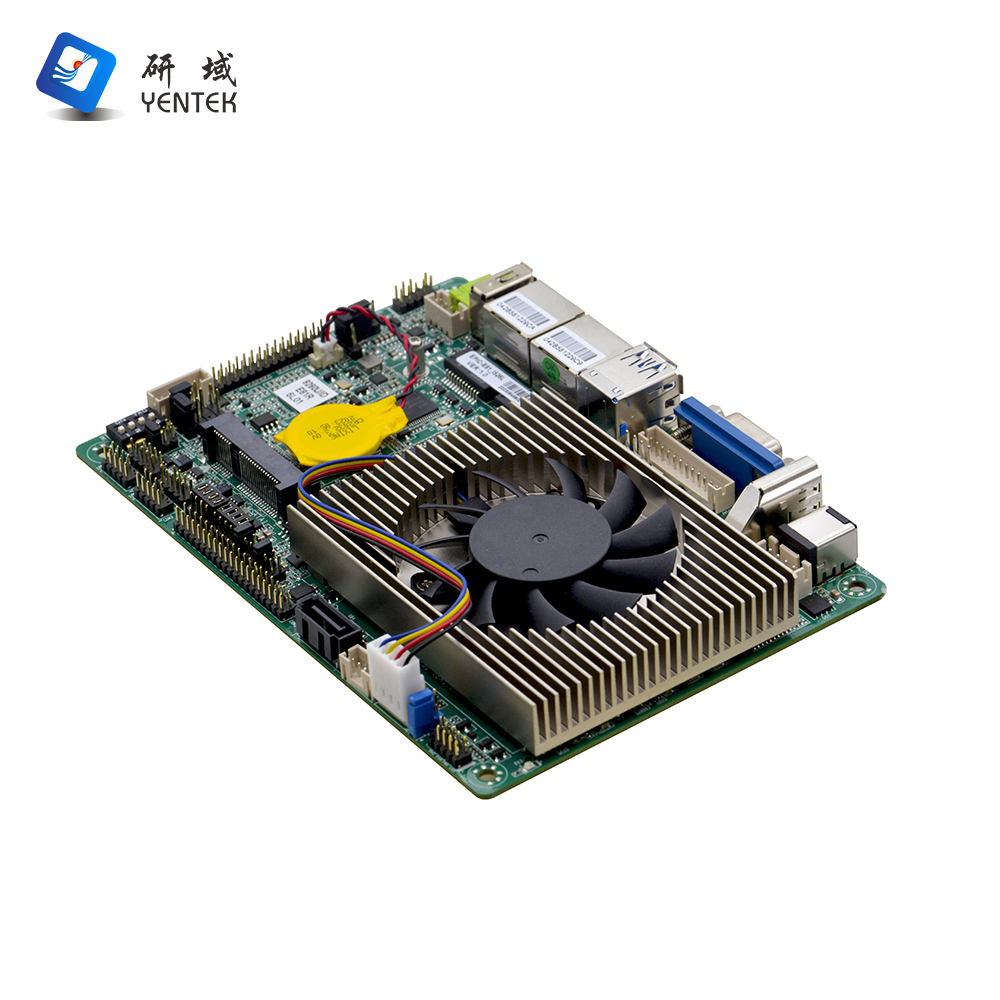

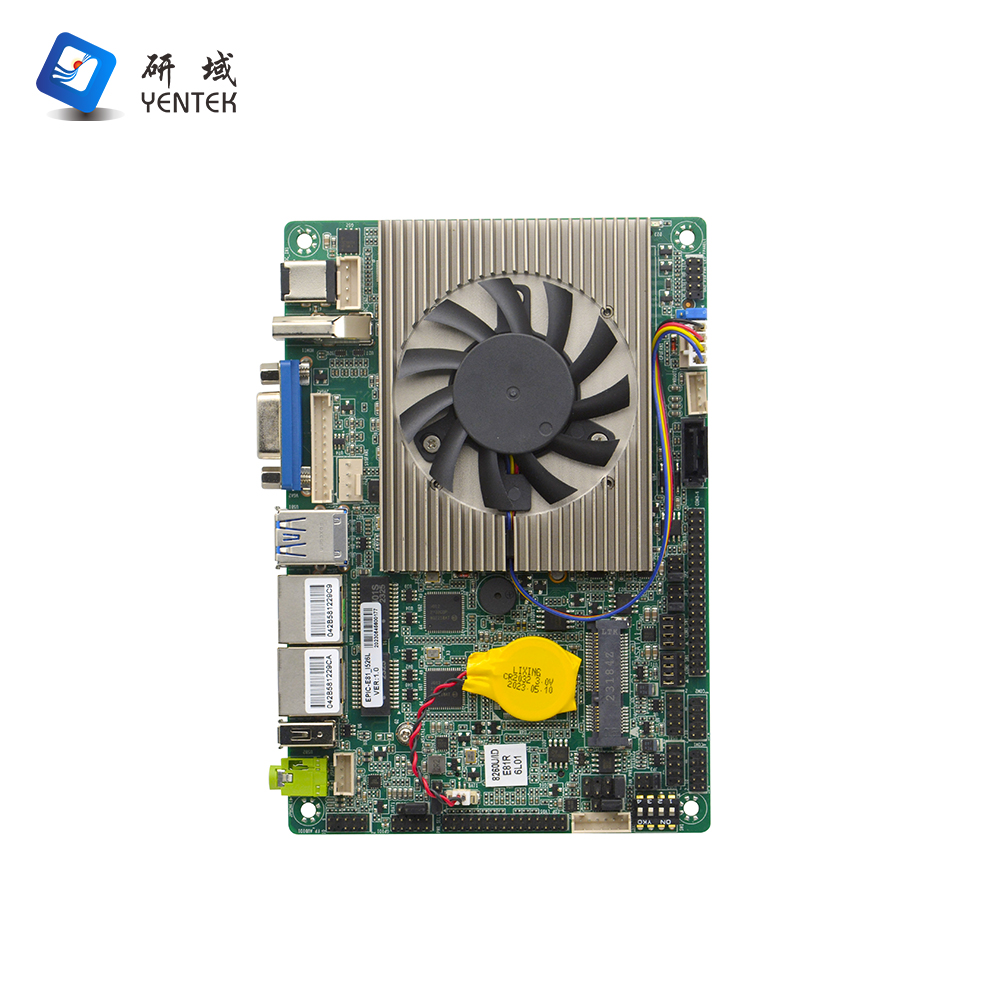

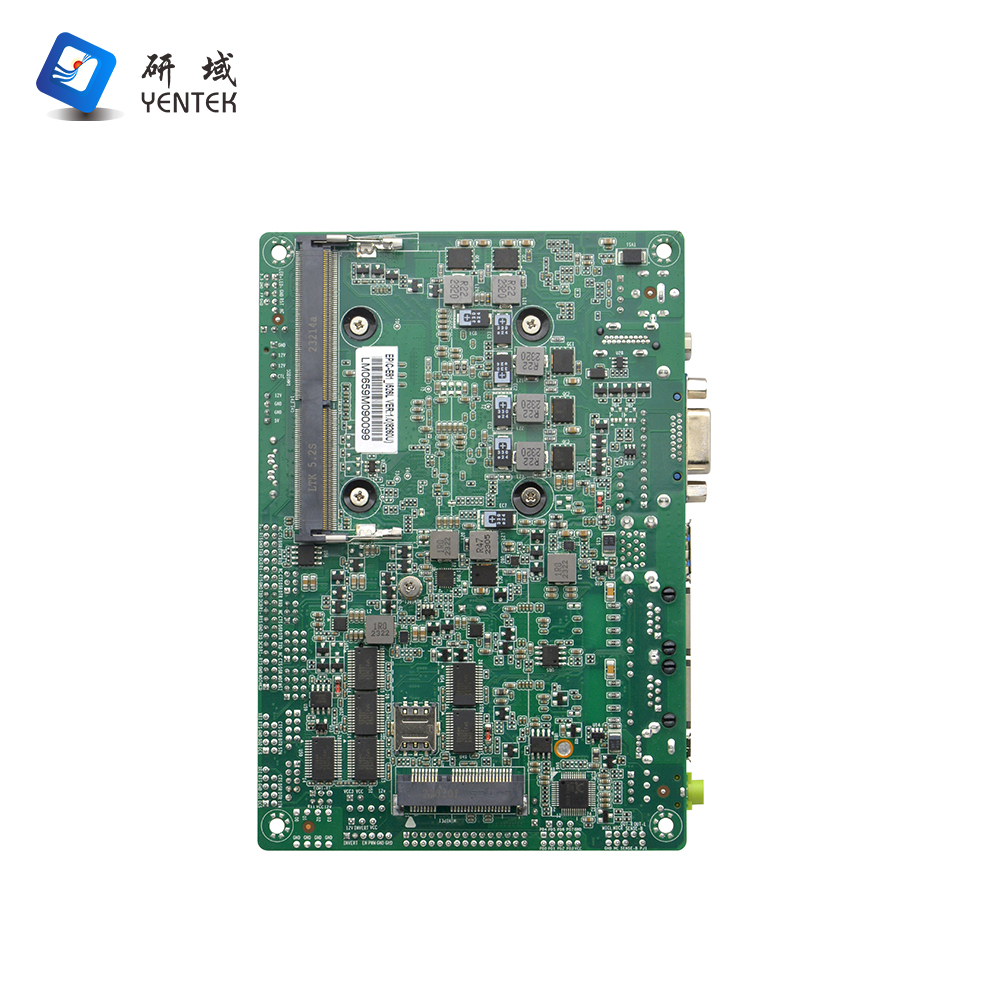

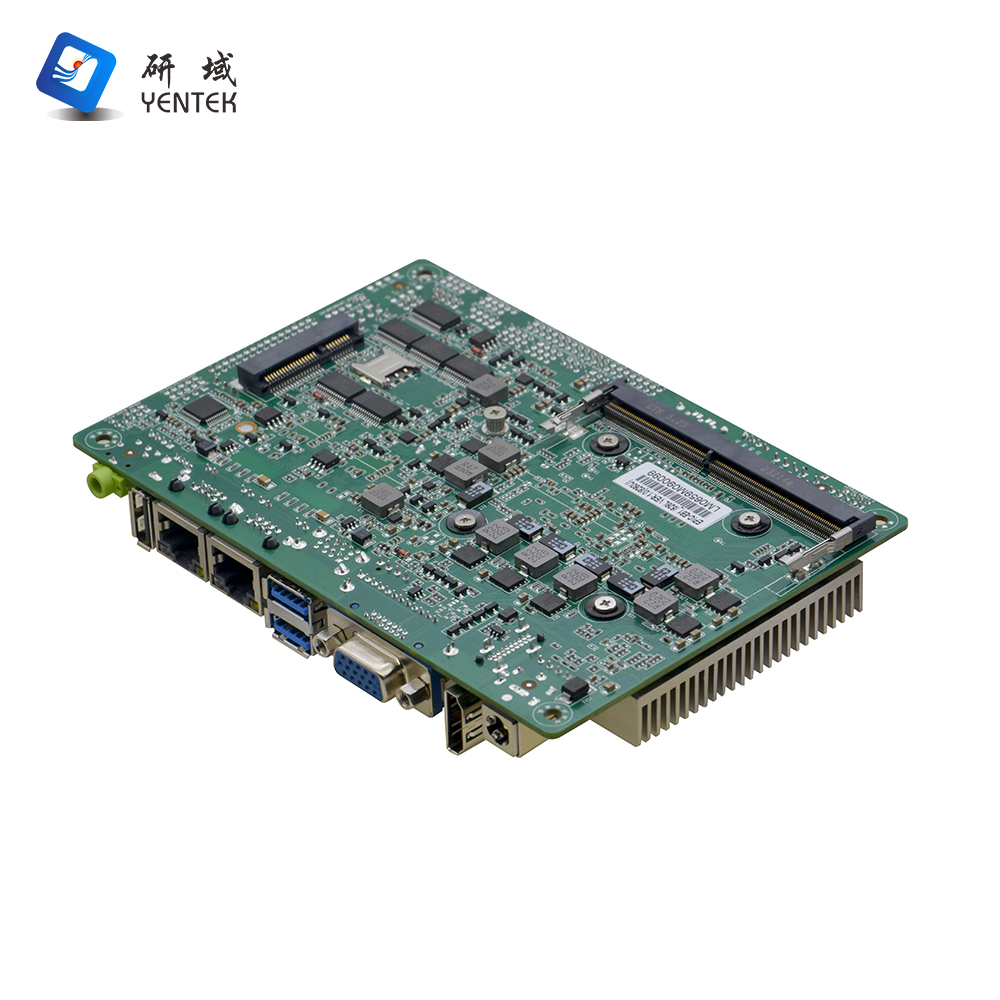

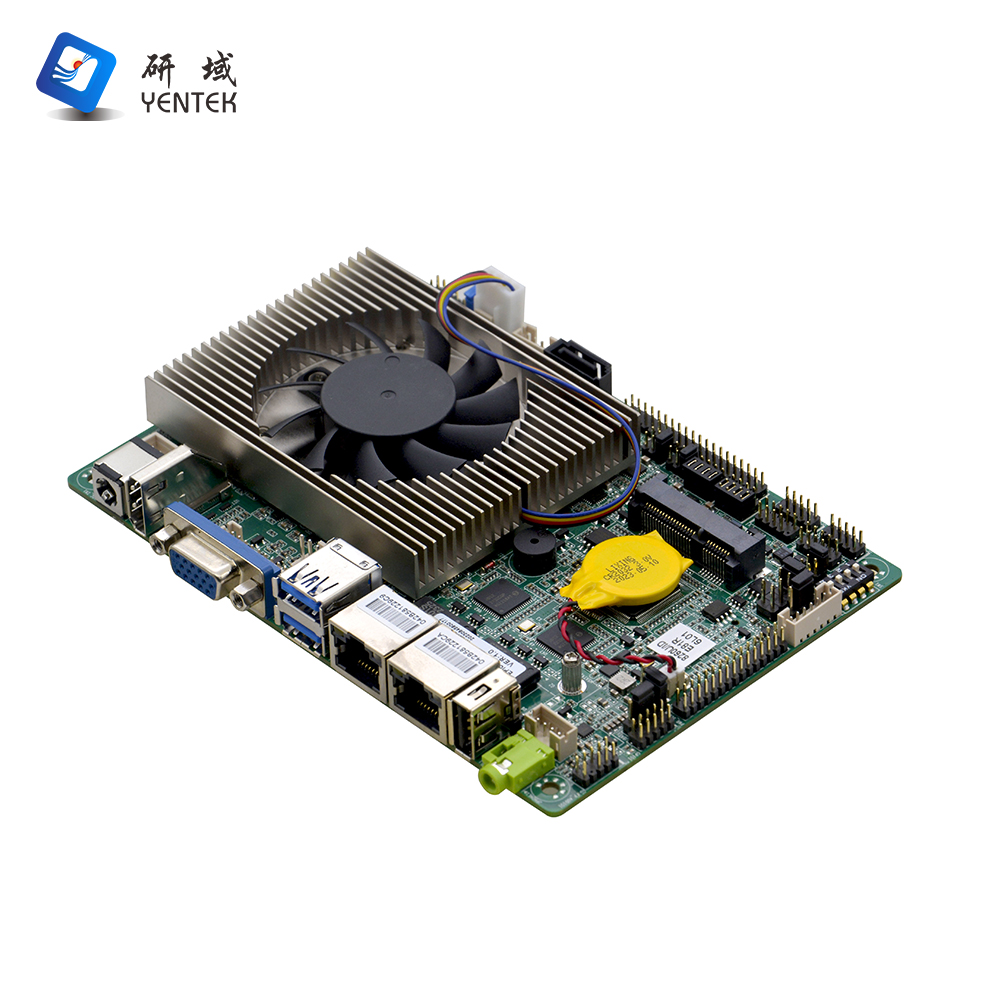

EPIC-E81_I526L

Processor

Intel® 8th   Generation I5-8260U 1.6GHz quad core 8-thread processor,TDP15W

Compatible with Intel®WhiskeyLake-U/CometLake-U/CoffeeLake-U 8th/10th

Celeron / Pentium/ I3/I5/I7 low power processor

Chipset

SOC

Memory

1* DDR4   SODIMM RAM slot, support 2666MHz memory, max up to 32GB

Display

Intel® UHD Graphics ,DirectX 12 OpenGL   4.5, support 4K

1*VGA port,1* HDMI port,1*LVDS port, support dual   channel 24Bit

LAN

2* Intel WGI210AT Gigabit Ethernet,   support WOL / PXE function

Storage

1* 7pin   SATA3.0 slot, transfer rate up to 6Gbps

1* MSATA slot, support Intel protocol SSDs，transfer rate up to 6Gbps

Audio

Onboard ALC897 7.1+2 channel high   fidelity audio controller, support Line_out ,Power amplifier

Amplifier supports 4Ω/3W dual channel

Expansion

1* Mini-PCIE slot，support WIFI/4G module

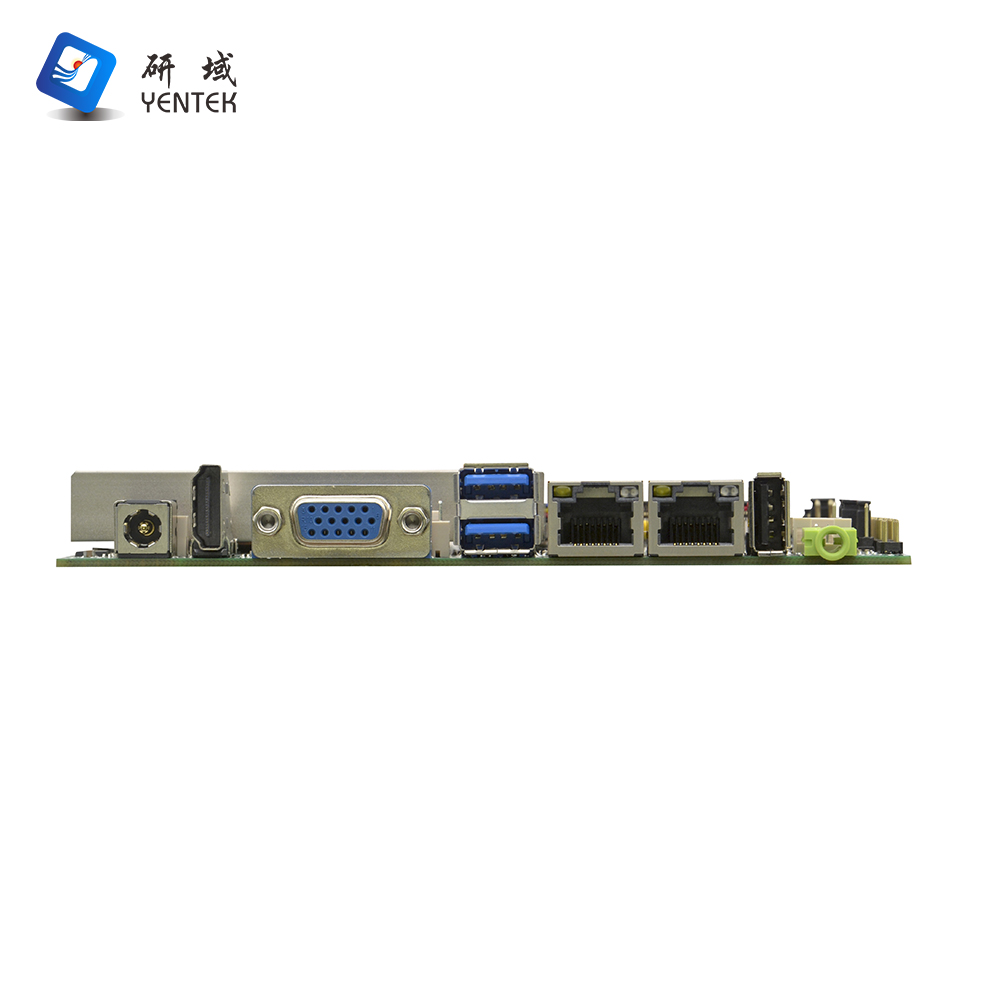

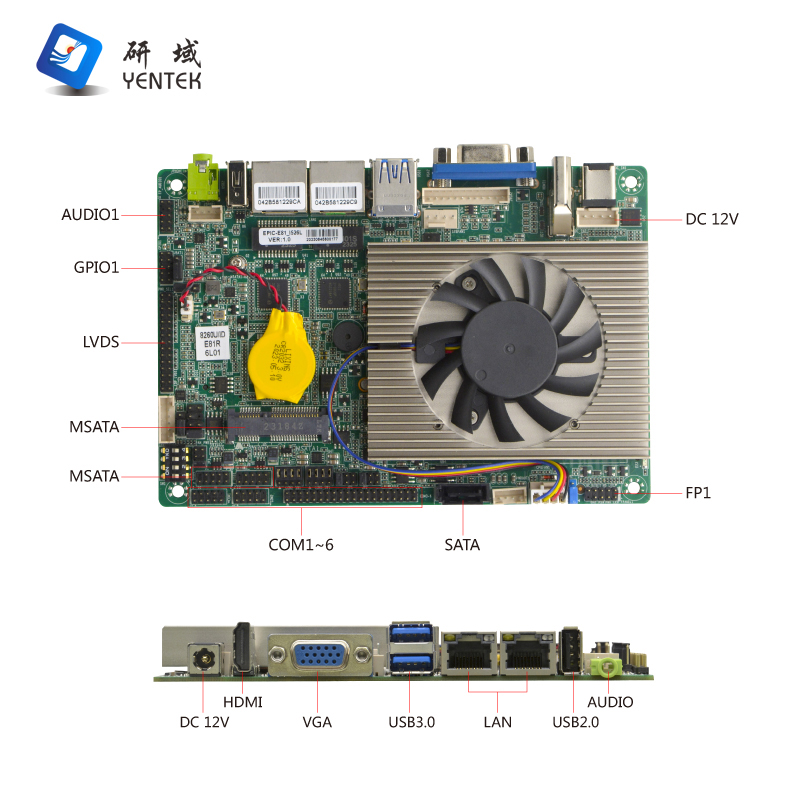

Rear panel I/O port

1* DC 12 power input

1* HDMI port

1* VGA port

2* USB3.0 port

1*   USB2.0 port

2*   RJ45 Gigabit LAN port

1*   Line-out（green）

Interior I/O port

1* 4pin power port，support 12V power input/output

1* JVGA port, 1*12pin, same signal as DB15

1* LVDS port，support dual channel 24BIT, share   pins with EDP，optional EDP interface

1* Backlight power connector, 1*6pin

6* RS232 COM ports,COM1 support the 9th pin charged function,COM2/3   support RS485/422 function

4* USB2.0 port, 2*5pin

1*   Front audio port, 2*5pin

1* Power   amplifier, 1*4pin

1* Hard   disk power supply interface , 1*4pin

1* Front panel function button and indicator lamp   interface, 2*5pin

Fan   connector

1*4pin CPU smart fan interface,1*3pin system fan   interface

GPIO

Support 4-in 4-out GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function   (L256，0~255   seconds)

Support OS

Windows10/Windows 11/Linux

Power Type

DC 12V power supply

Working Temp.

-10℃～60℃

Storage Temp.

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

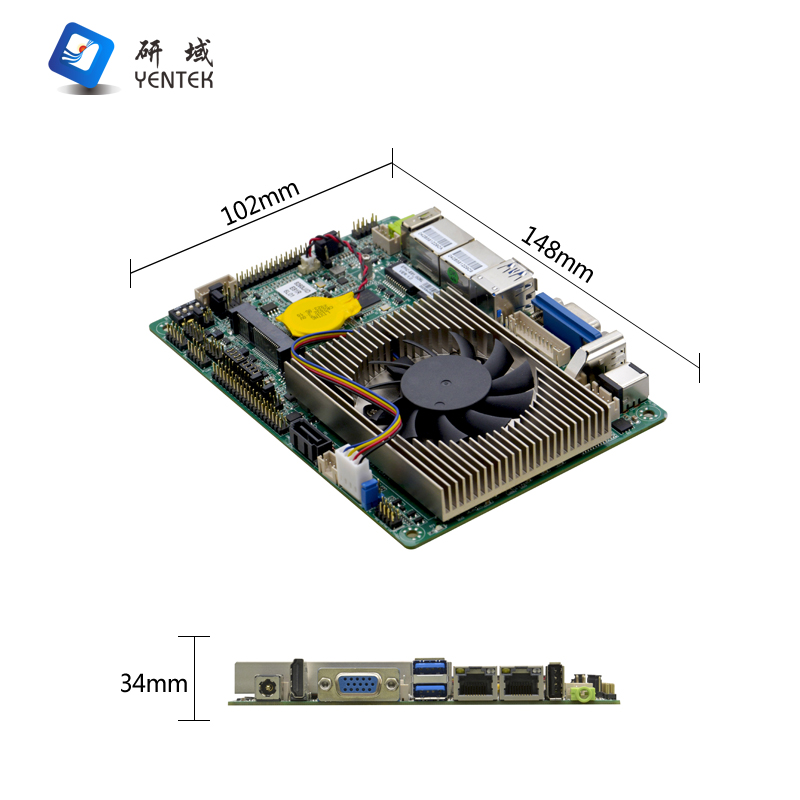

Dimension

148mm x 102mm
