EPIC-E41_J126L
Options: 2 sizes
$
98.00
Add to cart
+852 9458 7694
Product description

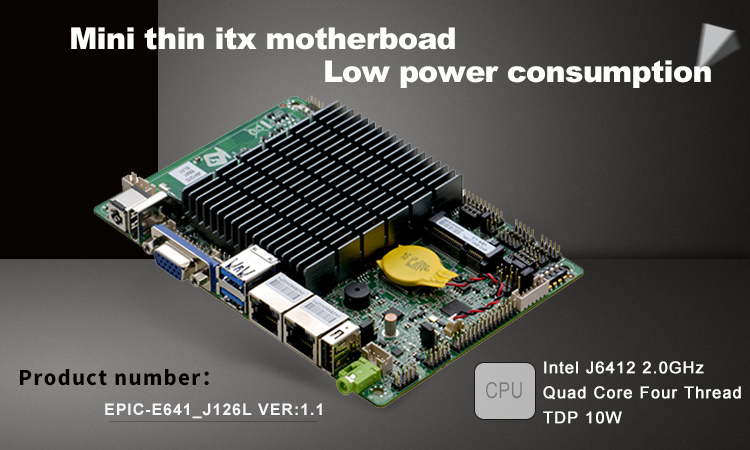

| Product model | EPIC-E641_J126L VER:1.0(J6412) |

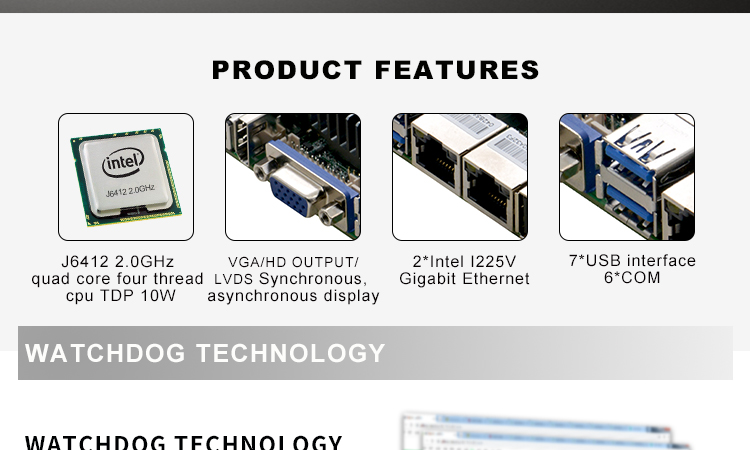

| Processor | Integrated Intel®Celeron J6412 2.0GHz quad-core quad-thread processor,TDP 10W, Compatible with the full range of Intel® Elkhart Lake cpus, customers can choose flexibly |
| Chipset | SOC |
| Internal memory | 1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 16GB) |
| Display | Integrated Intel® UHD Graphics core graphics card |
| 1* VGA,1*HD OUTPUT,1* LVDS | |
| Network | 2 x Intel I225V Gigabit network adapter, supporting network wake up and PXE functions |
| Deposit | 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps | |
| Tone frequency | Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 4Ω3W speaker | |
| Expansion | 1* Mini-PCIE slot, supporting WIFI/4G module |

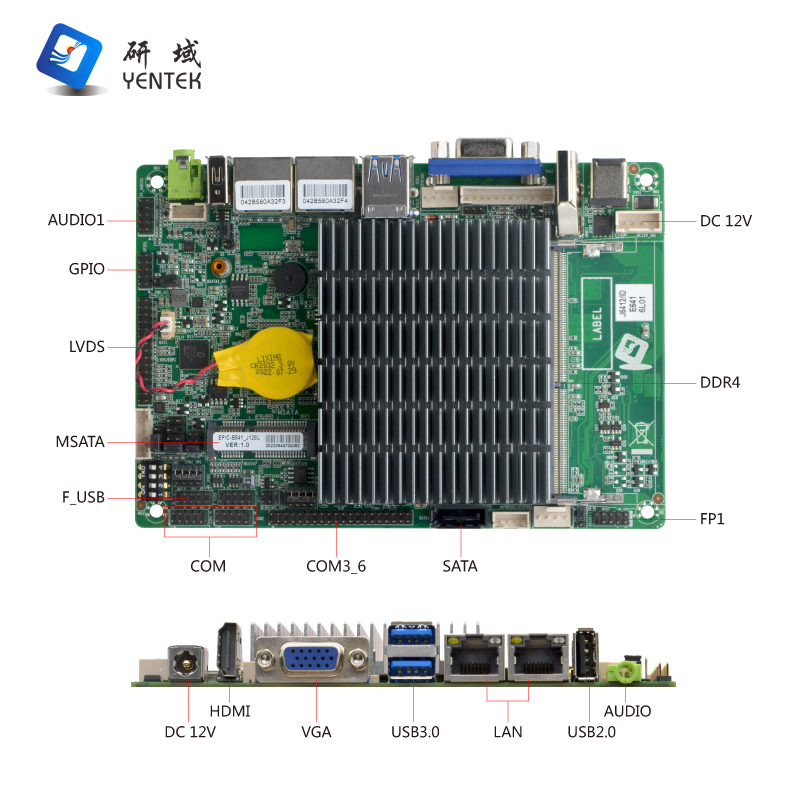

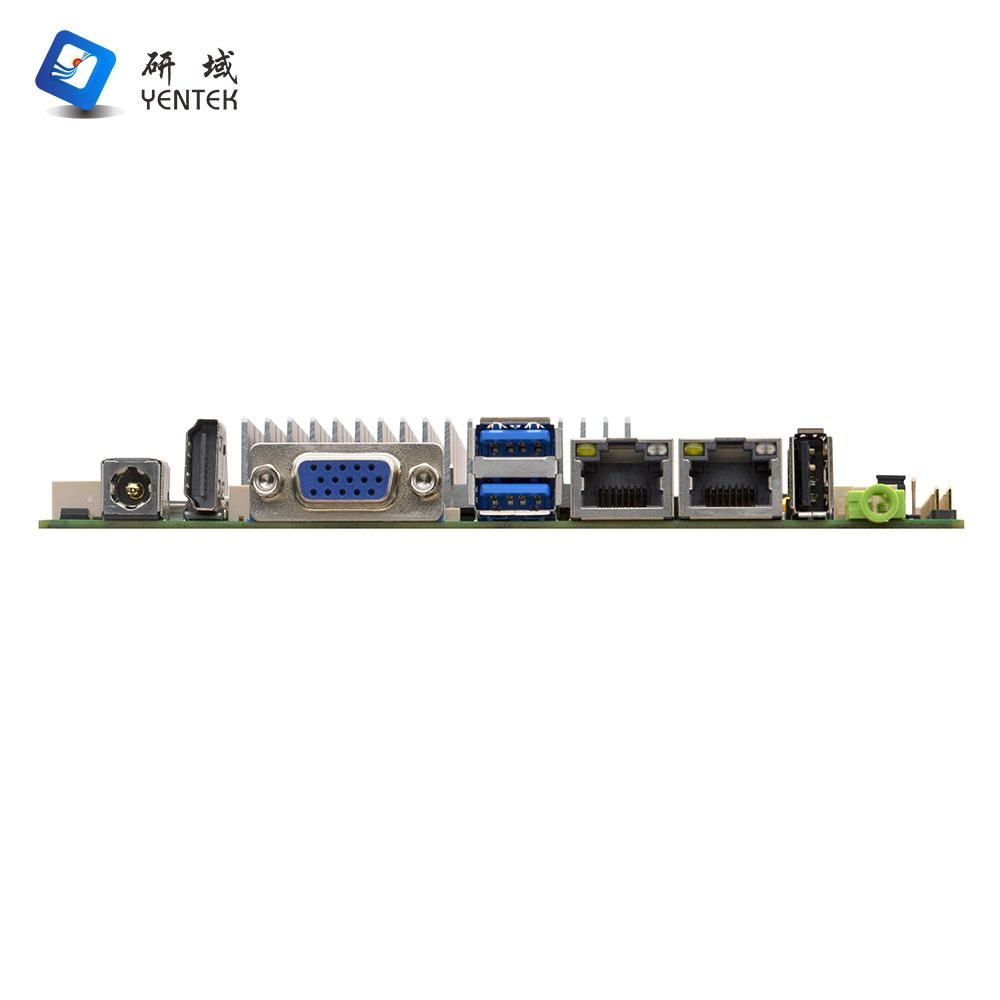

| I/O ports on the backplane | 1* DC 12V power input port |
| 1 x VGA display port | |
| 1* HD OUTPUT display interface | |
| 2* USB3.0 ports,1* USB2.0 ports | |
| 2* RJ45 Gigabit network interface | |
| 1* Line-out (green) | |

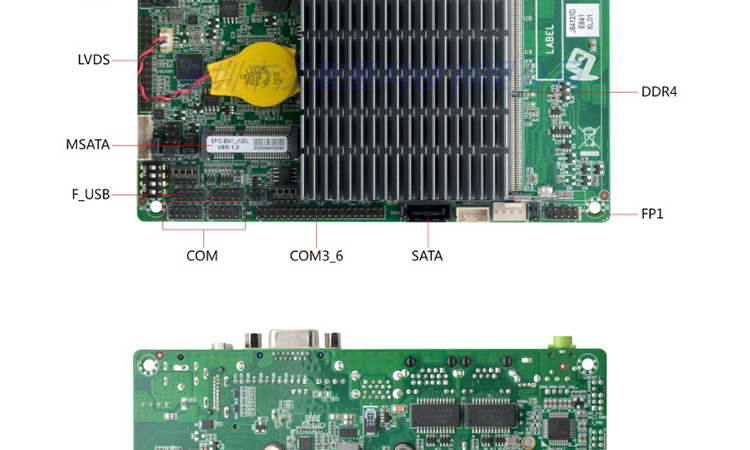

| Built-in I/O interface | 1* DC power interface, 1*4pin support 12V power input and output |
| 1* JVGA port 1*12pin, same signal as DB15 | |
| 1* LVDS interface, 2*15pin, support dual channel 24BIT, and EDP for shared pin | |
| 1* screen backlight power supply interface 1*6pin | |
4* USB2.0 interface, 2*5pin | |
| 6* RS232 serial interface,COM2/COM3 support RS485/422 function, | |
1* hard drive power port 1*4pin | |
| 1 Front audio interface 2*5pin | |
| 1* power amplifier interface 1*4pin | |
| 1* SIM card slot | |
| 1* Front panel function button and indicator port 2*5pin | |
| Fan interface | Without fan heat dissipation, a 1*4pin CPU intelligent fan port and a 1*4pin system fan port are reserved |
| Note: can support with fan radiator, please customers according to their own structural design to decide passive heat dissipation or active heat dissipation, there is a need to have a fan radiator, please contact the salesman | |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |

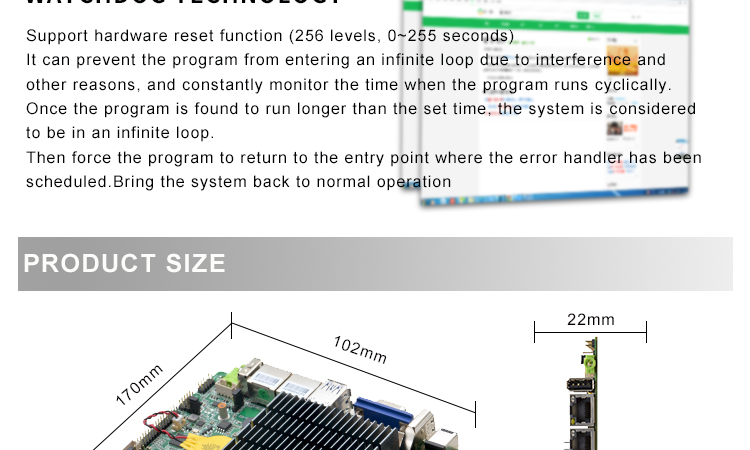

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

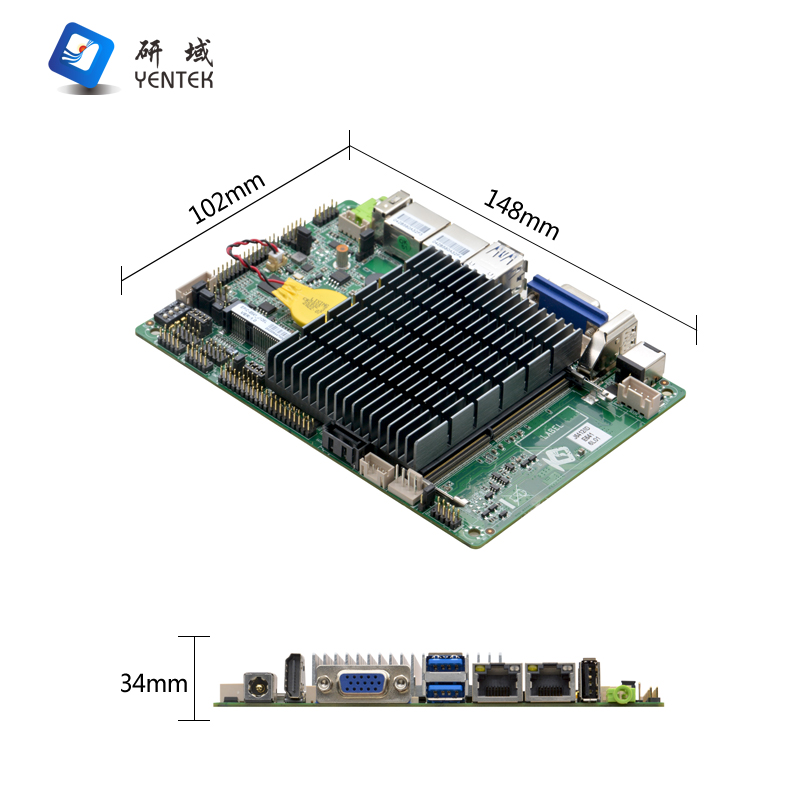

| Dimension | 148mm x 102mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | EPIC-E641_J126L VER:1.0 | J6412 | 2.0G | 1*SODDR4 | 1 | 1 | 2ch*24bit | / | 2*I225V | 7 | 6 | COM2/3 | DC 12V |
