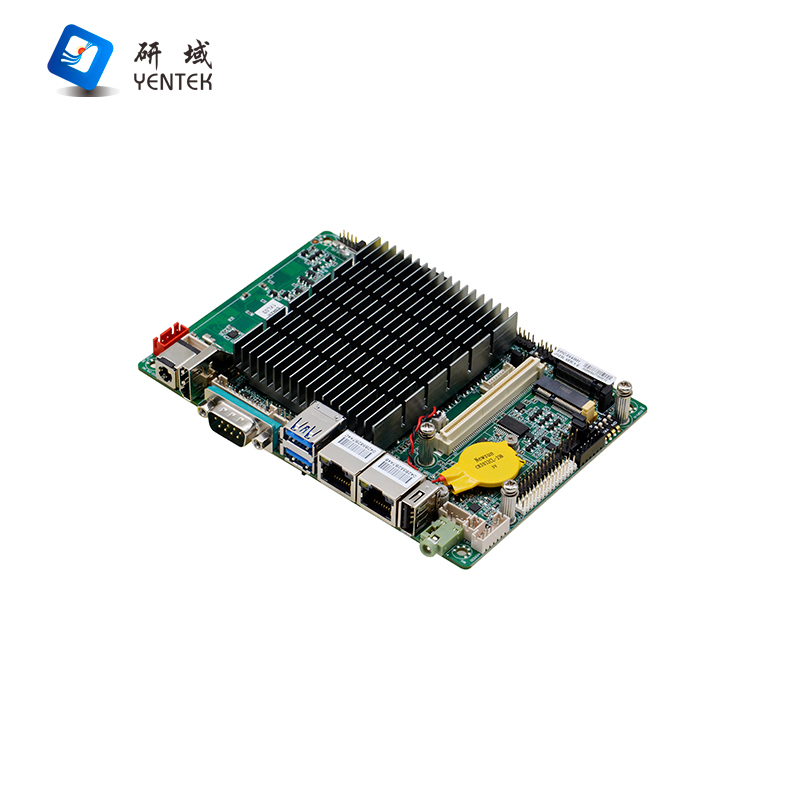

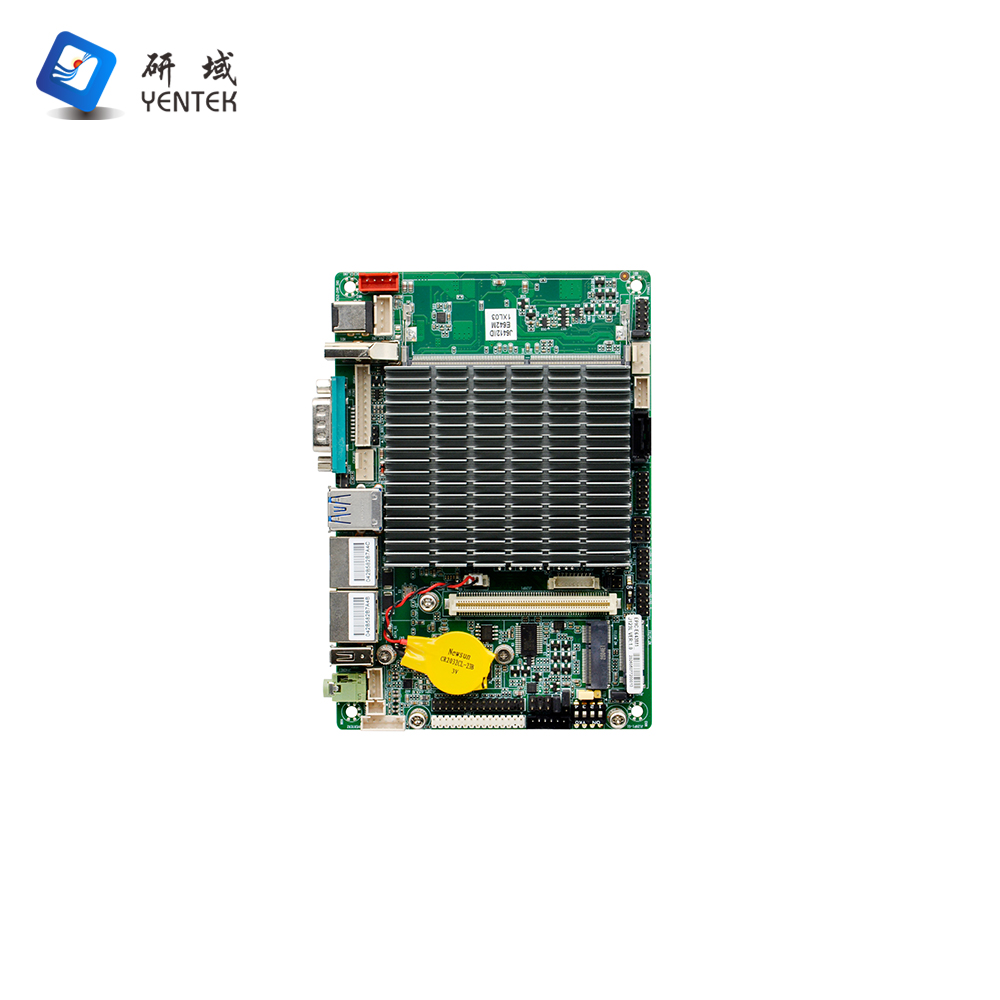

EPIC-E643M1_J123L

Processor

Integrated Intel® Celeron J6412 2.0GHz quad-core, quad-thread processor, TDP 10W

Compatible with the full range of Intel® Elkhart Lake CPU, offering customers flexible options

Chipset

SOC

Memory

1* DDR4 SODIMM slot, supporting single-channel 3200MHz memory, with a maximum capacity of 32GB

Display

Integrated Intel® UHD Graphics

1 * VGA port, supporting a maximum resolution of 1920*1080@60Hz

1 * HDMI 1.4 port, supporting a maximum resolution of 3840*2160@24Hz

1 * LVDS port, supporting dual-channel 24-bit,

1 * EDP port; either the LVDS or EDP port can be selected via a jumper

Supports three independent displays via VGA, HDMI, LVDS or EDP

Network

2 * Intel I210AT 1GbE network cards, supporting Wake-on-LAN and PXE functionality

Storage

1 * 7-pin SATA 3.0 hard drive interface, with a transfer rate of up to 6 Gbps

1 * M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x1 SSD

Note: The M.2 SSD slot can support SATA SSDs; BIOS configuration is required

Audio

On-board ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC/Line-out and power amplifier

A 4Ω 3W speaker is recommended for the power amplifier

Expansion Slots

1 * M.2 slot, supporting M.2 2230 Wi-Fi/Bluetooth modules

1 * 120-pin high-speed header, including 4 TTL signals, 2 * PCIe, 1 * DisplayPort and 8 GPIO channels (for use with E642 series daughterboards)

Rear Panel I/O Ports

1 * DC 12V power input connector

1 * DB9 RS232 serial port; either this or the built-in JCOM1 port can be used

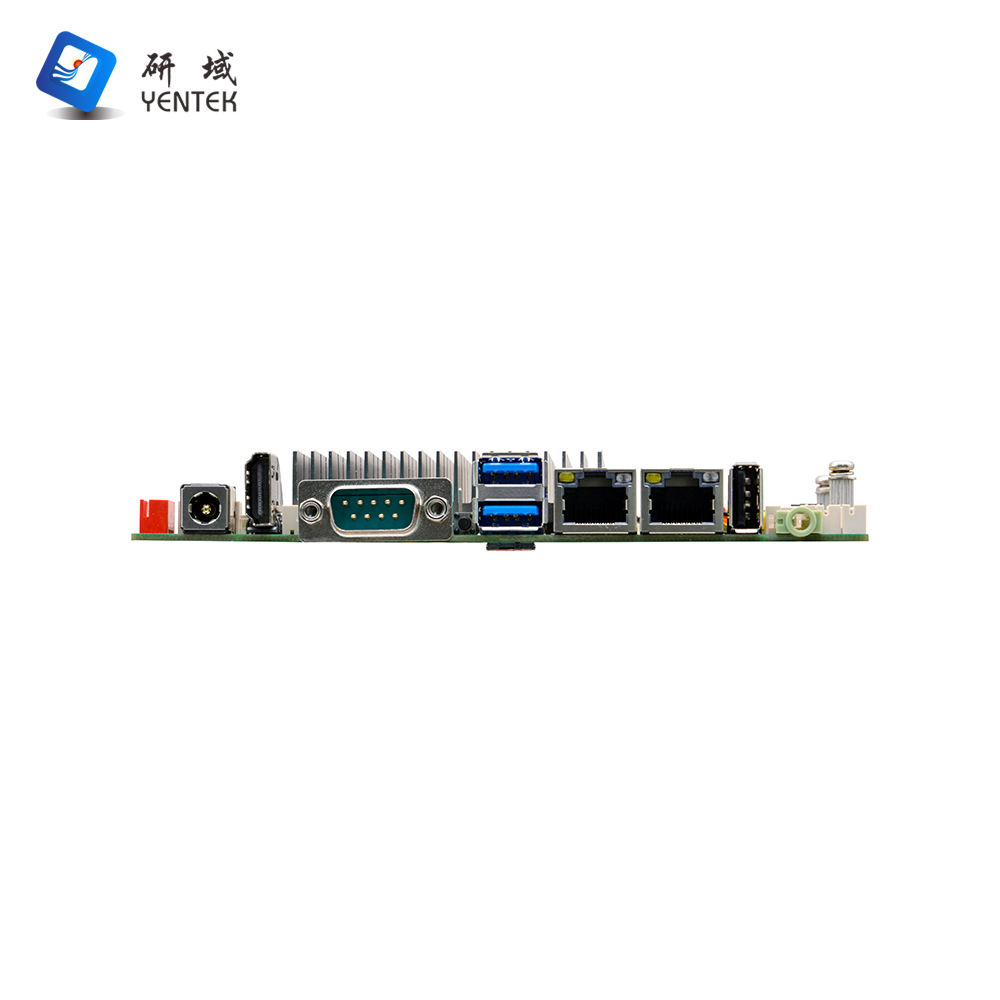

1 * HDMI 1–4 display port

2 * Type-A USB 3.0 ports (5 Gbps), 1 * Type-A USB 2.0 port

2 * RJ45 Gigabit Ethernet ports

1 * Line-out (green)

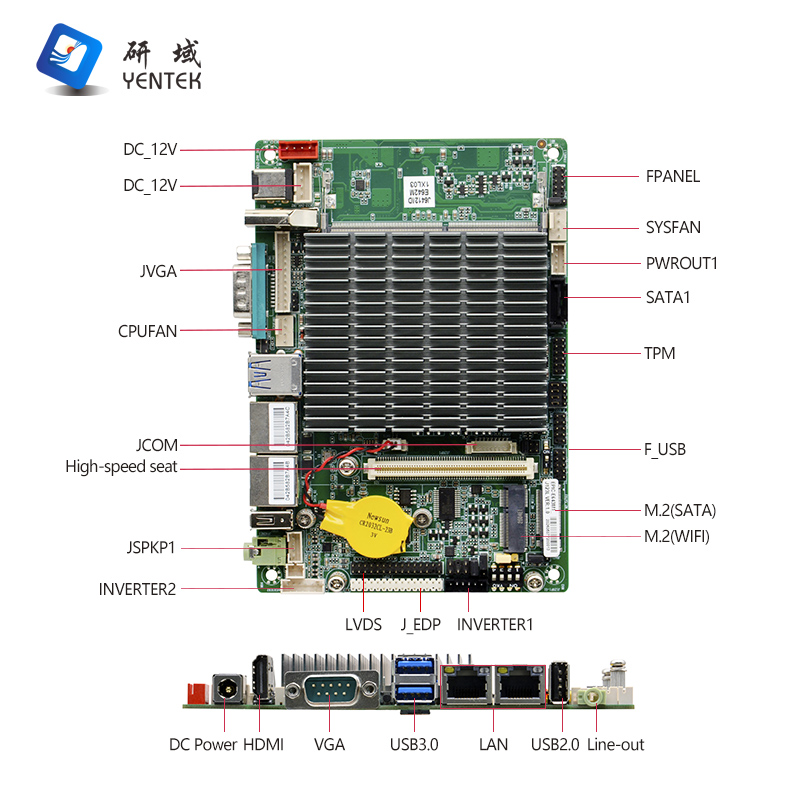

On-board I/O Ports

1 * DC power connector (white), 1 * 4-pin (pitch 2.5 mm), supports 12 V–24 V DC power supply (requires a wide-voltage board)

1 * DC power connector (red), 1 * 4-pin (PH=2.5mm), supports 12V DC power supply

1 * JVGA connector (1 * 12-pin, PH=2.0mm), either this or the DP signal from the high-speed socket; configured via DIP switch

1 * LVDS connector (2 * 15-pin, PH=2.0mm), supports dual-channel 24-bit,

1 * EDP connector (white), 2 * 15-pin, pitch = 2.0 mm; either this or the LVDS connection is selected via a jumper

1 * LVDS display backlight power connector (black), 1 * 6-pin, pitch = 2.0 mm

1 * EDP display backlight power connector (white), 1 * 6-pin, pitch = 2.0 mm

4 * USB 2.0 ports, 2 * 5-pin, pitch = 2.0 mm

1 * RS232 serial port, 1 * 9-pin, pitch = 1.25 mm, supports RS485/422 functionality,

1 * hard disk power supply port, 1 * 4-pin, pitch = 2.0 mm

1 * microphone port, 1 * 2-pin, pitch = 2.0 mm

1 * amplifier interface, 1 * 4-pin, PH = 2.0 mm

1 * front panel function button and indicator light interface, 2 * 5-pin, PH = 2.0 mm

1 * TPM interface (ESPI specification), 2 * 6-pin, PH = 2.0 mm

Fan Connectors

Fanless cooling; provisions for 1 * 4-pin CPU smart fan interface and 1 * 4-pin system fan interface

GPIO

N/A

BIOS

128 Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Operating System

Windows 10/11/Linux

Power Supply Type

Powered by 12 V DC; supports 12–24 V DC wide voltage range via the E642-PW expansion board

Operating Temperature

–10 °C to 60 °C

Storage Temperature

–20 °C to 70 °C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

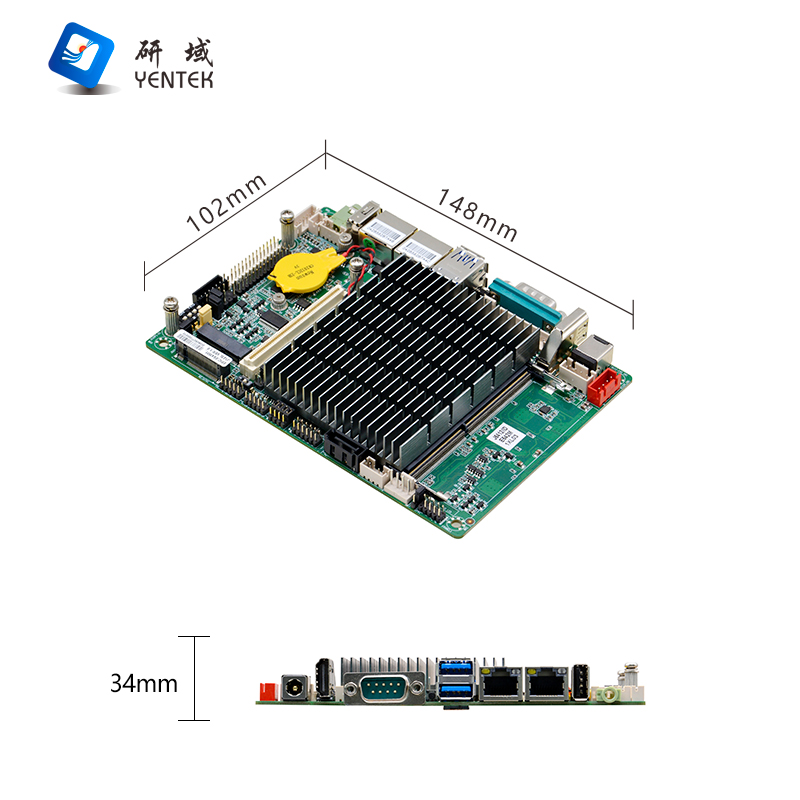

148mm x 102mm

1

EPIC-E643M1_J123L VER:1.0(J6412)

J6412

2.0G

1* SODDR4

1

1

2ch*24BIT

1

2*I210AT

7

2

COM2

DC12V
