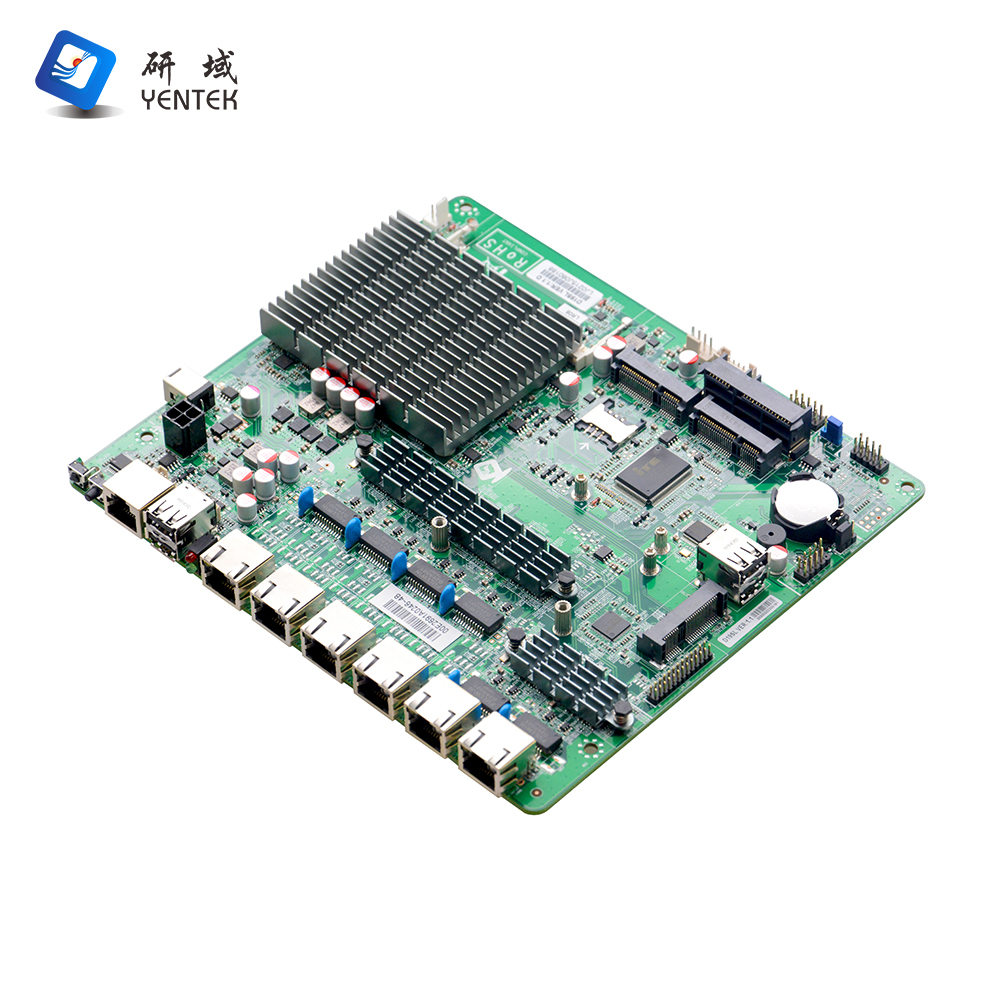

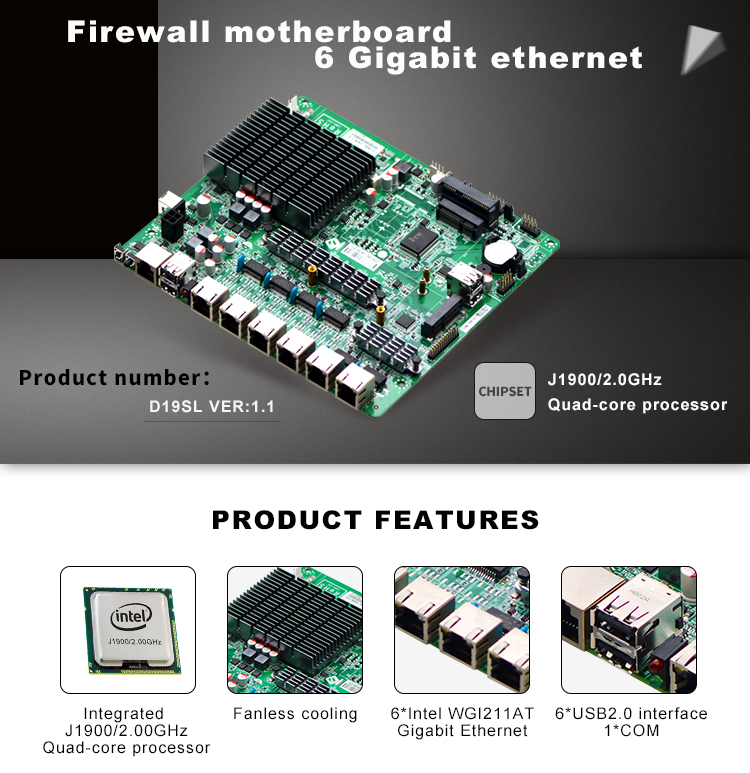

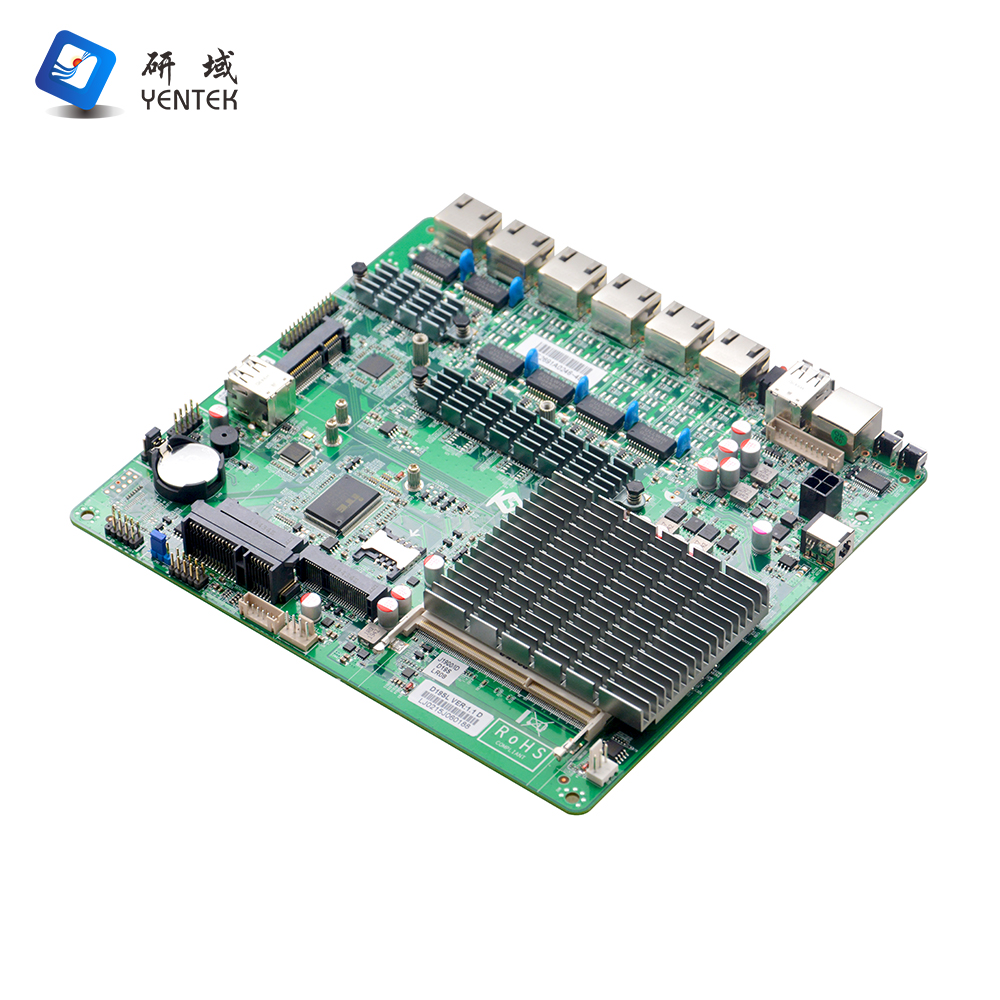

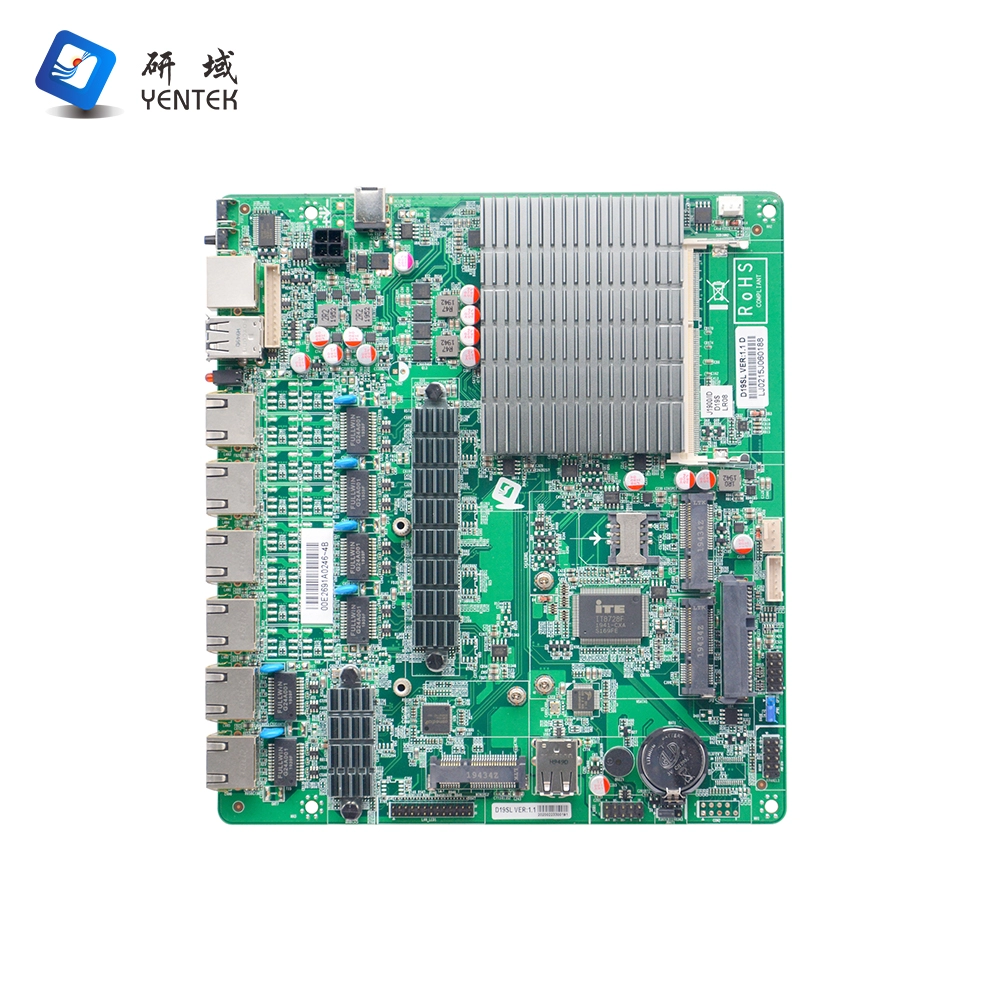

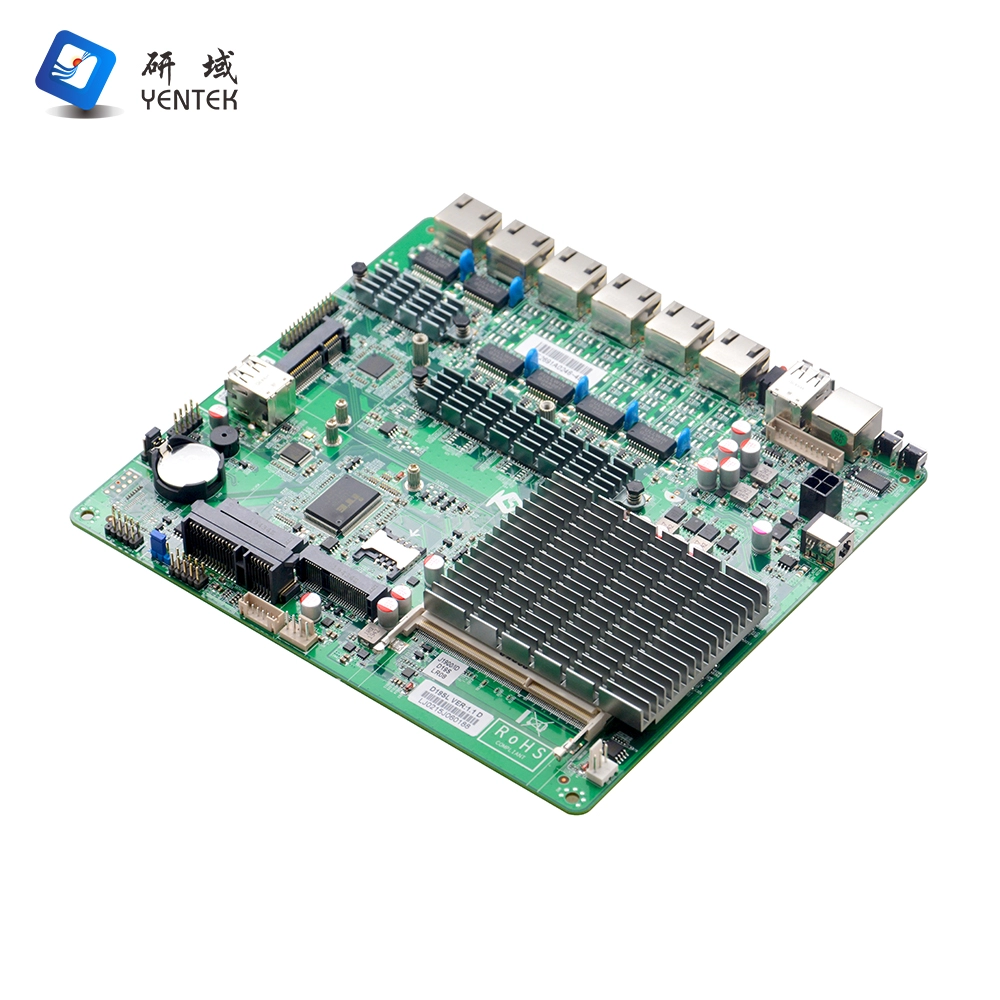

| Product model | D19SL VER:1.1 (I210AT) |
| Processor | Integrated Intel® Celeron®J1900 2.0GHz quad core processor, TDP10W |
| Chipset | Intel® Bay trail SOC |
| Memory | 1* SODIMM RAM slot, support single channel 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| Display | Intel® HD Graphics，1*VGA display output |
| LAN | 6* Intel WGI211AT Gigabit Ethernet, support WOL / PXE function |
| Storage | 1* 2.5" laptop hard drive bay, for direct hard drive installation |
| 1* MSATA slot, support Intel protocol SSDs, transfer rate up to 3Gbps | |
| Extension Slot | 1* Mini-PCIE2 slot, support WIF module |
| 1* Mini-PCIE1 slot, support 4G module | |

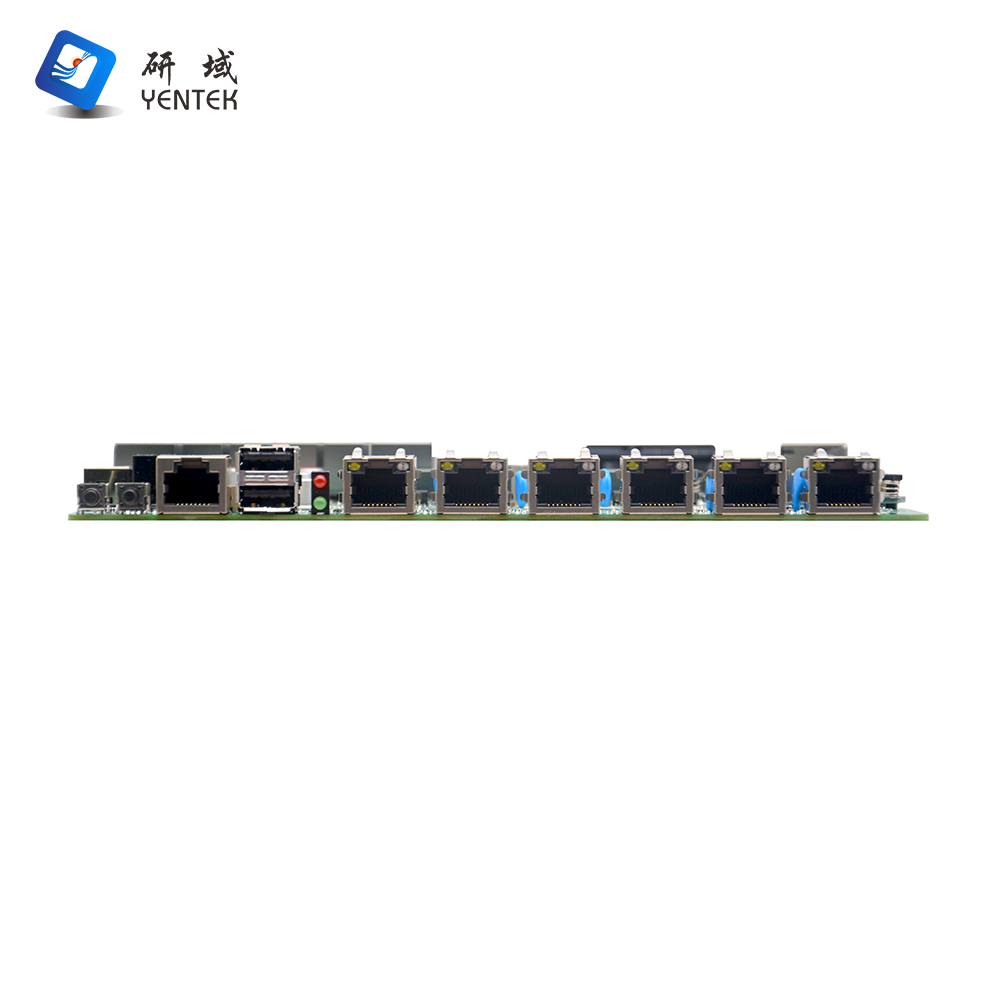

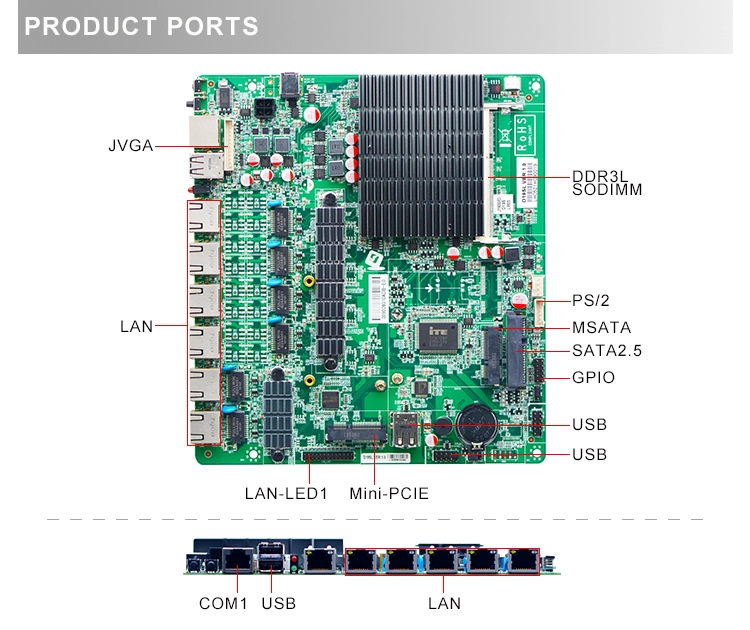

| Rear I/O port | 1* CISCO RS232 COM port |
| 2* USB 2.0 port | |
| 6* RJ-45 Gigabit LAN port | |
| 1* Power switch，1*Reset switch | |
| 1* Power LED(green) , 1*HDD LED (red） | |
| Interior I/O port | 1* JVGA port, 1*12pin |
| 1* Network indicator interface, 2*13pin | |
| 2* USB2.0 port, 2*5pin | |
| 2* USB2.0 port | |
| 1* Front panel function button and LED indicator, 2*5pin | |
| 1* PS/2 KB/MS port, 1*6pin | |
| 1*DC12V power input port | |
| 1*4pinATX power input port, support 12V power input/output | |
| Fan interface | 1* 4pin CPU smart fan connector, 1* 3pin system fan connector |
| GPIO | Support 4 input/output GPIO |
| BIOS | 64Mb Flash ROM |

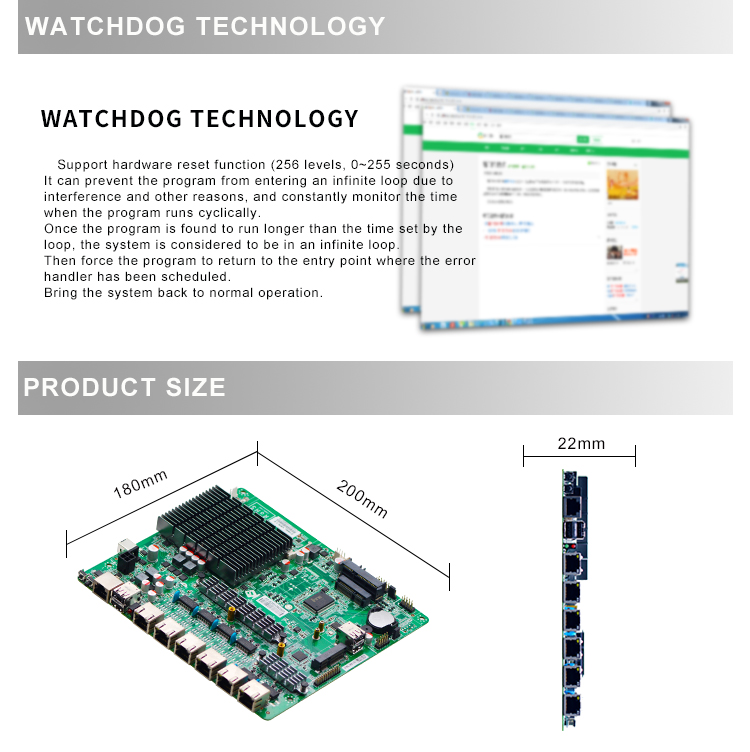

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 200mm x 180mm |
| NO. | Model | Processor | Frequency | Memory | VGA | LVDS | LAN | USB | COM | BYPASS | Power |
| 1 | D19SL VER:1.1(I210AT) | J1900 | 2.0GHz | 1*SODDR3L | 1 | X | 6* WGI210AT | 6 | 2 | 2 | DC12V |
