Processor

Integrated Intel® Core I5-3210M /2.5GHz   Dual-Core Quad-Thread Processor, TDP 18W

Compatible with Intel® Sandy /Ivy Bridge   Celeron/Pentium/I3/I5/I7 BGA1023 low power processors

Chipset

Adopts Intel® HM77   high-speed chipset

Memory

1*SODDR3 memory slot,   supports single-channel DDR3 1600/1333 memory up to 8GB.

Display

Integrated Intel® HD   Graphics4000 core graphics card

1*VGA connector

Network

6* Intel I226V Gigabit   LAN card, support Wake-on-LAN function

Storage

1* SATA3.0 hard drive   interface, transfer speed up to 6Gbps

1* MSATA slot, support   Intel protocol SSD, transfer speed up to 6Gbps

Audio

N/A

Expansion Slots

1* Mini-PCIE slot, support   WIFI/4G/TPM-4COM module, need to change BIOS for TPM-4COM function.

1* PCIE X8 slot

Note: MINI-PCIE slot   supports TPM-4OM to expand 4 serial ports, need to change material and BIOS.

Backplane I/O Ports

1* RJ45 serial port

2* USB3.0 port

6* RJ45 Gigabit network   interface

1* Power Switch, 1*   One-Key Restore

1* Double-layer LEDs,   (upper red, lower green, upper HDD light, lower power light)

Built-in I/O Ports

1* JVGA1 interface   1*12pin

1* RS232 serial   interface 2*5pin, support RS485 function

1* Single-layer   vertical USB2.0 interface

2* USB2.0 interface   2*5pin, support RS485 function

1* PS/2 keyboard and   mouse interface (red) 1*6Pin

1* GPIO pin (four in   four out)

1* Front panel switch   button and indicator interface 2*5Pin

1* HDD power supply   interface 1*4pin

1* DC12V power   connector, support 12V power input (side)

1* 4pin ATX power   connector (can be 12V input power connector)

1* SIM card holder

Fan Interface

1*4pin CPU smart fan   interface, 2*4pin system fan interface

GPIO

Support   4 input/output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset   function (256 levels, 0~255 seconds)

Power Supply Type

DC 12V power supply

Operating System

Windows 10 /Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative   humidity, non-condensing

Dimension

200mm x 193mm

1

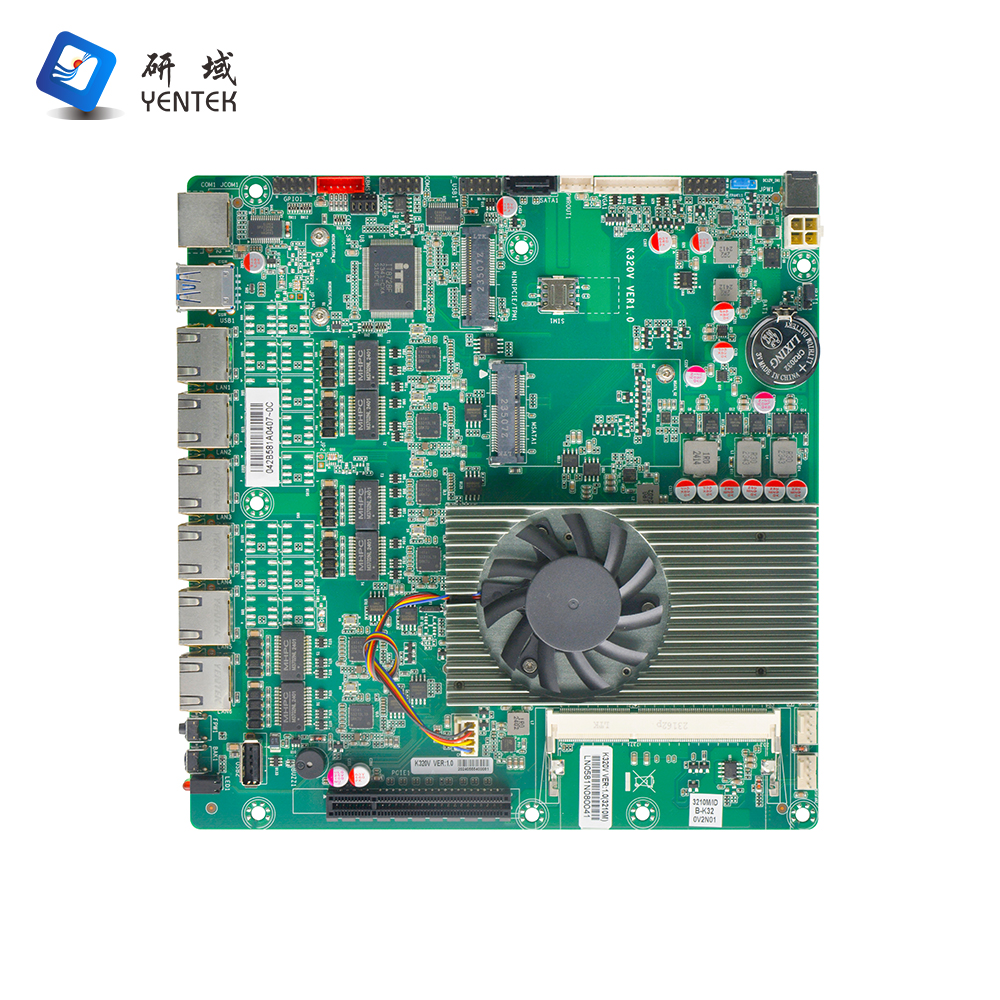

K320V VER:1.0

I5-3210M

2.5G

1*SODDR3

1

/

/

6*I226V

4

2

1

ATX
