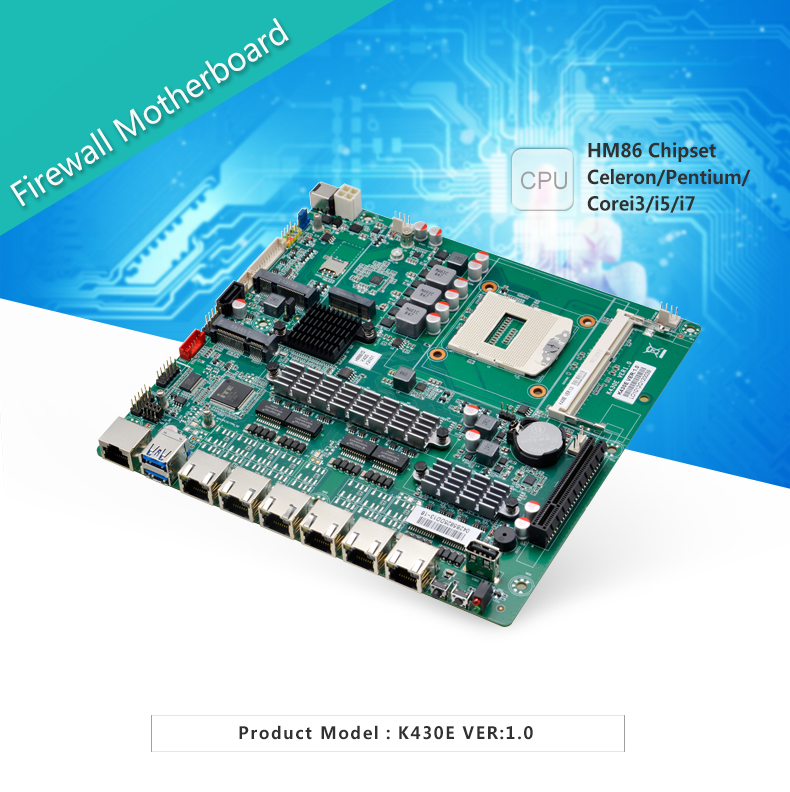

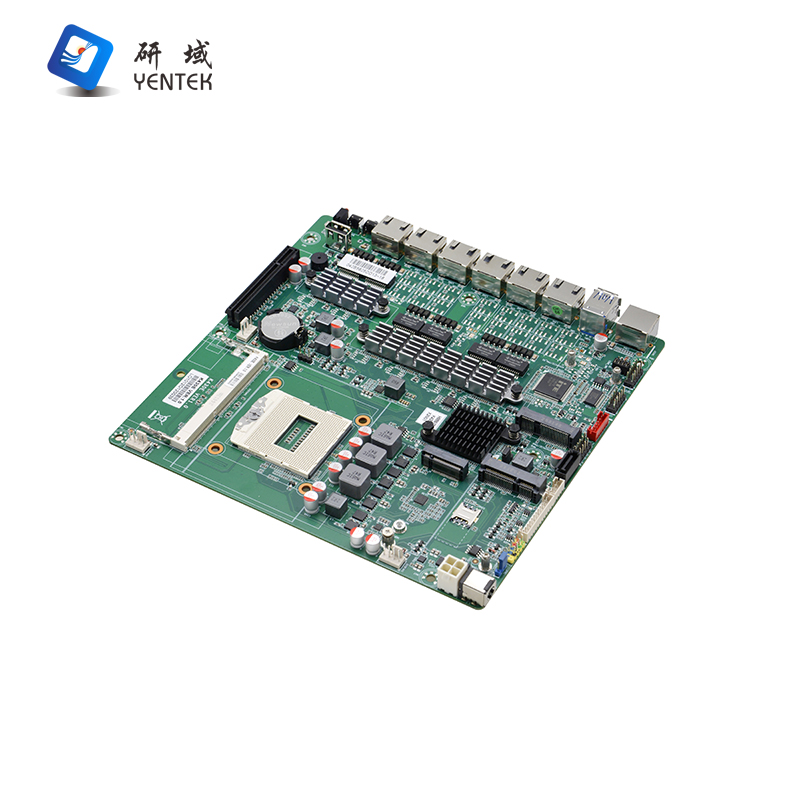

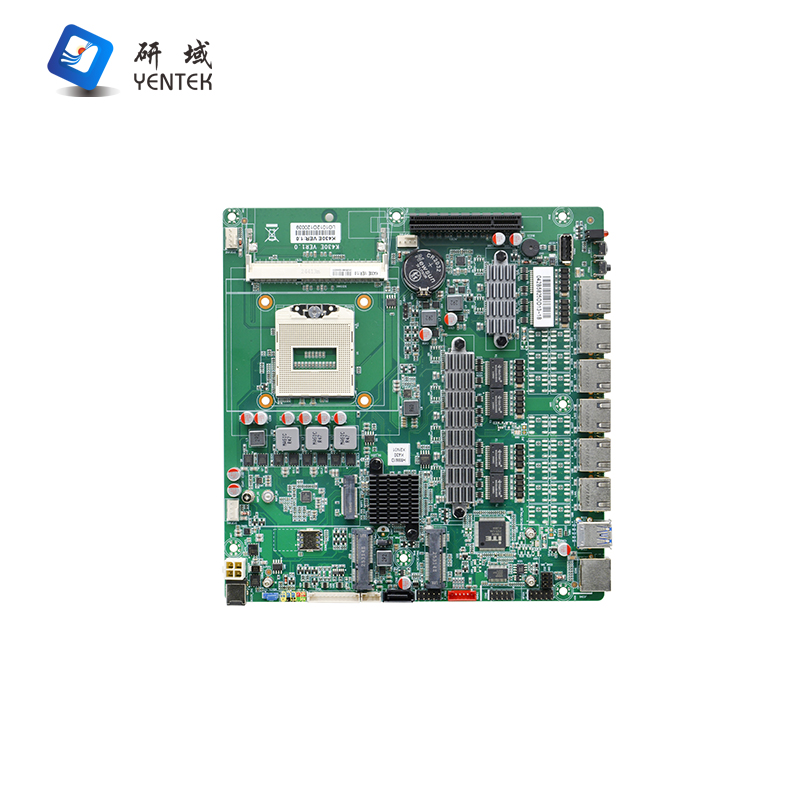

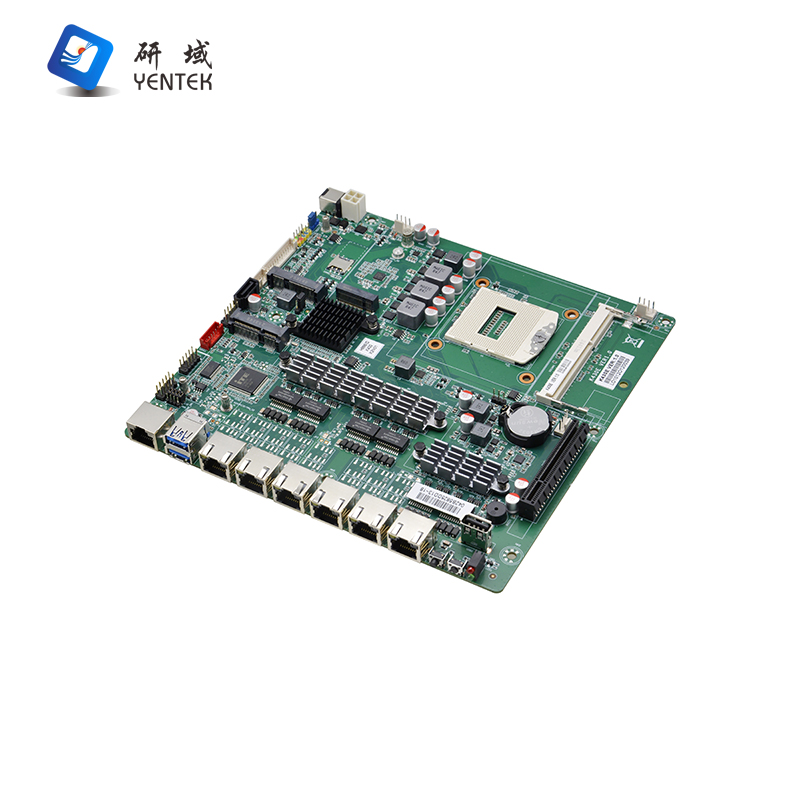

K430E

Processor

Supports Intel® PGA 946 socket for Intel® Haswell   4th Generation Celeron/Pentium/Core i3/i5/i7 series processors

Chipset

Features Intel® HM86 high-speed chipset

Memory

1x DDR3L SODIMM memory slot, supporting 1600/1333MHz 1.35V   memory, maximum capacity 8GB

Display

Integrated Intel® HD Graphics core graphics

1x VGA

Network

6x Intel I210AT Gigabit Ethernet ports, supporting Wake-on-LAN   and PXE functionality

Storage

1x SATA 3.0 hard drive interface, transfer rate up to 6Gbps

1x mSATA 3.0 slot, supporting Intel   protocol SSDs, transfer speed up to 6Gbps

Audio

N/A

Expansion Slots

1x   Mini-PCIe slot, supporting Wi-Fi / TPM-4COM modules (requires BIOS   modification for TPM-4COM functionality)

1x M.2   slot, supporting M.2 Key B 2242/2252 5G modules

1x PCIe   x8 slot

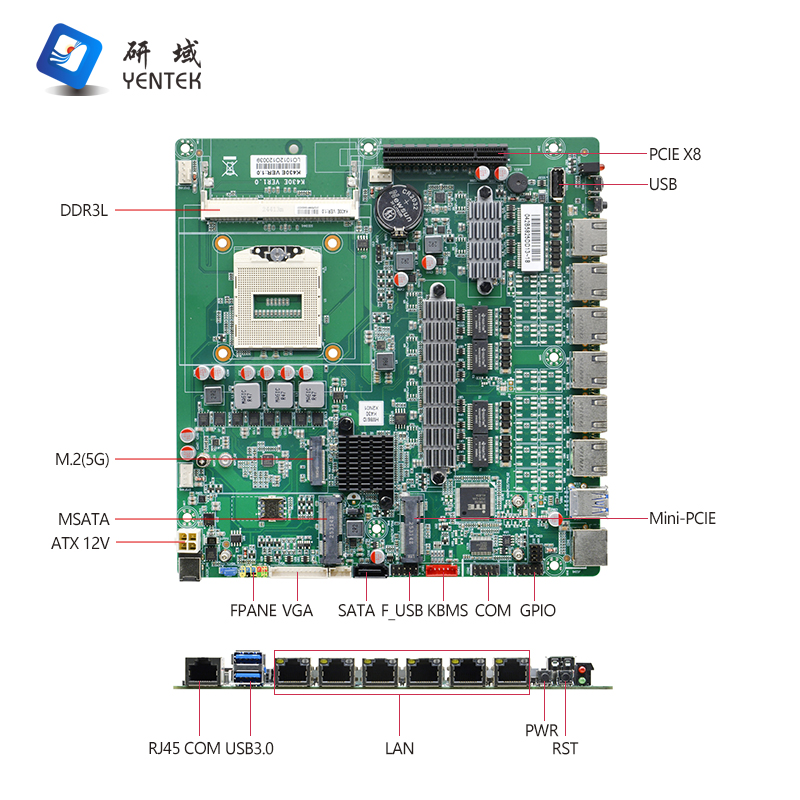

Rear Panel I/O Ports

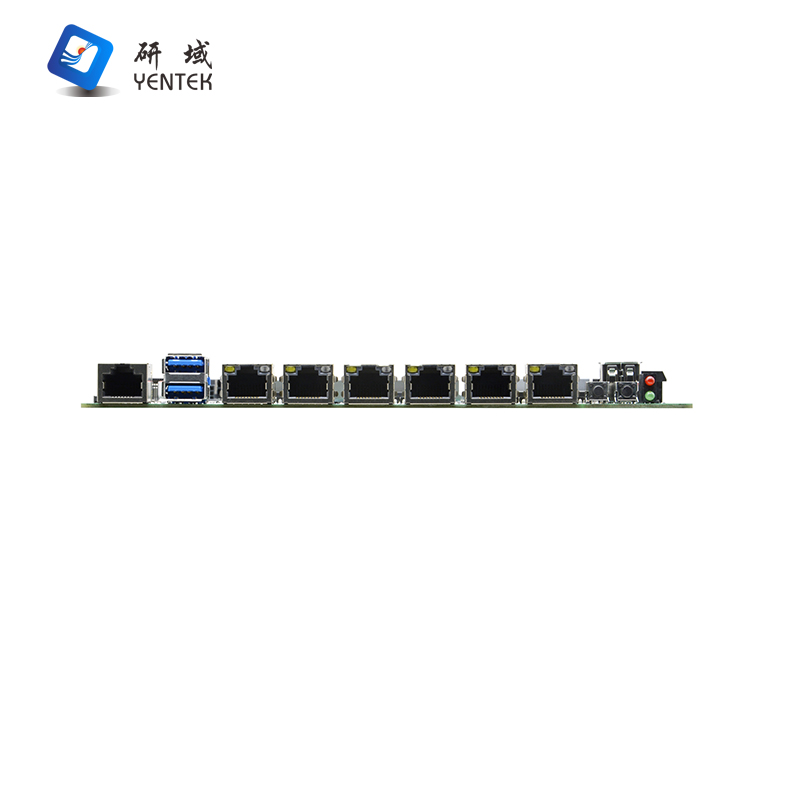

1x RJ45 serial port (featuring 2x 5-pin serial header pins)

2x USB 3.0 ports (5Gbps)

6x RJ45 Gigabit Ethernet ports

1x Power switch, 1x One-touch reset

1x Dual-layer LED indicator (top red/bottom green: upper for   HDD status, lower for power)

Built-in I/O Ports

1x JVGA interface 1x 12-pin connector (PH=2.0mm)

1x RS232 serial port (2x5-pin, PH=2.54mm,   RS485 compatible)

1x Single-layer vertical USB 2.0 port

2x USB 2.0 ports (2x5-pin, PH=2.54mm)

1x PS/2 keyboard/mouse port (red) (1x6-pin, PH=2.0mm)

1x Front panel switch buttons and indicator ports 2×5-pin,   PH=2.54mm

1× Hard drive power connector 1×4-pin, PH=2.0mm

1× DC12V power connector, supports 12V power input (side)

1× 4-pin ATX power connector (can serve as 12V input power   connector)

1× SIM card slot

Fan Connectors

1× 4-pin CPU intelligent fan connector; 2×4-pin system smart   fan connectors

BIOS

64MB Flash ROM

GPIO

Supports 4-channel input/output GPIO functionality

Supported Systems

Windows® 7/8.1/10

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Supports DC12V power supply

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

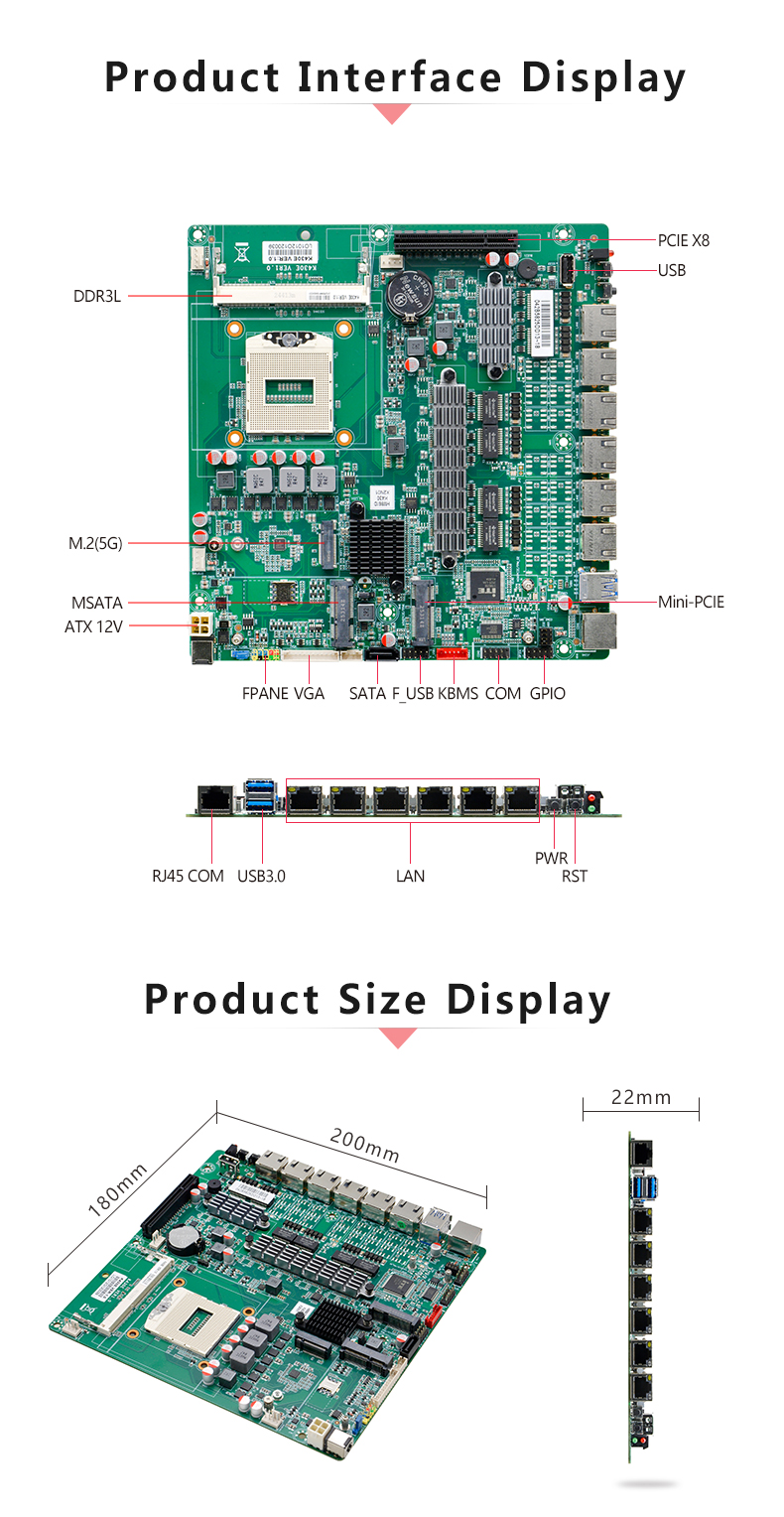

Dimensions

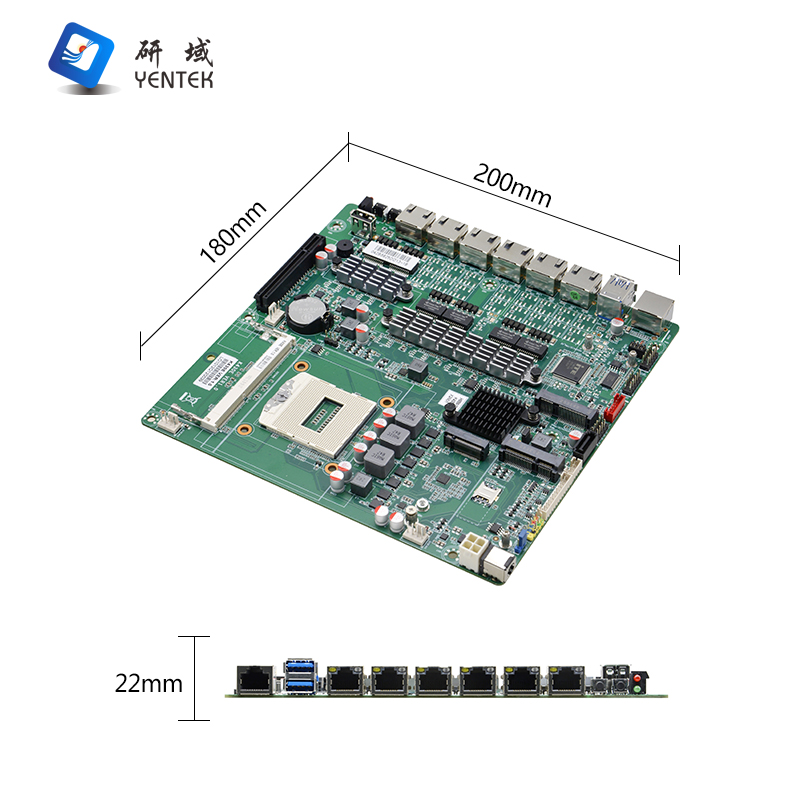

200mm x 180mm

1

K430E VER:1.0

PGA946

HM86

1*SODDR3

1

/

/

6*I210AT

5

2

1

DC12V
