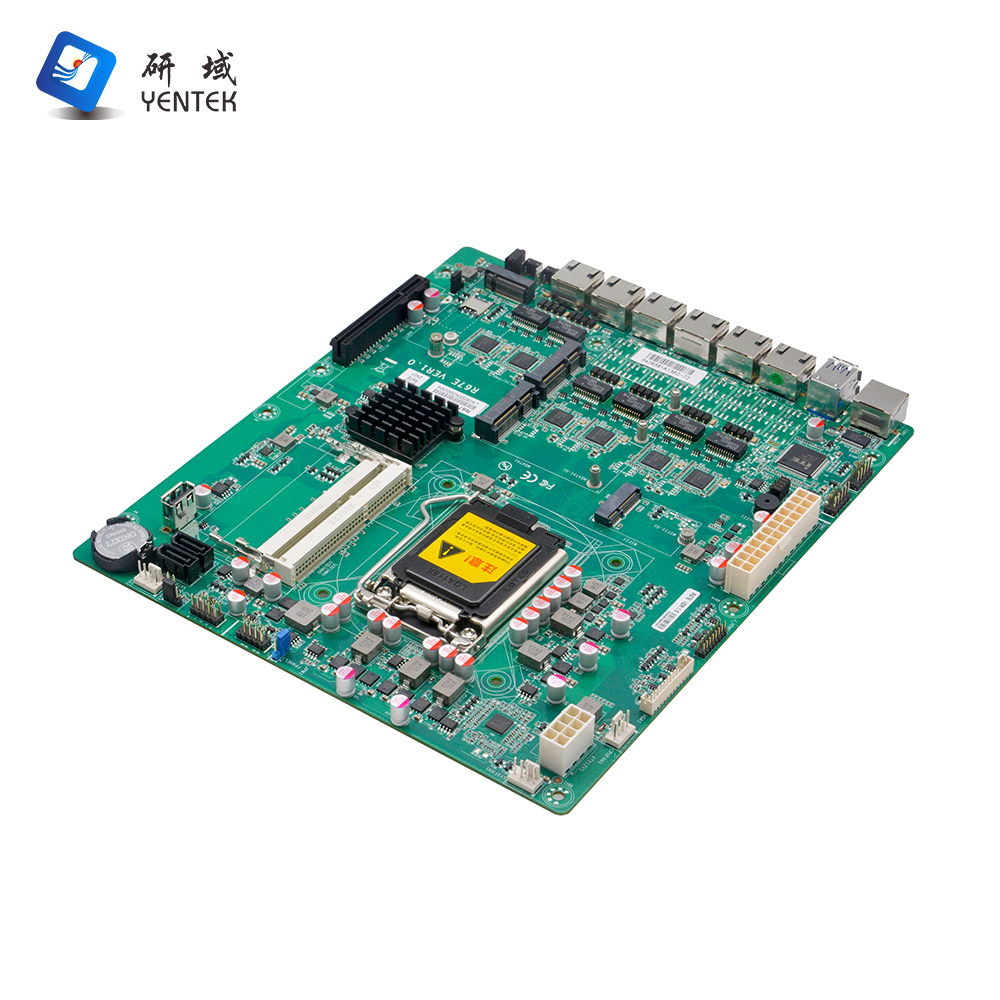

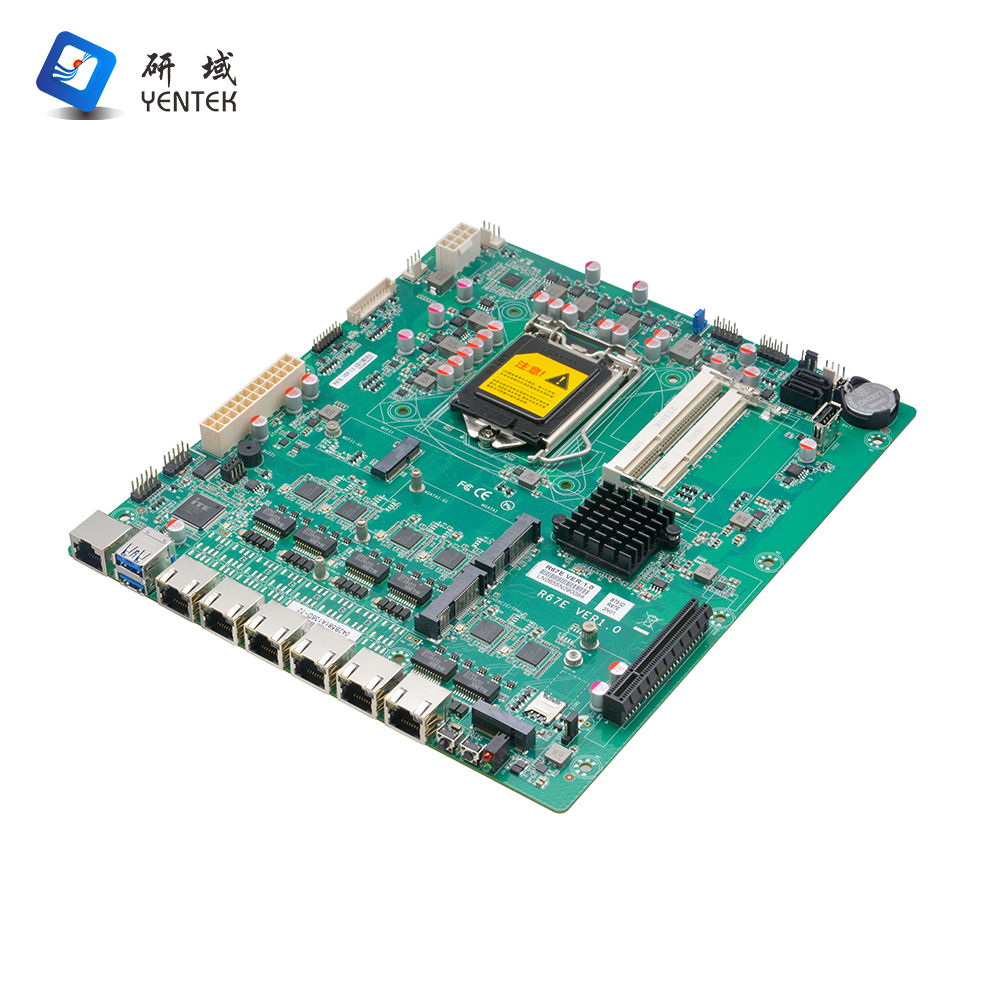

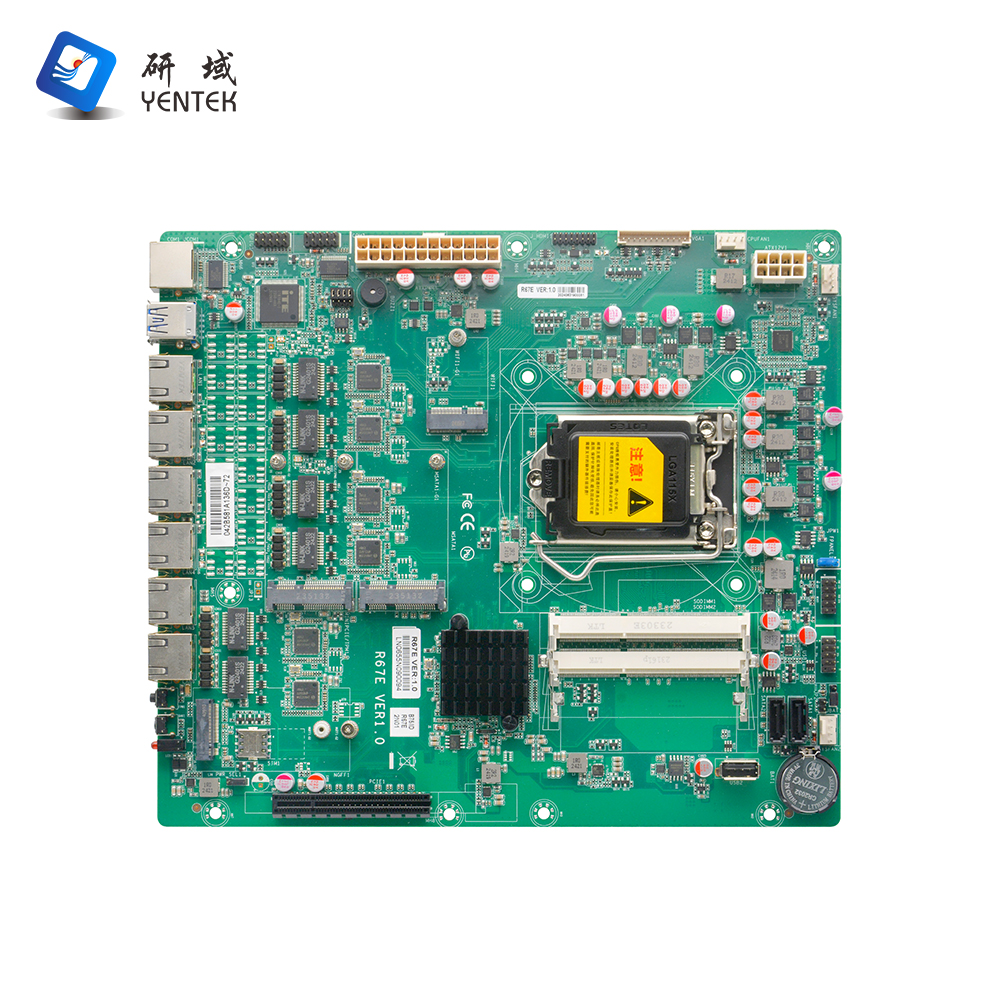

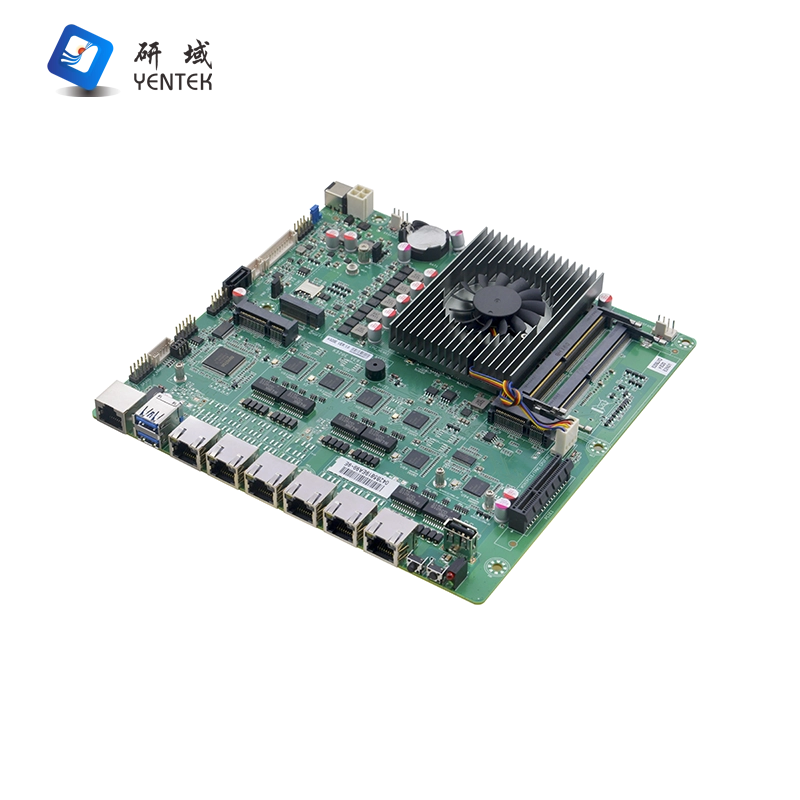

R67E

Processor

Supports 2nd/3rd Intel®   Celeron/Pentium/Core™ i3/i5/i7 processors with LGA1155 architecture

Chipset

Adopts   Intel B75 high-speed chipset

Memory

2*DDR3   SODIMM memory slots, support dual-channel 1600/1333/1066MHz memory, maximum   support 32GB

Display

Integrated   Intel® HD Graphics core graphics card

1*   HDMI interface, 1* VGA interface

Network

6*   Intel I210AT Gigabit LAN card, support for Wake-on-LAN, PXE function

Storage

2*   SATA2.0 hard drive interface, transfer speed up to 3Gbps.

1*   MSATA 3.0 slot, support Intel protocol SSD, transfer speed up to 6Gbps

Audio

N/A

Expansion Slots

1*   Mini-PCIE slot, support WIFI / TPM-4COM module, default WIFI, need to change   BIOS for TPM-4COM function.

1*   M.2 slot, support M.2 Key B 2242/2252 5G module

1*   M.2 slot, support M.2 Key E 2230 WIFI module

1*   PCIE X8 slot

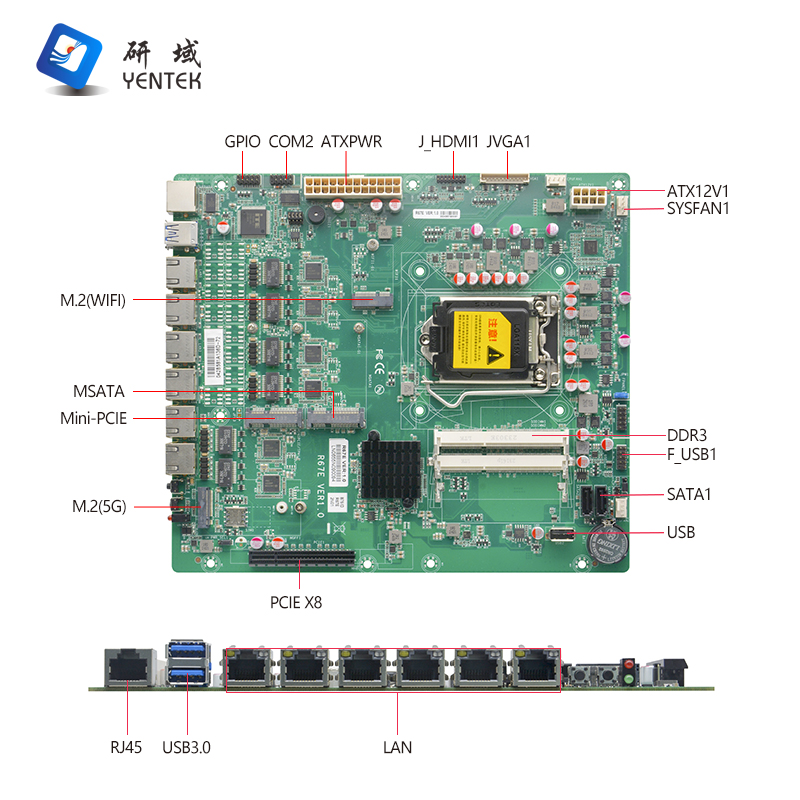

Backplane I/O Ports

1*   RJ45 serial port (co-located with the built-in serial pinout)

2*   USB3.0 port

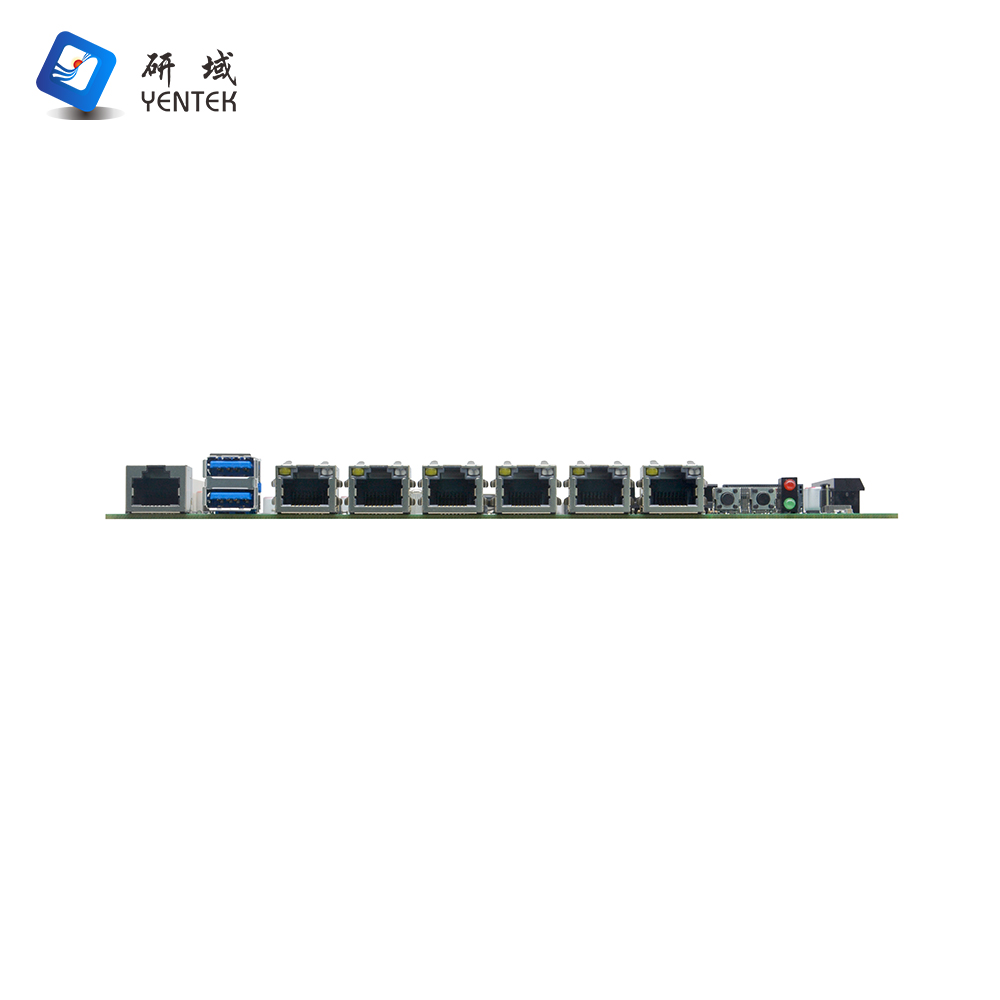

6*   RJ45 Gigabit network interface

1*   Power Switch, 1* One-Key Restore

1*   Double-layer LEDs, (upper red, lower green, upper HDD light, lower power   light)

Built-in  I/O Ports

1*   JVGA1 connector 1*12pin

1*   JHDMI connector 2*8pin

2*   USB2.0 interface 2*5pin

1*   Vertical USB2.0 interface

1*   RS232 serial port 2*5pin

1*   GPIO pin (four in four out)

1*   Front Panel Switch Button and Indicator Interface 2*5Pin

1*   24pin ATX power connector

1*   2*4pin ATX power connector

1*   SIM card holder

Fan Interface

1*4pin   CPU smart fan connector, 2* 4pin system fan connector

GPIO

Support 4 input/output GPIO function

BIOS

128Mb   Flash ROM

Watchdog

Support   hardware reset function (256 levels, 0~255 seconds)

Power Supply Type

ATX   power supply

Operating System

Windows   10, /Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95%   relative humidity, non-condensing

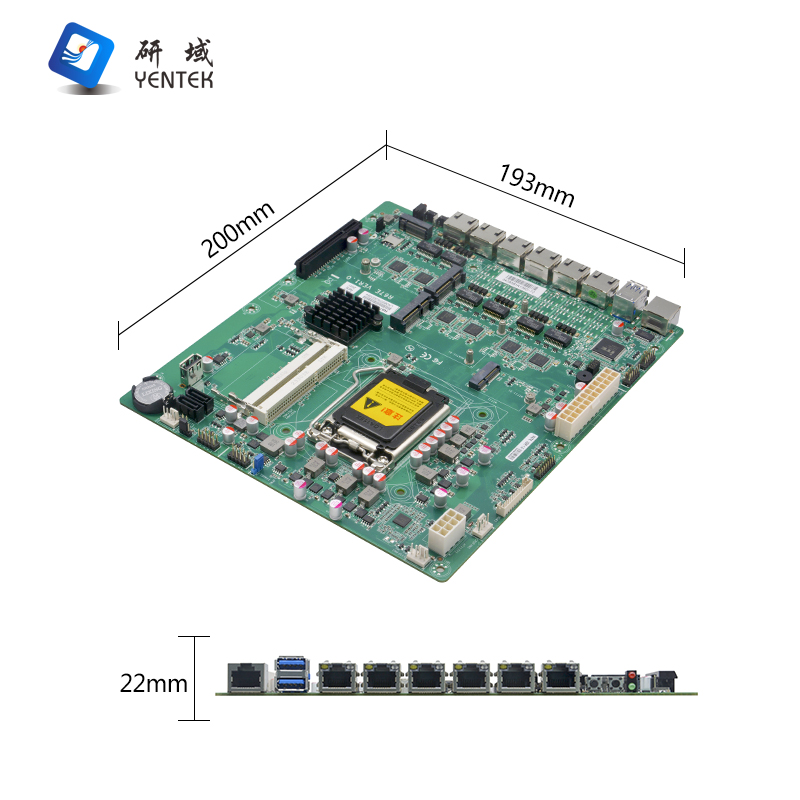

Dimension

245mm x 215mm

1

R67E VER:0.1

LGA1155

B75

2*SODDR3

1

1

/

6*I226V

4

2

/

ATX
