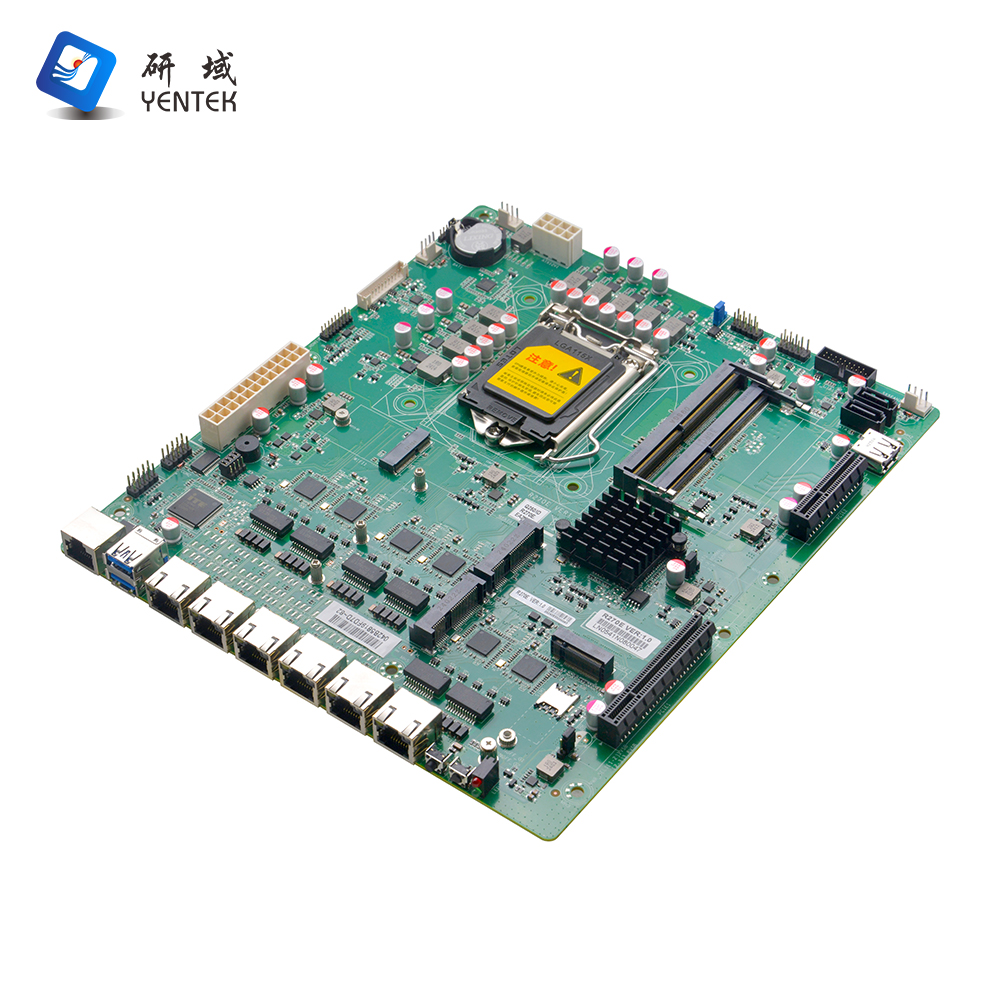

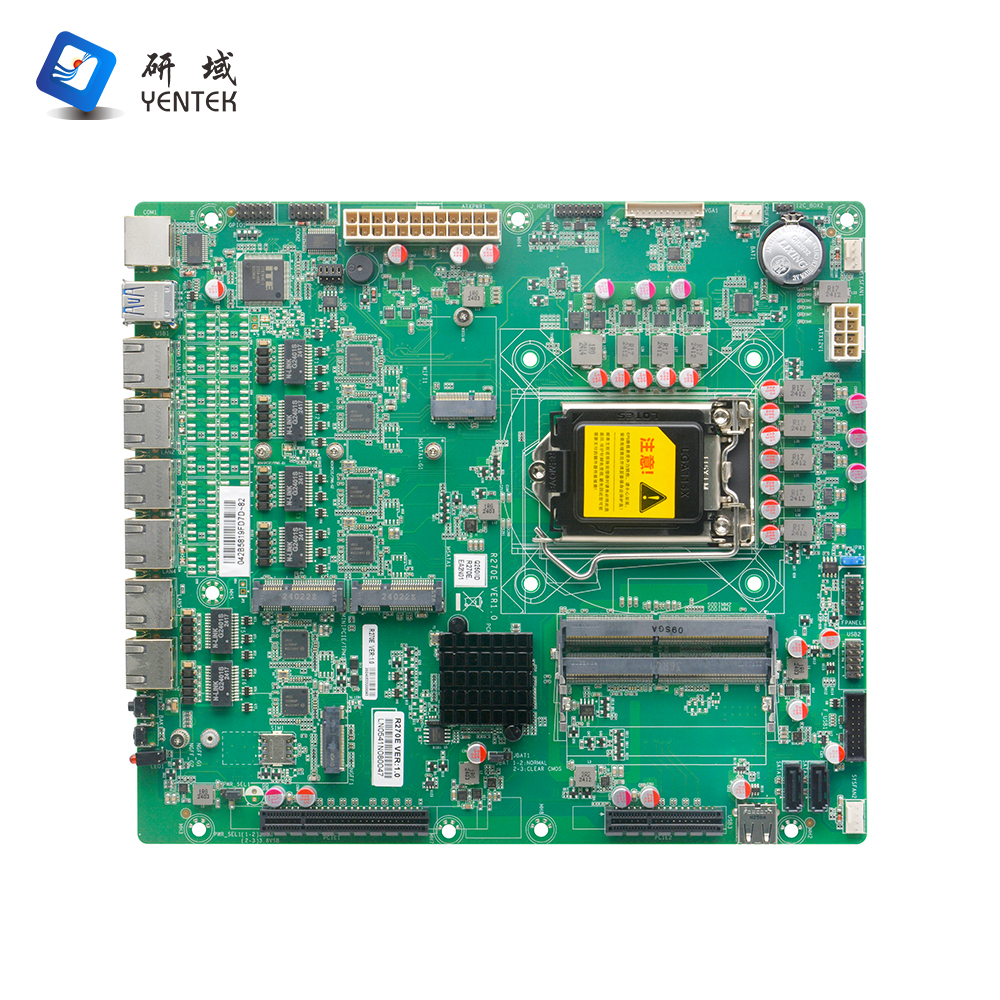

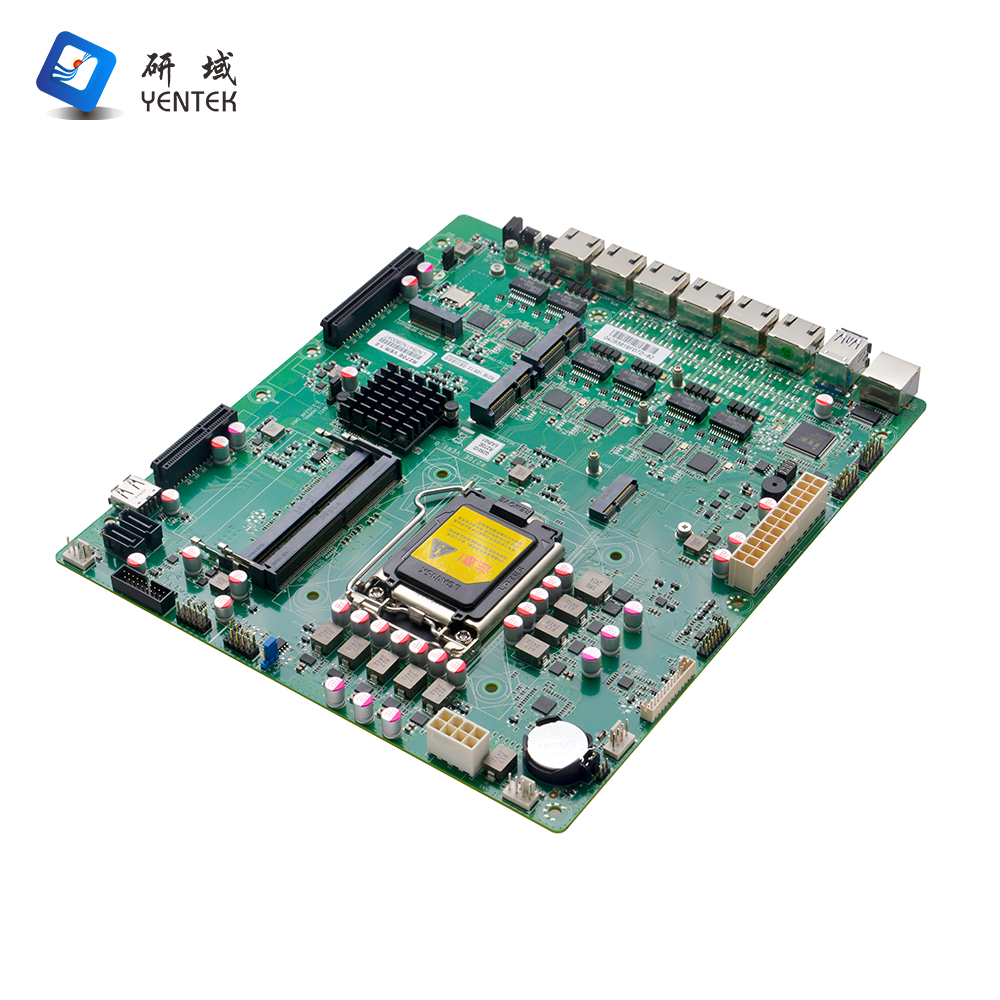

R270E

Processor

Support Intel® LGA1151 6th/7th/8th/9th   Celeron/Pentium/Corei3/i5/i7/i9 series processors

Chipset

Adopts Intel® Q250   high-speed chipset

Memory

2* SODIMM memory slots,   support 2133MHz DDR4 memory, support up to 64GB

Display

Integrated Intel® HD   Graphics core graphics card

1* HDMI port, 1* VGA   port

Network

6* Intel I210AT Gigabit   LAN card, support Wake-on-LAN, PXE function, can support 2 groups of BYPASS   function (reserved optional)

Storage

2* SATA3.0 hard drive   interface, transfer speed up to 6Gbps

1* MSATA slot, support   Intel protocol SSD solid state drive, transfer speed up to 6Gbps

Audio

N/A

Expansion Slots

1* Mini-PCIE slot,   support WIFI / TPM-4COM module.

1* M.2 slot, support   M.2 Key B 2242/2252 5G module.

1* PCIE X8 slot

1* PCIE X4 slot

1* M.2 slot, support   M.2 Key E 2230 WIFI module

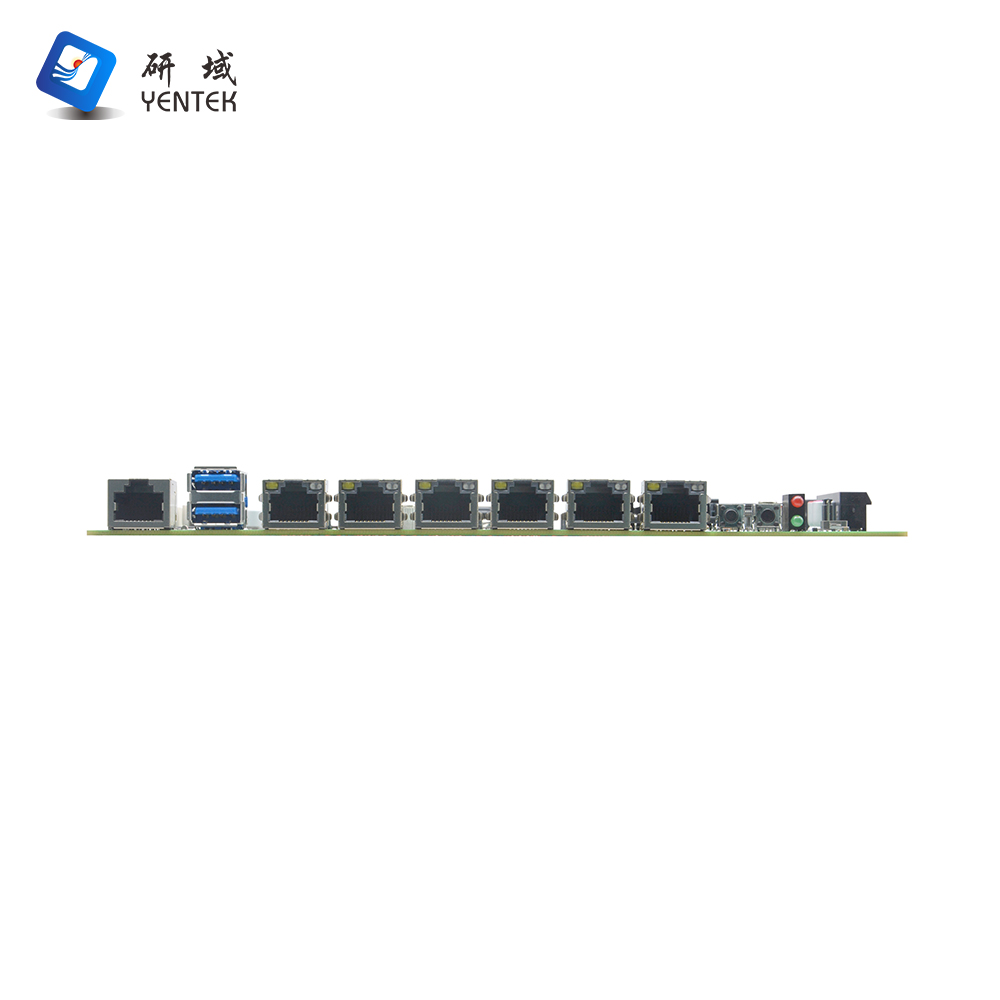

Backplane I/O Ports

1* RJ45 serial port

2* USB3.0 port

6* RJ45 Gigabit network   interface

1* Power Switch, 1*   One-Key Restore

1* Double-layer LEDs,   (upper red, lower green, upper HDD light, lower power light)

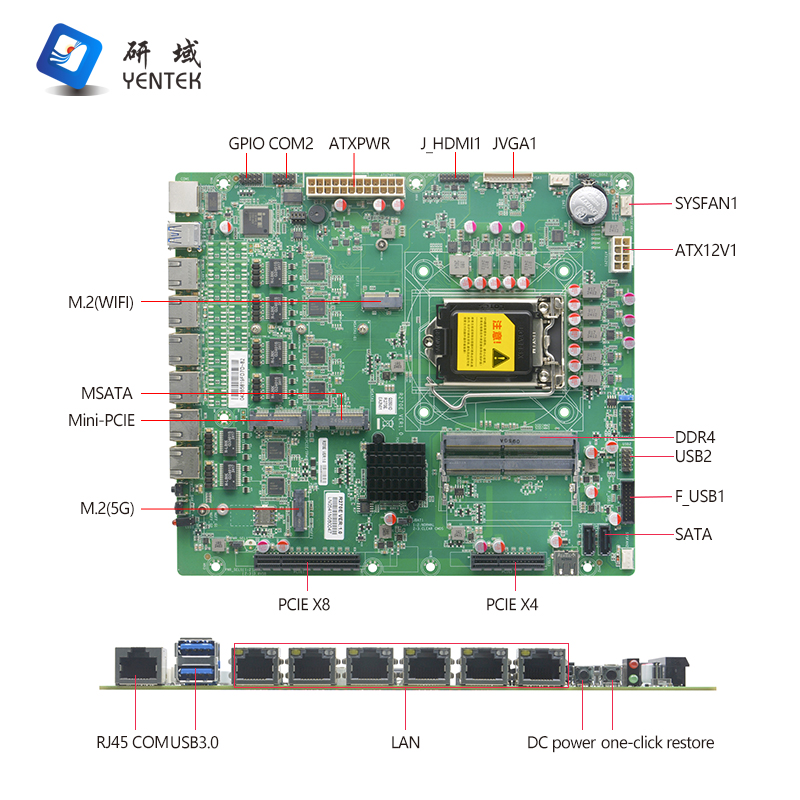

Built-in I/O Ports

1* JVGA1 connector   1*12pin

1* JHDMI connector   2*8pin

2* USB2.0 interface   2*5pin

2* USB3.0 interface   2*10pin

1* Single layer USB2.0   interface

1* RS232 serial   interface 2*5pin

1* GPIO row pin (four   in four out)

1* Front Panel Switch   Button and Indicator Interface 2*5Pin

1* 24pin ATX power   connector

1* 2*4pin ATX power   connector

1* SIM card holder

Fan Interface

1*4pin CPU smart fan   connector, 2* 4pin system fan connector

GPIO

Support   4 input/output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset   function (256 levels, 0~255 seconds)

Power Supply Type

ATX power supply

Operating System

Windows 10, /Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative   humidity, non-condensing

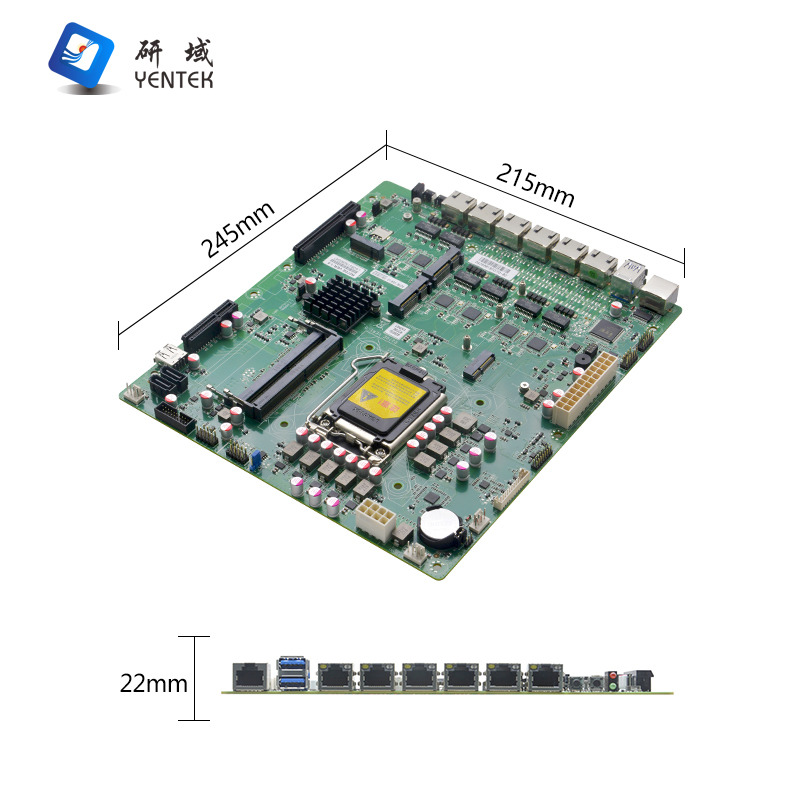

Dimension

245mm x 215mm
