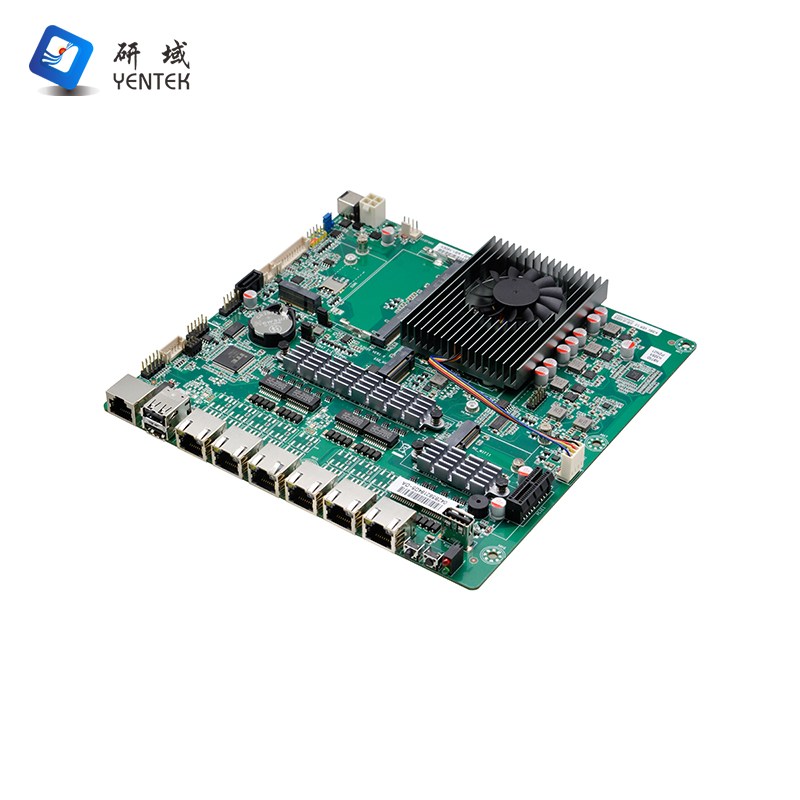

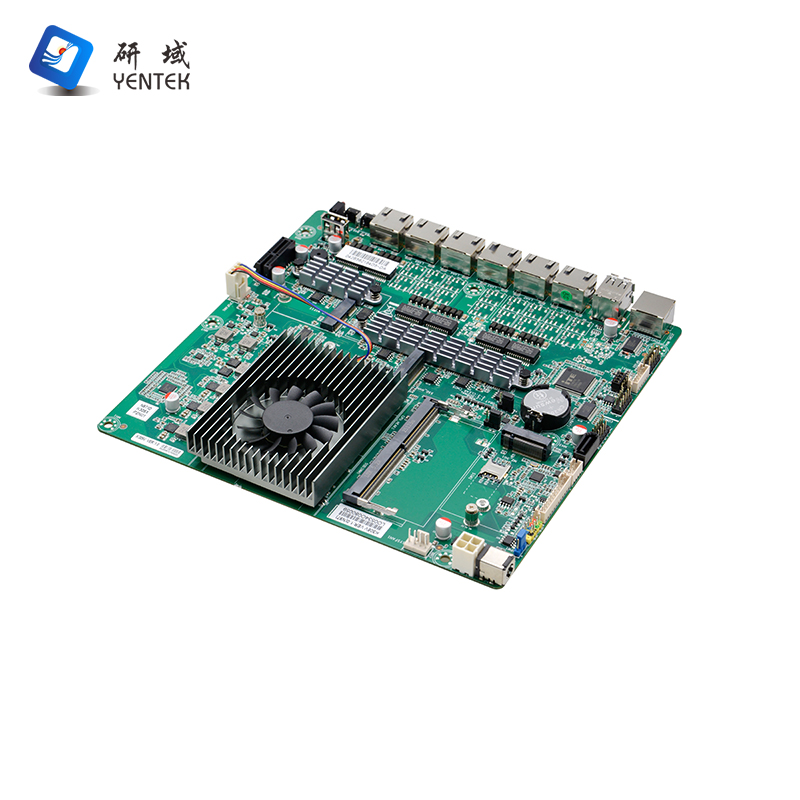

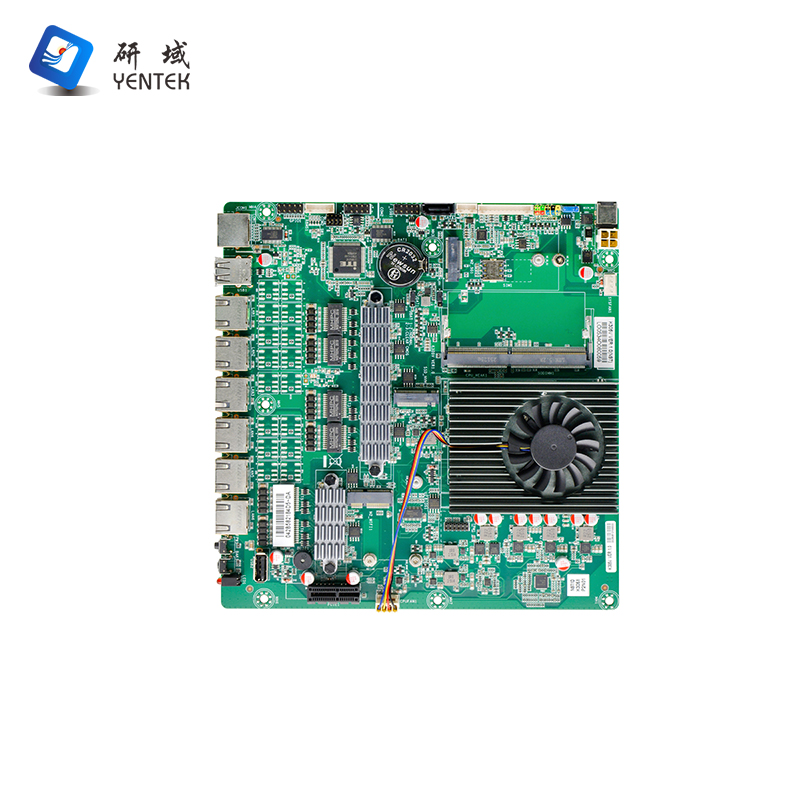

K305V

CPU

Integrated Intel® Alder Lake-N N97 3.6GHz quad-core   processor, TDP 12W

Compatible with the full range of Intel® Alder Lake-N CPUs,   providing customers with flexible choices

Chipset

SOC

Memory

1* SODIMM slot, supports single-channel 3200MHz DDR4 memory,   maximum support 16GB

Display

Integrated Intel® UHD Graphics core graphics card supports   DirectX12.1, OpenGL4.5, supports 4K display

1*VGA interface, supports the highest resolution:   1920X1200@60Hz

Network

6* Intel I226V 2.5G network card, support network wake-up,   PXE function,

Storage

1* SATA3.0 hard disk interface, transmission speed can reach   6Gbps

1* M.2 slot, support M.2 2280 NVME PCIE X1/SATA adaptive SSD

Audio

N/A

Expansion slot

1* M.2 slot, support M.2 2230 WIFI module

1* M.2 slot, support M.2 Key B 2242/2252 5G module

1* PCIE X1 slot, expandable fiber card

Note: The M.2 slot has three options for WIFI and PCIE X1   slot/5G, and the default is on the PCIE X1 slot

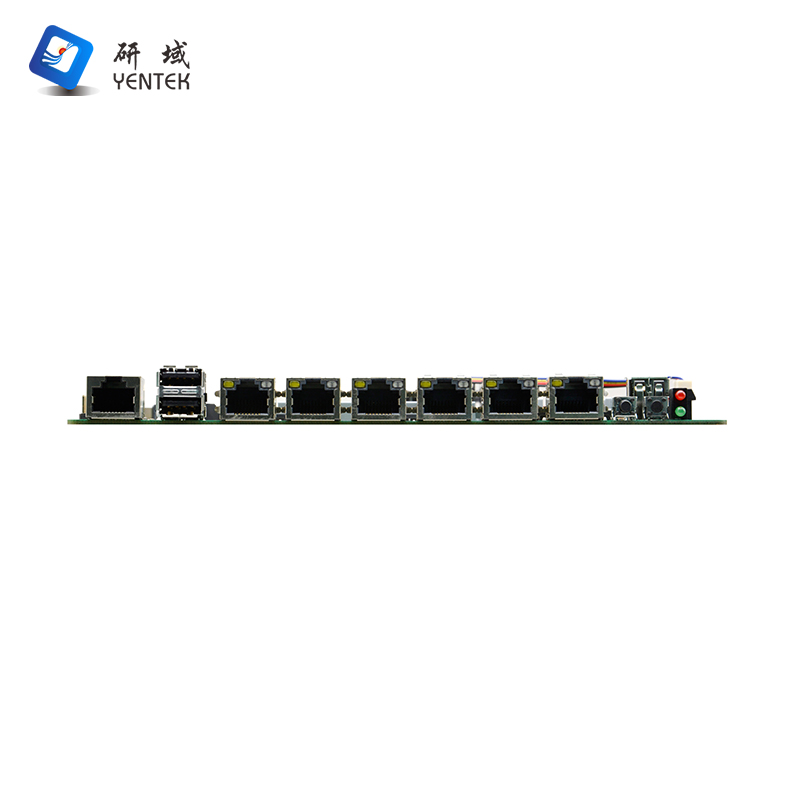

Rear IO port

1* RJ45 serial port (co-located with 2*5pin serial port pin   header)

2* USB2.0 interface

6* RJ45 Gigabit network interface

1* power switch, 1* one-key restore

1* double-layer LED light, (upper red and lower green, upper   hard disk light, lower power light)

Built-in IO port

1* JVGA1 interface 1*12pin

1* RS232 serial interface 2*5pin, COM2 supports RS485

1* single-layer vertical USB2.0 interface

2* USB2.0 interface 2*5pin,

1* PS/2 keyboard and mouse interface (red) 1*6Pin

1* GPIO pin header (four in and four out)

1* front panel switch button and indicator interface 2*5Pin

1* hard disk power supply interface 1*4pin

1* DC12V power interface, Support 12V power input (side)

1* ATX power interface 2*2pin (can be used as DC12V input   power interface)

1* SIM card holder

Fan interface

1*4pin CPU smart fan interface, 1* 4pin system fan interface

GPIO

Support 4-way input and output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power

Powered by DC 12V power supply

OS

Windows 10 /11/Linux

Operating temp

-10℃～60℃

Storage temp

-20℃～70℃

Working humidity

5%-95% relative humidity, no condensation

Dimensions

200mm x 193mm
