| Product model | D41SL VER:1.0 |
| Processor | Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor,TDP 10W |
| Chipset | SOC |
| Memory | 1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 8GB) |
| Display | Integrated Intel® HD Graphics core graphics card, providing 1*VGA display output |
| Network | 6* Intel KTI226V Gigabit network adapter, support network wake up, PXE functions, |
Deposit
| 1*SATA3.0 2.5-inch laptop hard disk, you can directly install the hard disk |
| 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps, and 2.5-inch hard disk is one of two options, the default is 2.5 inches |
| 1* MSATA slot, support Intel protocol SSD solid state drive, transfer rate up to 6Gbps |
| Extension Slot | 1* Mini-PCIE2 slot, supporting the WIF module. |
| 1* Mini-PCIE1 slot, supporting 4G modules |
| Note:WIFI and LAN6 are two options, the default is LAN6 |

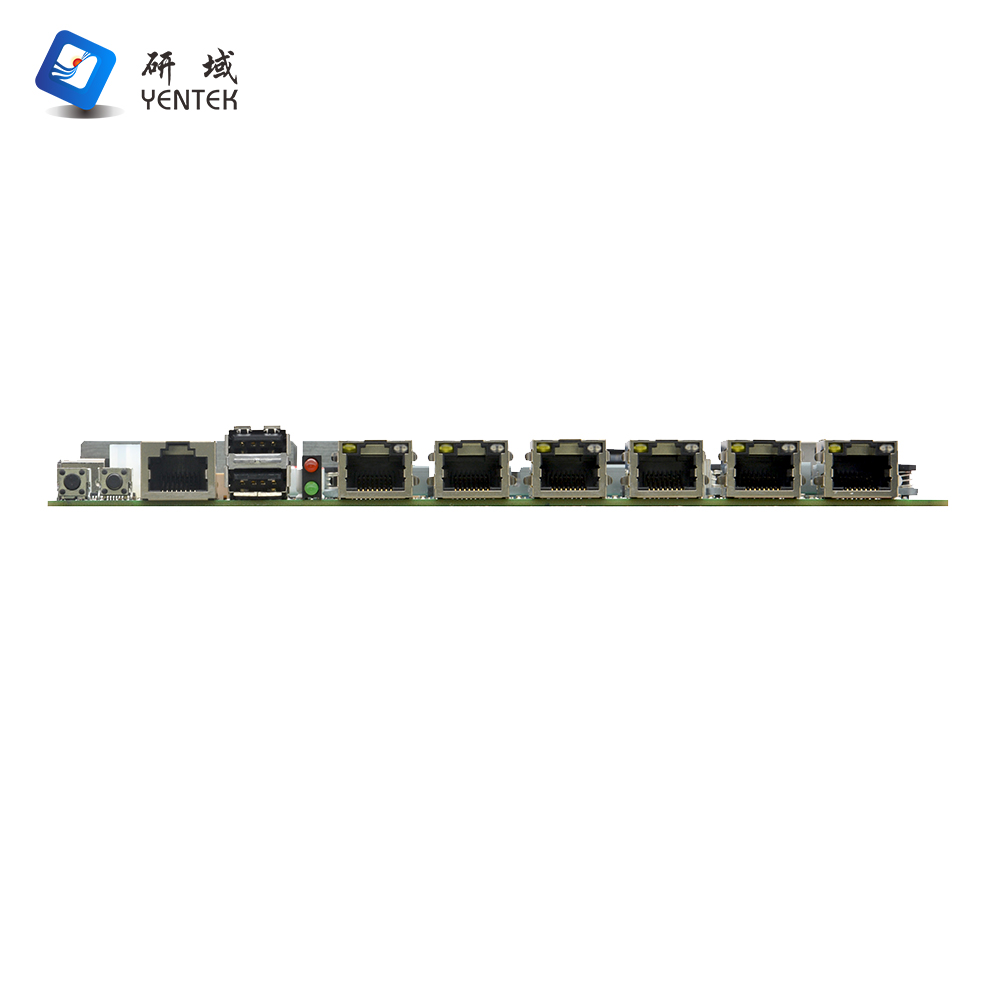

I/O ports on the backplane
| 1* standard RS232 serial interface |
| 2* USB 2.0 port |
| 6* RJ-45 Gigabit network port |
| 1* Power switch，1*Reset switch |
| 1* Power indicator (green)/Hard disk indicator (red) |

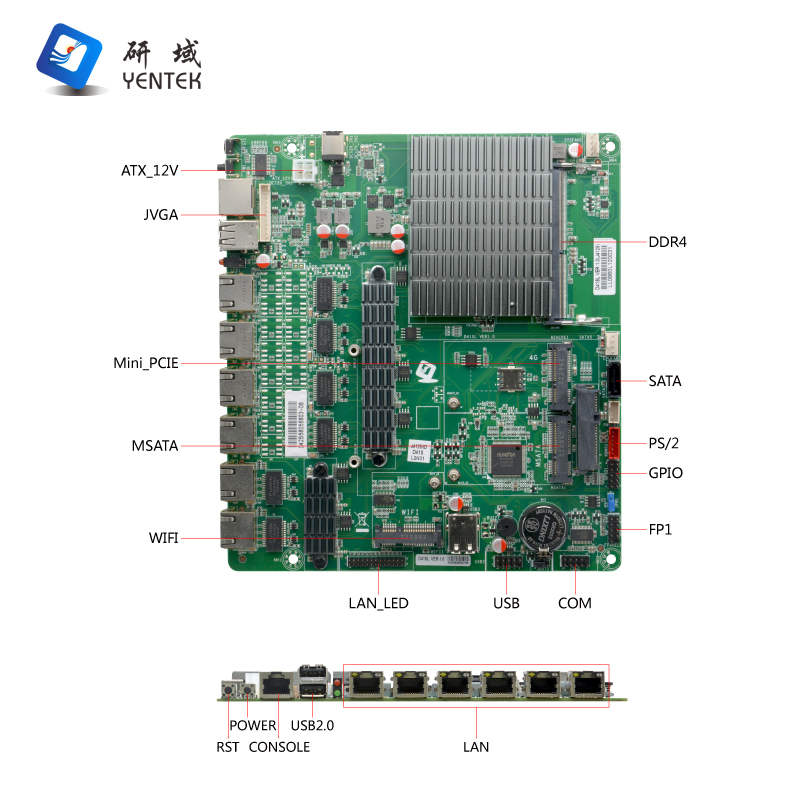

Built-in I/O interface
| 1* JVGA port 1 x 12pin |
| 1* Network indicator port 2*13pin |
| 1* RS232 serial port 2*5pin |
| 2* USB2.0 interface 2*5pin |
| 2* Standard USB2.0 interface |
| 1* hard drive power port 1*4pin |
| 1* Front panel function button and indicator port 2*5pin |
| 1* PS/2 keyboard and mouse interface 1*6pin |
| 1* DC12V power input port |
| 1* 4pinATX power input port supports 12V power input and output |
| Fan interface | 1* 4pin CPU intelligent fan interface, 1* 4pin system fan interface |
| GPIO | Support 4 input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

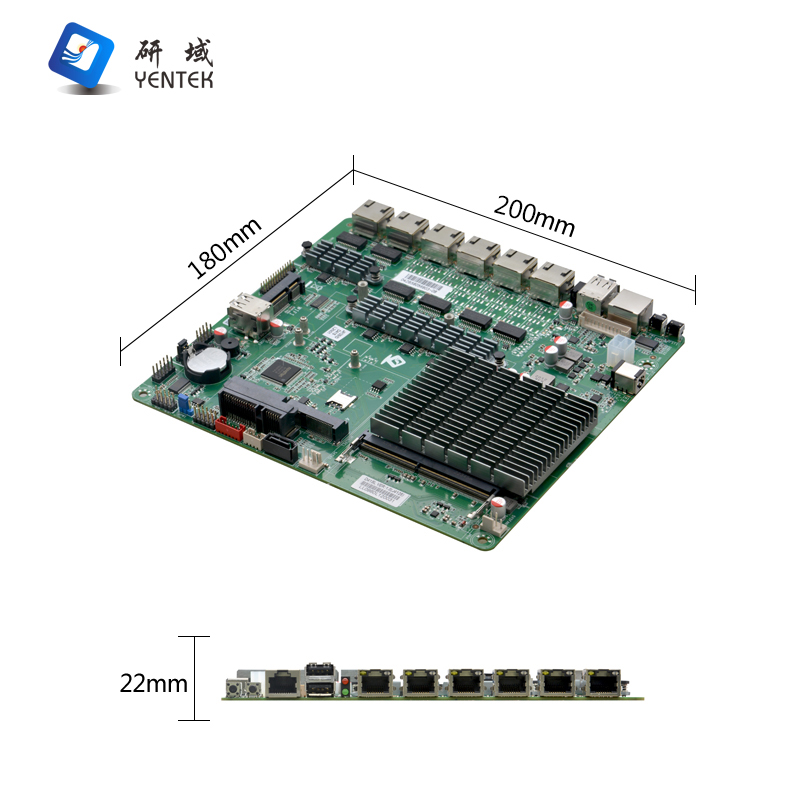

| Dimension | 200mm x 180mm |
