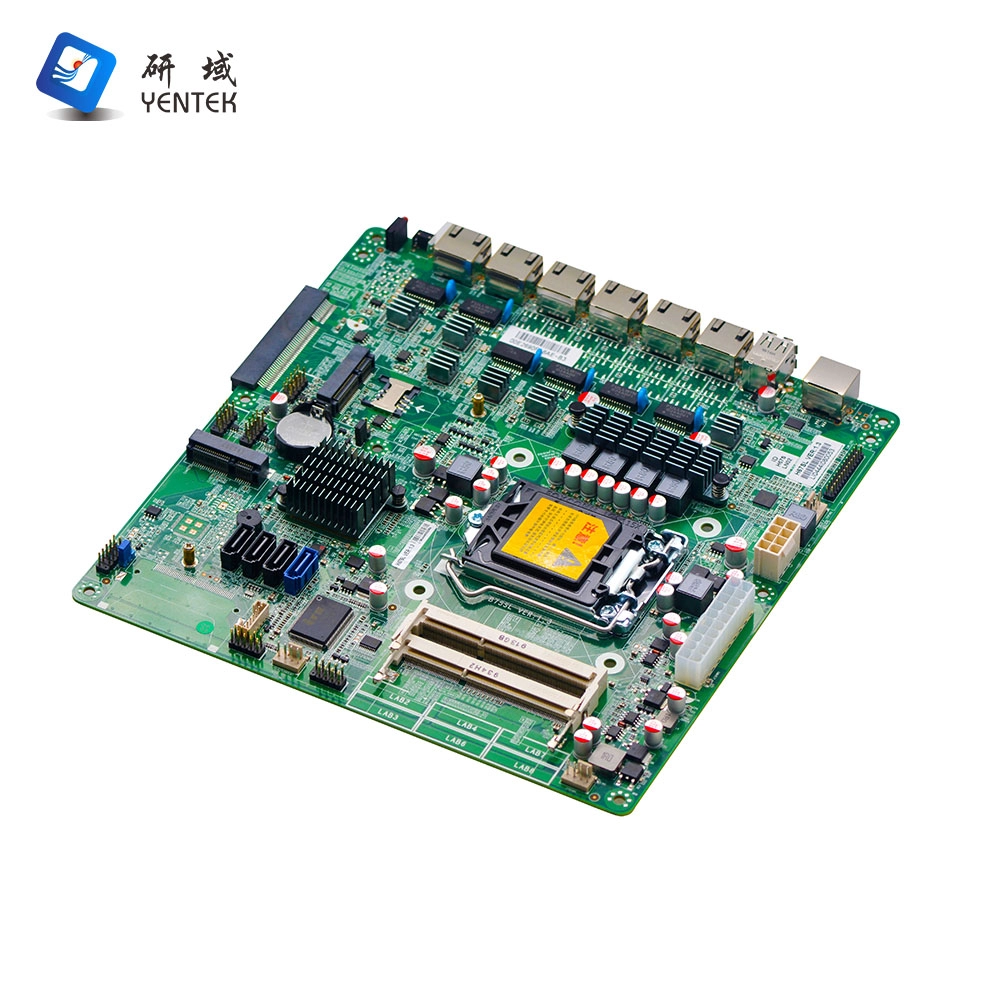

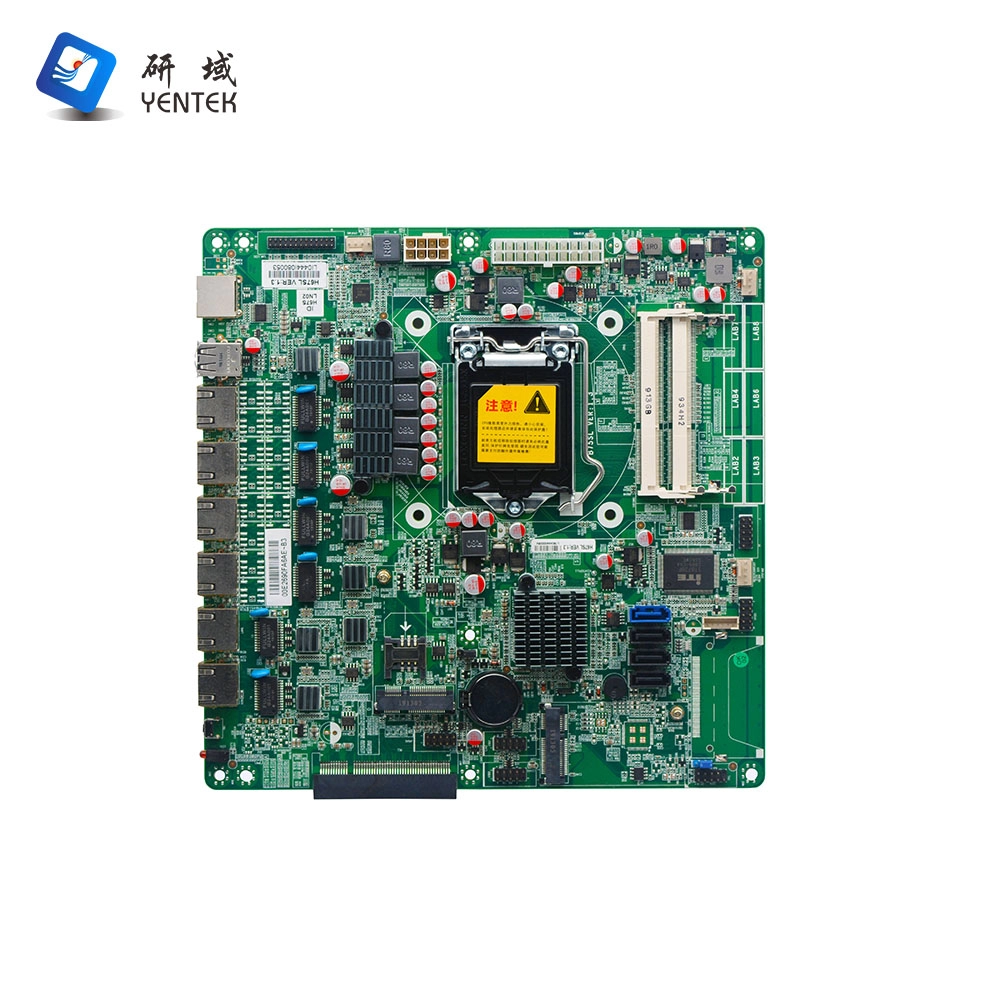

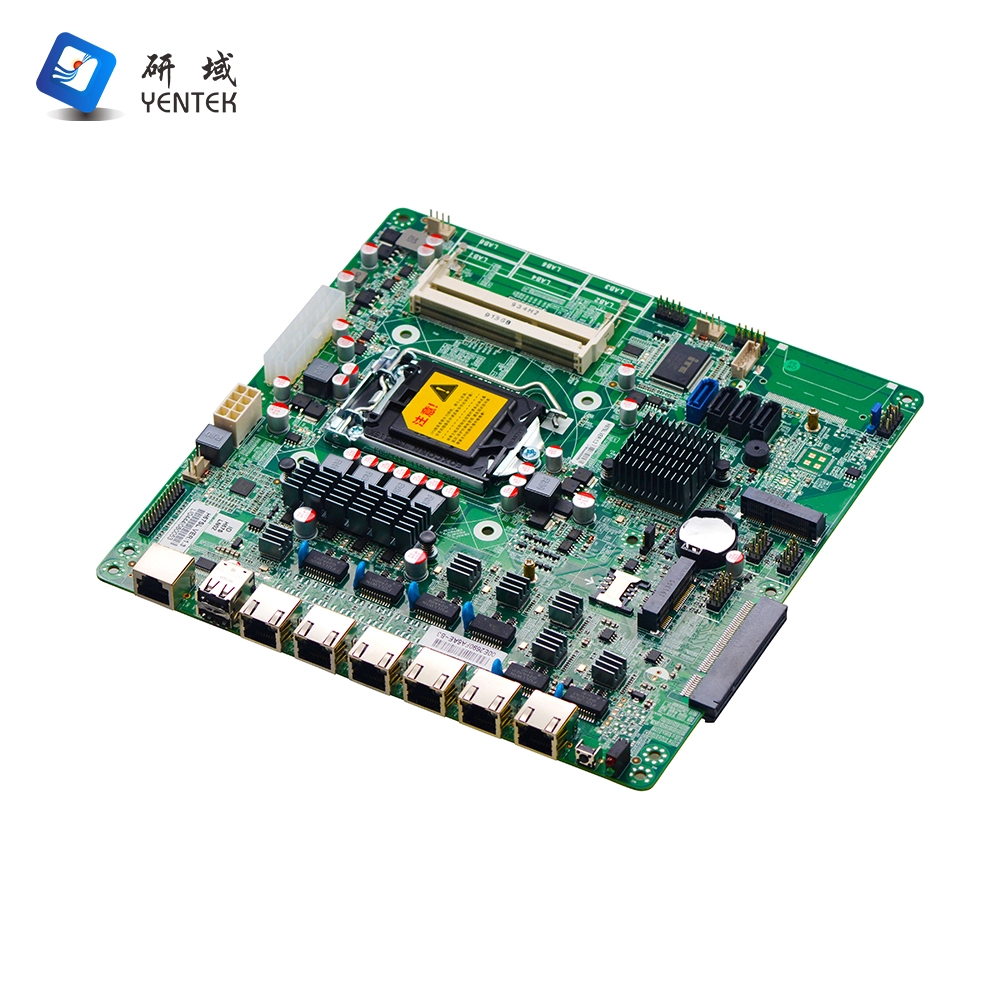

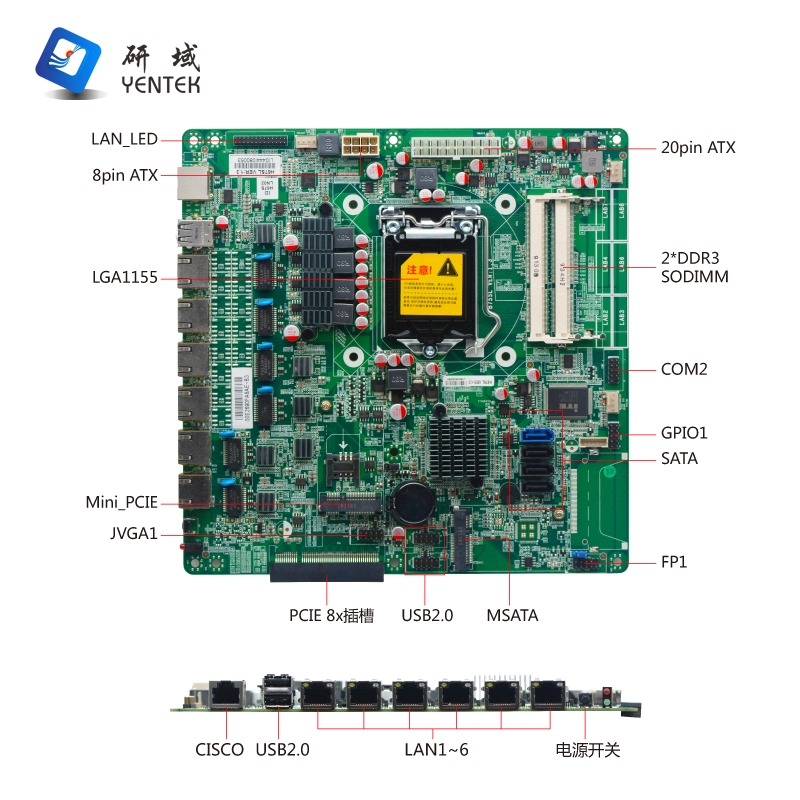

H67SL

Processor

Support Intel®LGA1155 2th/3th Celeron/Pentium/Corei3/i5/i7 processor

Chipset

Intel® B75 express chipset

Memory

2*DDR3 SODIMM slot, support dual channel 1333/1066MHz RAM,   up to 16GB

Display

Intel® HD Graphics，provide 1*VGA display output

LAN

6* Intel 82583 Gigabit Ethernet, support   WOL,PXE function

Storage

1*SATA3.0 interface, transfer rate up to 6Gbps

3*SATA2.0 interface, transfer rate up to 3Gbps

1*MSATA slot, support Intel protocol SSDs, transfer   rate up to 6Gbps

Expansion slots

1*PCIE 8x slot, can expand fiber port / electrical port   module

1*Mini-PCIE slot, support WIFI,3G module

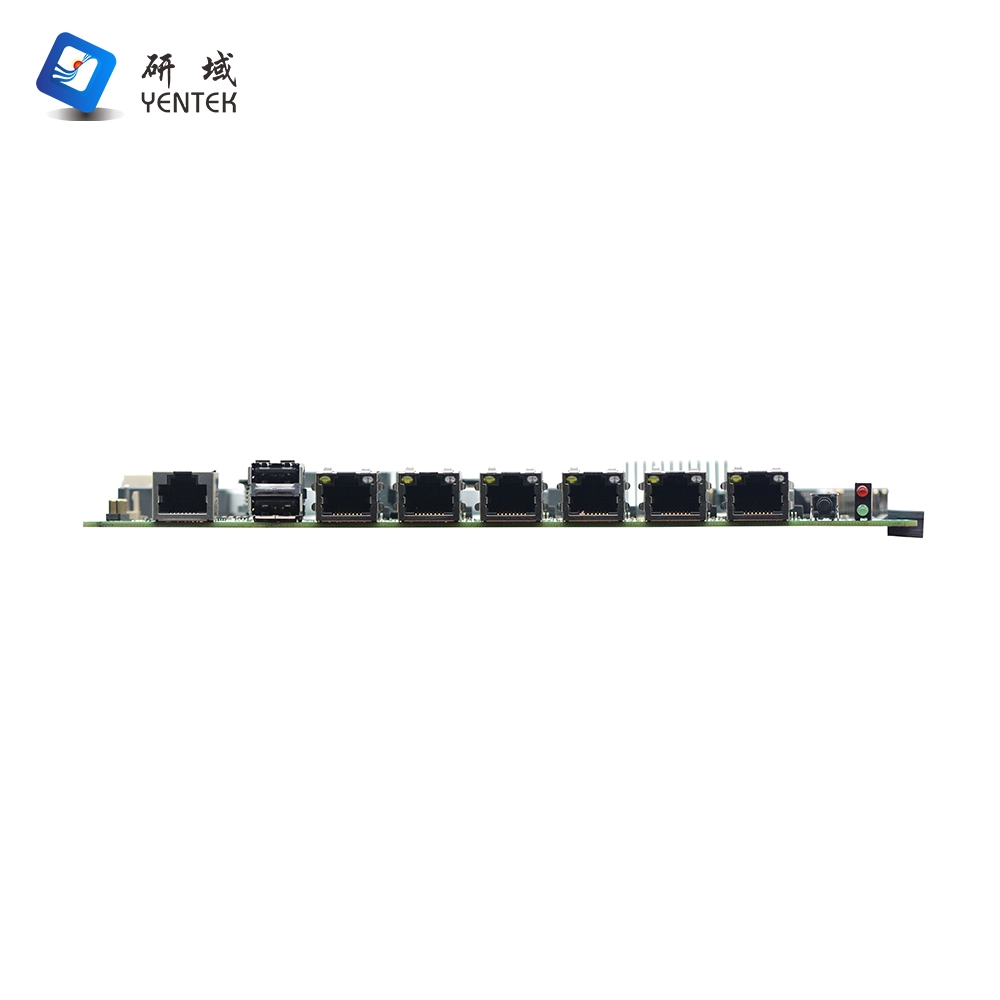

Rear I/O ports

1* CISCO COM (COM1 and USB4 optional)

2* USB 2.0 (USB1 and COM3 optional)

6* RJ-45 Gigabit LAN port

1* Power Switch

1* Power/HDD LED

Internal I/O

1* JVGA, 2*5pin

1* LAN LED, 2*13pin

1* RS232 COM port, 2*5pin

4* USB2.0, 2*5pin

1* Front panel function buttons and   LED indicator connector 2*5pin

1* PS/2 KB/MS connector 1*6pin

1* SIM card socket

1* 20pin ATX power input connector

1* 8pin ATX power input connector

FAN interface

1* 4pin CPU FAN interface, 2* 4pin system fan   interface

GPIO

Support 4 way input/output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Support OS

Windows 7/Windows10/Linux

Power Type

ATX power input

Operating Temp.

-10℃～60℃

Storage Temp.

-20℃～70℃

Humidity

5%-95% relative humidity, non-condensing

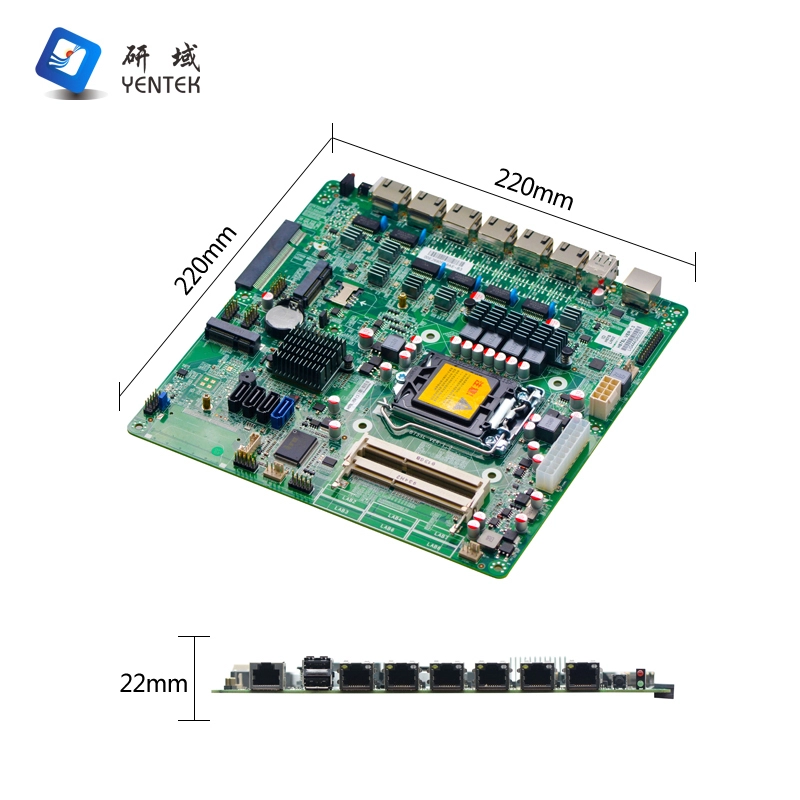

Dimension

220mm x 220mm

1

H67SL VER:1.3

LGA1155 CPU

2*SODDR3

1

X

6*82583V

6

2

X

ATX
