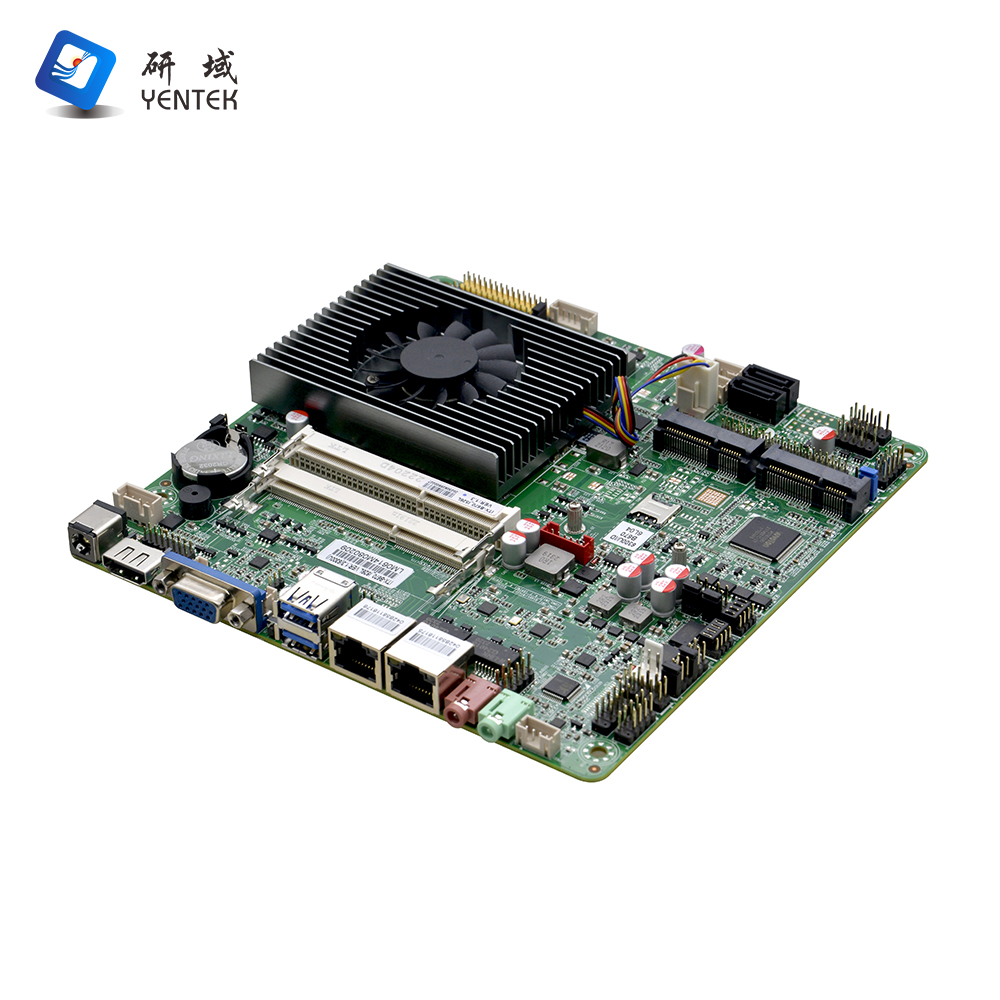

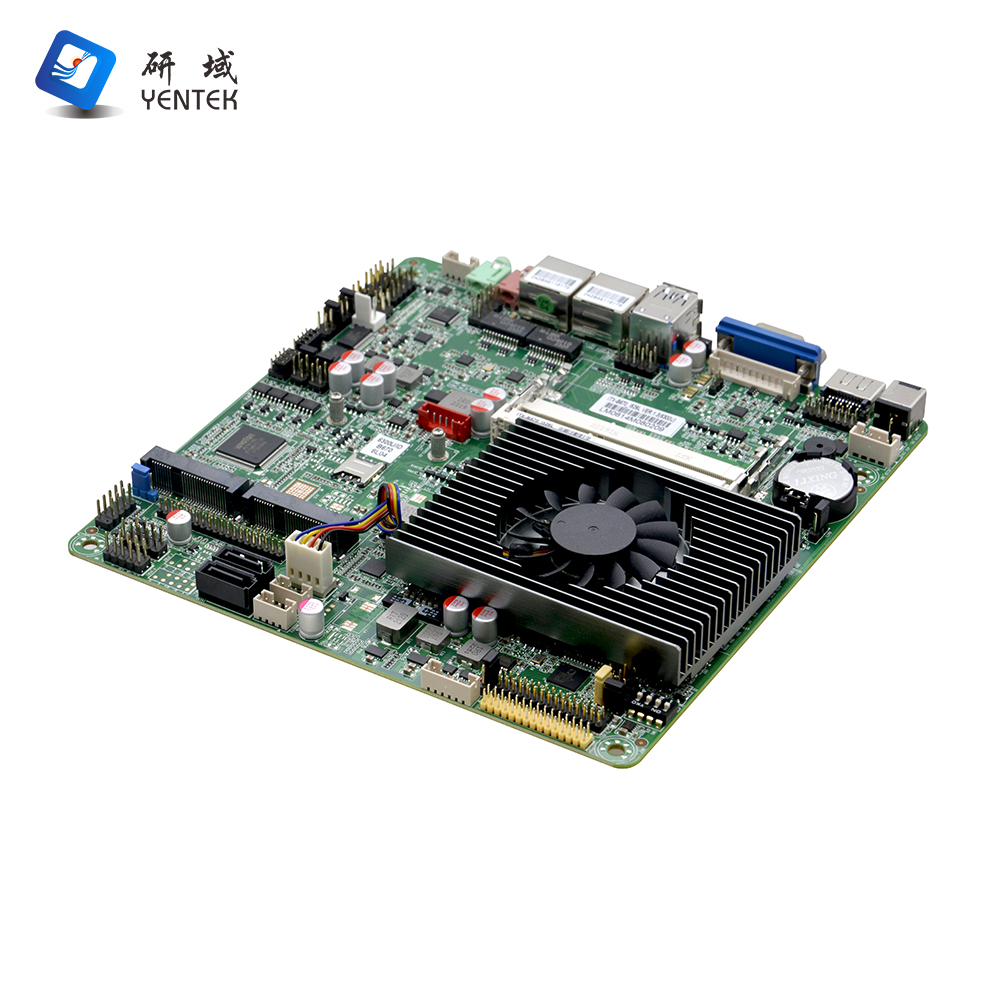

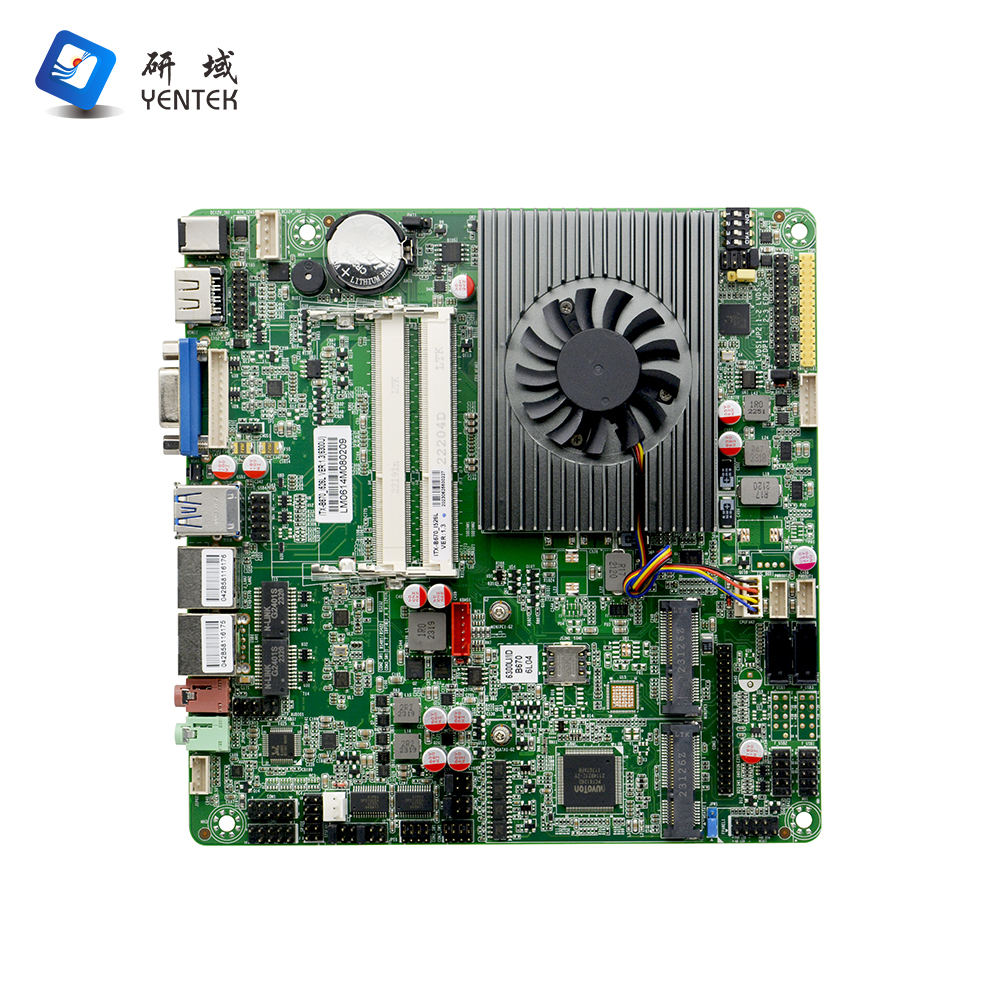

| Product model | ITX-B670_I526L VER:1.3（6300U） |
| Processor | Intel®I5-6300U 2.4GHz dual core 4-thread processor,TDP 15W |
| Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low power processor |
| Chipset | SOC |
| Memory | 2*DDR3L SODIMM RAM slot, support 1600MHz memory, max up to 16GB |
| Display | Integrated Intel® Iris® Graphics550, support DirectX 12, OpenGL 4.5, support 4K |
| 1*VGA port, the highest supported resolution is ：1920X1200@60Hz |
| 1*HDMI1.4 port, the highest supported resolution is ：4096X2304@24Hz |
1*Support dual channel 24bit LVDS port |
| 1* EDP / LVDS (choose one via jumpers) |
| LAN | 2* 8111H Gigabit LAN chip, support WOL / PXE function |
| Storage | 2* SATA3.0, transfer rate up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSDs, transfer rate up to 6Gbps |
| Audio | Integrated ALC662 6 channel high fidelity audio controller, support MIC / Line_out /Amplifier |
| Amplifier support 4Ω3W speaker |
| Expansion | 1* Mini-PCIE slot, support WIFI/4G module |

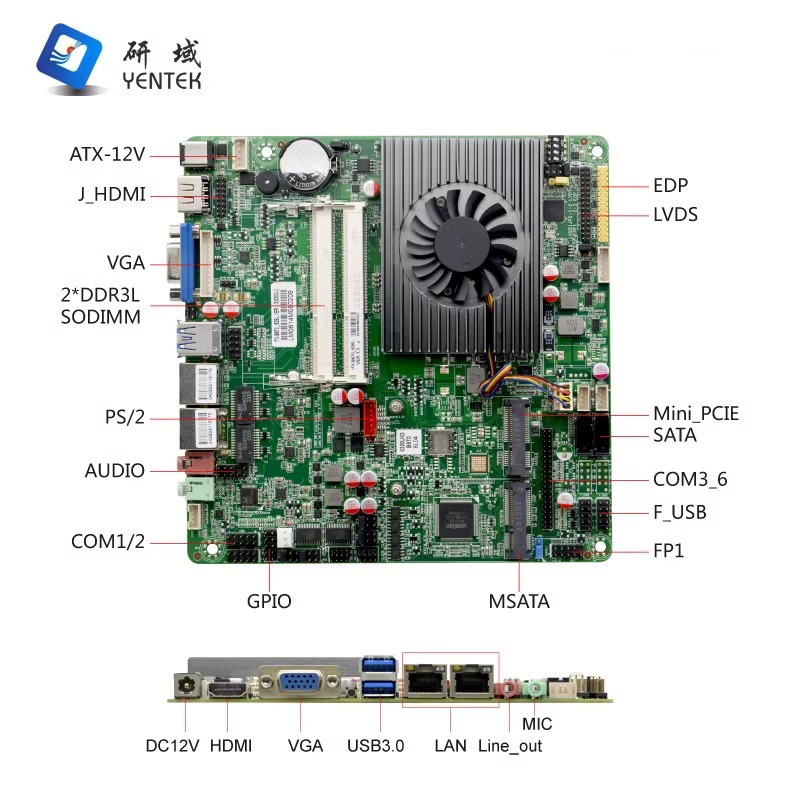

Rear Panel
I/O port | 2* USB3.0 port |
| 1* HDMI port |
| 1* DB15 VGA port |
| 2* RJ45 Gigabit LAN port |
| 1*Line-out(green），1*MIC(red） |
| 1*DC12V power supply, support 12V power input/output |
| 1* Clear CMOS button (reserved) |
| Interior I/O port | 1* JVGA1 port, 1*12pin (same signal as DB15 port) |
| 1* JHDMI port, 2*8pin (same signal as HDMI) |
| 1* LVDS port, 2*15pin, support dual channel 24bit |
| 1*LVDS backlight power connector, 1*6pin |
1* EDP port（yellow）2*15pin，EDP / LVDS choose one via jumpers ,default :LVDS |
| 6*RS232 COM port, COM2/4 support RS485/422 function |
6* USB2.0 port, 2*5pin |
| 1* Front audio port, 2*5pin |
| 1* Front panel power button and LED indicator port, 2*5Pin |
| 2* HDD power connector,1*4pin |
| 1* Amplifier port, 1*4pin |
| 1* PS/2 KB/MS port |
| 1* 4pin DC power port (Can be used as a 12V input/output power connector) |
| 1* SIM slot |
| Fan interface | 1* 4pin CPU smart fan connector, 1* 3pin system fan connector |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7, Windows 8, Windows 10 , Linux |
| Power supply type | Adopt DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

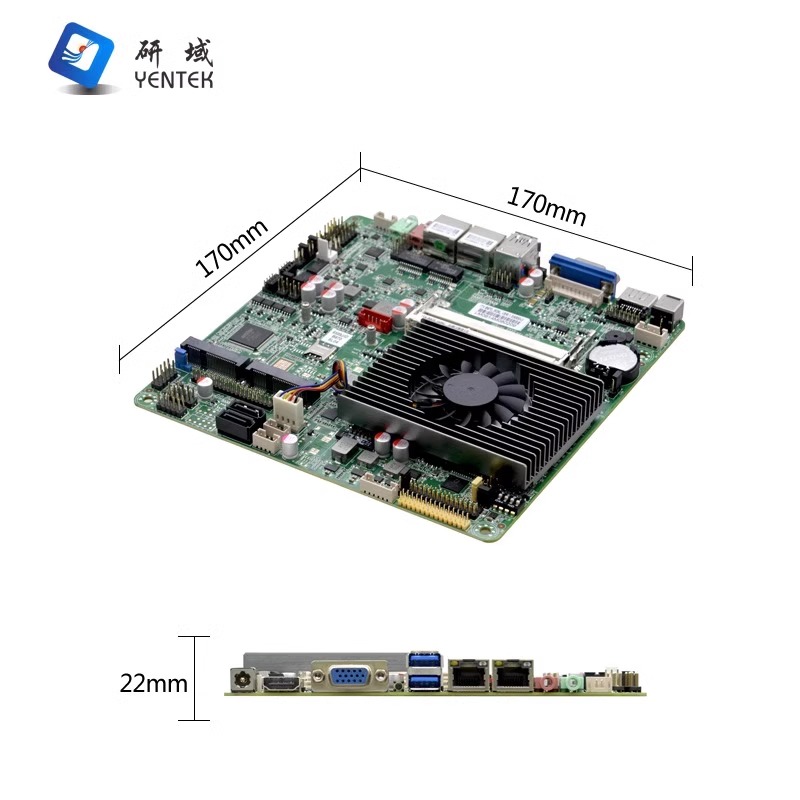

| Dimension | 170mm x 170mm |
