6th/7th generation U/S series

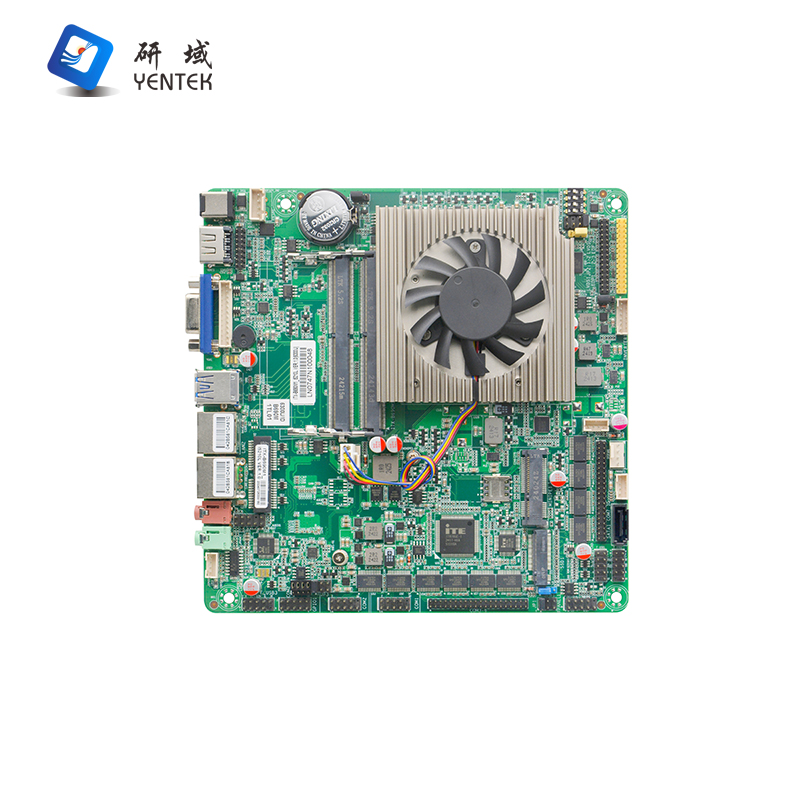

ITX-B690M1_I5210L

FEATURES

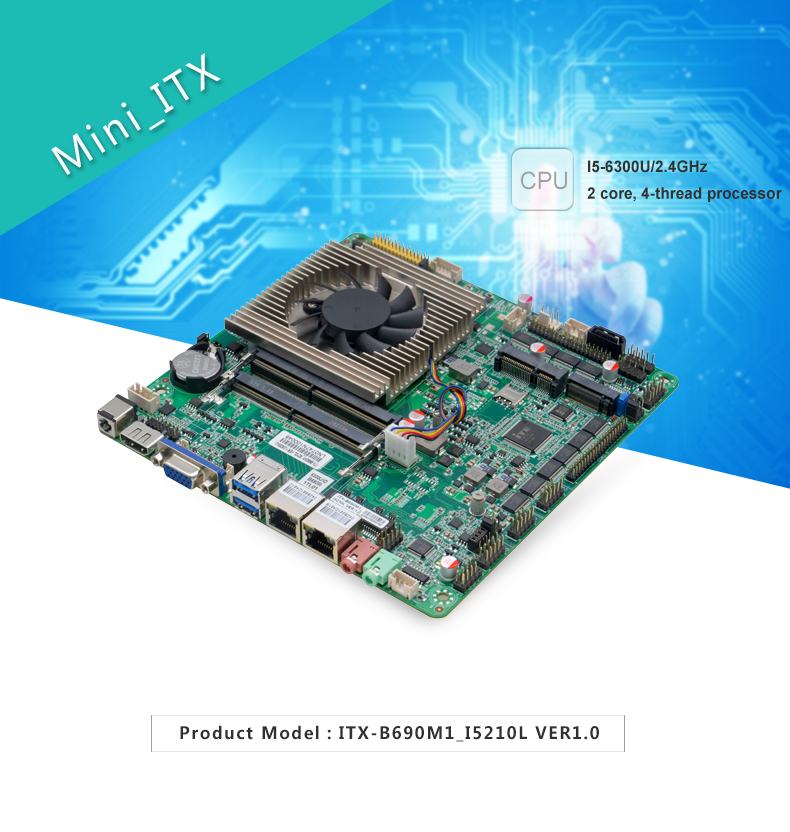

Integrated Intel® I5-6300U 2.4GHz Dual-Core Quad-Thread Processor, TDP 15W FLEX 3.0G

Product description

Model

ITX-B690M1_I5210L VER1.0

Processor

Integrated Intel® I5-6300U 2.4GHz   Dual-Core Quad-Thread Processor, TDP 15W FLEX 3.0G


Compatible with Intel®   Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 Low Power Processors

Chipset

SOC

Memory

2*DDR4 SODIMM Memory Slot,Supporting 2133MHz memory, support up   to 32GB

Display



Integrated Intel® HD Graphics520,   support DirectX 12, OpenGL 4.5, support for 4K

1*VGA interface, support for the highest   resolution: 1920X1200@60Hz

1*HDMI1.4 interface, support for the   highest resolution: 4096X2304@24Hz

1* support dual-channel 24bit LVDS   interface

1* EDP interface, and the LVDS interface   is through the jump risk one of the two

Network

2* Intel WGI210AT Gigabit LAN card, support for Wake-on-LAN, PXE   function

Storage



1* SATA3.0 hard drive interface, the   transfer speed of up to 6Gbps

1* M.2 slot, support for M.22280   NVMEPCIE X4/ SATA specification SSD

Audio



Integrated ALC897 7.1+2-channel hi-fi   audio controller, support MIC, Line_out, Amplifier

Support Amplifier 2Ω5W speakers

Expansion Slots

1* Mini-PCIE slot, support WIFI/4G   module

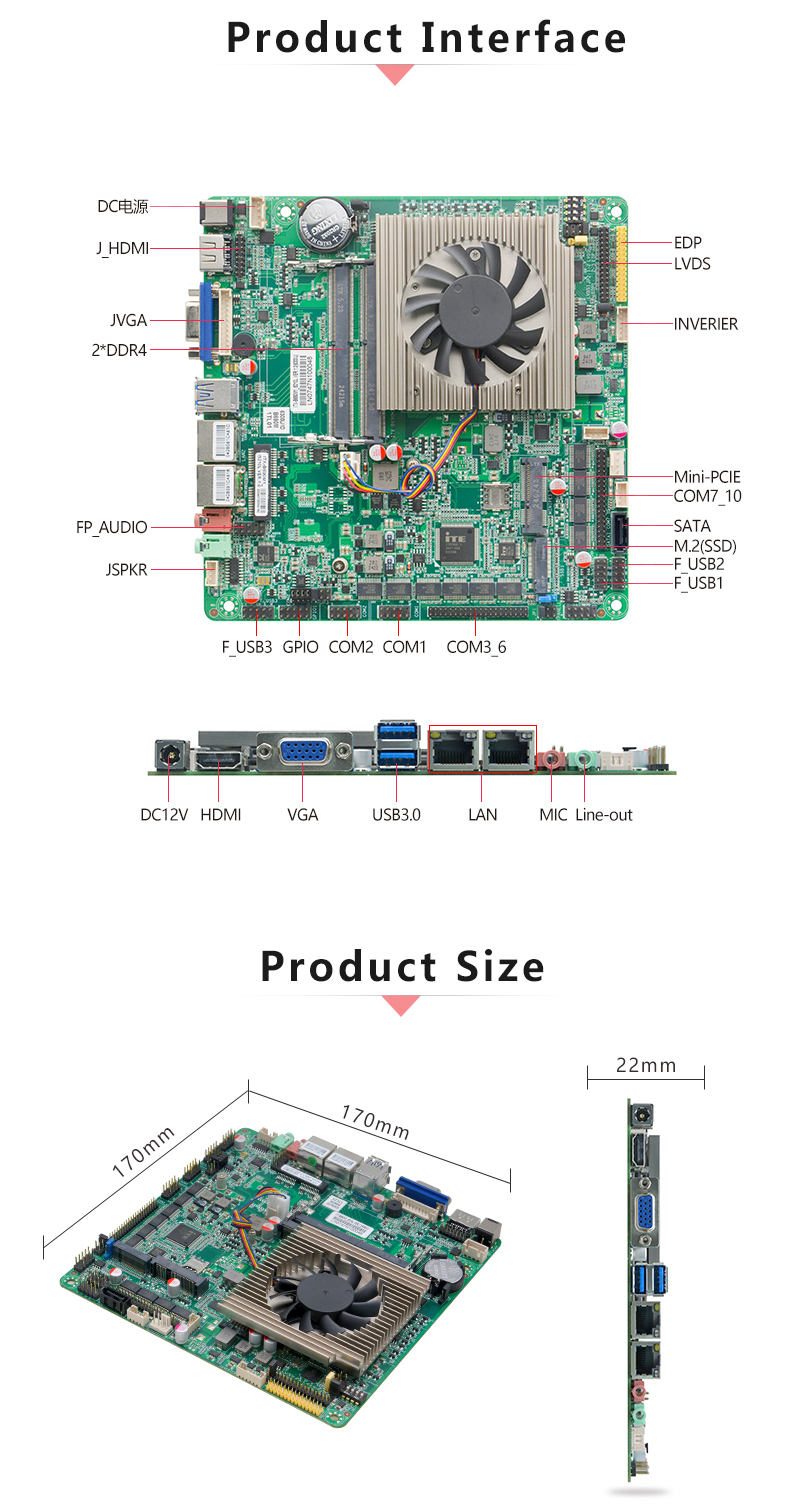

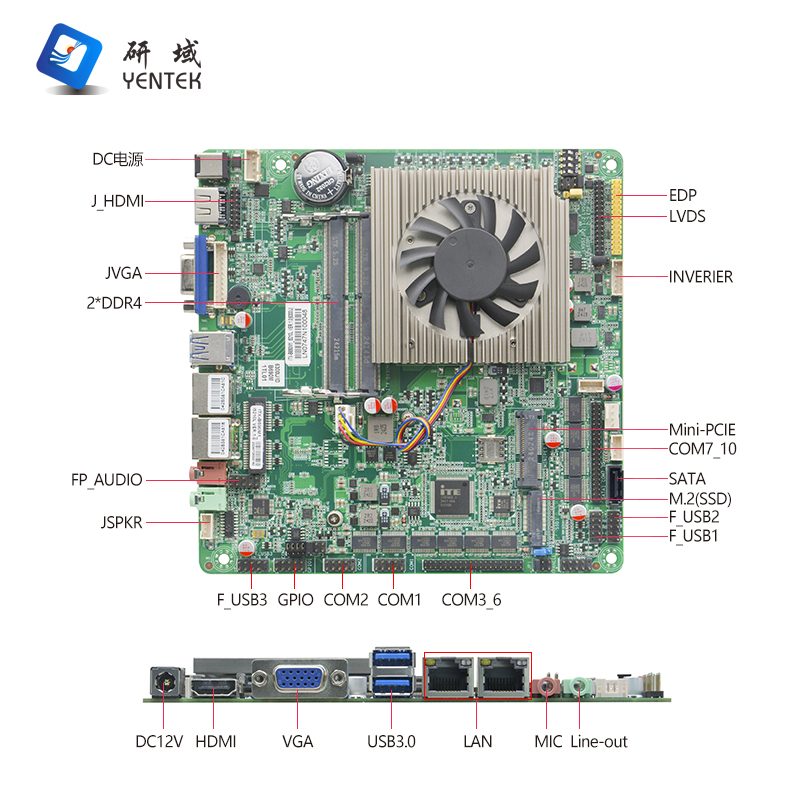

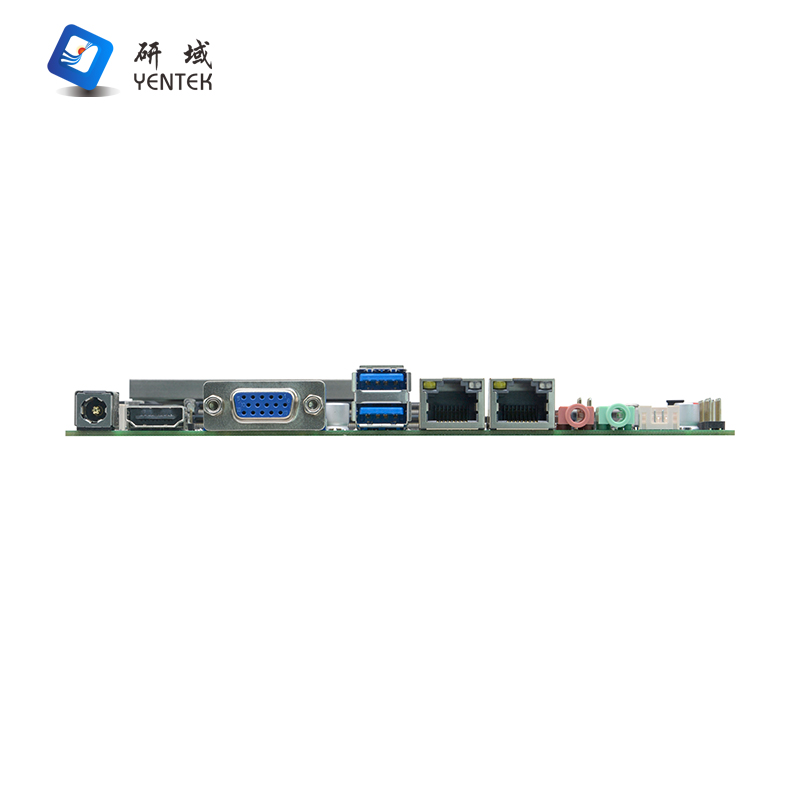

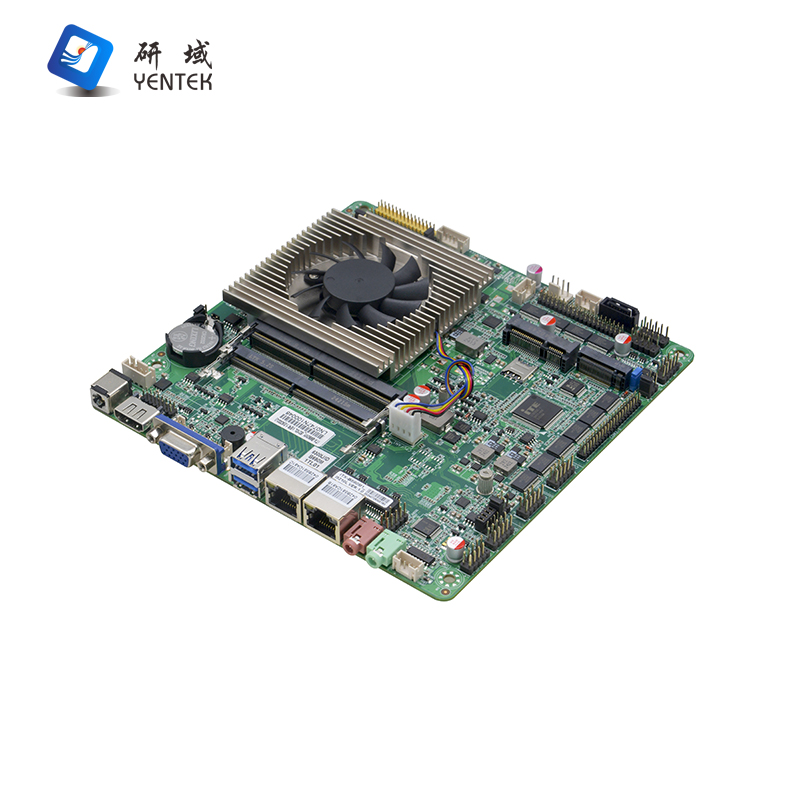

External I/O Ports



2* USB3.0 interface

1* HDMI interface

1* DB15 VGA interface

2* RJ45 Gigabit network interface ( LAN1   and dual-layer USB2.0 co-listed)

1*Line-out (green), 1*MIC (red)

1*DC12V power supply Support 12V power   input and output

Internal I/O Interface



1* JVGA1 interface 1*12pin (same signal   as DB15)

1* JHDMI interface 2*8pin (same signal   as HDMI interface)

1* LVDS interface 2*15pin, support   dual-channel 24bit

1* EDP interface (yellow) 2*15pin, and   LVDS for the two options through the jumper

1* LVDS backlight power supply interface   1*6pin

1* front audio interface 2*5pin

10* RS232 serial interface, which COM1   support the 9th pin with power, COM2 support RS485/422 function

6* USB2.0 interface 2*5pin, of which F_USB3   and USB1 are optional

1* Front panel switch buttons and   indicator interfaces 2*5Pin

1* HDD power supply interface 1*4pin

1* Amplifier interface 1*4pin

1* 4pin DC power supply interface (can   be used as a 12V input/output power supply interface)

1* SIM card slot

Fan Interface

1*4pin CPU intelligent fan interface, 1*   4pin system Fan interface

GPIO

Support 4-way input/output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256   levels, 0~255 seconds)

Operating System

Windows 7 , Windows 10 , Linux

Power Supply Type

Adopt DC 12V power supply.

Operating Temperature

-10℃~60℃

Storage Temperature

-20℃~70℃

Operating Humidity

5%-95% relative humidity, non-condensing

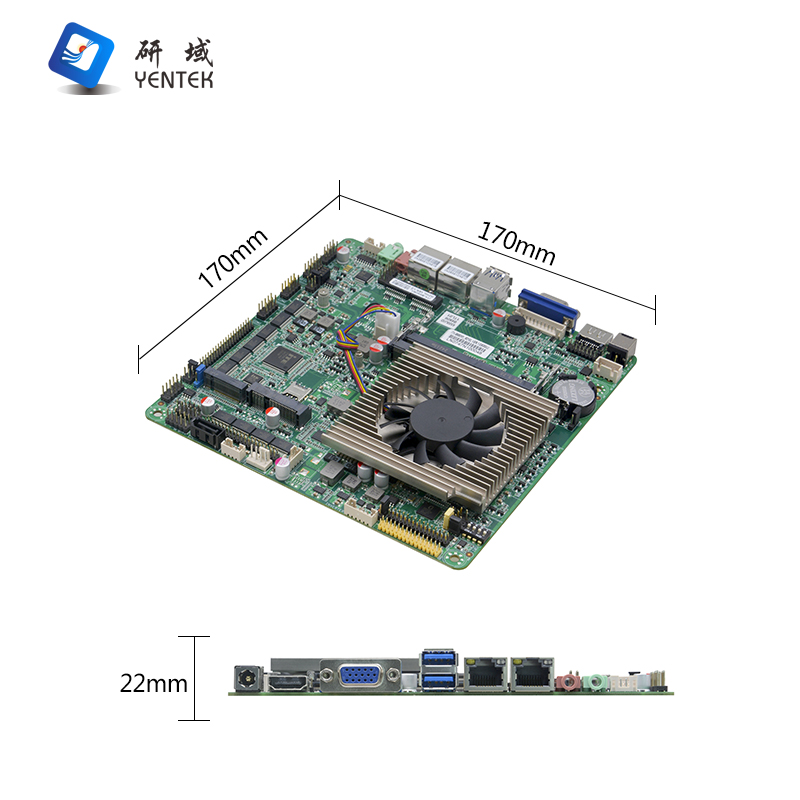

Size

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

485/422

Power

1

ITX-B690M1_I5210L VER:1.0(6300U)

I5-6300U

2.4G

2*SODDR4

1

1

1

1

2*210AT

8

10

COM2

DC12V
