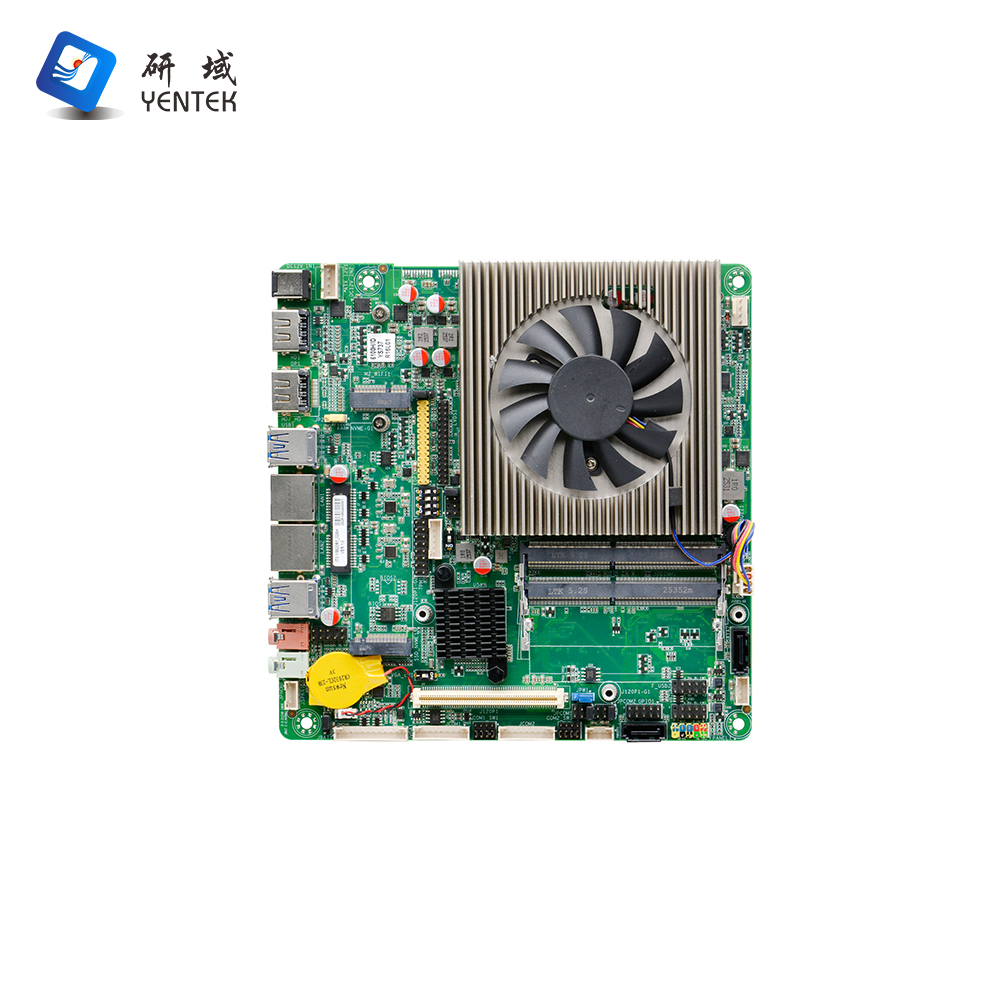

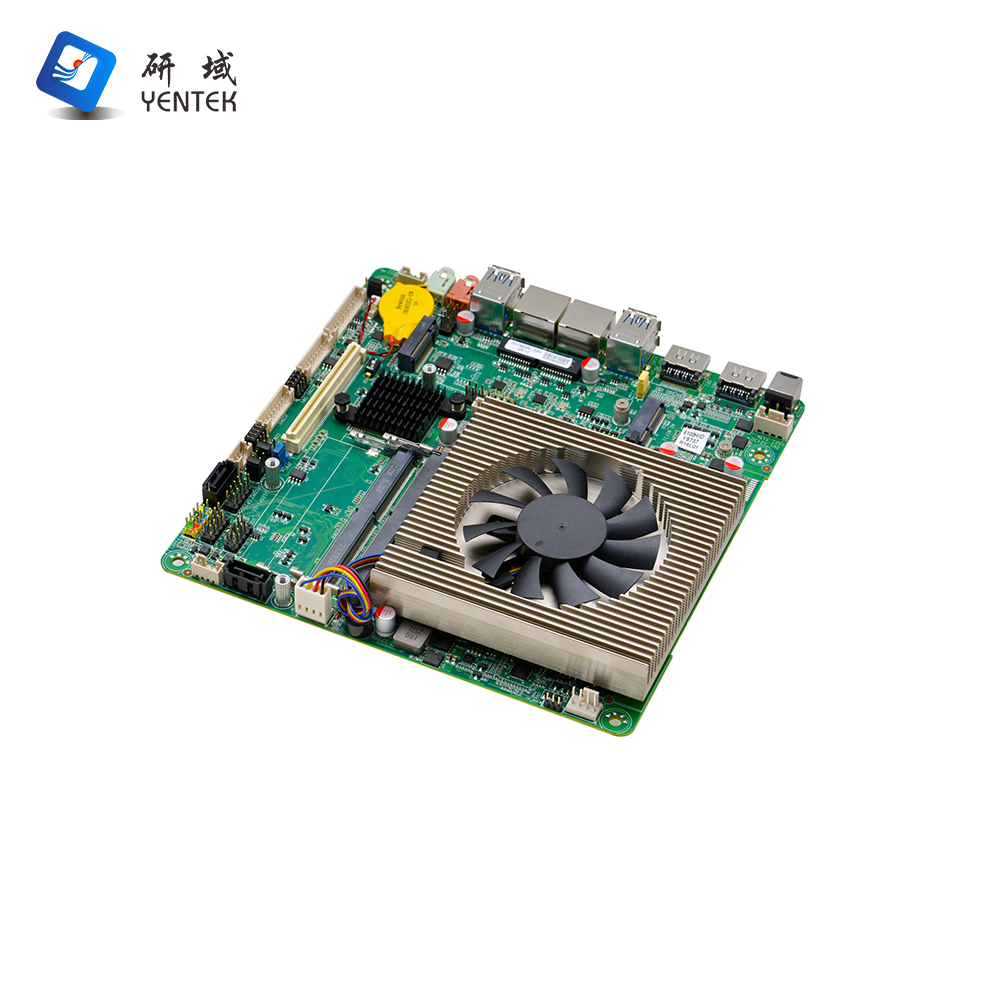

Product Model | ITX-YH620R1_I323L VER:1.0(6100H) |
Processor | Features an integrated Intel® Kaby Lake Core i3-6100H processor at 2.7GHz with dual-core, quad-thread architecture and a TDP of 35W. Compatible with Intel® Skylake-H/Kaby Lake-H Core i3/i5/i7 processors. |
Chipset | Intel® HM370 high-speed chipset. |
Memory | 2x DDR4 SODIMM memory slots, supporting up to 2133MHz memory, maximum capacity 64GB |
Display | Integrated Intel® HD Graphics 530 core graphics, supporting DirectX 12, OpenGL 4.5, and 4K display |
1x VGA port |
2x HDMI 1.4 ports, supporting maximum resolution 4096x2304@24Hz |
1x LVDS interface, 1x EDP interface (selectable via jumper with LVDS) |
Supports HDMI/VGA/LVDS or EDP synchronous/asynchronous triple display |
Network | 2x 8111H 1GbE network controller chips, supporting Wake-on-LAN/PXE functionality |
Storage | 2x SATA 3.0 hard drive interfaces, transfer speeds up to 6Gbps |
1x M.2 slot supporting M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard SSD |
Audio | Onboard ALC897 7.1+2-channel high-fidelity audio controller with MIC/Line-out support and amplifier |
Amplifier supports 4Ω/3W dual-channel |
Expansion Slots | 1x M.2 slot supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules |
1x 120-pin high-speed header: 4x TTL, 2x PCIe, 1x SATA, 1x DisplayPort plus control signals |

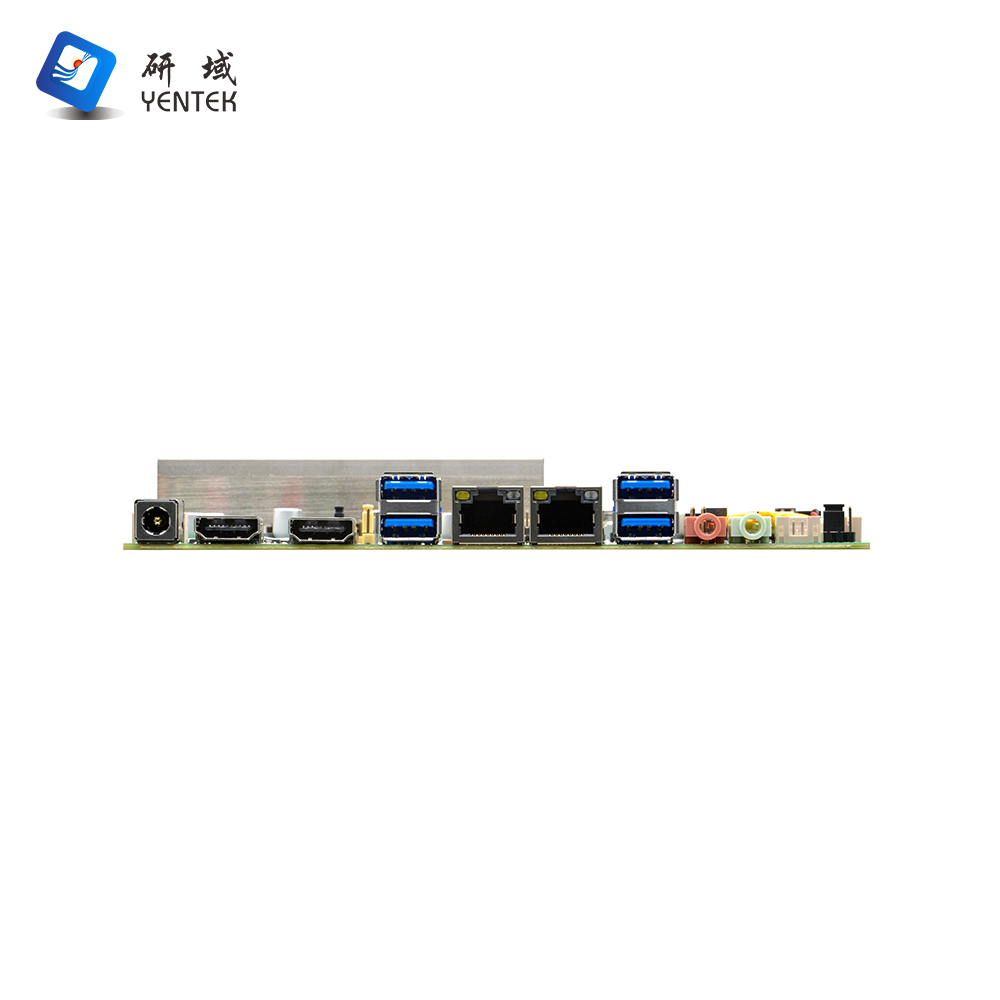

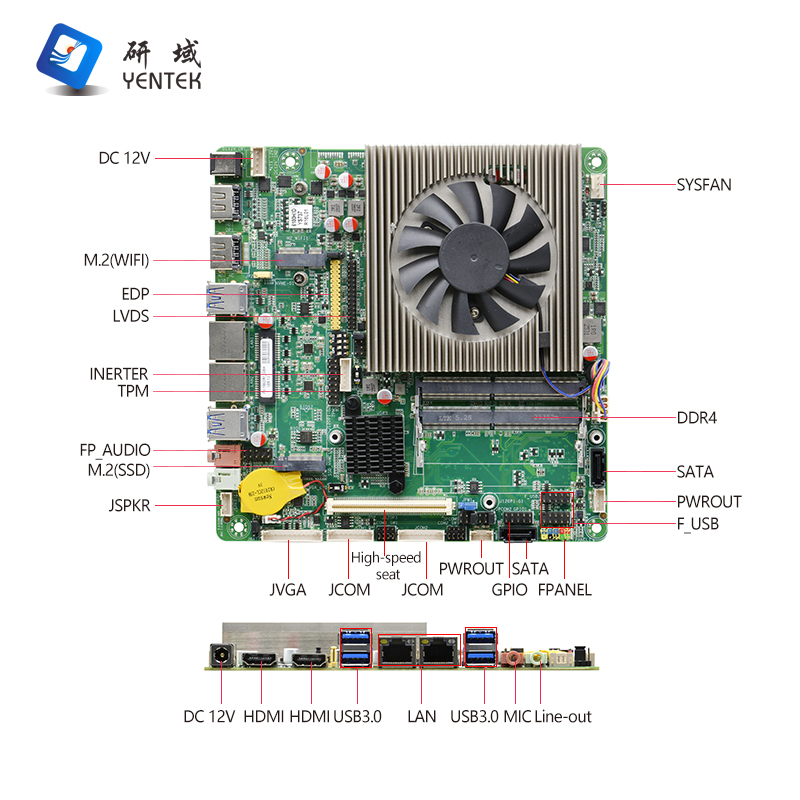

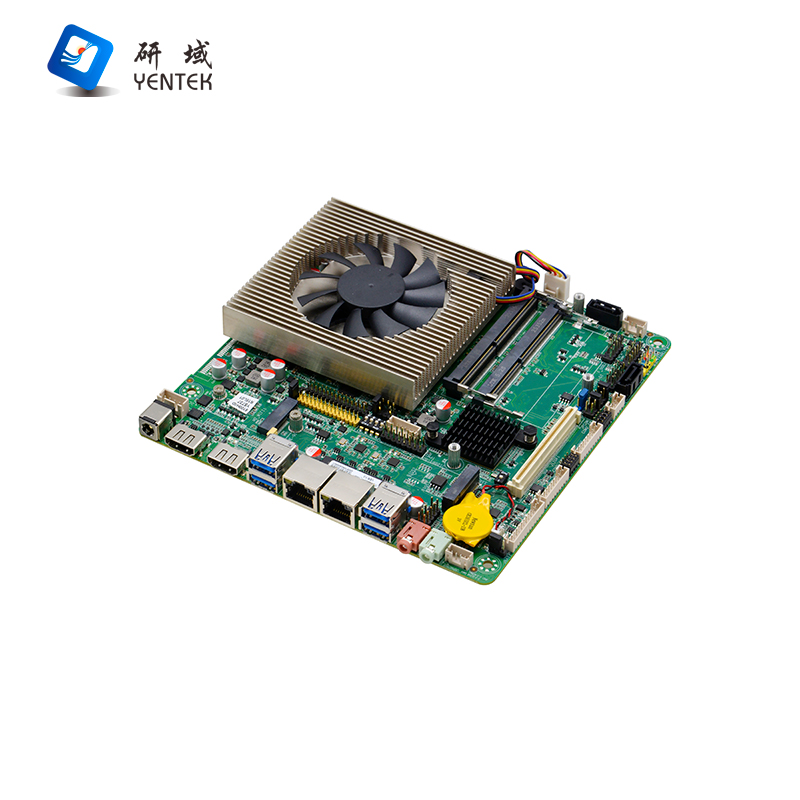

Rear Panel I/O Ports | 4x Type-A USB 3.0 ports (5Gbps) |
2x HDMI 1.4 ports (HDMI2 and DisplayPort mutually exclusive; DisplayPort optional) |
2x RJ45 Gigabit Ethernet ports |
1x Line-out (green), 1x MIC (red) |
1x DC12V power input connector |
Integrated I/O Ports | 1x LVDS interface (2x15-pin, PH=2.0mm), supporting dual-channel 24-bit |
1x EDP interface (2x15-pin, PH=2.0mm), selectable with LVDS via jumper |
1x JVGA header, 1x12-pin, PH=2.0mm, selectable with DP signal from high-speed socket via DIP switch |
1x Backlight power supply interface, 1x6-pin, PH=2.0mm |
2x RS232 serial interfaces, 1x9-pin, PH=2.0mm, supporting RS485/422 |
4x USB 2.0 ports, 2x5-pin, pitch=2.54mm |
1x Front audio port, 2x5-pin, pitch=2.54mm |
1x Amplifier port, 1x4-pin, pitch=2.0mm |
2x Hard drive power supply ports, 1x4-pin, pitch=2.0mm |
1x Front Panel Function Button and Indicator Interface 2x5-pin, PH=2.54mm |
1x 4-pin DC Power Interface, 1x4-pin, PH=2.5mm, supporting 12V power input |
Fan Connectors | 1x 4-pin CPU Smart Fan Interface; 1x 4-pin System Fan Interface |
GPIO | Supports 4-channel input/output GPIO functionality |
BIOS | 64Mb Flash ROM |
Operating Systems | Windows 10/Linux |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power Supply Type | Supports DC12V power supply |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -20°C to 70°C |
Operating Humidity | 5%–95% relative humidity, non-condensing |

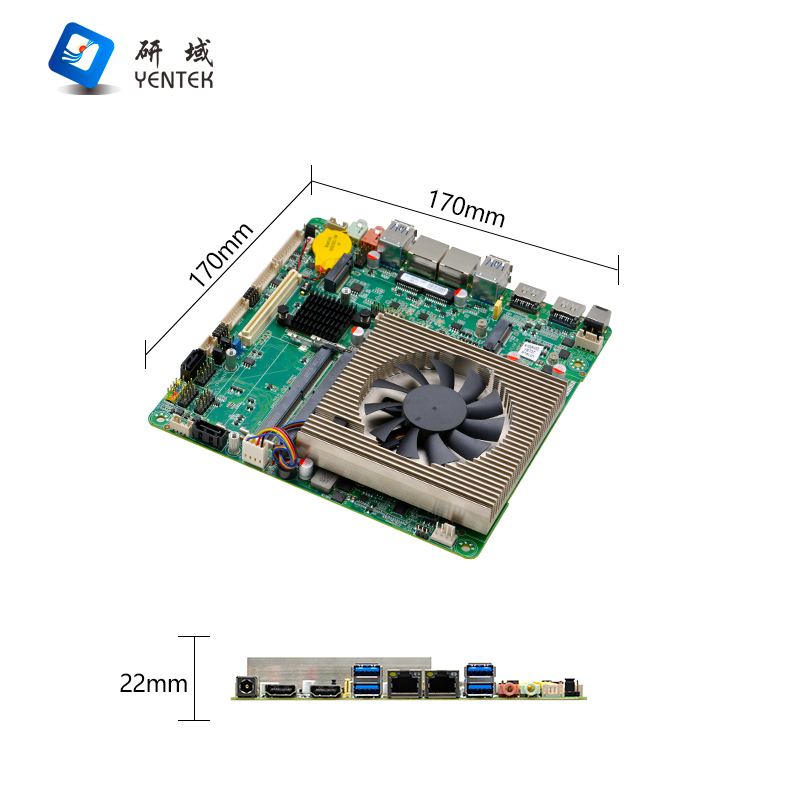

Dimensions | 170mm x 170mm |
