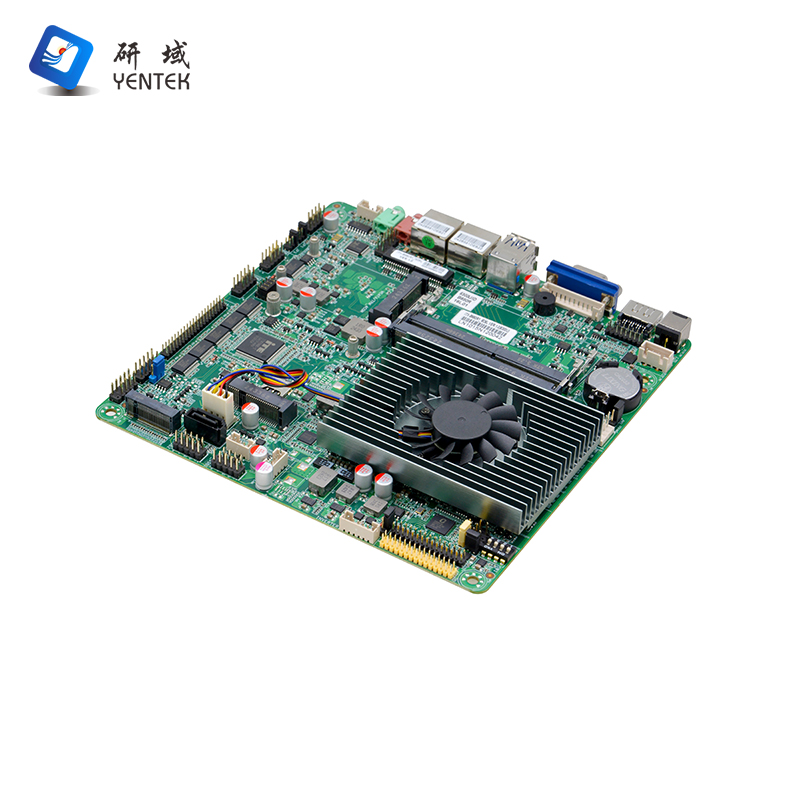

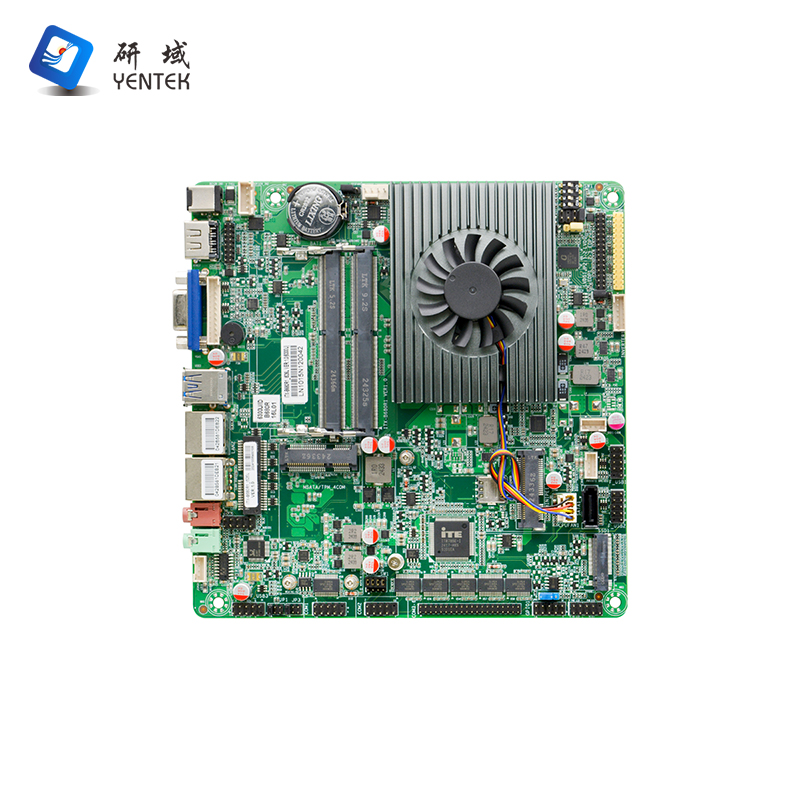

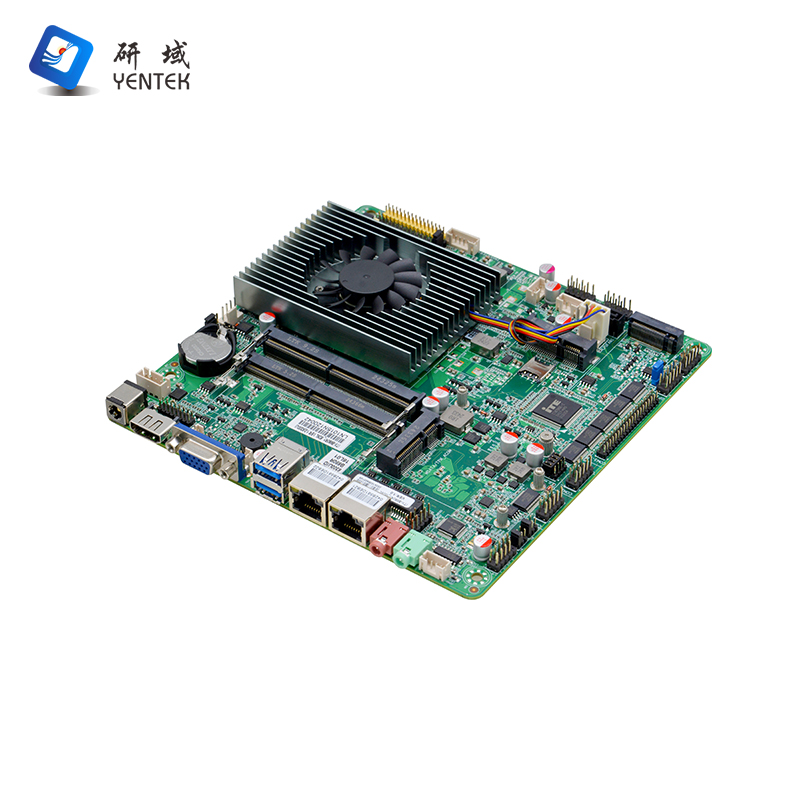

ITX-B680R1_I526L

Processor

Integrated Intel®   Core i5-6300U 2.4GHz dual-core quad-thread processor, TDP 15W

Compatible with   Intel® Skylake-U/Kabylake-U Pentium/Celeron/i3/i5/i7 low-power processors

Chipset

SOC

Memory

2x DDR4 SODIMM   memory slots, supporting 2133MHz memory, maximum capacity 32GB

Display

Integrated Intel®   HD Graphics 620, supporting DirectX 12, OpenGL 4.5, and 4K resolution

1x VGA port,   maximum supported resolution: 1920x1200@60Hz

1x HDMI 1.4 port,   maximum supported resolution: 4096x2304@24Hz

1x dual-channel   24-bit LVDS interface

1x EDP interface   (selectable via jumper with LVDS interface)

Network

2x RTL8111H Gigabit Ethernet   controllers, supporting Wake-on-LAN and PXE functionality

Storage

1x SATA 3.0 hard   drive interface, transfer speeds up to 6Gbps

1x mSATA slot, supporting Intel protocol   SSDs, transfer speeds up to 6Gbps

Note: Supports TPM-4COM expansion board for   4 additional serial ports (requires BIOS modification)

1x M.2 slot supporting M.2 2280 NVMe PCIe   x4/SATA SSDs

Audio

Integrated ALC897   7.1+2-channel high-fidelity audio controller with MIC, Line_out, and   amplifier support

Supports 2Ω 5W speakers via amplifier

Expansion Slots

1* Mini-PCIe slot   supporting Wi-Fi/4G modules

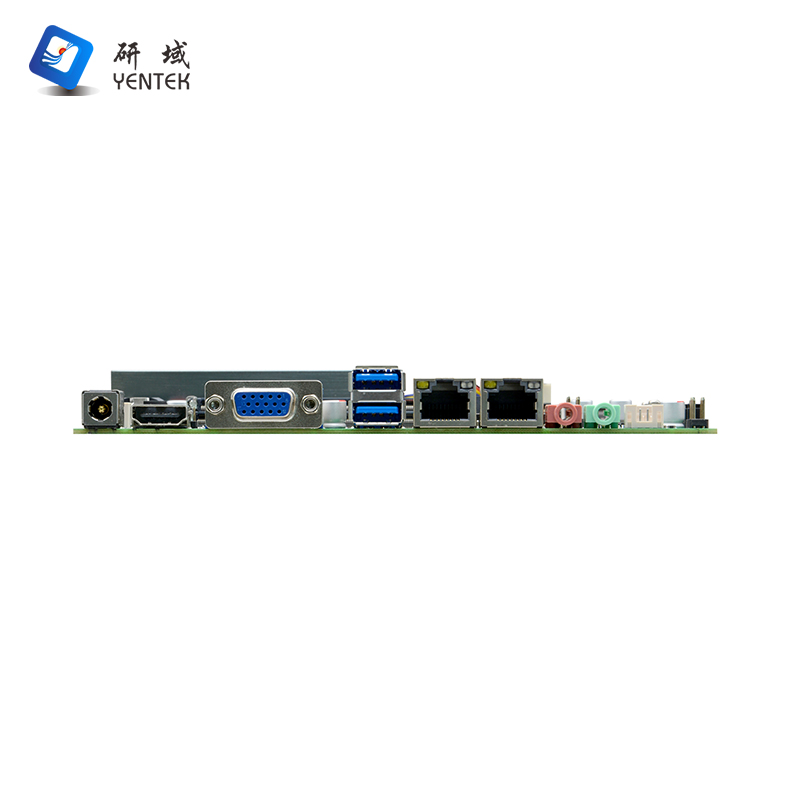

Rear Panel I/O Ports

2* USB 3.0 ports

1* HDMI port

1* DB15 VGA port

2* RJ45 Gigabit Ethernet   ports (LAN1 shares column with dual USB 2.0 ports)

1* Line-out   (green), 1* MIC (red)

1* DC12V power   supply supporting 12V input/output

Integrated I/O Ports

1* JVGA1 interface   1*12-pin (same signal as DB15)

1* JHDMI interface   2*8-pin (same signal as HDMI port)

1* LVDS interface   2*15-pin, supporting dual-channel 24-bit

1* EDP interface   (yellow) 2*15-pin, selectable via jumper with LVDS

1x LVDS backlight   power interface 1x 6-pin

6x RS232 serial interfaces, where COM1   supports pin 9 power, COM2 supports RS485/422 functionality

6x USB 2.0 interfaces   2x 5-pin

1x Front audio   interface 2x 5-pin

1* Front panel   switch button and indicator interface 2*5-pin

1* Hard drive power   supply interface 1*4-pin

1* Amplifier   interface 1*4-pin

1* 4-pin DC power   interface (can serve as 12V input/output power interface)

1* SIM card slot

Fan Connectors

1* 4-pin CPU   intelligent fan interface, 1* 4-pin system fan interface

GPIO

Supports 4-channel input/output   GPIO

BIOS

64Mb Flash ROM

Watchdog

Supports hardware   reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by DC 12V   supply

Operating System

Windows 7, Windows   10, Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

170mm x 170mm
