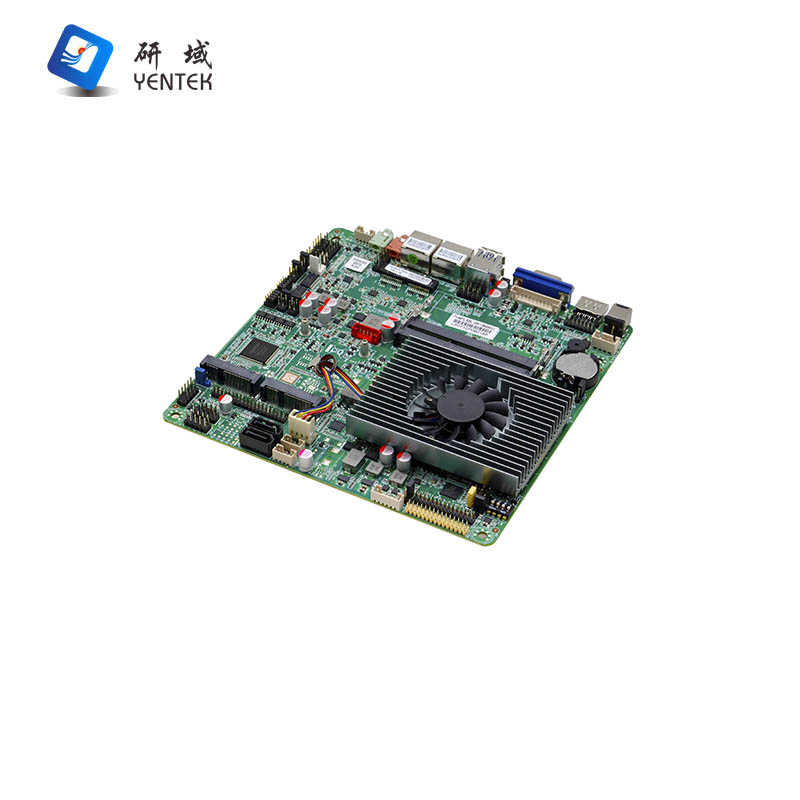

ITX-B670_I526L

Processor

Intel® i5-6300U 2.4GHz dual-core, quad-thread processor, TDP 15W

Compatible with Intel® Skylake-U/Kaby Lake-U Pentium/Celeron/i3/i5/i7 low-power processors

Chipset

SOC

Memory

2 × DDR3L SODIMM memory slots, supporting 1600 MHz memory, with a maximum capacity of 16 GB

Display

Integrated Intel® HD Graphics 520, supporting DirectX 12, OpenGL 4.5 and 4K

1 × VGA port, supporting a maximum resolution of 1920 × 1200 @ 60 Hz

1 × HDMI 1.4 port, maximum supported resolution: 4096 × 2304 @ 24Hz

1 × dual-channel 24-bit LVDS interface

1 × EDP, selectable via jumper between EDP and LVDS

Network

2 × 8111H Gigabit Ethernet ports, supporting Wake-on-LAN and PXE

Storage

2 × SATA 3.0 hard drive interfaces, transfer speeds up to 6 Gbps

1 × mSATA slot, supporting Intel-protocol SSDs, with transfer speeds up to 6 Gbps

Audio

Integrated ALC662 6-channel high-fidelity audio controller, supporting MIC, Line-out and power amplifier

Supports 4 Ω 3 W speakers via power amplifier

Expansion Slots

1 × Mini-PCIe slot, supporting Wi-Fi/4G modules

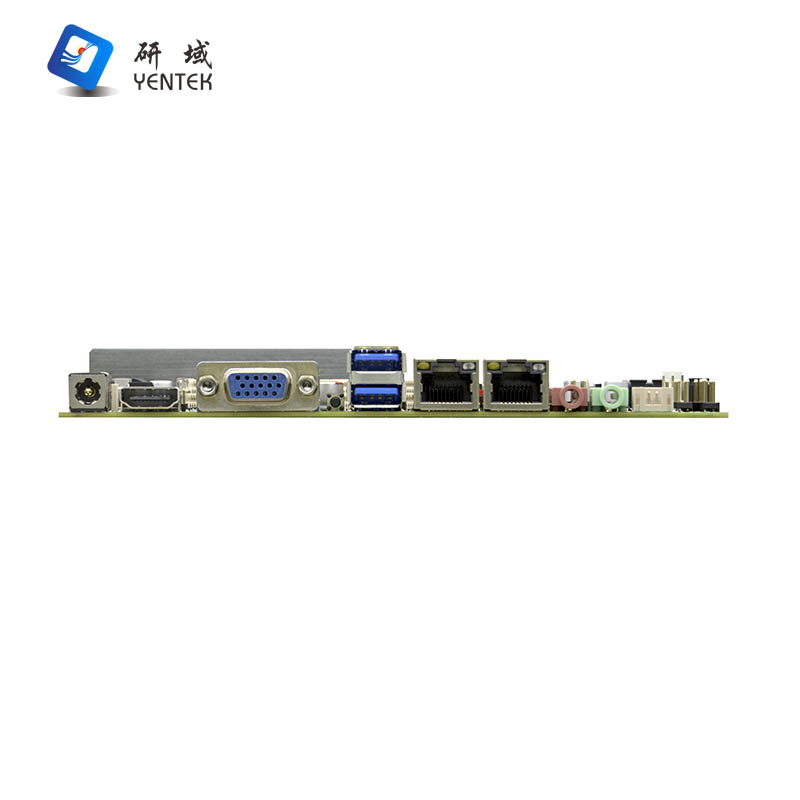

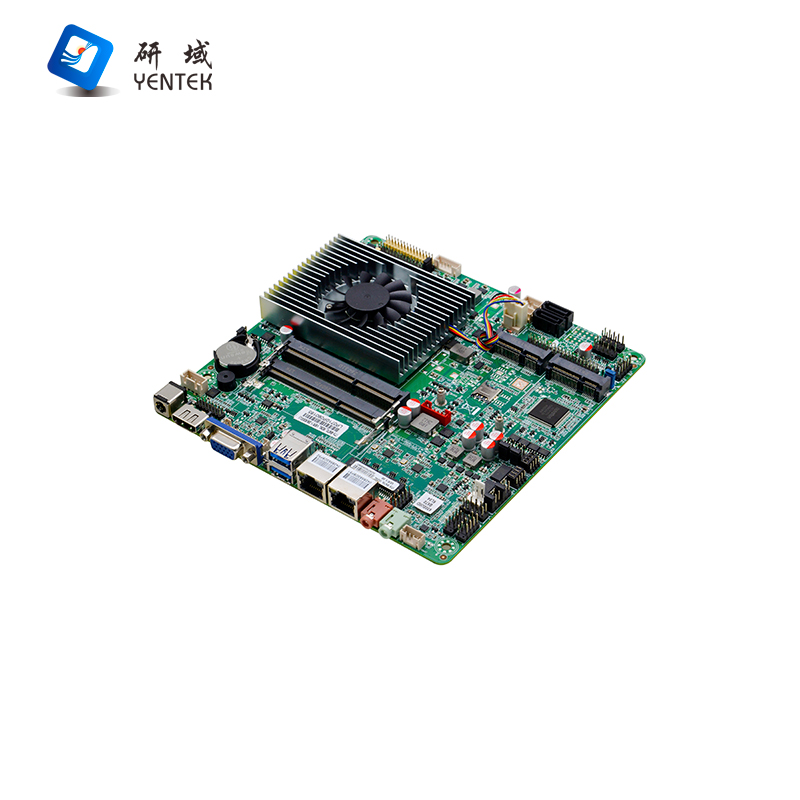

Rear Panel I/O Ports

2 × USB 3.0 ports

1 × HDMI port

1 × DB15 VGA port

2 × RJ45 Gigabit Ethernet ports

1 × Line-out (green), 1 × MIC (red)

1 × DC 12V power supply, supporting 12V power input and output

1 × Clear CMOS button (reserved)

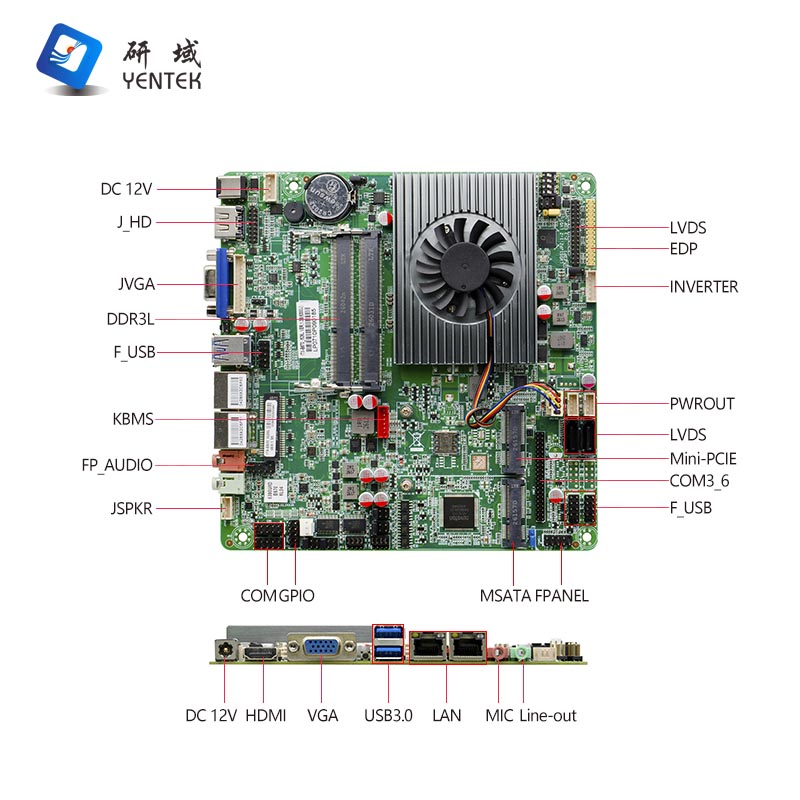

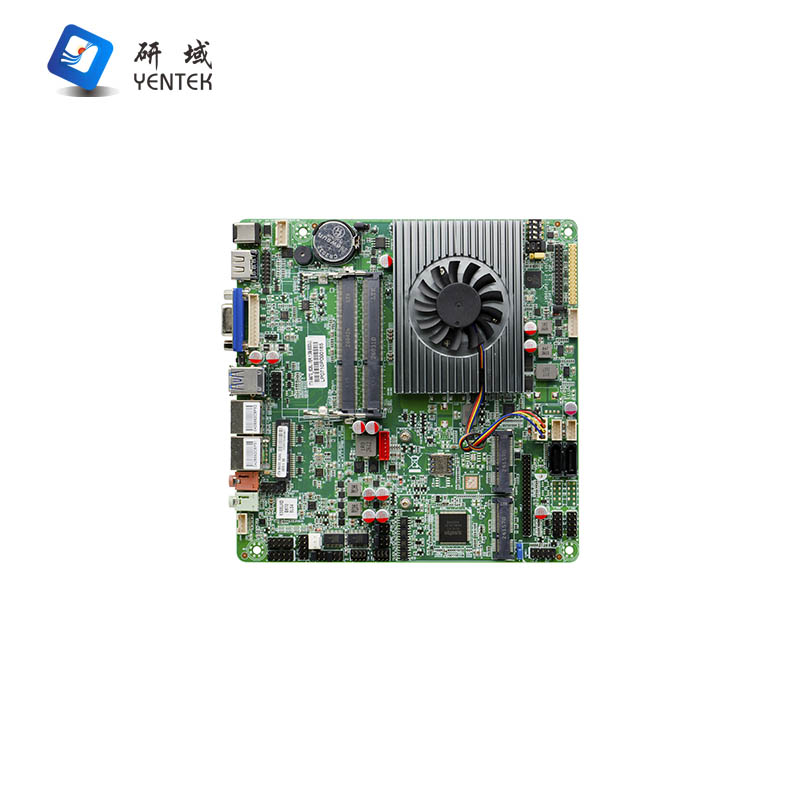

On-board I/O Ports

1 × JVGA1 connector, 1 × 12-pin (same signal as DB15)

1 × JHDMI connector, 2 × 8-pin (same signal as HDMI connector)

1 × LVDS connector, 2 × 15-pin, supporting dual-channel 24-bit

1 × LVDS backlight power supply connector, 1 × 6-pin

1 × EDP connector (yellow), 2 × 15-pin; selectable via jumper between EDP and LVDS; default is LVDS

6 × RS232 serial ports, of which COM2/3 support RS485/422 functionality

6 × USB 2.0 ports, 2 × 5-pin

1 × front audio connector, 2 × 5-pin

1 × front panel switch and indicator interface (2 × 5-pin)

2 × hard drive power supply interfaces (1 × 4-pin)

1 × power amplifier interface (1 × 4-pin)

1 × PS/2 keyboard and mouse interface

1 × 4-pin DC power supply interface (can function as a 12V input/output power supply interface)

1 × SIM card slot

Fan Connectors

1 × 4-pin CPU smart fan interface, 1 × 3-pin system fan interface

GPIO

Supports 4-channel GPIO input/output

BIOS

64 Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by 12 V DC

Operating System

Windows 7, Windows 8, Windows 10, Linux

Operating Temperature

–10 °C to 60 °C

Storage Temperature

–20 °C to 70 °C

Operating Humidity

5%–95% relative humidity, non-condensing

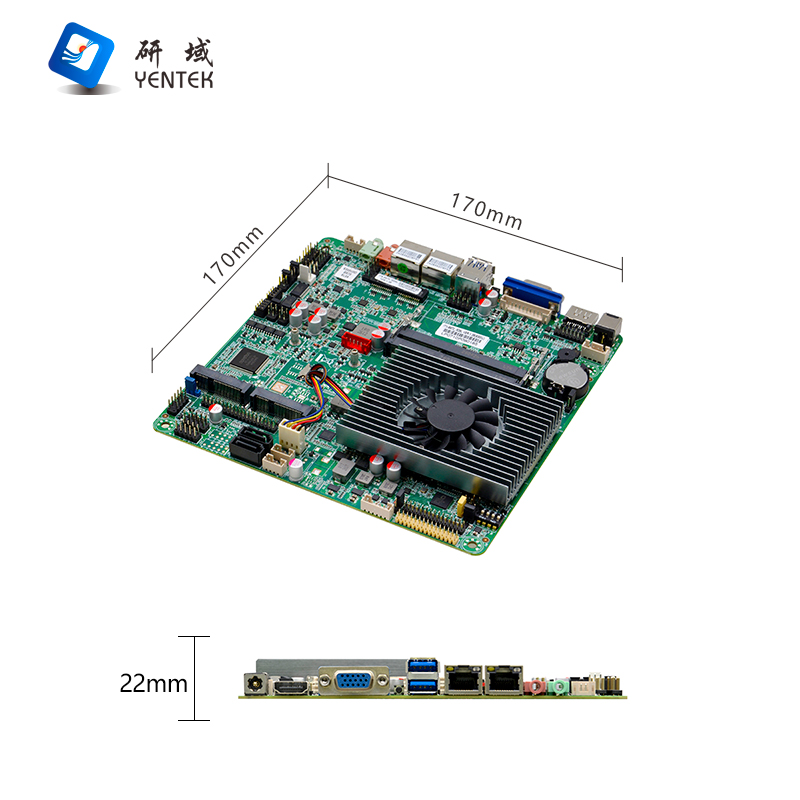

Dimensions

170mm x 170mm

1

ITX-B670_I526L VER:1.3A(7200U)

I5-7200U

2.5G

2*SODDR3L

1

1

2ch/24Bit

1

2*8111H

8

6

2

DC12V

2

ITX-B670_I512L VER:1.3A(7200U)

I5-7200U

2.5G

2*SODDR3L

1

1

2ch/24Bit

1

1*8111H

8

6

2

DC12V

3

ITX-B670_I512L VER:1.3A(7300U)

I5-7300U

2.6G

2*SODDR3L

1

1

2ch/24Bit

1

1*8111H

8

2

1

DC12V

4

ITX-B670_I312L VER:1.3A(7100U)

I3-7100U

2.4G

2*SODDR3L

1

1

2ch/24Bit

1

1*8111H

8

2

1

DC12V

5

ITX-B670_I526L VER:1.3A(6300U)

I5-6300U

2.4G

2*SODDR3L

1

1

2ch/24Bit

1

2*8111H

8

6

2

DC12V

6

ITX-B670_I512L VER:1.3A(6300U)

I5-6300U

2.4G

2*SODDR3L

1

1

2ch/24Bit

1

1*8111H

8

2

1

DC12V
