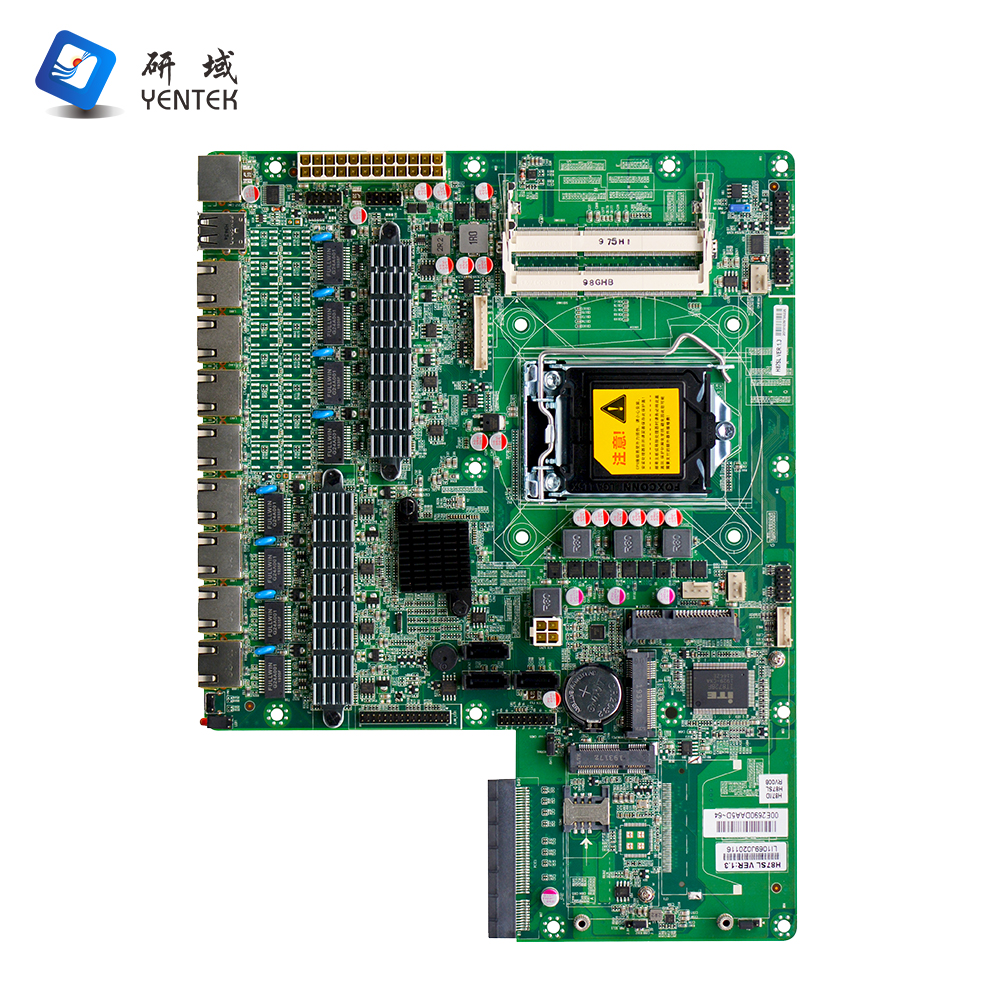

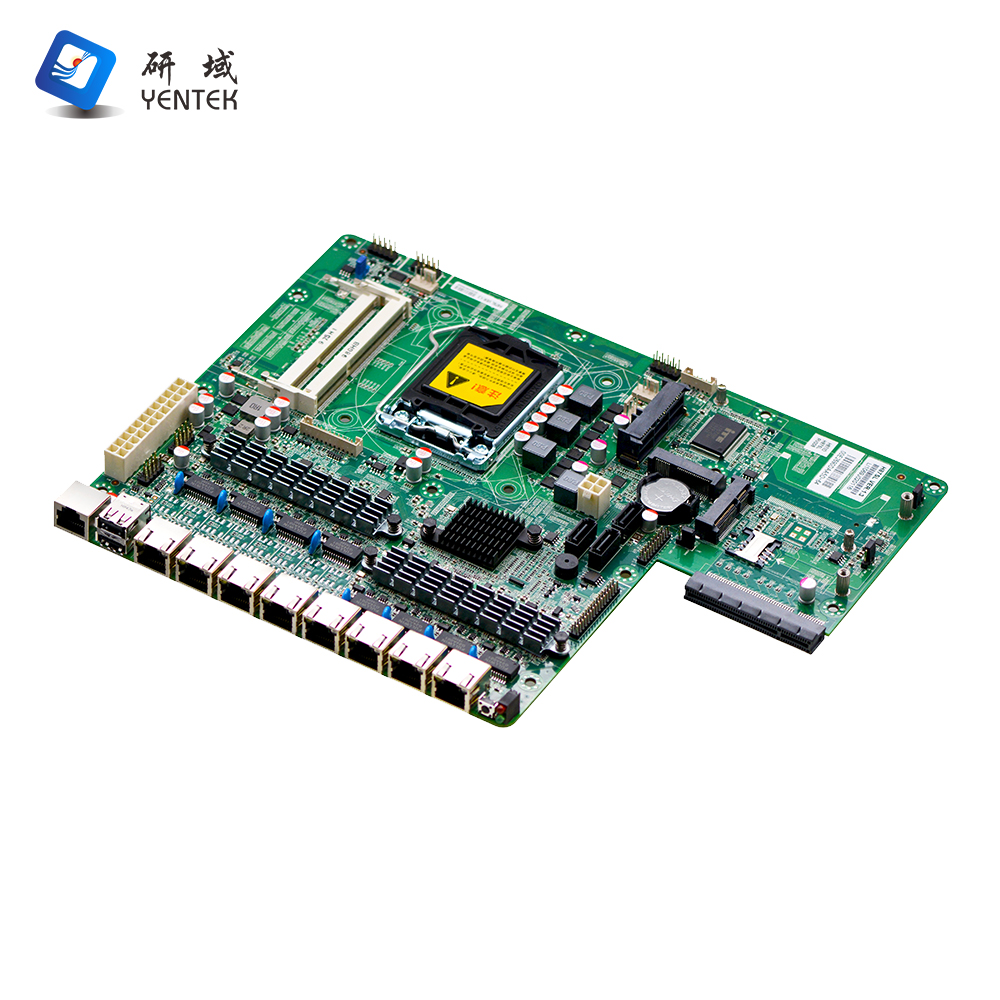

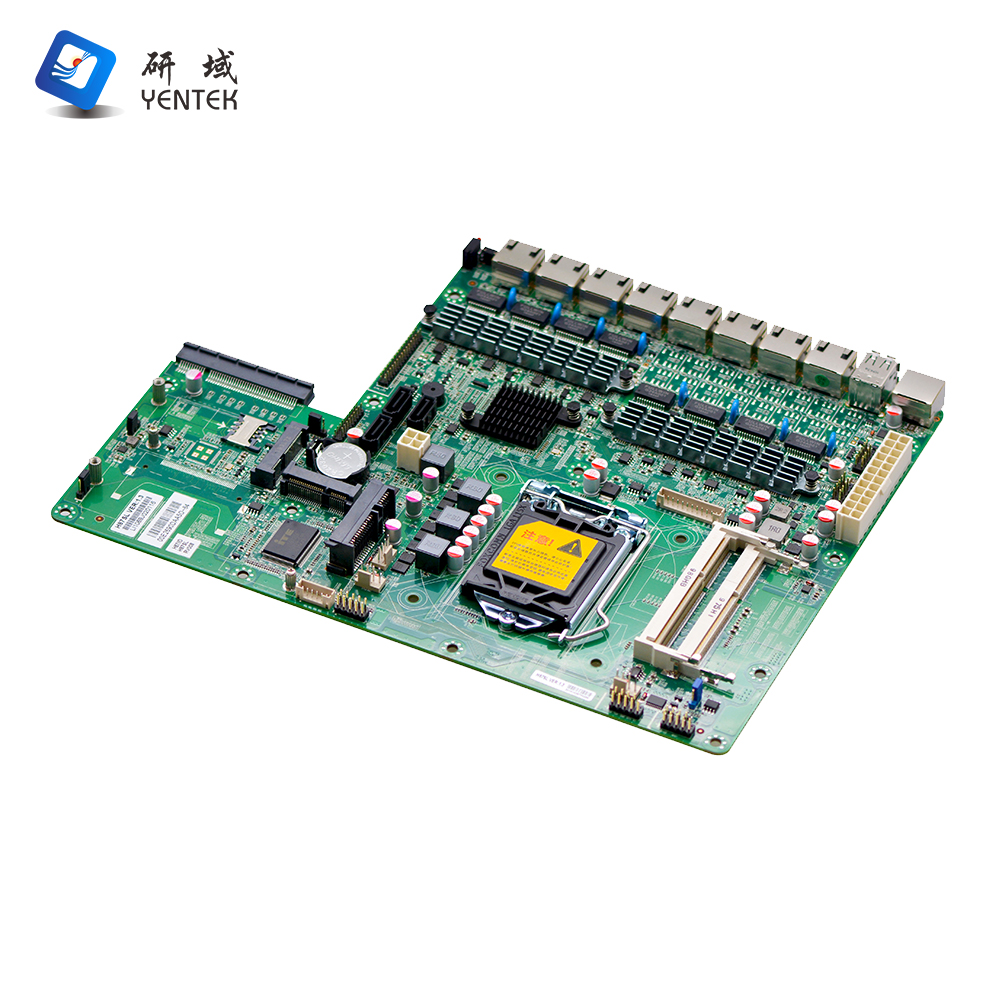

| Product model | H87SL VER: 1.3 |
| Processor | Support 4th Intel® Celeron/Pentium Core™ i3/i5/i7 processor with LGA1150 architecture |
| Chipset | Using Intel® H87 Express Chipset |
| RAM | 2* SO DDR3 memory slot, support 1600/1333MHz memory, maximum support 16GB |
| Show | Integrated Intel® HD Graphics core graphics, 1*VGA display output |
| The internet | 8*Intel 82583V gigabit network card supports Wake on LAN, PXE function |
| Storage | 1*SATA 2.5-inch notebook hard disk, which can be directly installed with the hard disk, the transmission speed can reach 6Gbps |
| 1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps | |
| 3*SATA3.0 hard disk interface | |
| Extension Slot | 1* 8X PCIE expansion slot, can expand Gigabit; 10 Gigabit fiber port |
| 1*Mini-PCIE slot, support 3G module | |

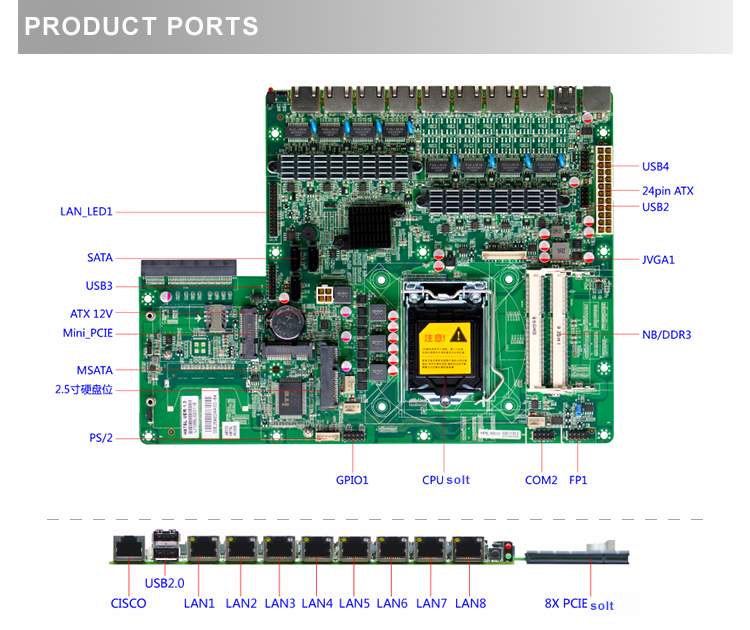

| Backplane I/O Interface | 8* RJ-45 Gigabit network interface |
| 2* USB2.0 interface | |
| 1* Serial port defined by CISCO standard | |
| 1* Touch the power button | |
| 1* Power/HDD Indicator | |
| Built-in I/O interface | 1* JVGA1 port 1*12pin |
| 1* RS232 serial port 2*5Pin | |
| 1* Network indicator interface 2*16Pin | |
| 1* PS/2 keyboard and mouse interface 1*6Pin | |
| 4* USB2.0 interface 2*5Pin | |
| 2* USB3.0 interface 2*10Pin | |
| 1* Front Panel Switch Button and Indicator Interface 2*5Pin | |
| 1* 24pin ATX power input | |
| 1* 4pin ATX power input | |
| 1* SIM card holder | |
| Fan interface | 2*4pin CPU fan interface, 1*4pin system fan interface |
| GPIO | Support 4 input and output GPIO |
| BIOS | AMI 64Mb Flash ROM |

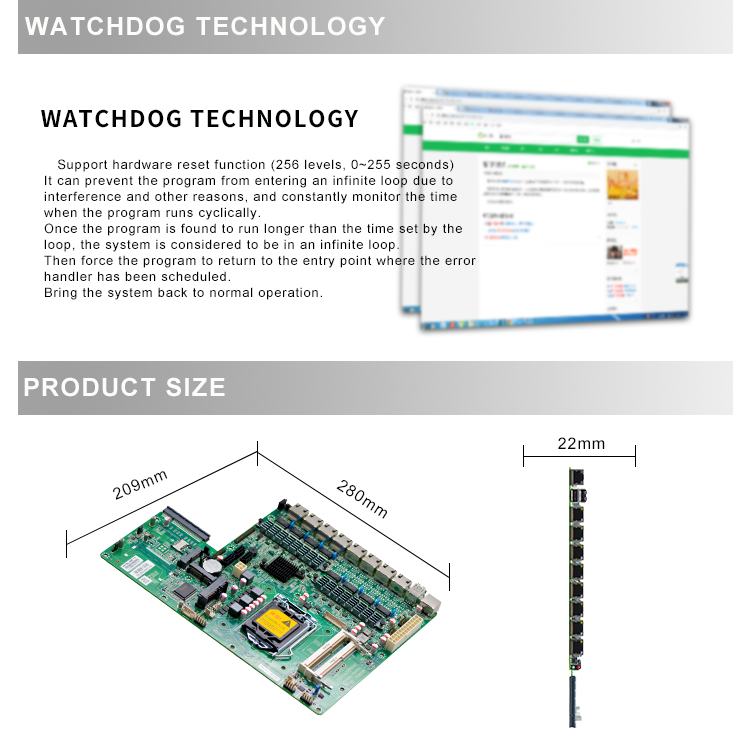

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Power supply type | ATX Power Input |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 280mm x 209mm |
| NO. | Model | Processor | Frequency | Southbridge | Memory | VGA | LAN | USB | COM | BYPASS | Power |
| 1 | H87SL_B VER:1.3 | LGA1150 | / | H87 | 2*SODDR3 | 1 | 8*82574L | 8 | 2 | 2 | ATX |
| 2 | H87SL VER:1.3 | LGA1150 | / | H87 | 2*SODDR3 | 1 | 8*82574L | 8 | 2 | / | ATX |
