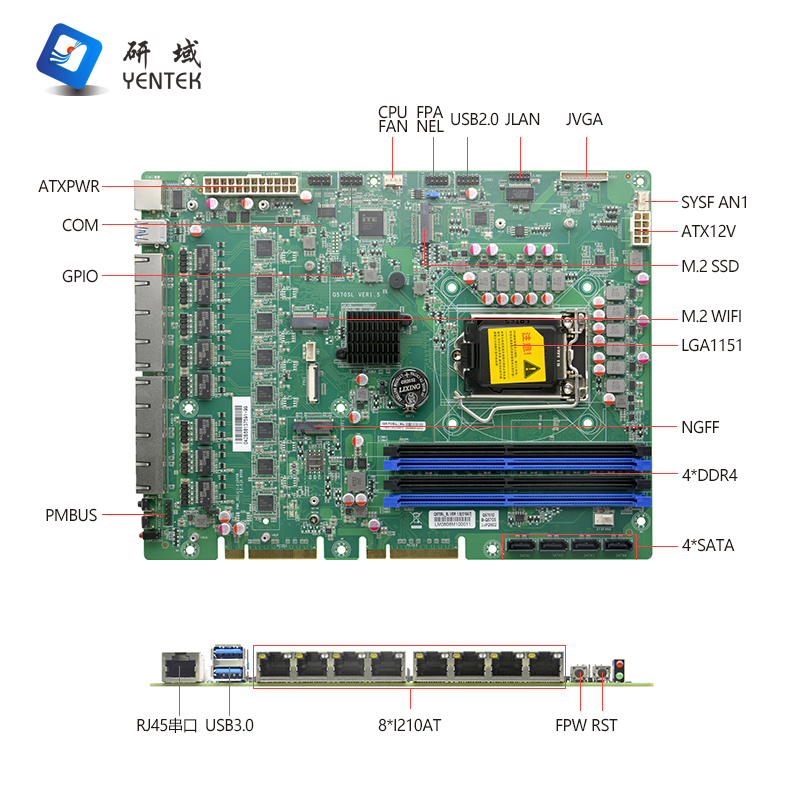

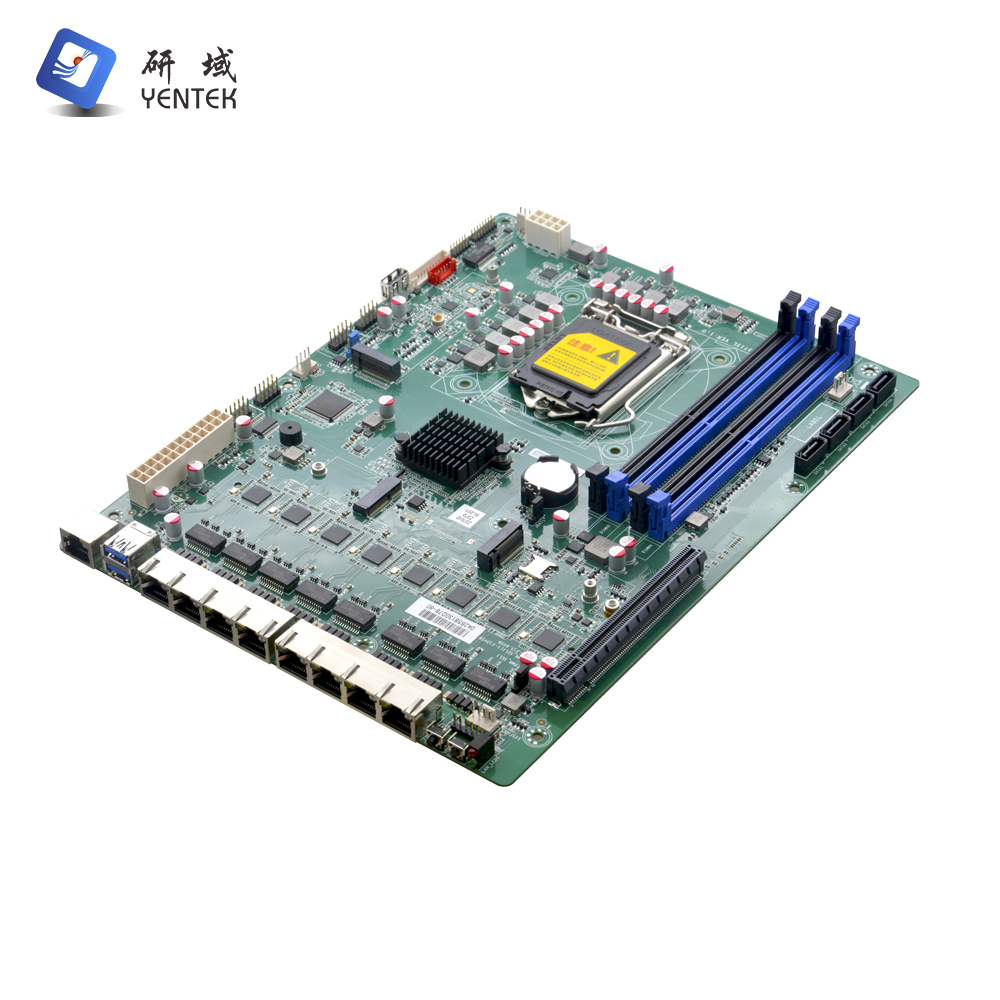

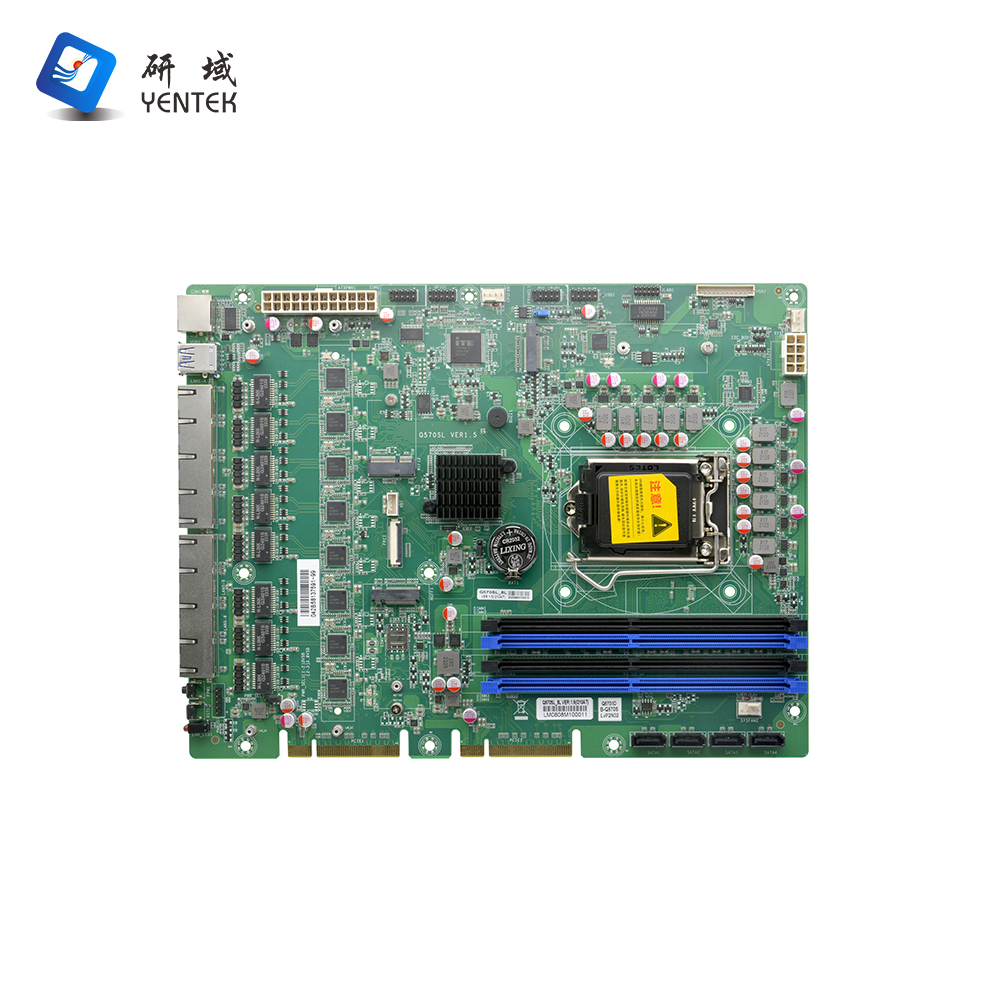

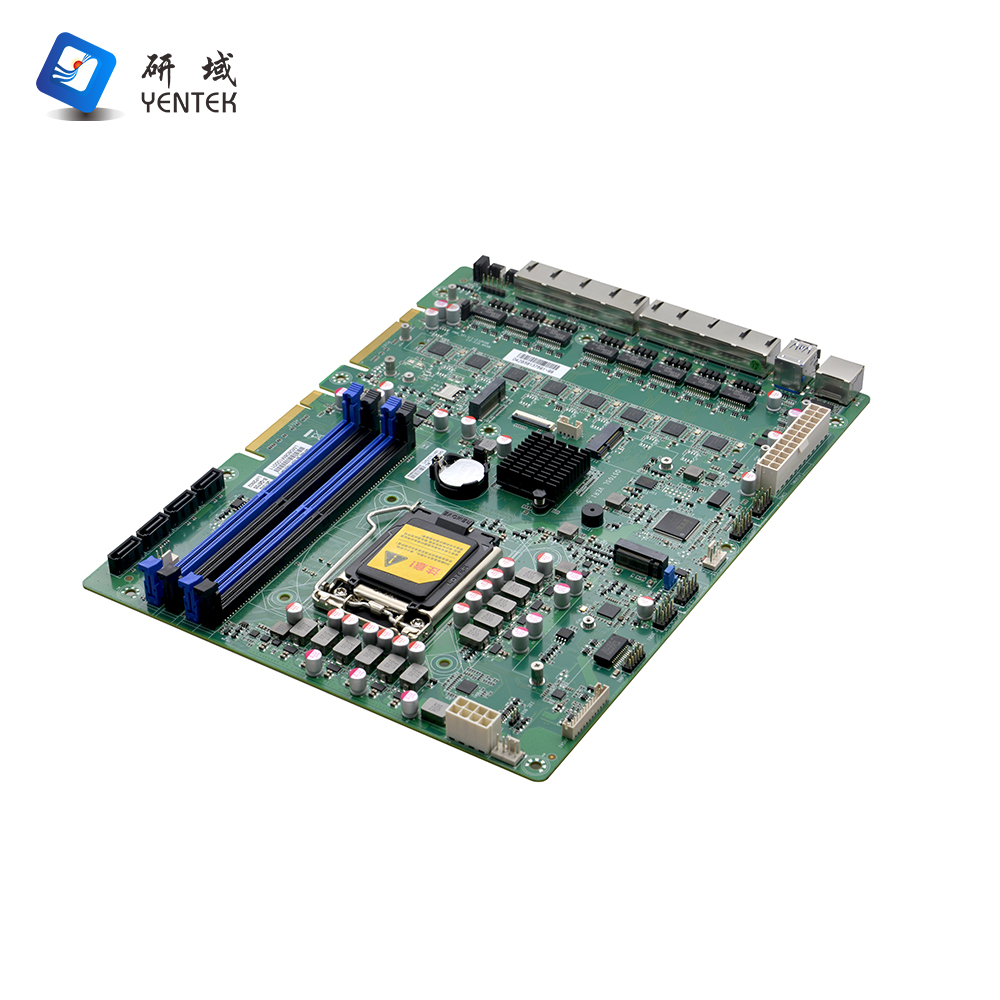

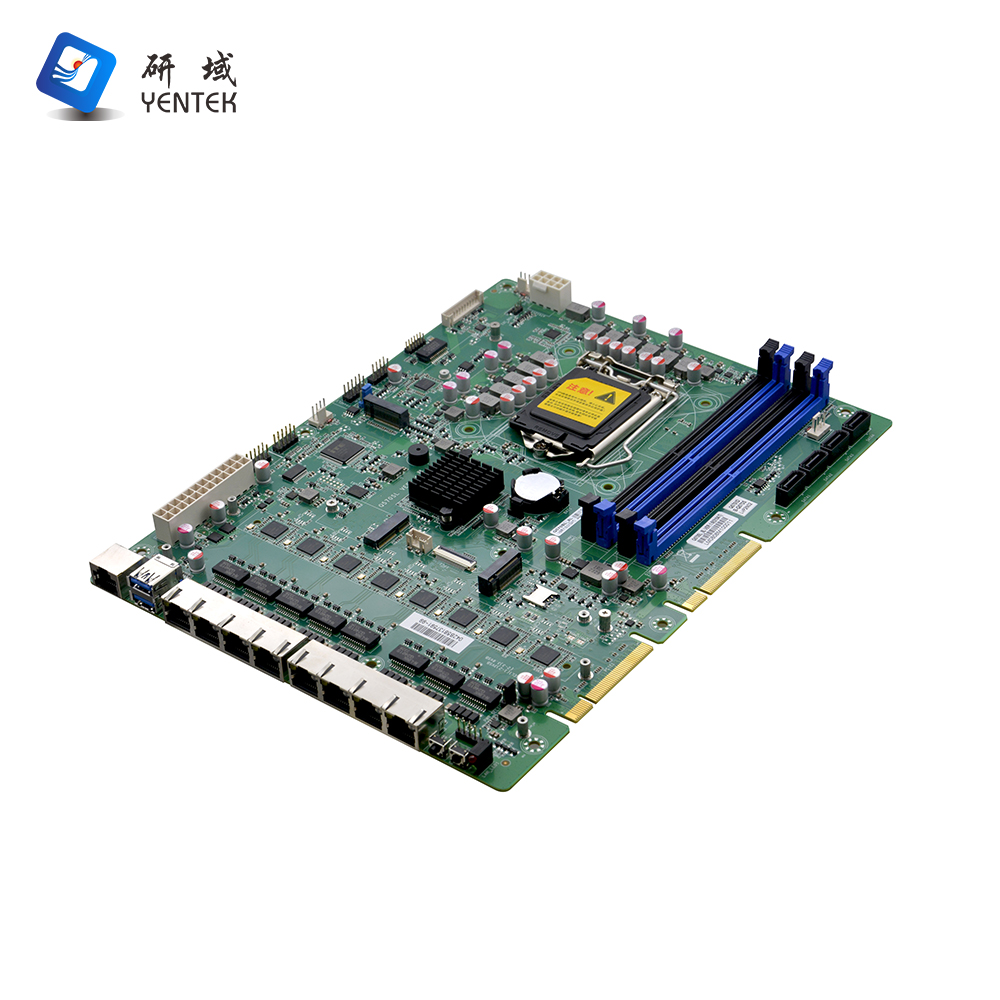

Q570SL_8L

Processor

Support LGA1200 10th/11th   Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Note: Supports 10th/11th   generation 125W CPU

Chipset

Intel Q570   high-speed chipset

Memory

4*DDR4 UDIMM   memory slots, support up to 3200MHz DDR4 memory, support up to 128GB

Display

Integrated Intel® HD Graphics controller, supports DirectX12,   OpenGL4.4.

1* VGA   interface, support for the highest resolution of 1920X1200@60Hz

Internet

8* Intel® WGI210AT Gigabit LAN card, support   Wake-on-LAN, PXE function.

1* Intel® KTI226LM Gigabit LAN card with   Wake-on-LAN, PXE/Vpro support.

Storage

4* SATA 3.0 hard drive interface, SATA interface   transfer speed up to 6Gbps, support RAID 0,1,5,10

1* M.2 slot, support M.2 Key M 2280 PCIE   x4/SATA adaptive standard SSDs

Audio

N/A

Extension Slot

1* M.2 slot supporting M.2 Key B   2242/2252 4G/5G modules

1* M.2 slot, support M.2 Key E 2230 WIFI   module

2* PCIE X8 Gold Finger

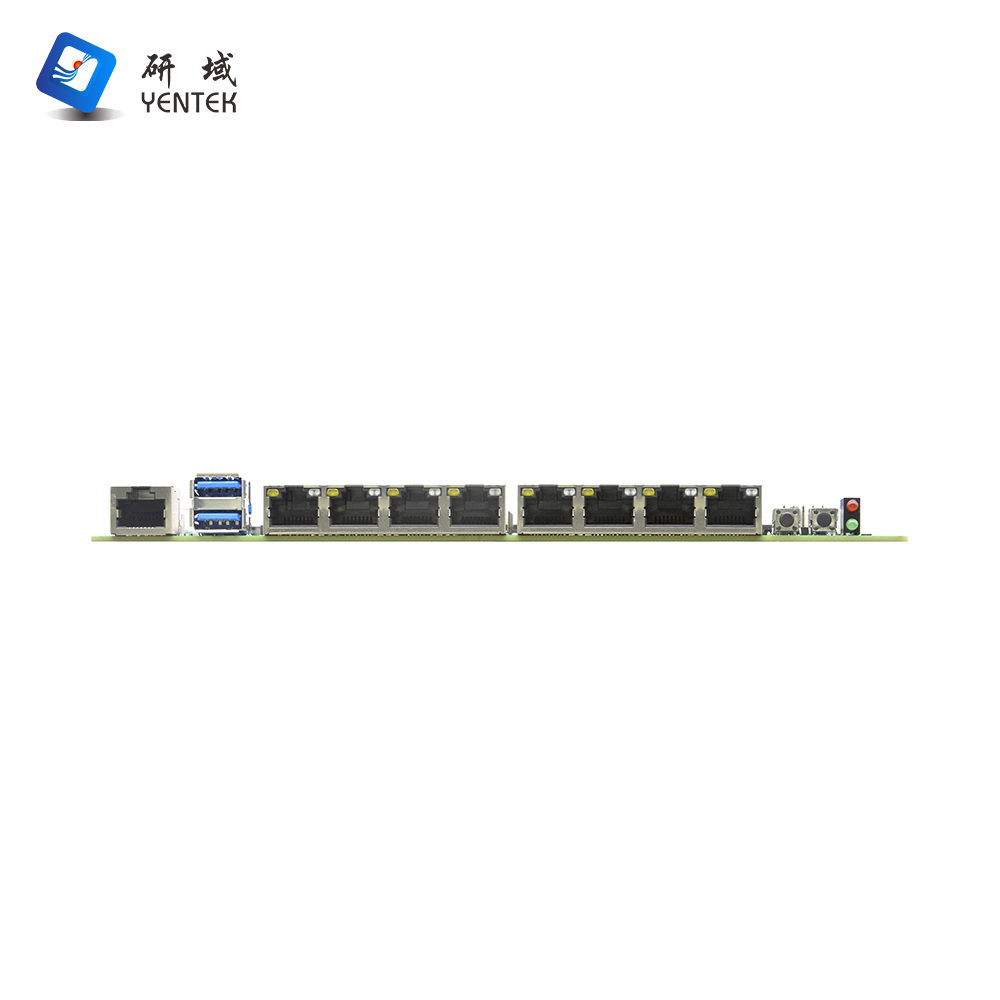

Backplane I/O Interface

1* RJ45 serial port

2* USB3.0 port

8* RJ45 Gigabit network interface

1* Power Switch, 1* Reset Switch

1* Power Indicator, 1* HDD Indicator

Built-in I/O interface

1* JVGA interface 1*12pin

1* RS232 serial port, 2*5pin

2* USB 2.0 ports 2*5Pin

1* TPM connector, 2*6pin (reserved,   optional)

1* Front Panel Function Button and   Indicator Interface 2*5pin

1* FPC interface, 30pin, including 1   channel PCIE, 1 channel PLC/ESPI bus, HD bus

1* SIM card slot

1* Network pin connector 2*6pin

1* 24pin ATX power input connector

1* 8pin ATX power input connector

Fan   interface

1*4pin CPU smart fan connector, 2*4pin   system smart fan connector

BIOS

64Mb   Flash ROM

operating system

Windows 10/Windows 11/Linux

Watchdog

Support hardware reset function (256 levels, 0~255   seconds)

Power supply type

ATX power input

operating temperature

0℃～60℃

Storage temperature

-20℃～70℃

Operating humidity

5%-95% relative humidity, non-condensing

Size

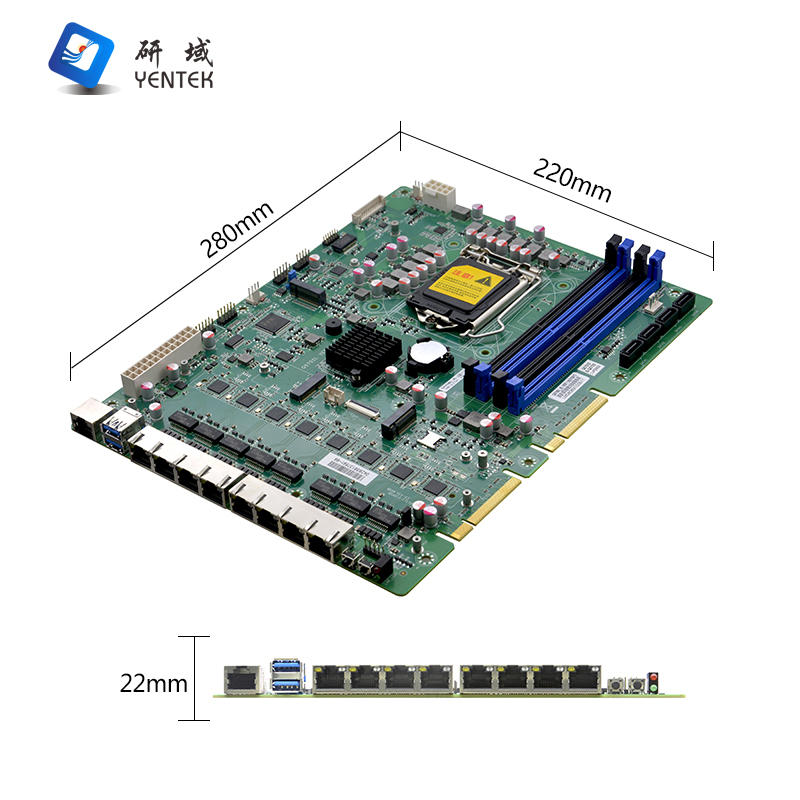

220mm x 280mm

1

Q570SL_8L VER:1.5(I210AT)

LGA1200

Q570

4*DDR4

1

/

8*I210/1*I226LM

4

2

ATX

2

Q570SL_6L   VER:1.5(I210AT)

LGA1200

Q570

4*DDR4

1

/

6*I210/1*I226LM

4

2

ATX

3

W580SL_8L   VER:1.5(I210AT)

LGA1200

W580

4*DDR4

1

/

8*I210/1*I226LM

4

2

ATX
