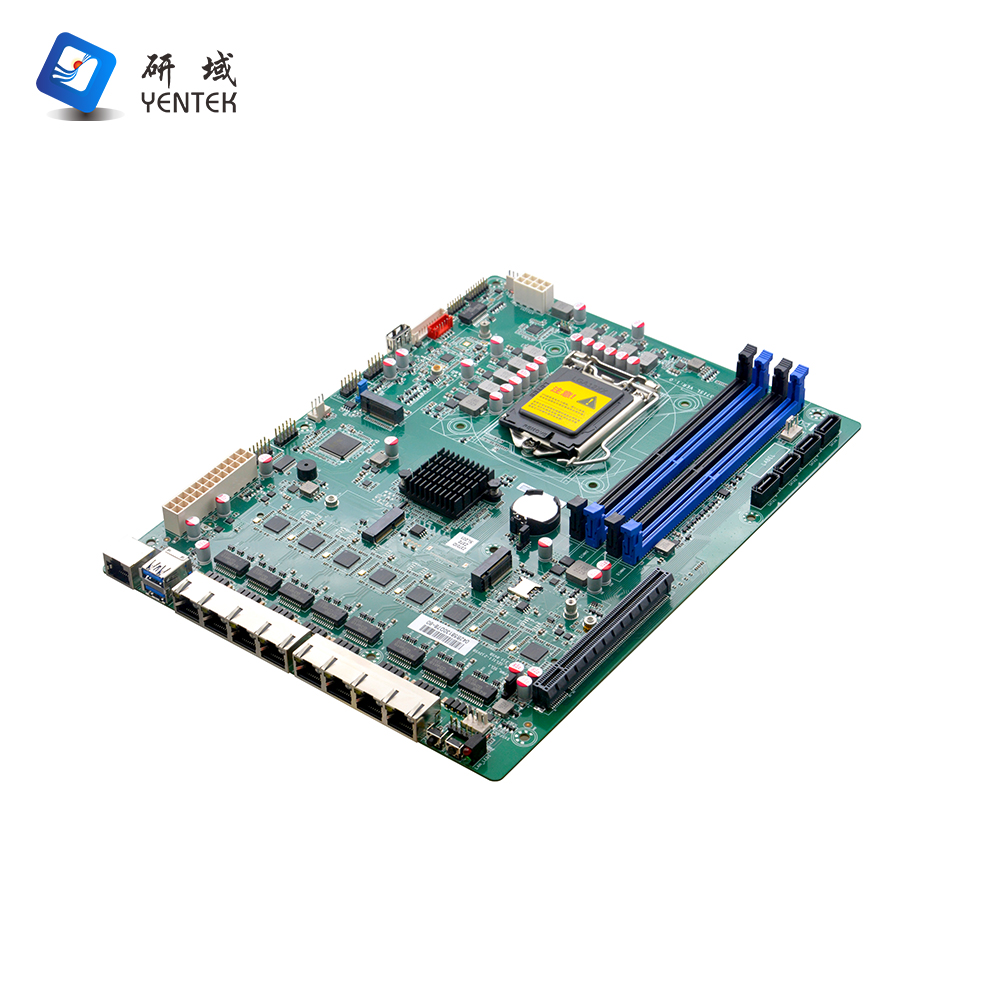

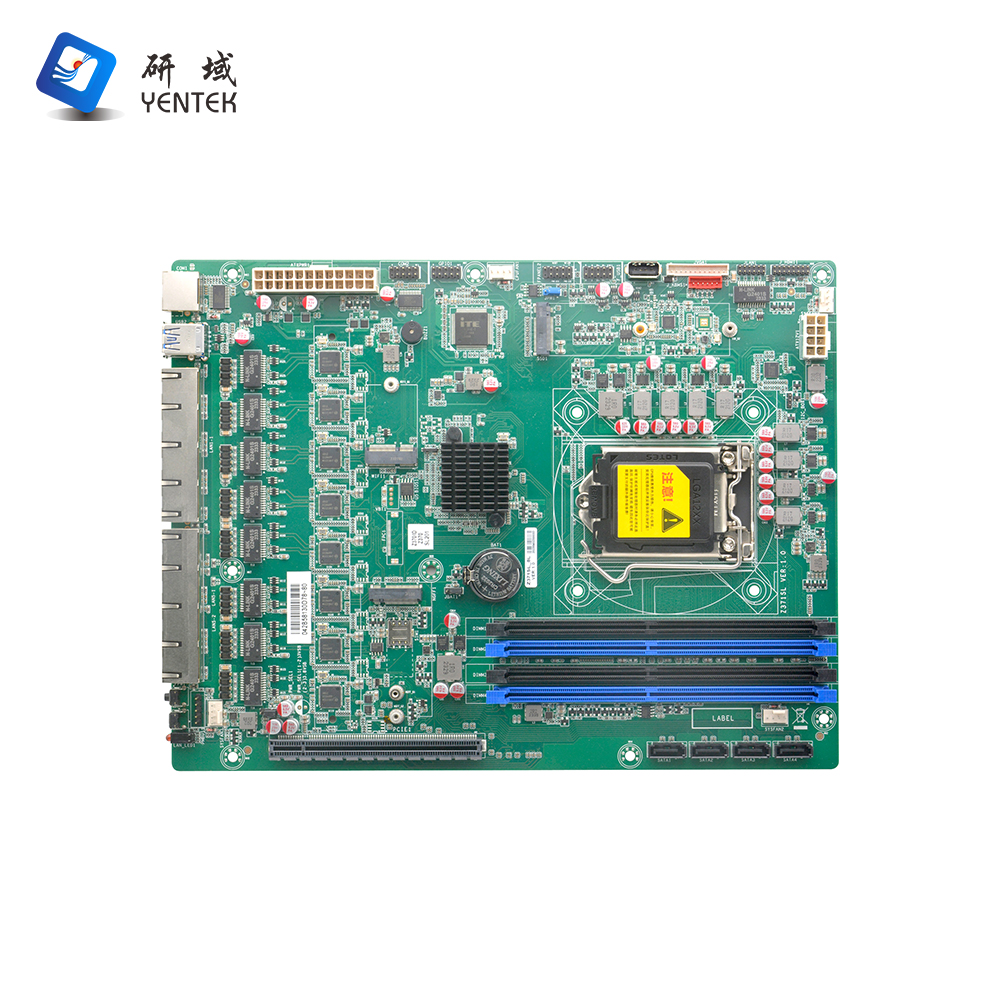

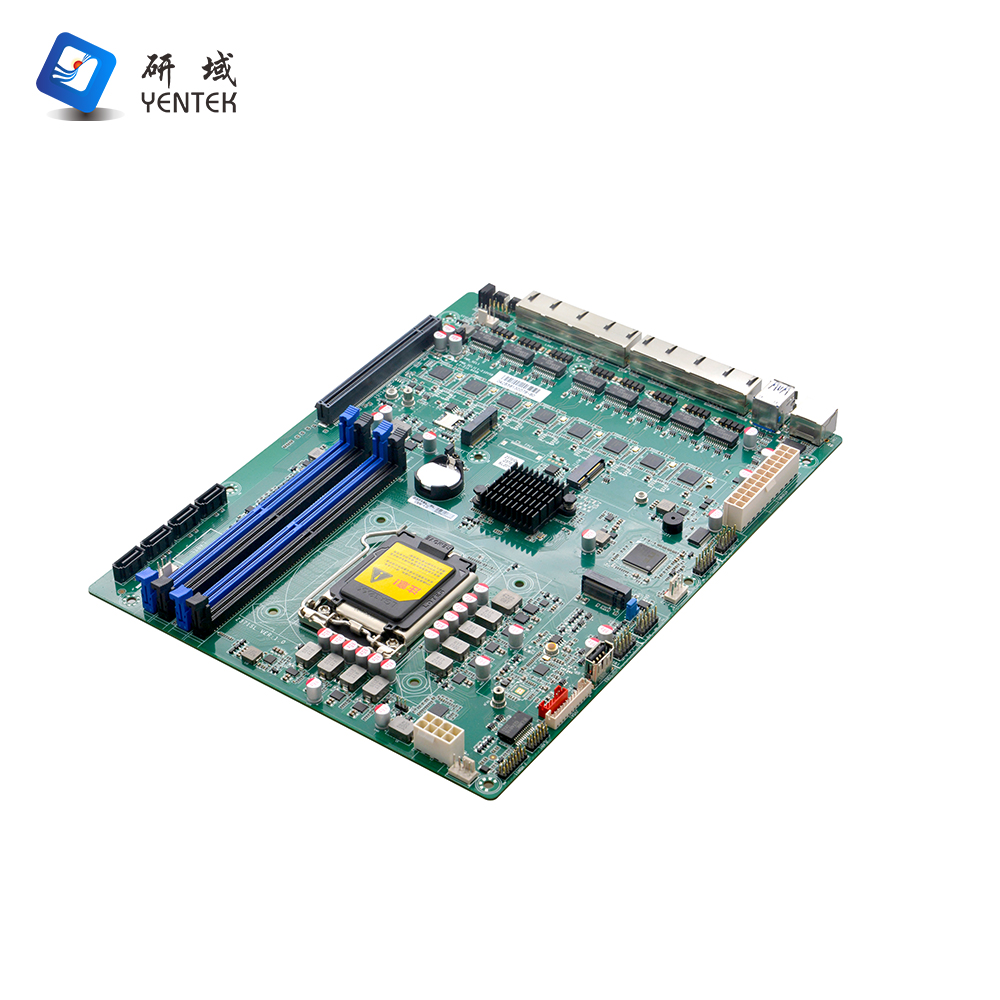

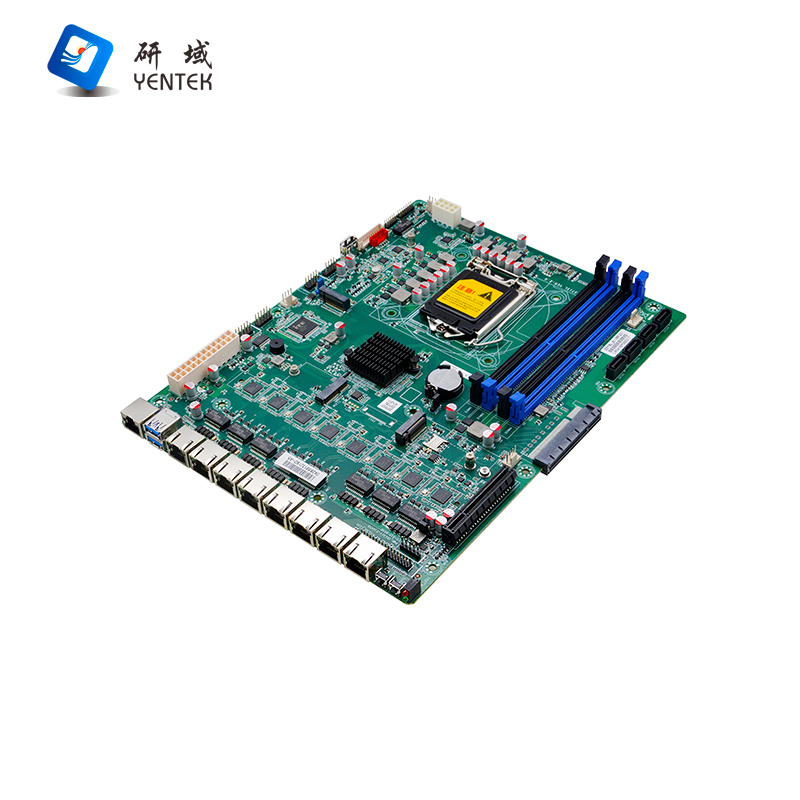

Z371SL_8L

Processor

Supports LGA1151 6th/7th/8th/9th Gen Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Note: Supports CPUs with a thermal design power (TDP) of up to 125W

Chipset

Intel Z370 high-performance chipset

Memory

4 x DDR4 UDIMM memory slots, supporting DDR4 memory up to 2666MHz, with a maximum capacity of 128GB

Display

Integrated Intel® HD Graphics controller, supporting DirectX 12, OpenGL 4.4 and 4K display

1 x VGA port, supporting a maximum resolution of 1920 x 1200 @ 60Hz

1 x HDMI 1.4 port, supporting a maximum resolution of 4096 x 2160 @ 24Hz

Network

8 x Intel® I210AT Gigabit Ethernet ports, supporting Wake-on-LAN and PXE functionality

Storage

4 x SATA 3.0 hard drive ports, with SATA transfer speeds up to 6Gbps, supporting RAID 0, 1, 5 and 10

1 x M.2 slot, supporting M.2 Key M 2242/2280 PCIe 3.0 x4/SATA adaptive standard SSDs

Audio

N/A

Expansion Slots

1 x M.2 slot, supporting M.2 Key B 2242/2252 4G/5G modules

1 x M.2 slot, supporting M.2 Key E 2230 Wi-Fi modules

1 x PCIe x8 slot, 1 x PCIe x8 slot (side-mounted)

Note: If using a BIOS supporting 6th to 9th generation CPUs, the side-mounted PCIe x8 slot is non-functional (by default)

To use the side-mounted PCIe x8 slot, a BIOS update is required, and it only supports 8th to 9th generation CPUs

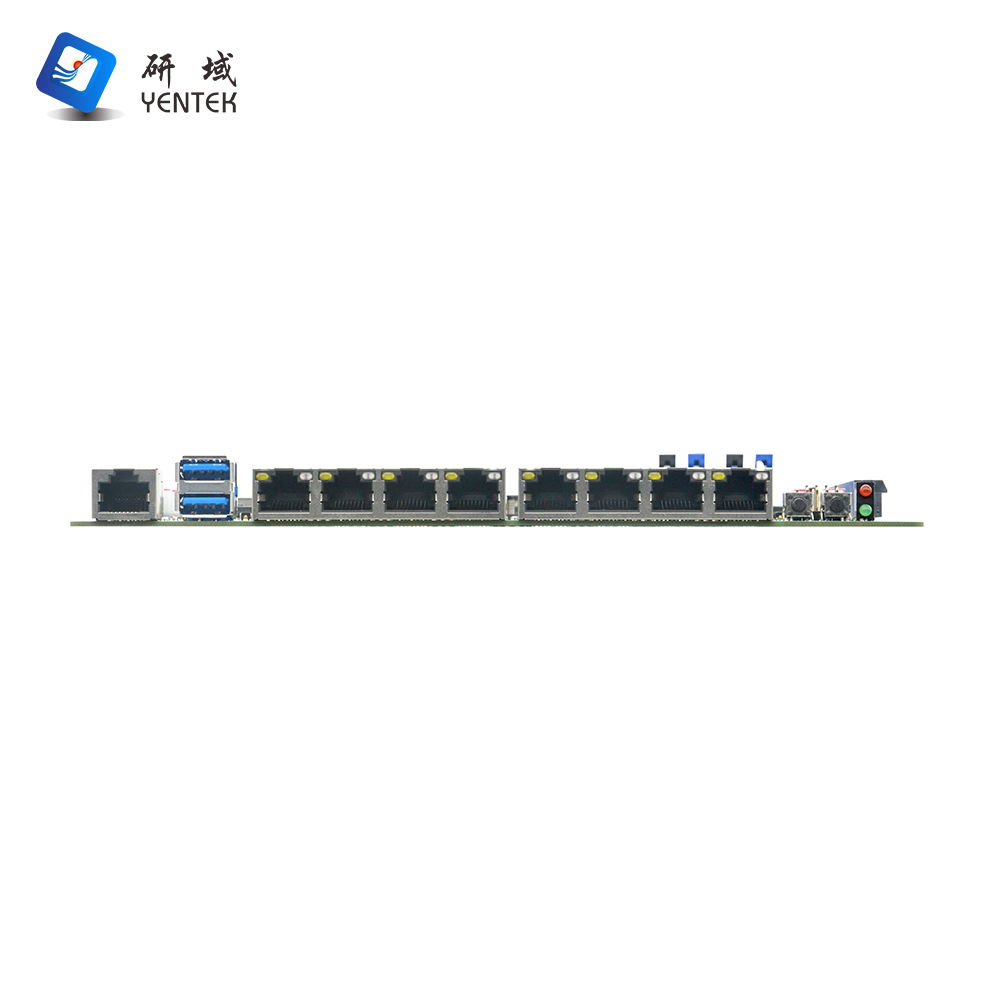

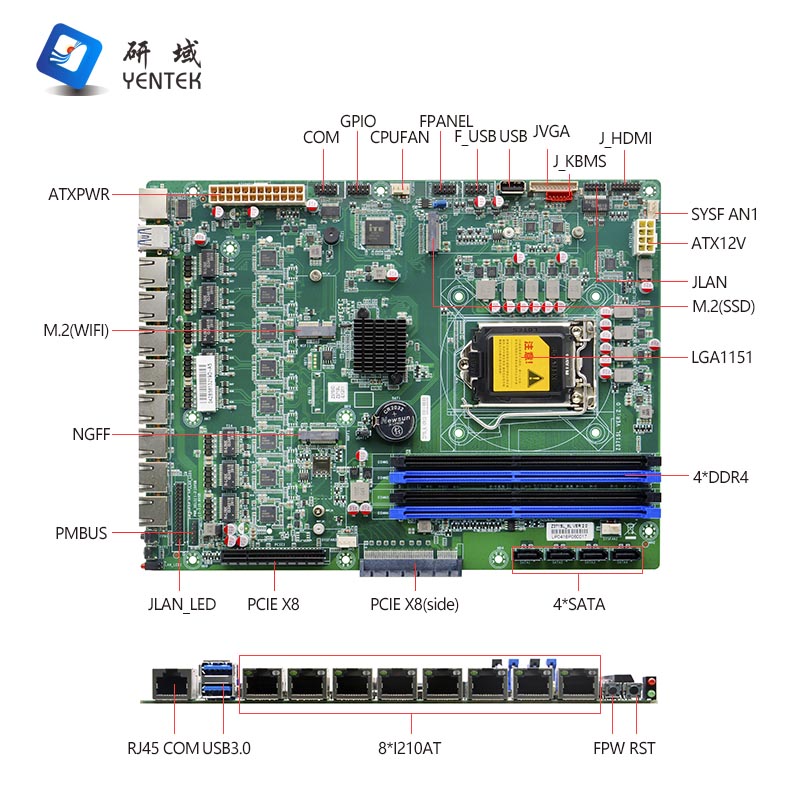

Rear Panel I/O Ports

1 x RJ45 serial port

2 x USB 3.0 ports

8 x RJ45 Gigabit Ethernet ports

1 x Power switch, 1 x Reset switch

1 x Power indicator, 1 x Hard drive indicator

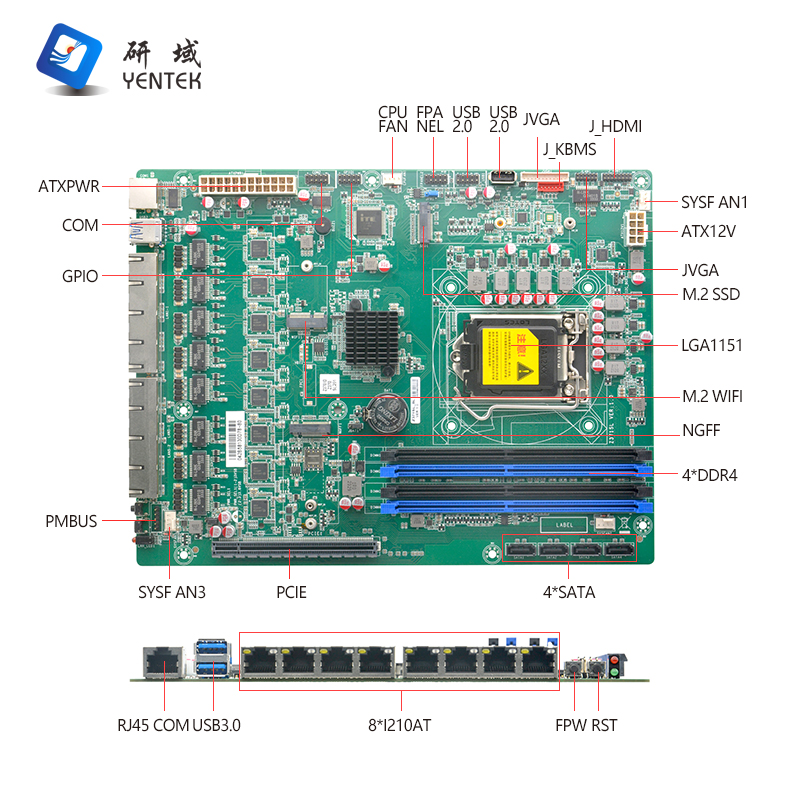

On-board I/O Ports

1 x JVGA port, 1 x 12-pin, PH=2.0mm

1 x JHDMI port, 2 x 8-pin, PH=2.0mm

1 x RS232 serial port, 2 x 5-pin, PH=2.54mm

1 x Network indicator connector (2 x 17-pin, pitch = 2.0 mm)

2 x USB 2.0 ports (2 x 5-pin, pitch = 2.54 mm)

1 x Vertical USB 2.0 port

1 x PS/2 keyboard and mouse connector (1 x 6-pin, pitch = 2.0 mm)

1 x Front panel function button and indicator connector (2 x 5-pin, pitch = 2.54 mm)

1 x FPC connector, 30-pin, including 1 x PCIe, 1 x PLC/ESP bus, HD bus (reserved, optional)

1 x SIM card slot

1 x 24-pin ATX power input connector

1 x 8-pin ATX power input connector

Fan Connectors

1 x 4-pin CPU smart fan connector, 3 x 4-pin system smart fan connectors

GPIO

Supports 4-in/4-out GPIO functionality

BIOS

64MB Flash ROM

Operating System

Windows 10/Windows 11/Linux

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

ATX power input

Operating Temperature

0°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

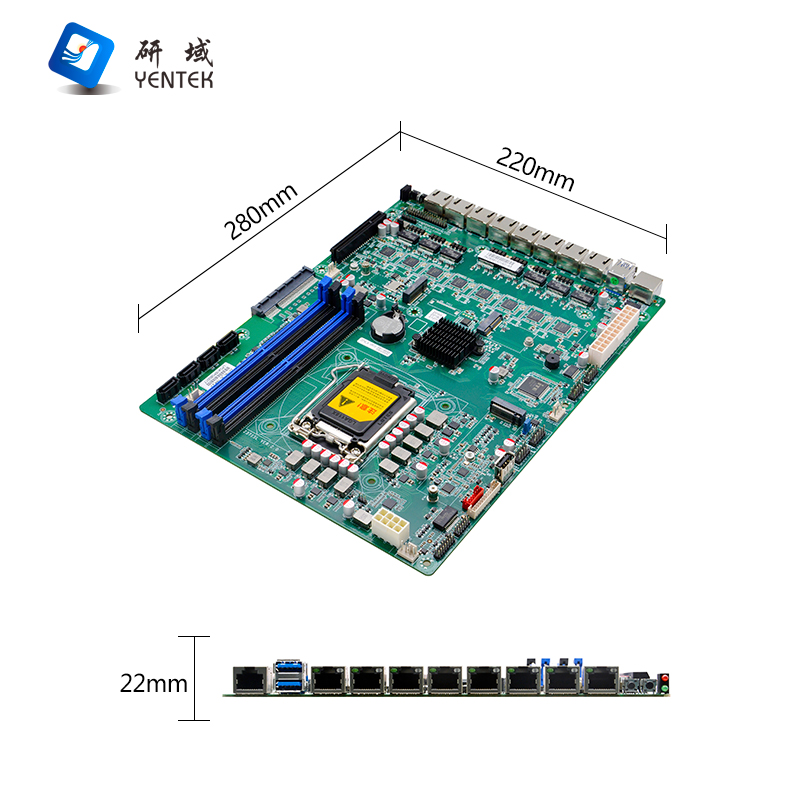

Dimensions

220mm x 280mm
