ITX-B101_C312L
Options: 2 sizes
$
88.00
Add to cart
+852 9458 7694
Product description

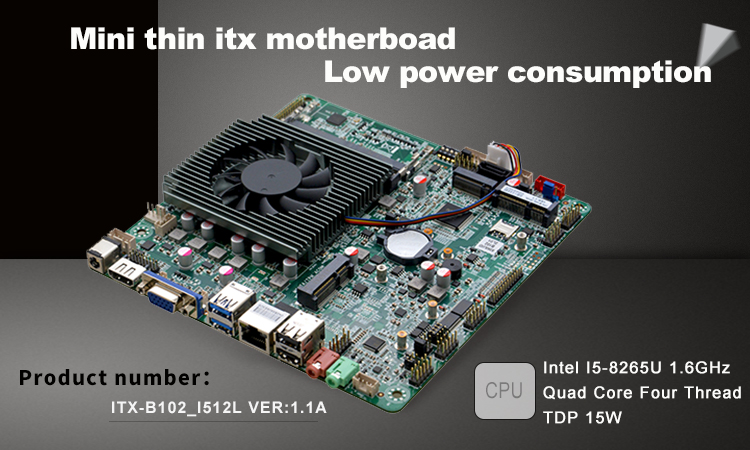

| Product model | ITX-B102_I512L VER:1.1(8260U) |
| Processor | Integrated 8 generation Intel®I5 8260U 1.6GHz quad-core eight-thread processor,TDP 15W |
| Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power processors | |
| Chipset | SOC |
| RAM | 2*DDR4 SODIMM memory slots, support 2666MHz memory, up to 64GB |
| Show | Integrated Intel® UHD Graphics, support DirectX 12 OpenGL 4.5, support 4K |
| The maximum resolution supported by the 1 x VGA port is 1920X1200@60Hz | |
| 1*HD OUTPUT1.4 port, the highest resolution supported is 4096x2304@24Hz | |
1* Supports dual channel 24bit LVDS interface, and EDP is one of two options, the default LVDS | |
| The internet | 1* Intel I225 Gigabit network adapter, supporting network wake up and PXE functions |
| Storage | 1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps | |
| 1* M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD | |
Note:MSATA or TPM-4COM can be used to expand four serial ports. When TPM-4COM is used, the SSD of M.2 can be used | |
| Tone frequency | Integrated ALC892 7.1+2 channel high fidelity audio controller, support MIC, Line_out, power amplifier |
| Support power amplifier 2Ω3W speaker | |
| Expansion | 1* Mini-PCIE slot, support WIFI/4G module |

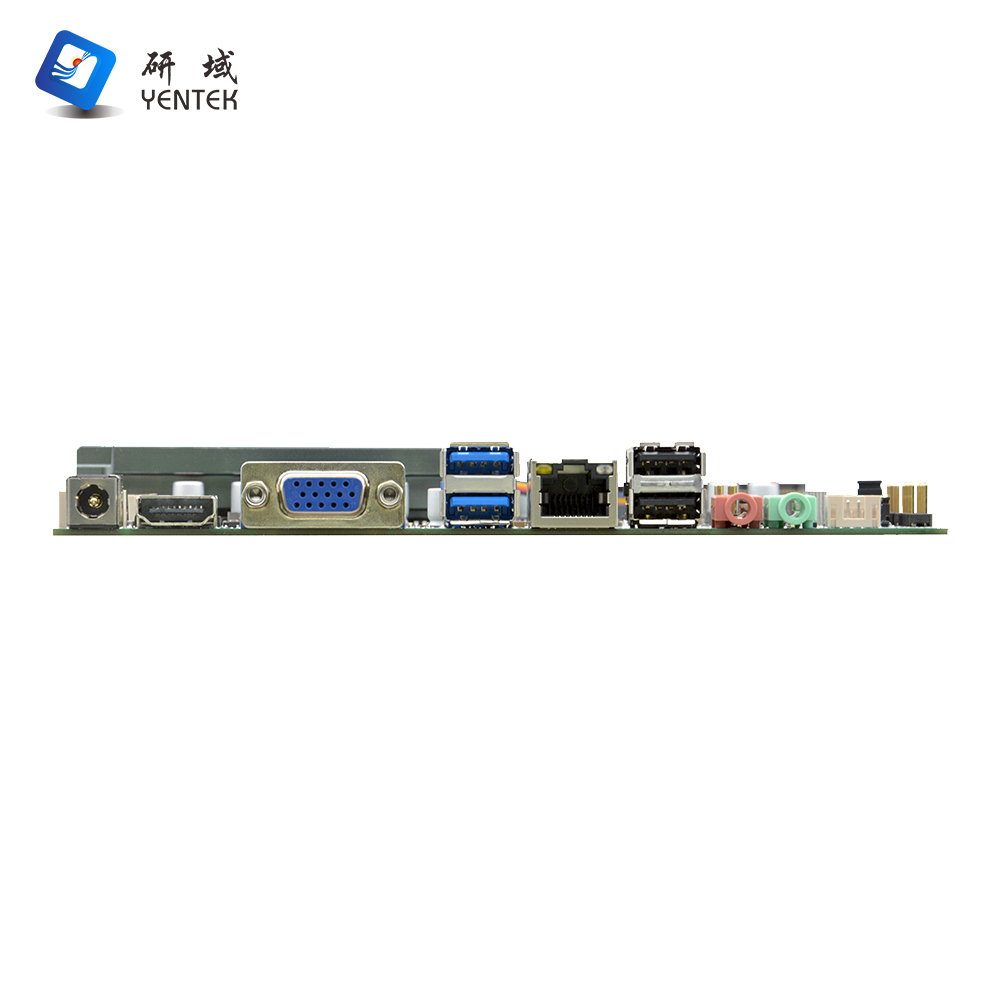

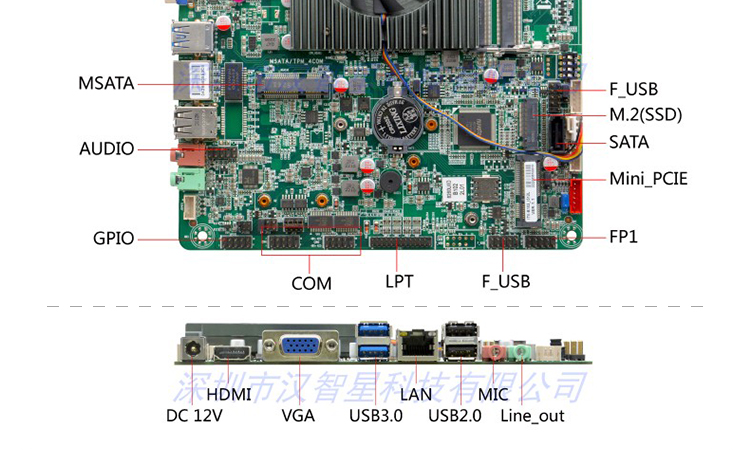

| Backplane I/O Interface | 2* USB3.0 port, 2*USB2.0 port |
| 1* HD OUTPUT port | |
| 1* DB15 VGA port | |
| 1* RJ45 Gigabit network port | |
| 1*Line-out(green），1*MIC(red） | |
| 1*DC12V power supply, support 12V power input/output | |

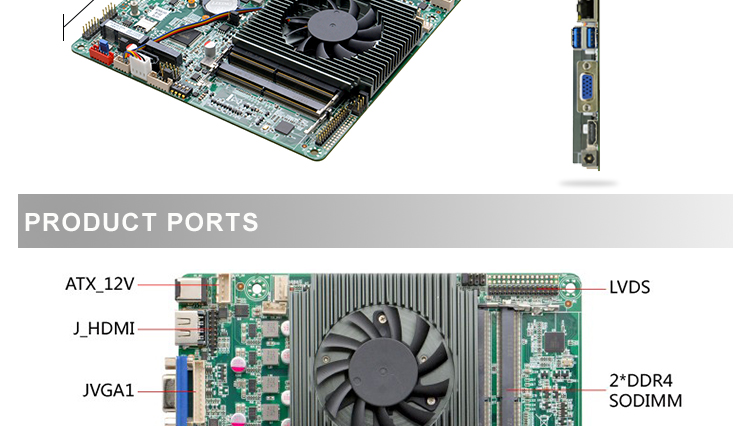

| Built-in I/O interface | 1* JVGA1 interface 1*12pin (same signal as DB15) |
| 1* JHD OUTPUT interface 2*10pin, the same signal as the HD OUTPUT interface | |
| 1* LVDS interface 2*15pin, support dual channel 24bit | |
| 1* LVDS backlight power supply interface 1*6pin | |
1* Screen brightness adjustment interface 1*4pin | |
| 2* RS232 serial interface, COM2 supports the 9th pin live function, COM2 supports RS485/422 function | |
1* PS/2 keyboard and mouse interface (red) 1*6Pin | |
| 4* USB2.0 interface 2*5pin | |
| 1* Front audio interface 2*5pin | |
| 1* LPT printing interface 2*13pin | |
| 1* Front panel switch button and indicator port 2*5Pin | |
| 1* HDD power supply interface 1*4pin | |
| 1* power amplifier interface 1*4pin | |
| 1* DC power interface 1*4pin (12V input power interface) | |
| 1* SIM card seat | |
| Fan interface | 1*4pin CPU smart fan connector, 1* 4pin system fan connector |
| GPIO | Supports four input/output GPIO |
| BIOS | 128Mb Flash ROM |

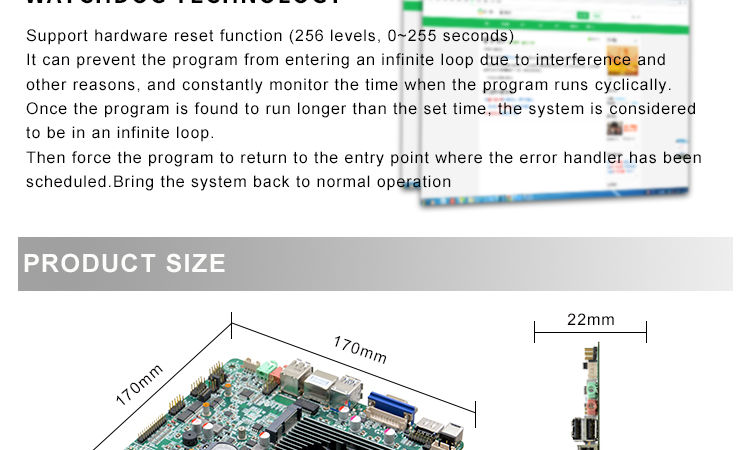

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10 , Linux |
| Power supply type | Adopt DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 170mm x 170mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | HD | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-B102_I512L VER:1.1(8260U) | 8260U | 1.6G | 2*SODDR4 | 1 | 1 | 2ch/24bit | / | 1*I225 | 8 | 2 | COM2 | DV12V |
