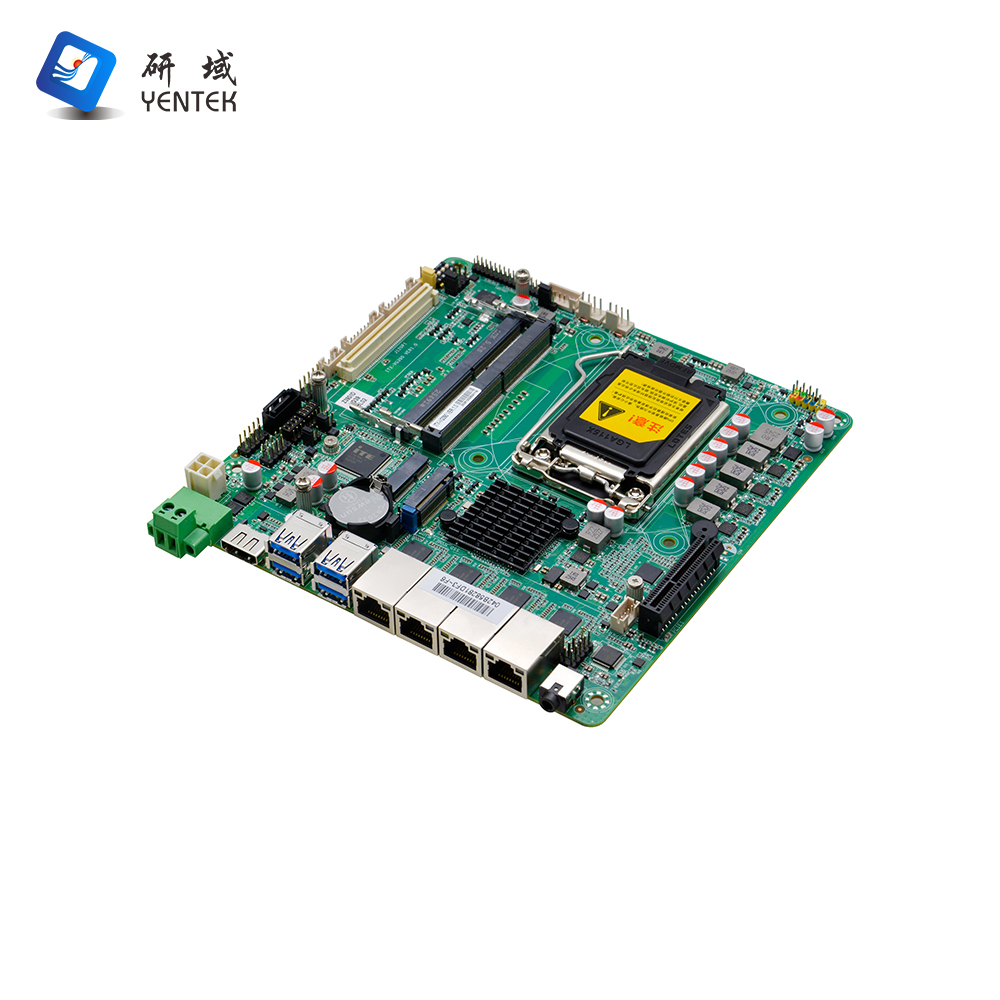

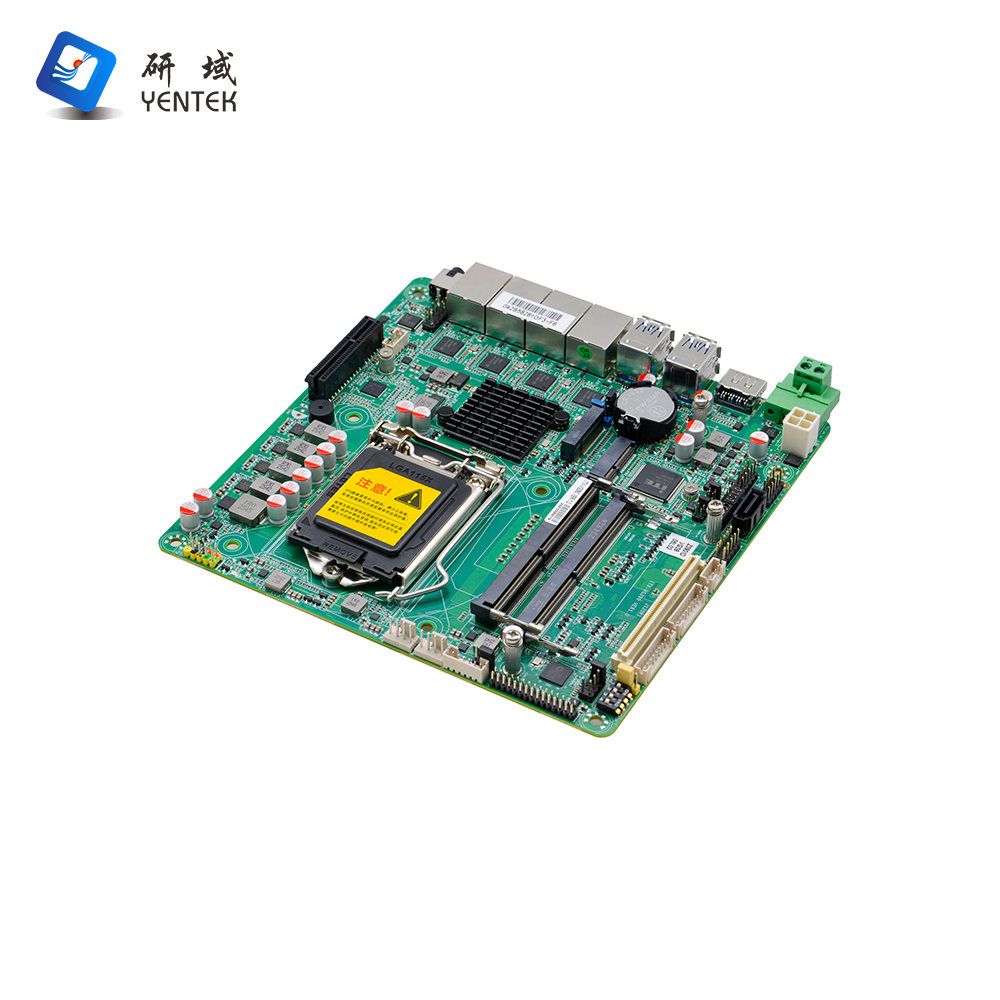

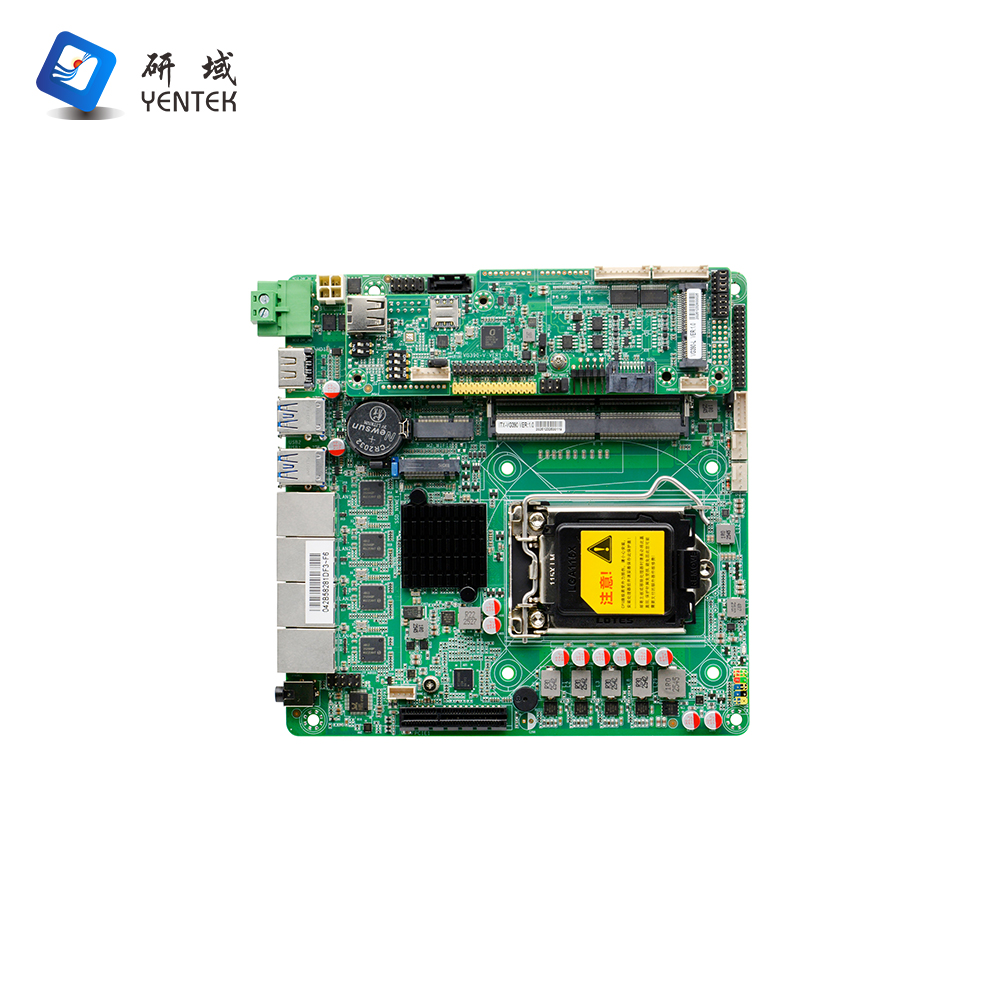

ITX-VG390

Processor

Supports LGA1151 6th/8th/9th Generation Intel®   Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Note: Does not support CPUs with ‘K’ suffix   (9900K/9700K) or 8-core CPUs (9900/9700)

Chipset

Features Intel® Z390 high-speed chipset

Memory

2*DDR4 SODIMM memory slots, supporting dual-channel   2666MHz memory, maximum capacity 64GB

Display

Integrated Intel® HD Graphics core GPU, supporting DirectX 12.0 and   OpenGL 4.4, with 4K display capability

1*HDMI 1.4 port, maximum supported resolution:   4096x2304@24Hz

1*dual-channel 24-bit LVDS interface

1*EDP interface sharing a common header with LVDS   (switchable via jumper). EDP supports 2K display only

Network

4*Intel WGI210AT Gigabit Ethernet controller, supporting Wake-on-LAN and   PXE functionality

Storage

1*SATA 3.0 hard drive interface, transfer speeds up   to 6Gbps

1*M.2   slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive SSD

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio   controller, supporting MIC, Line_out, and amplifier

Supports amplifier for 4Ω 3W speakers

Expansion Slots

1*M.2 slot supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules

1*PCIe 3.0 x4 slot

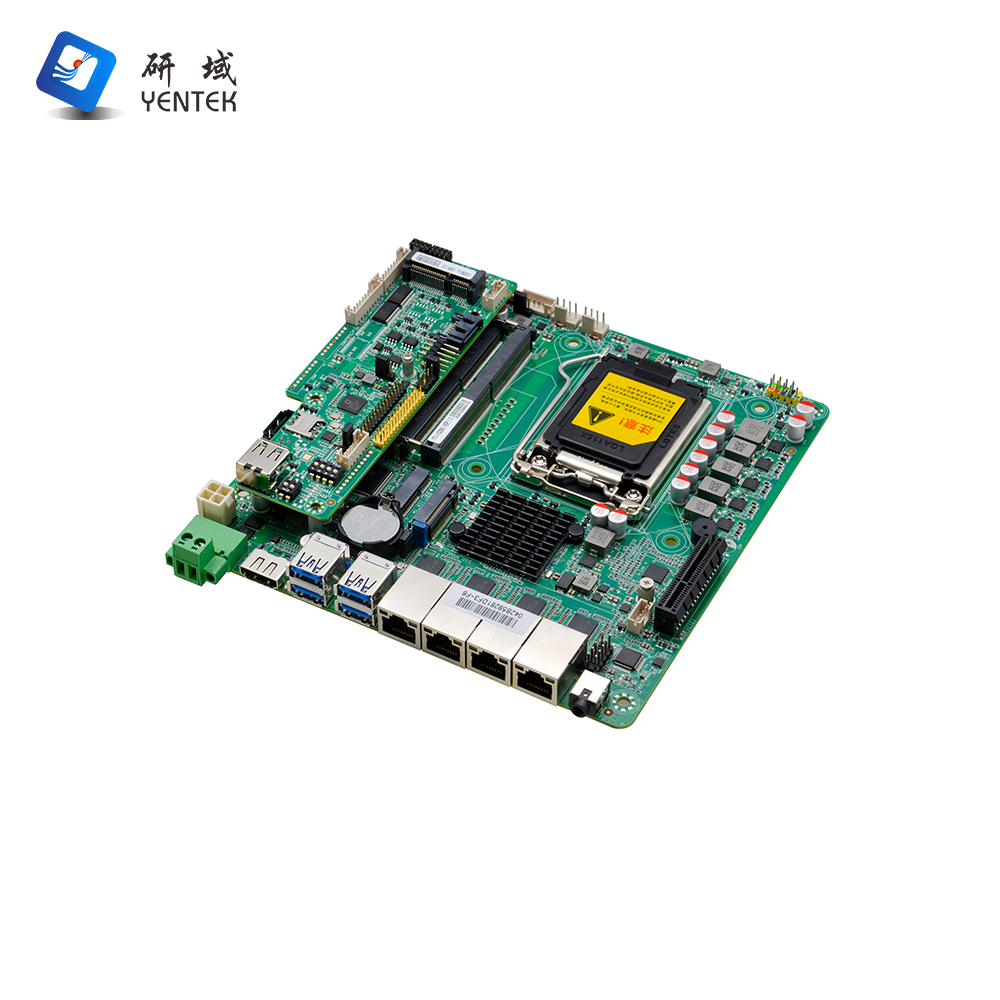

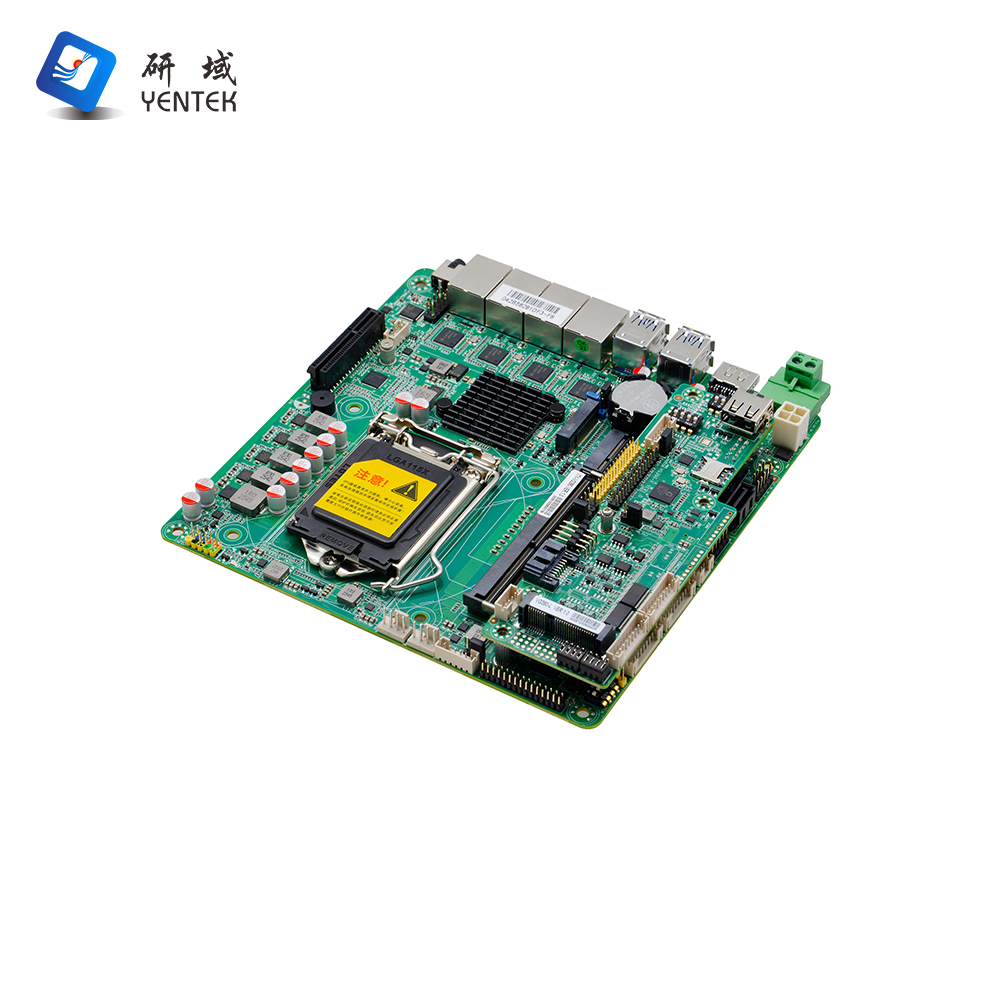

1*120-pin high-speed header including 4x TTL, 2x PCIe, 1x SATA, 1x   DisplayPort (Connects to VG390 series expansion boards)

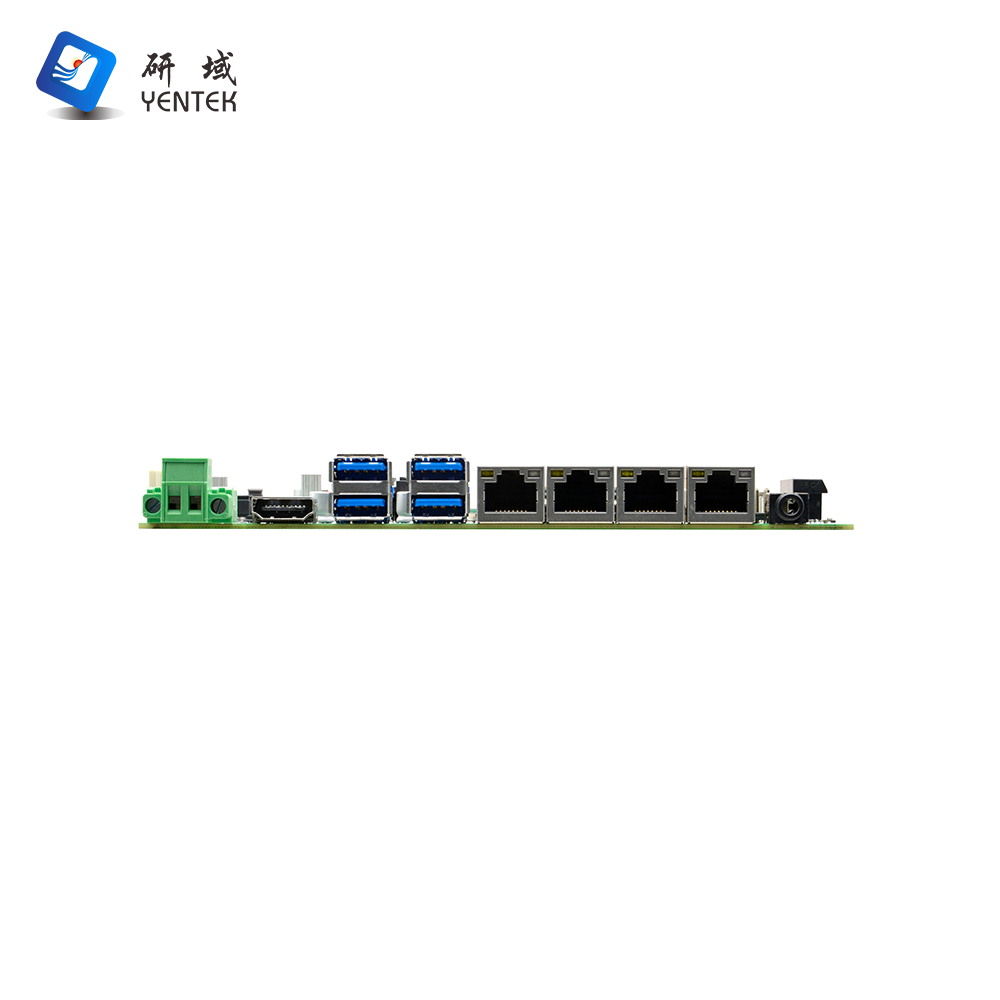

Rear Panel I/O Ports

1*2-pin Phoenix connector, supporting DC 12~24V   power supply (alternative to DC power port)

1*HDMI 1.4 port

4*USB 3.0 ports (5Gbps)

4* RJ45 Gigabit Ethernet ports

1* Combo audio jack, supporting Line-out/Microphone

Internal I/O Ports

1* DC power connector (2x 2-pin), supporting DC   12–24V power supply

1*   LVDS interface (2x 15-pin), supporting dual-channel 24-bit, shared header   with EDP, switchable via jumper cap

1*LVDS backlight power connector 1x6-pin

2*RS232 serial ports, 1x9-pin PH=2.0mm, supporting   RS485/422, configurable via jumper

4*USB 2.0 ports 2x5-pin PH=2.54mm

1*Front panel switch button and indicator connector   2x5-pin PH=2.54mm

1* Hard Disk Power Interface 1*4-pin PH=2.0mm

1* Front Audio Interface 2*5-pin PH=2.54mm

1* Amplifier Interface 1*4-pin, PH=2.0mm

Fan Connectors

1*4-pin CPU Smart Fan Interface, 1* 4-pin System Fan   Interface

GPIO

Supports four-in/four-out GPIO functionality

BIOS

64Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255   seconds)

Power Supply Type

Powered by DC 12V–24V supply

Operating System

Windows 7/10/11/Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

170mm x 170mm
