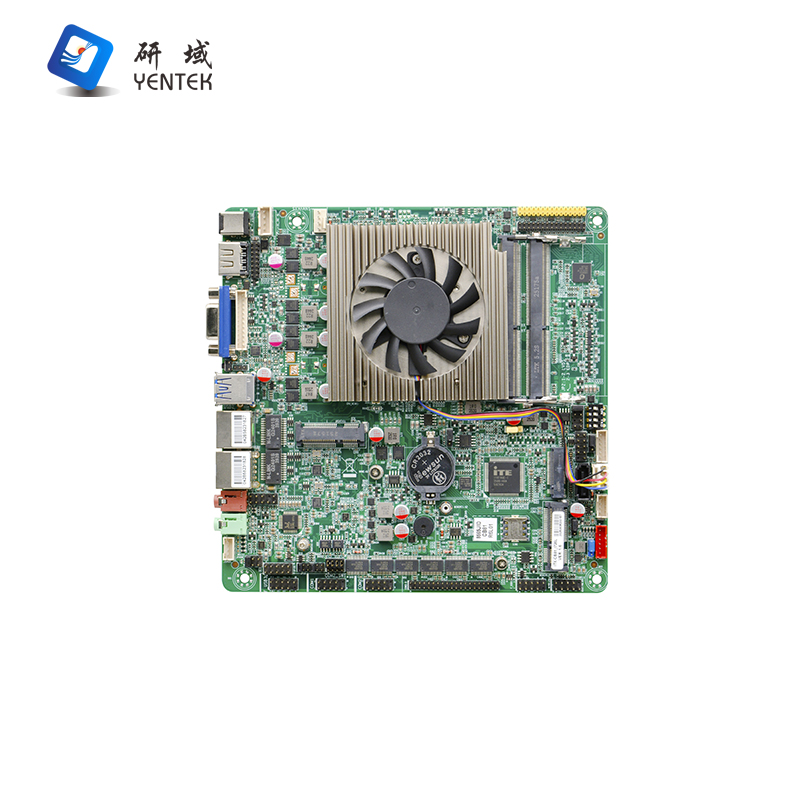

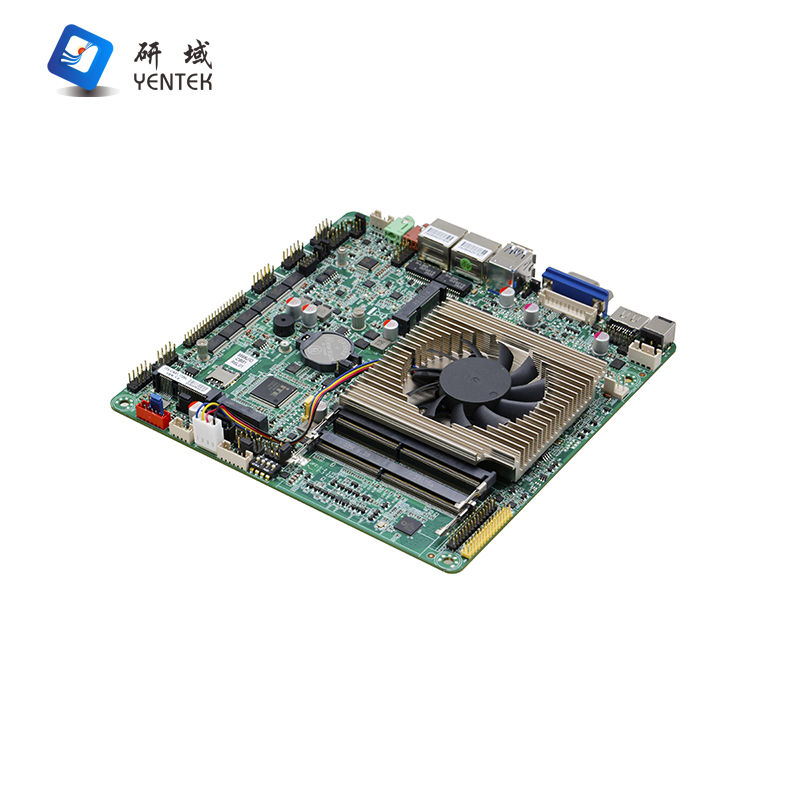

Processor

Integrated 8th Generation Intel®   Core™ i7-8565U processor at 1.8GHz with quad-core and eight threads, TDP 15W

Compatible with Intel® Whiskey   Lake-U/Comet Lake-U 8th/10th Generation Celeron/Pentium/i3/i5/i7 low-power   processors

Chipset

System-on-Chip   (SOC)

Memory

2x DDR4   SODIMM memory slots, supporting 2400MHz memory, maximum capacity 64GB

Display

Integrated   Intel® UHD Graphics, supporting DirectX 12 and OpenGL 4.5, 4K resolution   support

1x VGA   port, maximum supported resolution: 1920x1200@60Hz

1x HDMI   1.4 port, maximum supported resolution: 4096x2304@24Hz

1x   dual-channel 24-bit LVDS interface, 1x EDP (alternative to LVDS via jumper,   default LVDS)

Network

2x   RTL8111H Gigabit Ethernet controllers, supporting Wake-on-LAN and PXE   functionality

Storage

1x SATA   3.0 hard drive interface, transfer speeds up to 6Gbps

1x mSATA   slot, supporting Intel protocol SSDs, transfer speeds up to 6Gbps

1x M.2 slot supporting M.2 2260/2280 NVMe PCIe x4/SATA adaptive   standard SSDs

Audio

Integrated   ALC897 7.1+2-channel high-fidelity audio controller supporting MIC, Line_out,   and amplifier

Supports   amplifier for 4Ω 3W speakers

Expansion   Slots

1x   Mini-PCIe slot supporting Wi-Fi/4G modules

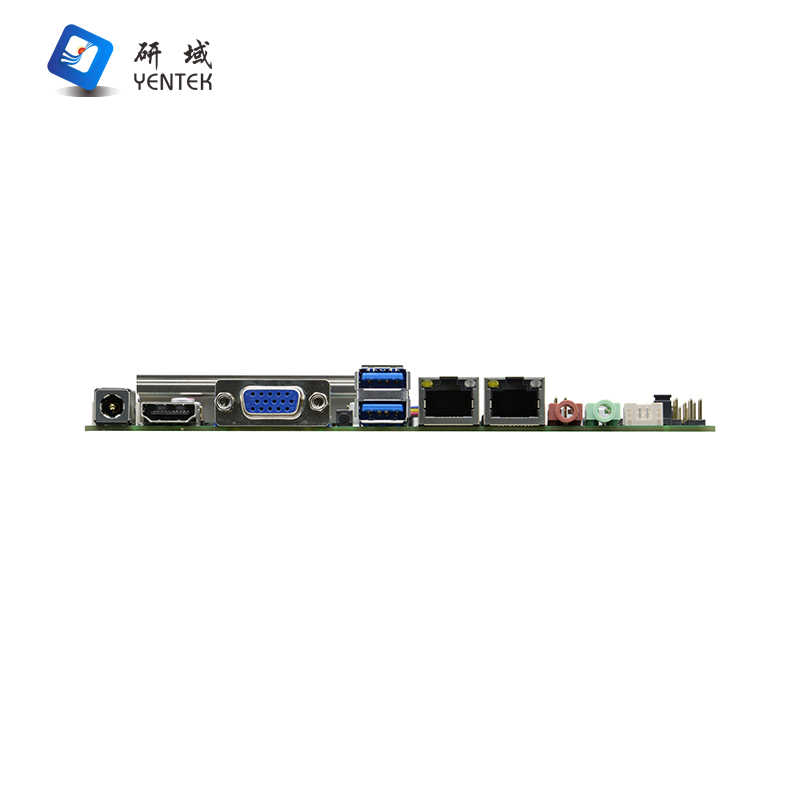

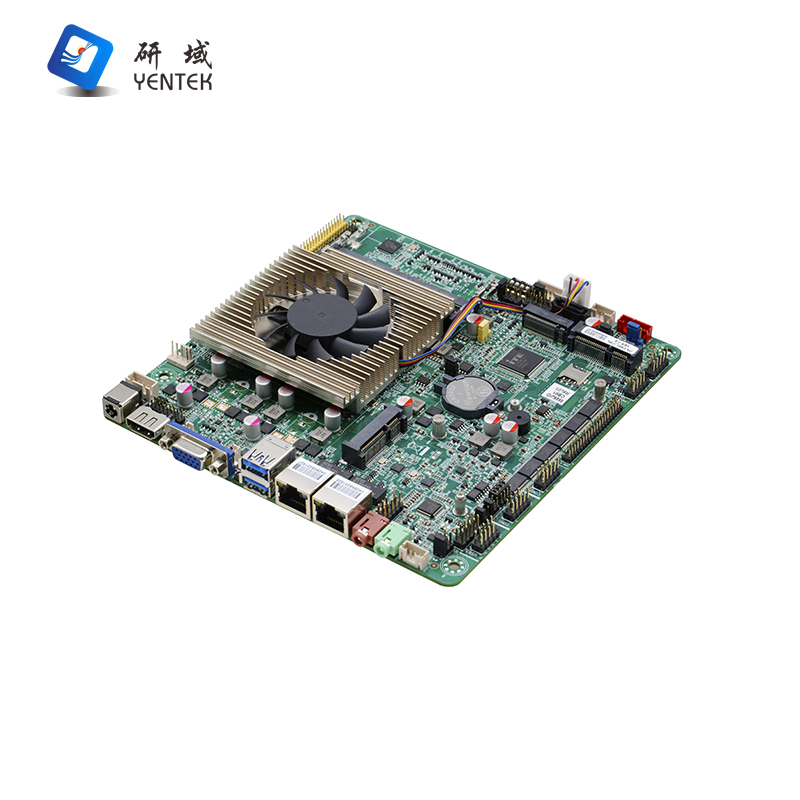

Rear Panel   I/O Ports

2x USB 3.0   ports

1x HDMI   port

1x DB15   VGA port

2x RJ45   Gigabit Ethernet ports

1x   Line-out (green), 1x MIC (red)

1x DC12V power   port, supporting 12V input

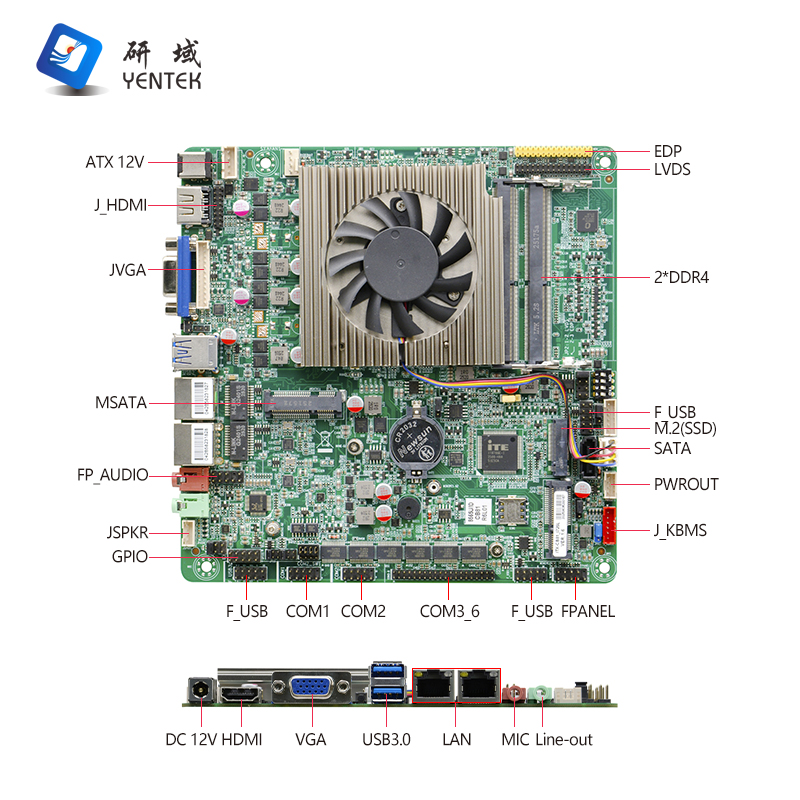

Integrated   I/O Ports

1x JVGA1   port (1x12-pin, same signal as DB15)

1x JHDMI   port (2x10-pin, same signal as HDMI)

1x LVDS   port (2x15-pin, dual-channel 24-bit support)

1x EDP   port (yellow, 2x15-pin, shared with LVDS via jumper; default LVDS)

1x LVDS   backlight power port (6-pin)

6x RS232   serial interfaces, COM1/2 support pin 9 power function, COM2 supports   RS485/422 functionality

1x PS/2   keyboard/mouse interface (red) 1x 6-pin

6x USB 2.0   interfaces 2x 5-pin

1x Front   audio interface 2x 5-pin

1x Front   Panel Switch Button and Indicator Interface 2x5-pin

1x Hard   Drive Power Interface 1x4-pin

1x   Amplifier Interface 1x4-pin

1x DC   Power Interface 1x4-pin, supports 12V power input/output

1x SIM   Card Slot

Fan Connectors

1x4-pin   CPU Smart Fan Interface, 1x 4-pin System Fan Interface

GPIO

Supports 4-channel input/output GPIO functionality

BIOS

128Mb   Flash ROM

Watchdog

Supports   hardware reset function (256 levels, 0–255 seconds)

Power   Supply Type

Powered by   DC 12V supply

Operating   System

Windows   10/11/Linux

Operating   Temperature

-10°C to   60°C

Storage   Temperature

-20°C to   70°C

Operating   Humidity

5%–95%   relative humidity, non-condensing

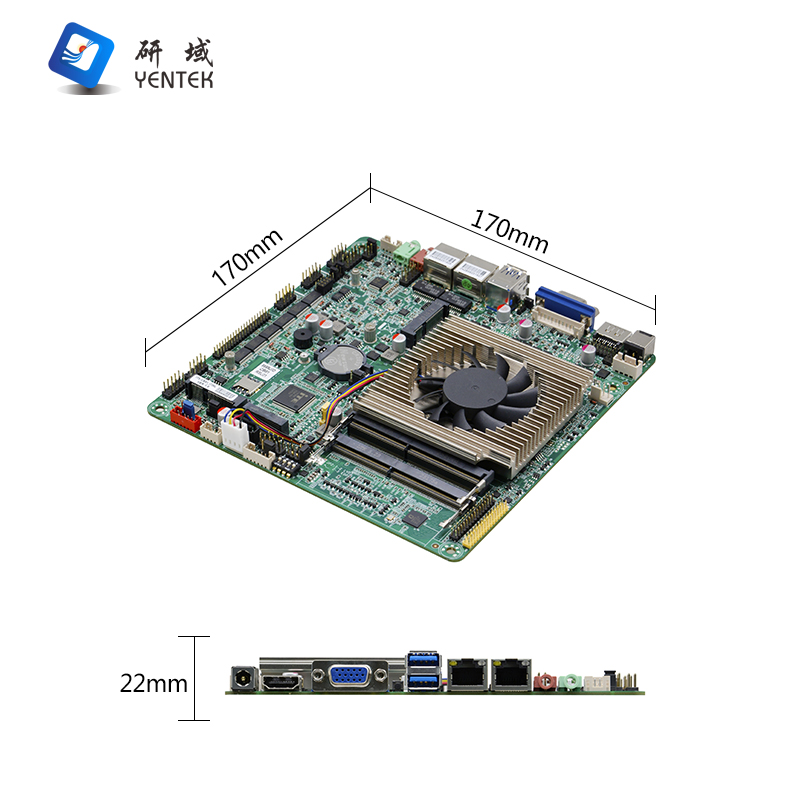

Dimensions

170mm x   170mm

1

ITX-B81_I516L VER:1.6(8265U)

I5-8265U

1.6G

2*SODDR4

1

1

2ch/24Bit

1

1*8111H

8

6

COM2

DC12V

2

ITX-B81_I726L VER:1.6(8565U)

I7-8565U

1.8G

2*SODDR4

1

1

2ch/24Bit

1

2*8111H

8

6

COM2

DC12V

3

ITX-B81_I526L VER:1.6(8265U)

I5-8265U

1.6G

2*SODDR4

1

1

2ch/24Bit

1

2*8111H

8

6

COM2

DC12V

4

ITX-B100_I716L VER:1.6(10710U)

I7-10710U

1.1G

2*SODDR4

1

1

2ch/24Bit

1

1*8111H

8

6

COM2

DC12V

5

ITX-B100_I516L VER:1.6(10210U)

I5-10210U

1.6G

2*SODDR4

1

1

2ch/24Bit

1

1*8111H

8

6

COM2

DC12V

6

ITX-B100_I316L VER:1.6(10110U)

I3-10110U

2.1G

2*SODDR4

1

1

2ch/24Bit

1

1*8111H

8

6

COM2

DC12V

7

ITX-B100_I526L VER:1.6(10210U)

I5-10210U

1.6G

2*SODDR4

1

1

2ch/24Bit

1

2*8111H

8

6

COM2

DC12V

8

ITX-CB81_I726L VER:1.6(8565U)

I7-8565U

1.8G

2*SODDR4

1

1

2ch/24Bit

1

2*8111H

8

6

COM2

DC12V
