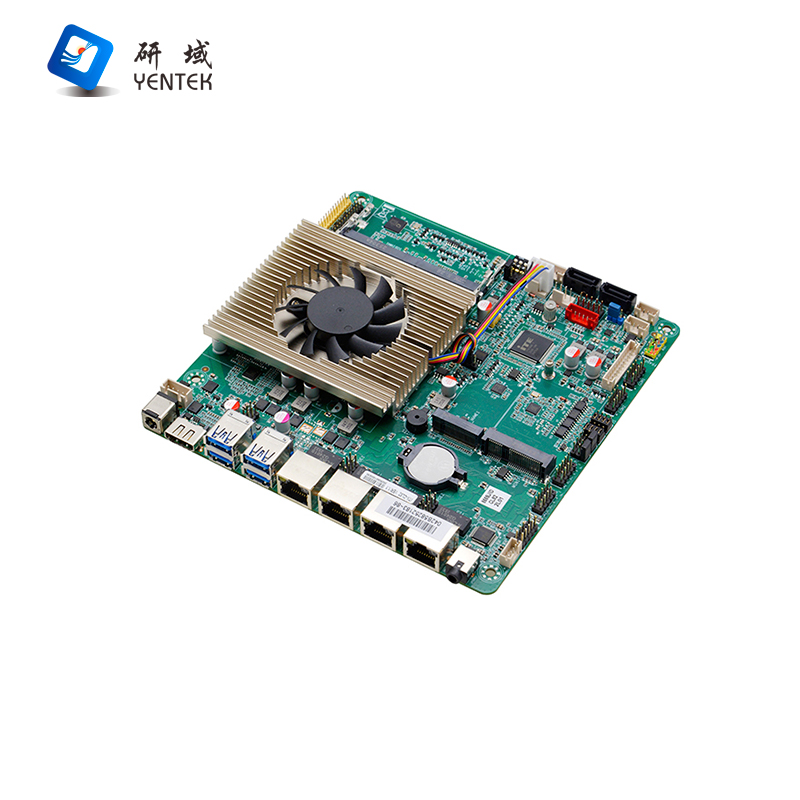

Product Model | ITX-VL82 VER:1.1(8257U) |
Processor | Intel® i5-8257U 1.4GHz quad-core, eight-thread processor, TDP 15W |
Compatible with Intel® Whiskey Lake-U, Comet Lake-U and Coffee Lake-U 8th and 10th Gen Celeron, Pentium, i3, i5 and i7 low-power processors |
Chipset | SOC |
Memory | 2 × DDR4 SODIMM memory slots, supporting 2400 MHz memory, with a maximum capacity of 64 GB |
Display | Integrated Intel® UHD Graphics, supporting DirectX 12 and OpenGL 4.5, with 4K support |
1 × VGA port, supporting a maximum resolution of 1920 × 1200 @ 60 Hz |
1 × HDMI 1.4 port, maximum supported resolution: 4096 × 2304 @ 24Hz |
1 × dual-channel 24-bit LVDS port, |
1 × EDP port; either LVDS or EDP can be selected via a jumper |
Network | 4 × Intel I210AT Gigabit Ethernet ports, supporting Wake-on-LAN and PXE functionality, |
Note: Ethernet ports support PoE functionality when used with the VL68-PW daughterboard |
Storage | 2 × SATA 3.0 hard drive ports, with transfer speeds up to 6 Gbps |
1 × M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard SSD |
Audio | Integrated ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC, Line-out and amplifier |
Supports 4Ω 3W speakers via the amplifier |
Expansion Slots | 1 × Mini-PCIe slot, supporting Wi-Fi/Bluetooth/TPM-4COM modules |
Note: BIOS update required for TPM-4COM support |

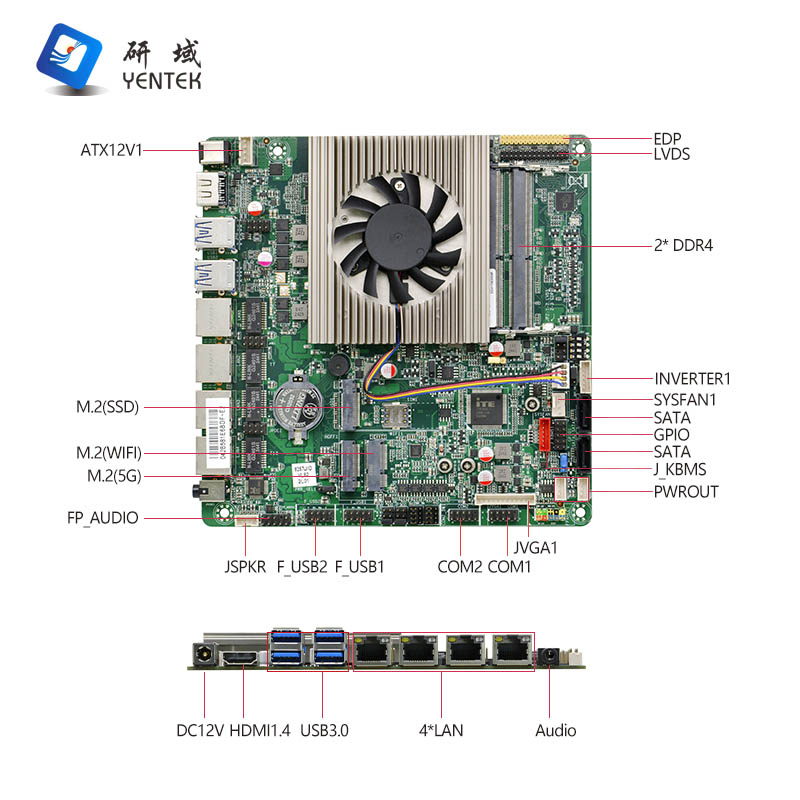

Rear Panel I/O Ports | 4 × USB 3.0 ports |
1 × HDMI 1.4 port |
4 × RJ45 Gigabit Ethernet ports |
1 × 2-in-1 audio port, supporting Line-out/MIC |
1 × DC 12V power connector, supporting 12V power input |
On-board I/O Ports | 1 × LVDS interface (2 × 15-pin, PH = 2.0 mm), supporting dual-channel 24-bit |
1 × LVDS backlight power connector (1 × 6-pin, PH = 2.0 mm) |
1 × EDP port (2 × 15-pin, pitch = 2.0 mm), selectable via jumper switch (either EDP or LVDS) |
2 × RS232 serial ports (2 × 5-pin, pitch = 2.54 mm), supporting RS485/422 functionality, selectable via jumper switch |
3 × 2 × 4-pin header (pitch = 2.54 mm) for connecting the POE sub-board |
1 × PS/2 keyboard and mouse interface (red), 1 × 6-pin, pitch = 2.0 mm |
4 × USB 2.0 interfaces, 2 × 5-pin, pitch = 2.54 mm |
1 × front audio interface, 2 × 5-pin, pitch = 2.54 mm |
1 × front panel switch, button and indicator interface, 2 × 5-pin, pitch = 2.54 mm |
2 × hard drive power connectors, 1 × 4-pin, pitch = 2.0 mm |
1 × power amplifier connector, 1 × 4-pin, pitch = 2.0 mm |
1 × DC power connector, 1 × 4-pin (can be used as a 12V input power connector) |
Fan Connectors | 1 × 4-pin CPU smart fan connector, 1 × 4-pin system fan connector |
GPIO | Supports 4-channel GPIO input/output functionality |
BIOS | 128 Mb Flash ROM |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power Supply Type | Powered by 12 V DC |
Operating System | Windows 10 / 11 / Linux |
Operating Temperature | –20 °C to 60 °C |
Storage Temperature | –20 °C to 70 °C |
Operating Humidity | 5%–95% relative humidity, non-condensing |

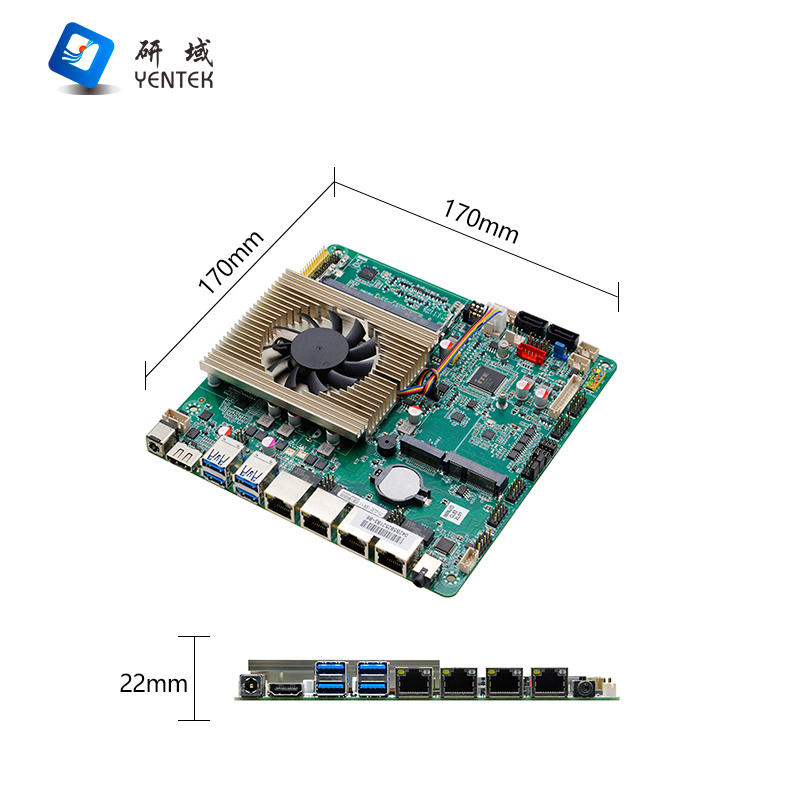

Dimensions | 170mm x 170mm |
