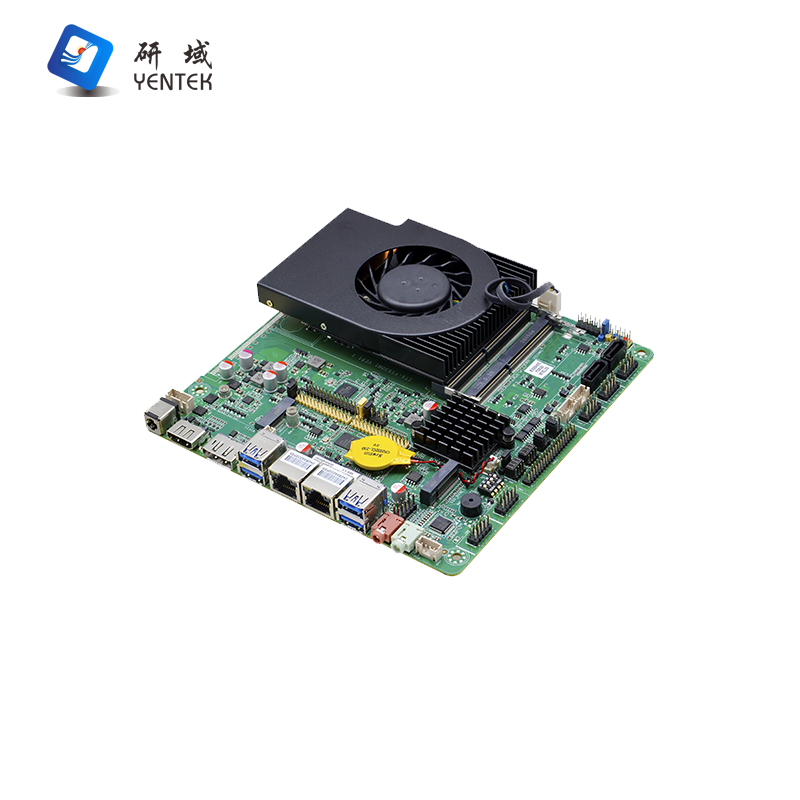

ITX-VS250

processor

Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors，Note: Support 6/7 generation 95W,   8/9 generation only support: 6 core 65W and below CPU

chipset

Using Intel®   Q250 chipset,

Internal   memory

2 x DDR4   DIMM slots, supporting a dual-channel memory of up to 2400 MHZ and 64GB

display

Integrated   Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and   supports 4K display

The maximum   resolution supported by the 1 x VGA port is 1920x1080@60Hz

1* HD OUTPUT1.4   interface, support the highest resolution of 4096x2304@24Hz

network

2* Intel   ®I210AT Gigabit network adapter chip, supporting network wake up /PXE   function

deposit

2* SATA3.0   hard disk interface, transmission speed up to 6Gbps,

1* M.2 slot,   support M.2 2280 NVME PCIE X4 standard SSD

Tone   frequency

Onboard ALC888S 7.1+   2-channel hi-Fi audio controller with MIC/Line-out support

Expansion   slot

1* PCIE3.0 X16 slot

1* 80pin   high-speed seat, including 4*PCIE signal, 1*VGA signal (with VS250-P4 small   board)

I/O ports on   the backplane

1* HD OUTPUT   port

6* USB3.0   interface (5Gbps)

2* RJ45   Gigabit network interface

1* Audio 2   and 1 interface (Line-out/MICK support)

Built-in I/O   interface

1* VGA pin   interface, and 80pin high-speed VGA is one of two options

2* USB2.0   interface 2*5pin

1* front   audio interface 2*5pin

1* Front   panel function button and indicator port 2*5pin

2 x RS232   serial port 2 x 5pin

1* 2*2pin   ATX power interface

1* 24pin ATX   power interface

Fan   interface

1*4pin CPU   fan interface; 1*4pin system fan port

GPIO

Supports   four in four out GPIO function

BIOS

128Mb Flash   ROM

Guard dog

Support   hardware reset function (256 level, 0~255 seconds)

Operating   system

Windows7/Windows10/Linux

Power supply   type

Powered by   ATX 24Pin and 4pin power supplies

Operating   temperature

0℃ to 60℃

Storage   temperature

-20℃ to 70℃

Working   humidity

5%-95% relative humidity, no condensation

Dimension

170mm * 170mm

1

ITX-VS250 VER:1.1

LGA1151

/

Q250

2*DDR4

1

1

1

2*I210AT

8

2

/

ATX

2

ITX-VS250-P4 VER:1.0

LGA1151

/

Q250

2*DDR4

1

1

1

6*I210AT

8

2

/

ATX
