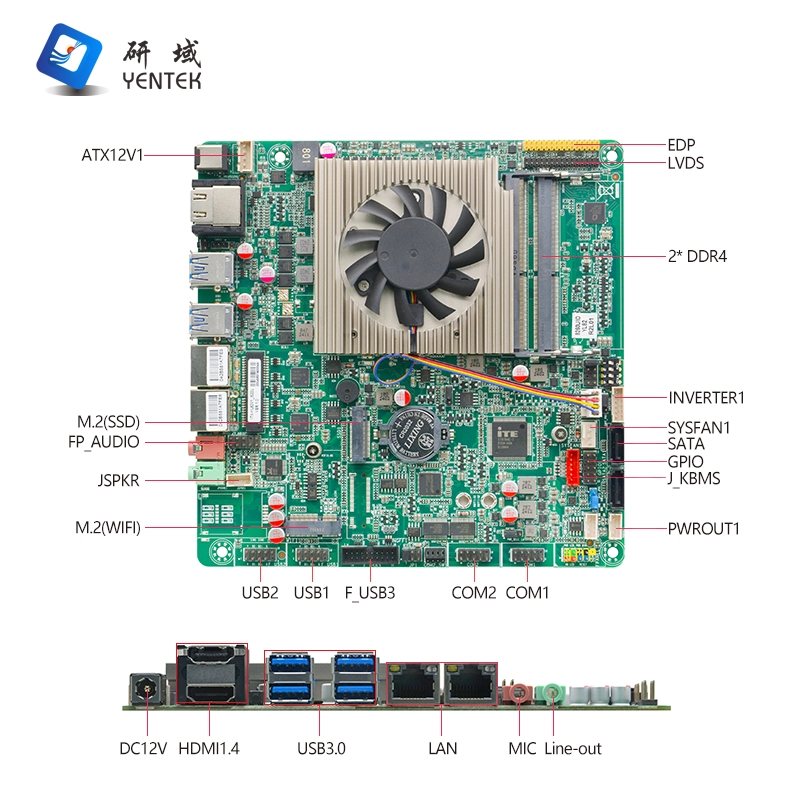

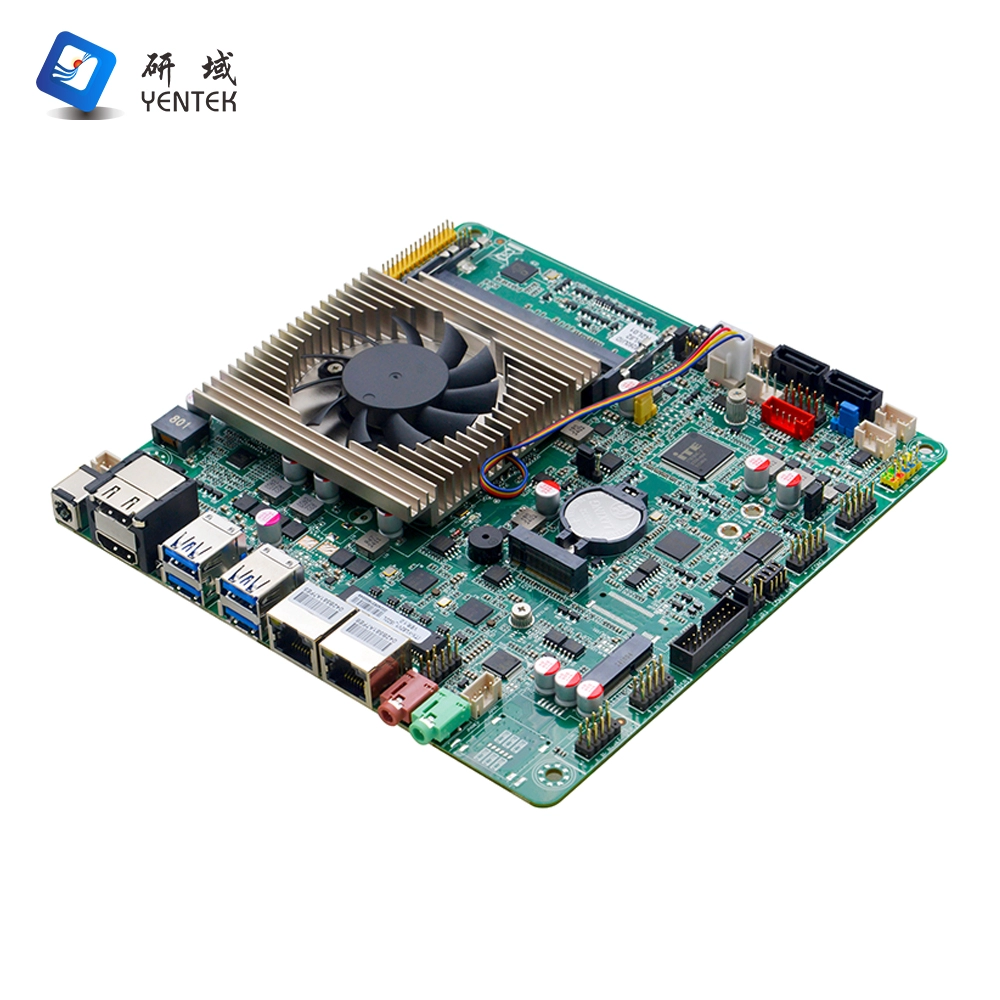

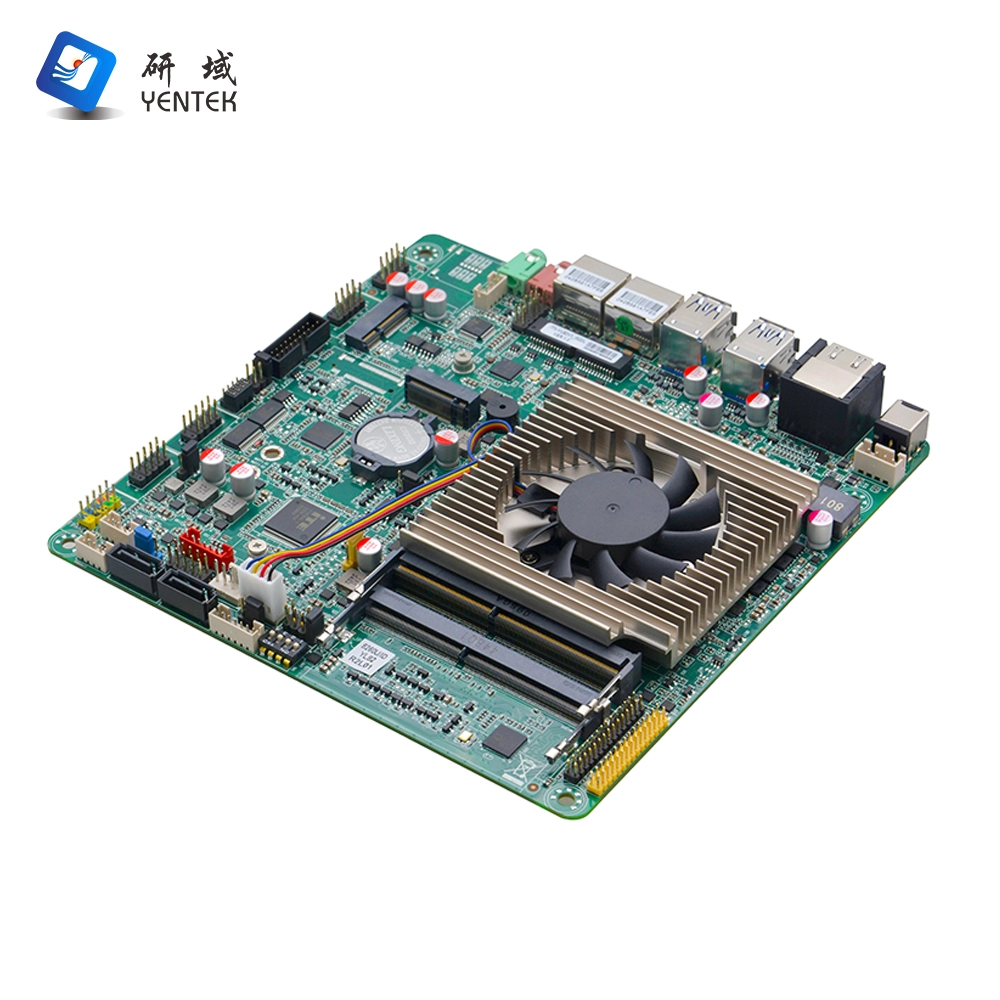

ITX-YL82V1_I522L

Processor

Integrated 8th Generation Intel®I5 8260U 1.6GHz Quad-Core   8-Thread Processor, TDP 15W

Compatible with Intel® Whiskey Lake-U/Comet Lake-U/Coffe   Lake-U 8th Generation/10th Generation Celeron/Pentium/I3/I5/I7 Low Power   Processors

Chipset

SOC

Memory

2* DDR4 SODIMM memory   slots, support 2666MHz memory, maximum support 64GB

Display

Integrated Intel® UHD   Graphics, support DirectX 12 OpenGL 4.5, support 4K.

2*HDMI1.4 interface,   support for the highest resolution: 4096x2304@24Hz

1*Support dual-channel   24bit LVDS interface.

1*EDP interface, and   LVDS through the jumper one of the two options

Network

2* Intel I226 Gigabit   LAN card, support for Wake-on-LAN and PXE function.

Storage

2* SATA3.0 hard drive   interface, transfer speed up to 6Gbps

1* M.2   slot, support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD

Audio

Integrated ALC897 7.1 +   2-channel hi-fi audio controller, support for MIC, Line_out, amplifier

Supports 4Ω 3W speaker   amplifier

Expansion Slots

1* M.2 slot, supports   M.2 Key E 2230 WIFI module

1* M.2 slot, support   M.2 Key B 2242/4452 5G module (reserved, optional)

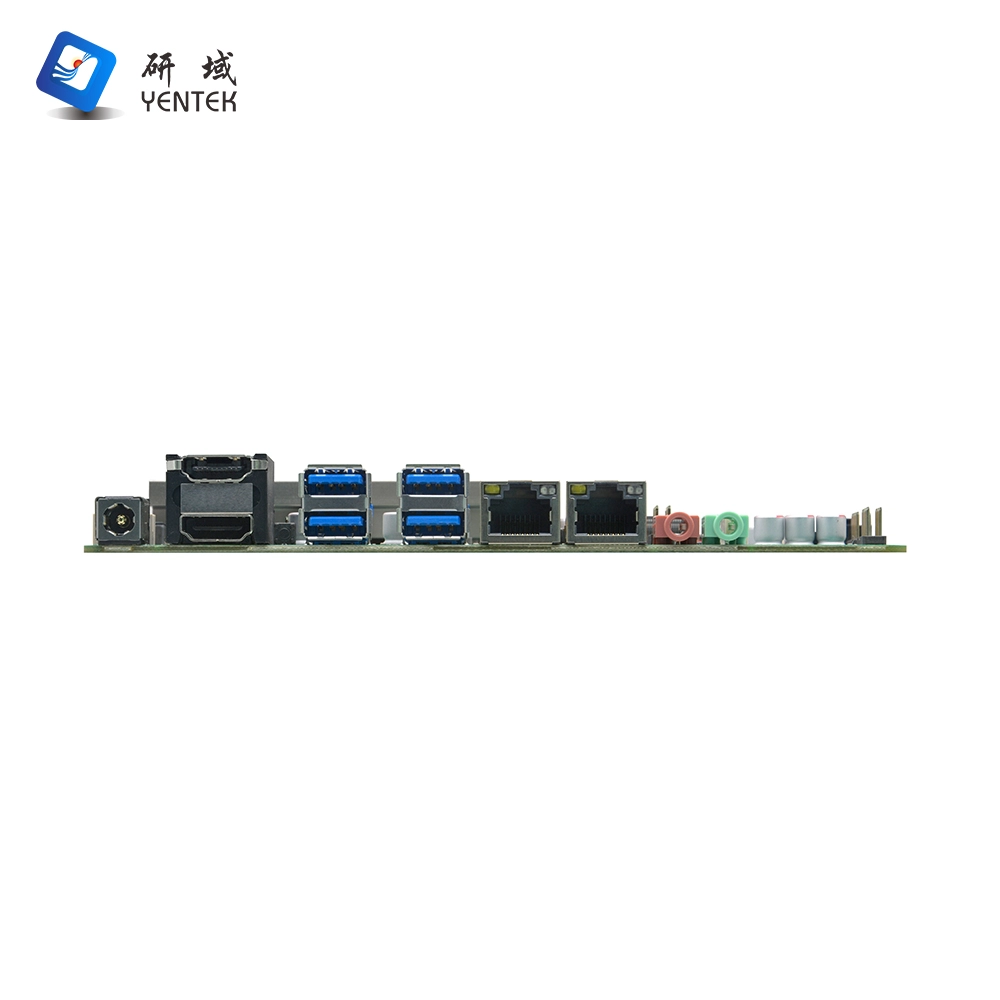

Backplane I/O Ports

4* USB3.0 port.

2* HDMI1.4 interface

2* RJ45 Gigabit network   interface (one of the network ports is co-located with USB2.0)

1* Line-out (Green), 1*   MIC (Red)

1* DC12V power   connector, supports 12V power input

1* SIM card slot   (reserved, optional)

1* Clear CMOS button

Built-in I/O Ports

1* LVDS interface   2*15pin, support dual-channel 24bit.

1* LVDS backlight power   supply connector 1*6pin

1* EDP interface 2*   15pin, and LVDS through the jumper one of the two choices

2* RS232 serial   interface, COM2 supports RS485/422 function.

1* PS/2 keyboard and   mouse interface (red) 1*6Pin

4* USB2.0 interface   2*5pin , 2*5Pin , 2*5Pin , 2*5Pin

2* USB3.0 interface   2*10pin

1* Front Audio   Interface 2*5pin

1* Front Panel Switch   Button and Indicator Interface 2*5Pin

2* HDD power supply   interface 1*4pin

1* Amplifier connector   1*4pin

1* DC power connector   1*4pin (can be used as 12V input power connector)

Fan Interface

1*4pin CPU smart fan   interface, 1*4pin system fan interface

GPIO

Support   4 input/output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset   function (256 levels, 0~255 seconds)

Power Supply Type

DC 12V power supply

Operating System

Windows 10/11/Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative   humidity, non-condensing

Dimension

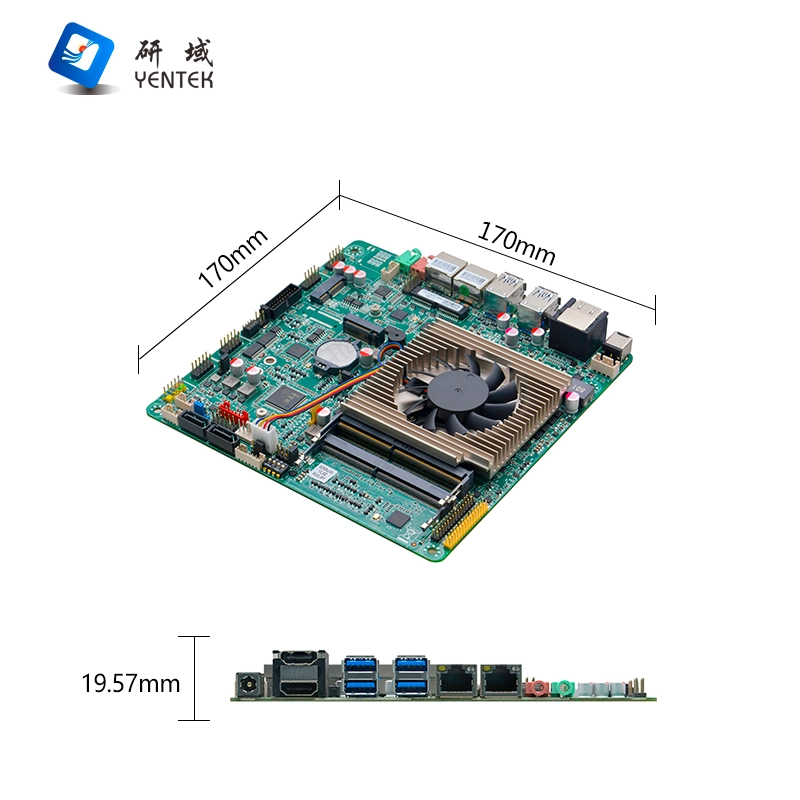

170mm x 170mm

1

ITX-YL82V1_I522L VER:1.0

I5-8260U

1.6G

2*SODDR4

1

1

2ch/24Bit

1

2*I226V

10

2

COM2

DC12V
