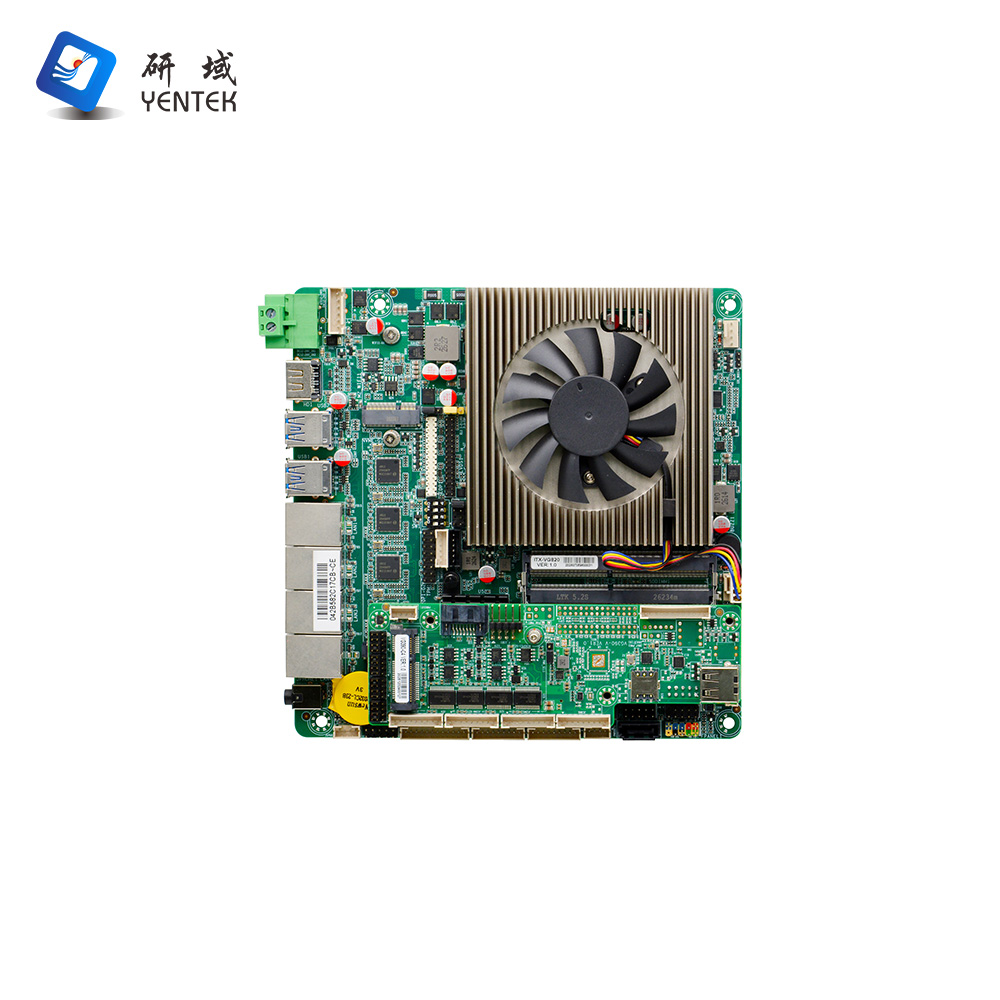

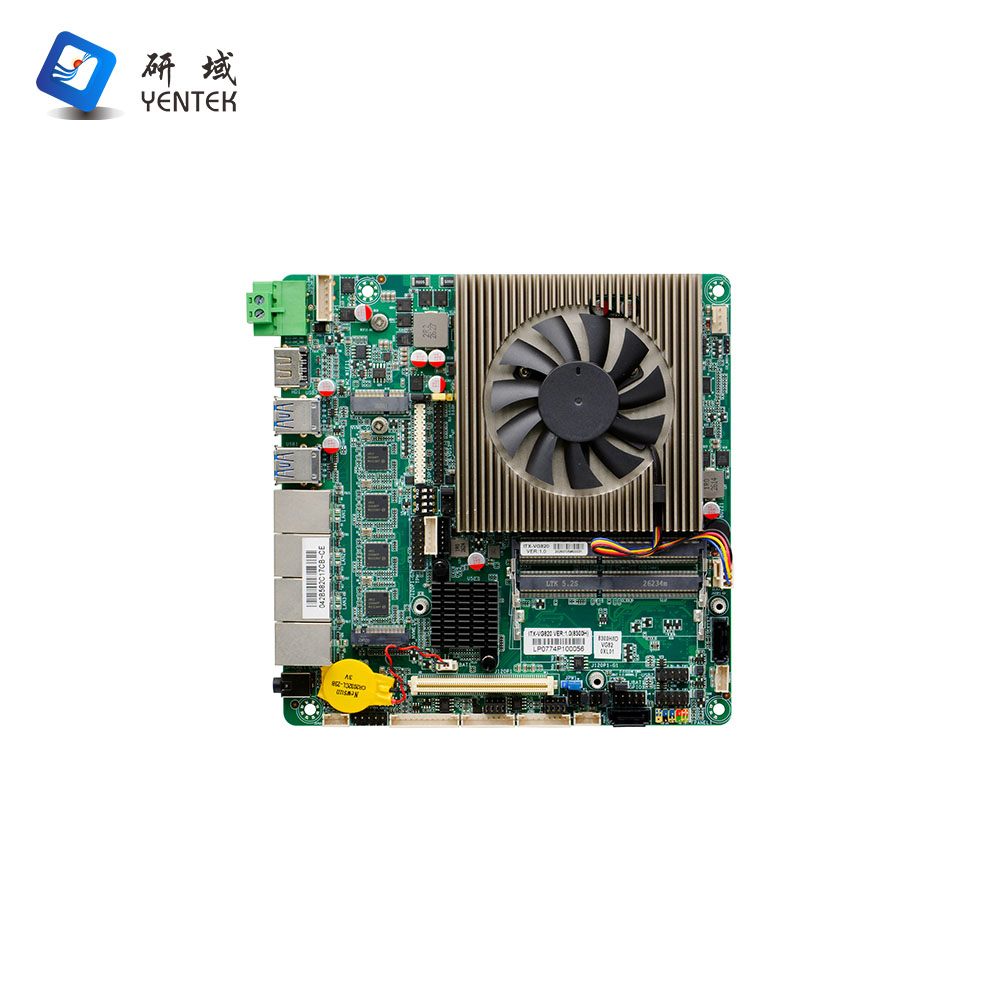

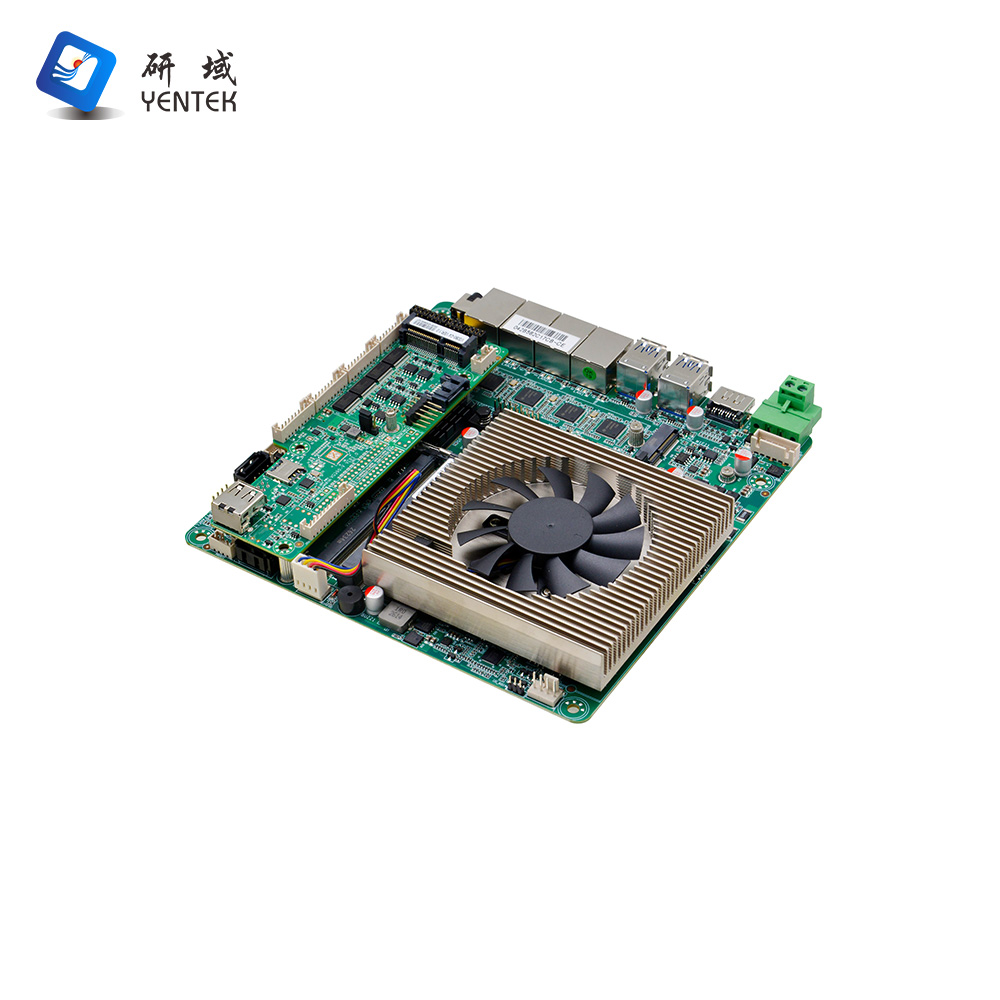

ITX-VG820

Processor

Integrated Intel® Coffee Lake Core i5-8300H / 2.3GHz quad-core, eight-thread processor, TDP 35W

Compatible with Intel® 8th, 9th and 10th generation processors with an ‘H’ suffix

Chipset

Features the Intel® HM370 high-speed chipset

Memory

2 × DDR4 SODIMM memory slots, supporting memory speeds of up to 2666MHz and a maximum capacity of 64GB

Display

Integrated Intel® HD Graphics, supporting DirectX 12, OpenGL 4.5 and 4K display

1 × VGA port, supporting a maximum resolution of 1980×1200@60Hz

1 × HDMI 1.4 port, supporting a maximum resolution of 4096×2304@24Hz

1 × LVDS port, supporting dual-channel 24-bit

1 × EDP port, selectable via jumper switch (either LVDS or EDP)

Supports three independent displays via VGA, HDMI, LVDS or EDP

Network

4 × I210AT 1GbE network controller chips, supporting Wake-on-LAN and PXE functionality

Storage

2 × SATA 3.0 hard drive ports, with transfer speeds up to 6 Gbps

1 × M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard SSDs

Audio

On-board ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC/Line-out and power amplifier

Power amplifier supports 4Ω/3W dual-channel

Expansion Slots

1 × M.2 slot, supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules

1 × 120-pin high-speed header, including 4 × TTL, 2 × PCIe, 1 × SATA, 1 × DP (for connection to VG390 series expansion boards)

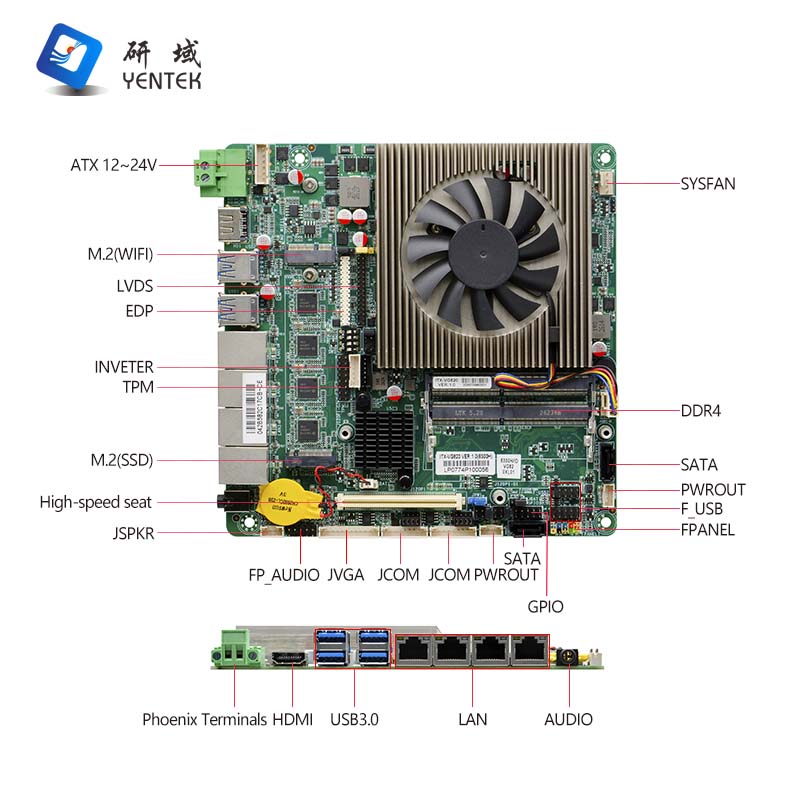

Rear Panel I/O Ports

1 × 2-pin Phoenix connector, supporting 12–24 V DC power supply; either this or the DC power connector may be used

1 × HDMI 1.4 port

4 × Type-A USB 3.0 ports (5 Gbps)

4 × RJ45 Gigabit Ethernet ports

1 × 2-in-1 audio port, supporting Line-out/MIC

On-board I/O Ports

1 × LVDS port, 2 × 15-pin, PH = 2.0 mm, supporting dual-channel 24-bit

1 × LVDS display backlight power supply port (black), 1 × 6-pin, PH = 2.0 mm

1 × EDP port, 2 × 15-pin, PH = 2.0 mm; either this or the LVDS port can be used via a jumper

1 × EDP display backlight power supply interface (white), 1 × 6-pin, pitch = 2.0 mm

1 × JVGA header, 1 × 12-pin, pitch = 2.0 mm

2 × RS232 serial interfaces, 1 × 9-pin, pitch = 2.0 mm, supporting RS485/422 functionality, configurable via jumper settings

4 × USB 2.0 ports, 2 × 5-pin, pitch = 2.54 mm

1 × front-panel audio interface, 2 × 5-pin, pitch = 2.54 mm

1 × power amplifier interface, 1 × 4-pin, pitch = 2.0 mm

2 × hard disk power supply voltage interfaces, 1 × 4-pin, pitch = 2.0 mm

1 × front panel function button and indicator interface, 2 × 5-pin, pitch 2.54 mm

1 × DC power supply interface, 1 × 6-pin, pitch 2.5 mm, supports 12–24 V DC power supply

1 × TPM interface, 2 × 8-pin, pitch 2.54 mm

Fan Connectors

1 × 4-pin CPU smart fan interface; 1 × 4-pin system fan interface

GPIO

Supports 4-channel GPIO input/output functionality

BIOS

64 Mb Flash ROM

Supported Systems

Windows 10/11/Linux

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Supports 12 V–24 V DC power supply

Operating Temperature

–10 °C to 60 °C

Storage Temperature

–20 °C to 70 °C

Operating Humidity

5%–95% relative humidity, non-condensing

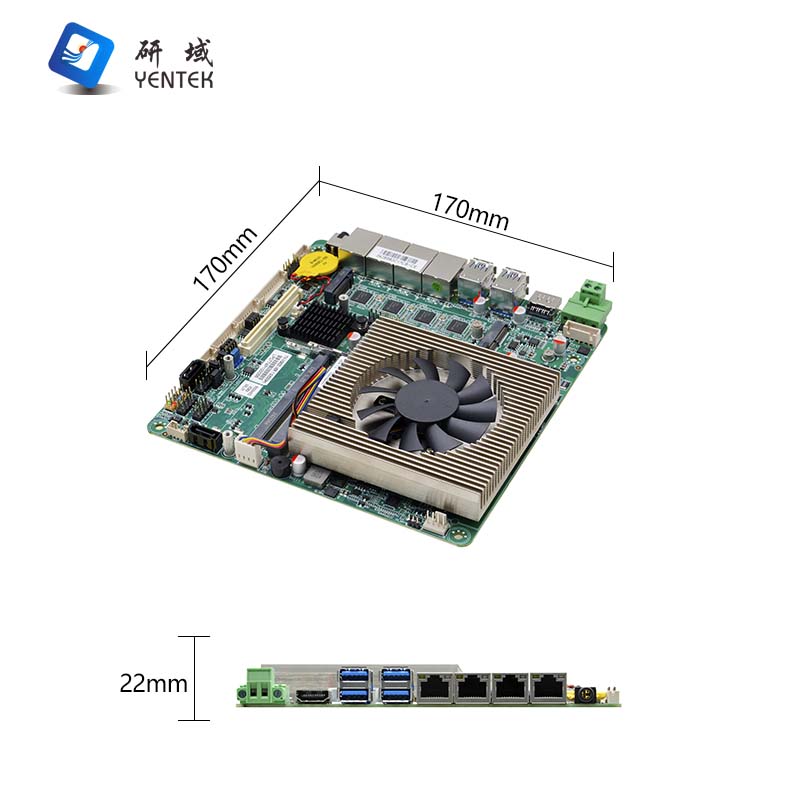

Dimensions

170mm x 170mm

1

ITX-VG820 VER:1.0(8300H)

8300H

2.3GHz

HM370

2*SODDR4

1

1

1

1

4*210AT

8

2

2

DC12~24V
