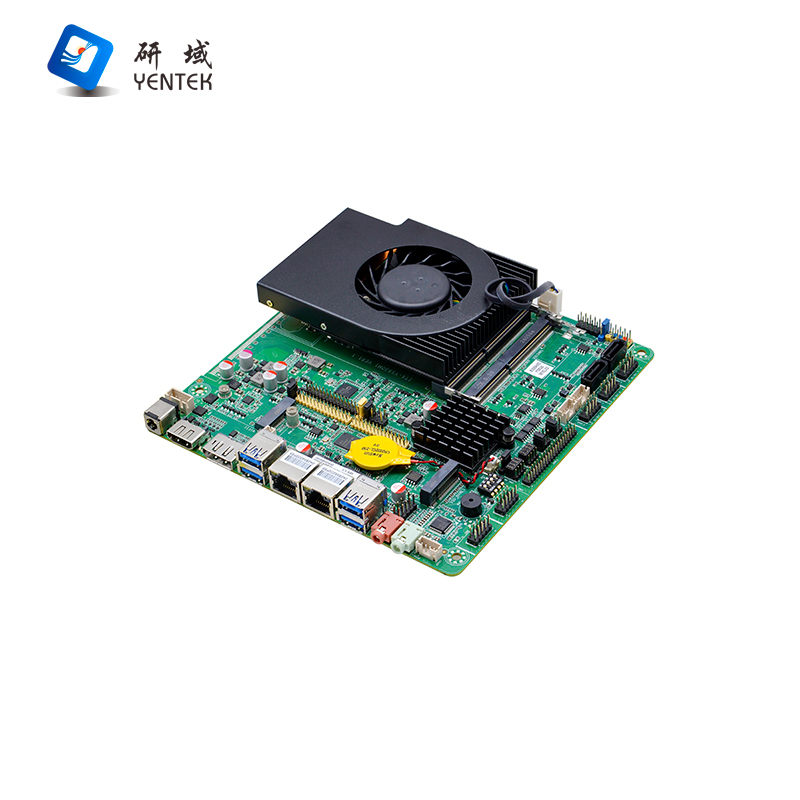

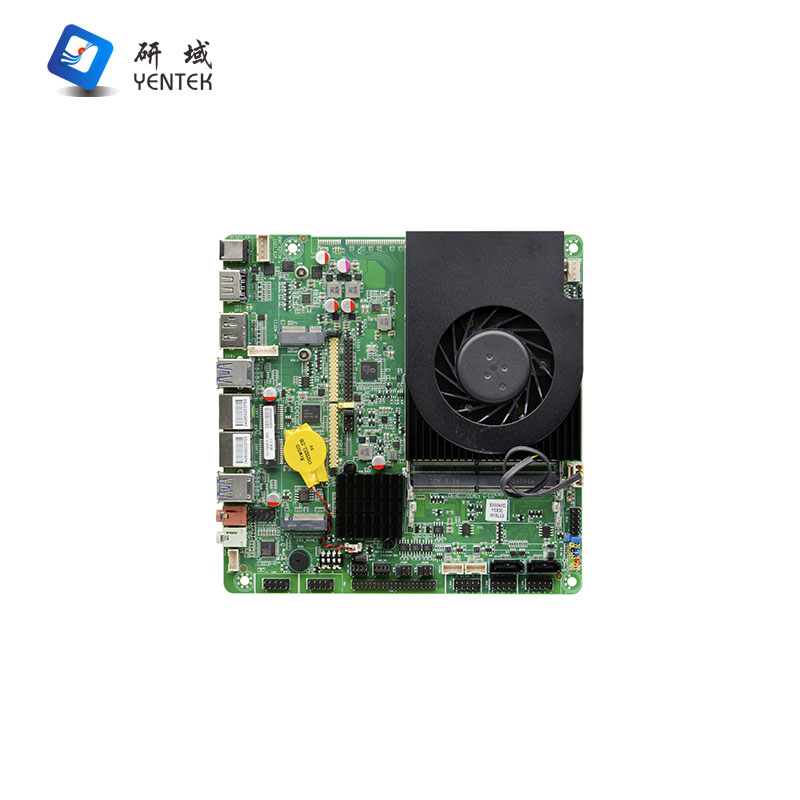

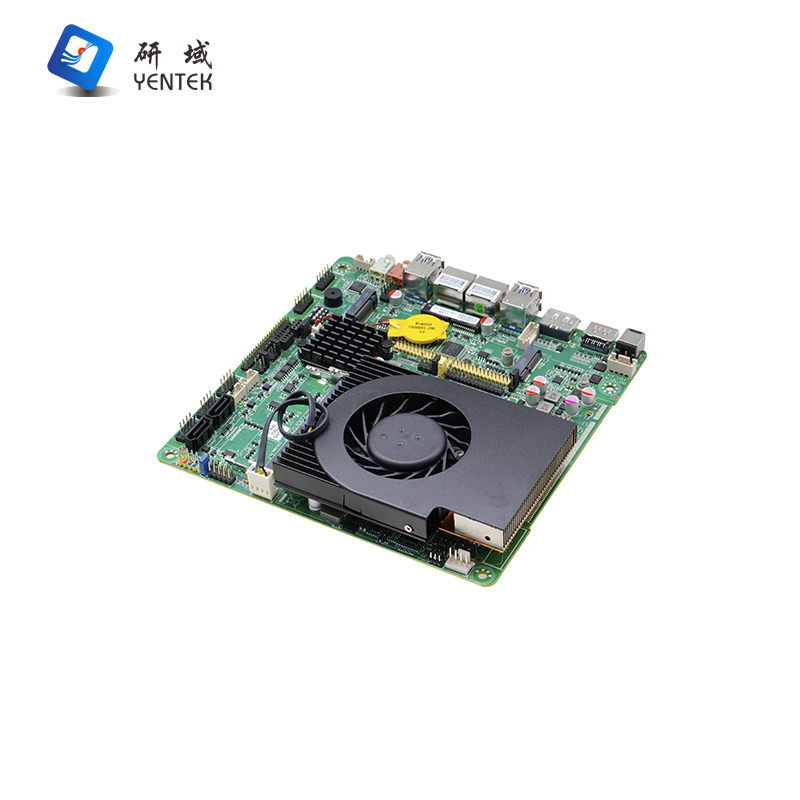

ITX-YS830M1_I526L

Processor

Integrated Intel® Coffee Lake Core i5-8300H / 2.3GHz quad-core, eight-thread processor, TDP 35W

Compatible with Intel® 8th, 9th and 10th generation processors with an ‘H’ suffix

Chipset

Intel® HM370 high-speed chipset

Memory

2 × DDR4 SODIMM memory slots, supporting memory speeds up to 2666MHz, with a maximum capacity of 64GB

Display

Integrated Intel® HD Graphics, supporting DirectX 12, OpenGL 4.4 and 4K display

1 × HDMI 1.4 port, supporting a maximum resolution of 4096 × 2304 @ 24Hz

1 × DisplayPort (DP) port, supporting a maximum resolution of 4096 × 2304 @ 60Hz

1 × LVDS port, 2 × EDP ports, with one EDP port and the LVDS port operating on a ‘one-or-the-other’ basis via a jumper

Note: Supports dual EDP displays or LVDS + EDP displays. Supported display configurations include: single LVDS display, single EDP1 display, dual LVDS + EDP2 display, and dual EDP1 + EDP2 display. J_EDP2 cannot be used independently

Network

2 x I210AT Gigabit Ethernet chipsets, supporting Wake-on-LAN and PXE functionality

Storage

2 x SATA 3.0 hard drive interfaces, with transfer speeds of up to 6 Gbps

1 × M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard SSDs

Audio

On-board ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC/Line-out and power amplifier

Power amplifier supports 4Ω/3W stereo output

Expansion Slots

1 × M.2 slot, supporting M.2 Key E 2230 Wi-Fi modules

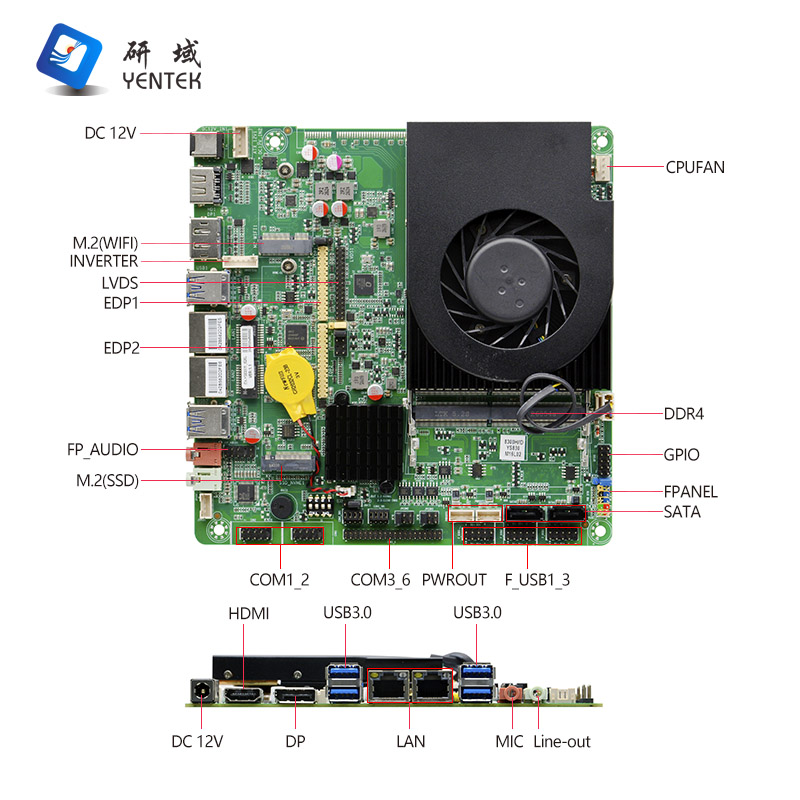

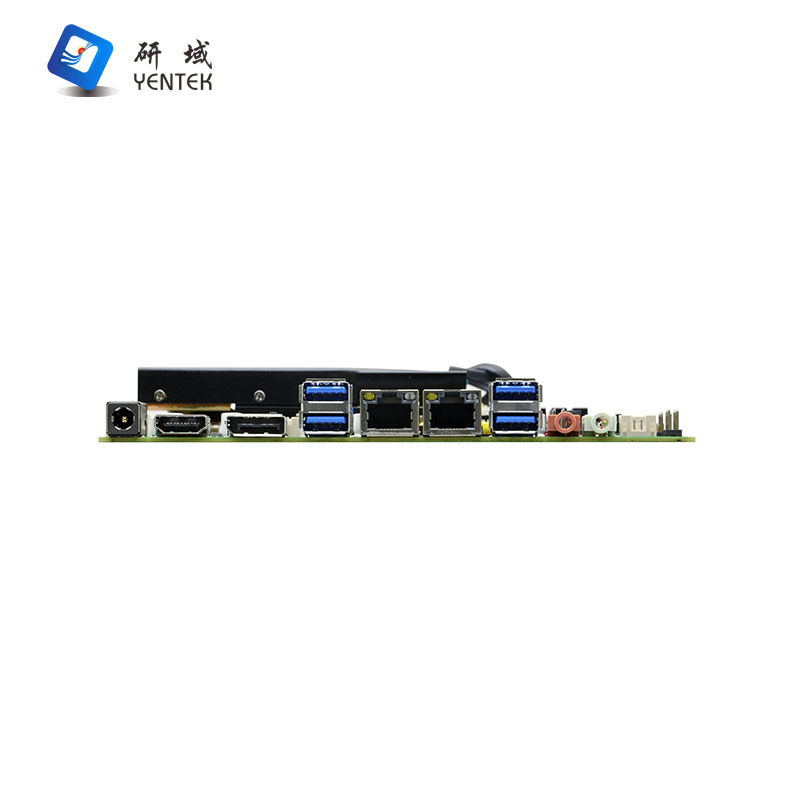

Rear Panel I/O Ports

4* USB3.0

1* HDMI

1* DP

2 × RJ45 Gigabit Ethernet ports

1 × Line-out (green), 1 × MIC (red)

1 × 12V DC power input port

On-board I/O Ports

1 × LVDS port (2 × 15-pin), supporting dual-channel 24-bit

2 × EDP ports (2 × 15-pin); one EDP port is mutually exclusive with the LVDS port via a jumper setting

1 × backlight power supply port (1 × 6-pin)

6 × RS232 serial ports; COM2/3 support RS485/422

6 × USB 2.0 ports (2 × 5-pin)

1 × front-panel audio interface, 2 × 5-pin

1 × power amplifier interface, 1 × 4-pin

2 × hard drive power supply voltage interfaces, 1 × 4-pin

1 × front-panel function button and indicator light interface, 2 × 5-pin

1 × 4-pin DC power supply interface; supports 12V power input and output

Fan Connectors

1 × 4-pin CPU smart fan interface; 1 × 4-pin system fan interface

GPIO

Supports 4-channel GPIO input/output functionality

BIOS

64 Mb Flash ROM

Supported Systems

Windows 10/11/Linux

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Supports 12 V DC power supply

Operating Temperature

–10 °C to 60 °C

Storage Temperature

–20 °C to 70 °C

Operating Humidity

5%–95% relative humidity, non-condensing

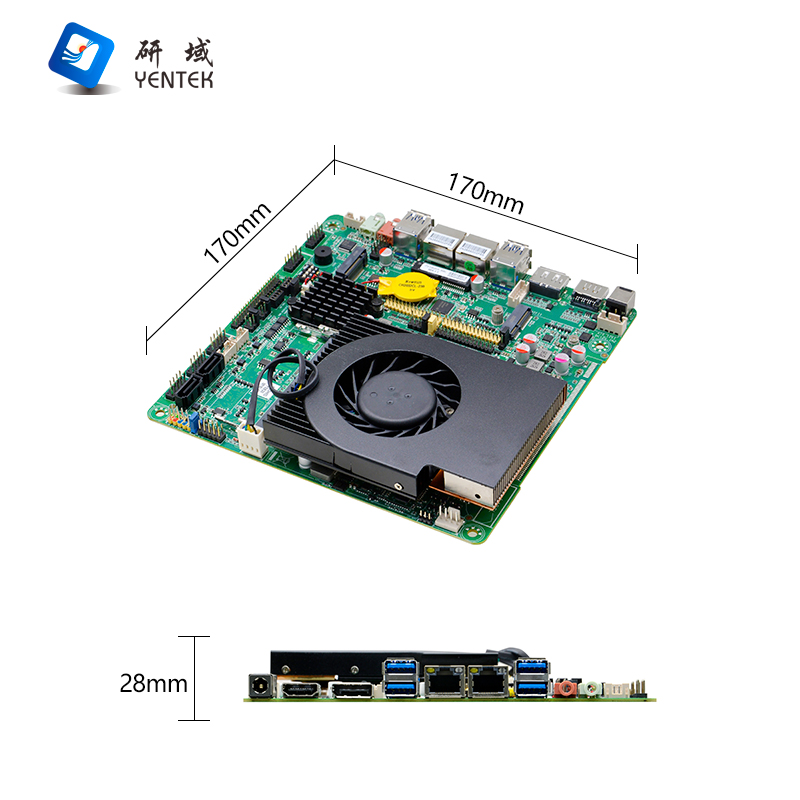

Dimensions

170mm x 170mm

1

ITX-YS830M1_I526L VER:1.1

8300H

2.3GHz

HM370

2*SODDR4

1

1

1

2

2*210AT

10

6

COM2/3

DC12V
