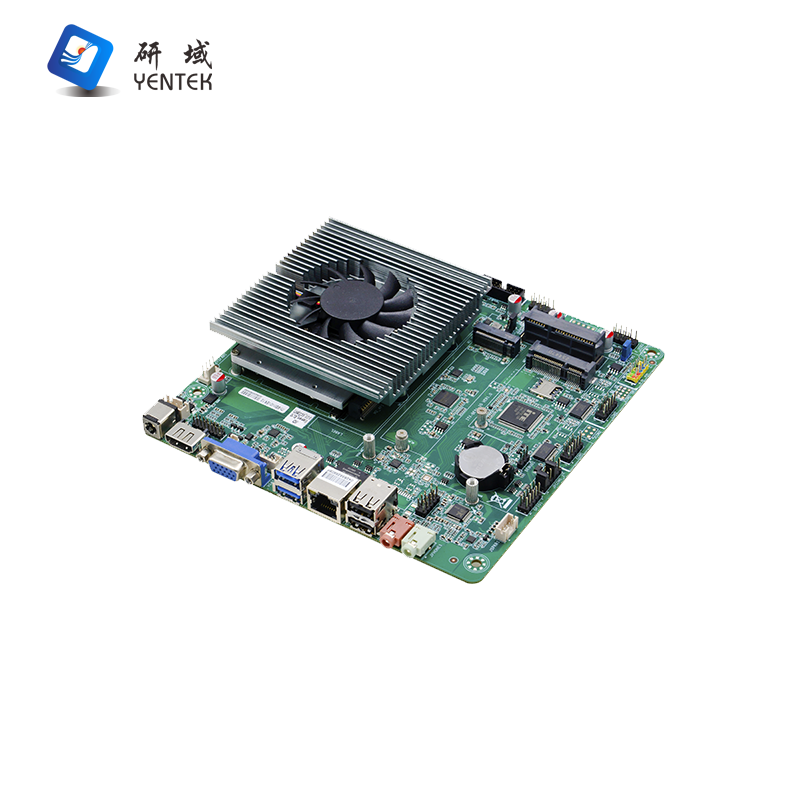

ITX-B319_2L

Processor

Support LGA1151 8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7   processors.

Note: Support 8th/9th generation only 6-core full range of CPU, 8-core   only 35W.

Chipset

Adopts Intel® Z390 high-speed chipset.

Memory

2* DDR4 SODIMM memory slots, support up to 2666MHz memory,   maximum support 64GB

Display

Integrated Intel® HD Graphics core graphics card, support   DirectX12, OpenGL4.4, support for 4K display

1* VGA interface, support for the highest resolution of   1920X1200@60Hz

2* HDMI1.4 interface, support for the highest resolution of   4096X2304@24Hz

1* support dual-channel 24bit LVDS interface, and EDP for the   common pinout

Network

2* RTL8111H Gigabit NIC   chip, support for Wake-on-LAN / PXE function

Storage

2*   SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* M.2 slot, support M.2 Key M 2280 NVME   PCIE 3.0/SATA adaptive standard SSD

Audio

Onboard ALC897 7.1+2-channel   high-fidelity audio controller, support MIC/Line-out,

Amplifier support 4Ω/3W dual-channel

Expansion Slots

1* M.2 slot, support M.2 Key E 2230 WIFI   module

Backplane I/O Ports

2* USB3.0 interface

1* HDMI interface

1* VGA interface

2* RJ45 Gigabit Network   Interface

1* Line-out (Green), 1*   MIC (Red)

1*   DC19V power input interface

Built-in I/O Ports

1* JVGA connector   1*12pin,same signal as VGA connector

1* JHDMI connector   2*8pin.

1*   LVDS interface 2*15pin, support dual-channel 24bit, and EDP for the common   pin, through the jumper selection

1* Backlight power   supply interface 1*6pin

1* Screen Brightness   Adjustment Interface 1*4pin

6* RS232 serial   interface, COM2 support RS485/422

6* USB2.0   interface 2*5pin

1* Front Audio   Interface 2*5pin

1* Power amplifier   interface 1*4pin

2* HDD power supply   voltage interface 1*4pin

1* Front Panel Function   Button and Indicator Interface 2*5pin

1*4pin ATX power   connector. Support 19V power input and output

Fan Interface

1*4pin CPU smart fan   connector; 1*4pin system fan connector.

GPIO

Support 4-way   input/output GPIO function.

BIOS

64Mb Flash ROM

Support   System

Windows 10/Linux

Watchdog

Support hardware reset   function (256 levels, 0~255 seconds)

Power Supply Type

Support   DC19V power supply

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative   humidity, non-condensing

Dimension

170mm x 170mm

1

ITX-B319_2L VER:1.0

LGA1151

/

Z390

2*SODDR4

1

2

/

2ch/24bit

2*8111H

8

6

/

DC19V
