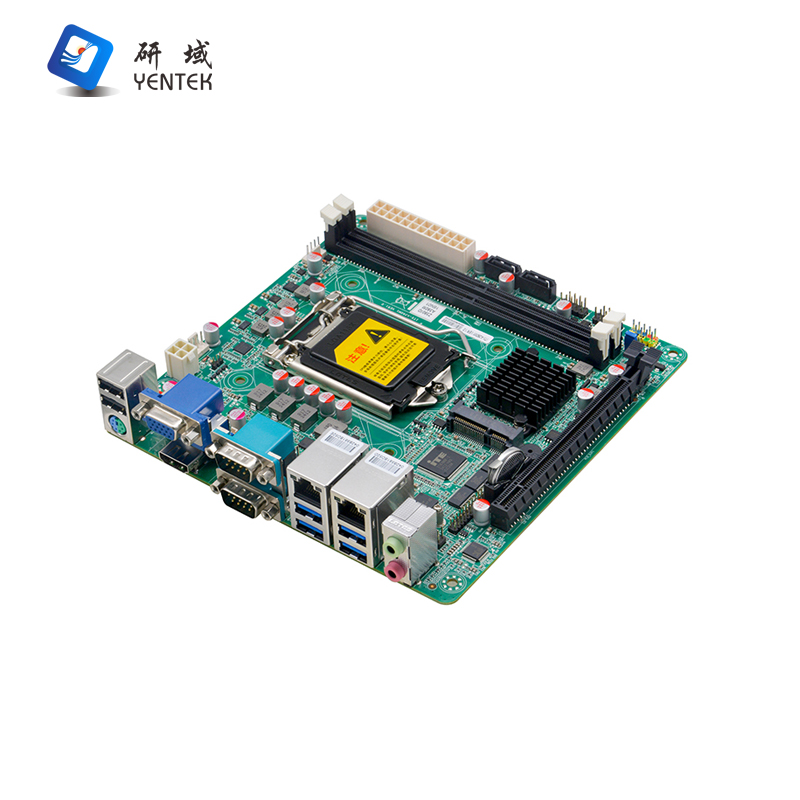

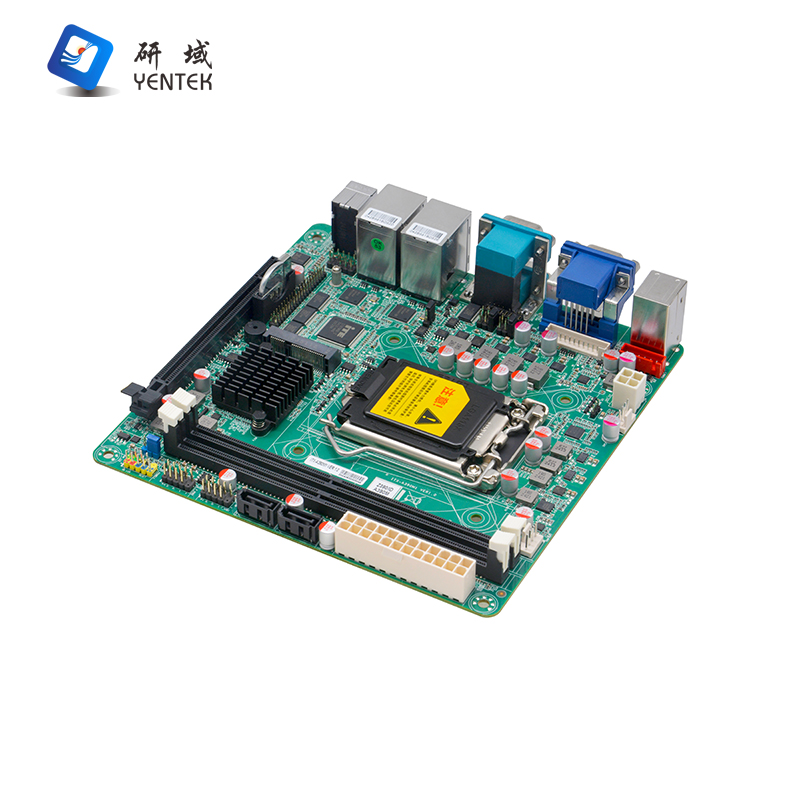

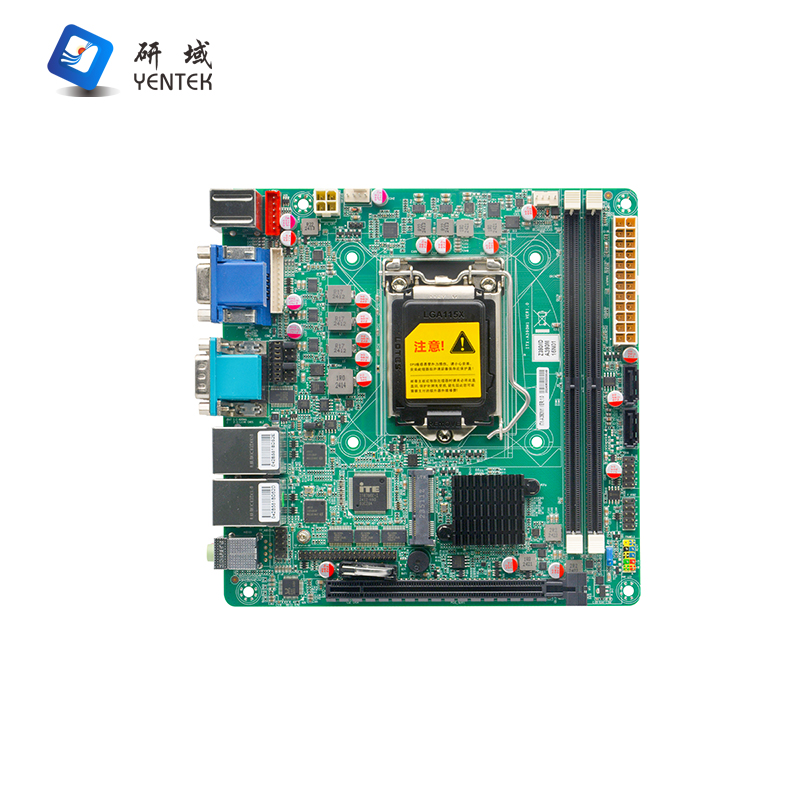

ITX-A390M1

Processor

Support 8th/9th Celeron/Pentium/Core™   i3/i5/i7 processors with LGA1151 architecture.

Note: 6-core 65W and below CPUs, 8-core   35W CPU

Chipset

Intel   Z390 high-speed chipset

Memory

2*DDR4   DIMM memory slots, supports dual-channel 2133MHz memory, maximum support up   to 64GB.

Display

Integrated Intel® HD   Graphics controller, 1*VGA interface and 1*HDMI1.4 interface

Support individual   display, dual-display mode, expansion mode

Network

2* Intel I210AT Gigabit   LAN card, support Wake-on-LAN, PXE function

Storage

2* SATA3.0 HDD interface, SATA transfer   rate up to 6Gbps

1* MSATA interface, support Intel   protocol SSD, transfer rate up to 6Gbps (default), can support WIFI   (optional)

Note: can support TPM-4COM to expand the   four Serial port, need to change BIOS

Audio

On-board   ALC897 high-fidelity audio controller, support Mic, Line out

Expansion Slots

1* PCIE3.0 x16

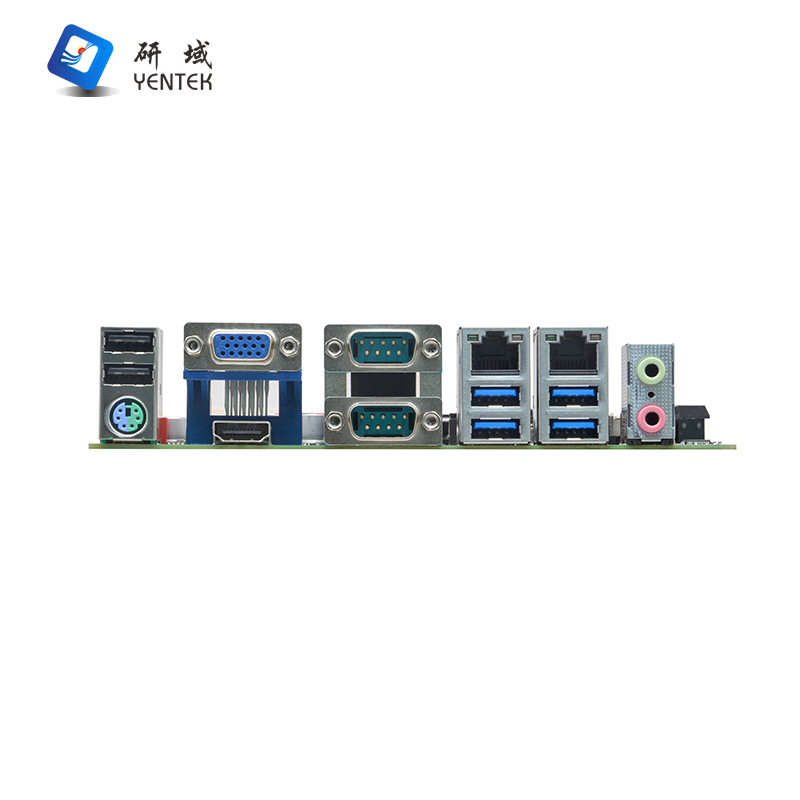

Backplane I/O Ports

1* PS/2 keyboard and mouse interface

1* VGA display interface

1* HDMI display interface

2* RS232 serial port (COM1/2 support   RS485/422 function)

2* RJ45 Gigabit network interface

2* USB 2.0 interface

4* USB 3.0 interface

1* Line out interface (green), 1* Mic   interface (red)

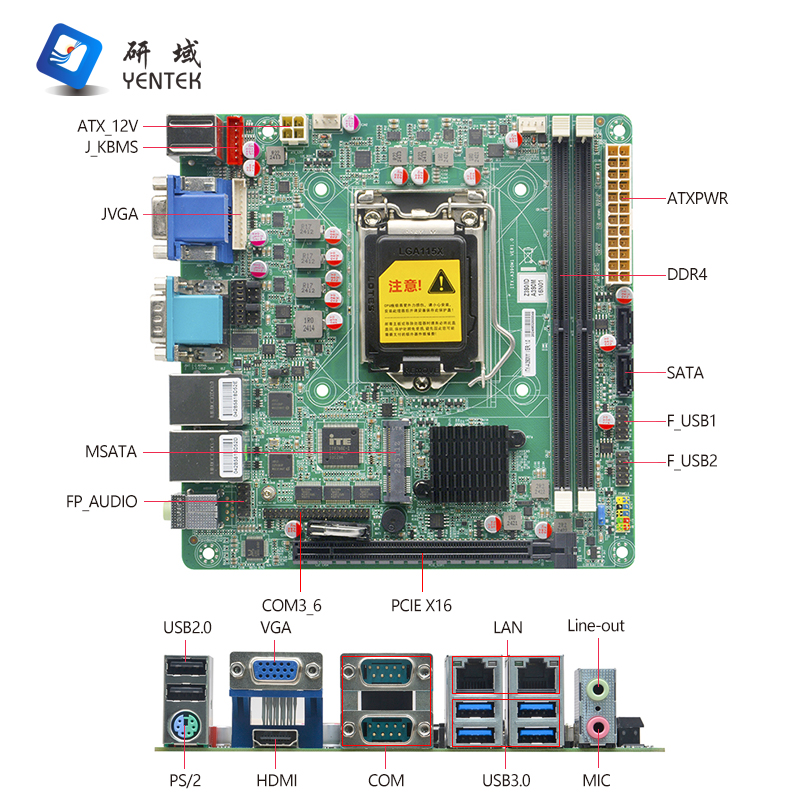

Built-in I/O   Interface

1* PS/2 keyboard and mouse interface   1*6pin Pin with UK1 same signal

1* JVGA interface 1*12pin Pin with DB15   same signal

4* RS232 Serial port ,2*20pin

1* Front audio interface 2*5pin

4* USB 2.0 interface 2*5pin

1* Front Panel Function Button and   Indicator Interface 2*5pin

1* 24pin ATX Power Input Interface

1* 4pin ATX Power Input Interface

Fan Interface

1*4pin CPU Intelligent Fan Interface, 1*   4pin System Intelligent Fan Interface

BIOS

64Mb   Flash ROM

Operating System

Windows 7 / 10 /   Linux

Watchdog

Support Hardware   Reset function (256 levels, 0~255 seconds)

Power Supply Type

ATX power input

Operating Temperature

0℃～60℃

Storage Temperature

-20℃～70℃

Operating Humidity

5%-95% relative   humidity, non-condensing

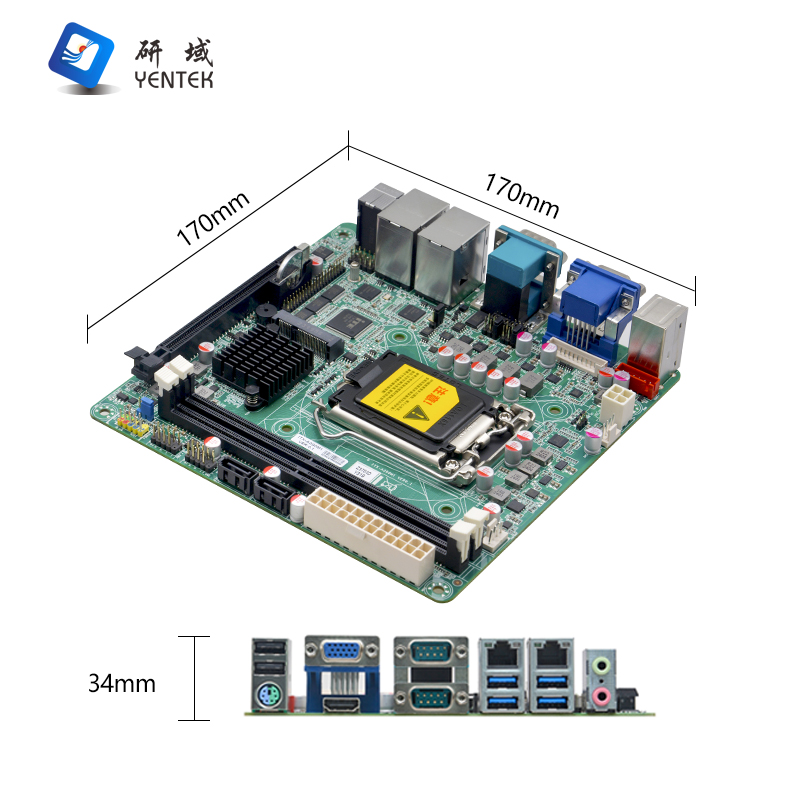

Size

170mm x 170mm
