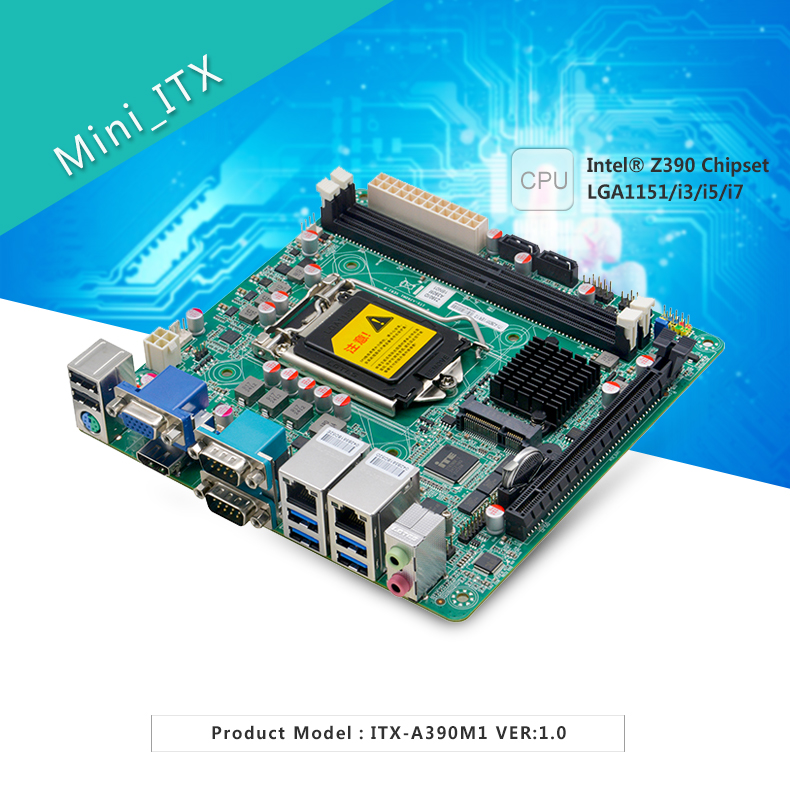

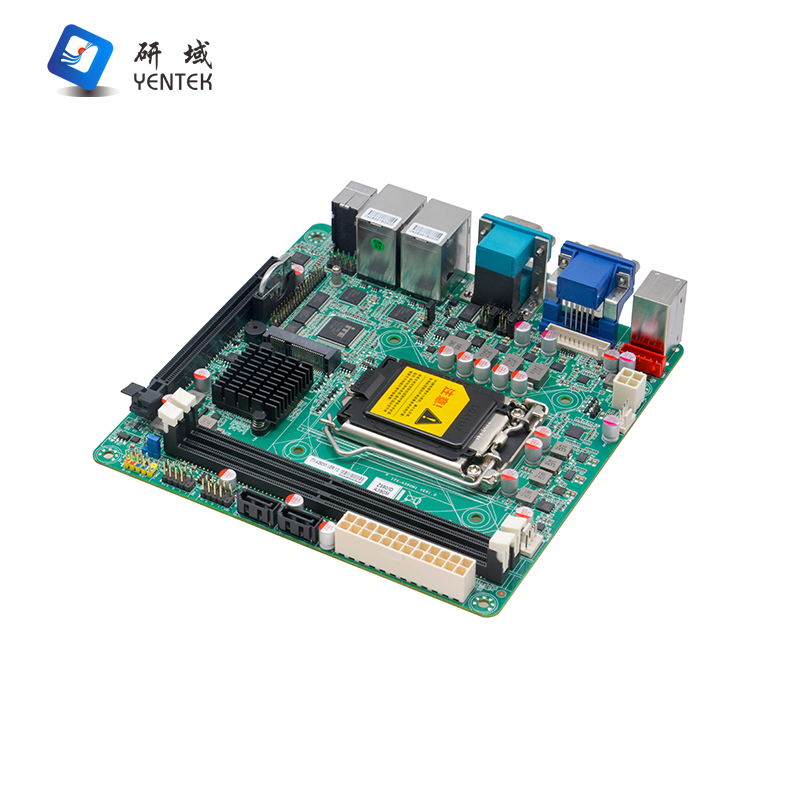

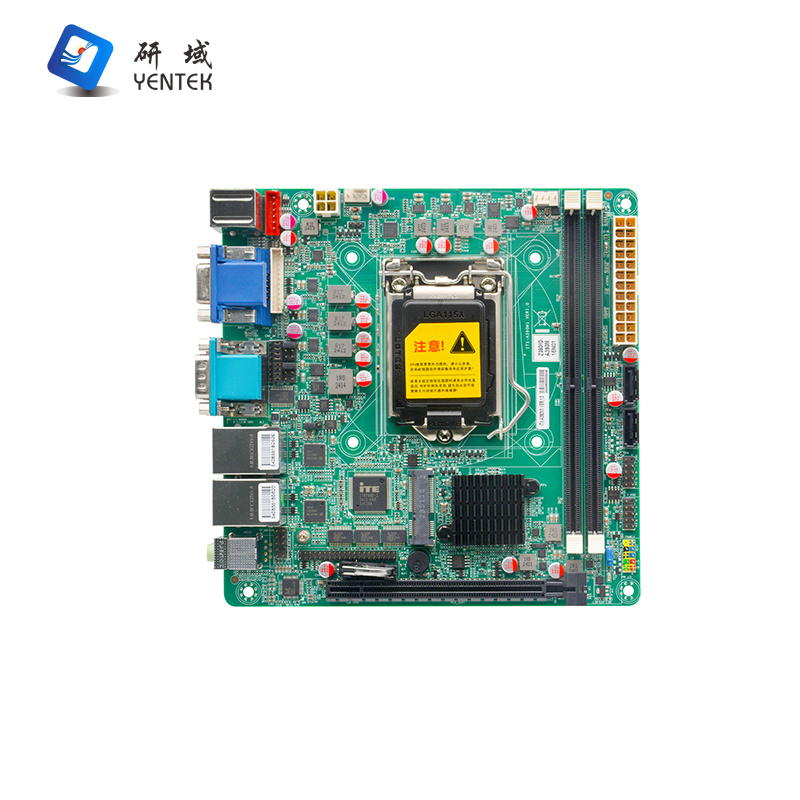

Model | ITX-A390M1 VER:1.0 |
Processor | Support 8th/9th Celeron/Pentium/Core™ i3/i5/i7 processors with LGA1151 architecture. Note: 6-core 65W and below CPUs, 8-core 35W CPU |
Chipset | Intel Z390 high-speed chipset |
Memory | 2*DDR4 DIMM memory slots, supports dual-channel 2133MHz memory, maximum support up to 64GB. |
Display | Integrated Intel® HD Graphics controller, 1*VGA interface and 1*HDMI1.4 interface Support individual display, dual-display mode, expansion mode |
Network | 2* Intel I210AT Gigabit LAN card, support Wake-on-LAN, PXE function |
Storage
| 2* SATA3.0 HDD interface, SATA transfer rate up to 6Gbps |
1* MSATA interface, support Intel protocol SSD, transfer rate up to 6Gbps (default), can support WIFI (optional) Note: can support TPM-4COM to expand the four Serial port, need to change BIOS | |
Audio | On-board ALC897 high-fidelity audio controller, support Mic, Line out |
Expansion Slots | 1* PCIE3.0 x16 |

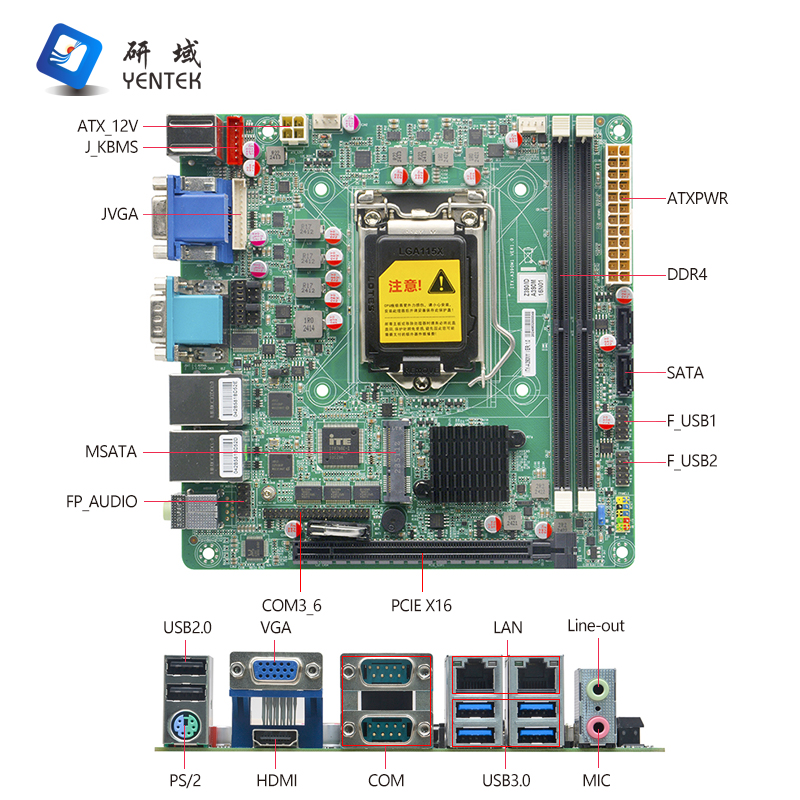

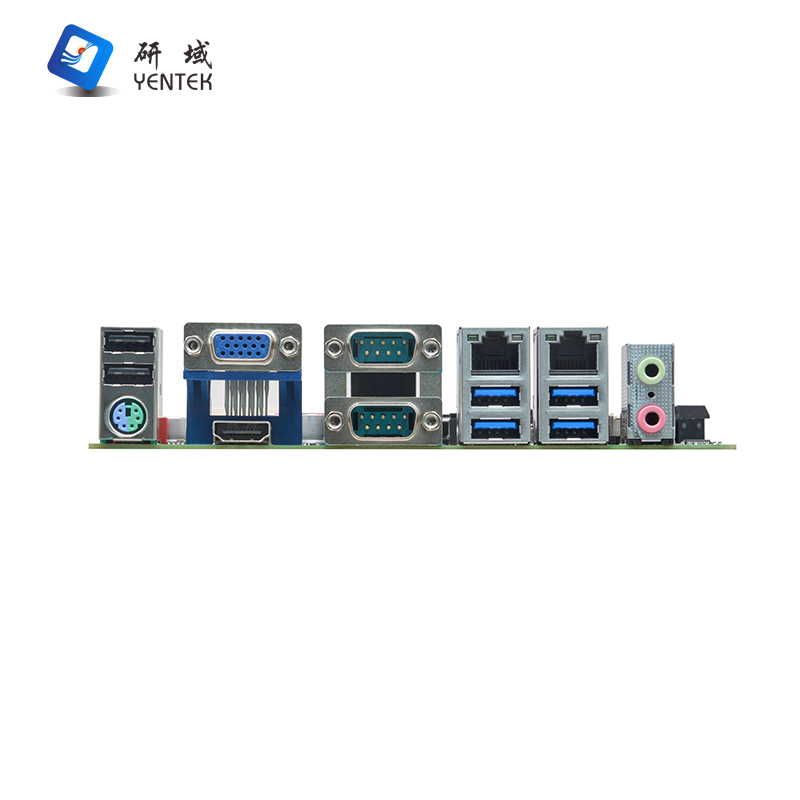

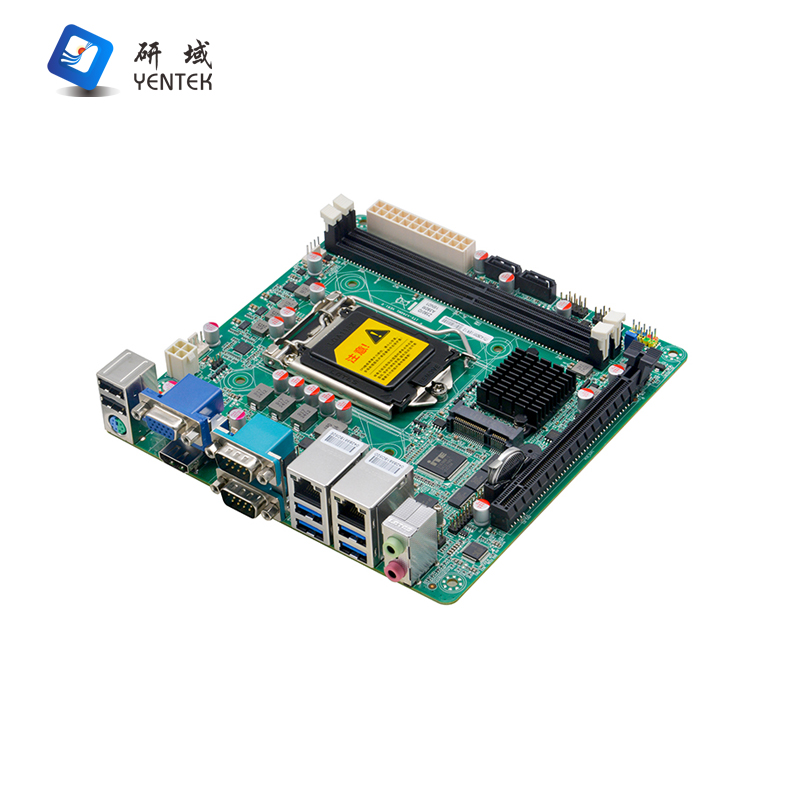

Backplane I/O Ports
| 1* PS/2 keyboard and mouse interface |
1* VGA display interface | |
1* HDMI display interface | |
2* RS232 serial port (COM1/2 support RS485/422 function) | |
2* RJ45 Gigabit network interface | |
2* USB 2.0 interface | |
4* USB 3.0 interface | |
1* Line out interface (green), 1* Mic interface (red) | |
Built-in I/O Interface
| 1* PS/2 keyboard and mouse interface 1*6pin Pin with UK1 same signal |
1* JVGA interface 1*12pin Pin with DB15 same signal | |
4* RS232 Serial port ,2*20pin | |
1* Front audio interface 2*5pin | |
4* USB 2.0 interface 2*5pin | |
1* Front Panel Function Button and Indicator Interface 2*5pin | |
1* 24pin ATX Power Input Interface | |
1* 4pin ATX Power Input Interface | |
Fan Interface | 1*4pin CPU Intelligent Fan Interface, 1* 4pin System Intelligent Fan Interface |
BIOS | 64Mb Flash ROM |
Operating System | Windows 7 / 10 / Linux |
Watchdog | Support Hardware Reset function (256 levels, 0~255 seconds) |
Power Supply Type | ATX power input |
Operating Temperature | 0℃~60℃ |
Storage Temperature | -20℃~70℃ |
Operating Humidity | 5%-95% relative humidity, non-condensing |

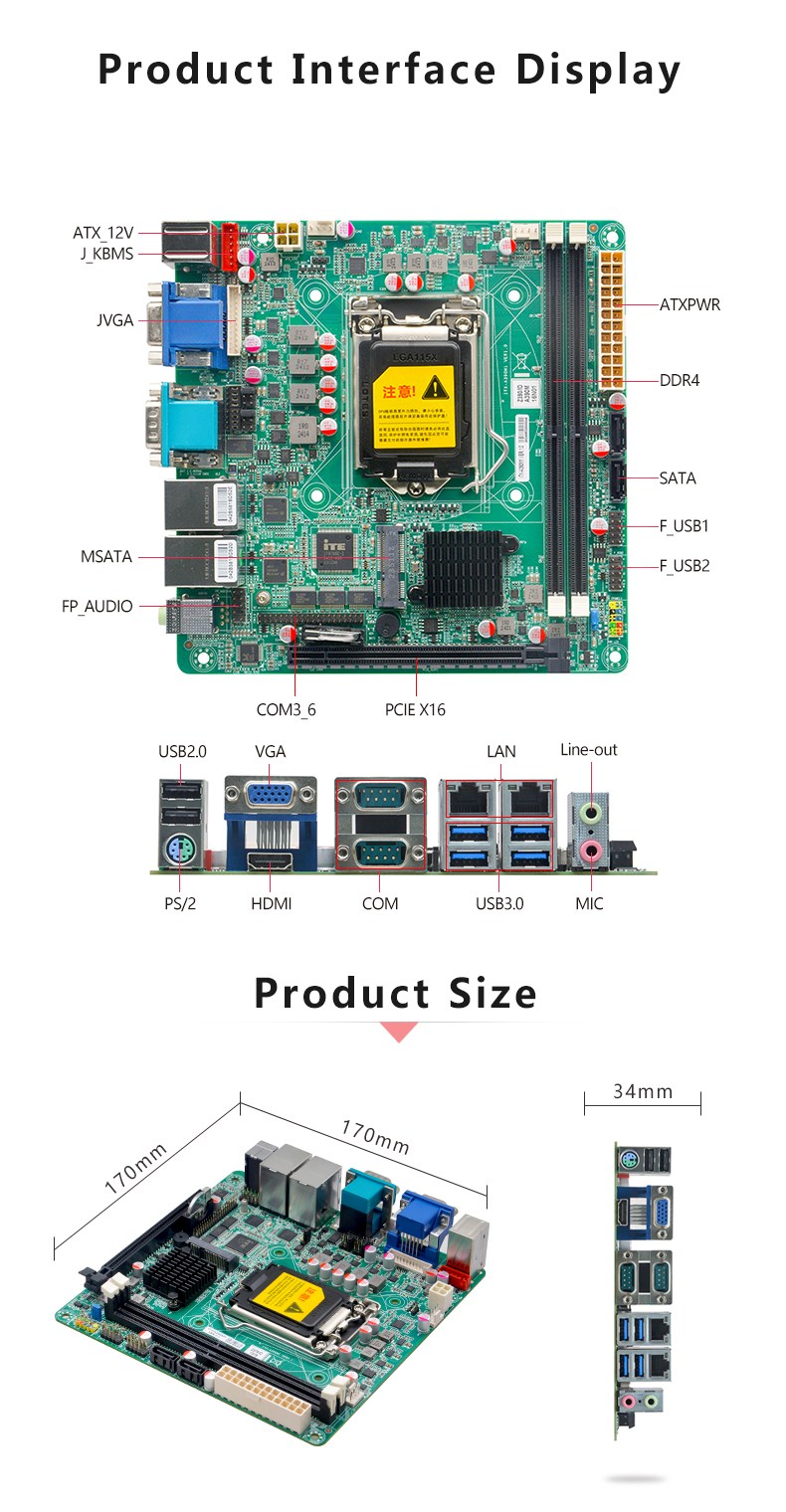

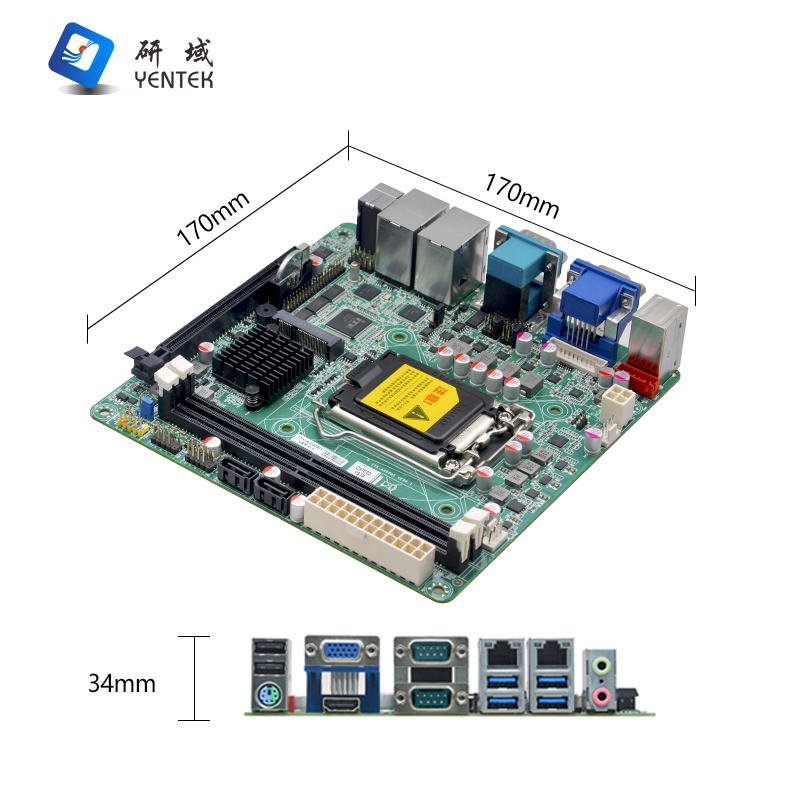

Size | 170mm x 170mm |
Order Information
No. | Model | Processor | Southbridge | Memory | VGA | HDMI | LAN | USB | COM | RS485/RS422 | Power |
1 | ITX-A390M1 VER:1.0 | LGA1151 | Z390 | 2*DDR4 | 1 | 1 | 2*I210AT | 10 | 6 | 2 | ATX |
