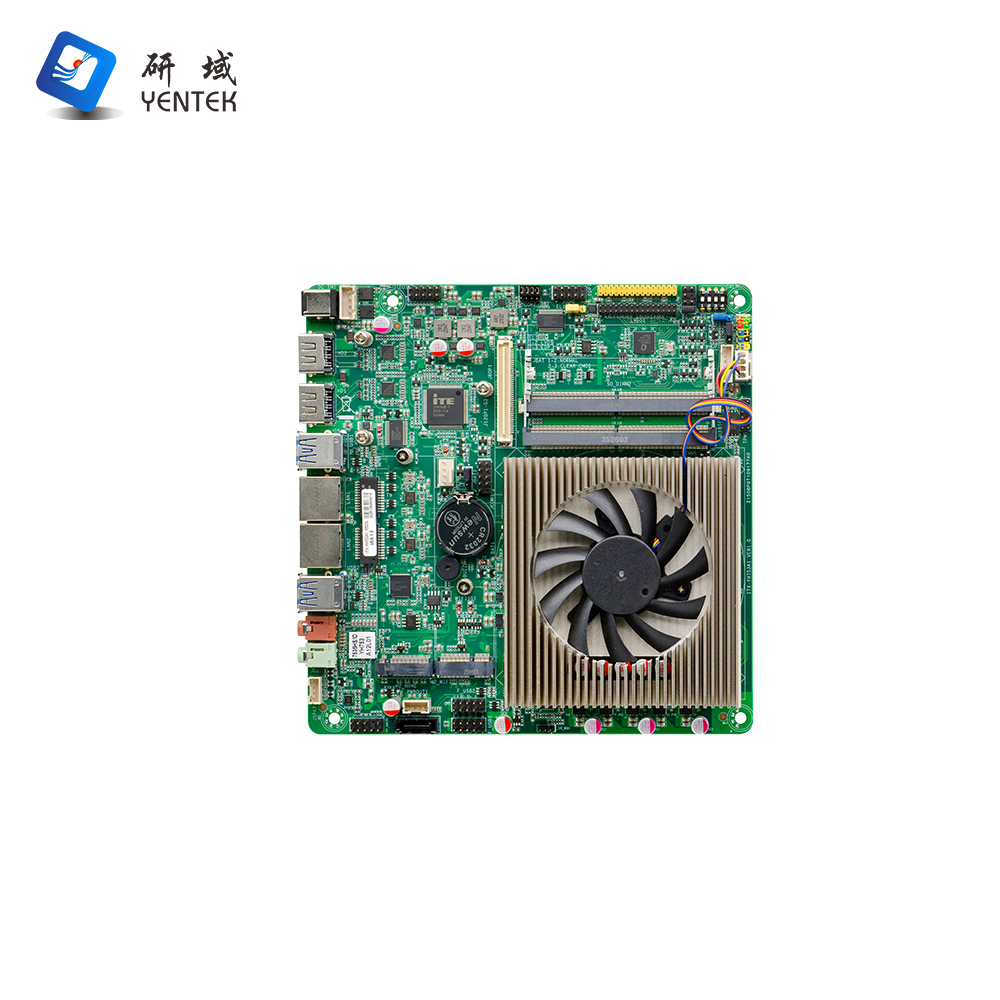

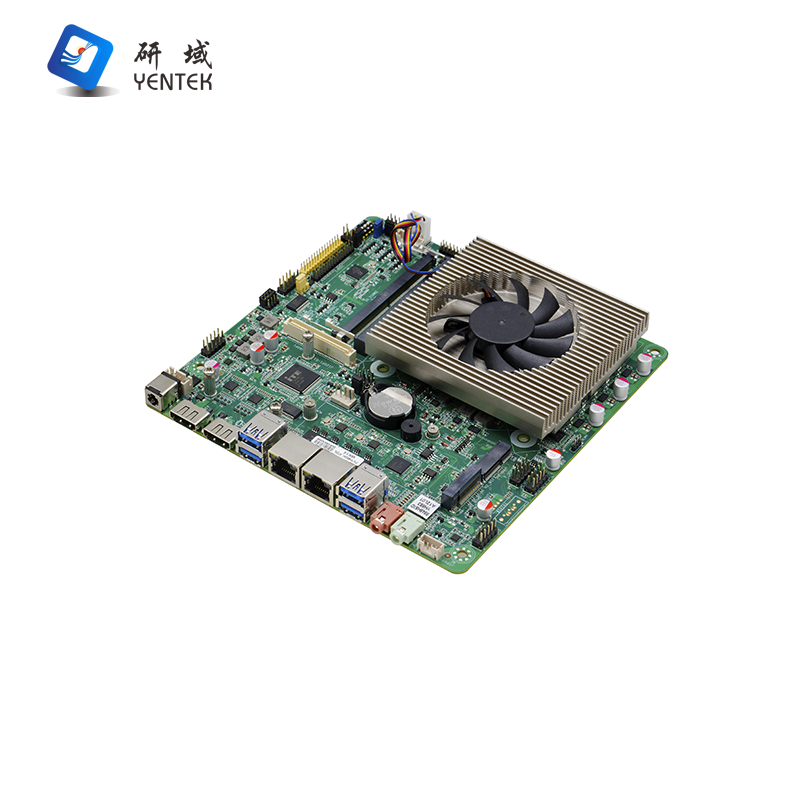

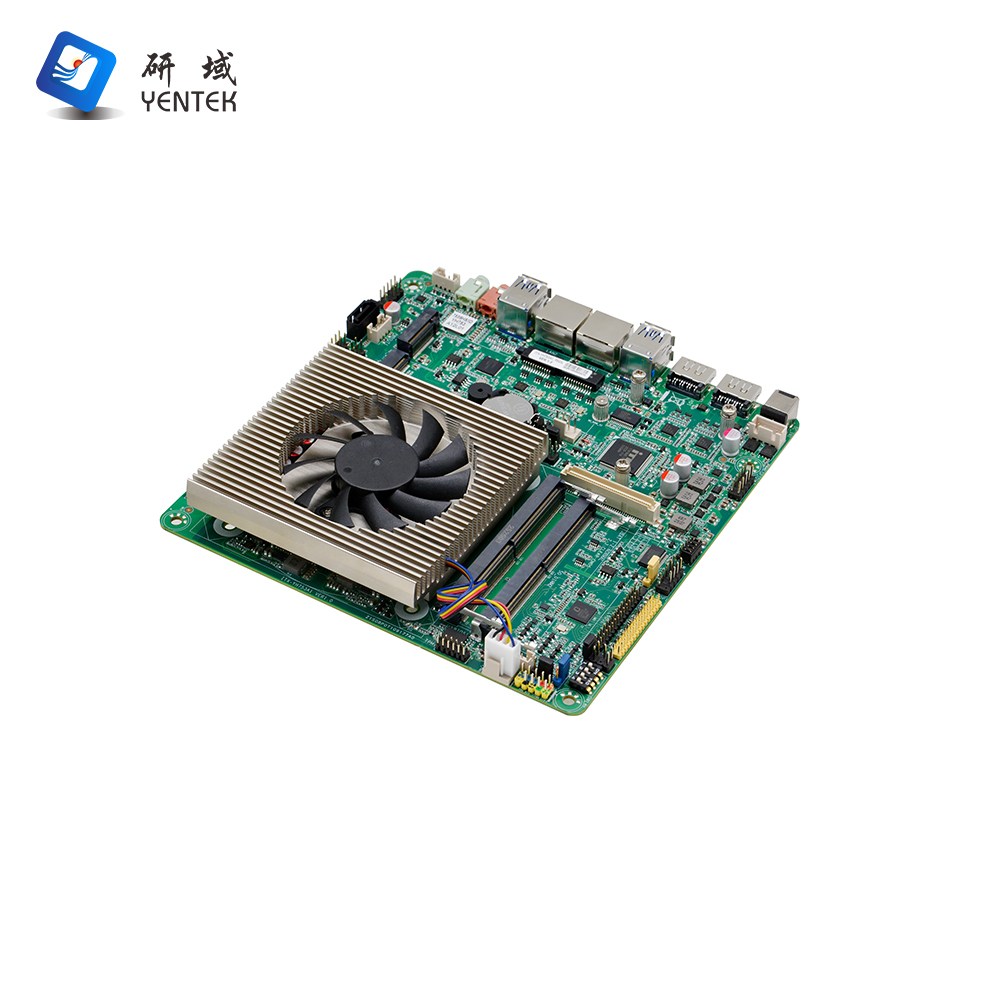

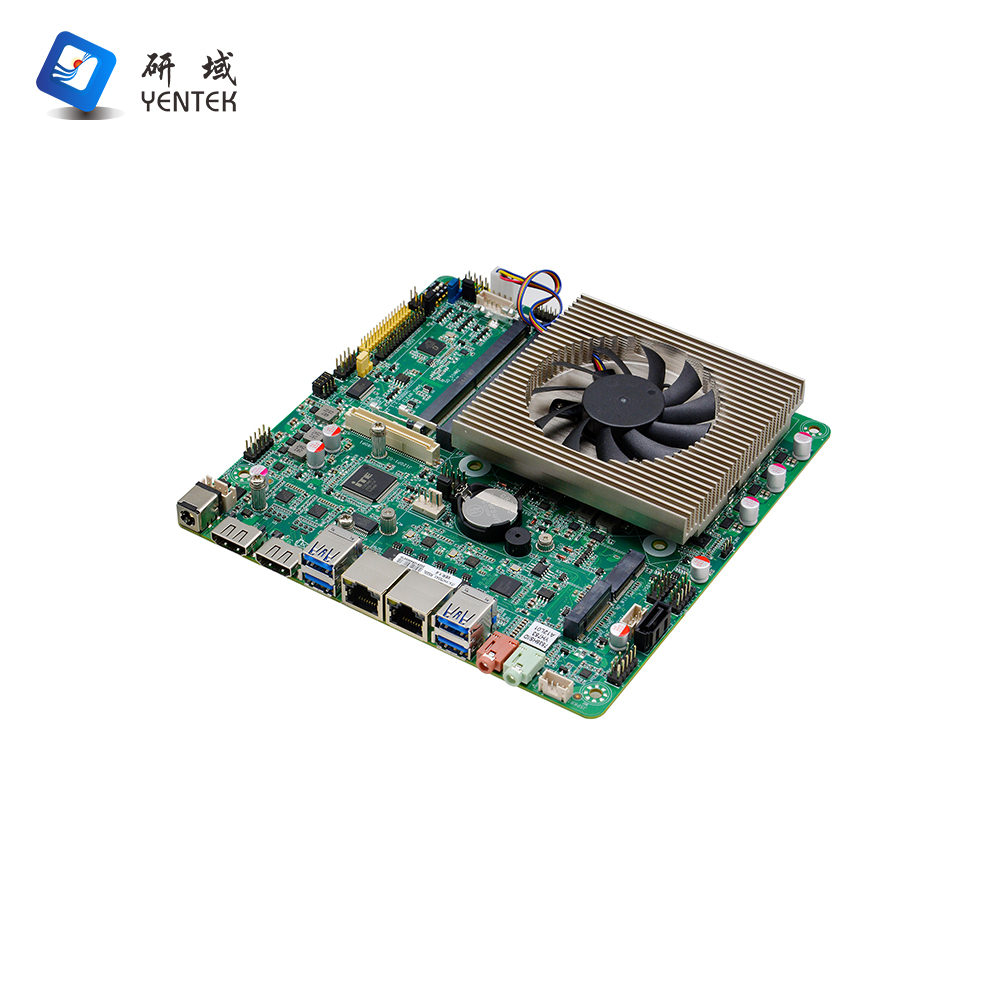

ITX-YH753A1_R523L

Processor

Features an integrated AMD Ryzen™ 5 7535HS 3.3GHz processor   with 6 cores and 12 threads, TDP 35–54W

Compatible with AMD Ryzen™ 5/7 series processors

Chipset

SOC

Memory

2x DDR5 SODIMM memory slots, supporting dual-channel memory   up to 4800MHz, maximum capacity 64GB

Display

Integrated AMD Radeon™ 660M, supporting DirectX 12 and OpenGL   4.6, with 4K/60Hz capability

2x HDMI 2.0 ports, maximum supported resolution:   3840x2160@60Hz

1x dual-channel 24-bit LVDS interface

1x EDP interface (selectable via jumper with LVDS)

Supports HDMI/LVDS or EDP synchronous/asynchronous triple   display

Network

2x RTL8111 1GbE network cards, supporting Wake-on-LAN and PXE   functionality

Storage

1x SATA 3.0 hard drive interface, transfer speeds up to 6Gbps

1x M.2 slot, supporting M.2 Key M 2280   NVMe PCIe 4.0 x4 specification SSD

Audio

Integrated ALC897 7.1+2-channel high-fidelity audio   controller, supporting MIC, Line_out, and amplifier

Supports amplifier for 4Ω 3W speakers

Expansion Slots

1x M.2 slot supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules

1x 80-pin high-speed header including 4x PCIe, ESPI, USB, DDI   signals (requires YH753-H2 expansion board)

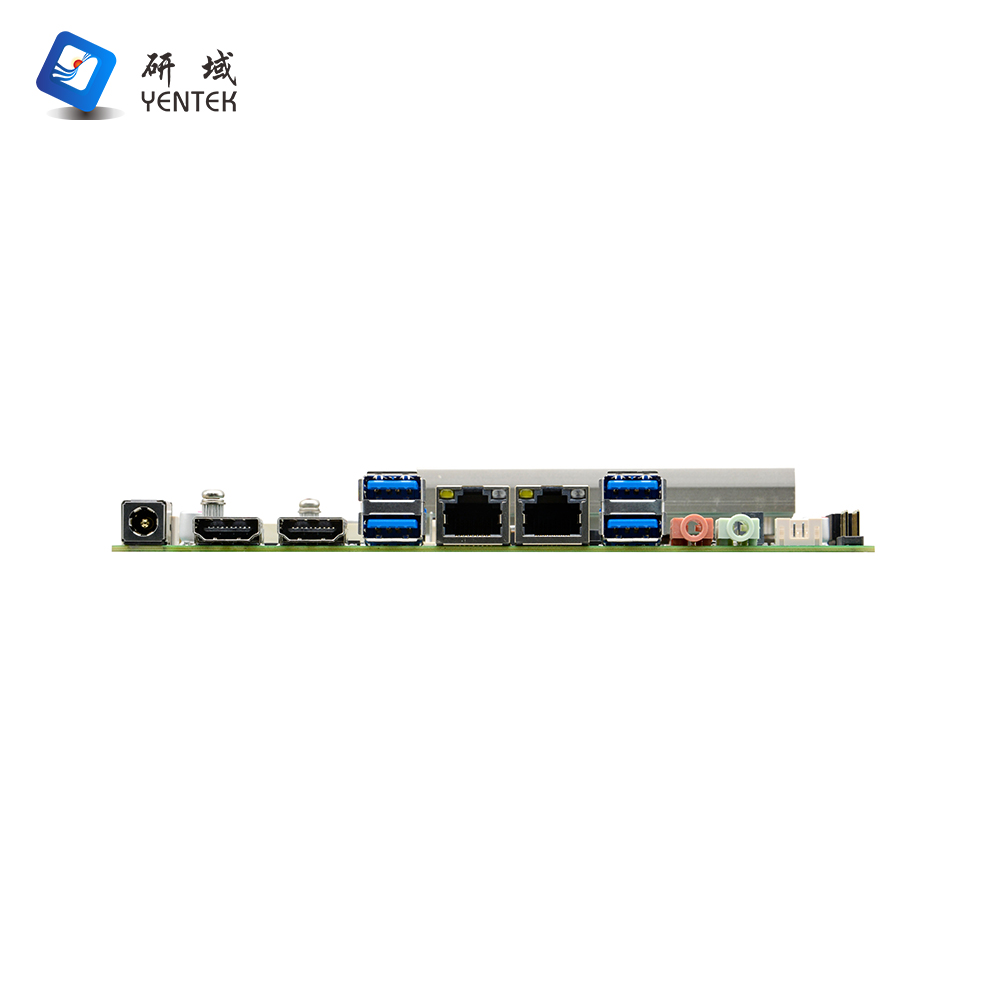

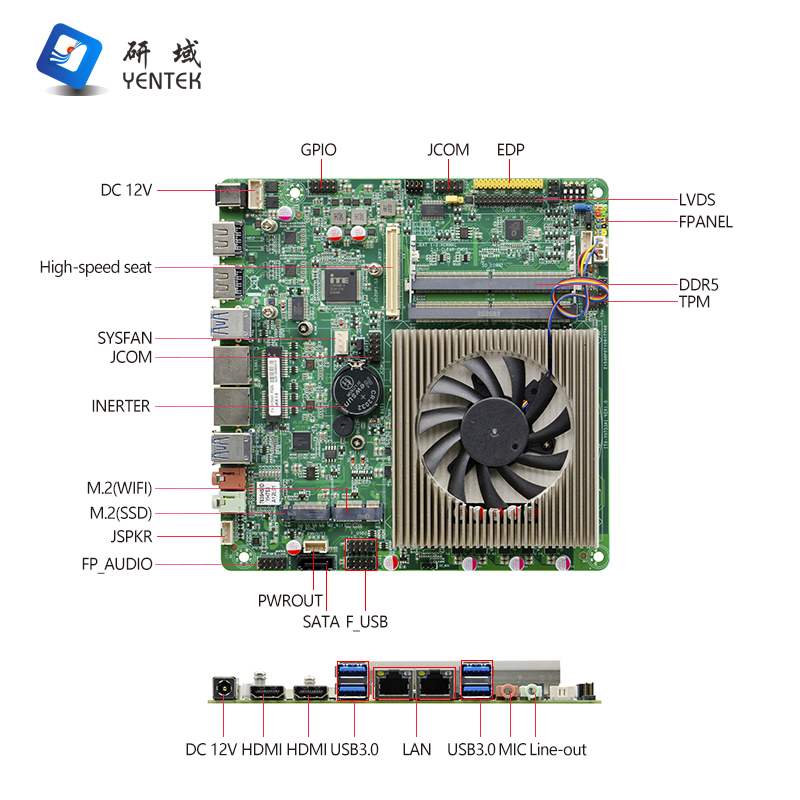

Rear Panel I/O Ports

4x Type-A USB 3.0 ports (5Gbps)

2x HDMI 2.0 ports

2x RJ45 Gigabit Ethernet ports

1x Line-out (green), 1x MIC (red)

1x DC power connector, supporting 12V~19V input

Integrated I/O Ports

1x LVDS interface 2x15-pin, PH=2.0mm, supporting dual-channel   24-bit

1x LVDS backlight power interface 1x 6-pin PH=2.0mm

1x EDP interface 2x 15-pin, PH=2.0mm, shared with LVDS via   jumper selection

2x RS232 serial interfaces, 2x 5-pin, PH=2.54mm, COM2   supports RS485 functionality

4* USB 2.0 interfaces 2*5-pin, PH=2.54mm

1* Front audio interface 2*5-pin PH=2.54mm

1* Front panel switch button and indicator interface 2*5-pin   PH=2.54mm

1* Hard drive power supply interface 1*4-pin PH=2.0mm

1* Amplifier interface 1*4-pin PH=2.0mm

1* DC power connector 1*4-pin PH=2.5mm (can serve as 19V   input power connector)

1* TPM interface ESPI specification, 2*6-pin PH=2.0mm

Fan Connectors

1*4-pin CPU intelligent fan connector, 1* 4-pin system fan   connector

GPIO

Supports 4-channel input/output GPIO   functionality

BIOS

256Mb Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

Powered by DC 12–19V supply

Operating System

Windows 10/11/Linux

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

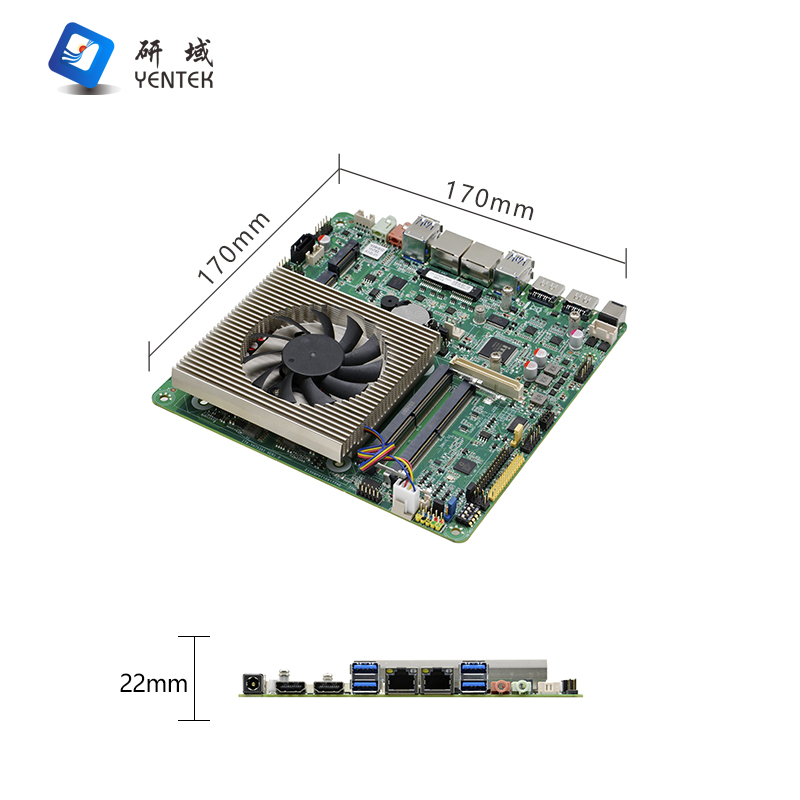

170mm x 170mm
