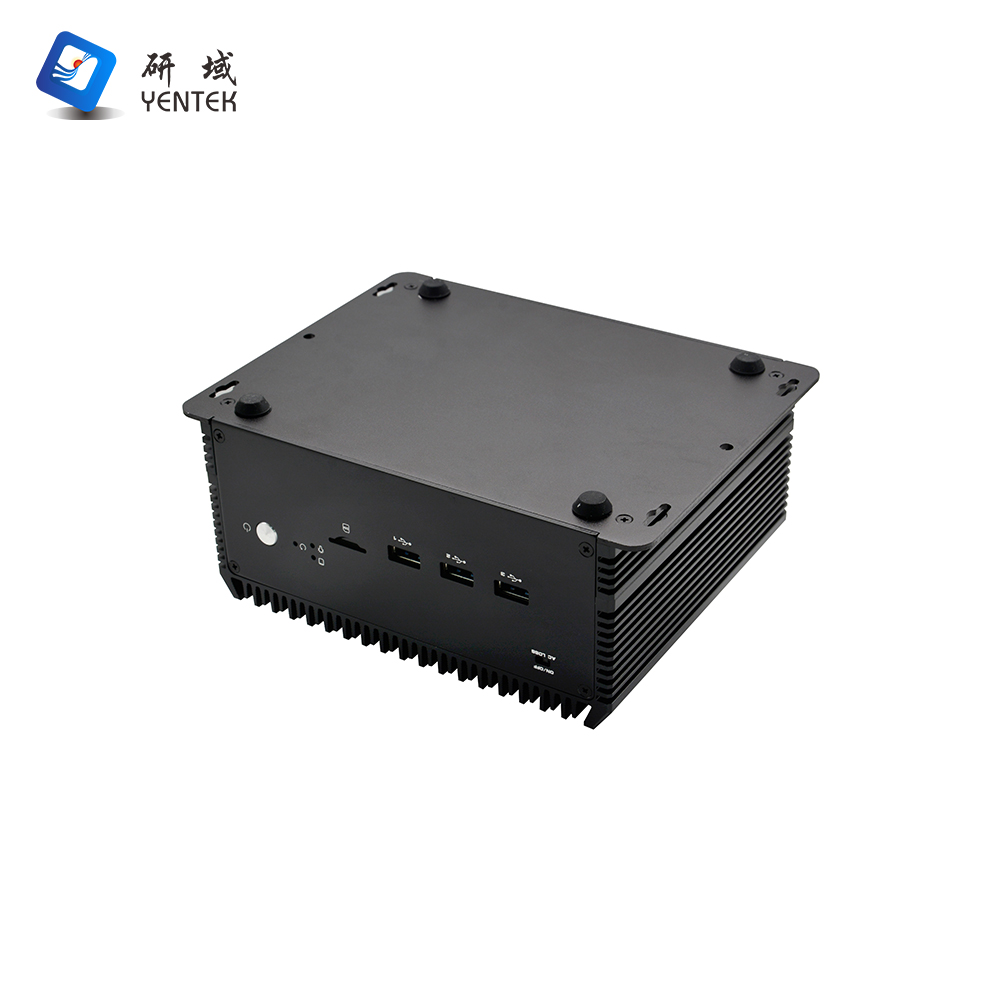

C5760Z-H2

Chassis

Material/Structure

All-aluminum alloy fanless   design

Color

Glossy black

Dimensions (LxWxH)

174mm x 148mm x 78mm

Weight (Net Weight)

1.6KG

Installation

Desktop/Embedded

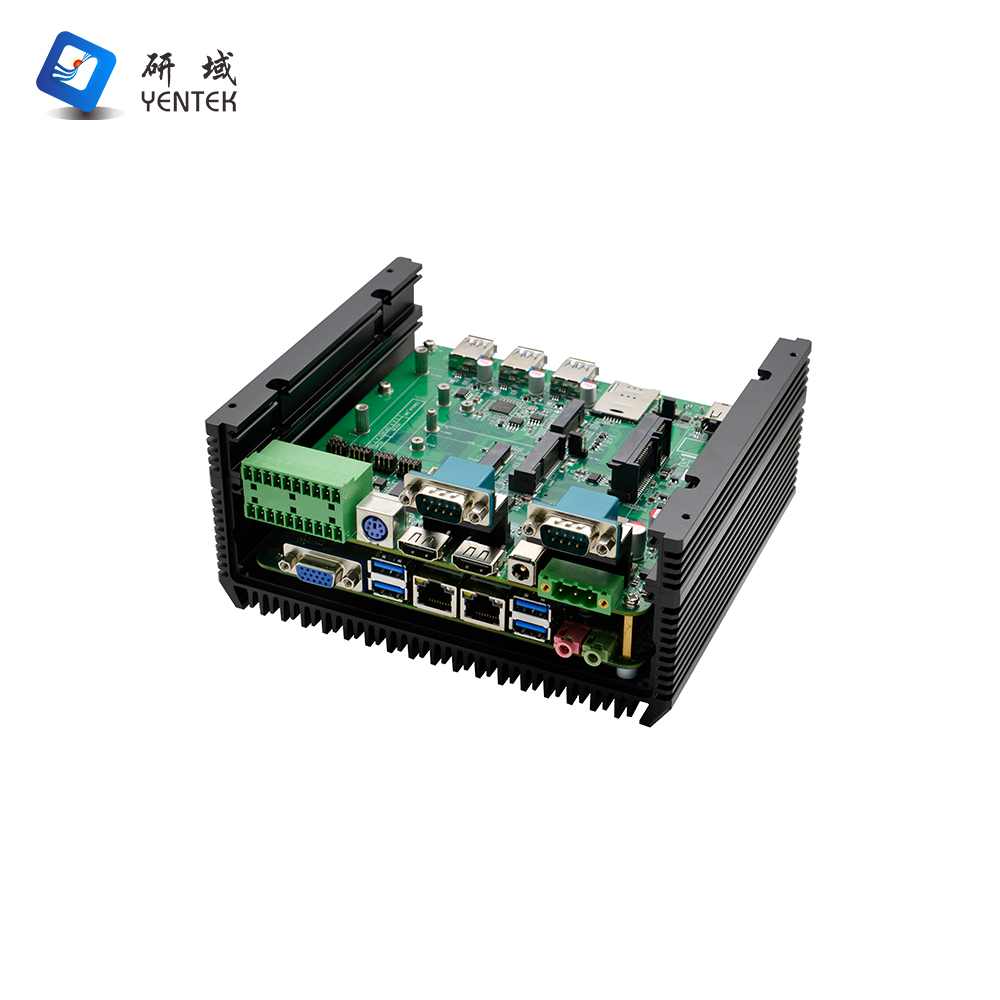

Motherboard

CPU

Integrated Intel® Core™ i5-6300U   processor (2.40GHz dual-core, quad-thread), TDP 15W

Display

Integrated Intel® HD Graphics   520

Memory

2*SODIMM memory slots, supports   2133MHz DDR4 memory, max 32GB

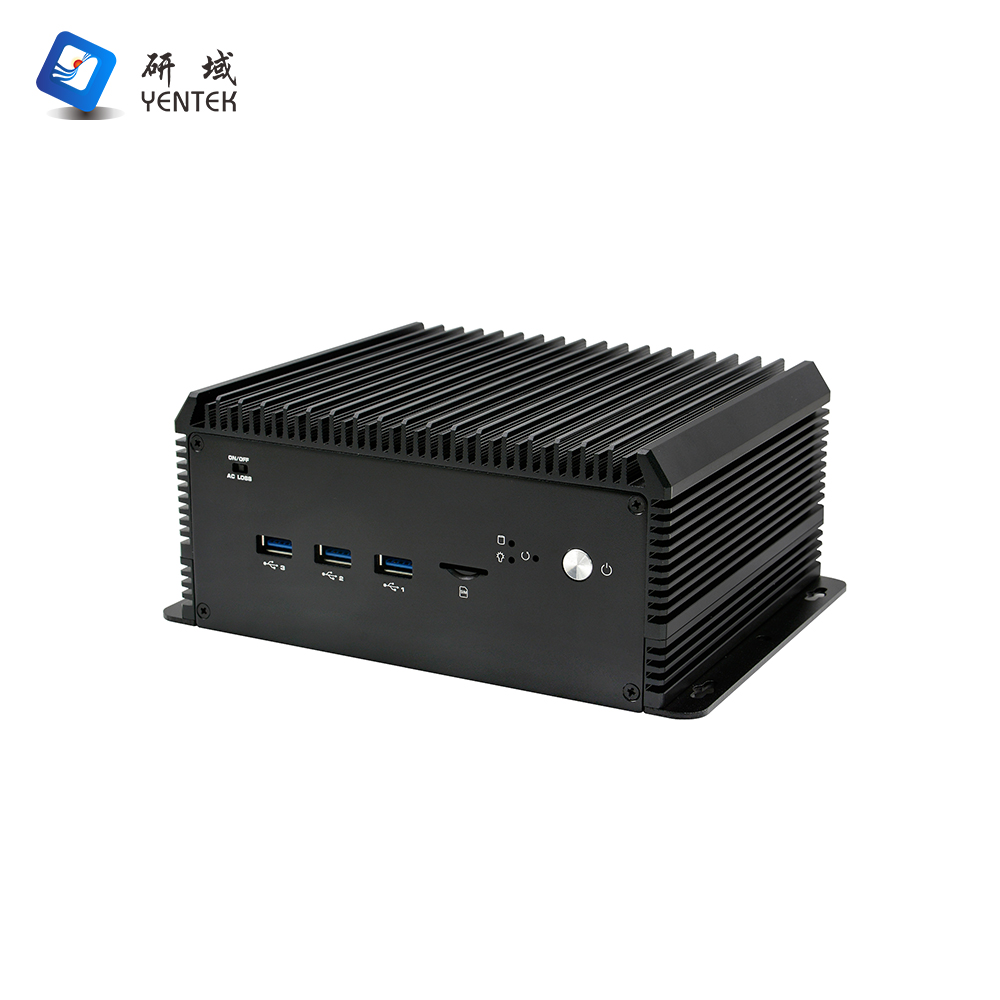

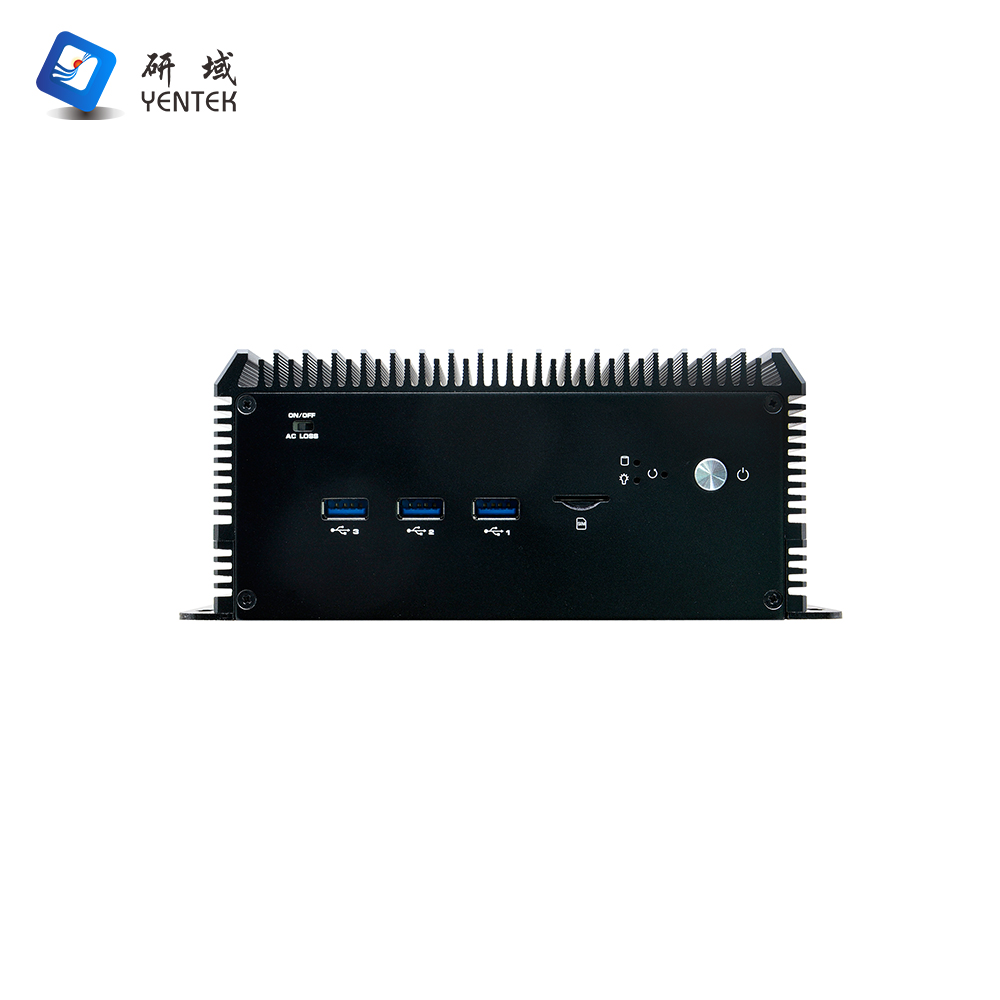

Front Panel Connectors

POWER

1*Power switch, 1*Reset switch,   1*AC LOSS (power-on boot DIP switch)

USB

3*USB 3.0, 1*Internal USB 2.0

SIM

1*SIM card slot

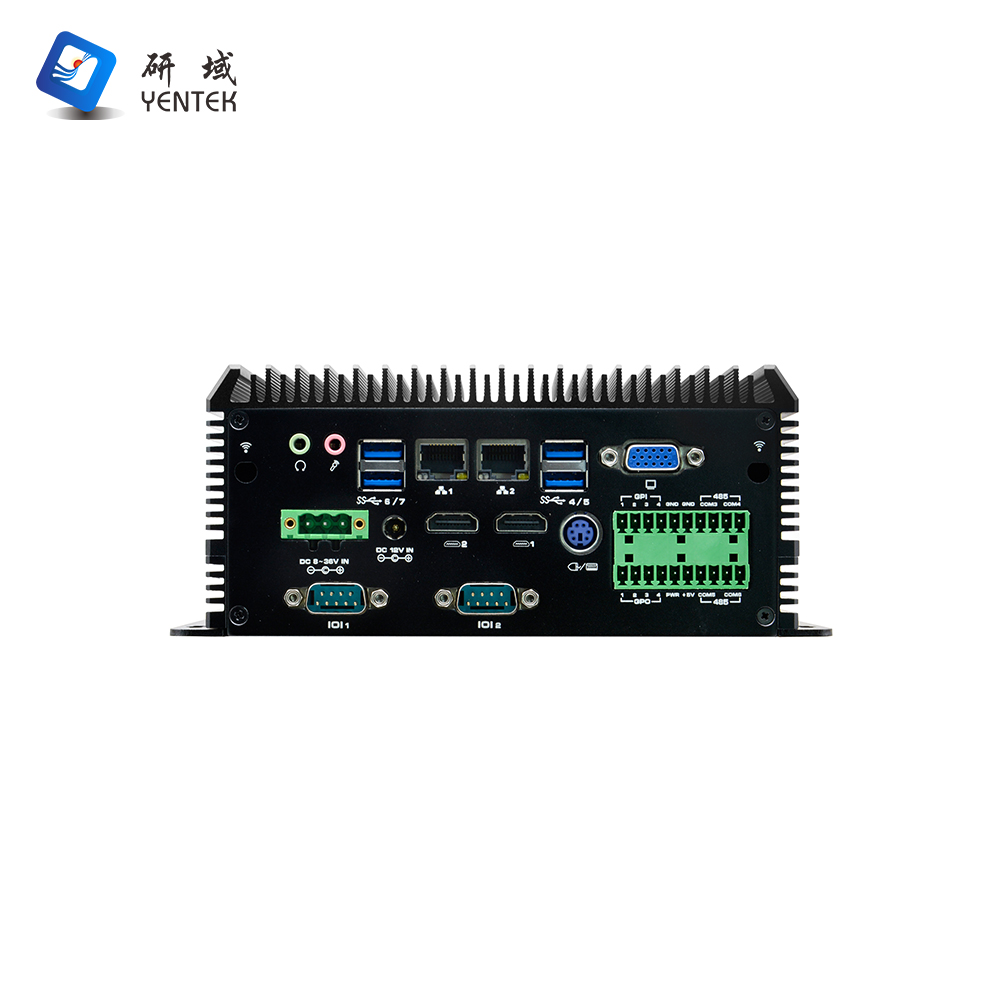

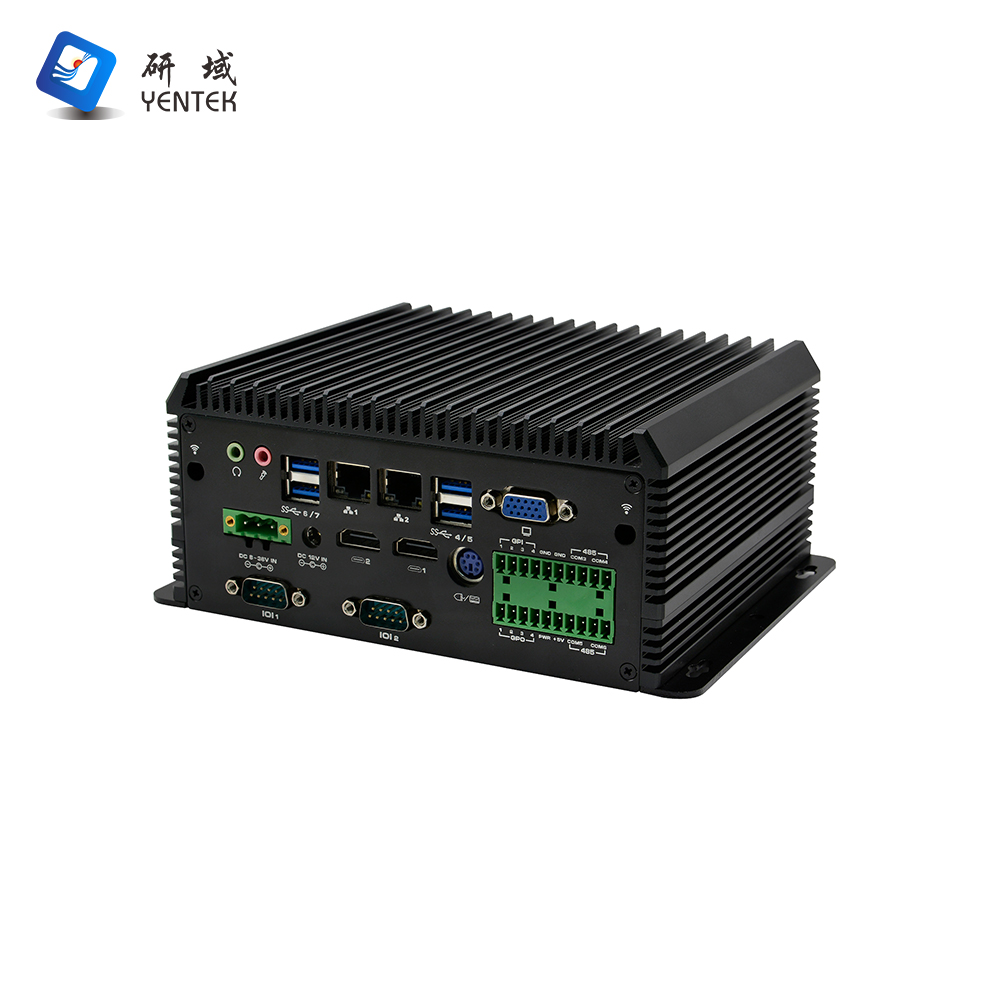

Rear Panel   Connectors

Display Interface

1x VGA (2560x1600@60Hz), 2x HDMI   1.4, supports triple display

LAN

2x Intel I210AT Gigabit   Ethernet, supports Wake-on-LAN and PXE functionality

USB

4x USB 3.0

COM

6x RS232 serial ports (COM1~2   RS232 DB9 ports, supports CAN (requires loading MINIPIECE CAN module)); 4x   RS232/485 on 2x 10-pin Phoenix connectors)

Phoenix Connector

2x 10-pin (includes 4x input/4x   output GPIO/4x COM/switch/5V/GND)

PS2

1x PS/2

Audio

1x Line Out, 1x MIC

Power

1x DC power connector or 1x   3-pin Phoenix connector, supporting 9~36V wide voltage input

Storage

SATA

1x 2.5-inch HDD bay

mSATA

1x mSATA

Expansion

Mini PCIe

1x Mini PCIe slot, supports   Wi-Fi/4G modules

M.2

1x M.2/WiFi, supports Key-E,   2230, WiFi modules

1x M.2/5G, supports Key-B,   2242/52, 5G modules

System Support

Windows

Windows 7

Linux

Ubuntu

Watchdog

Supports hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power Supply Type

External power adapter or   open-frame power supply

Input Voltage

9V~36V wide voltage

Output Power

36W~180W

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%-95% relative humidity, non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating
