| Model number | R280E V1.0(5205U) | |
| Chassis | Material/Structure | 1U standard case, high quality galvanized material |
| Colour | Light silver black | |
| Dimensions | 430* 280.2*45MM | |
| Install | 1U standard rack mounting method | |
| Motherboard | CPU | Onboard 10th Gen Celeron 5205U 1.9GHz dual Core 2 thread processor, TDP 15W |
| Chipset | SOC | |
| Display | Intel® HD Graphics | |
| Memory | 2* DDR4 SODIMM RAM slot, 2400MHz , max up to 64GB | |

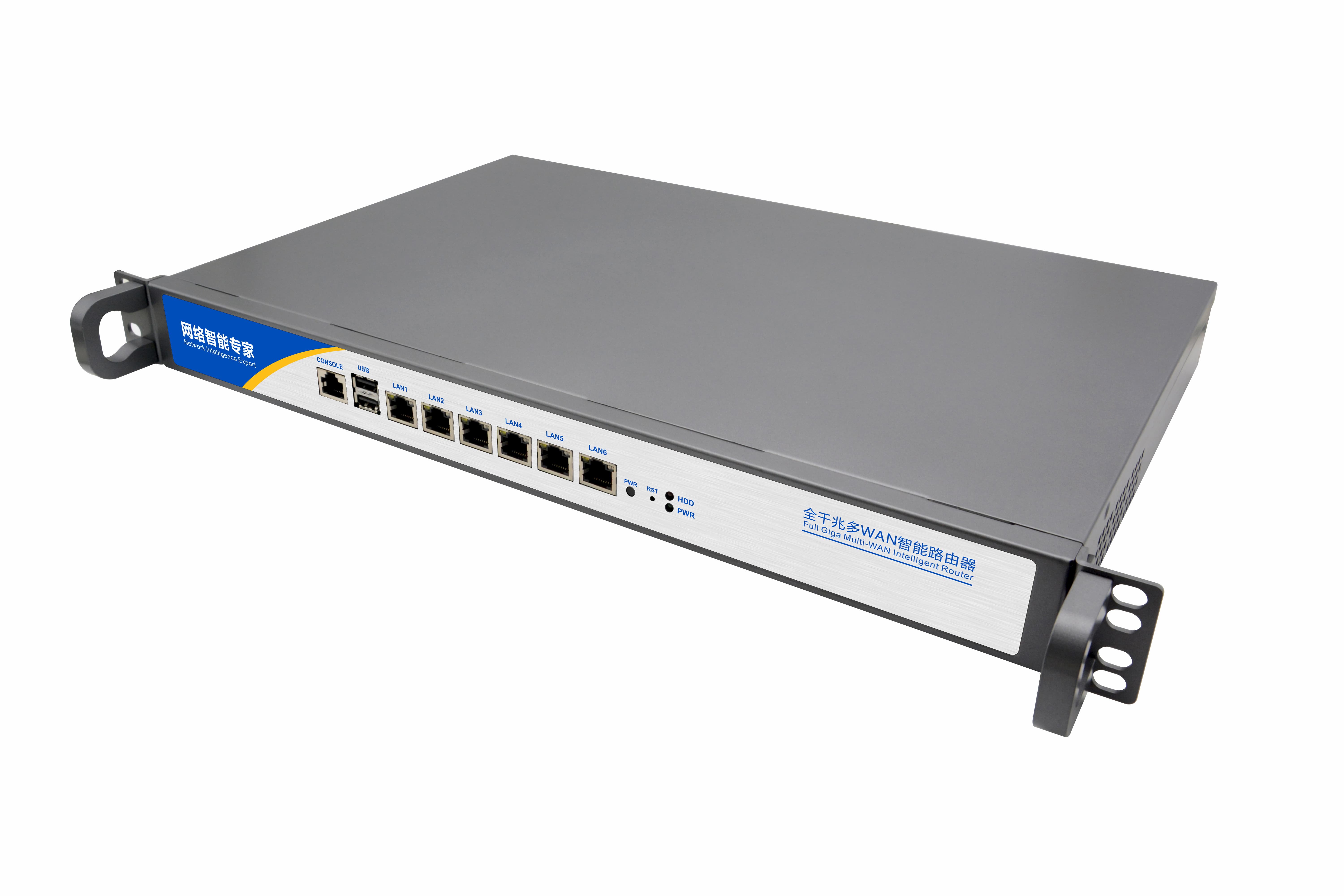

| Front Panel Port | LED | 1* HDD LED，1*Power LED |
| POWER | 1* Power switch，1* Reset switch | |
| USB | 2* USB2.0 | |
| COM | 1* RJ45 COM port | |
| LAN | 6* WGI211AT Ethernet, support Wake On LAN / PXE | |

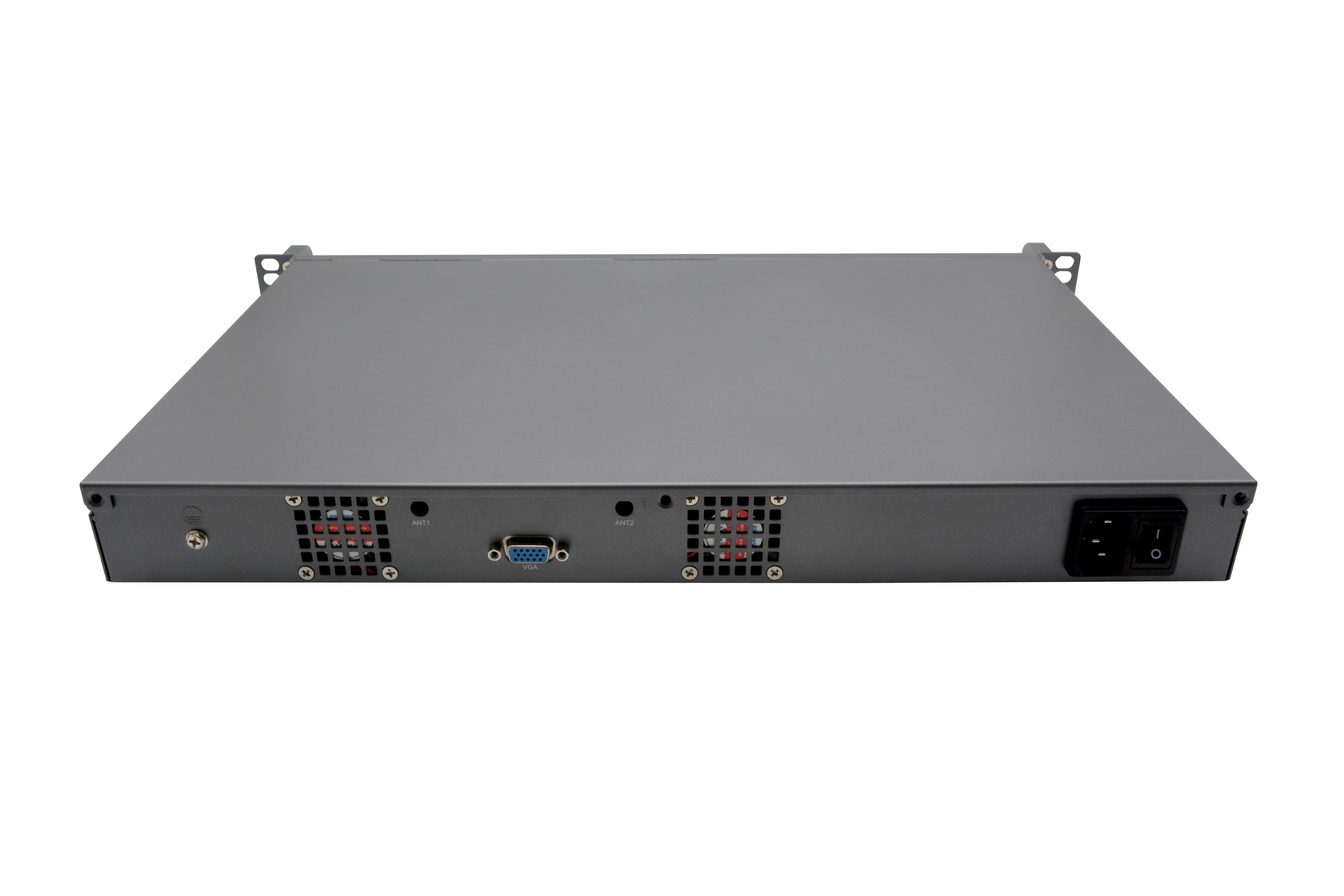

| Rear Panel Port | Power | 1* power supply connector |
| Display Port | 1*VGA port | |
| Storage | SATA | N/A |
| SSD | 1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps | |
| Extend | Mini PCIE | N/A |
| M.2 | 1* M.2 Key-B slot, support M.2 2230/2242/2252 4G/5G module | |
| OS Support | Microsoft Windows | Windows 7/10 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256，0~255 seconds) | |
| Power Supply | Power supply type | Open power supply |
| Voltage | 12V/5A | |
| Consumption | AC TO DC，60W | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | BYPASS | LAN | COM | HD OUTPUT | VGA | USB2.0 | USB3.0 | SFP | Power-input |
| 1 | R280E V1.0(3210M) | i5-3210M/2.50GHz | K32 | 1*SODDR3 | N/A | 6* I211AT | 1 | N/A | 1 | 2 | N/A | N/A | AC 220V |
| 2 | R280E V1.0(2950M) | 2950M/2.0GHz | K87 | 1*SODDR3L | N/A | 6* I211AT | 1 | N/A | 1 | 2 | N/A | N/A | AC 220V |
| 3 | R280E V1.0(4455M) | 4455M/2.1GHz | K45 | 1*SODDR3 | N/A | 6* I211AT | 1 | N/A | 1 | 2 | N/A | N/A | AC 220V |
| 4 | R280E V1.0(5205U) | 5205U/1.9GHz | K52 | 2*SODDR4 | N/A | 6* I211AT | 1 | N/A | 1 | 2 | N/A | N/A | AC 220V |
| 5 | R280V V1.0(3210M) | 3210M/2.50GHz | K32 | 1* SODIMM DDR | N/A | 6* I225V | 1 | N/A | 1 | 2 | N/A | N/A | DC 12V |
| 6 | R280V V1.0(2950M) | 2950M/2.00GHz | K87 | 1* SODIMM DDR3 | N/A | 6* I225V | 1 | N/A | 1 | 2 | N/A | N/A | DC 12V |
| 7 | R280V V1.0(4455M) | 4455M/2.10GHz | K45 | 1* SODIMM DDR3 | N/A | 6* I225V | 1 | N/A | 1 | 2 | N/A | N/A | DC 12V |
| 8 | R280V V1.0(5205U) | 5205U/1.90GHz | K52 | 1* SODIMM DDR3 | N/A | 6* I225V | 1 | N/A | 1 | 2 | N/A | N/A | DC 12V |
