Model | G3260F-L6E1 V2.0(12450H) |
Chassis | Material/Construction | Aluminium + sheet metal |
Colour | Black + Silver |

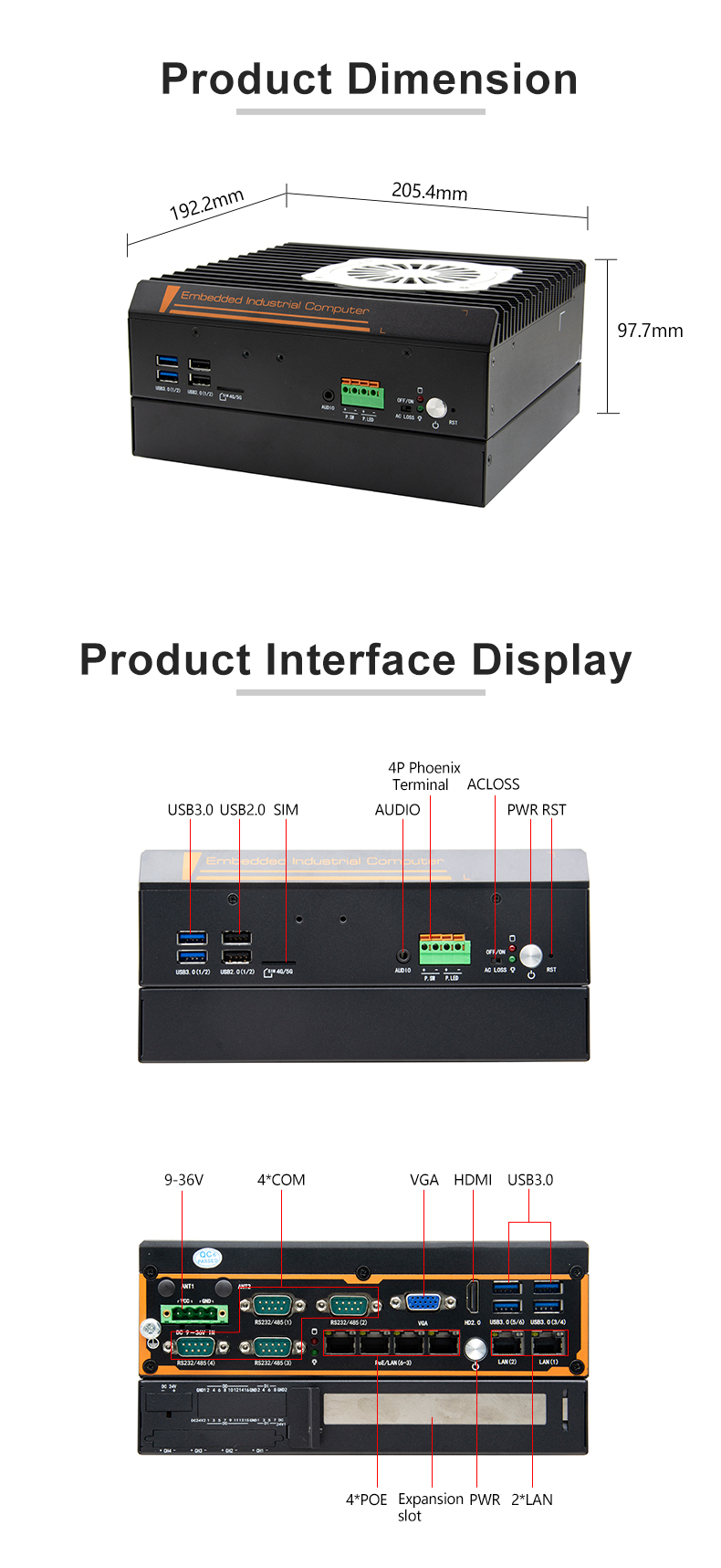

Dimensions (LWH) | 205.4*192.2*97.7mm (without stand) |
Weight | 2.7KG |
Installation | Desktop/Embedded |
Motherboard | CPU | Integrated Intel ®i5-12450H/Turbo 4.40GHz, 4PCore,4ECore Octa-Core, 12-Thread Processor, TDP 45W |
System-on-Chip | Intel SOC |
Memory | 2*SODDR4 3200MHz, Maximum Support 64GB |

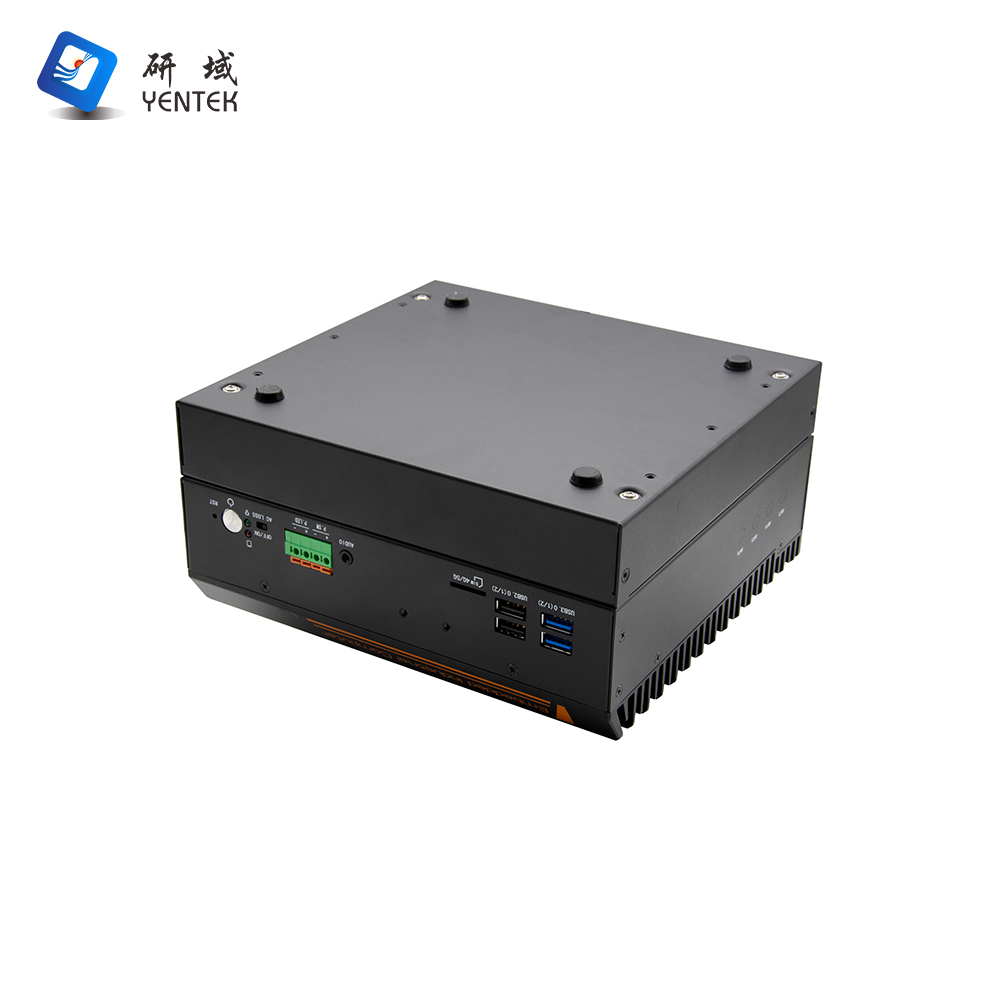

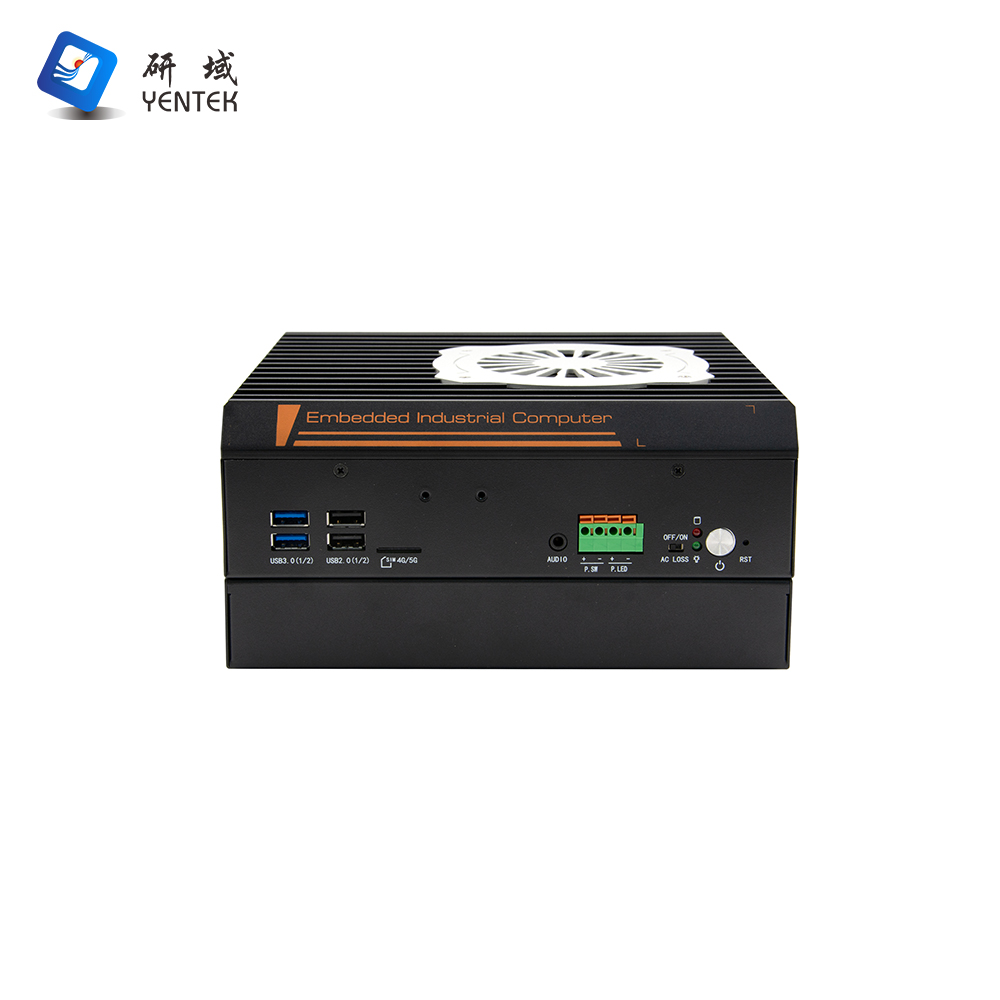

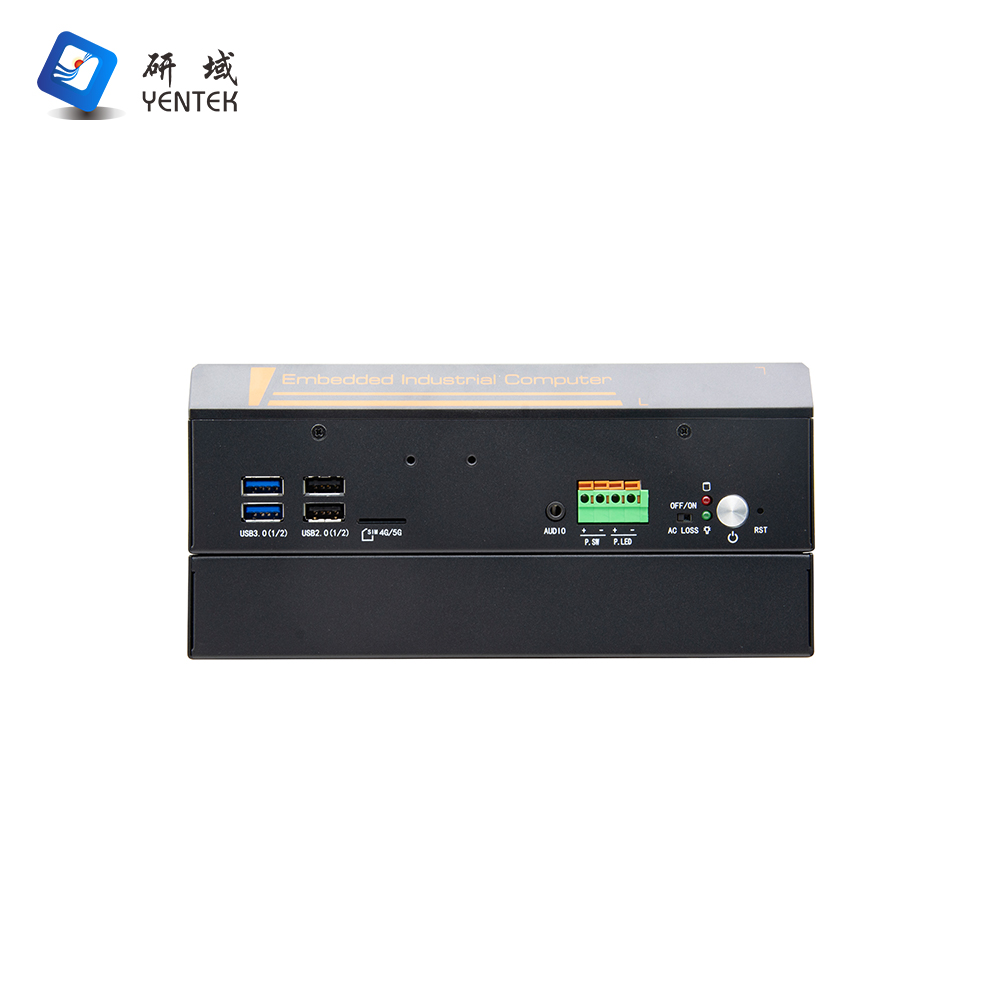

Front Panel Connectors | Switches | 1*Boot Button, 1*One-Key-Restore, 1*ACLOSS (Power On and Off) DIP Switch) |
LED | 1*Power Indicator, 1*Hard Drive Indicator |
USB | 2*USB3.0, 2*USB2.0, Built-in 1*USB2.0 |
Phoenix Terminal | 1*4P Phoenix Terminal (1*Power Indicator, 1*Power Switch) |
Audio | 1*Audio, Line out and Mic 2-in-1 |
SIM | 1*SIM Standard Card Slot |

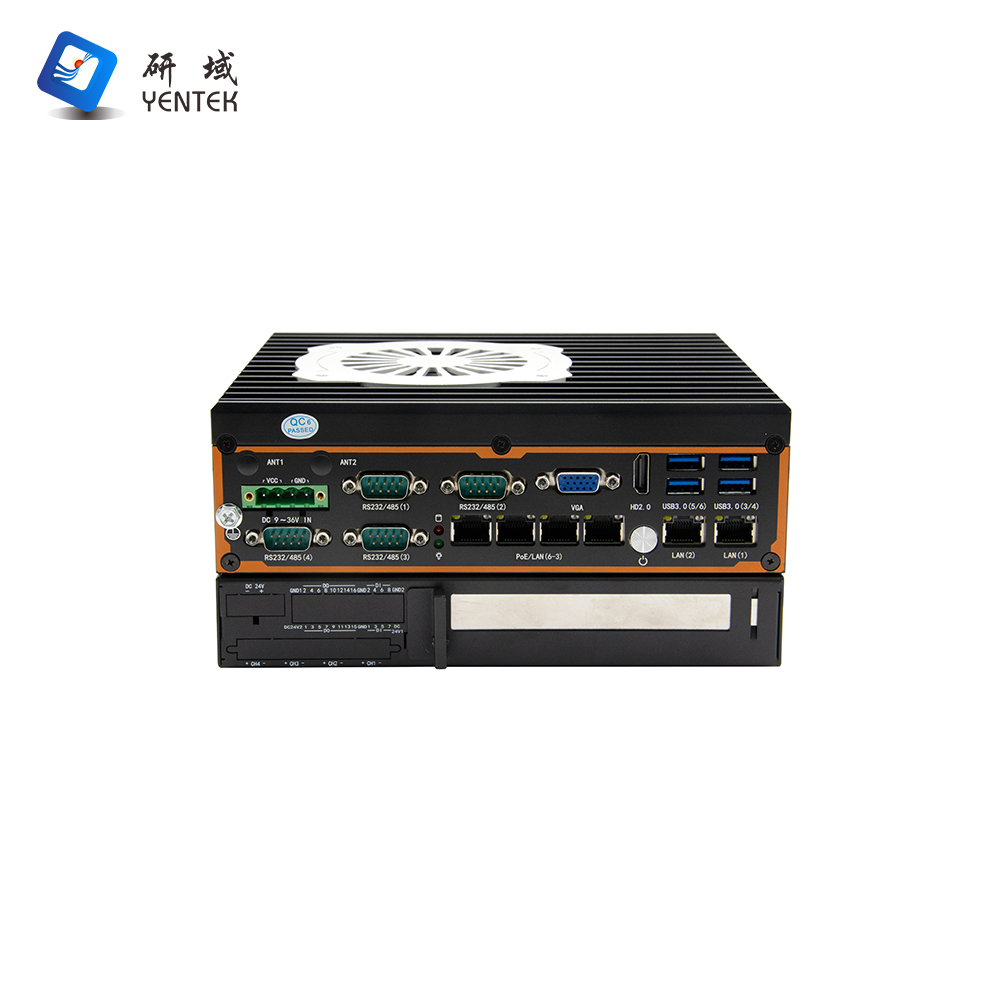

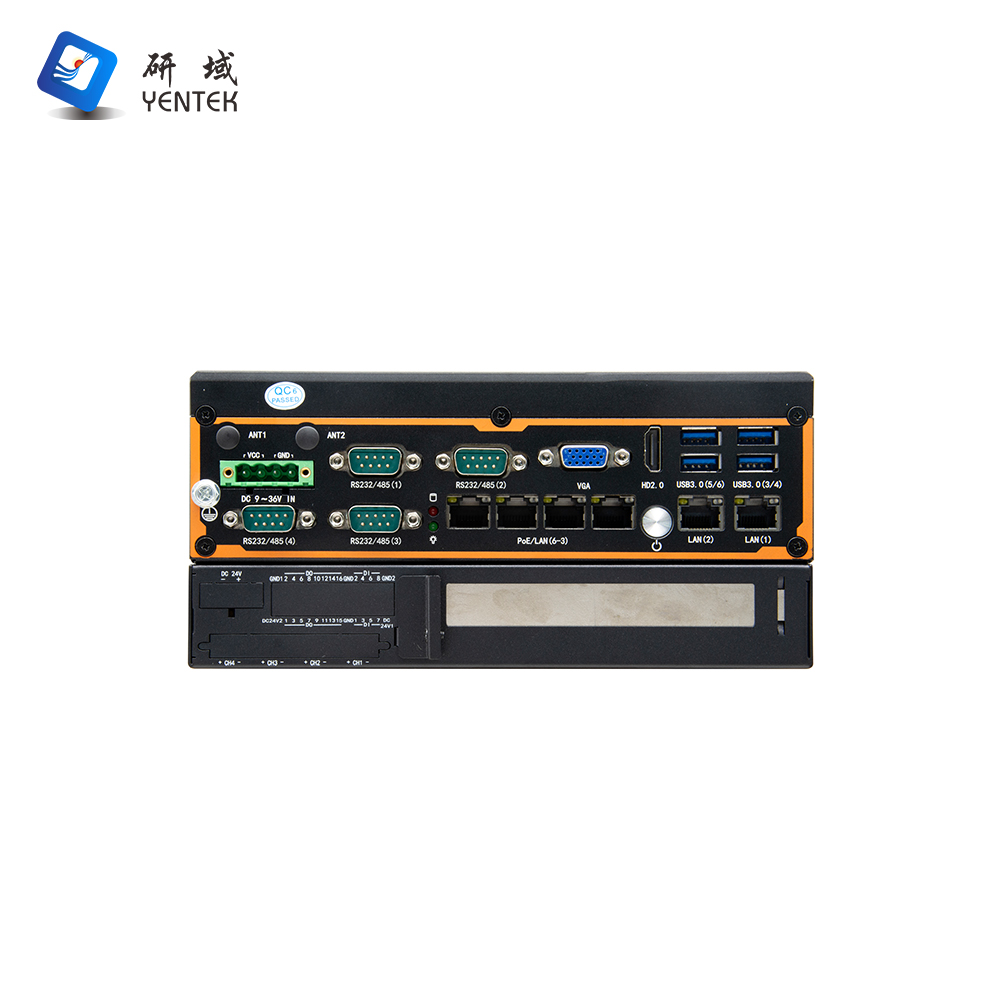

Rear Panel Interface | Display Interface | 1*HDMI1.4, 1*VGA, support dual display |
USB | 4* USB3.0 |
COM | 4*RS232/485 DB9 serial port |
LAN | 6*Intel I210AT Gigabit power ports, 4 of which support POE (single port 15W) |
Dipswitch | 4 sets of 6-position dip switches, COM1-4 RS232/485 switching is achieved by dip switches + BIOS settings |

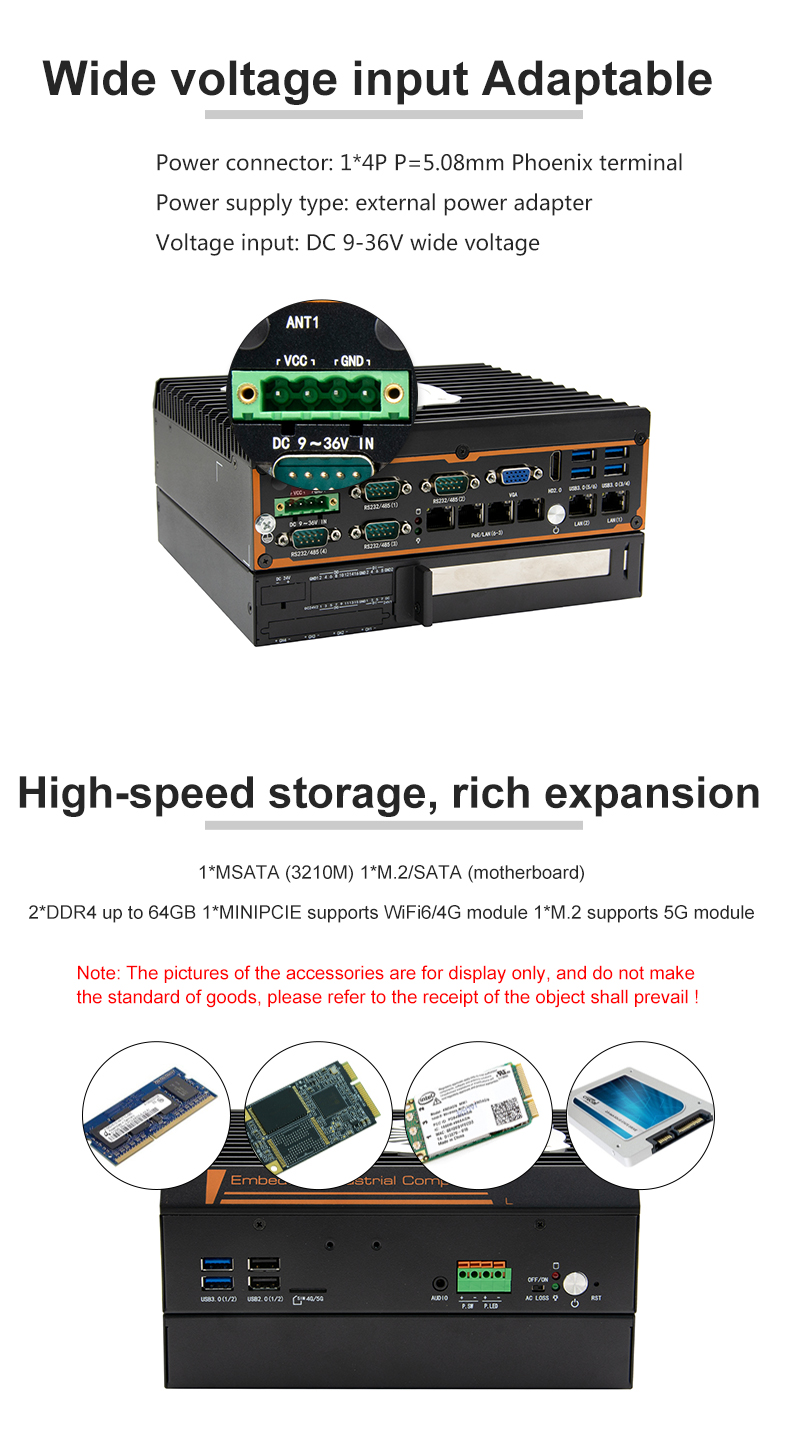

Power Interface | 1*4P P=5.08mm phoenix terminal, support 9~36V wide voltage input |

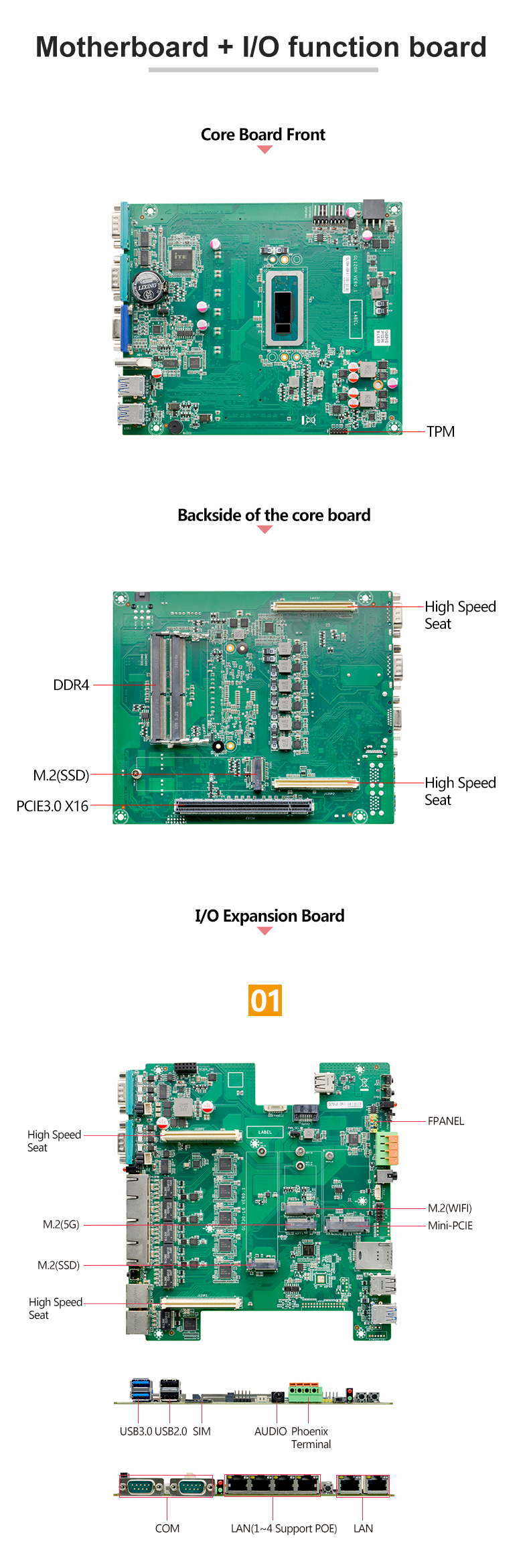

Storage | MSATA/SSD | 1* MSATA (only supported by 3210M, motherboard side) |
1*M.2, support Key-M, 2280, NVME PCIEx4/SATA Adaptive SSD (M.2 for other CPUs, motherboard side) |
SSD | 1*M.2, support Key-M, 2280, SATA SSD (IO board side) |

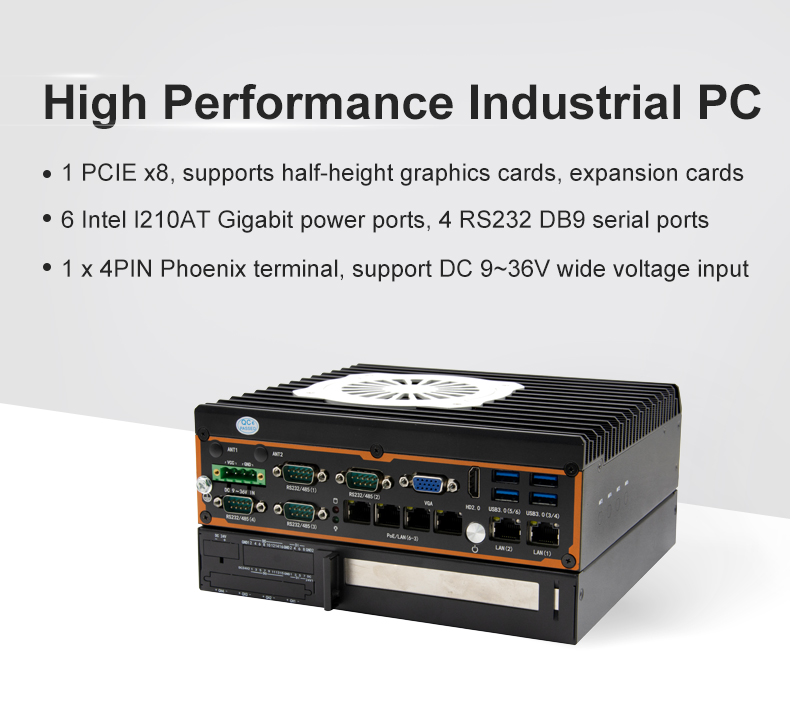

Expansion | PCIE | 1*PCIE3.0 x8 |
WiFi/4G | 1*MINIPCIE, support WiFi6+BT or 4G |
5G | 1*M.2, support Key-B, 3042/3052, 5G module |
System Support | Microsoft | Windows 10 |
Linux | Linux |
Power Supply Type Input | Power Type | External Power Adapter |
| Voltage Input | DC 9-36V Wide Voltage |
Power Output | AC TO DC 90W or more (depending on specific device) |
Environment | Operating Temperature | -10℃～50℃ |
Storage Temperature | -20℃～70℃ |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
