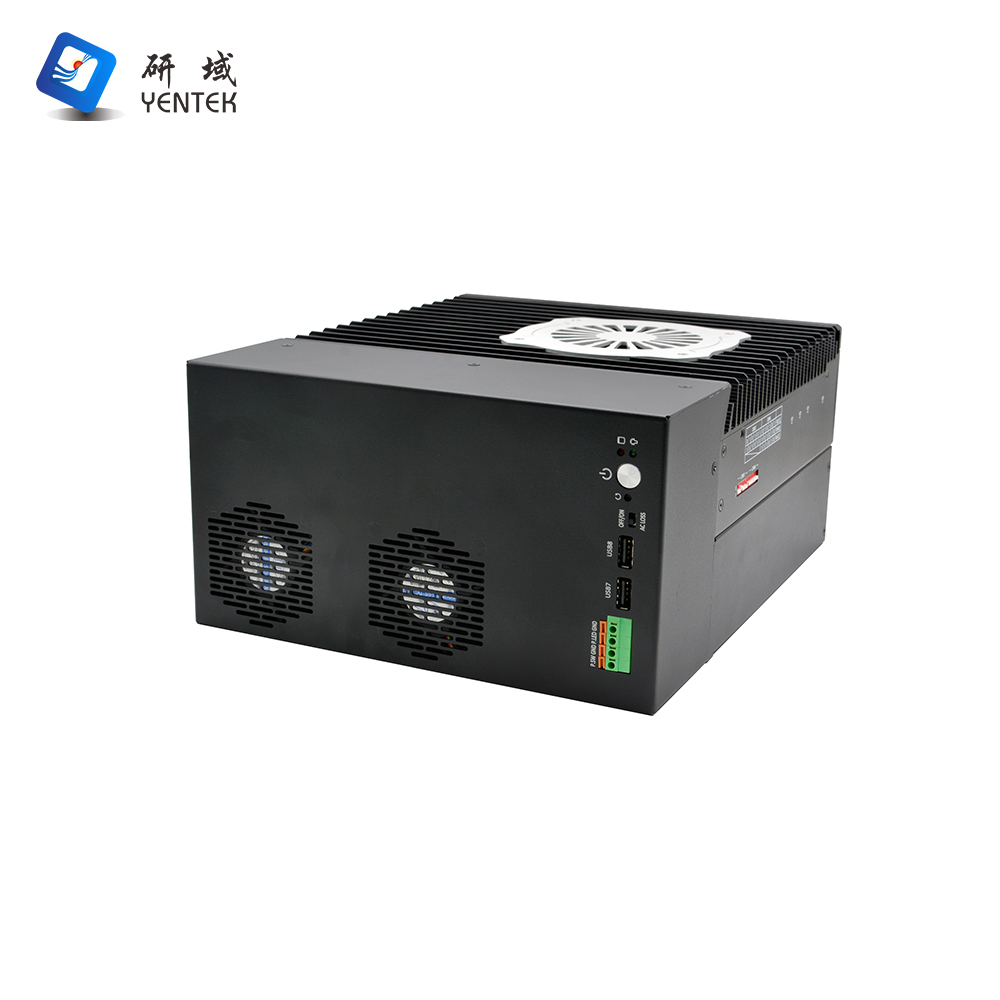

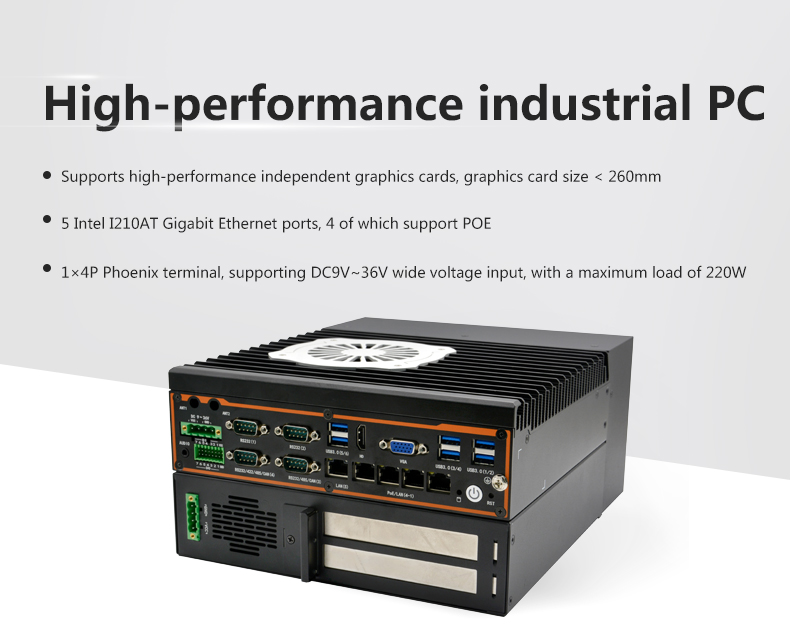

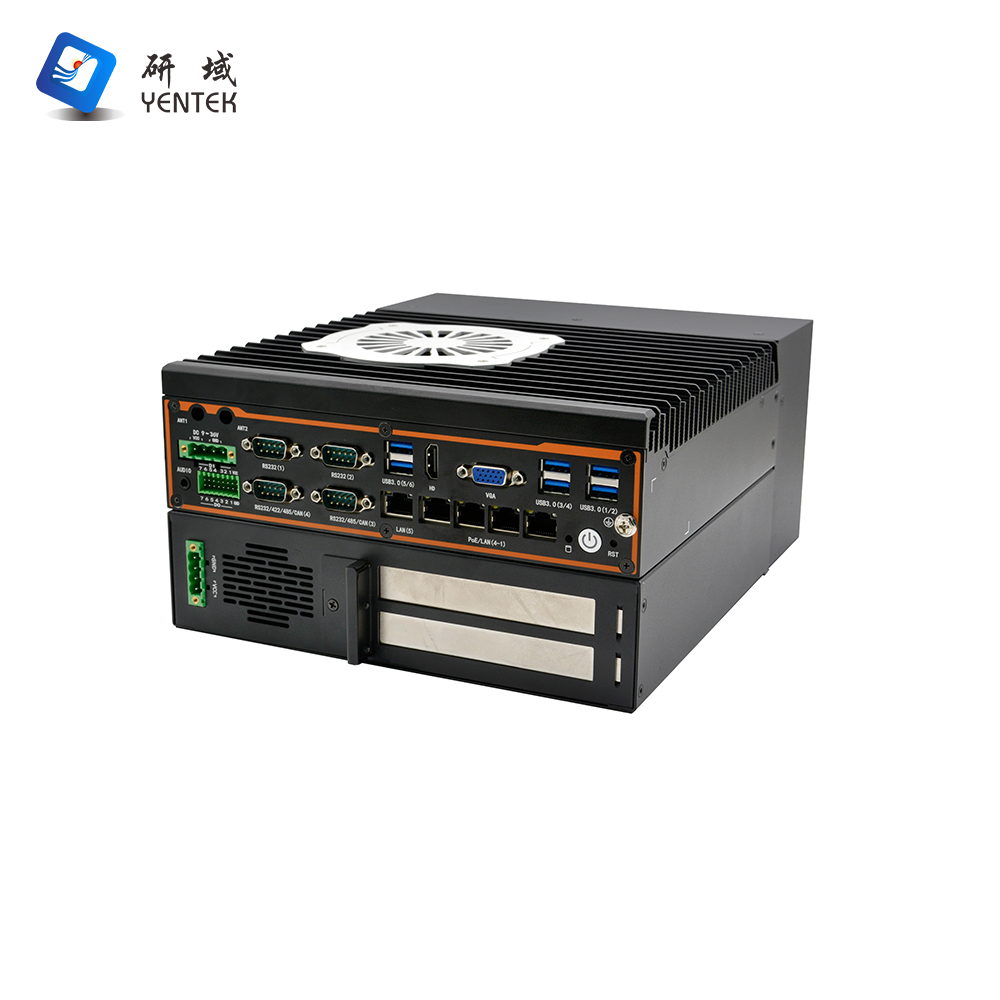

G3781F-P4E2

Chassis

Material/Structure

Aluminum   alloy+sheet metal material fan heat dissipation

Color

Black+Silver

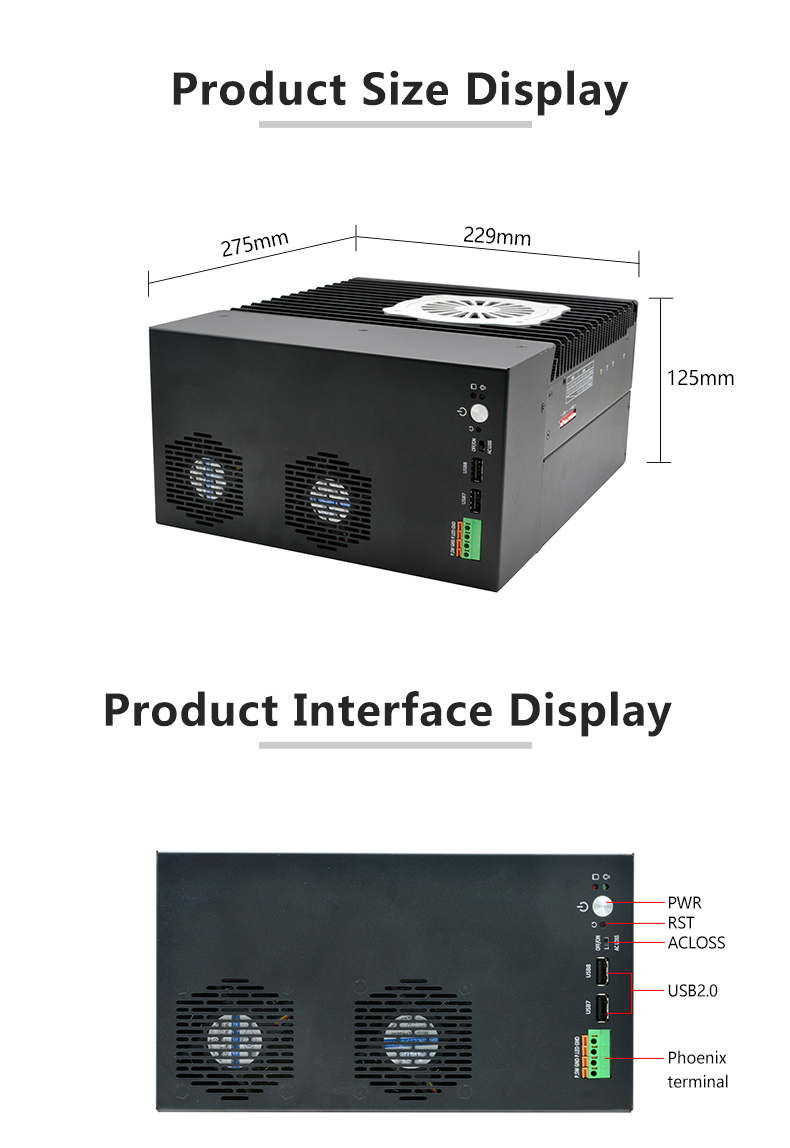

Dimensions   (L*W*H)

229*275*125MM

Weight (bare   metal)

5.25KG

Installation

Desktop/Embedded

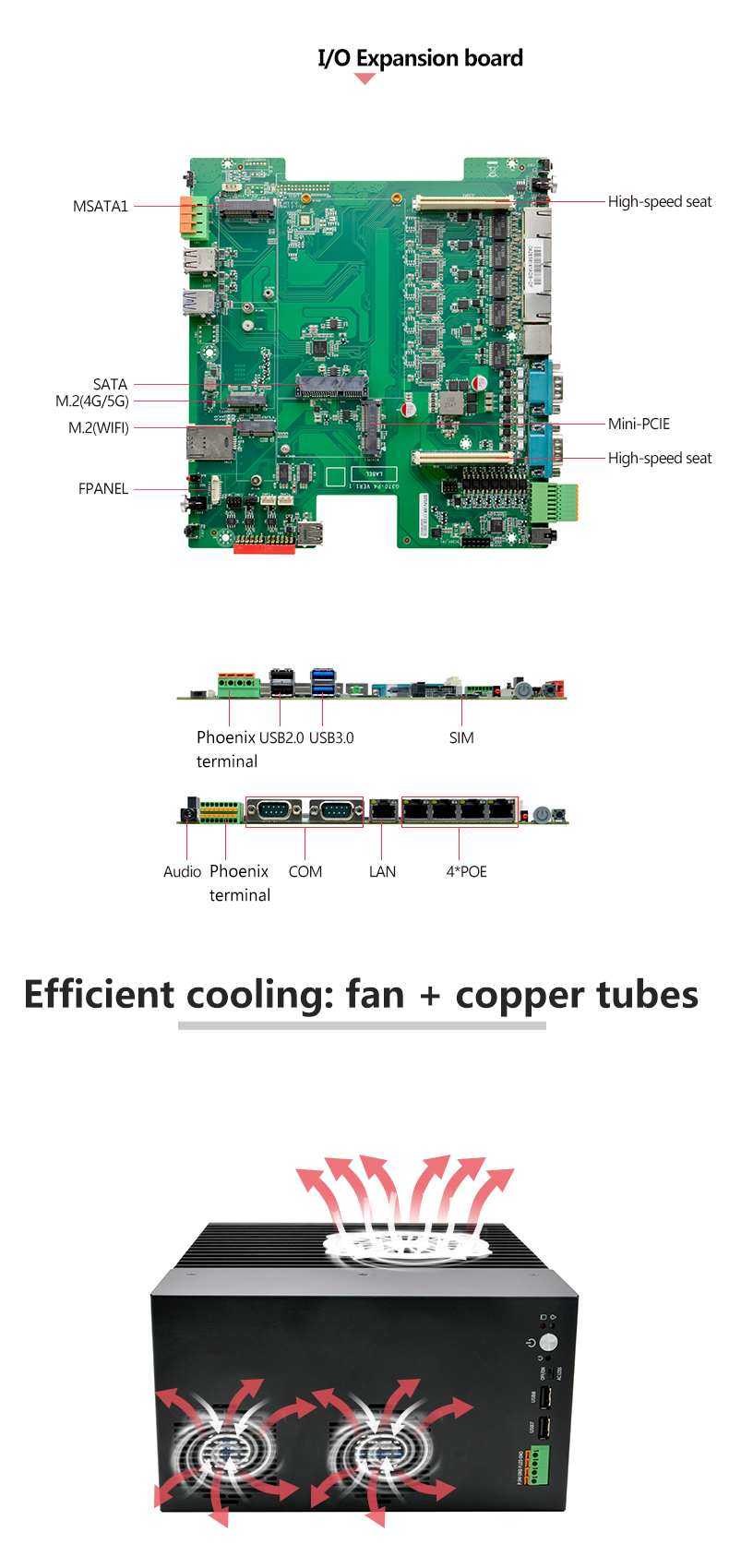

Motherboard

CPU

Intel ®   LGA1700/12~14th generation series processors, TDP below 65W

System   chip

Intel ®   H770

Memory

2*SODDR4,   Maximum support for 128GB

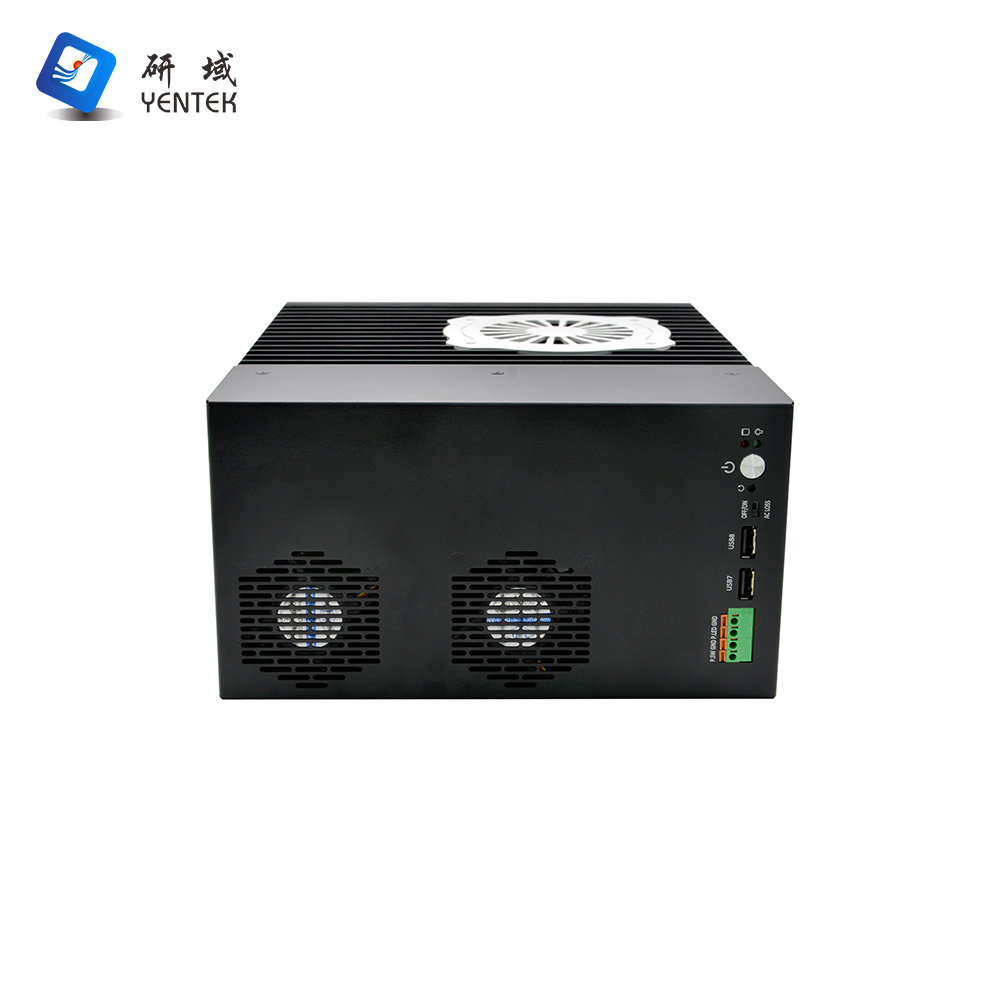

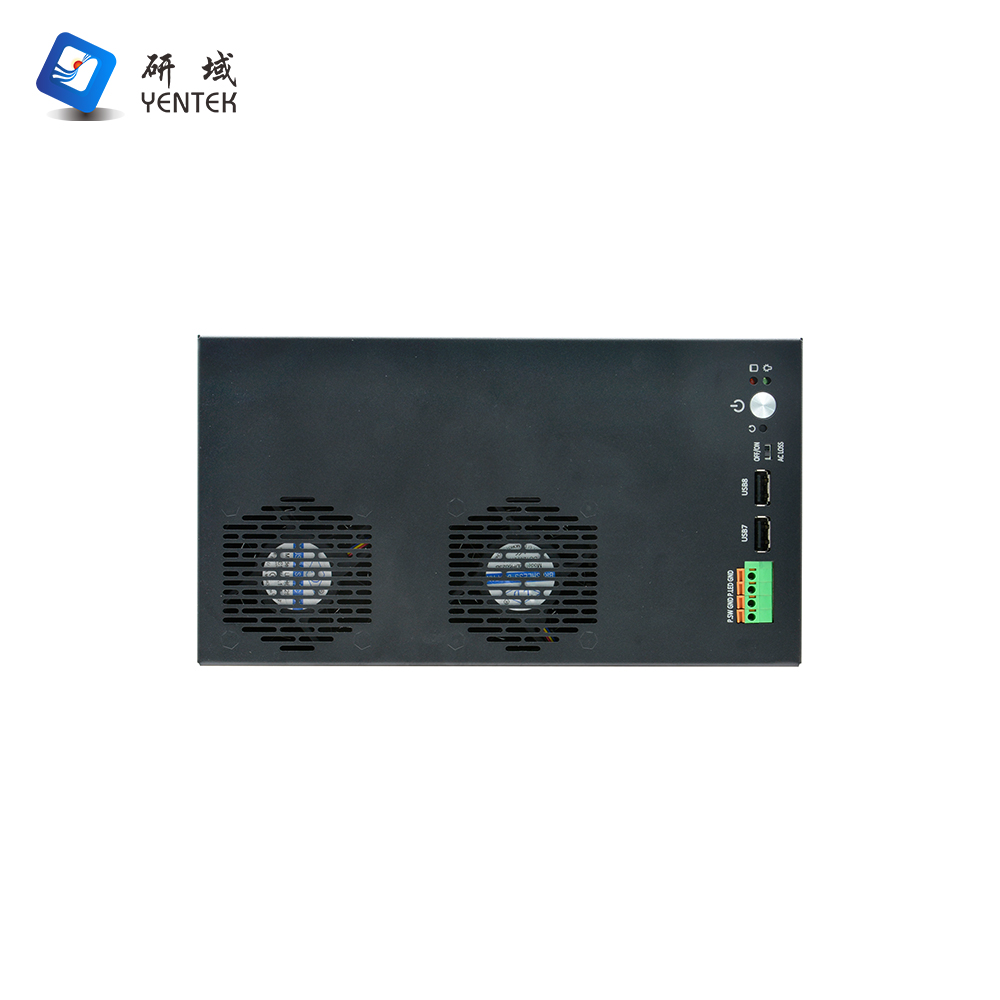

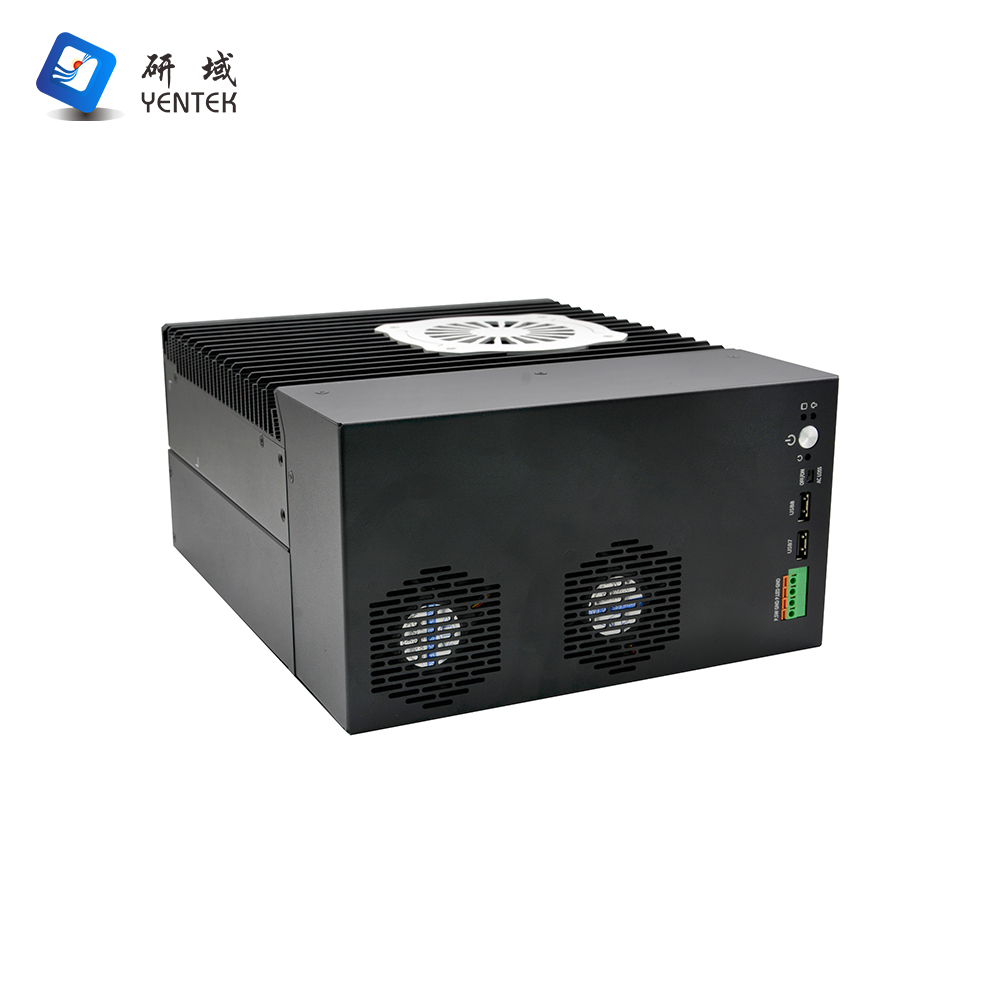

Front IO   ports

Switch

1 * Power   button with indicator light, 1 * One click restore, 1 * ACLOSS (power on/off   dip switch)

LED

1 * Power   indicator light, 1 * Hard drive indicator light

USB

2*USB2.0， Built in 1 * USB 2.0

Remote   switch

1 * Power   indicator light signal, 1 * Power switch signal (located on the 1 * 4P   Phoenix terminal)

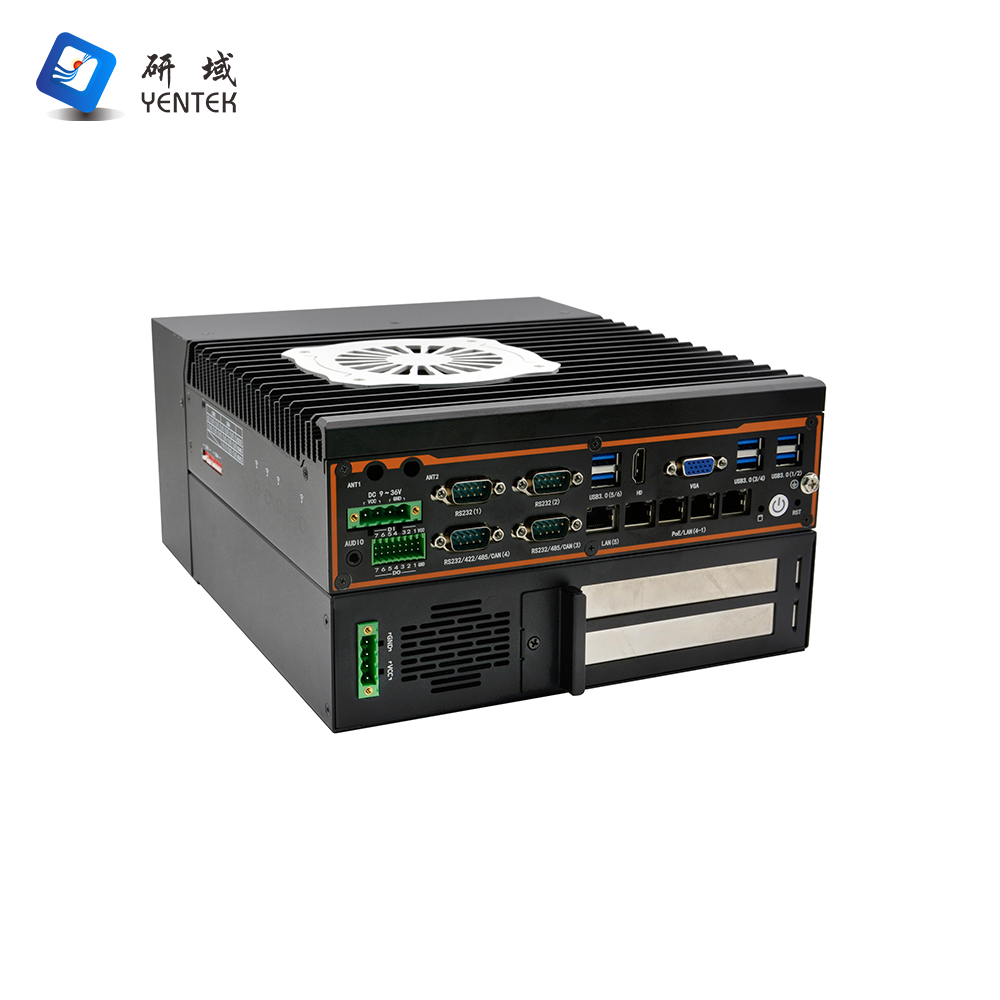

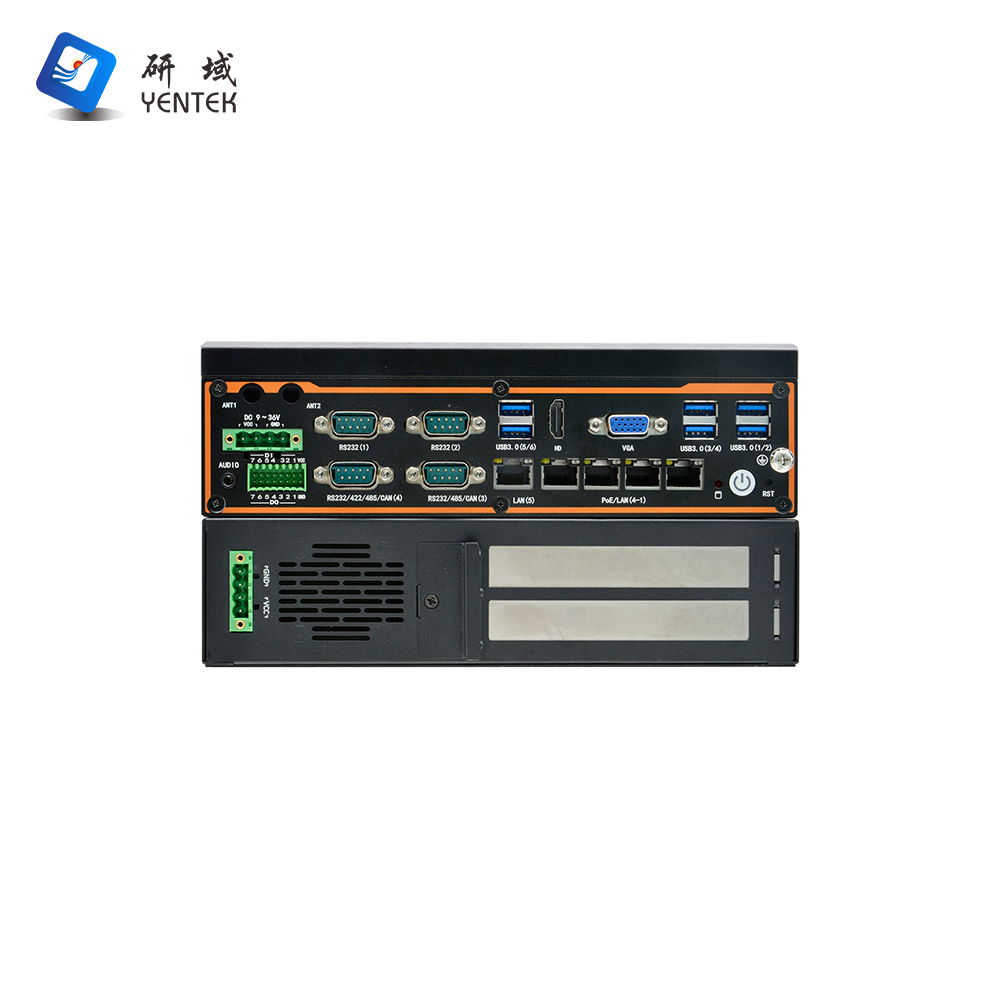

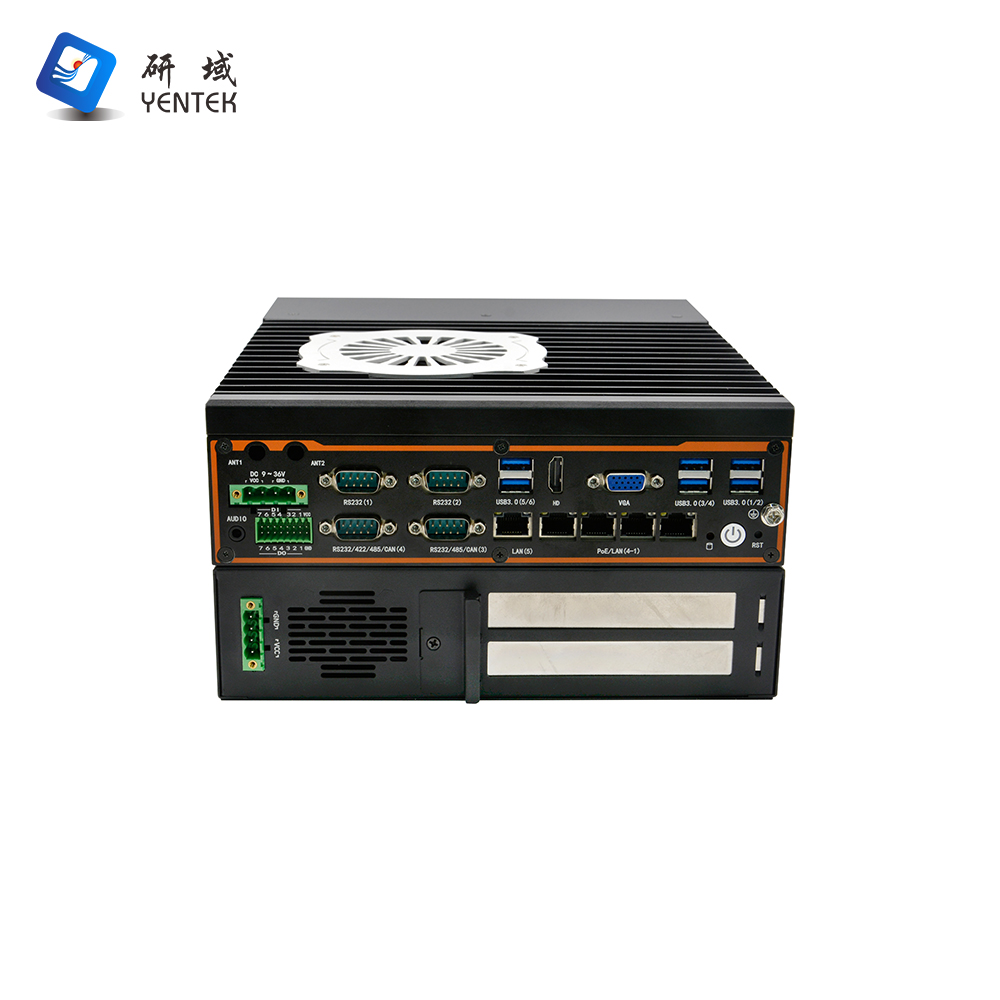

Rear IO   ports

Switch

1 * Power   button with indicator light, 1 * One click restore

LED

1 * Hard   disk indicator light

Display   interface

1*VGA(1920*   1200@60Hz )，1*HDMI1.4

COM

4 * RS232   DB9 serial port, COM3 supports RS485, COM4 supports RS485/422, COM3-4   supports CAN function (MINIPCIe CAN module needs to be loaded)

LAN

5 * Intel   I210AT Gigabit Ethernet ports, including 4 supporting POE/single port 15W

USB

6*USB3.0

DI/DO

7 * DI, 7   * DO (located on 2 * 8P Phoenix terminals)

Audio

1 *   Audio, Line Out and MIC in one

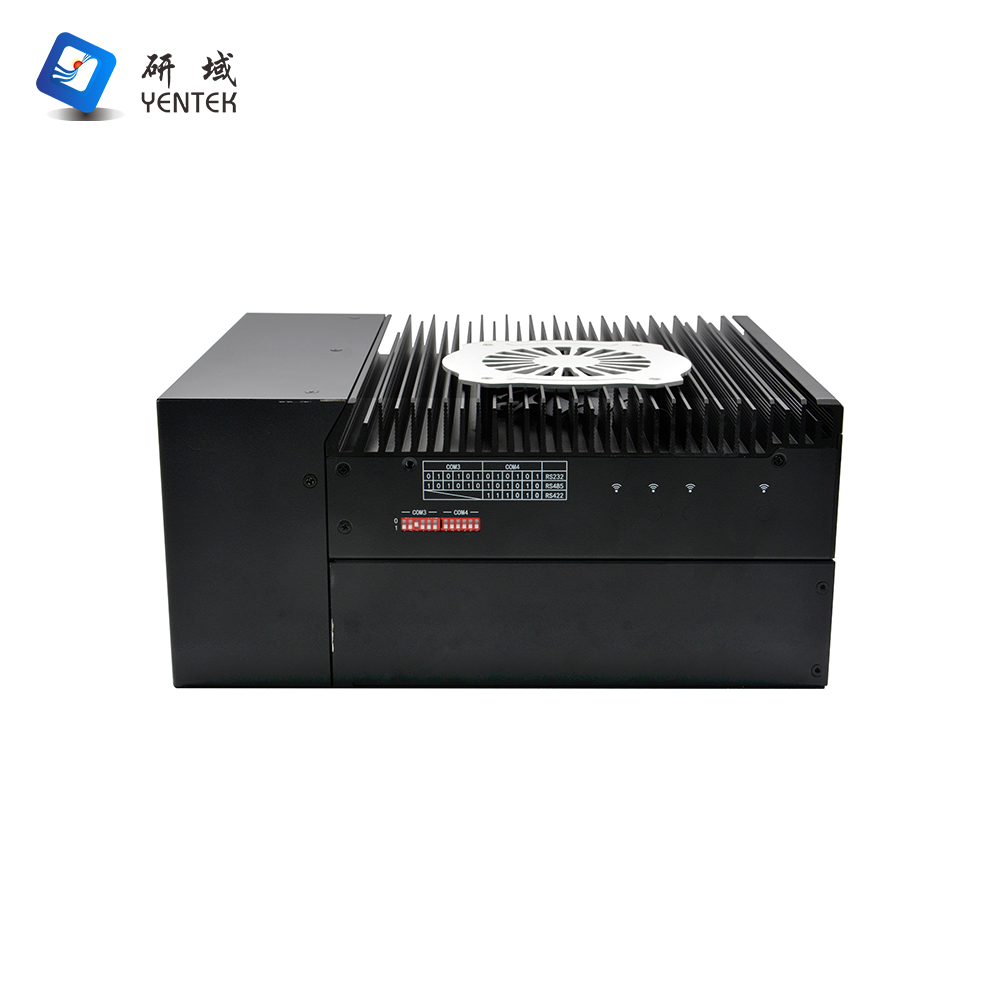

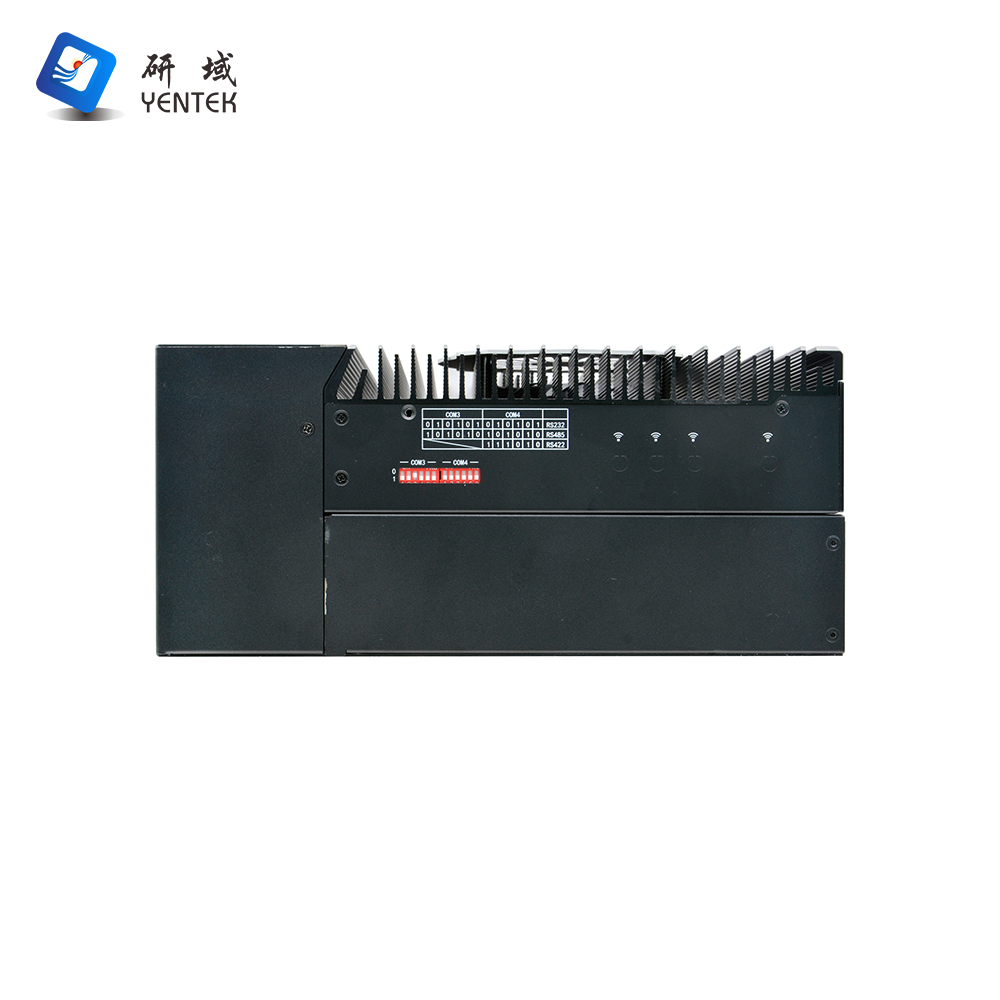

Dial   switch

Two sets   of 6-digit dip switches, COM 3 RS232/485 switching is achieved through the   COM3 dip switch, while COM4 RS232/485/422 needs to be achieved through the   combination of COM-SW1 jump cap+COM4 dip switch+BIOS

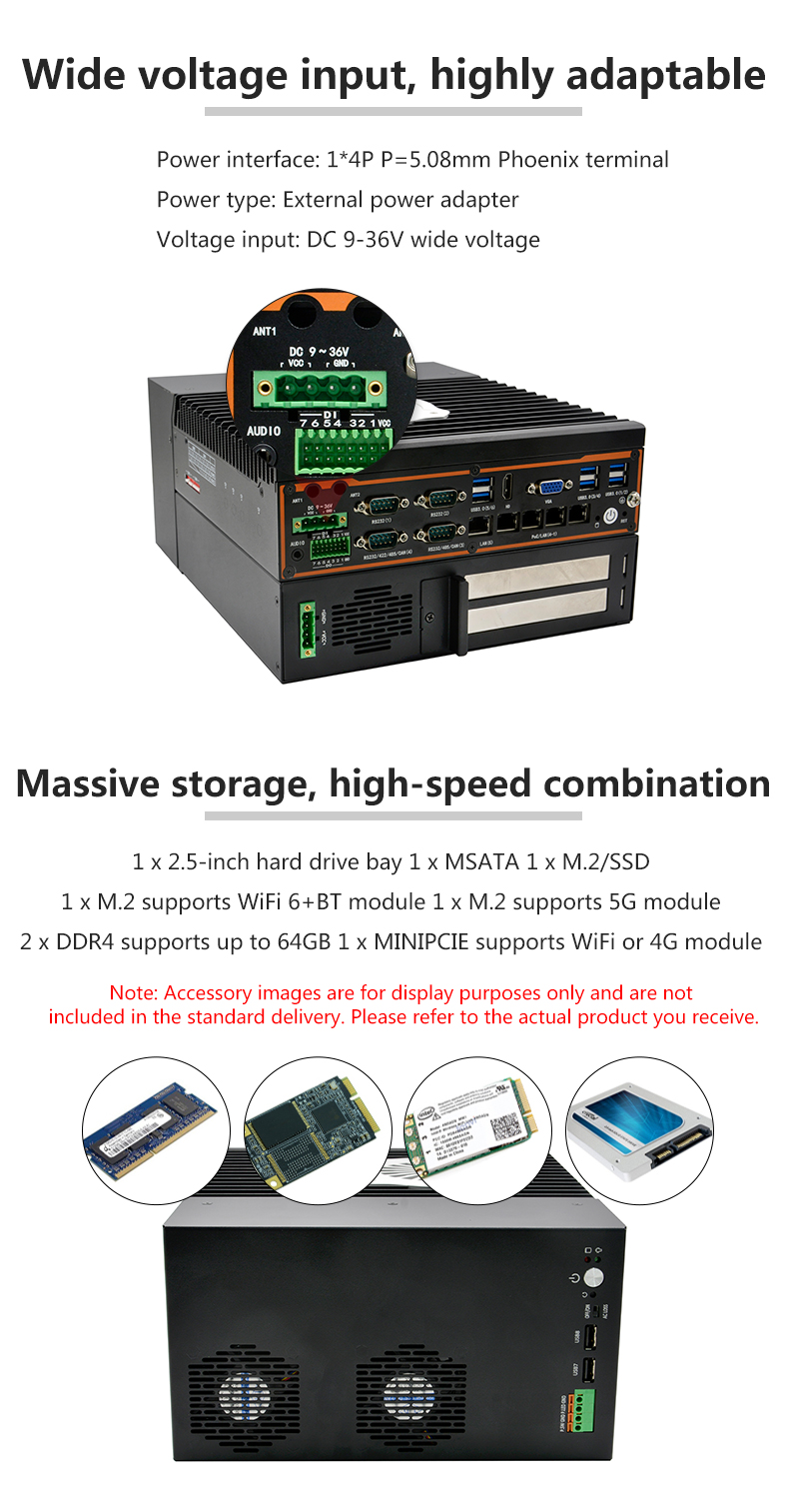

Power   interface

1 * 4P (P=5.08mm)   Phoenix terminal, supports DC 9V~36V wide voltage input, maximum load 220W

Storage

SATA

1 *   2.5-inch hard drive bay

MSATA

1* MSATA

SSD

1 * M.2   slot, supports M.2 2280 PCIE x4/SATA adaptive standard SSD

Expansion   slot

PCIE

1 * PCIE3.0   x16 (supporting graphics card size not exceeding 260mm, power consumption not   exceeding 220W)

WIFI/4G

1*MINIPCIE， Supports WiFi or 4G

WIFI

1*M.2， Support Key-E, 2230, WiFi+BT

5G

1*M.2， Support Key-B, 3042/3052, 5G

OS

Microsoft

Windows   10 /11

Linux

Linux

Power   supply

Voltage   input

DC 9V-36V   wide voltage

Power supply

AC to DC   120W (depending on specific equipment), maximum load 220W

Environment

Operation   temp

-10℃～50℃

Storage   temp

-20℃～70℃

Relative   humidity

5% -95%   relative humidity, no condensation

Vibration

0.5g   rms/5-500HZ/random

1

G3781F-P4E2   V2.0(G390)

LGA1151

8-9 gen

2*SODDR4

G390

Z390

G370-P4/G370-PW/G371-E2/IPC505-SW

2.5+MSATA+M.2

1x16

7/7

5*I210

4

6

3

9-36V

2

G3781F-P4E2   V2.0(G670)

LGA1700

12th to   14th gen

2*SODDR4

G670

H770

G370-P4/G370-PW/G371-E2/IPC505-SW

2.5+MSATA+M.2

1x16

7/7

5*I210

4

6

3

9-36V
