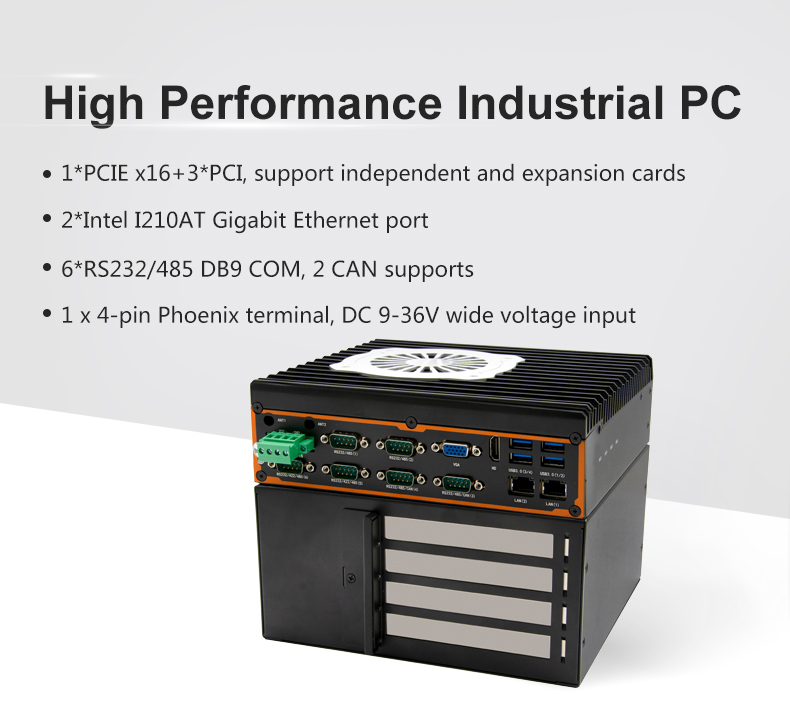

Model | G3290F-C6P3 V2.0(8300H) |
Chassis | Material/Structure | Aluminium alloy + sheet metal |
Colour | Black + silver |

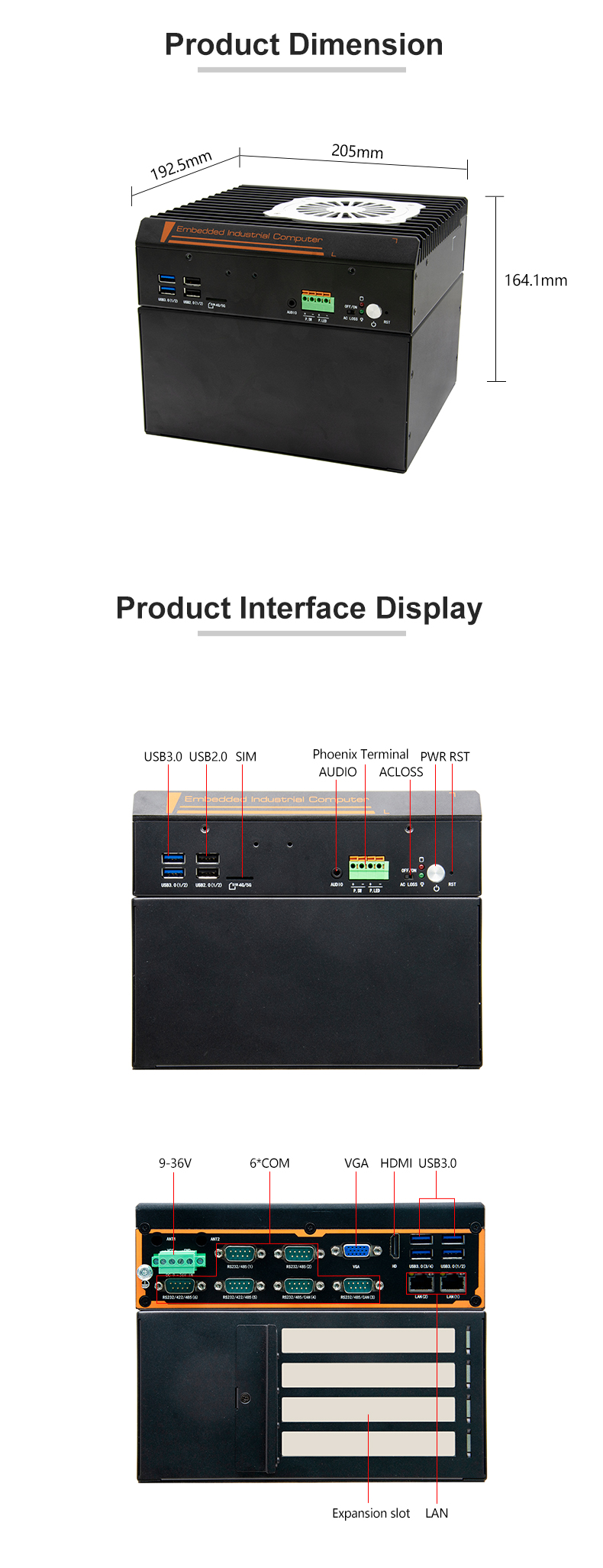

Dimensions (L x W x H) | 205 x 192.5 x 164.1 mm |
Weight | 4.2 kg |
Installation | Desktop/Embedded |

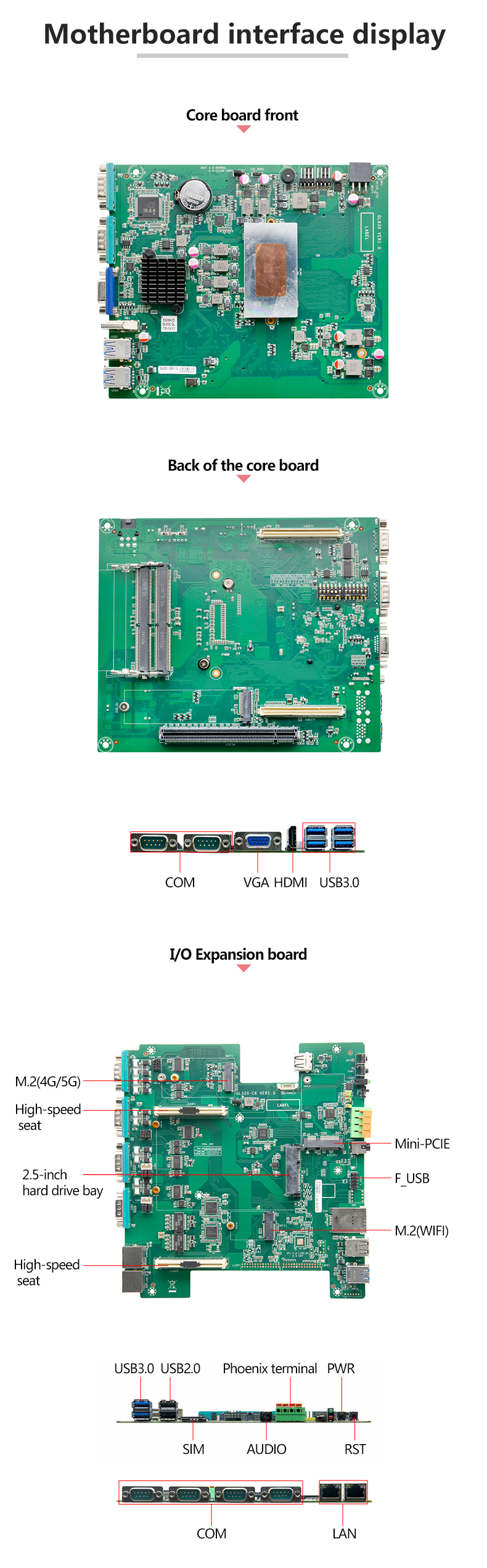

Motherboard | CPU | Integrated Intel® i5-8300H/2.30 GHz quad-core eight-thread processor, TDP 45W |
System Chip | Intel Z390 |
Memory | 2x DDR4 2666MHz, supports up to 64GB |

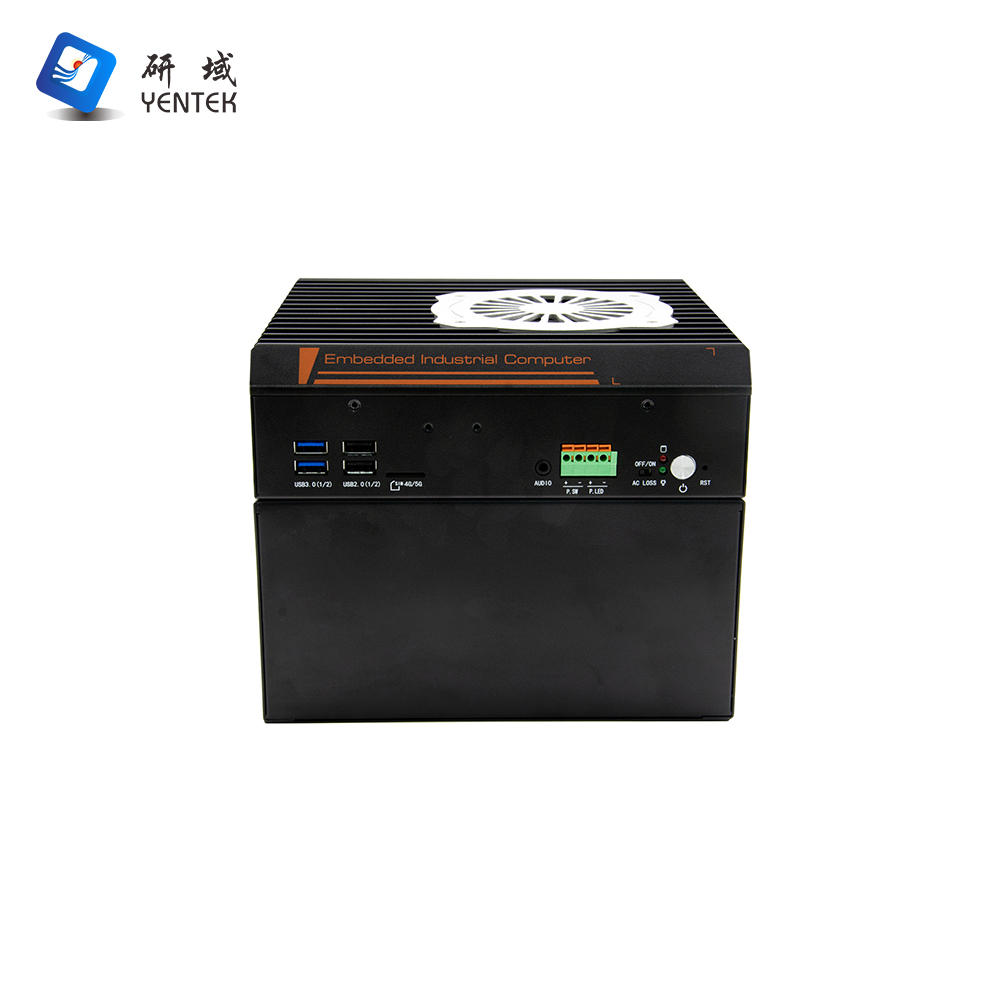

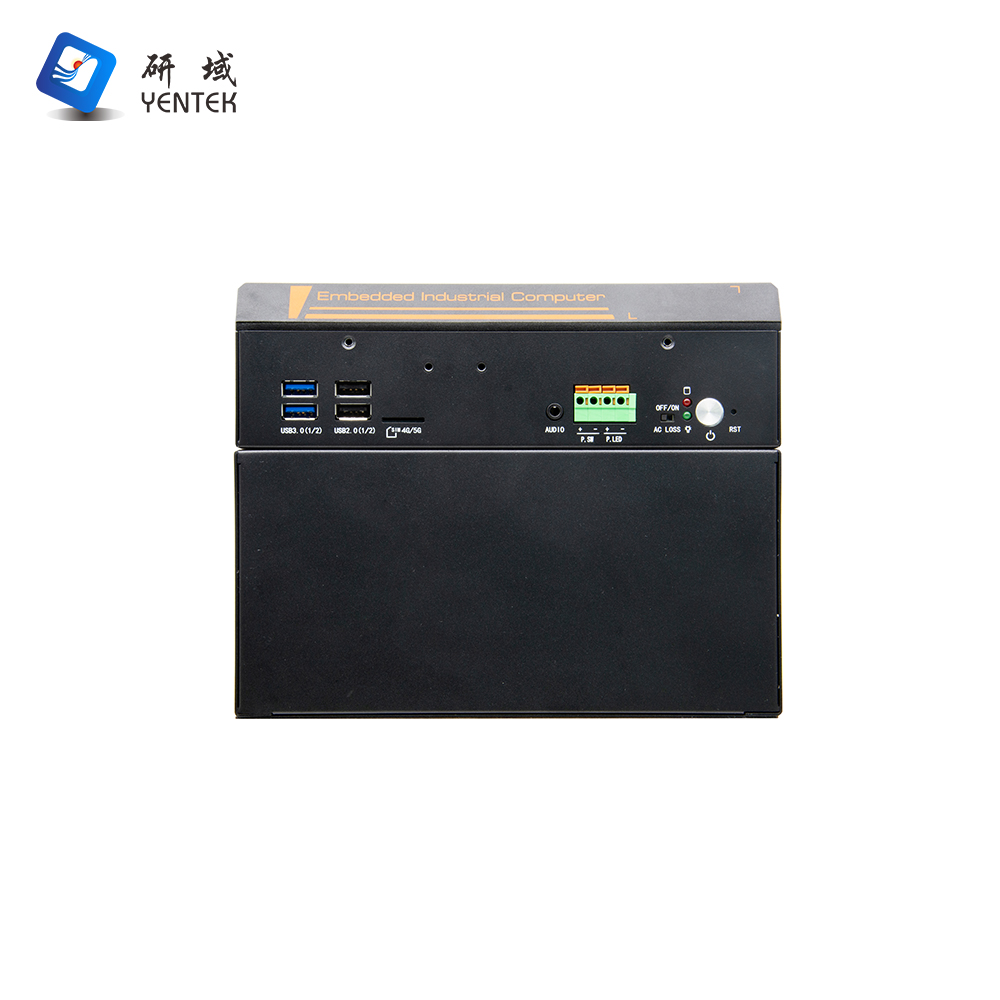

Front panel interfaces | Switch | 1x Power button, 1x One-click restore, 1x ACLOSS (power-on boot dip switch) |
LED | 1x Power indicator light, 1x Hard drive indicator light |
USB | 2x USB 3.0, 2x USB 2.0, built-in 1x USB 2.0 |
Remote Switch | 1 x Power switch, 1 x Power indicator light (located on the 1 x 4-pin Phoenix connector) |
Audio | 1 x Audio, Line out and MIC combo |
SIM | 1 x SIM card slot |

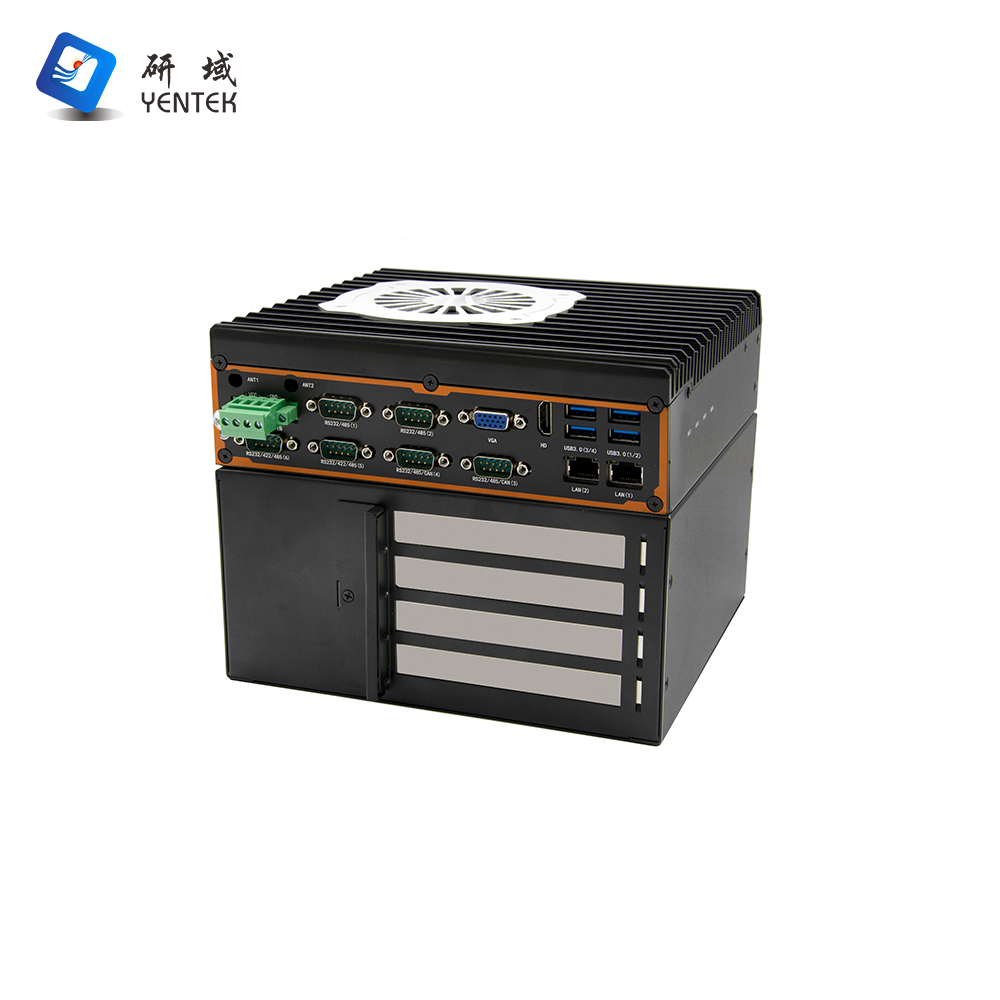

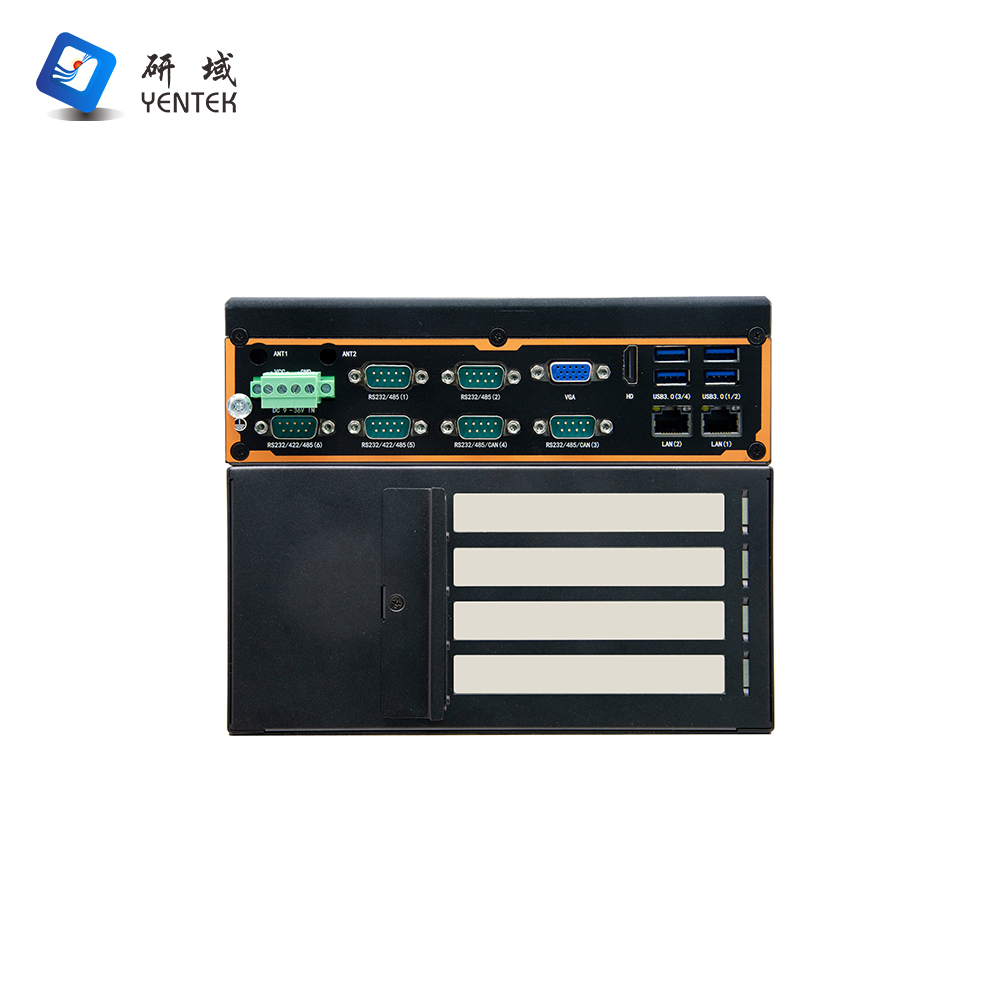

Rear panel interfaces | Display Interface | 1 x VGA (1920 x 1200 @ 60Hz), 1 x HDMI 1.4, supports dual display |
USB | 4 x USB 3.0 |
COM | 6x RS232/485 DB9 serial ports, COM5-6 support RS422, COM3-4 support CAN functionality (requires CAN module) |
LAN | 2x Intel I210AT Gigabit Ethernet ports |

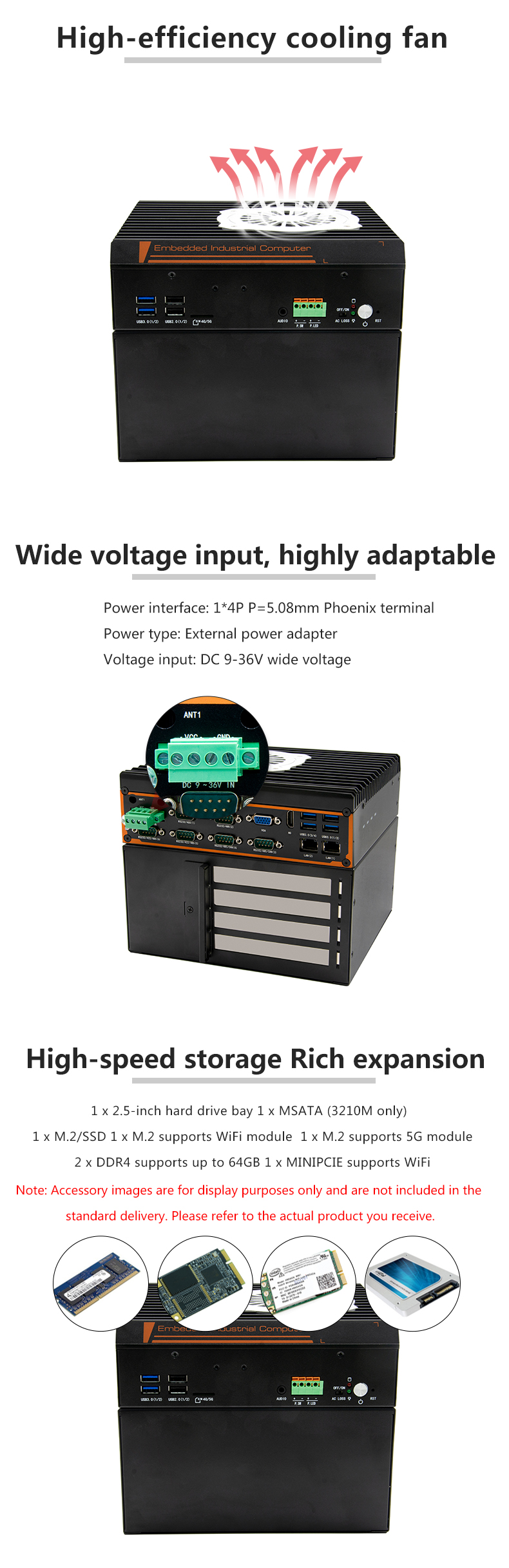

Power Interface | 1x 4P (P=5.08mm) Phoenix connector, supports 9-36V wide voltage input |
Storage | SATA | 1x 2.5-inch hard drive bay |
MSATA/SSD | 1x M.2, supports Key-M, 2280, NVMe PCIe SSD (except for the 3210M, other CPUs only support M.2 SSD) |
1x mSATA (only for the 3210M) |
Expansion | PCIE/PCI | 1x PCIe x16 (x8 signal) |
3x PCI |
WiFi | 1x Mini PCIe, supports Wi-Fi |
WiFi | 1x M.2, supports Key-E, 2230, WiFi module |
5G | 1x M.2, supports Key-B, 3042/3052, 5G module |
Power supply type | Voltage Input | DC 9V to 36V wide voltage range |
Power Output | AC to DC 60W (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5% to 95% relative humidity, no condensation |
Vibration | 0.5g rms/5-500HZ/random |
