Model | G3280F-L6E2 V2.0(8300H) |
Chassis | Material/Structure | Aluminium alloy + sheet metal + fan cooling |
Colour | Black + silver |

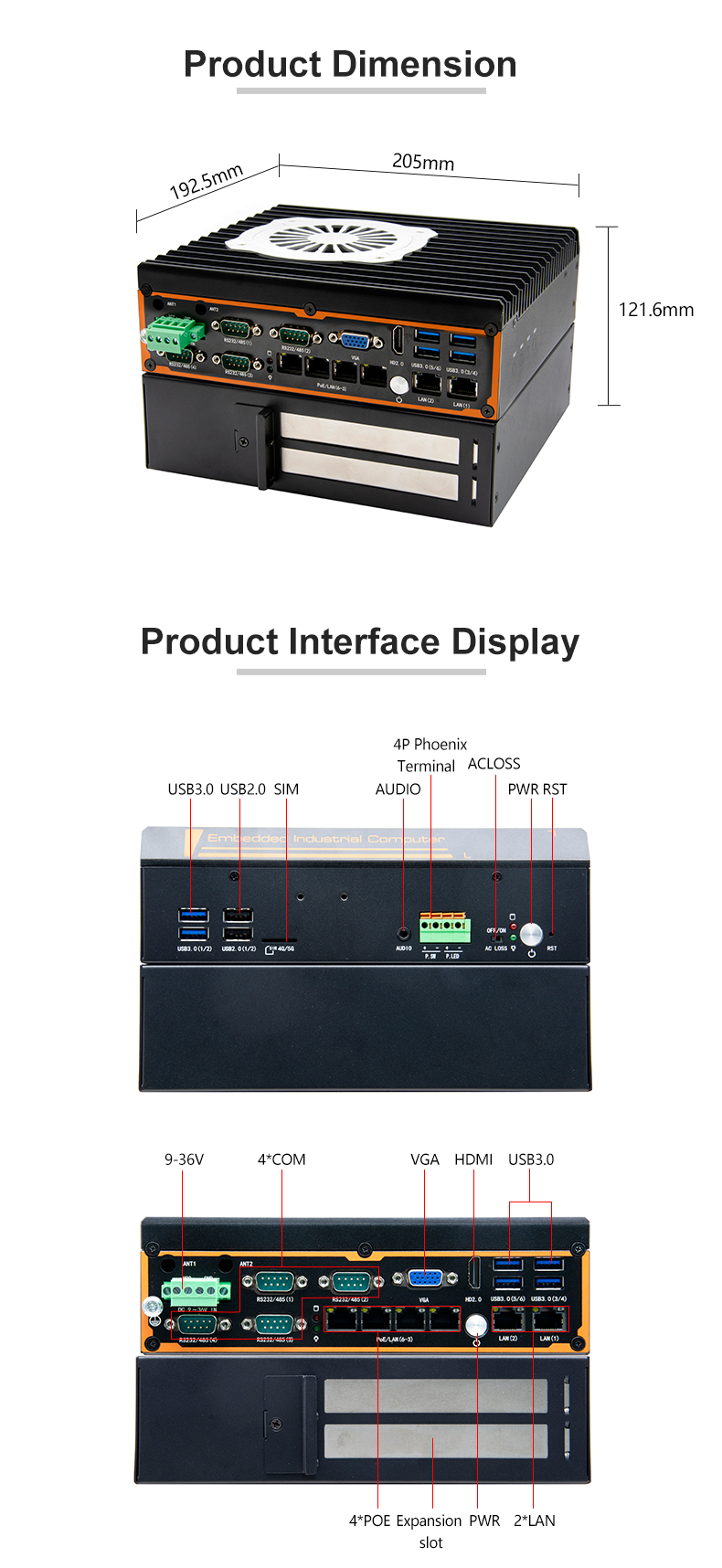

Dimensions (L x W x H) | 205 x 192.5 x 121.6 mm |
Weight | 3.45 kg |
Installation | Desktop/Embedded |

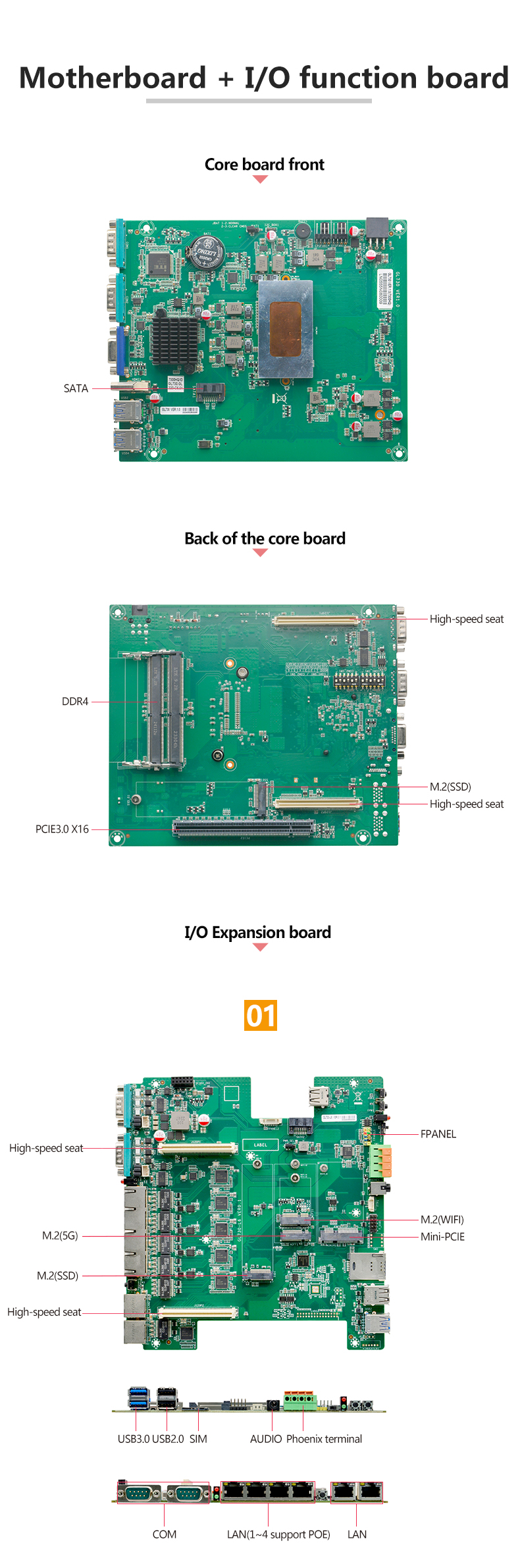

Motherboard | CPU | Integrated Intel i5-8300H/2.30 GHz quad-core eight-thread processor, TDP 45W |
System Chip | Intel HM370 |
Memory | 2x SODDR4 2666MHz, supports up to 64GB |

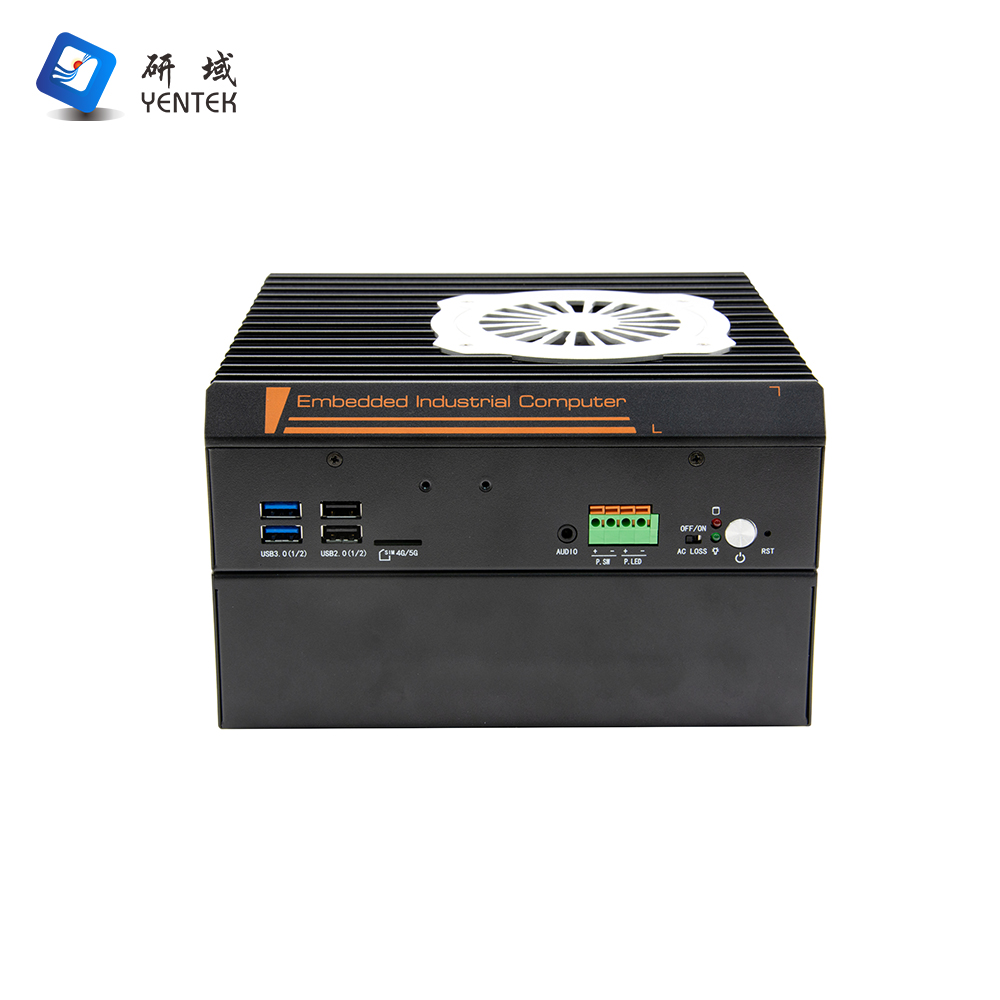

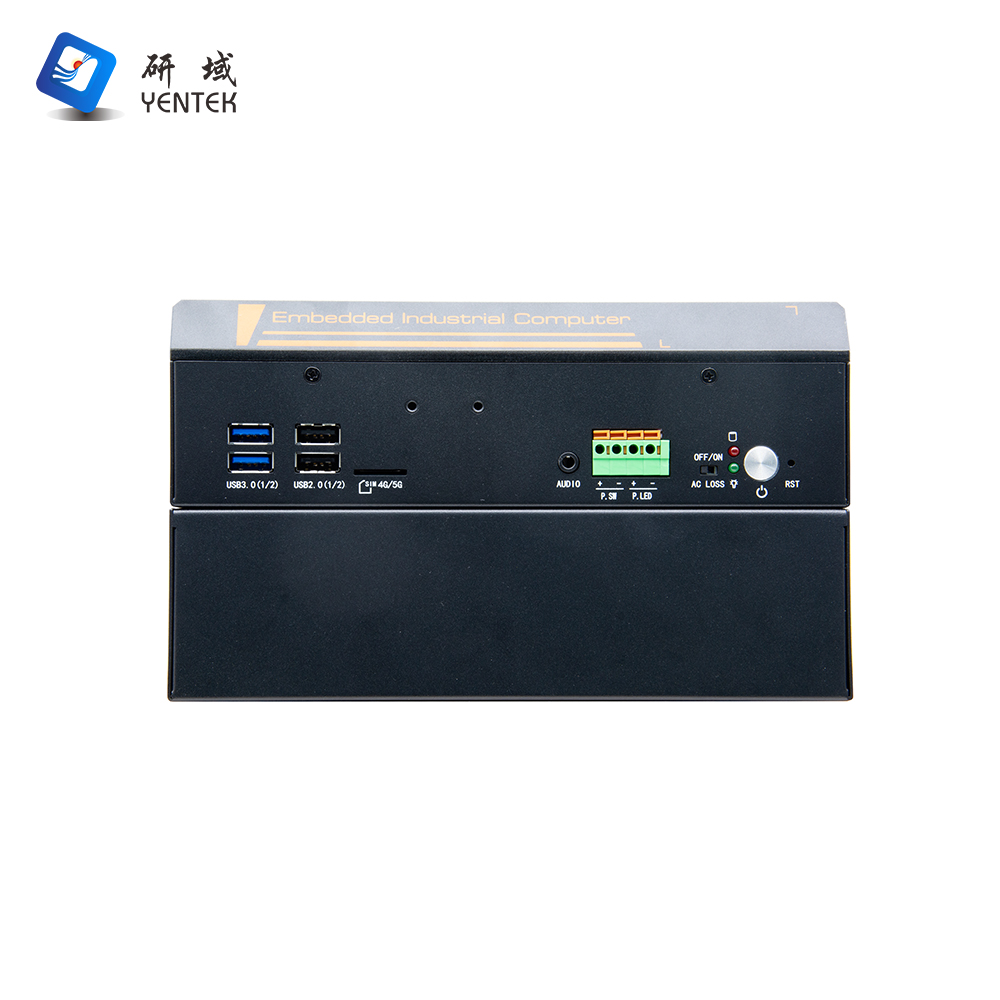

Front panel interfaces | Switch | 1x Power button, 1x One-click restore, 1x ACLOSS (power-on boot dip switch) |
LED | 1x Power indicator light, 1x Hard drive indicator light |
USB | 2x USB 2.0, 2x USB 3.0 (3210M no signal), built-in 1x USB 2.0 (3210M no signal) |
Remote Switch | 1x Power indicator signal, 1x Power switch signal (located on the 1x 4-pin Phoenix connector) |
Audio | 1x Audio, Line out and MIC combo |
SIM | 1x SIM card slot (signal defaults to M.2 5G) |

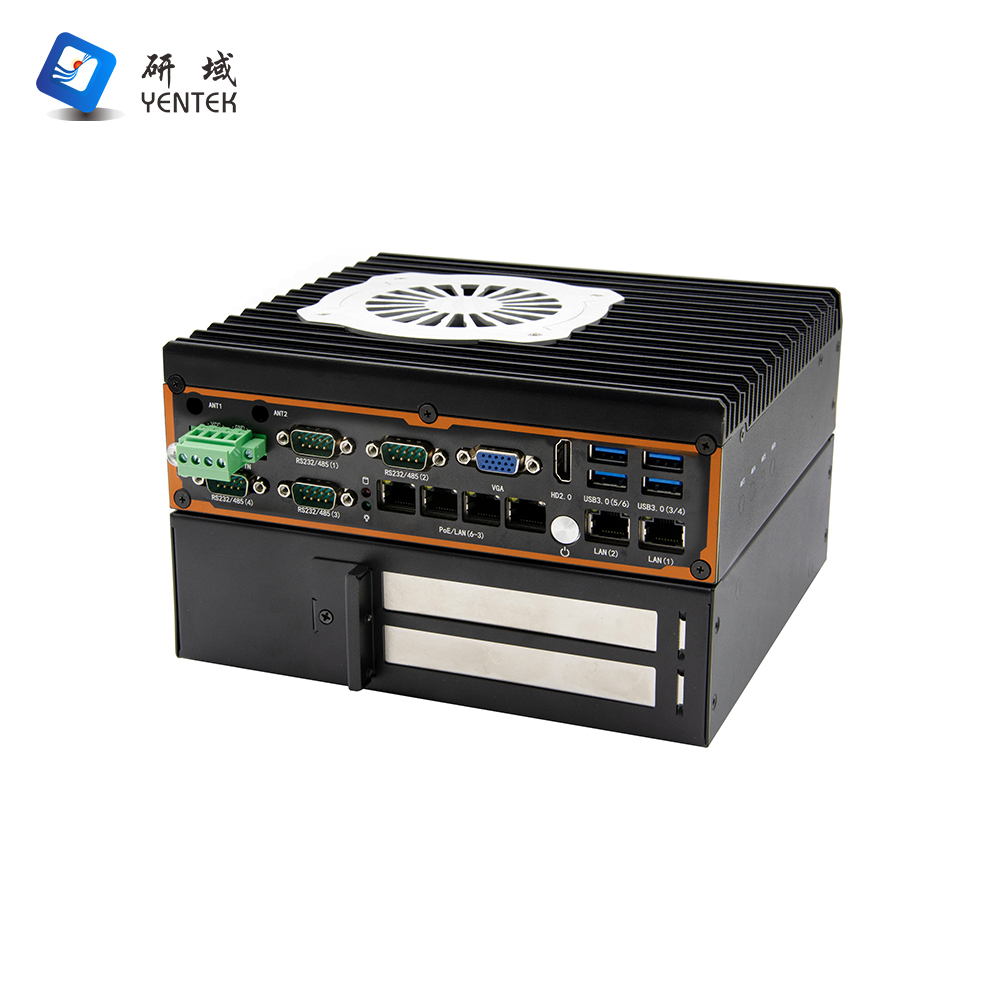

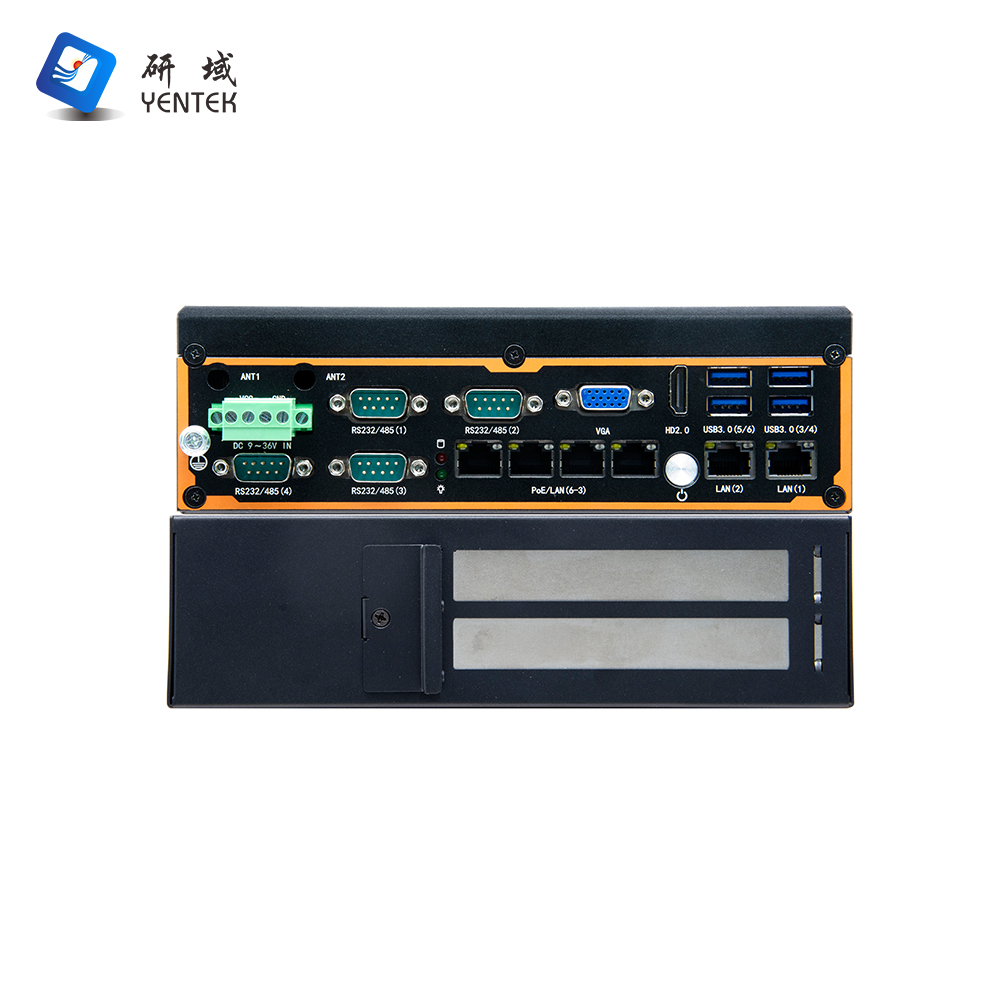

Rear panel interfaces | Display Interface | 1x VGA, 1x HDMI 1.4 (4096x2304@30Hz), supports dual display |
USB | 4x USB 3.0 |
COM | 4x RS232 DB9 serial ports, with COM3-4 supporting RS485/CAN functionality (requires CAN module installation) |
LAN | 6x Intel I210AT Gigabit Ethernet ports, with 4 supporting POE/15W per port |
Dip Switch | 2 sets of 6-position DIP switches, COM3-4 RS232/485 switching via DIP switches |

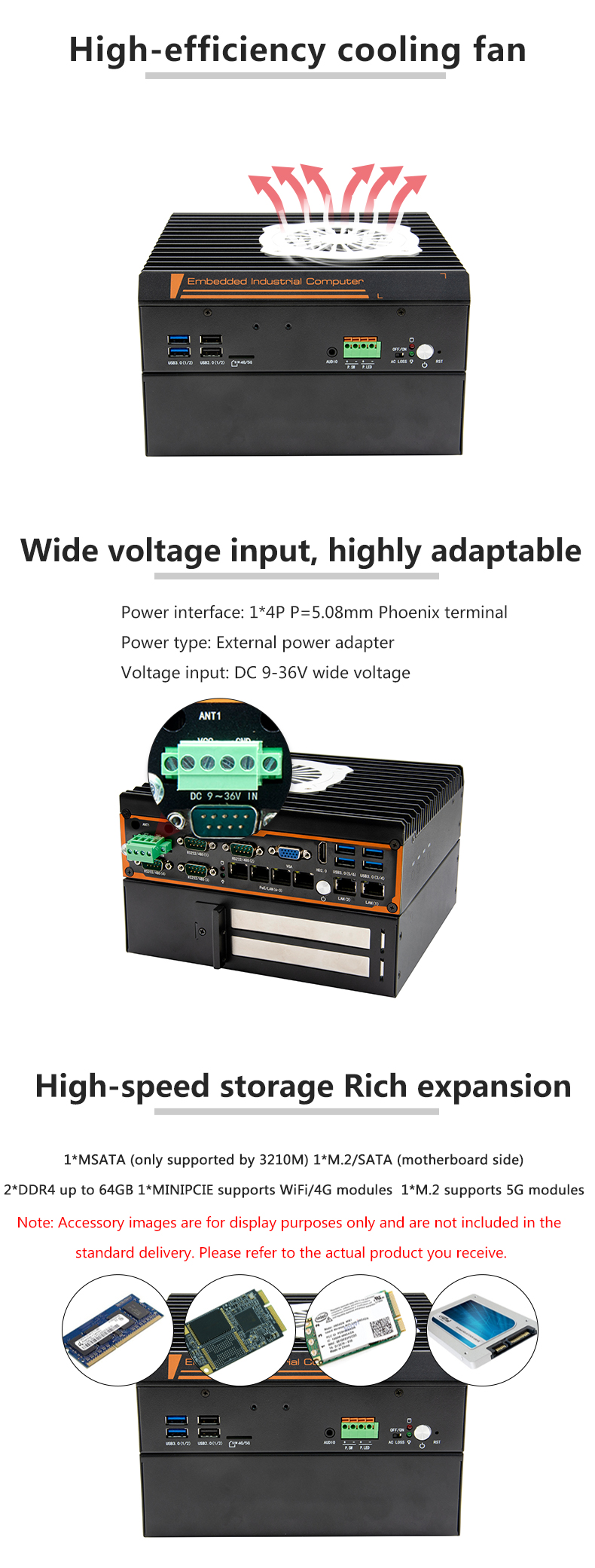

Power Interface | 1x4P (P=5.08mm) Phoenix connector, supporting 9-36V wide voltage input |
Storage | MSATA/SSD | 1xMSATA (only supported by 3210M) |
1xM.2, supporting Key-M, 2280, NVMe PCIe x4/SATA adaptive SSD (except 3210M, which does not support) |
SSD | 1x M.2, supports Key-M, 2280, NVMe PCIe SSD (except 3210M; other CPUs only support M.2 SSD) |

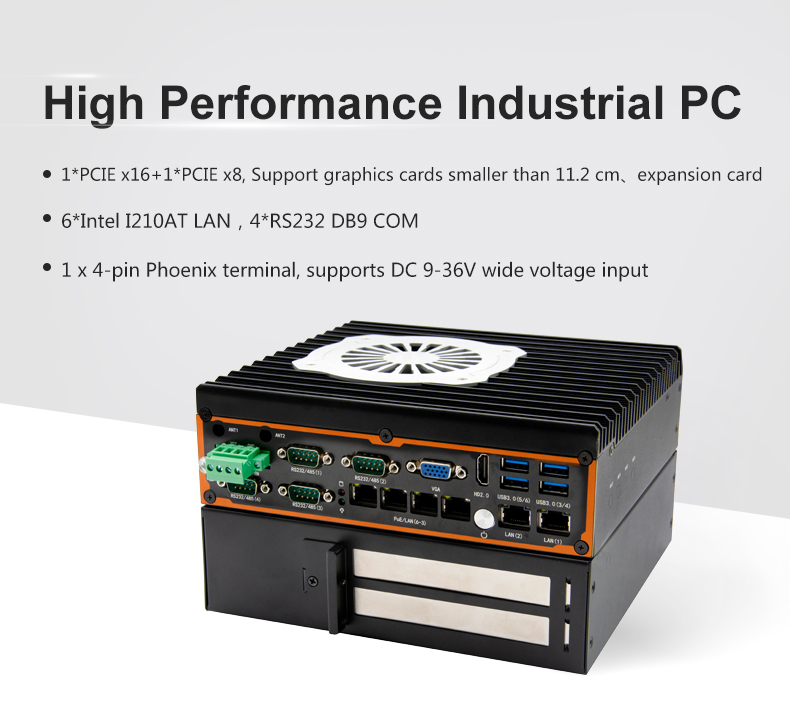

Expansion | PCIE | 1x PCIe x16 (x8 signal) |
1x PCIe x8 (x1 signal) |
WiFi/4G | 1x Mini PCIe, supports WiFi+BT or 4G (only 3210M supports 4G or WiFi; other CPUs default to WiFi) |
5G | 1x M.2, supports Key-B, 3042/3052, 5G module (not supported by 3210M) |
Power supply type | Voltage Input | DC 9V-36V wide voltage |
Power Requirements | AC to DC 90W or above (depending on the specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5% to 95% relative humidity, no condensation |
Vibration | 0.5g rms/5-500HZ/random |
