G3260F-L6G4

Chassis

Material/structure

Aluminium   + Sheet Metal

Colour

Black +   Silver

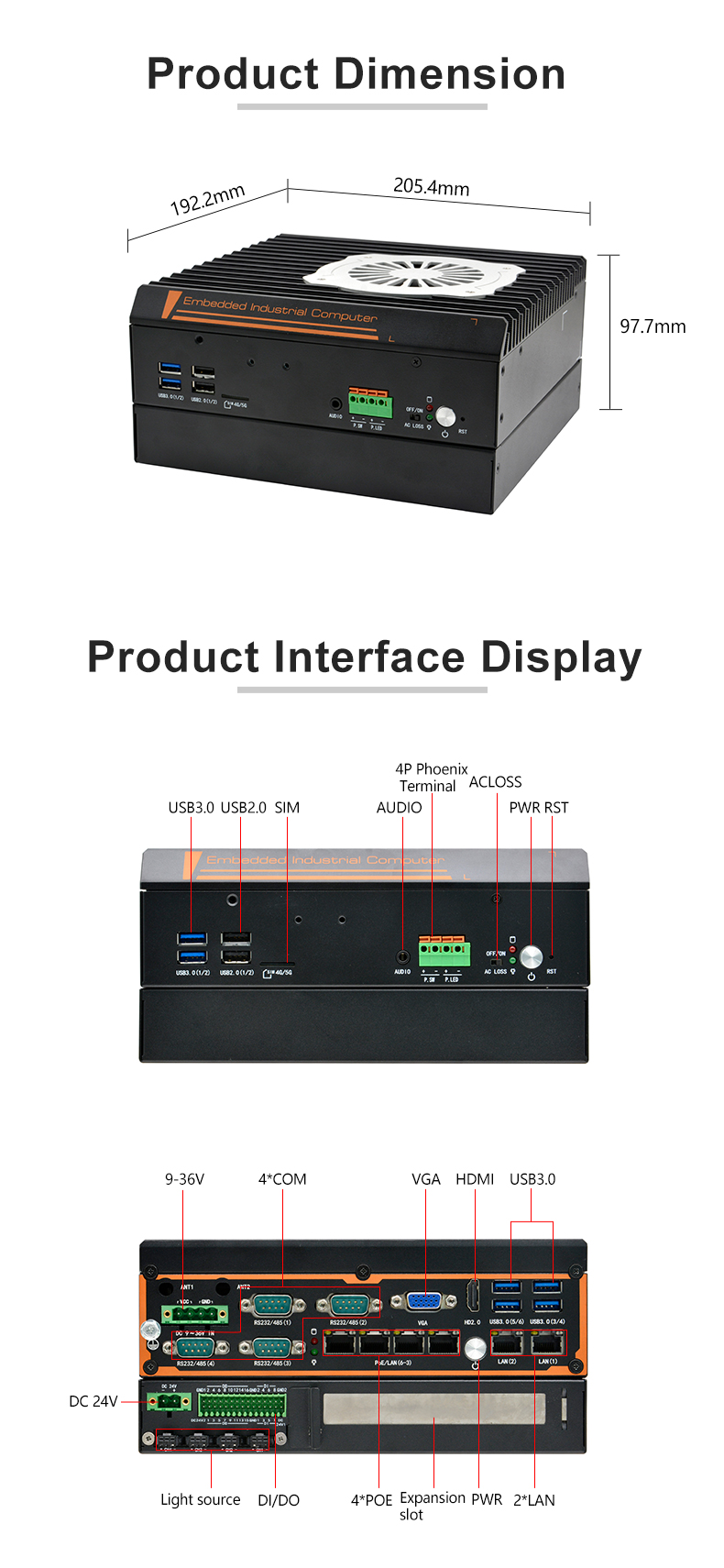

Dimensions   (LWH)

205.4*192.2*97.7MM   (without stand)

Weight

2.4KG

Installation

Desktop/Embedded/DIN   rail (35mm)

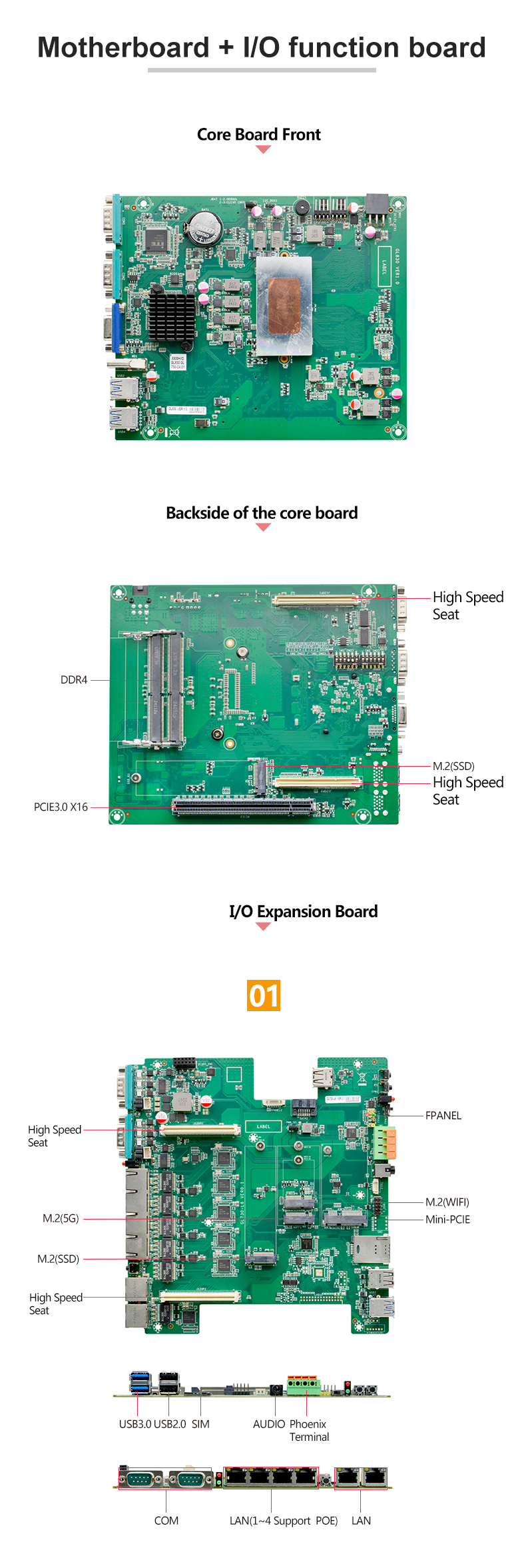

Motherboard

CPU

Integrated   Intel ®i5-8300H/2.30GHz Quad-Core 8-Thread Processor, TDP 35W

System-on-Chip

Intel   HM370

Memory

2*SODDR4   2666MHz, Maximum support 64GB

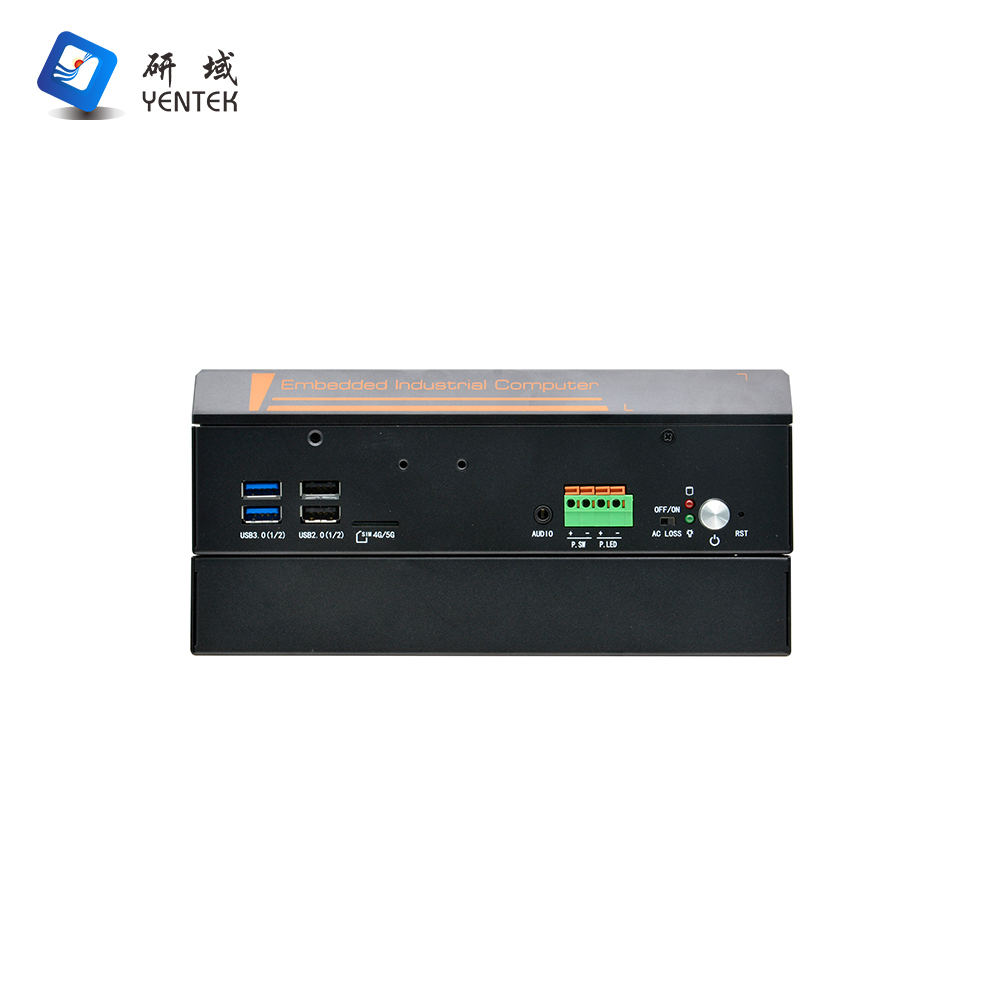

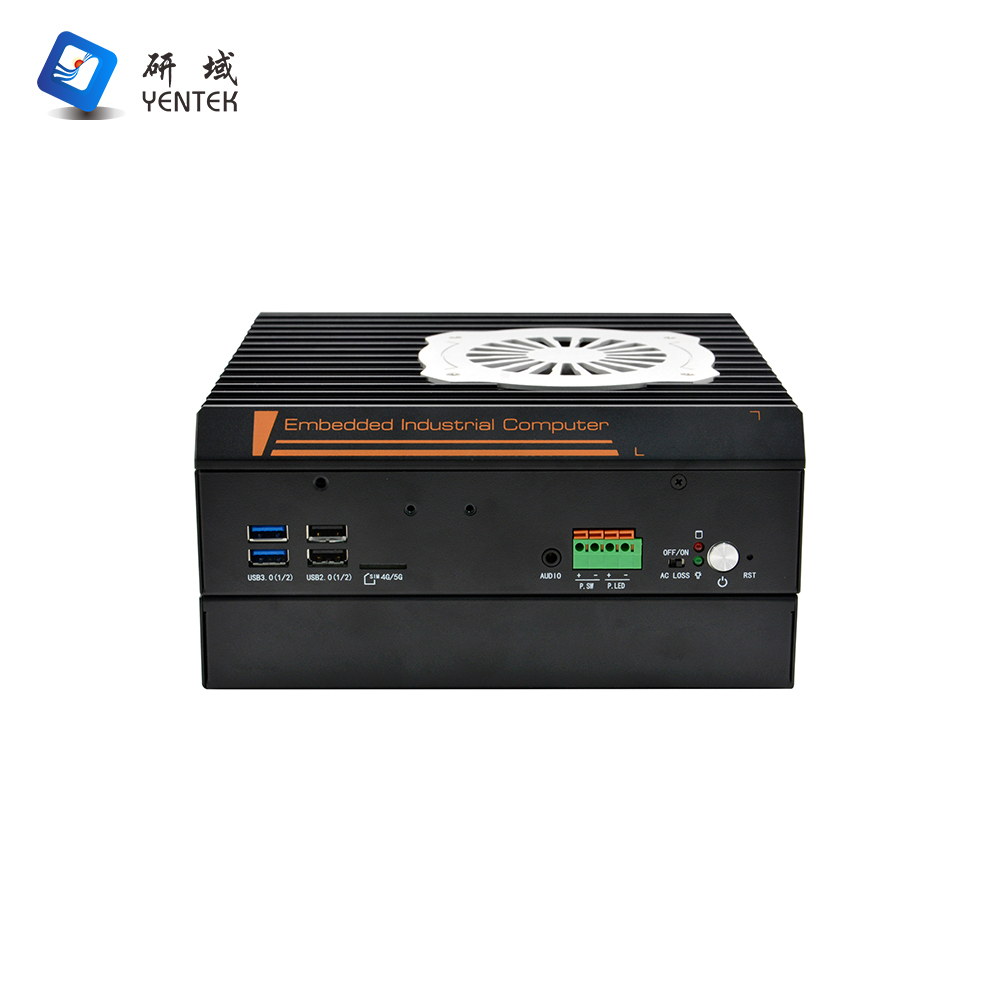

Front   Panel Connectors

Switches

1*Boot   Button, 1*One-Key-Restore, 1*ACLOSS (Power On and Off DIP Switches)

LED

1* Power   Indicator, 1* HDD Indicator

USB

2*USB3.0,   2*USB2.0, Built-in 1*USB2.0

Remote   switches

1*PWR,   1*PWRLED (Located on 1*4P Phoenix Terminal)

Audio

1*Audio,   Line out and Mic 2-in-1

SIM

1*SIM   Standard Card Slot

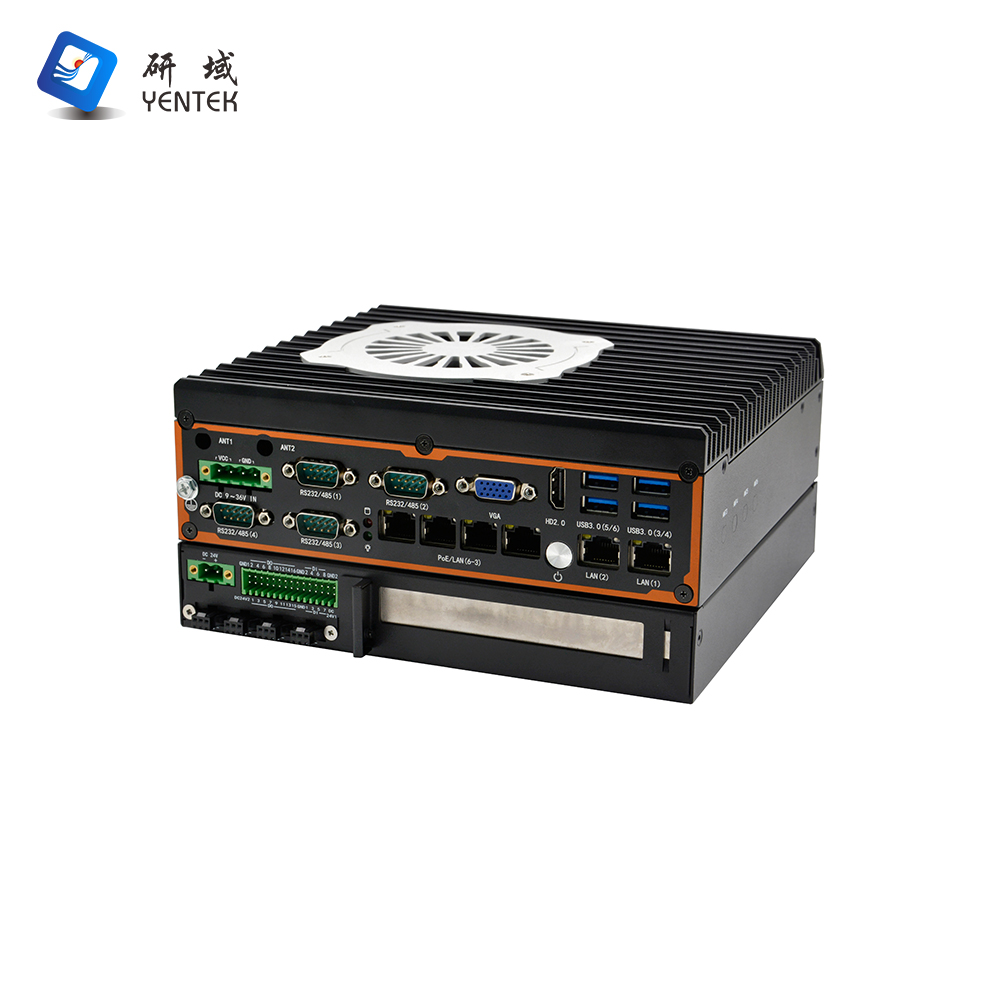

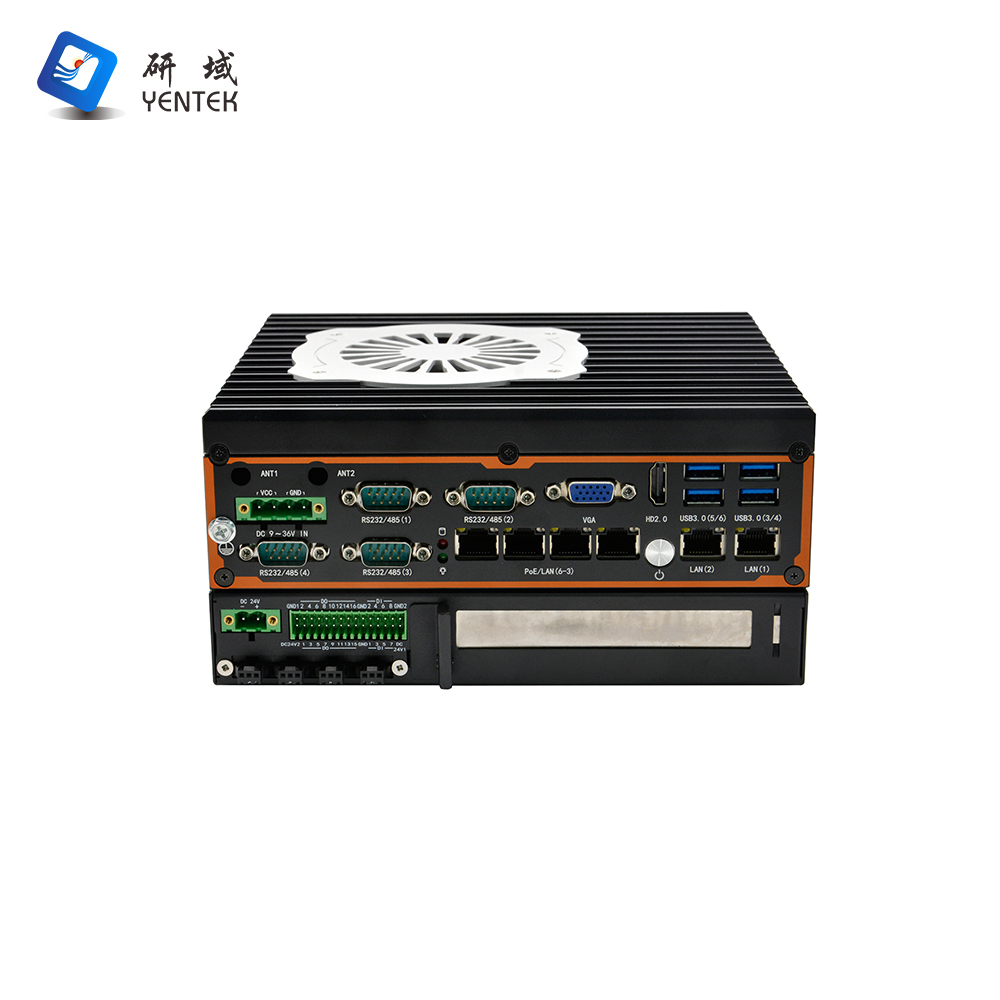

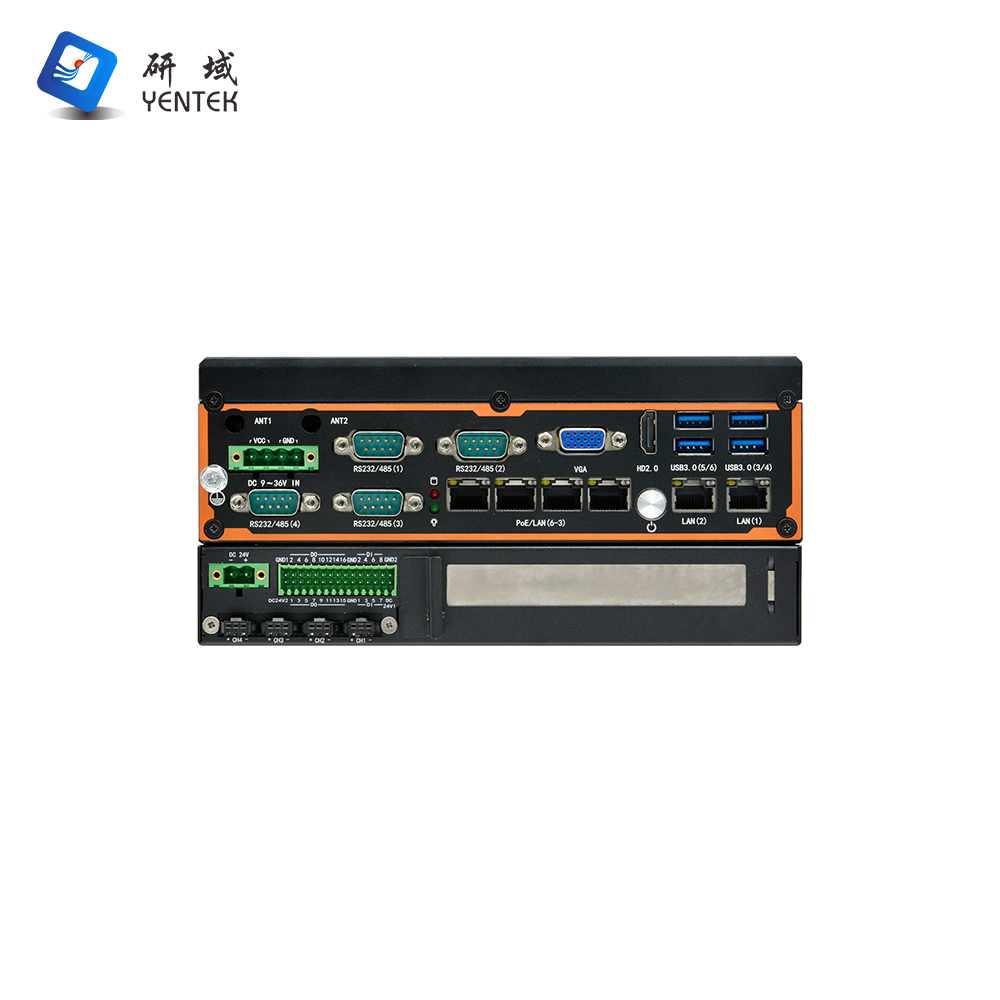

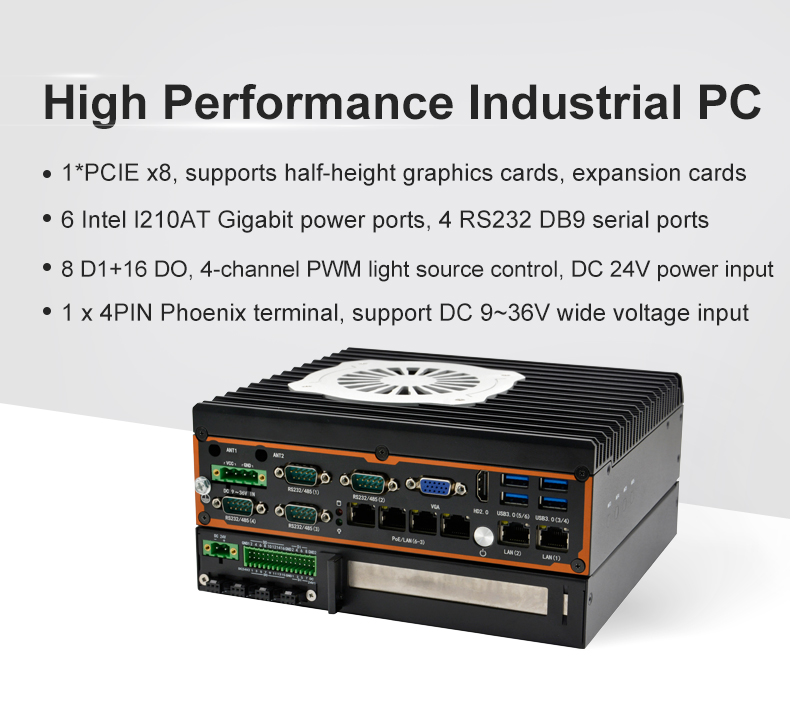

Rear   Panel Interface

Display   interface

1*HDMI1.4,   1*VGA, Support Dual Display

USB

4*USB3.0

COM

4*   RS232/485 DB9 serial port

LAN

6*Intel   I210AT Gigabit power ports, 4 of which support POE (single port 15W)

DI

8*DI (NPN   500mA)

DO

16*DO   (NPN 4-20mA)

Light   source

1-way far   core light constant current light source 80-level adjustable (0-80mA)

3-way   512-level PWM adjustable 24V light source (24V/48W)

DC24V   power input

DIP   Switch

4 sets of   6-position dip switches, COM1-4 RS232/485 switching is achieved by dip   switches + BIOS settings

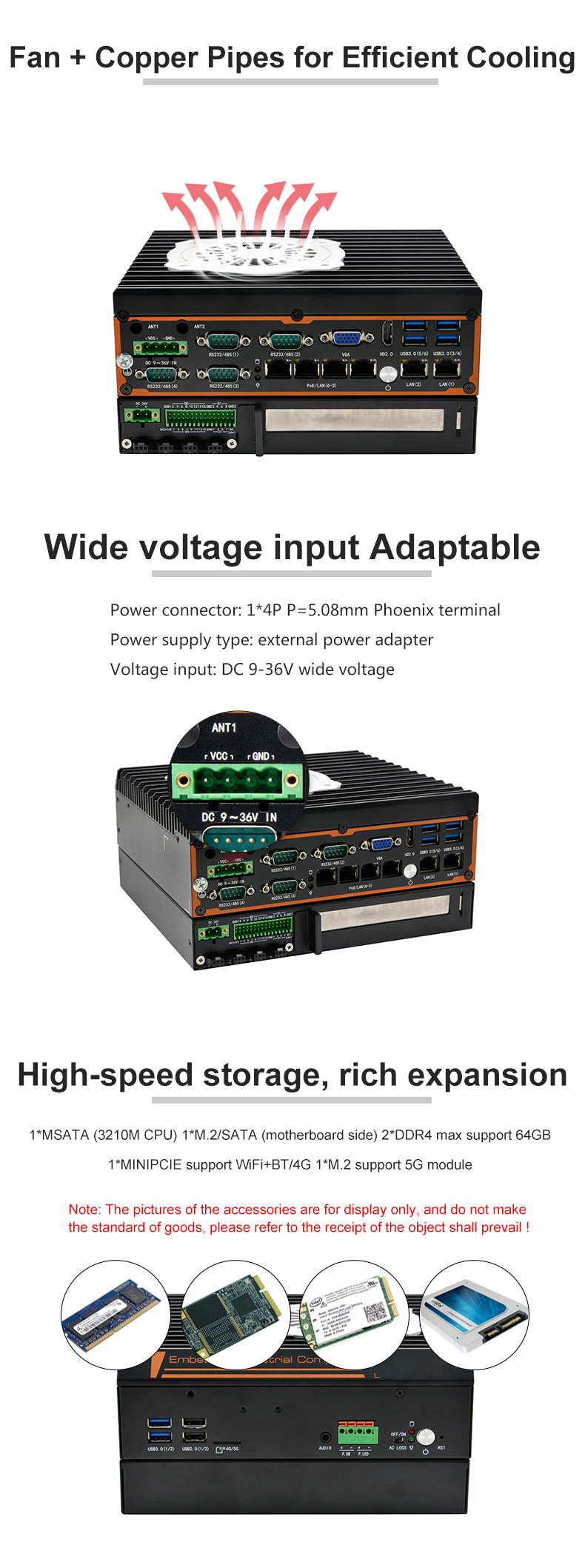

Power   Interface

1*4P(P=5.08mm)   Phoenix terminal, support 9~36V wide voltage input, max load 220W

Storage

MSATA/SSD

1*MSATA(only   supported by 3210M CPU)

1*M.2,   support Key-M, 2280. NVME PCIEx4/SATA Adaptive SSD(except 3210M,other CPU is   M.2)

SSD

1*M.2,   support Key-M, 2280, SATA SSD

Expansion

PCIE

1*PCIE3.0   x8

WiFi/4G

1*MINIPCIE,   support WiFi+BT or 4G

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   Type

DC 9-36V   90W or more, max load 220W

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random

1

G3260F-L6G4 V2.0(3210M)

I5-3210M/2.5G

2*SODDR3

GL320

HM77

MSATA+M.2(SATA)

GL730-L6 /G370-PW/GL730-GY4

6*I210

4

8/16

4-way

3

6

DC 9-36V

2

G3260F-L6G4 V2.0(7300HQ)

I5-7300HQ/2.5G

2*SODDR4

GL730

H270

M.2+M.2(SATA)

GL730-L6 /G370-PW/GL730-GY4

6*I210

4

8/16

4-way

3

6

DC 9-36V

3

G3260F-L6G4 V2.0(7820HK)

I7-7820HK/2.9G

2*SODDR4

GL730

H270

M.2+M.2(SATA)

GL730-L6 /G370-PW/GL730-GY4

6*I210

4

8/16

4-way

3

6

DC 9-36V

4

G3260F-L6G4 V2.0(8300H)

I5-8300H/2.3G

2*SODDR4

GL830

HM370

M.2+M.2(SATA)

GL730-L6 /G370-PW/GL730-GY4

6*I210

4

8/16

4-way

3

6

DC 9-36V

5

G3260F-L6G4 V2.0(12450H)

I5-12450H/up   to 3.3G

2*SODDR4

GL120H

/

M.2+M.2(SATA)

GL730-L6 /G370-PW/GL730-GY4

6*I210

4

8/16

4-way

3

6

DC 9-36V
