P6750F-D2

Chassis

Material/structure

Aluminium   alloy + sheet metal, fan cooling

Colour

Black

Dimensions   (LWH)

188*164.7*53.4mm

Weight   (bare net weight)

1.6KG

Installation

Desktop/Wall-mount/DIN   rail (35mm)

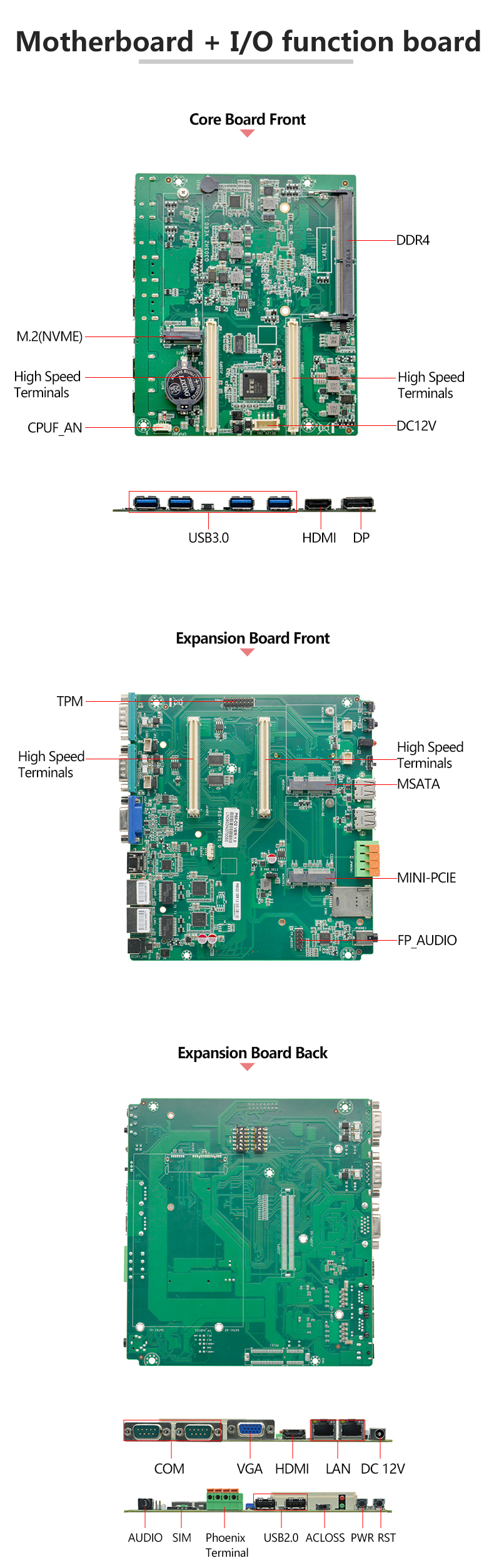

Motherboard

CPU

Intel®i5-1235U/1.3GHz,   Turbo 4.4GHz, 10-core, 12-thread processor, TDP 15W

Display

Intel®Iris   Xe Graphics eligible

Memory

2*SODDR4   3200MHz , supports up to 64GB

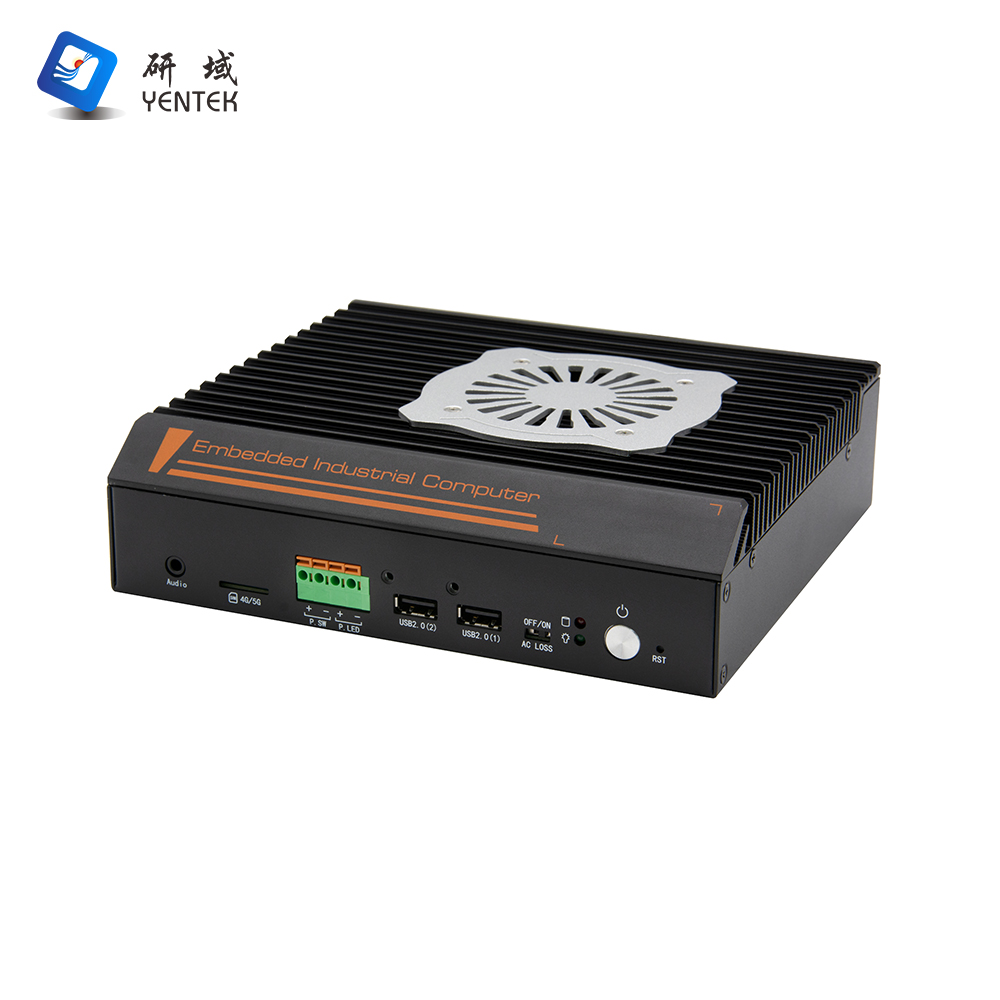

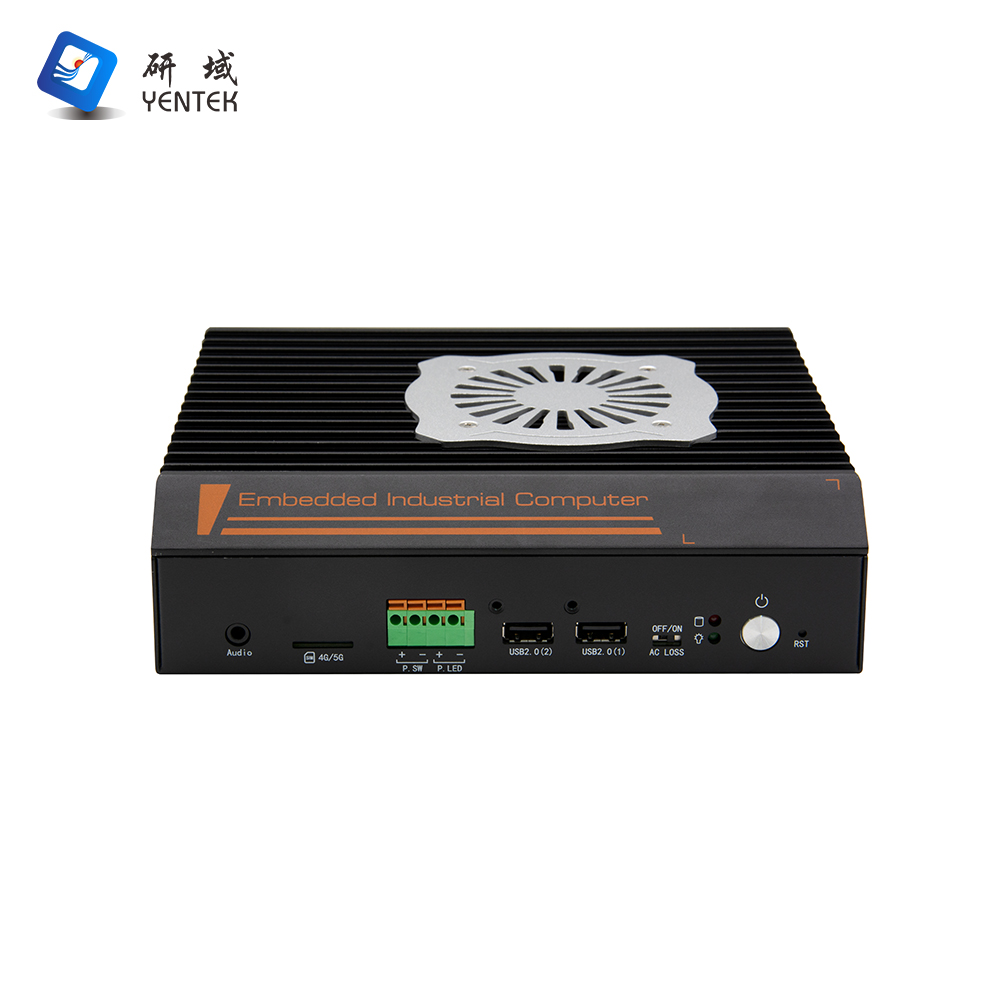

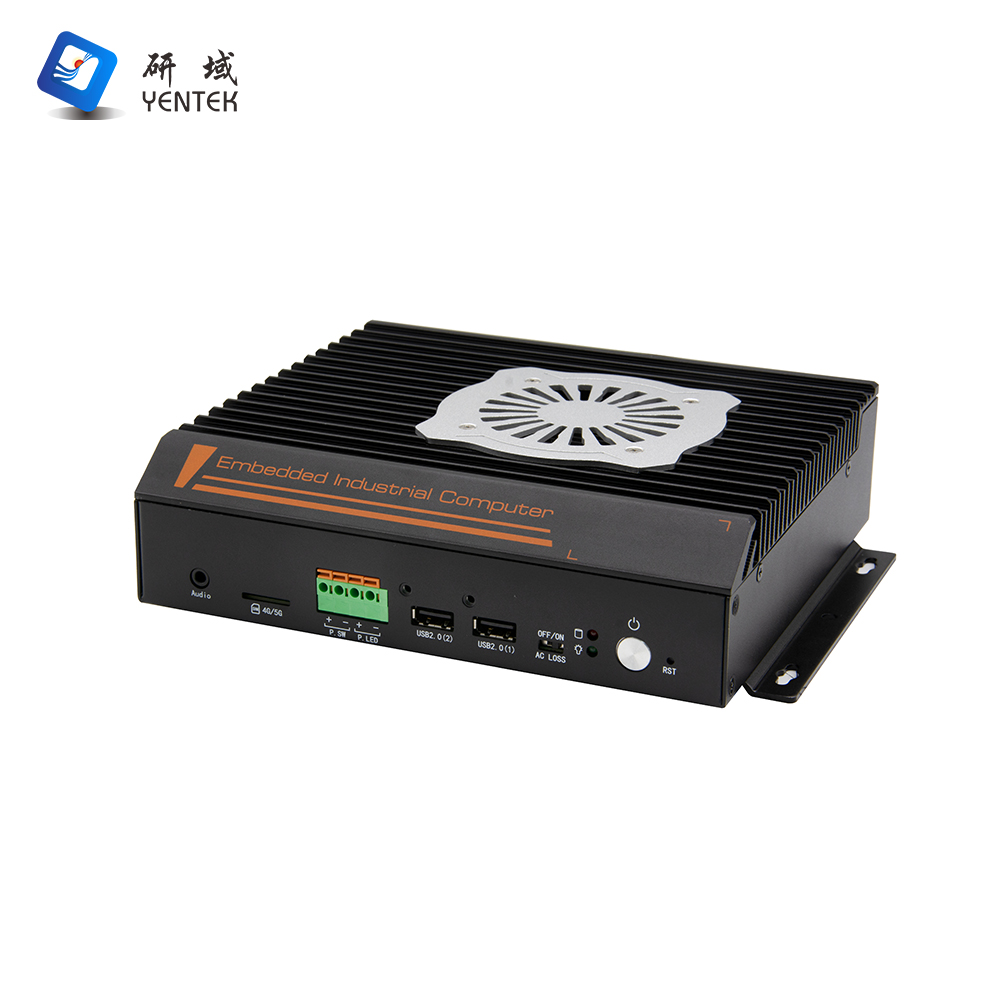

Front   Panel Connectors

Switches

1*Boot   Button, 1*One Touch Restore, 1*ACLOSS (Power On and Off DIP Switch)

LED

1*Power   Indicator, 1*Hard Disk Indicator

USB

2*USB2.0

Audio

1*Audio,   Line out&Mic 2-in-1

Remote   switches

1*Boot   Signal, 1*Power Indicator Signal (located on the 1* 4P Phoenix terminal)

SIM

1*SIM   standard card slot

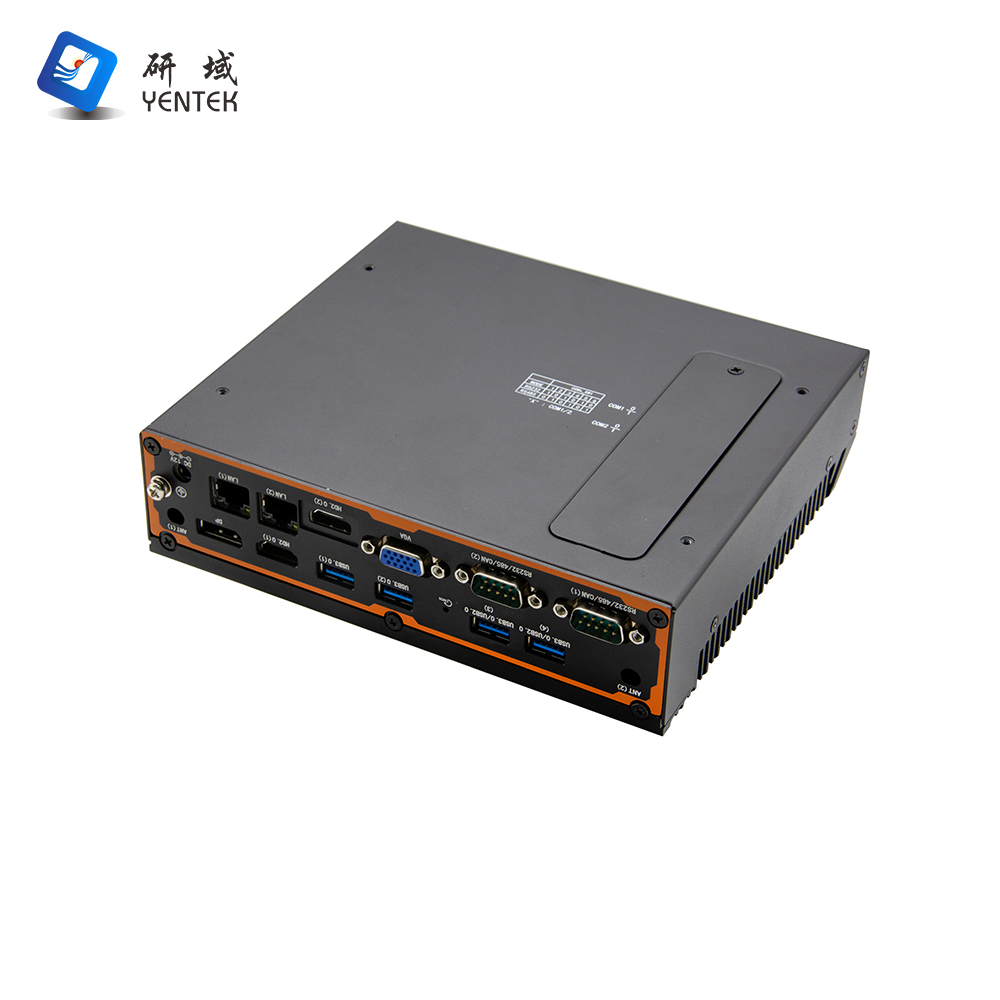

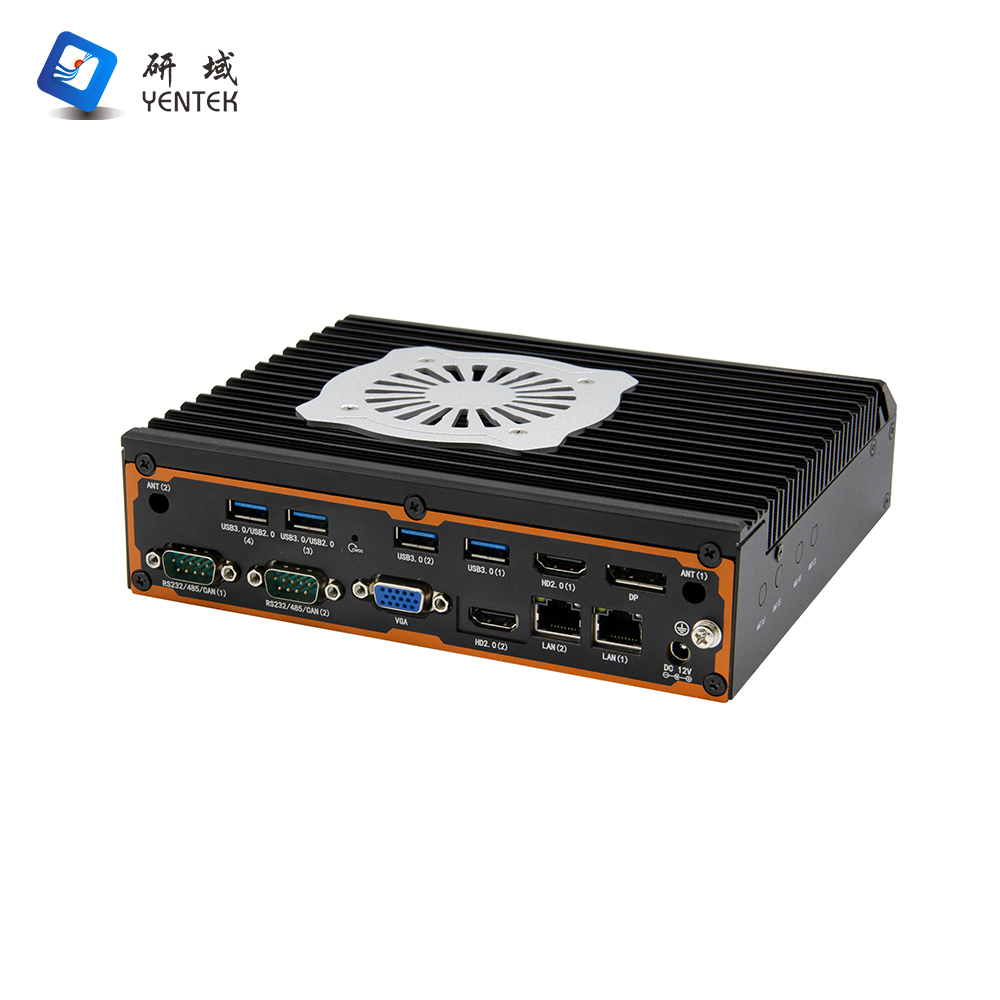

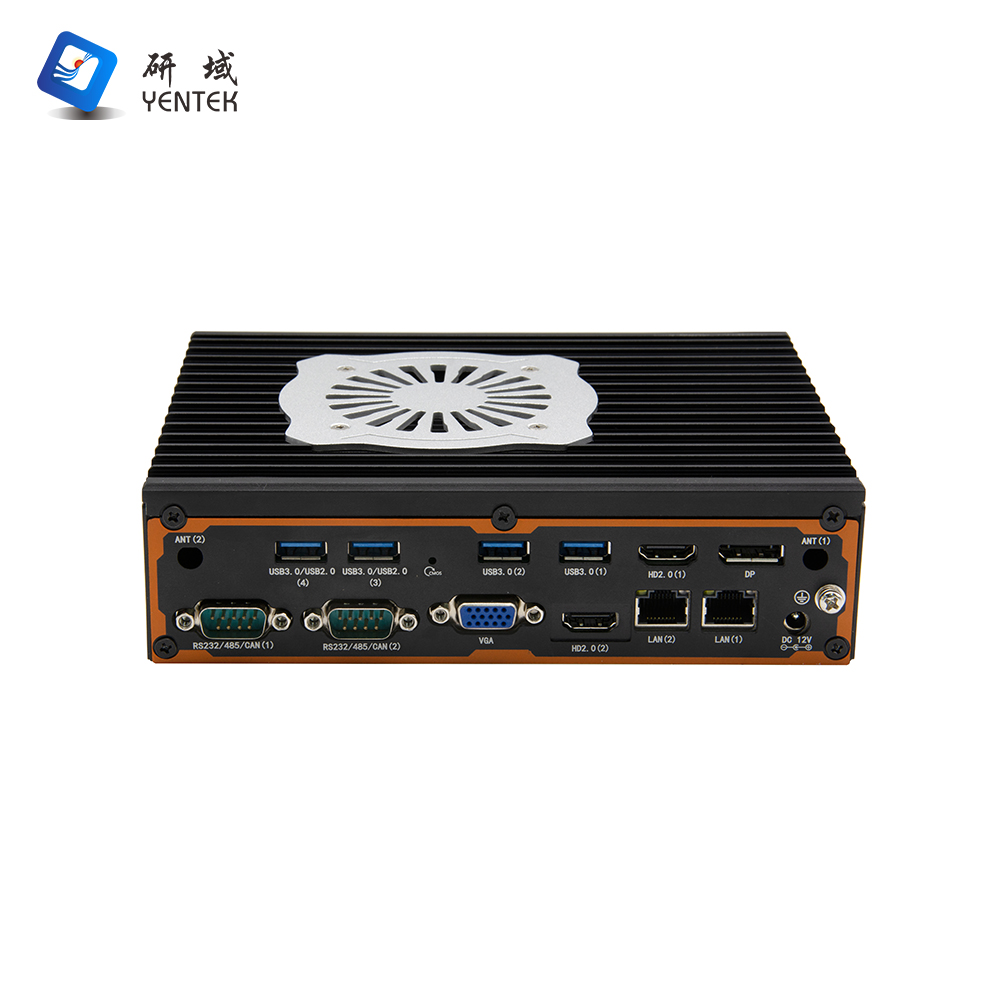

Rear   Panel Interface

Switches

1*CMOS   restore button

Display   interfaces

2*HDMI2.0(4096*2304@60Hz),   1*DP1.4(4096*2304@60Hz), 1*VGA, support quad-display

COM

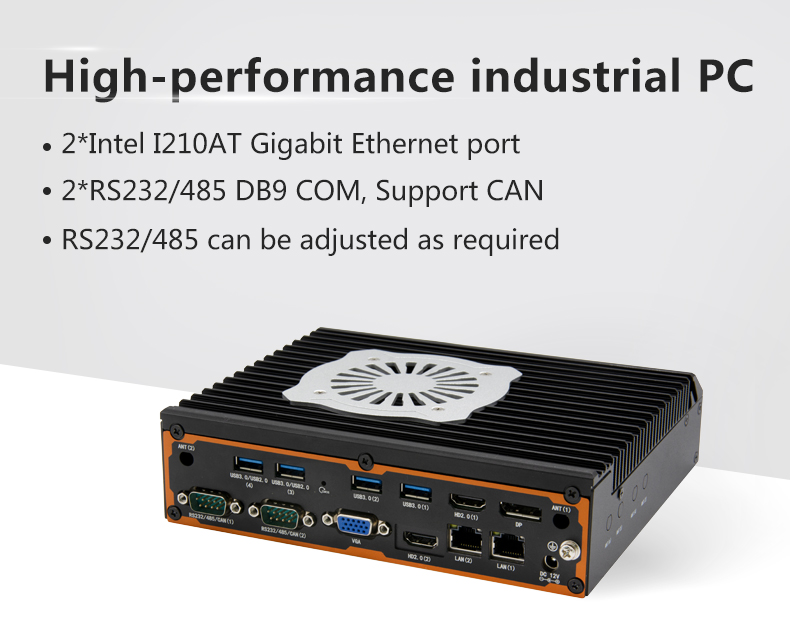

2*RS232/485   DB9 Serial port; COM1~2 can support CAN (need to load CAN module)

LAN

2* Intel   I210AT Gigabit power port

USB

4*USB3.0(USB3.0   quantity depends on motherboard)

DIP   switches

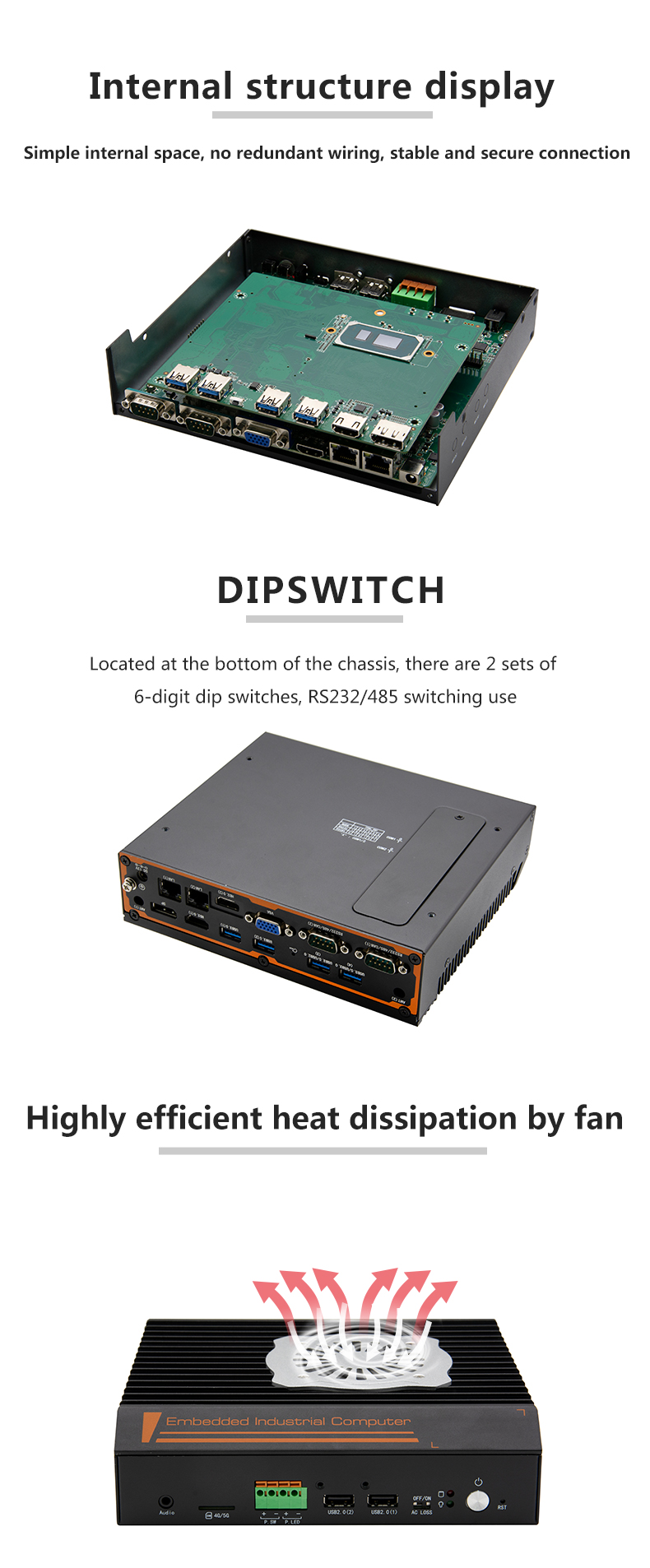

2 sets of   6-position dip switches, RS232/485 switching use (dip switches are located at   the bottom of the chassis)

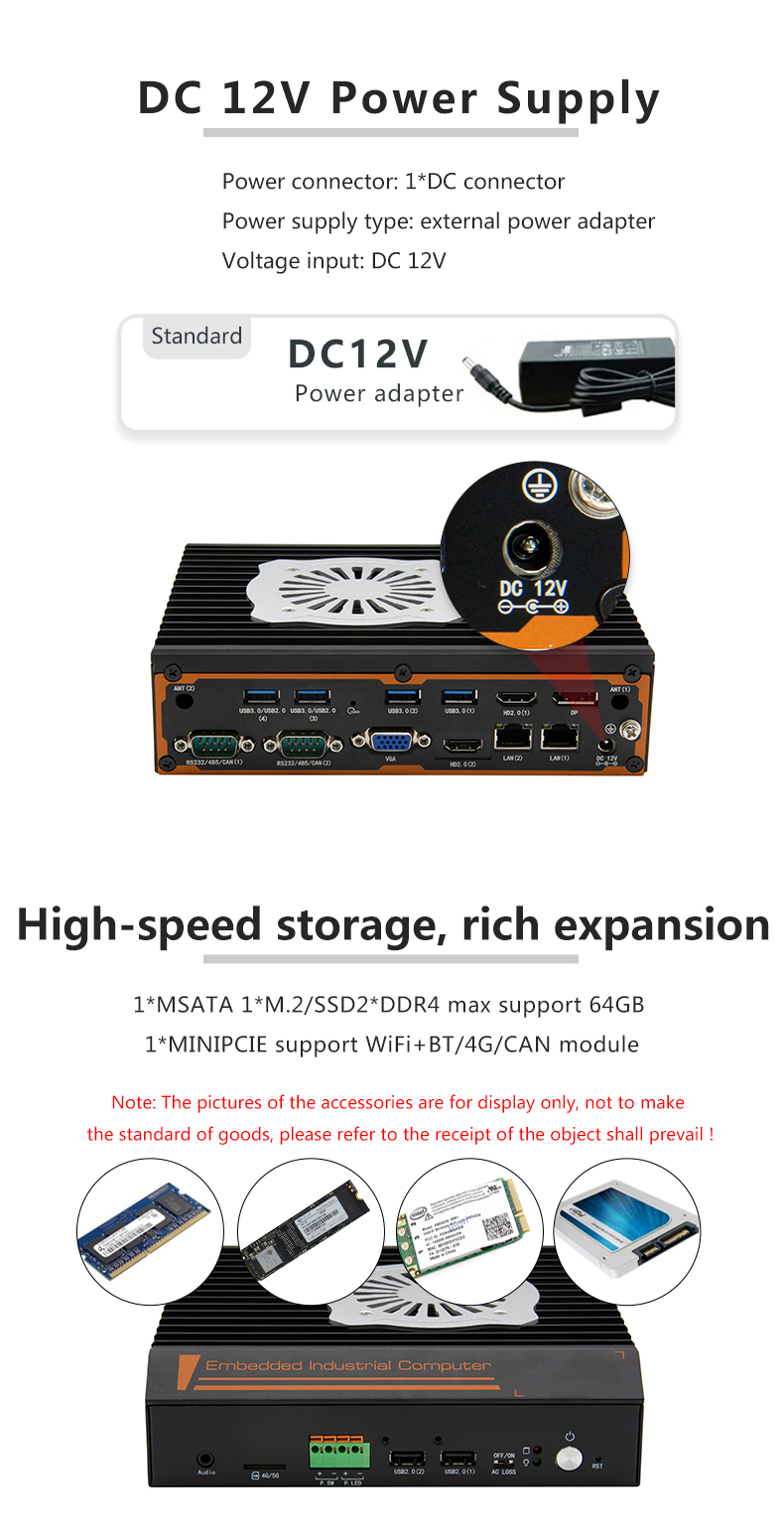

Power supply   interfaces

1*DC   12V(5.5*2.5)

Storage

MSATA

1*MSATA

SSD

1*M.2,   support Key-M, 2280, NVME PCIE x4 SSD

Expansion

4G/WiFi

1*   MINIPCIE, support WiFi+BT or 4G module or CAN module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   supply type

DC 12V

Power   output

AC TO DC   60W (depending on specific device)

Environment

Operating   temperature

-10℃～50℃

Storage   temperature

-20℃～70℃

Relative   humidity

5%-95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random

1

P6750F-D2 V2.0(1135G7)

I5-1135G7/2.4G

Q112HD1

2*SODDR4

P68-D2

mSATA+M.2(NVME)

2*I210

2

2

2

4

 DC   12V

2

P6750F-D2 V2.0(1195G7)

I7-1195G7/2.7G

Q112HD1

2*SODDR4

P68-D2

mSATA+M.2(NVME)

2*I210

2

2

2

4

DC 12V

3

P6750F-D2 V2.0(1235U)

I5-1235U/1.3G

Q122HD1

2*SODDR4

P68-D2

mSATA+M.2(NVME)

2*I210

2

2

2

4

DC 12V

4

P6750F-D2 V2.0(1255U)

I7-1255U/1.7G

Q122HD1

2*SODDR4

P68-D2

mSATA+M.2(NVME)

2*I210

2

2

2

4

DC 12V
