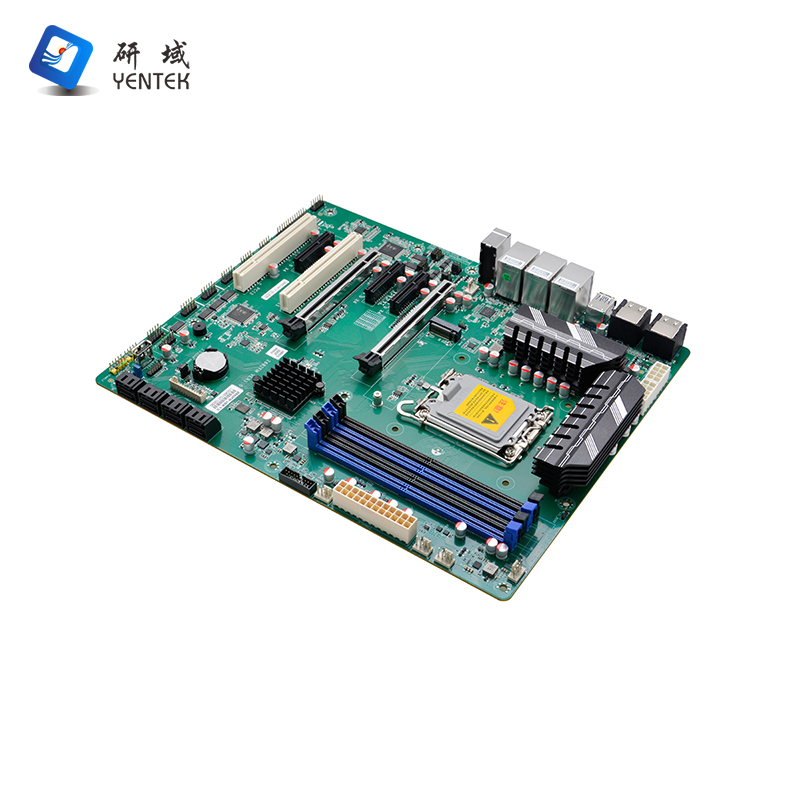

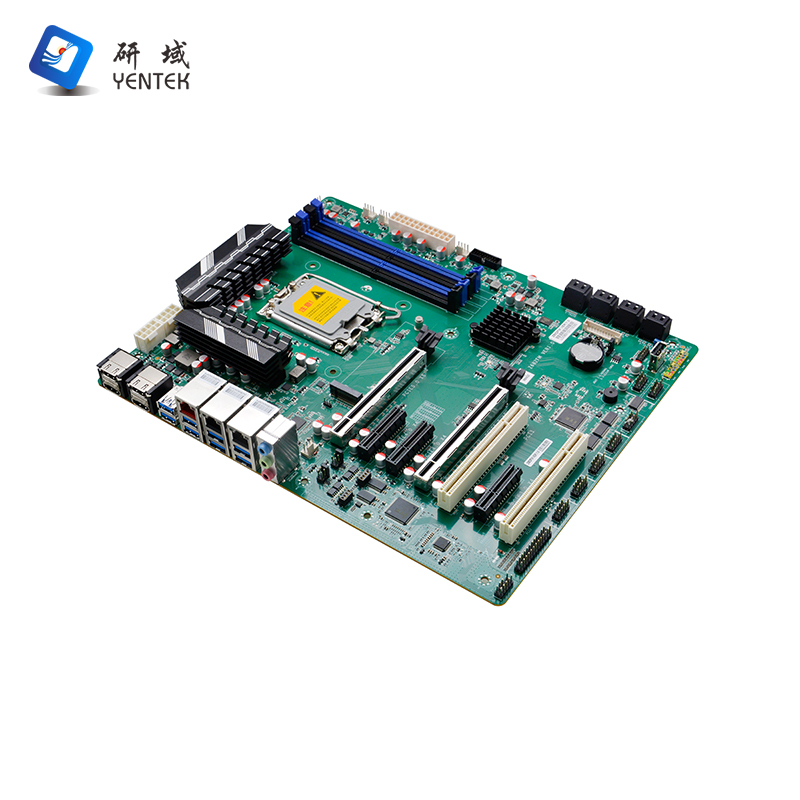

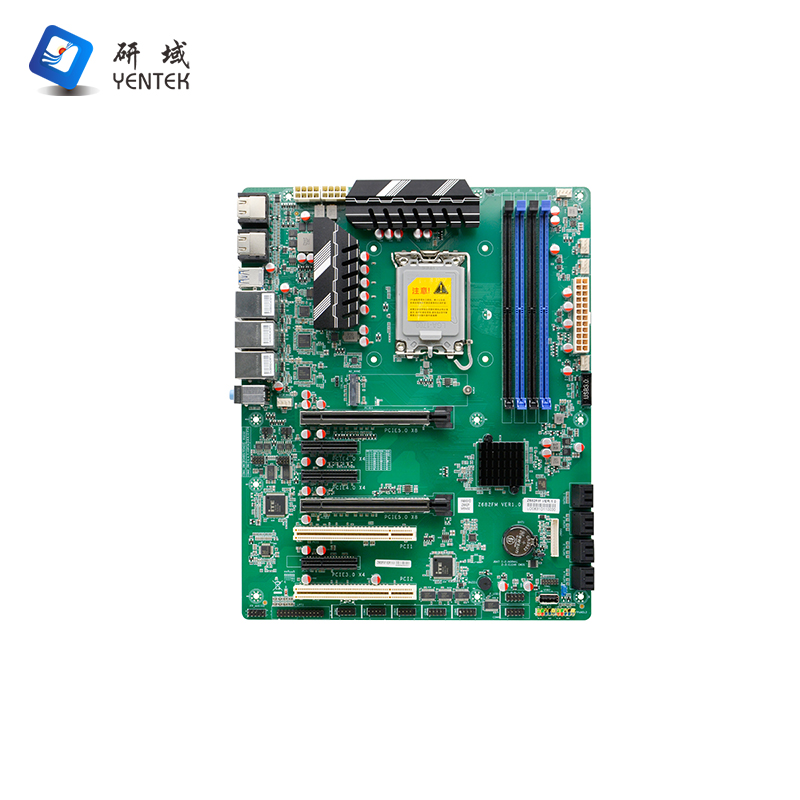

Z682FM

Processor

Supports LGA1700 12th/13th/14th generation Intel®   Core™ i3/i5/i7/i9 and Xeon processors

Chipset

Features Intel® W680 chipset

Memory

4x DDR5 DIMM memory slots, supporting dual-channel memory up   to 5600MHz, maximum capacity 128GB, ECC memory supported

Display

Integrated Intel® HD Graphics core graphics supporting   DirectX 12.1, OpenGL 4.5, and 4K display

1x VGA port, maximum supported resolution 1920x1200 @ 60Hz

4x HDMI 1.4 ports, supporting maximum resolution 4096x2160   @24Hz

Network

2x Intel® I210AT Gigabit Ethernet controller, supporting   Wake-on-LAN/PXE functionality

1x Intel® I226LM Gigabit Ethernet controller, supporting Wake-on-LAN/PXE   functionality/VPRO functionality

Storage

8x SATA 3.0 hard drive interfaces, transfer speeds up to   6Gbps, supporting RAID 0, 1, 5, 10

1x M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4   specification SSD

Audio

Onboard ALC897 7.1+2-channel high-fidelity audio controller,   supporting MIC/Line-out/Line-in

Expansion Slots

2x PCIe   5.0 x16 slots (these two PCIe x16 slots operate at x8 signal)

3x PCIe x4 slots, where PCIe 3/PCIe 4   are 4.0, PCIe 5 is 3.0

2x PCI slots

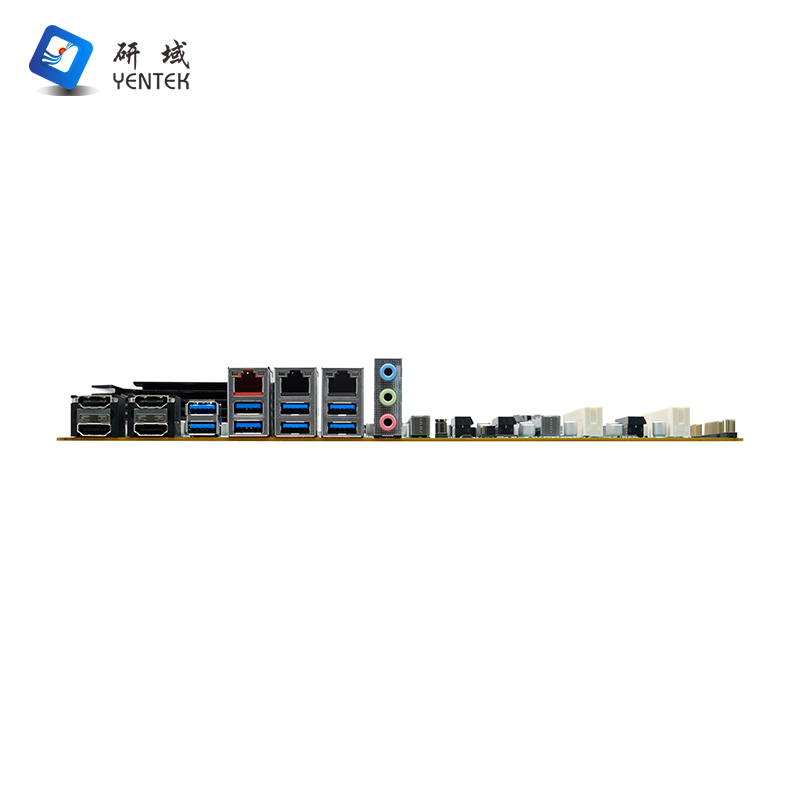

Rear Panel I/O Ports

4x HDMI 1.4 ports

8x USB 3.0 ports, supporting 2A current per port

3x RJ-45 Gigabit Ethernet ports

1* Triple-layer audio interface supporting   LINE-OUT/MIC/LINE-IN

Built-in I/O Ports

2* USB 2.0 ports (2x5-pin)

1* Vertical USB 2.0 port

1* VGA header (1x12-pin)

2* USB 3.0 ports (2x10-pin)

1* Front panel audio connectors (2x5-pin)

2* Front panel function buttons and indicator ports (2x5-pin)

1x 24-pin ATX power connector 2x 8-pin ATX power connectors

1x TPM interface 2x6-pin

6x RS232 serial ports, 2x5-pin, COM1/2 supports RS485/422

1x LPT port 2x13-pin

Fan Connectors

1x4-pin CPU fan connector; 4×4-pin system fan connectors

BIOS

128MB Flash ROM

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Powered via ATX 24-pin and 8-pin connectors

Operating Temperature

-20°C to 50°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

305mm x 245mm
