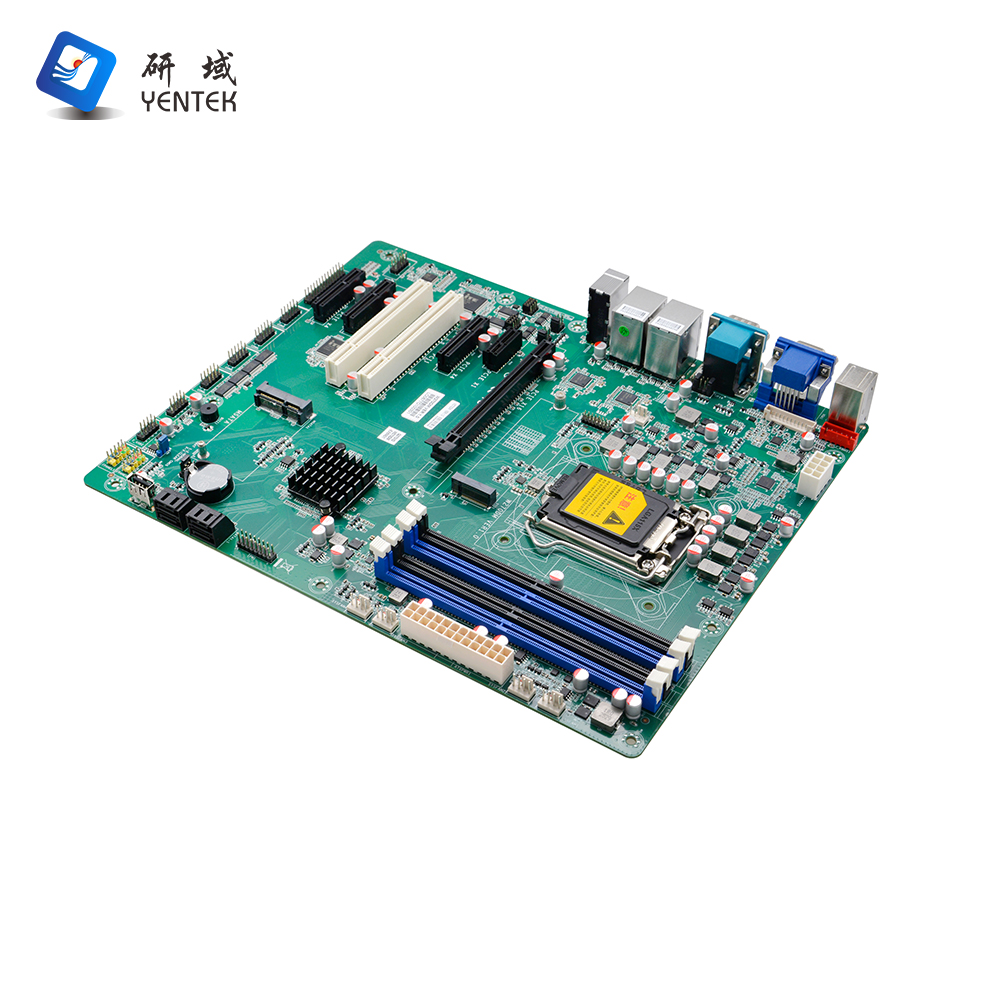

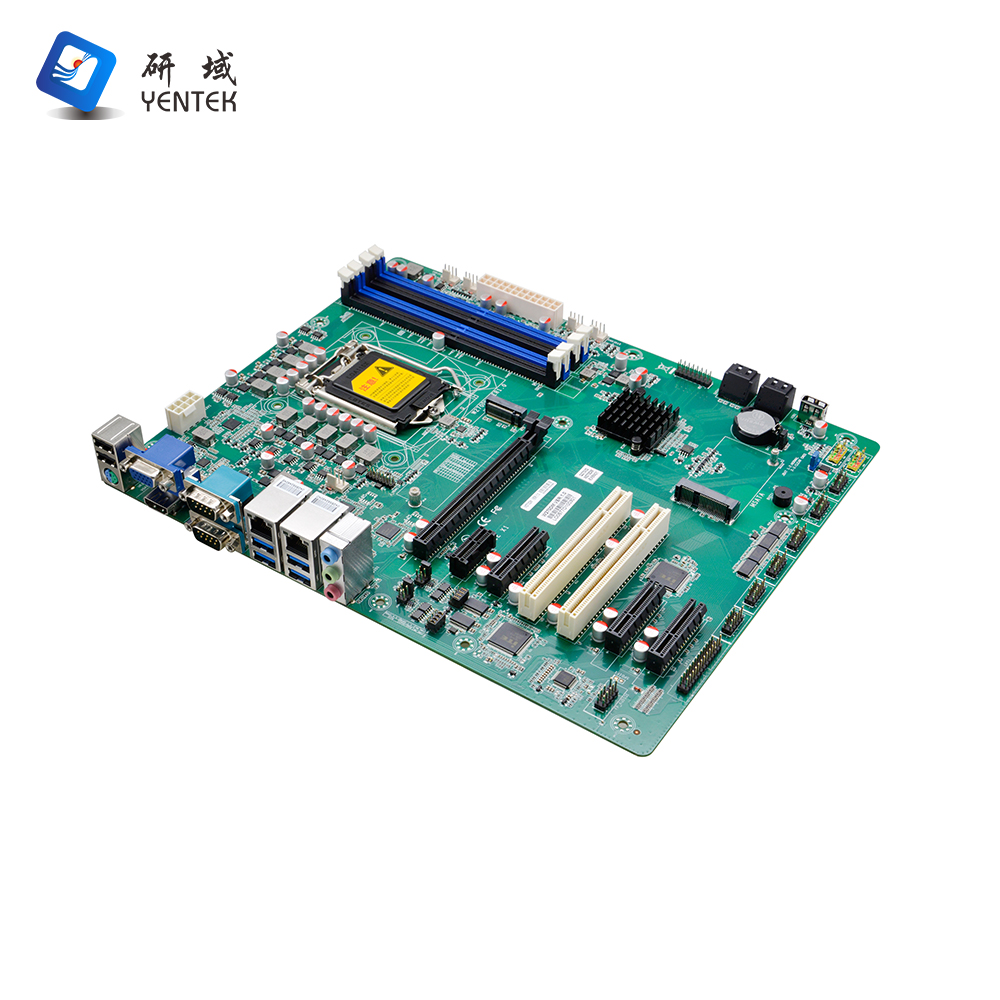

W270DM

Processor

Supports 6th/7th/8th/9th generation   Celeron/Pentium/Core i3/i5/i7 processors with LGA1151 architecture

Note: Supports 6th/7th/8th/9th   generation 95W CPU

Chipset

Intel Q270 high-speed chipset

Memory

4x   DDR4 DIMM memory slots, supporting dual-channel 2666MHz memory, maximum   capacity 128GB

Display

Integrated Intel® HD Graphics controller, featuring 1x VGA   port and 2x HDMI 1.4 ports

Supports single display, dual display, and extended display   modes

Network

2x Intel I210AT   Gigabit Ethernet controllers, supporting Wake-on-LAN and PXE functionality

Storage

4x SATA 3.0 hard drive interfaces,   delivering SATA transfer speeds up to 6Gbps, supporting RAID 0, 1, 5, 10

1x mSATA interface supporting Intel   protocol SSDs with transfer rates up to 6Gbps

1x M.2 slot supporting M.2 2280 NVMe   PCIe x1/SATA specification SSD

Audio

Onboard   ALC897 7.1+2 high-fidelity audio controller supporting Mic, Line Out, Line In

Expansion Slots

1x   PCIe 3.0 x16

3x   PCIe 3.0 x4

1x   PCIe 3.0 x1

2x   PCI slots

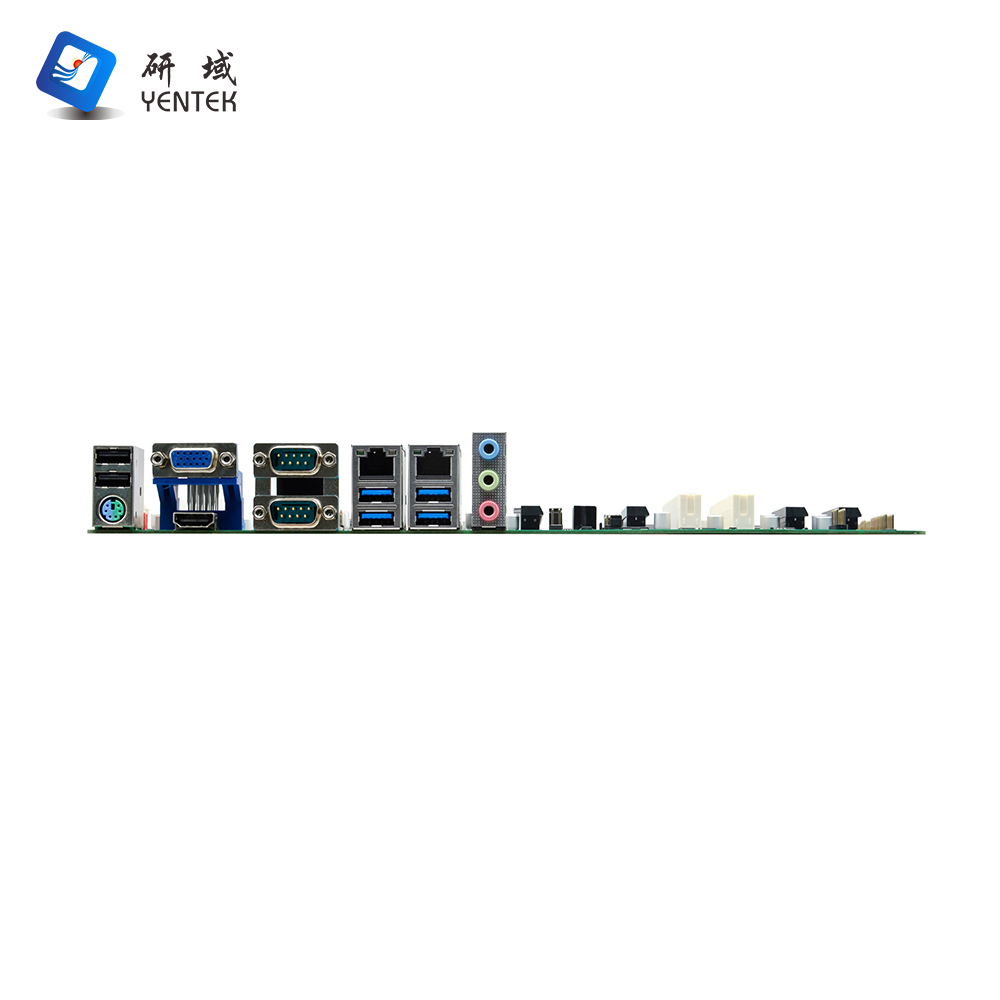

Rear Panel I/O Ports

1x   PS/2 keyboard/mouse port

1x   VGA display port

1x   HDMI display port

2x RS232 serial ports (COM1/2 support   5V/12V power supply, COM1/2 support RS485/422 functionality)

2*   RJ45 Gigabit Ethernet ports

2*   USB 2.0 ports

4*   USB 3.0 ports, supporting 2A current per port

1*   Line out port (green), 1* Mic port (red), 1* Line-in (blue)

Built-in I/O Ports

1*   PS/2 keyboard/mouse port 1* 6-pin header with same signal as UK1

1x JVGA   interface 1x 12-pin header, same signal as external VGA

1x   HDMI interface 2x 8-pin headers

4x   RS232 serial ports 2x 5-pin headers

1x   Front audio interface 2x 5-pin headers

4x   USB 2.0 ports 2x 5-pin headers

1x   USB 2.0 port USB Type-A

1*   TPM interface 2*8-pin header

2*   Front panel function button and indicator interface 2*5-pin header

1*   LPT 2*13-pin header (default printer port, configurable as GPIO requiring   BIOS flashing for GPIO configuration)

1*   24-pin ATX power input connector

1*   8-pin ATX power input connector

Fan Connectors

1×4-pin CPU intelligent fan interface,   4×4-pin system intelligent fan interfaces

BIOS

64MB Flash ROM

Operating System

Windows 7 / 10 /   Linux

Watchdog

Supports hardware   reset function (256 levels, 0–255 seconds)

Power Supply Type

ATX power input

Operating Temperature

0°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative   humidity, non-condensing

Dimensions

305mm x 245mm(ATX)

1

W270DM VER:1.0

LGA1151

Q270

4*DDR4

1

2

2*I210AT

11

6

2

ATX
