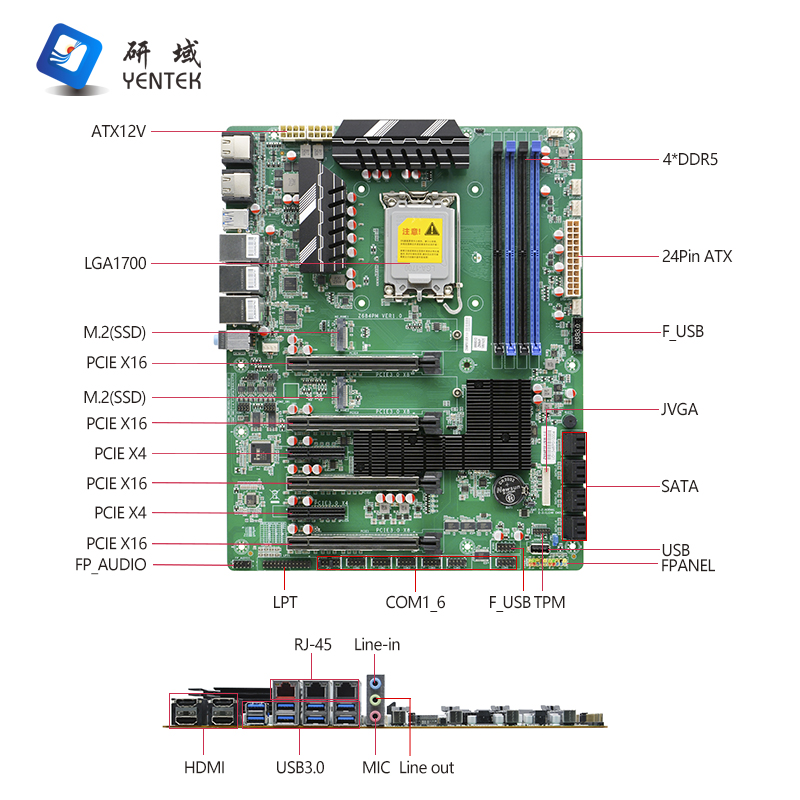

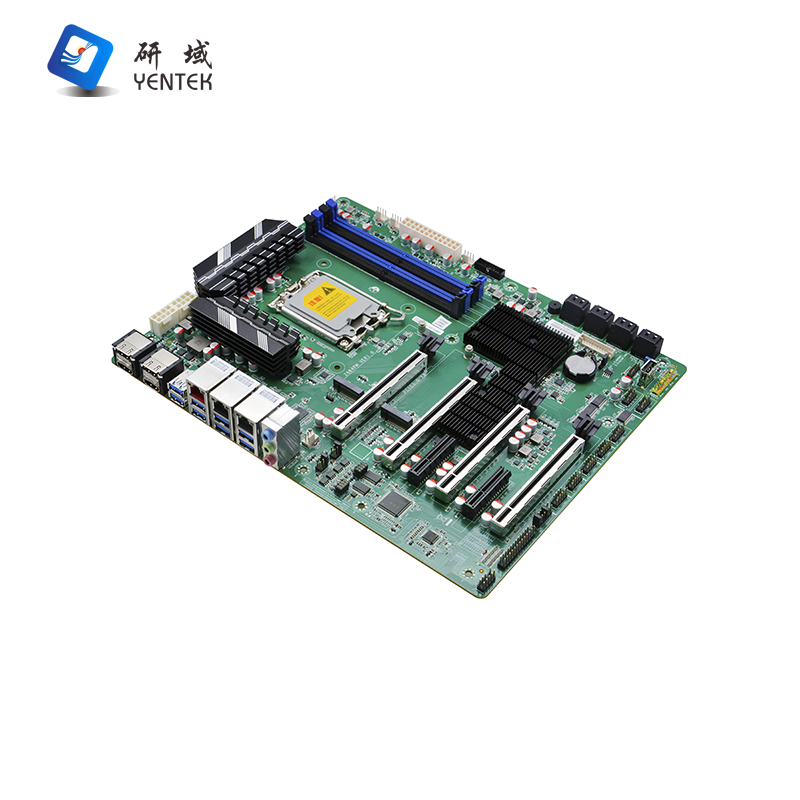

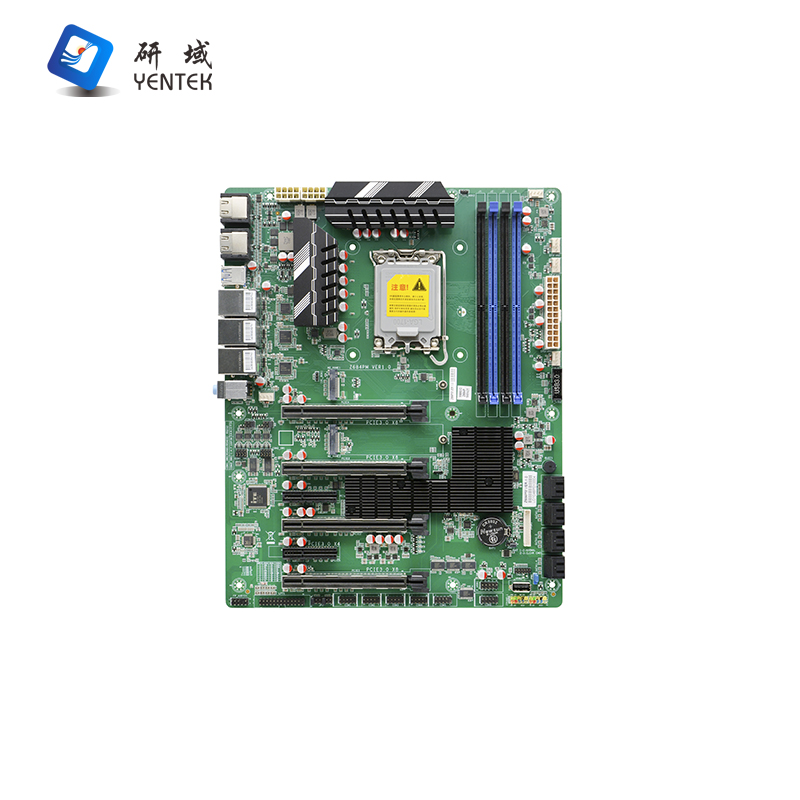

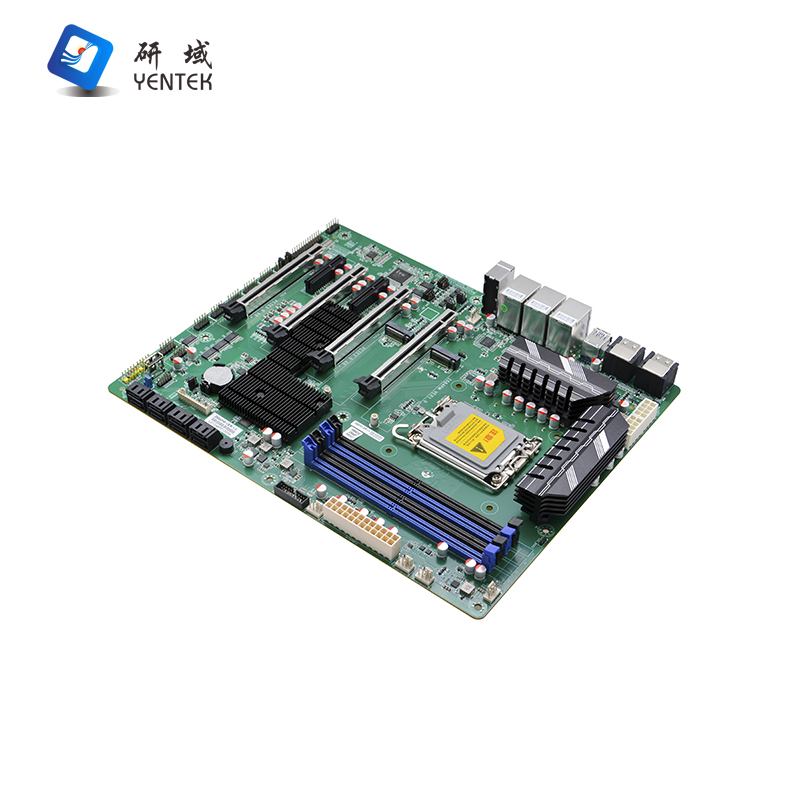

Z684PM VER:1.0 | |
Processor | Supports LGA1700 12th/13th/14th Gen Intel® Core™ i3/i5/i7/i9 and Xeon processors |
Chipset | Features Intel® W680 chipset |
Memory | 4* DDR5 DIMM memory slots, supports dual-channel memory up to 5600MHz, maximum capacity 128GB, ECC memory support |
Display | Integrated Intel® HD Graphics supporting DirectX 12.1, OpenGL 4.5, and 4K display |
1x VGA port supporting up to 1920x1080@60Hz resolution | |
4x HDMI 1.4 ports supporting up to 4096x2160@24Hz resolution | |
Network | 2x Intel® I210AT 1GbE network controller chips, supporting Wake-on-LAN/PXE functionality |
1x Intel® I226LM 2.5GbE network controller chip, supporting Wake-on-LAN/PXE/VPRO functionality | |
Storage | 8x SATA 3.0 hard drive interfaces, transfer speeds up to 6Gbps, supporting RAID 0, 1, 5, 10 |
2* M.2 slots supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 SSDs, supporting RAID 0,1 | |
Audio | Onboard ALC897 7.1+2-channel high-fidelity audio controller supporting MIC/Line-out/Line-in |
Expansion Slots | 4* PCIe 3.0 x16 slots (actual x8 signal) |
2x PCIe 4.0 x4 slots | |

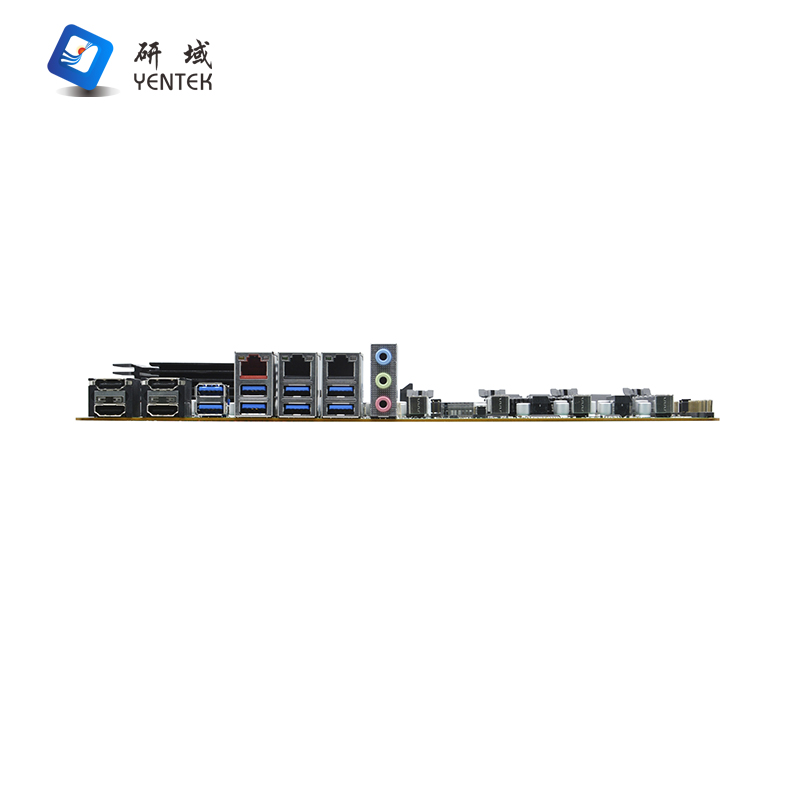

Back Panel I/O Ports | 4* HDMI1.4 ports |
8x Type-A USB 3.0 ports, supporting 2A current per port | |
3x RJ-45 Gigabit Ethernet ports | |
1* Triple-layer audio connector supporting LINE-OUT/MIC/LINE-IN | |
Built-in I/O Ports | 2* USB 2.0 connectors (2x5-pin, PH=2.54mm) |
2* USB 3.0 connectors (2x10-pin, PH=2.0mm) | |
1* Vertical USB 2.0 connector | |
1* VGA header (1x12-pin, PH=2.0mm) | |
1* Front Panel Audio Interface (2x5-pin), PH=2.54mm | |
2* Front Panel Function Button and Indicator Interface (2x5-pin), PH=2.54mm | |
1* 24-pin ATX Power Connector，2* 8-pin ATX Power Connectors | |
1* TPM Interface (2x6-pin), PH=2.0mm | |
6x RS232 serial ports, 2x5-pin, PH=2.54mm, COM1/2 supports RS485/422 | |
1x LPT interface, 2x13-pin, PH=2.54mm | |
Fan Connectors | 1x 4-pin CPU fan connector; 4x 4-pin system fan connectors |
BIOS | 128MB Flash ROM |
Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
Operating System | Windows 10/Windows 11/Linux |
Power Supply Type | Powered by ATX 24-pin and 8-pin connectors |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -20°C to 70°C |
Operating Humidity | 5% to 95% relative humidity, non-condensing |

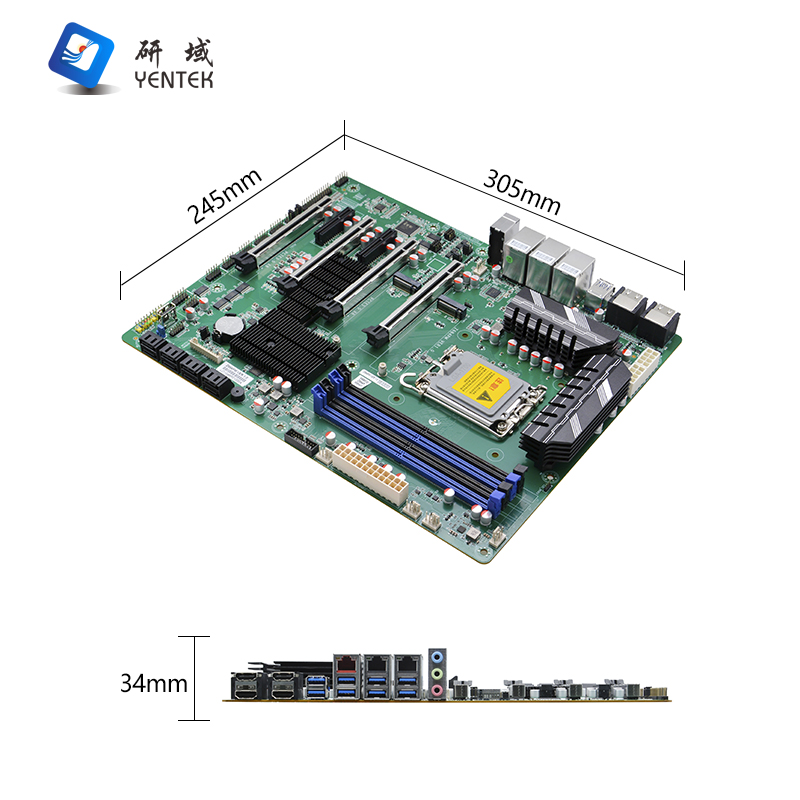

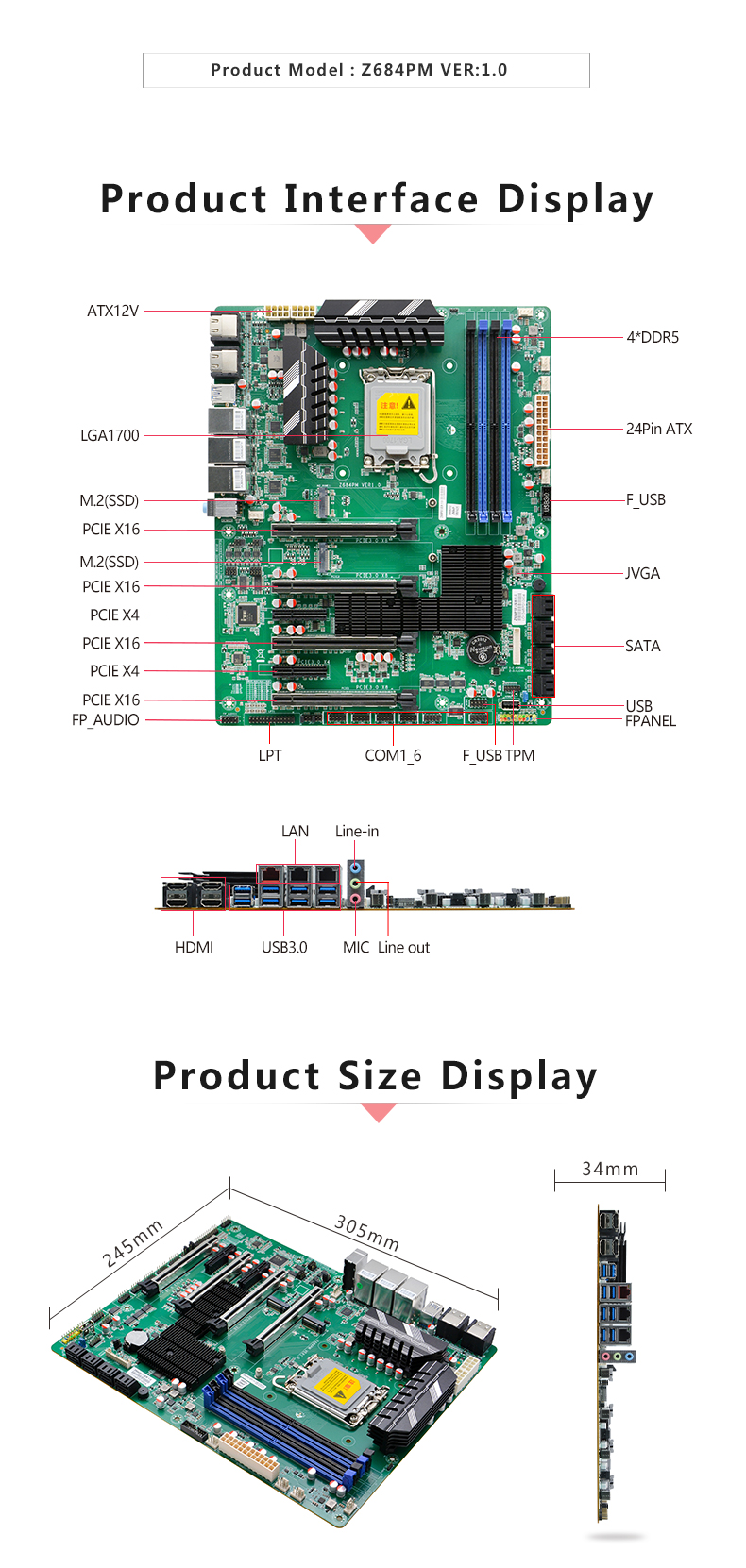

Dimensions | 305mm x 245mm |
Order information
No. | Model | Processor | Frequency | Southbridge | Memory | VGA | HDMI | DP | LAN | USB | COM | RS485/422 | Power |
1 | Z684PM VER:1.0 | LGA1700 | / | W680 | 4*DDR5 | 1 | 4 | / | 2*I210AT 1*I226LM | 13 | 6 | COM1/2 | ATX |
